Forensic Paint and Soil Analysis: Techniques and Evidence

What are the three main components of paint?

binder, pigment, vehicle

What is the purpose of a binder in paint?

It allows paint to be distributed across a surface.

What role does pigment play in paint?

It provides color to the surface and can be organic or inorganic.

What is the function of the vehicle in paint?

It forms a continuous film that binds the pigment to the surface (solvents, resins, additives)

- solvents evaporate after application

What are the four major categories of paint?

- Architectural: household paints

- product coatings: manufacturing process

- special-purpose: beyond protection and aesthetics

- Art: artistic, authentication, and forgery cases

What are the four layers of automotive paint?

- Pretreatment: zinc, provides corrosion resistance

- primer: corrosion resistance pigment and provide smooth surface for next layer

- basecoat: color

- clearcoat: UV-protection

What is the difference between paint chips and paint smears?

Paint chips are layers present and most important, while paint smears are the top layer from a sideswipe.

What types of evidence are collected in paint analysis in cars?

- damaged and undamaged area of car

- photographs

- using non metallic tools and NO tape lifts

What is the importance of using non-metallic tools in paint evidence collection?

To avoid contamination and preserve the integrity of the evidence.

physical properties in paint

Layer sequence

Thickness or ratio of layers

Color of layers

chemical properties of paint

solubility and composition

What is the significance of the layer sequence in paint analysis?

It can help establish a physical match between samples.

What is the focus of paint analysis in forensic science?

To compare known samples with unknown samples.

What is the purpose of using a stereomicroscope in paint analysis?

For visual examination of paint samples.

What instrumental methods are used in paint analysis?

- Infrared microspectrophotometry: organic components of each paint layer

- pyrolysis gas chromatography: whole paint chip, destructive

- microspec: color/UV of each paint layer

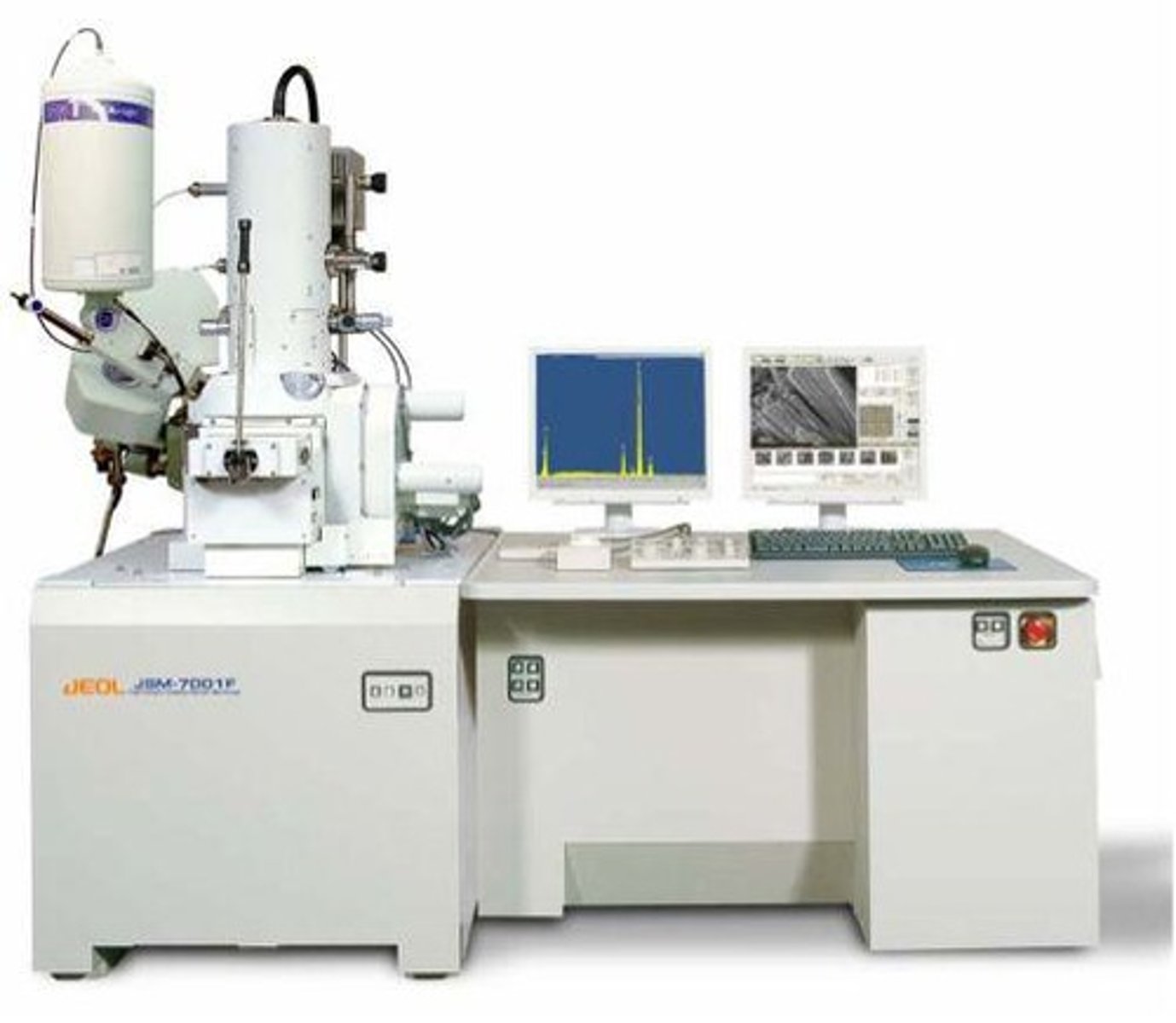

- scanning electron microscopy (SEM): elements in each paint layer

what type of analysis can be done on paint smear?

analyzing their physical and chemical properties—such as color, layer sequence, and composition—to match them to a source

- uses all analysis types

what type of analysis can be done on a paint chip?

analyzing their color (MSP), layer structure (IFMS), and chemical composition (SEM) to match them to a source

- uses all analysis types

What is the significance of the Munsell color chart in paint analysis?

It is used to determine the color of paint layers.

What is the purpose of collecting soil evidence?

To compare a known sample with an unknown source.

What are the two types of properties analyzed in soil analysis?

Physical properties and chemical properties.

What are common physical properties analyzed in soil?

Particle size, distribution, color, and mineral identification.

What are common chemical properties analyzed in soil?

- elements (SEM)

- organic (HPLC-UV-VIS and IF)

What does SEM/EDS stand for in soil analysis?

Scanning Electron Microscopy/Energy Dispersive X-ray Spectroscopy used to look at tiny particles and determine elemental composition

What is the role of HPLC in soil analysis?

It profiles organic substances found in soil

- useful for comparing known and unknown samples

- performed less frequently than physical analysis

What is the definition of class evidence in forensic science?

Evidence that can be associated with a group rather than a single source.

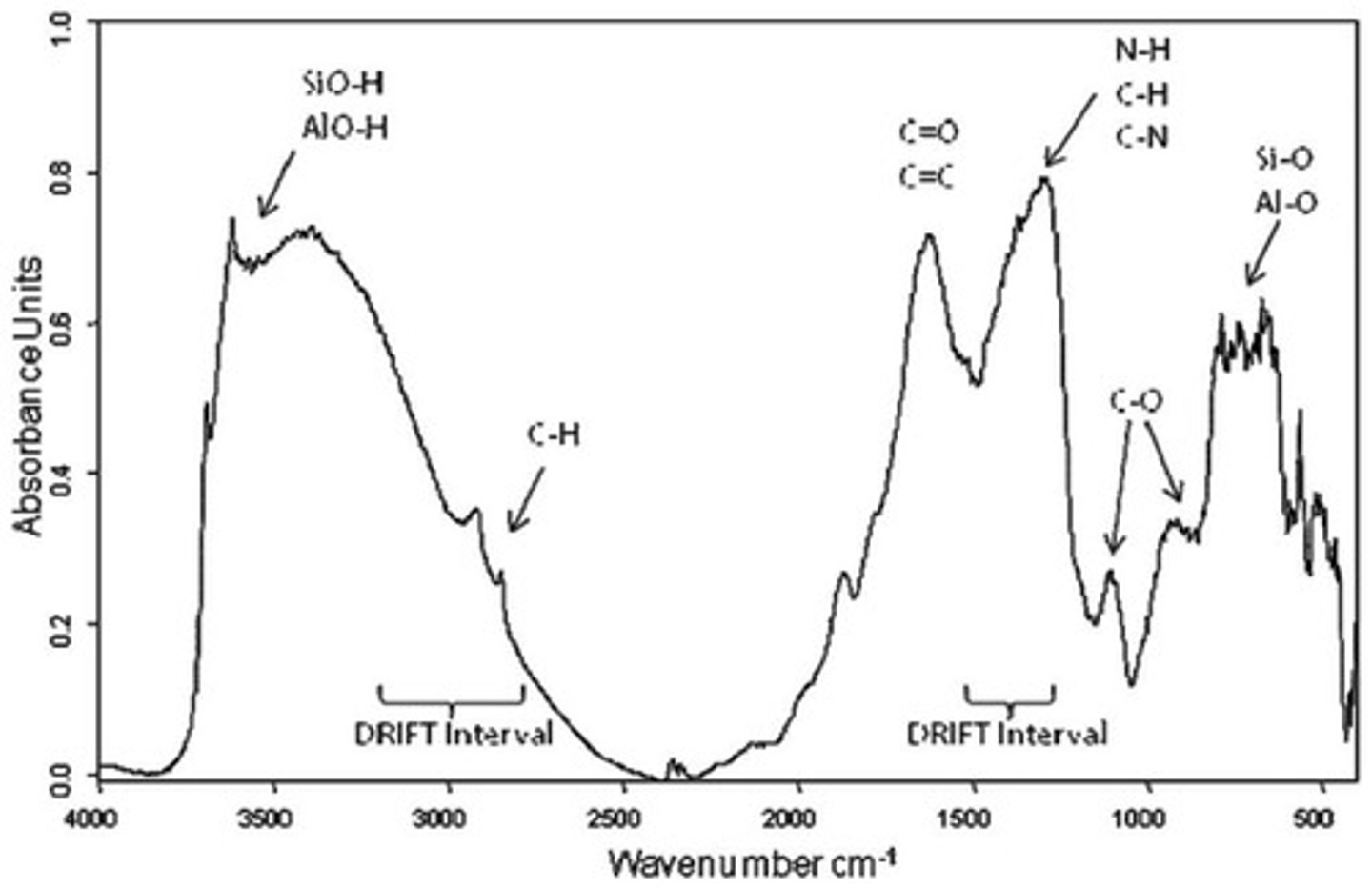

What is the purpose of using Fourier Transform Infrared spectroscopy in soil analysis?

To obtain spectra of organic and inorganic soil components.

What does the term 'homogenized soil' refer to?

Soil that has been mixed to ensure uniformity for analysis

- used as a representative sample when collecting evidence

What is humus and minerals in soil

- organic component of soil

- inorganic component of soil

soil evidence was instrumental in tracking suspect's car to point where body was dumped and after to where the car was destroyed

State of Colorado v. Walter Osborne

soil evidence showed that sexual activity between defendant and complainant most likely took place where defendant claimed

state of florida v. william k. smith

south dakaota v donald eugene moeller

death of dea agent: enrique camarena
