9 Terms

1
New cards

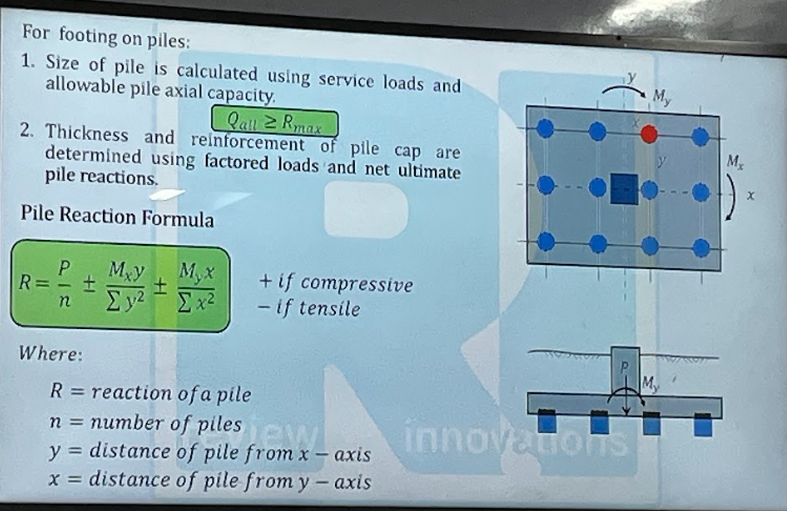

Pile Reaction Formula

knowt flashcard image
2
New cards

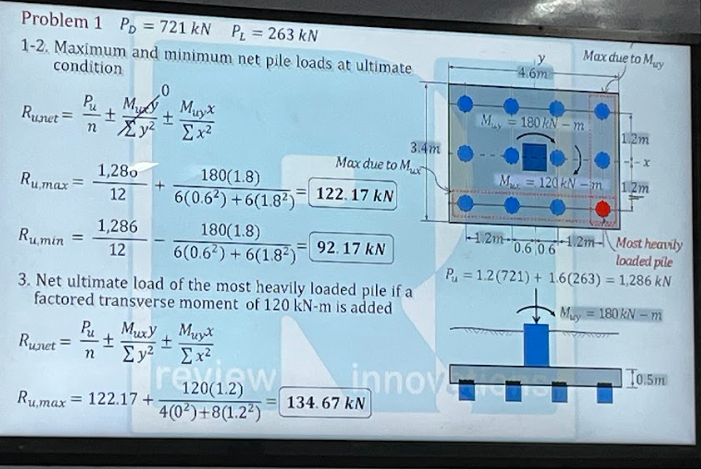

Most Heavily Loaded Pile

knowt flashcard image
3
New cards

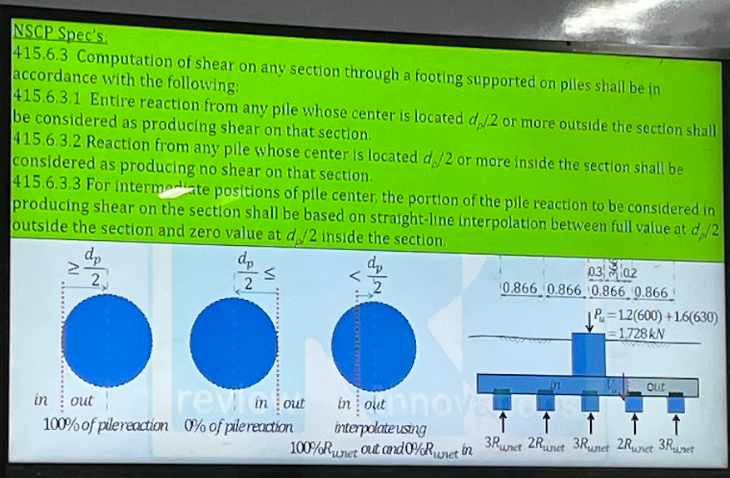

<p>Computation of Vu of Pile by calc</p>

Computation of Vu of Pile by calc

if sakto sa gitna, half lang

<p>if sakto sa gitna, half lang</p>
4
New cards

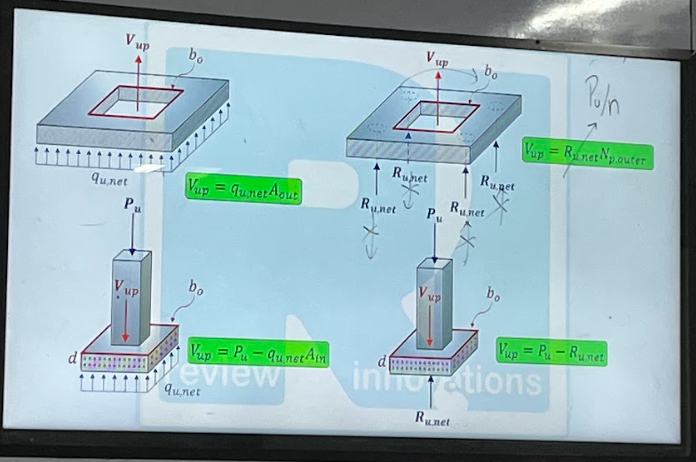

Vup of piles

consider outer tas bilangin ilang piles times react

<p>consider outer tas bilangin ilang piles times react</p>
5
New cards

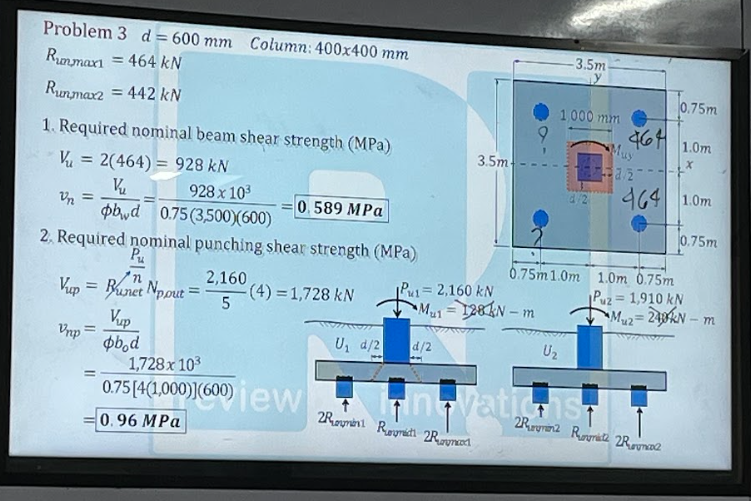

Vup if may moment

Consider only Pu dahil magcacancel out lang yung effect ng moment

<p>Consider only Pu dahil magcacancel out lang yung effect ng moment</p>
6
New cards

Vuw and Vup limits

knowt flashcard image
7
New cards

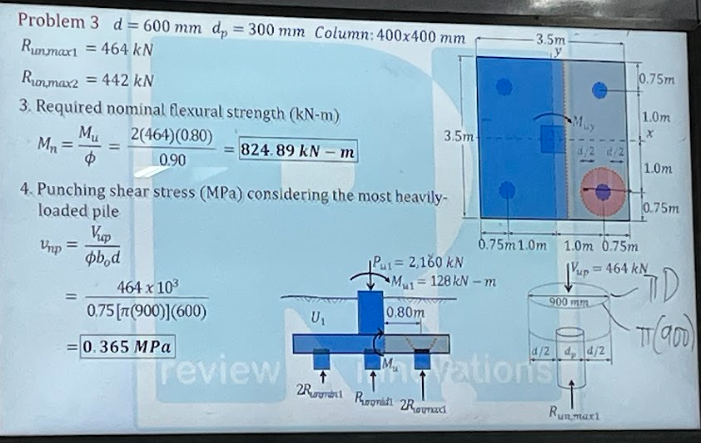

Punching Shear Stress of Most Heavily Loaded Pile

Check muna kung asa loob pa ng footing at distance d/2

<p>Check muna kung asa loob pa ng footing at distance d/2</p>
8
New cards

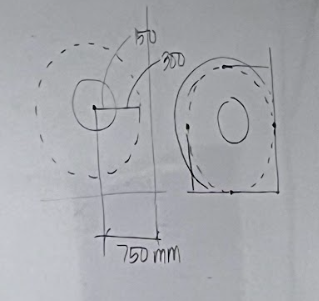

punching area of pile if nagtouch sa edge

consider yung rectangular, not yung curved, dahil mas maliit yung perimeter kapag straight (mas lalaki stress)

<p>consider yung rectangular, not yung curved, dahil mas maliit yung perimeter kapag straight (mas lalaki stress)</p><p></p>
9
New cards

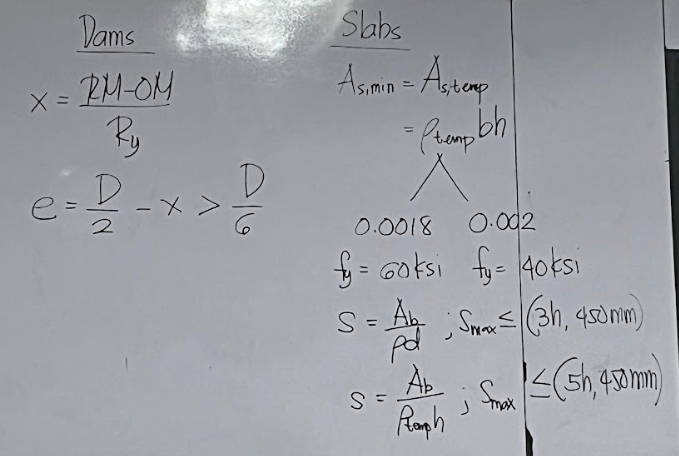

Design for spacing of bars on retaining walls

get asmin and use provision same as slabs

<p>get asmin and use provision same as slabs</p>
