Plumbing Chart (copy)

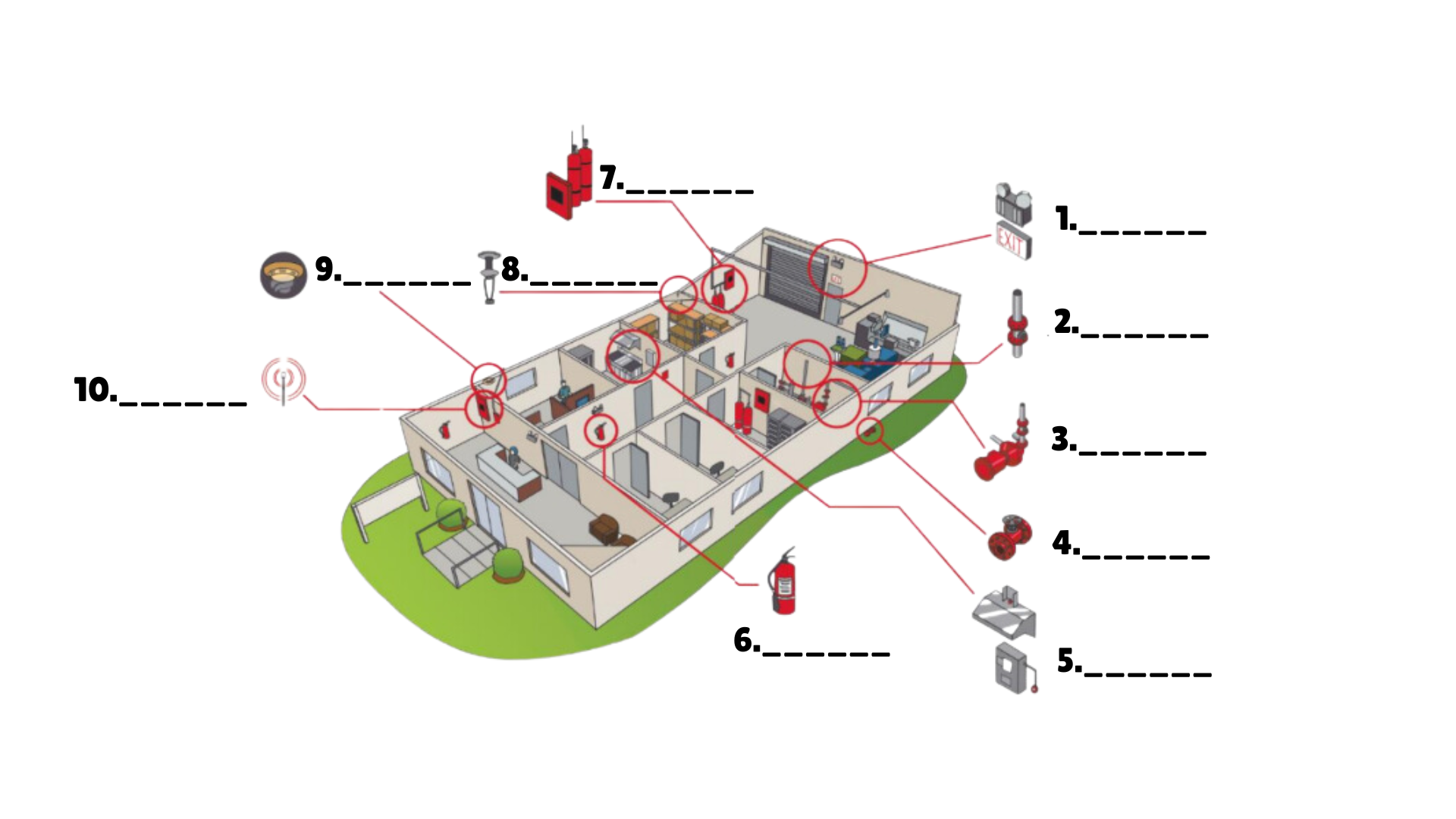

1) Exit and Emergency Lights

2) Fire Standpipes and Hose Systems

3) Fire Pumps

4) Backflow Prevention

5) Kitchen Hood Fire Suppression System

6) Fire Extinguishers

7) Special Hazard Fire Suppression System

8) Fire Sprinkler Systems

9) Fire Alarms and Emergency Communication Systems

10) Monitoring Systems

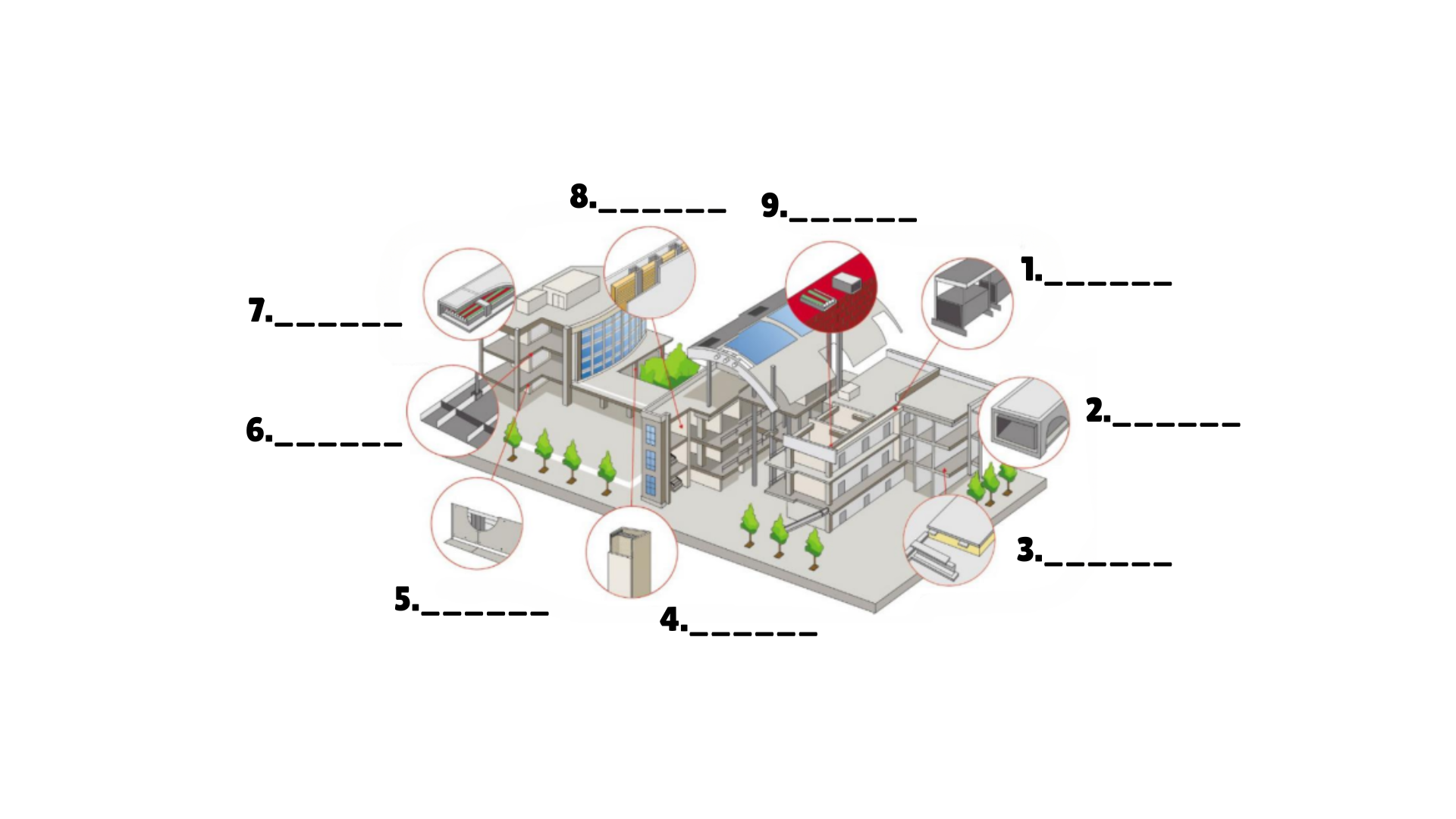

1) Smoke Extraction Ducting

2) Ventilation Ductwork

3) Fire Resistant Ceilings

4) Steel Protection

5) Smoke Barrier

6) Smoke Extractions Plenums

7) Service Enclosures

8) Fire Compartment Walls

9) Penetration Seals

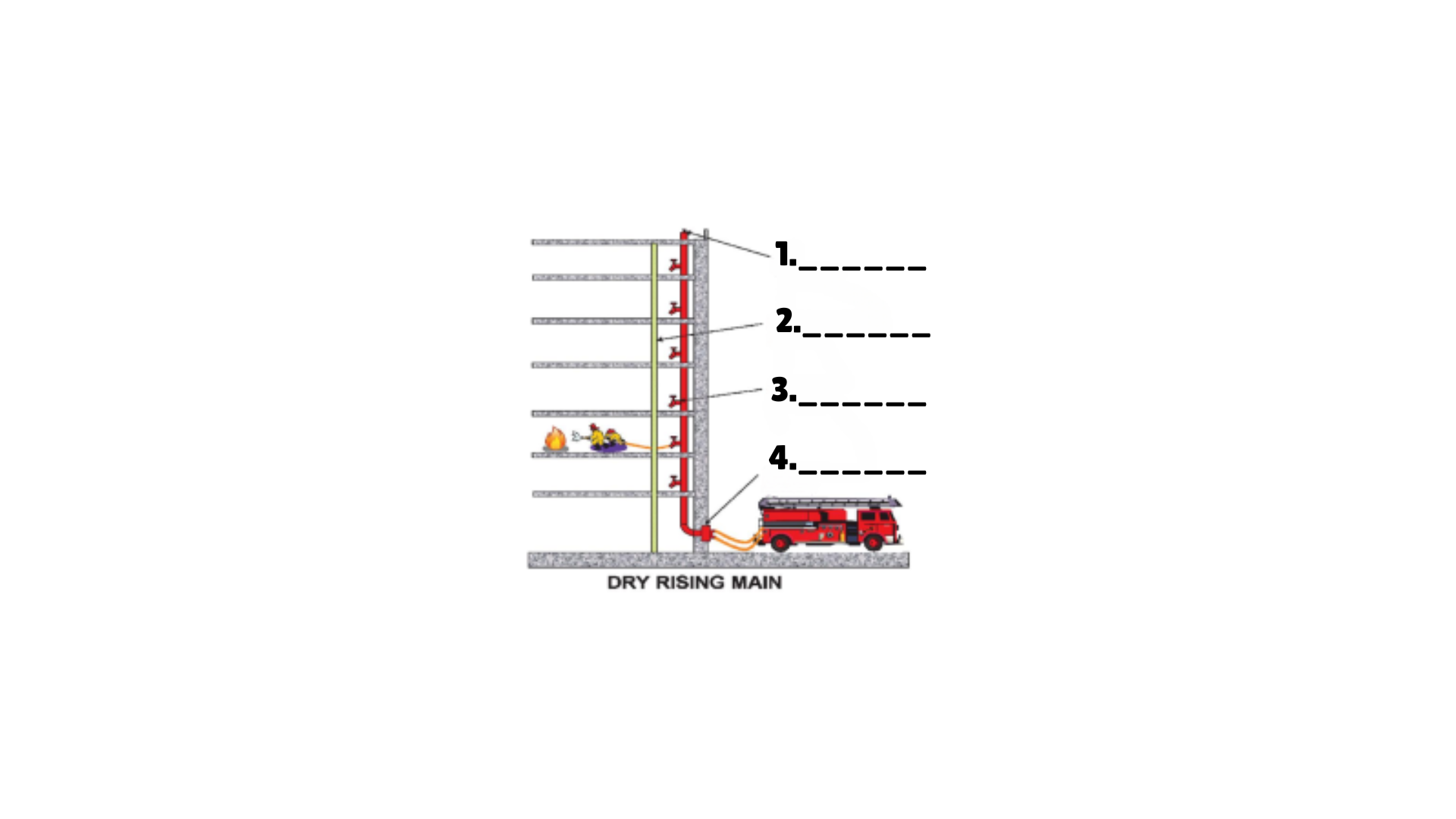

1) Air Vent

2) Fire Fighting Shaft

3) Landing Valve

4) Breeching Inlet

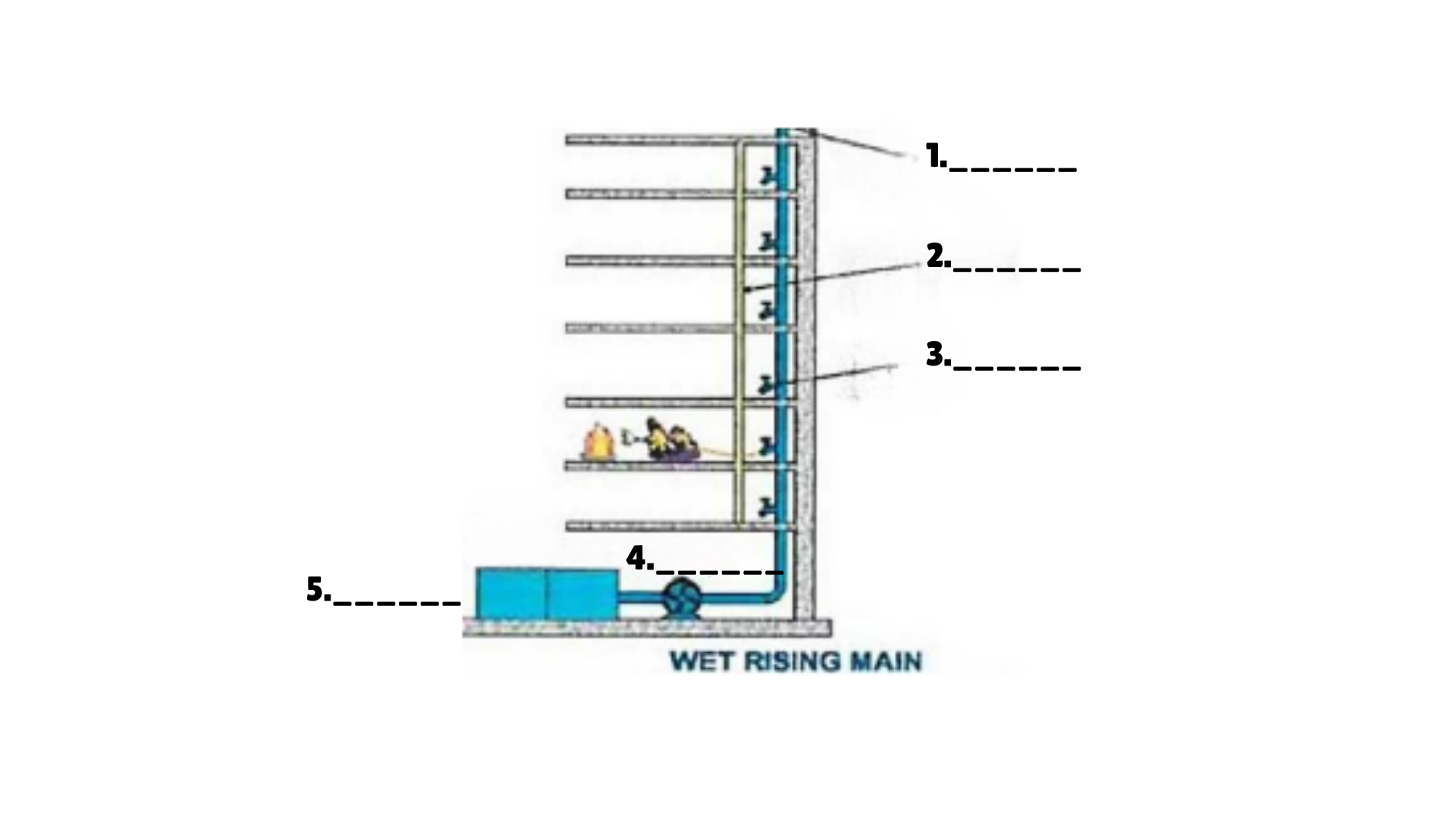

1) Air Vent

2) Fire Fighting Shaft

3) Landing Valve

4) Pumps

5) Water Tank

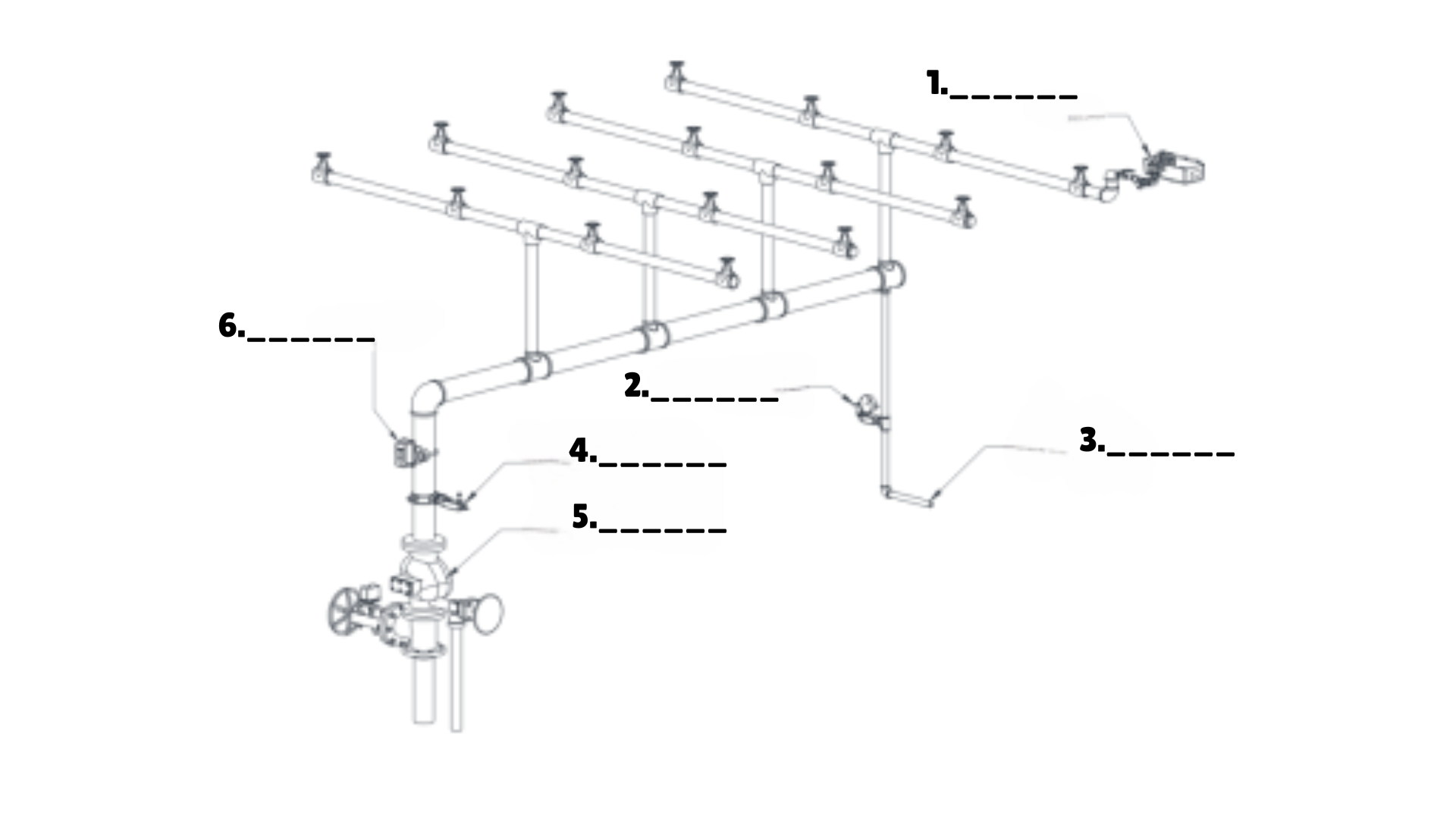

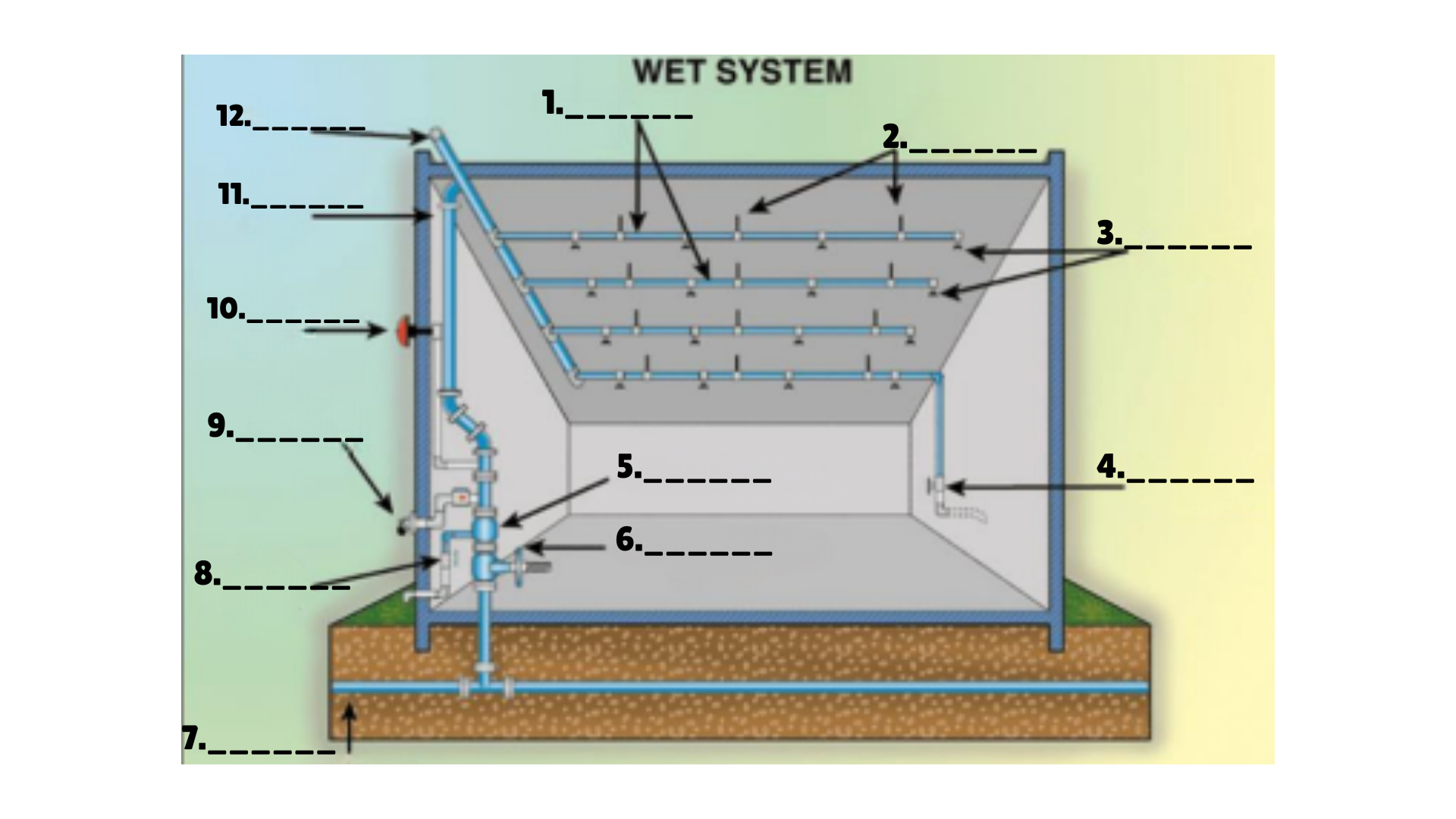

1) Branch Lines

2) Pipe Hangers

3) Automatic Sprinklers

4) Inspector’s Test Valves

5) Alarm Check Valve

6) Main Control Valve (OS & Y)

7) Water Supply

8) Main Drain Valve

9) Fire Department Connection

10) Water Flow Alarm

11) Riser

12) Cross Mains

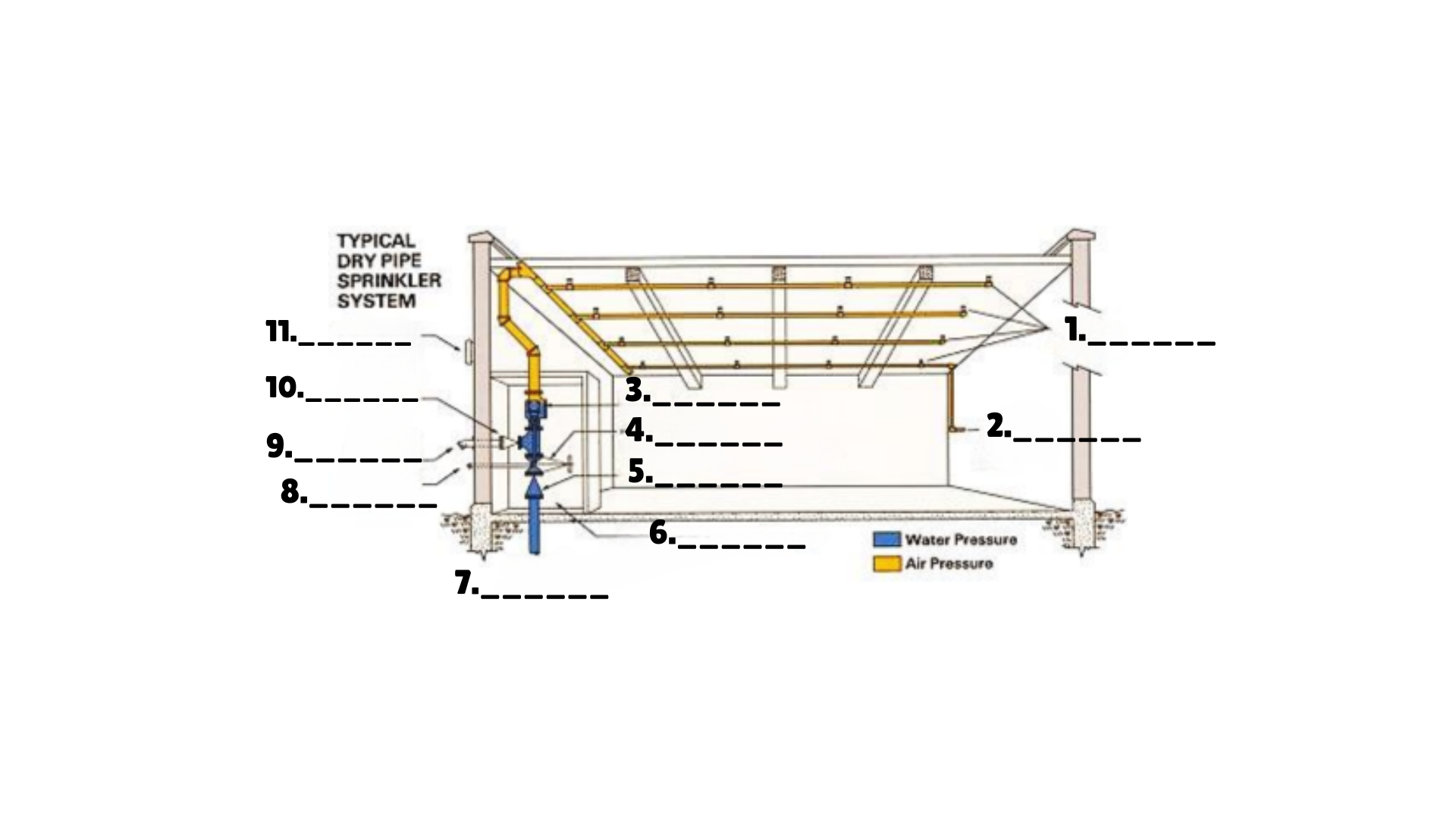

1) Automatic Sprinklers

2) Inspector’s Test Connection

3) Dry pipe valve

4) Gate Valve to Control Water Supply to Systems

5) Check Valve

6) Heated Dry Pipe Enclosure

7) Water Supply

8) Main Drain Connection

9) Fire Department Connection

10) Check Valve

11) Water Motor Alarm

1) PAAR-B

2) Quick X-haust Manifold

3) Remote Test / Drain Valve

4) Nitrogen Injection Manifold

5) Alarm / Check Valve

6) Auto-Test VSR-AT

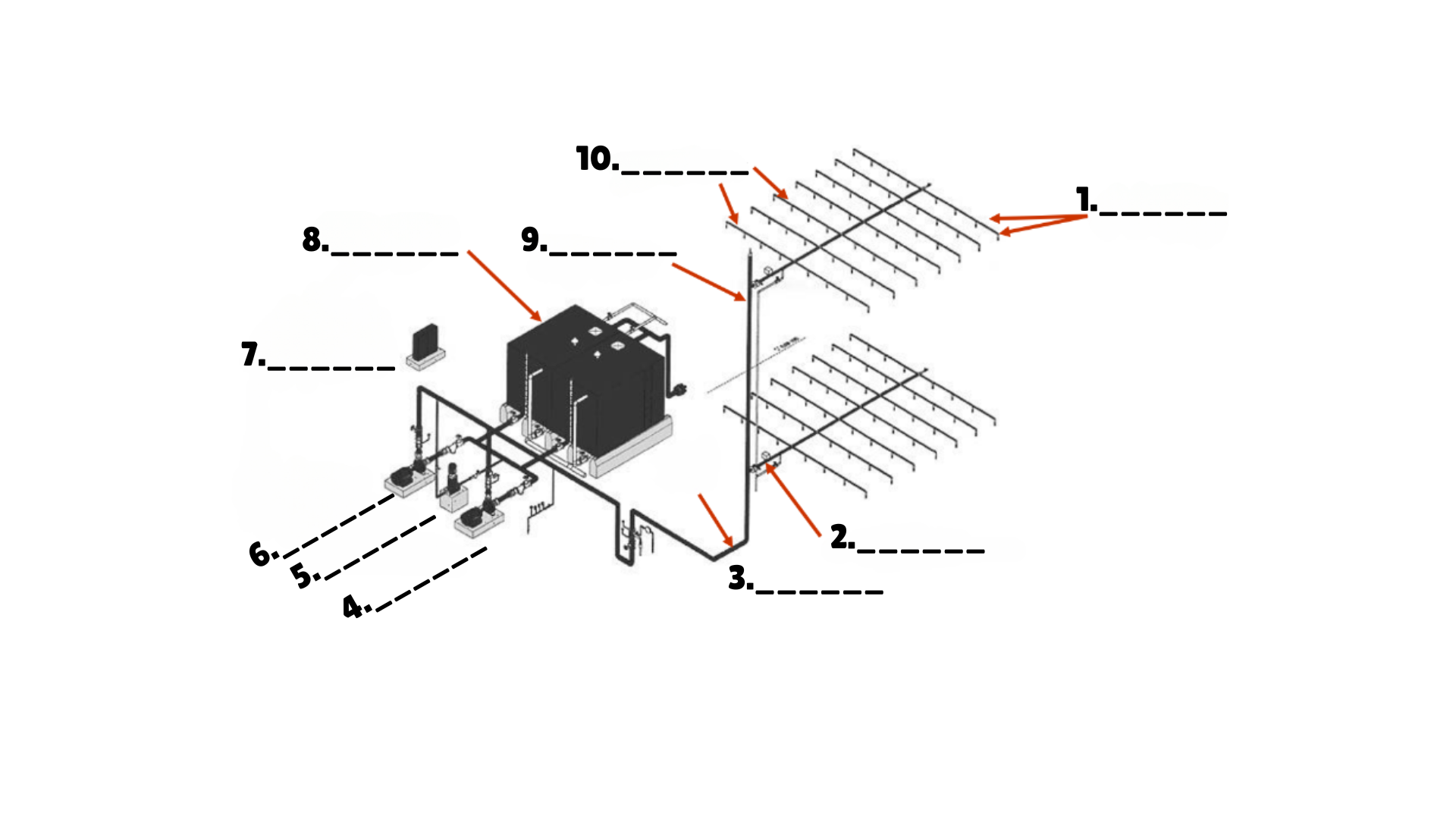

1) Sprinklers

2) Cross Main

3) Main Line

4) Fire Pump 2

5) Jockey Pump

6) Fire Pump 1

7) Fire Pump Controller

8) Fire Water Tank

9) Riser Main

10) Branches
