BIO201: Practical #2

Identify the bone labeled with the yellow dot.

occipital bone

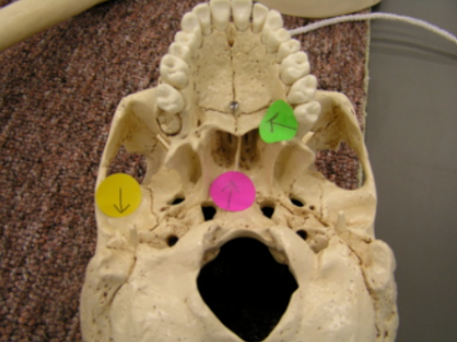

Identify the structure labeled with the arrow on the pink dot.

vomer bone

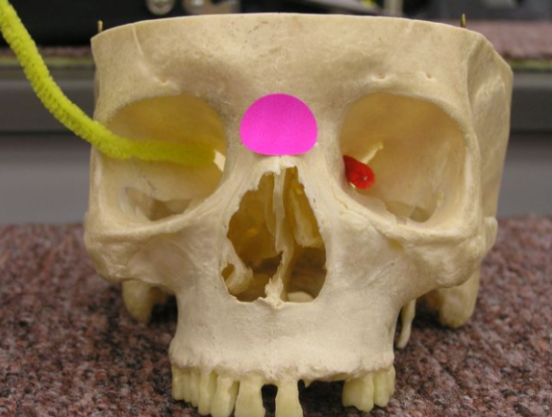

Identify the bones labeled with the pink dot.

nasal bones

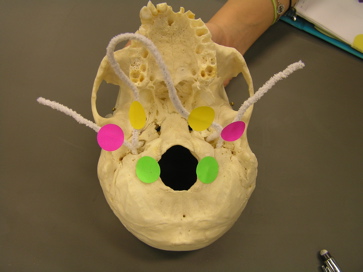

Identify the structures labeled with the green dots.

occipital condyles

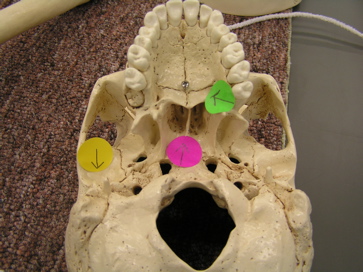

Identify the bone labeled with the arrow on the green bone.

palatine bone

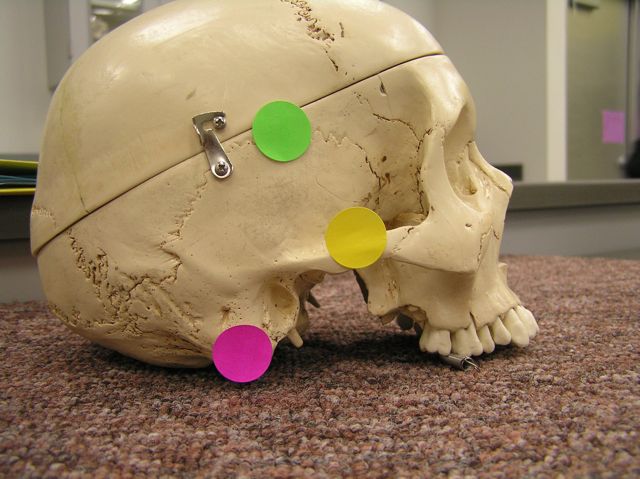

Identify the structure labeled with the pink dot AND name the bone it is part of.

mastoid process; temporal bone

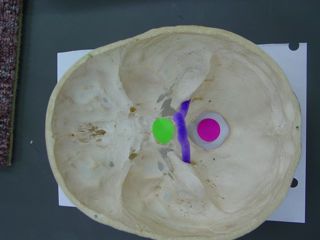

Identify the structure labeled with the green dot AND name the bone it is part of.

sella turcica; sphenoid bone

Identify the structure labeled by the pink dot AND name the bone it is part of.

foramen magnum; occipital bone

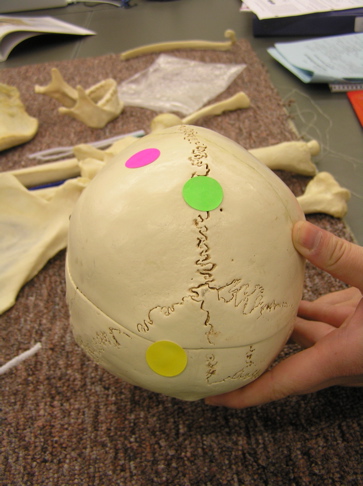

Identify the structure labeled with the green dot.

sagittal suture

Identify the structure labeled with the yellow dot.

zygomatic process

Identify the structure labeled with the green dot.

squamous (temporal) suture

Identify the structure labeled with the arrow on the yellow dot (swallow groove).

mandibular fossa

Identify the opening labeled with the yellow pick cleaner.

superior orbital fissure

Identify the structure indicated by the pink dot.

spinous process

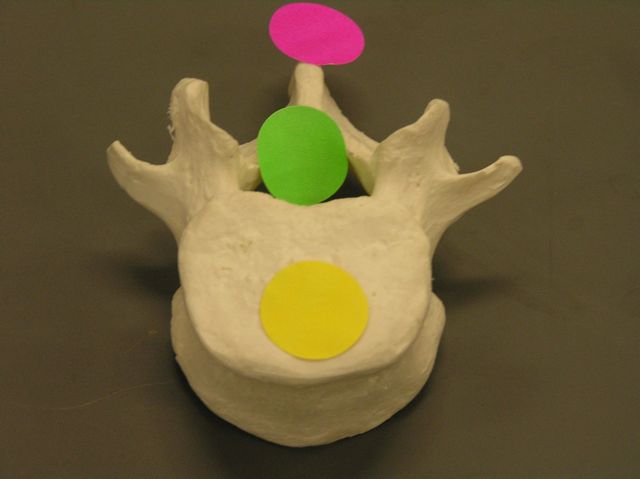

Identify the structure indicated by the yellow dot AND name the region of spine this bone comes from.

body of lumbar vertebra

Identify the structure indicated by the green dot.

vertebral foramen

Identify the bone indicated by the yellow dot.

sacrum

Identify the specific bone indicated by the yellow dot.

left 5th true rib

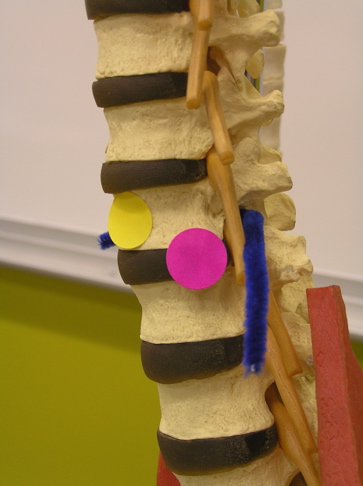

Identify the structure indicated by the pink dot and name the type of tissue it is composed of.

intervertebral disk; fibrocartilage

Identify the structure that the blue pipe cleaner is passing through.

intervertebral foramen

Identify the bone labeled with the pink dot.

parietal bone

Identify the structure indicated by the yellow dot.

body of vertebra

Identify the structure indicated by the pink dot AND name the type of tissue it is composed of.

costal cartilage; hyaline cartilage

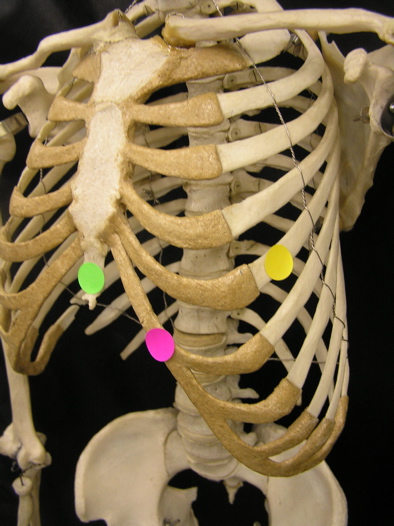

Identify the structure indicated by the green dot.

xiphoid process

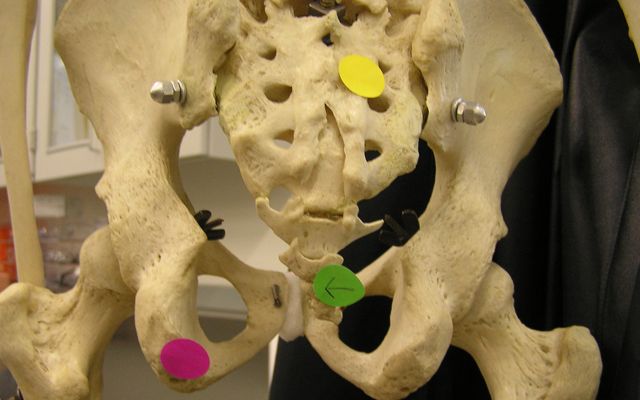

Identify the bone indicate by the green dot.

coccyx

Identify the structure labelled A.

iliac crest

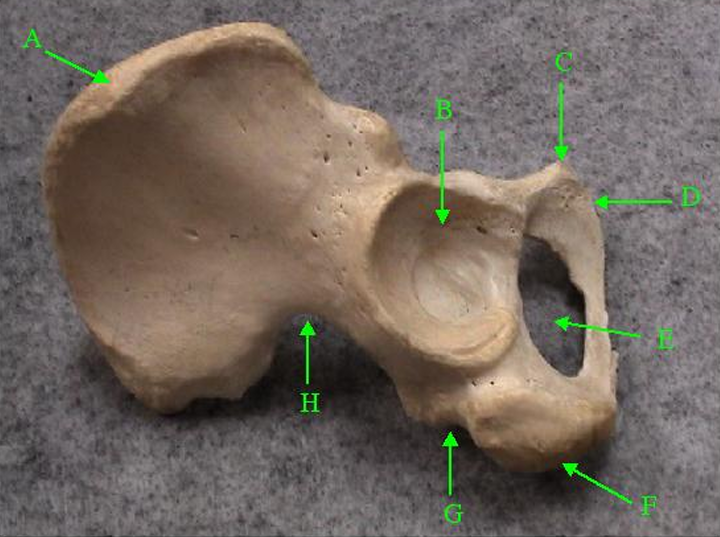

Identify B and name the structure that articulates with it.

acetabulum; head of femur

Identify the structure labelled B and the name of the bone.

capitulum; humerus

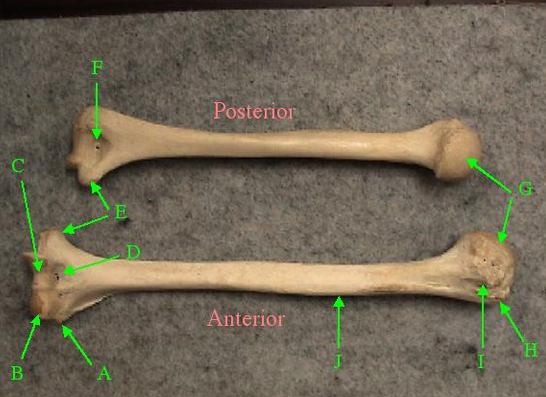

Identify the structure labelled F.

olecranon fossa

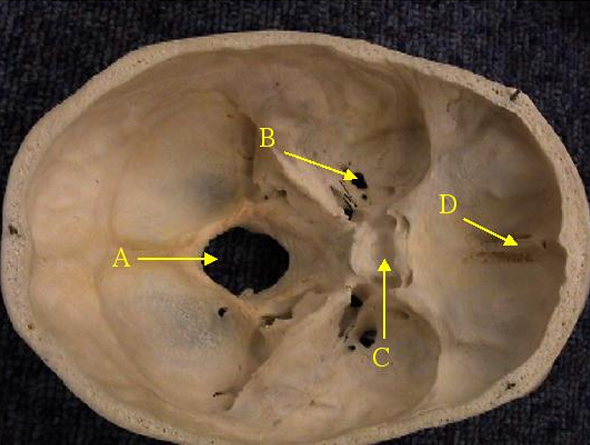

Identify the opening labelled A.

foramen magnum

Identify C and the bone it is part of.

sella turcica; sphenoid

Identify B and name the bone it is part of.

acromion; scapula

Identify structure labelled A.

coracoid process

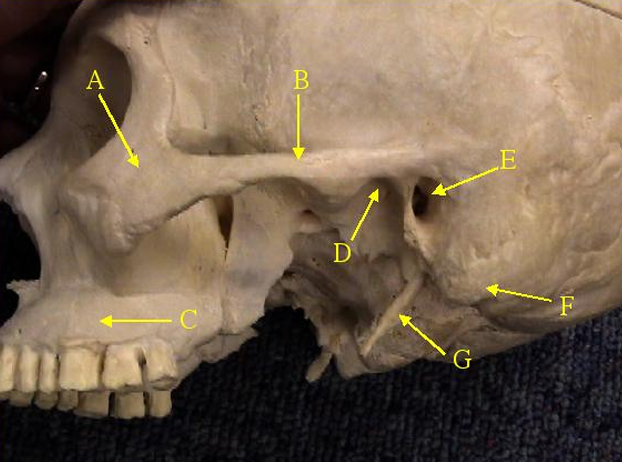

Identify F and name the bone it is part of.

mastoid process; temporal

Identify bone A.

zygomatic

Identify A and E on the shoulder (left image).

A=acromioclavicular ligament; E=capsular ligament

Identify A and B on the knee (right image).

A=anterior cruciate ligament; B=fibular collateral ligament

Identify opening B.

optic foramen

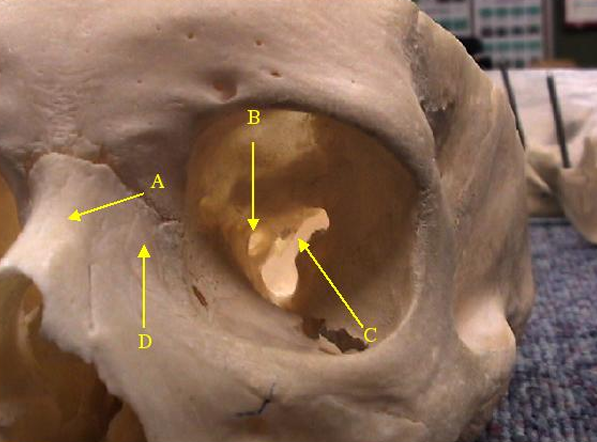

Identify bone D.

lacrimal

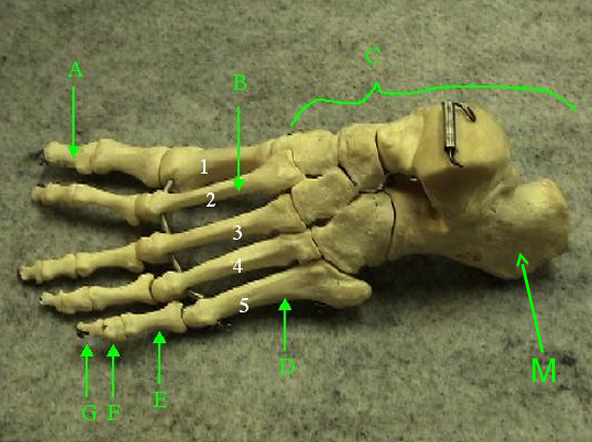

Identify bone labelled B.

second metatarsal

Identify specific bone labelled F.

middle phalanx of the fifth metatarsal

Identify C.

greater trochanter

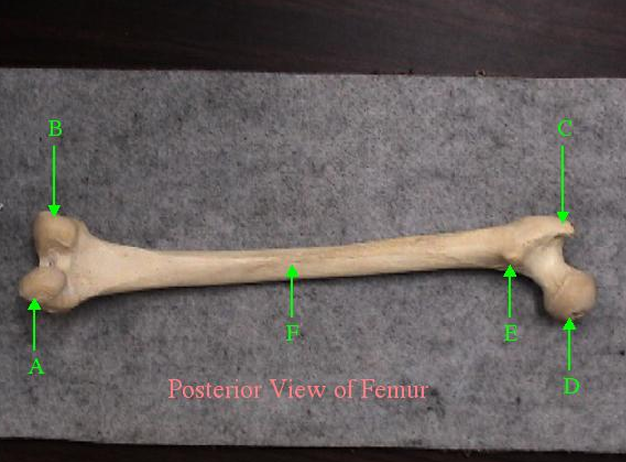

Identify F.

linea aspera

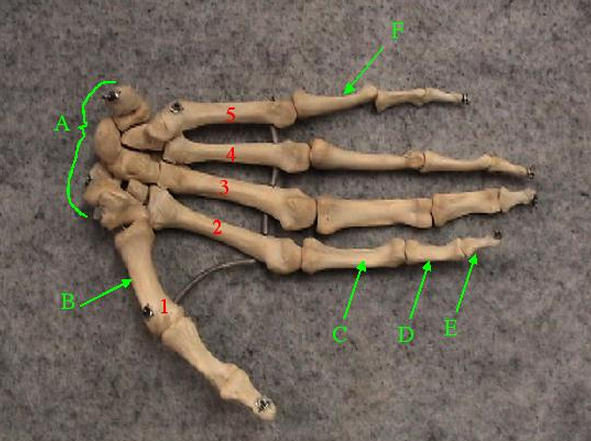

Identify the group of bones labelled A.

carpals

Identify B.

first metacarpal

Identify structure labelled E.

external auditory meatus

Identify structure labelled D and name what is articulates with.

mandibular fossa; mandible

Identify structure labelled F.

ischial tuberosity

What is the correct anatomical term for a movement that increases the angle of the joint?

extension

Identify structure labelled D.

medial malleolus

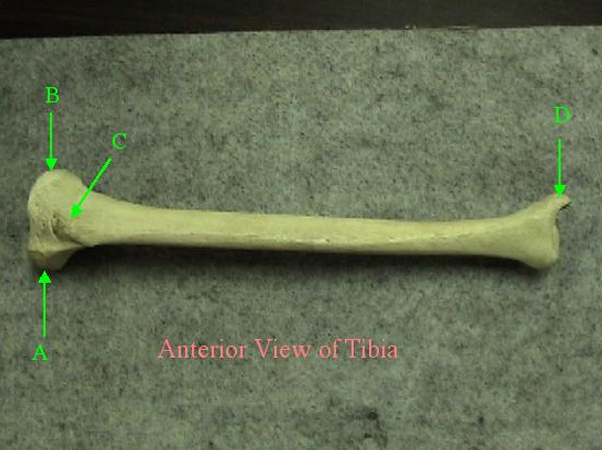

Identify B and name the structure that articulates with it.

medial condyle; medial condyle of femur

Identify the bone labelled B.

vomer

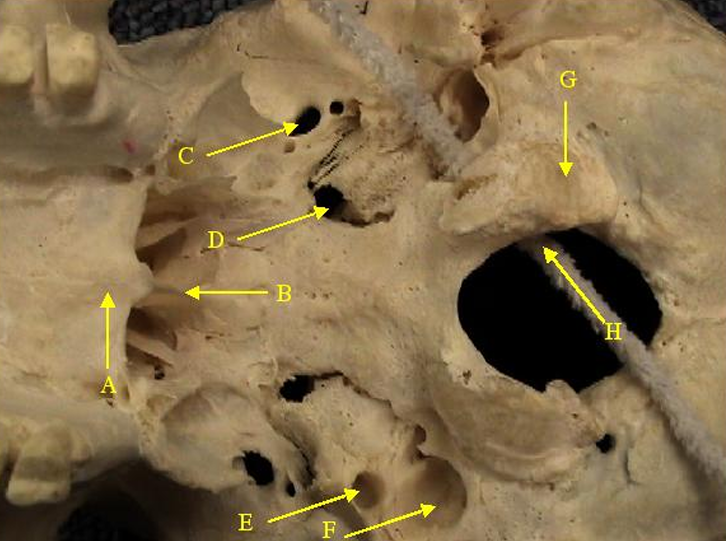

Identify the opening F.

jugular foramen

Identify structure labelled D and bone it is part of.

trochlear notch; ulna

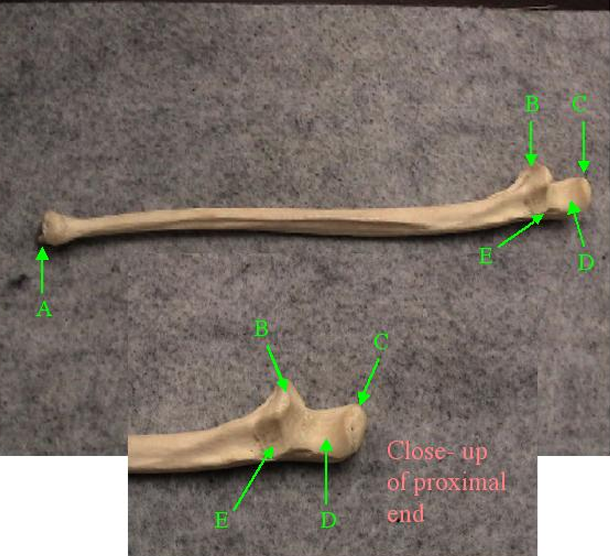

Identify E and name the structure that articulates with it.

radial notch; head of radius

Identify space labeled A.

maxillary sinus

Identify structure labeled B.

anterior fontanelle

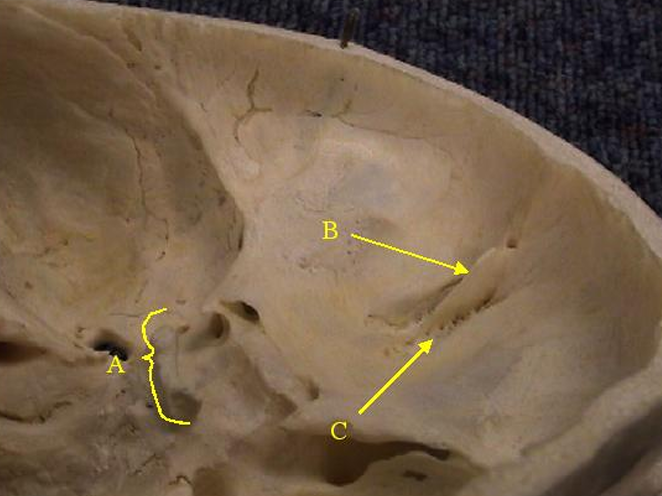

Identify structure labelled C and the bone it is part of.

cribriform plate; ethmoid

Identify structure labelled B.

crista galli

Identify structure labelled B.

spinous process

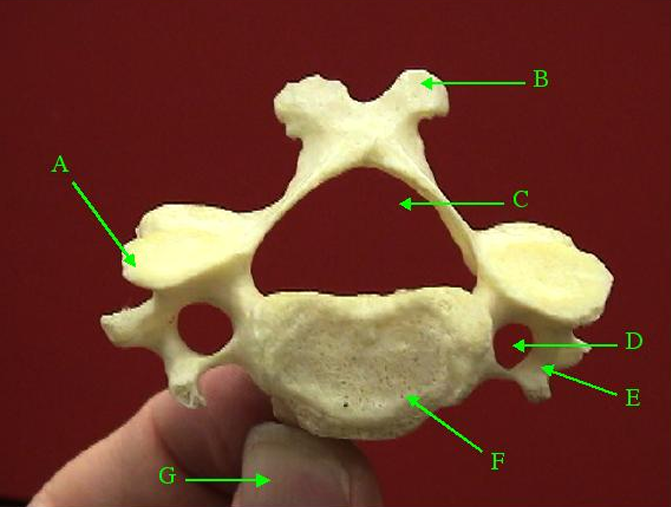

Identify opening labelled D and name the region of the spine this bone is from.

transverse foramen; cervical

Identify the bone labelled C.

nasal

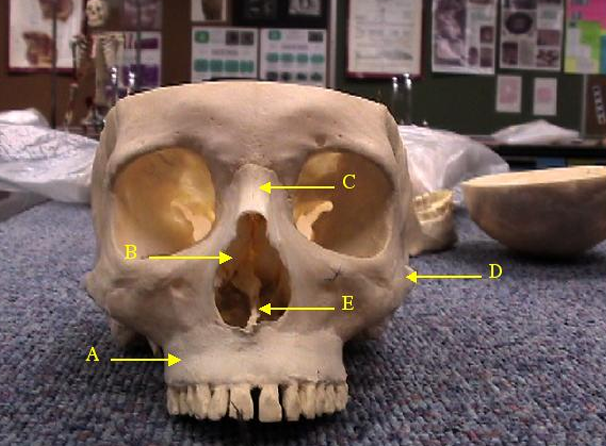

Identify bone labelled A.

maxilla

Identify the opening labelled D.

intervertebral foramen

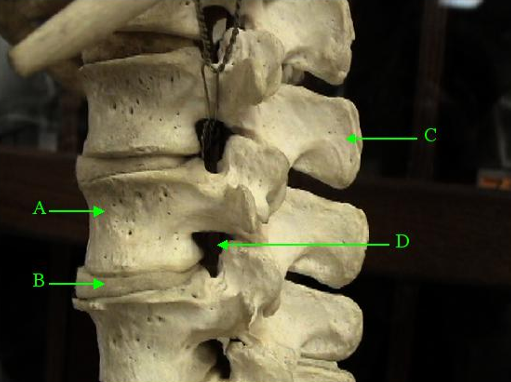

Identify structure labelled B.

intervertebral disk

Identify structure labelled B and name the bone.

radial tuberosity; radius

What is the correct term for a movement in which the lateral edge of the foot is raised/lifted?

eversion

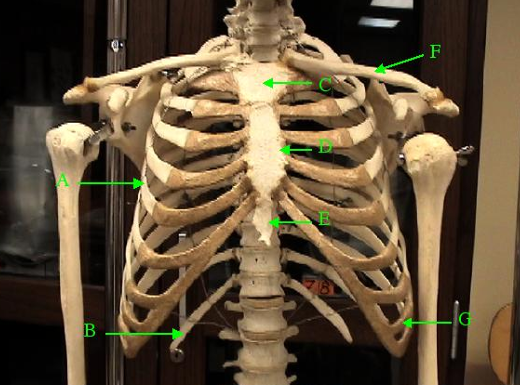

Identify structure labelled C and the bone it is part of.

manubrium; sternum

Identify the bone labelled B.

false rib #12

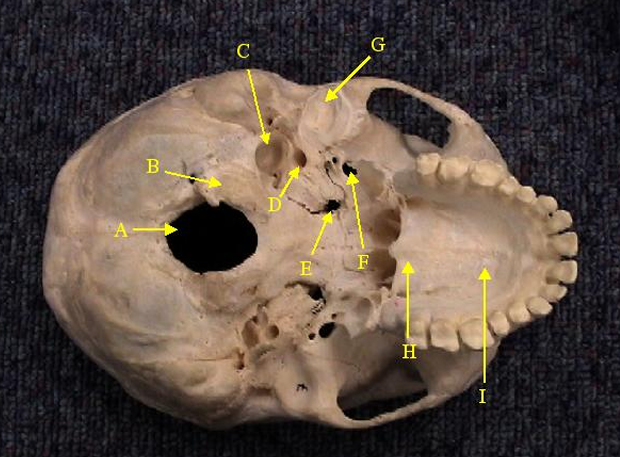

Identify the opening labelled F.

foramen ovale

Identify the structure labelled B and the bone it is part of.

occipital condyle; occipital

Identify the bone labelled F.

sacrum

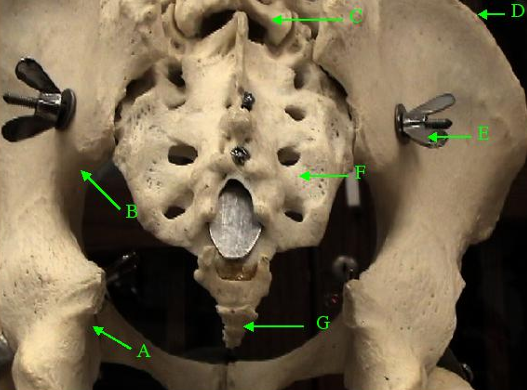

Identify the bone labelled G.

coccyx

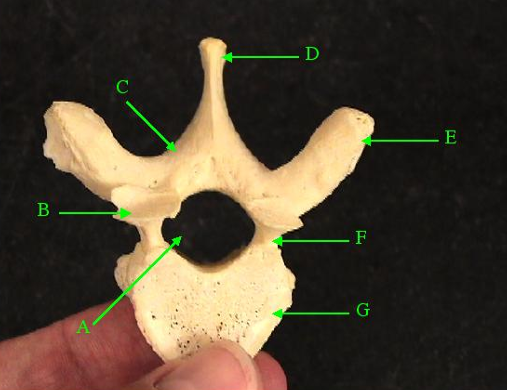

Identify the structure labelled E.

transverse process

Identify the opening labelled A.

vertebral foramen

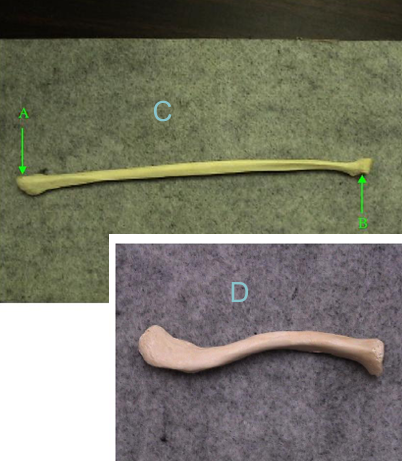

Identify bone C and describe its location in the body.

fibula; lateral bone of lower leg

Identify bone D.

clavicle

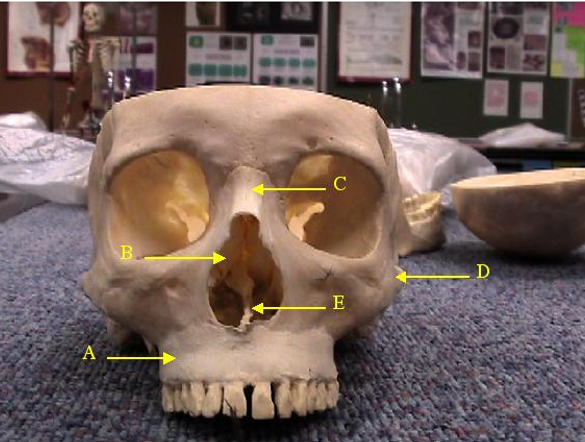

A

maxilla bone

B

conchae of ethmoid bone

C

nasal bone

D

zygomatic bone

E

vomer bone

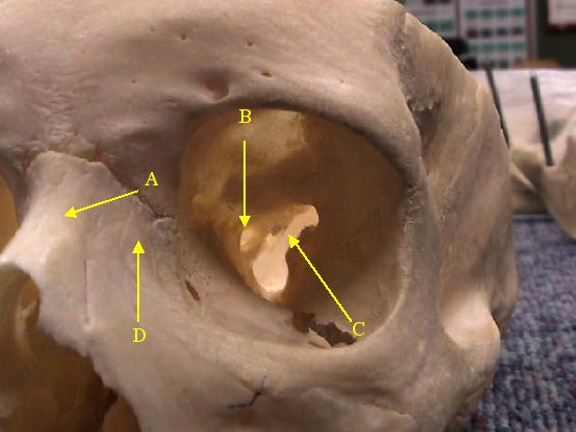

A

nasal bone

B

optic canal or optic foramen

C

superior orbital fissure

D

lacrimal bone

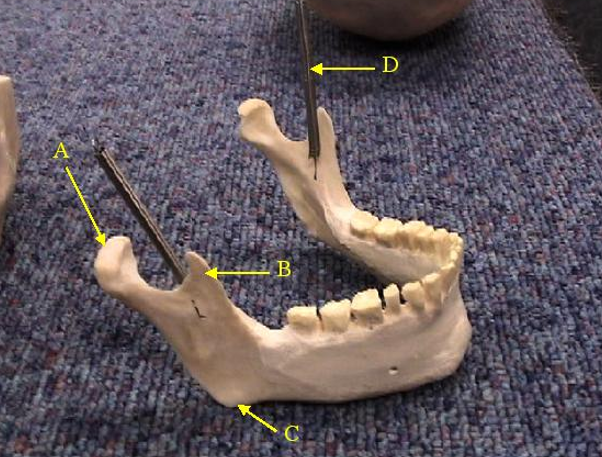

A

mandibular condyle

B

coronoid process

C

angle

D

spring

A

zygomatic bone

B

zygomatic process of temporal bone

C

maxilla bone

D

mandibular fossa

E

external acoustic meatus

F

mastoid process

G

styloid process

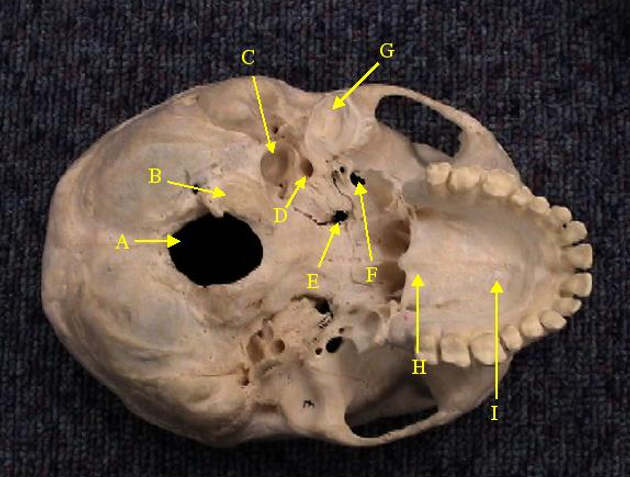

A

foramen magnum

B

occipital condyle

C

jugular foramen
