66 Terms
another name for C1
atlas
another name for C2
axis

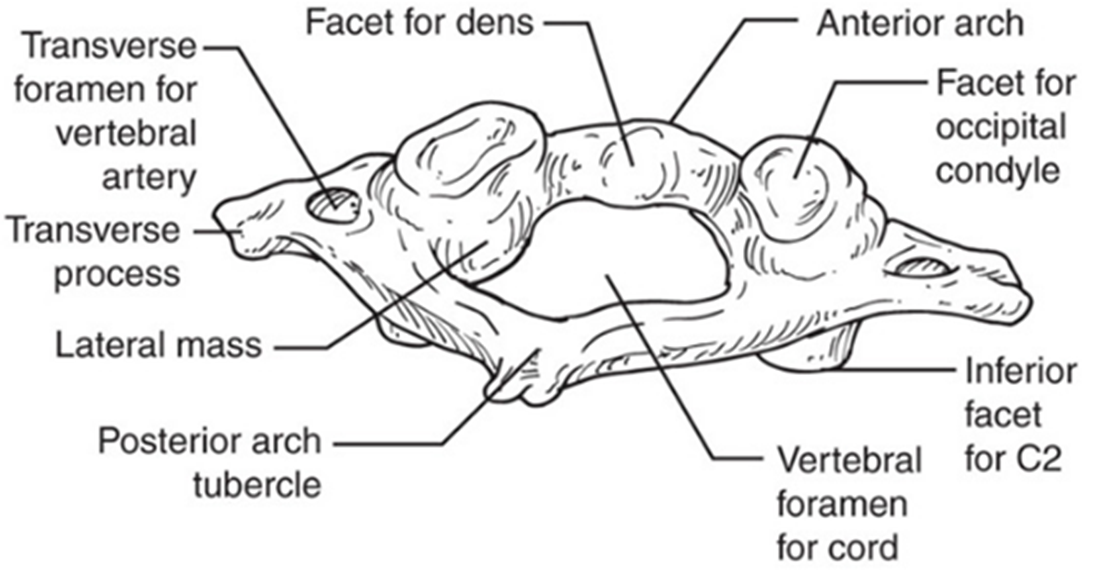

identify the bony anatomy of atlas

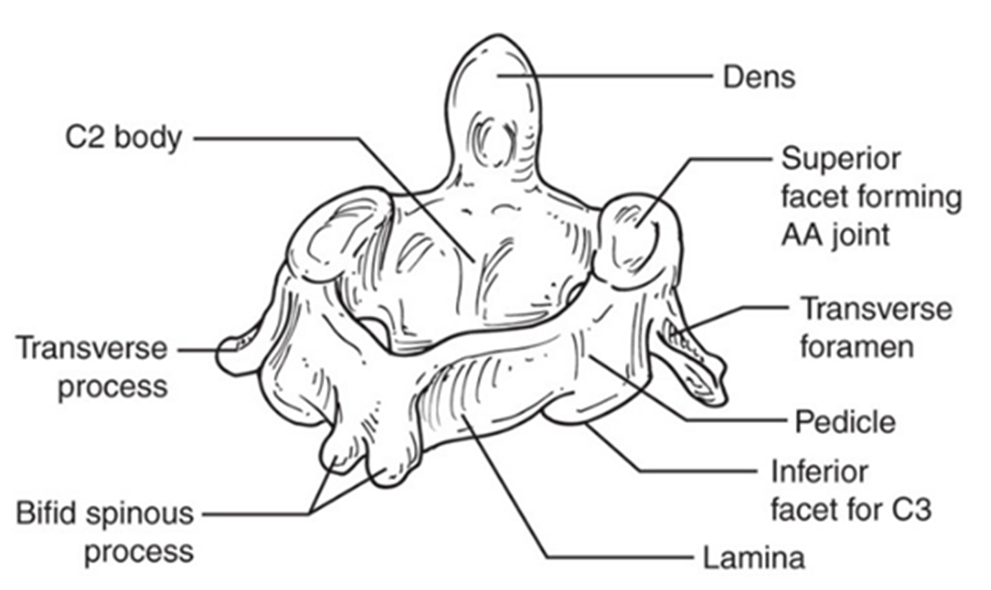

identify the bony anatomy of axis

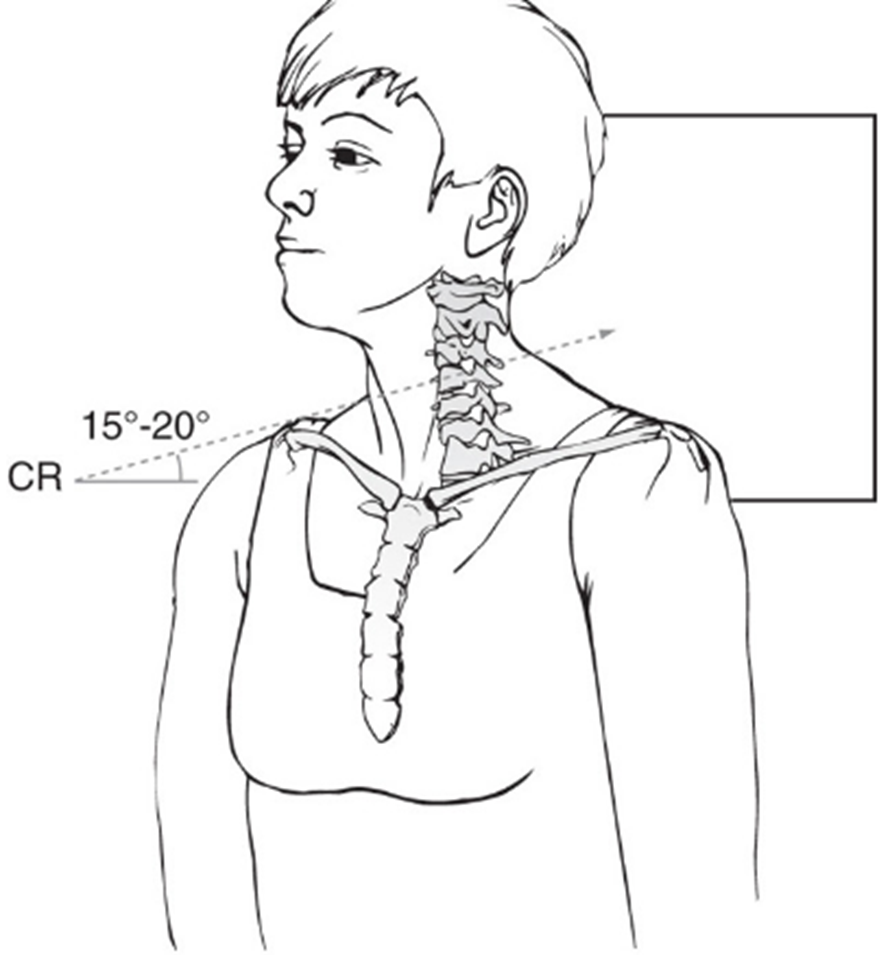

basic projections for the cervical spine
AP
lateral
additional projections for cervical
open mouth AP
swimmer’s lateral
cross-table lateral
bilateral oblique
flexion-extension lateral view
articular (pillar) view
purpose of open mouth view
removes the mandible, so you can get a clearer view if AA
purpose of swimmer’s lateral view
visualization of CT junction
purpose of cross-table lateral view
confirm a suspected cervical fx
purpose of a bilateral oblique view
assessment of neural foramina
Which of the additional projections can be done routinely
bilateral oblique view
purpose of flexion-extension lateral view
stress test to inspect instability
purpose of articular view
suspected facet fx
What view is this
AP of lower cervical spine
What is the white
uncovertebral joint
What is the yellow
uncinate process
What is the purple
facet joints
What is the green
spinous process
what is the orange
vertebral body
What is the blue
1st rib
What is the red
clavicle
What is the black
trachea
What angle can you see the intervertebral foramen
oblique or lateral
What can be used to check the rotation of the vertebrae
alignment of the pedicles
Why would we want to check the rotation of the spine
scoliosis
What is the red
spinous process
What is the blue
pedicle
What view is this
lateral
What is the white
anterior arch of C1
What is the red
posterior arch of C1
What is the blue
dens
What is the black
facets
What is the purple
vertebral body
What is the green
articular pillar
What is the orange
lamina
What is the yellow
spinous process

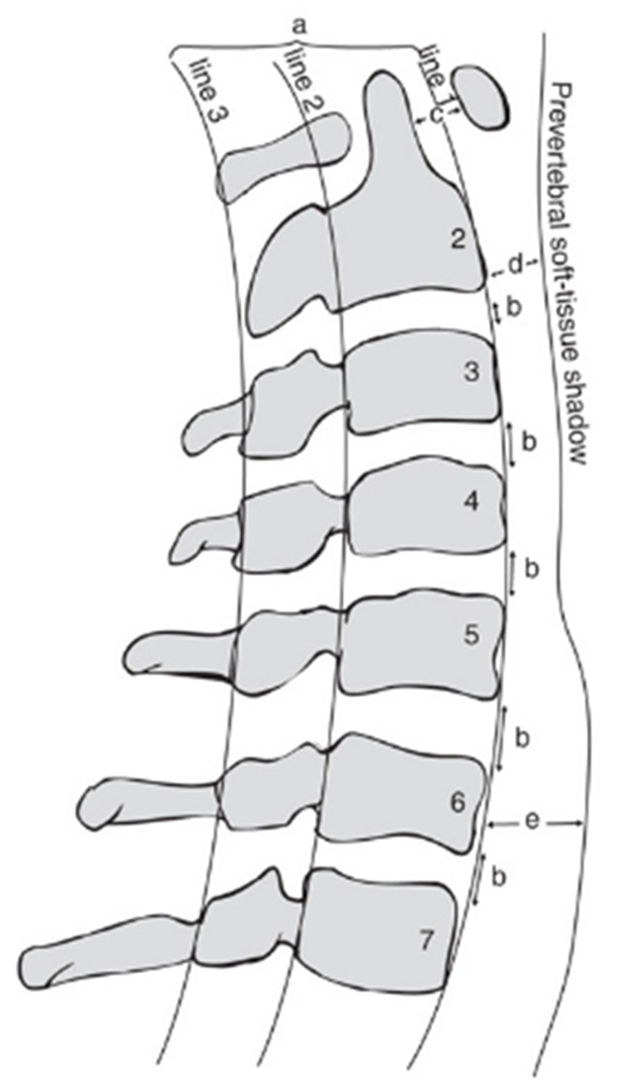

What is the purpose of these lines
ensures stability and no compression is occurring on neutral structures
What view is this
open mouth (odontiod)
Where is the CR for AP open mouth view
through dens
What view is this
open mouth
what is the white
posterior arch of C1
What is the yellow
anterior arch of C1
What is the red
transverse process
What is the blue
lateral mass
What is the purple
dens
WHat is the green
facet joint
What is the orange
spinous process
What type of imaging is best for looking at the vertebrae
CT
What view is this
R anterior oblique
What view is this
R posterior oblique
What view is this
lateral flex and ext stress views
What cervical XRs will be done for a standard 2-view series
AP and lateral
when is a standard 2-view indicated
non-radicular C3-7 in origin
What cervical XRs will be done for a 3-view series
AP
Lateral
open mouth
When is a 3-view series indicated
non-radicular, C1-2 concern
What cervical XRs will be done for a 5-view series
AP
lateral
open mouth
bilateral obliques
When is a 5-view series indicated
radicular
what is the most commonly ordered series
5-veiw
What is the least indicated series
standard 2-view
When is a flex/ext view indicated
add on after spondylolisthesis or upper cervical instability found on previous series
When is swimmer’s view indicated
add on if C6-T1 is obstructed on lateral and if etiology is consistent with this origin
What is this pathology
DDD (osteophyte formation and loss of disc height)
What patho is shown here
degenerative joint disease (obliterated and sclerotic)
What patho is seen here
foraminal encroachment at C3/4 and C6/7
What is the green
alar lig
What is the red
transverse
