CHAPTER 30 -35 Instruments Final

.

Jake" is pretty much a very skinny hemostat (the entire mouth is as skinny or skinnier than a tonsil (Schnidt) The length is around the same as a hemostat

—

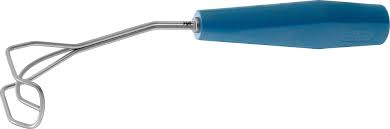

pylorus spreader is used during an Open Pyloromyotomy  to correct pyloric stenosis - to stretch/widen the incision into they pyloris

—

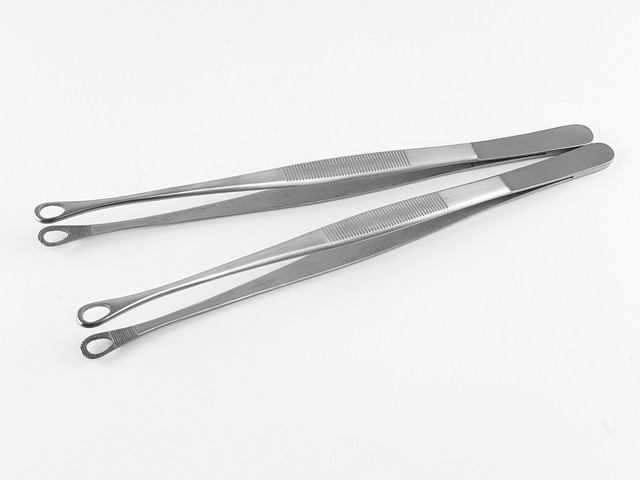

Singley Forceps Bowel - non-traumatic forceps used with pediatric bowel

—-

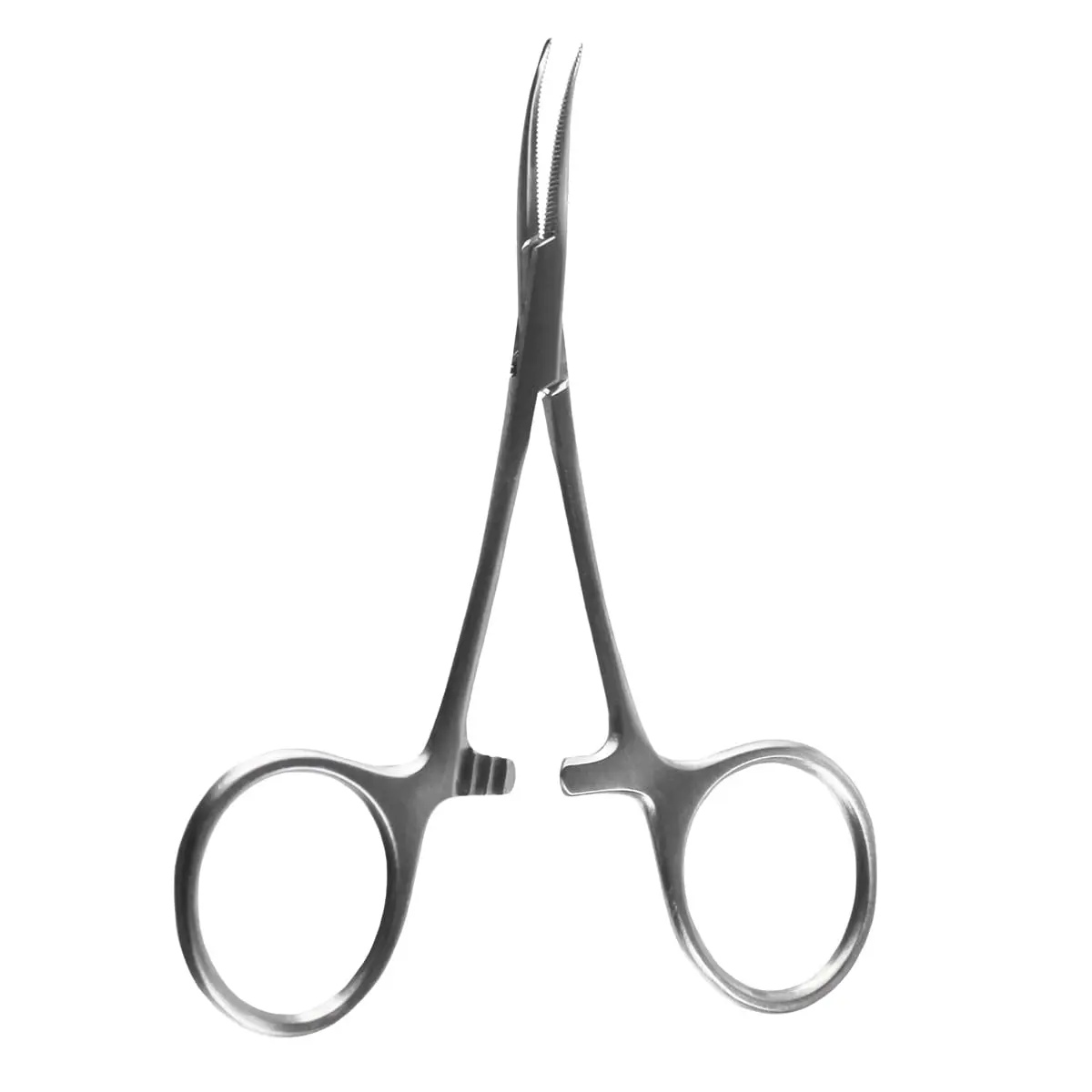

Gnat"  it is smaller than a mosquito and used in pediatric urology to tag suture during a circumcision.

.

• Finiochietto Rib Spreader - this is a self-retracting retractor used to spread the chest open or ribs apart; Spreading ribs for exposure of chest

.

• Rib Contractor - This is used to approximate the rib without damaging it for the purpose of suturing

.

• Bulldogs - small vessel clamps used to stop blood flow during vascular and cardiovascular procedures

.

• Potts scissors - used to extend incision into a vessel

.

• #11 Blade on a #7 knife handle - used to make vascular incisions

.

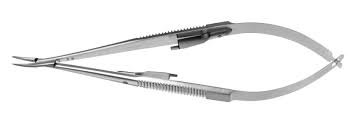

• Castroviejo Needle Holder - used to hold very small needles - in vascular - usually prolene

.

• Geralds or Ruel Forceps - forceps that are commonly used in vascular/neuro  when suturing with a Castroviejo NH

.Vascular Clamp

• Vascular Clamps - assortment of clamps that are used on the appropriate size vessel to temporarily stop blood flow without damaging the vessel

.

• Duval Lung Grasping Forceps - Nontraumatic Clamp used to grasp the lung during thoracic procedures

.

• Sternal Twisters - Used to grip and manipulate Steel Wire sutures used when closing the sternum

.

• Matson Rib Stripper - Scrape peritoneum off of the ribs

.

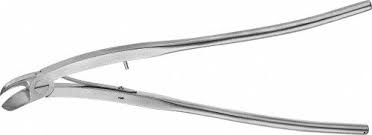

• Bethune Rib Shears - Cut ribs

.

• Stille-Luer Bone Cutter - take large bites of bone and cartilage

.

• Ryder NH - Mouth thins inward on both sides - used to grasp small delicate needles

.

• Green Magnet - used when patient is in lithotomy - instruments can be kep on the sterile field without worrying about them falling to the floor

.

• Potts Scissors - used to extend incisions into vessels

.

• Coronary Artery Scissors - used to cut vessels without the handles obstructing the surgeon's view -  open heart surgery

.

• Geralds & Ruels - passed when using castro NHs and used to grasp very delicate small bites of tissue

.

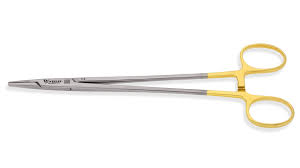

• Mayo NHs - can be used with thicker bigger needles

.

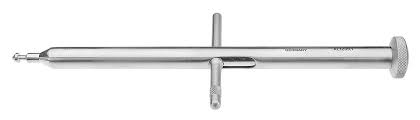

• Aortic Punch - Make an opening into the vessel wall for cannulation or graft

.

• Atrium Retractor - nontraumatic retraction during open heart surgery to achieve access to surgical site

.

• Green Retractor - atraumatic retraction of delicate tissues/vessels - can hold more tissue than the cushings

.

• Debakey Dilators - safely and progressively dilate the lumen of vessels

-

Metz heavy dissecting scissors

-

Potts extend an incision into a vessel

11 blade , cut into vessel ( 7 knife blade ) next Potts

-

Castroviejo - small sutures- Vascular/ neuro/ eyes

-

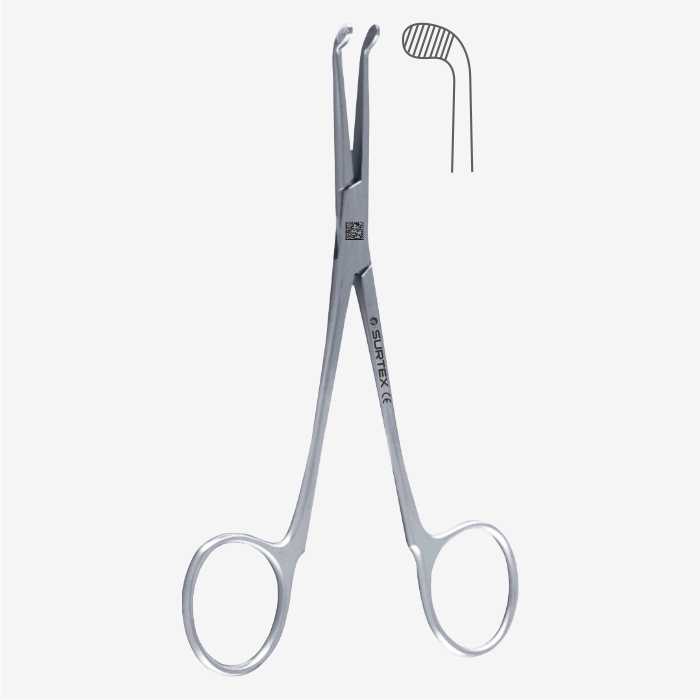

Baileys - is a fine point right angle , used to get around structure

-

Ruel Vascular forceps

.

Gerald vascular forceps small sutures

.

Fogerty catheter
