Other Extraoral Views

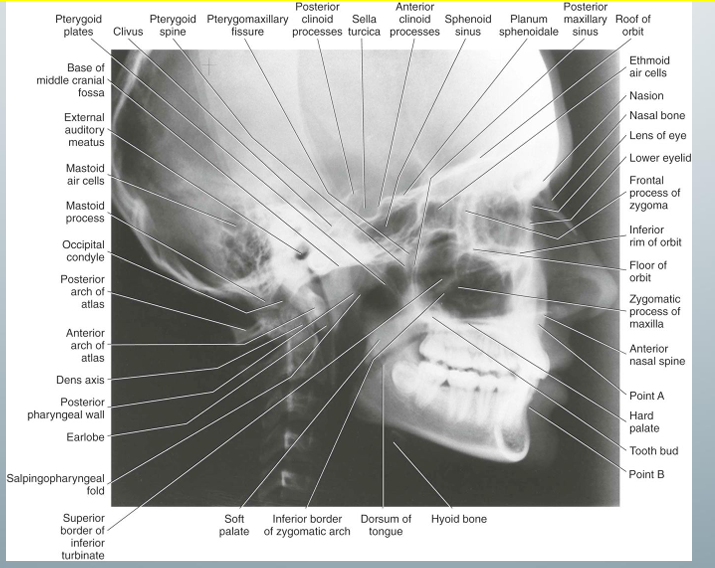

lateral cephalometric

-ortho use for treatment planning

-need soft tissue shadow for orthognathic measurement analysis^

-an aluminum wedge filter is set up at the tube head and absorbs some of the radiation to allow visualization of facial soft tissues

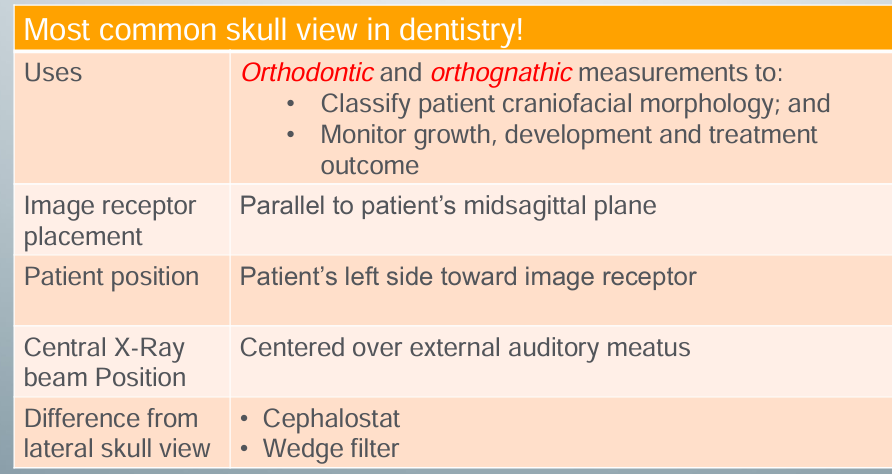

most common skull view in dentistry

-lateral ceph

-lateral ceph v. lateral skull: ceph has the cephalostat to maintain a constant relationship among skull, image detector, x-ray beam

-exact superimposition of the right and left sides would not be possible because of projection geometry

-structures near the image receptor will be less magnified than the same structures on the side away from the image receptor

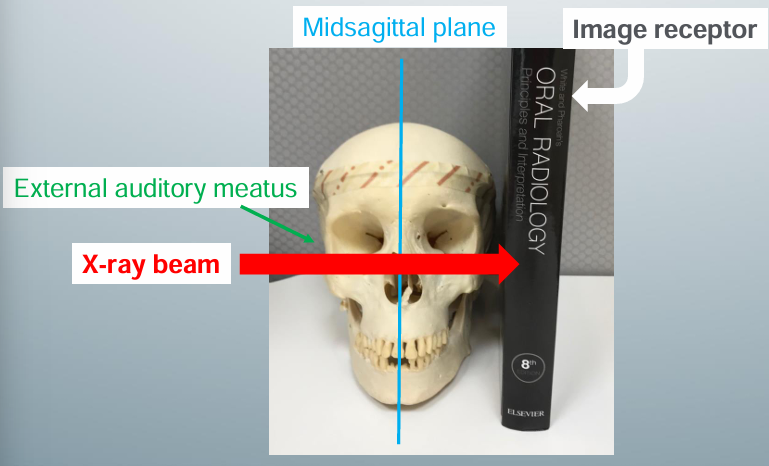

how to take lateral ceph

-image receptor parallels the patient’s midsagittal plane

-central x-ray beam centered over the external auditory meatus

posteroanterior cephalometric

-”PA ceph”

-ortho uses to evaluate facial asymmetry

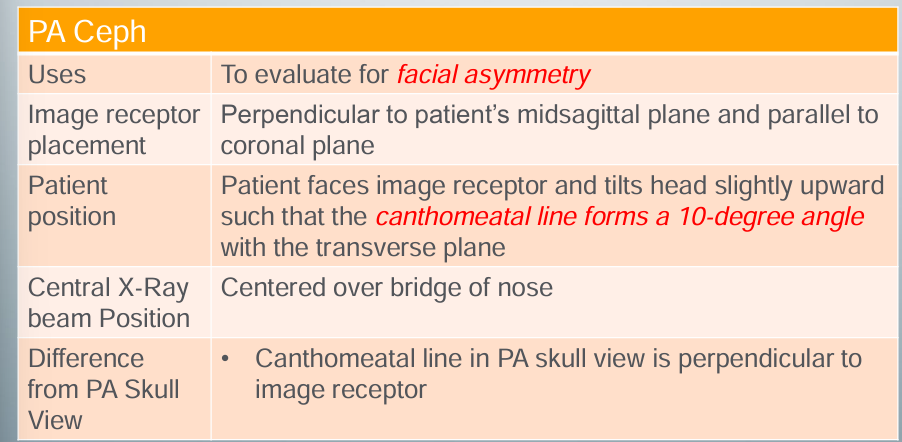

PA ceph uses, image receptor placement, pt position, central x-ray beam position, difference from PA skull view

how to take PA ceph

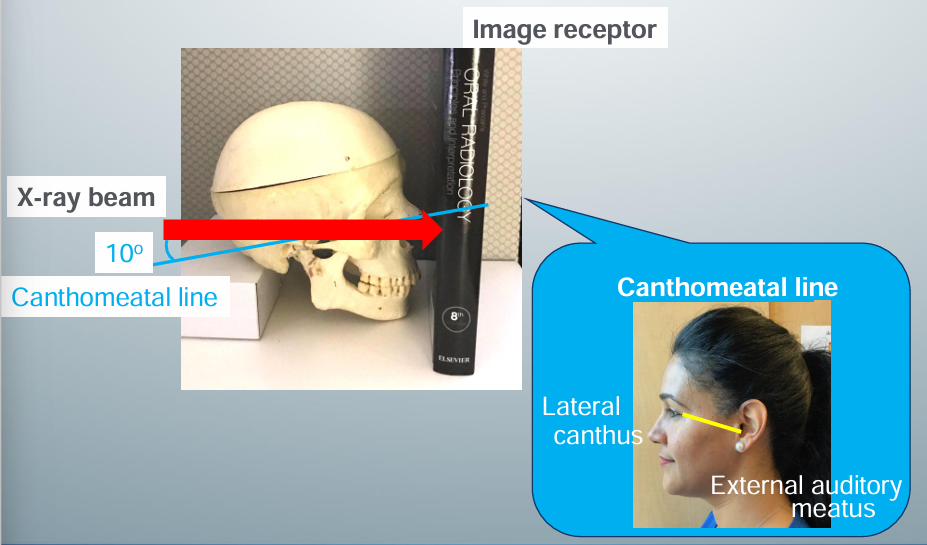

-image receptor perpendicular to pt’s midsagittal plane and parallel to coronal plane

-pt faces image receptor and tilts head slightly upward so the canthomeatal line forms a 10 degree angle with the transverse plane

-central x-ray beam positioned centered over the bridge of the nose

-canthomeatal line: line between the lateral canthus and the external auditory meatus

Waters view

-used to evaluate maxillary sinuses (can see without obstruction)

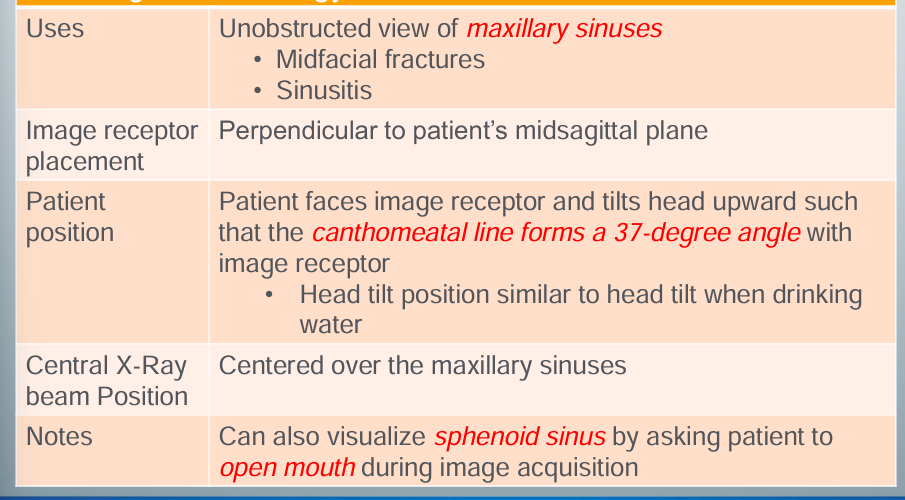

Waters view- uses, image receptor placement, pt position, central x-ray position, notes

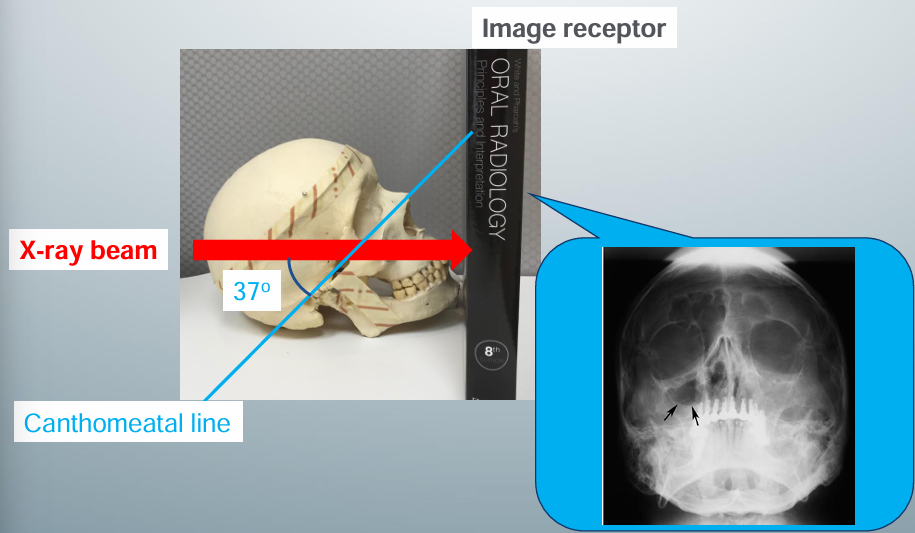

how to take waters view

-image receptor perpendicular to pt’s midsagittal plane

-pt faces image receptor and tilts head upward so the canthomeatal line forms a 37 degree angle with the image receptor

-head tilt position similar to head tilt when drinking water

-central x-ray beam positioned centered over the maxillary sinuses

Reverse-Towne view

-used to investigate mandibular condyles

-always ask t to open the mouth because a closed mouth would not be useful for condylar assessment (would get occiput and/or skull base view)

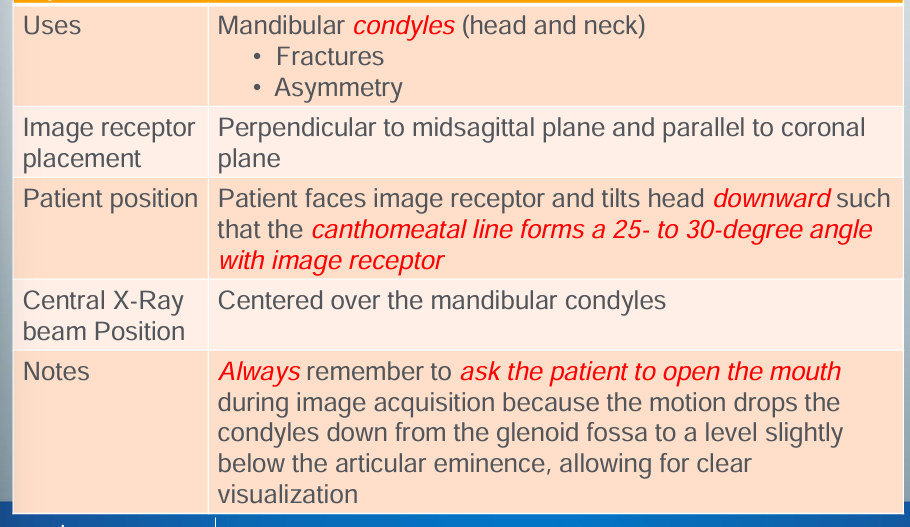

Reverse-Towne view- uses, image receptor placement, pt position, central x-ray beam position, notes

how to take Reverse-Towne view

-image receptor perpendicular to midsagittal plane and parallel to coronal plane

-pt faces the image receptor and tilts head downward so the canthomeatal line forms a 25 to 30 degree angle with the image receptor

-central x-ray beam positions centered over the mandibular condyles

-always ask pt to open mouth because the motion drops the condyles down from the glenoid fossa to a level slightly below the articular eminence, allowing for clear visualization

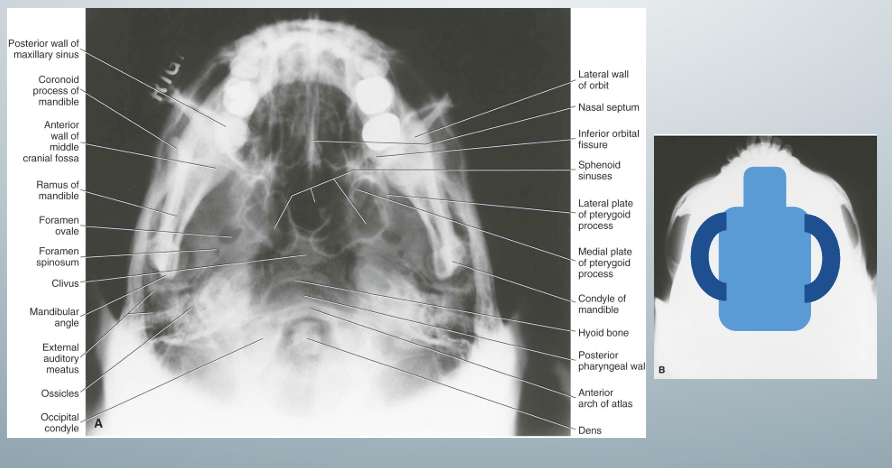

submentovertex view

-”jug handle view” because zygomatic arches stand out like the handles of a jug handle

-used for zygomatic arch fracture evaluation

-underexposure recommended to visualize zygomatic arches well

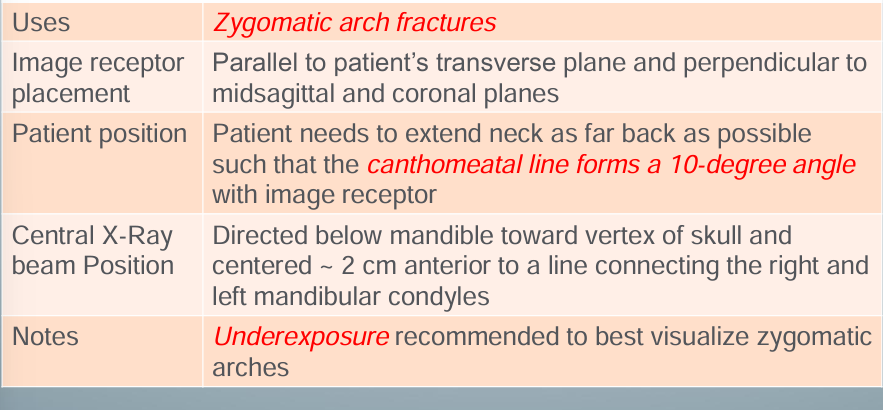

submentovertex view- uses, image receptor placement, pt position, central x-ray beam position, notes

how to take submentovertex view

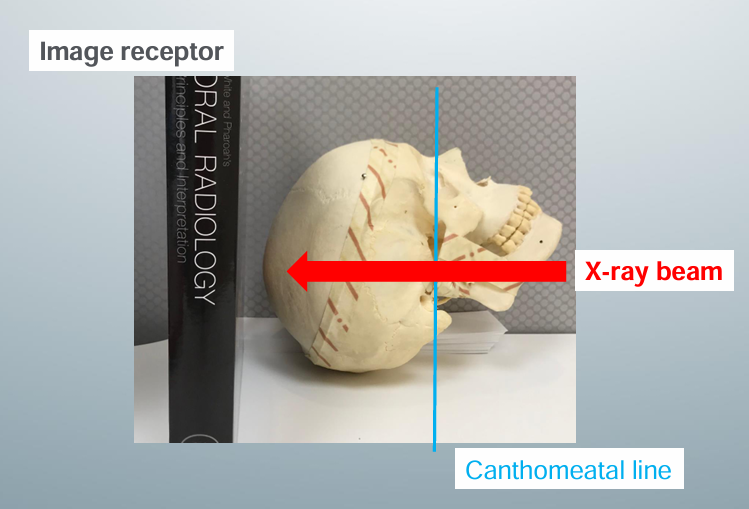

-image receptor placed parallel to pt’s transverse plane and perpendicular to the midsagittal and coronal planes

-pt needs to extend neck as far back as possible such that the canthomeatal line could form a 10 degree angle with image receptor

-central x-ray beam position directed below the mandible toward the vertex of the skull and centered to 2cm anterior to a line connecting the right and left mandibular condyles

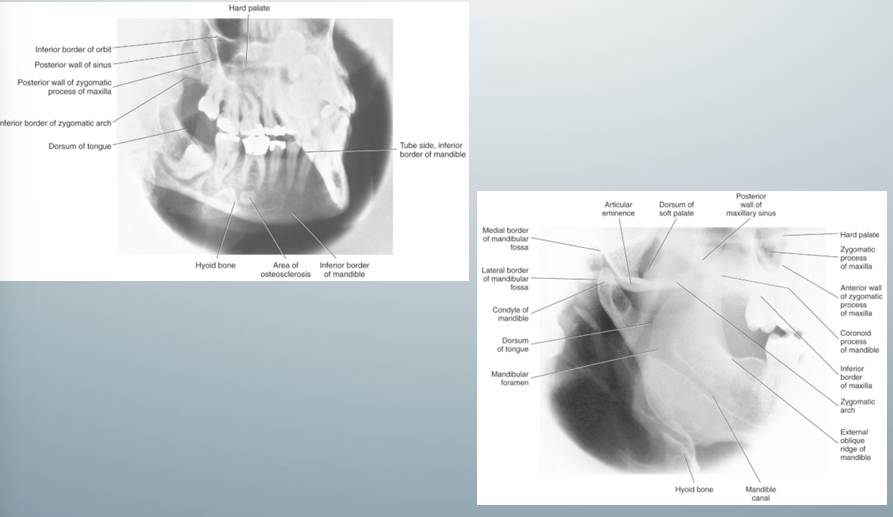

mandibular oblique lateral views

-used to evaluate mandibular body and ramus

-inferior border of the image receptor parallel and at least 2 cm below the inferior border of the mandible so that the image receptor can cover the entire mandibular body and ramus

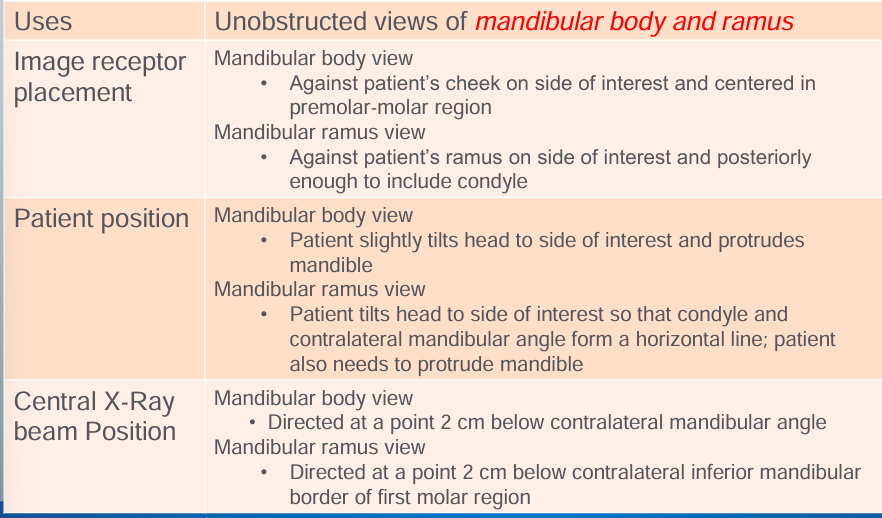

mandibular oblique lateral views- uses, image receptor placement, pt position, central x-ray beam position

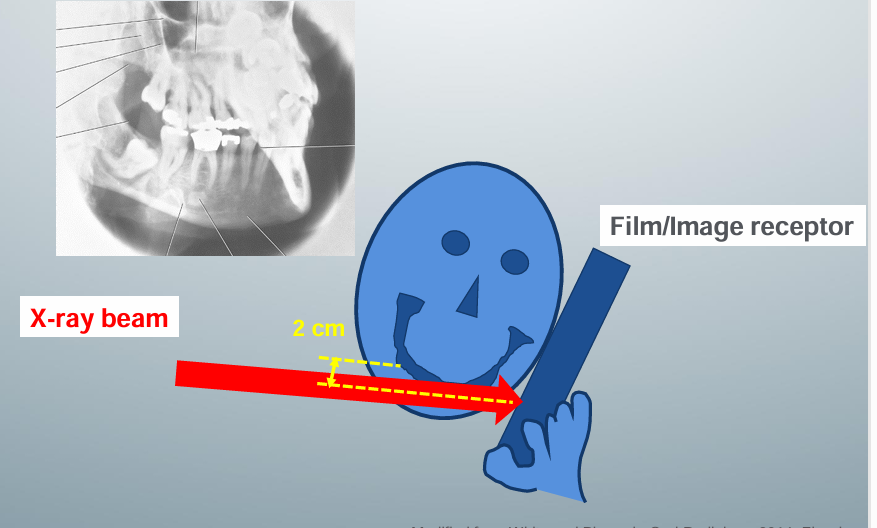

how to take mandibular oblique lateral views

-image receptor placed against the pt’s cheek on the side of interest and centered in the premolar-molar region

-pt slightly tilts head to the side of interest and protrudes mandible

-central x-ray beam positions are directed at 2cm below the contralateral mandibular angle
