18 Terms

1
New cards
term image

AND

<p>AND</p>
2
New cards
term image

OR

<p>OR</p>
3
New cards
term image

NOT

<p>NOT </p>
4
New cards
term image

XOR or Exclusive ORS

<p>XOR or Exclusive ORS</p>
5
New cards
term image

NAND

<p>NAND</p>
6
New cards
term image

NOR

<p>NOR </p>
7
New cards
<p></p>

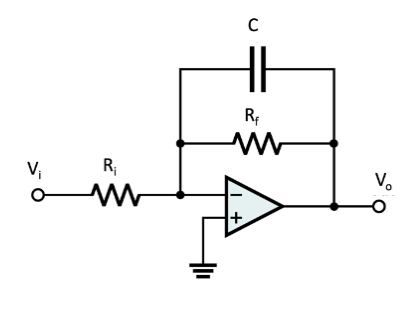

Inverting Low-Pass Filter
Cut-off frequency is 1/Rf C. Gain is Rf /R

8
New cards
term image

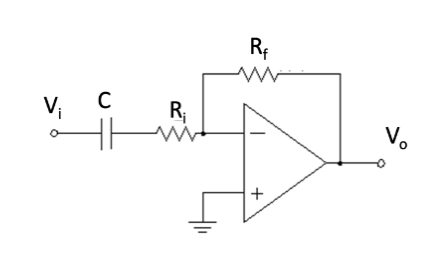

Inverting High-Pass Filter.
Cut-oH frequency is 1/RiC. Gain is Rf/Ri

9
New cards
term image

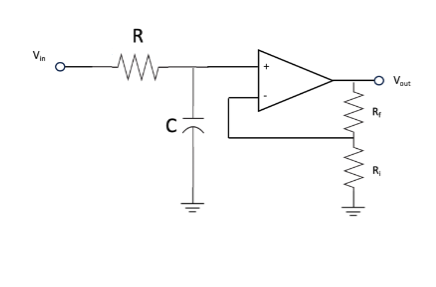

Non-inverting Low-Pass Filter.
Cut-oH Frequency is 1/RC, gain is (1+Rf/Ri

10
New cards
term image

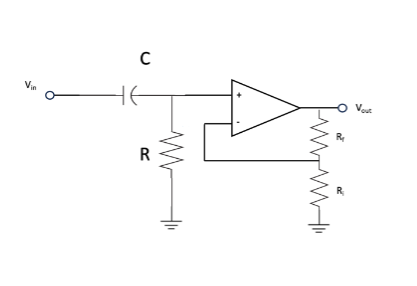

Non-inverting High-Pass Filter
Cut-off frequency is 1/RC, gain is (1+Rf/Ri

11
New cards
term image

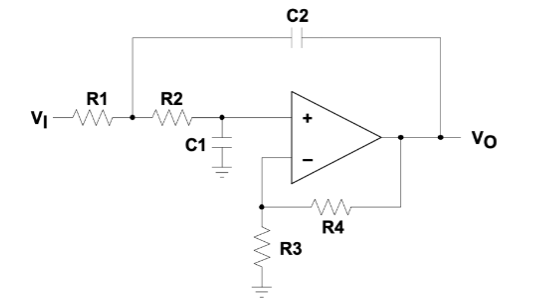

Low-Pass Sallen Key circuit

12
New cards
term image

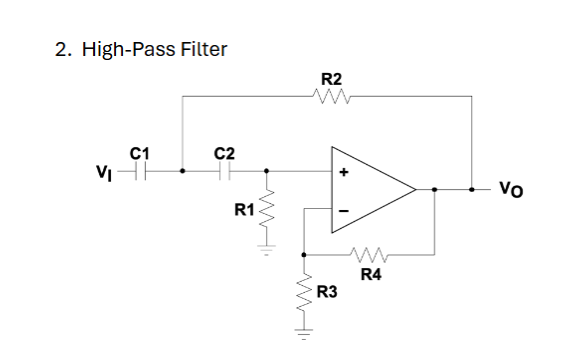

High Pass Sallen Key circuit

13
New cards
term image

1 LPF

14
New cards
term image

1 HPF

15
New cards
term image

2 LPF

16
New cards
term image

2 HPF

17
New cards
term image

2 BPF

18
New cards
term image

2 Notch
