Nervous System Anatomy: Labeling PART 2

Again, Labeling Part 2 (Plastic Brain Model, Eye Dissection and Ear Anatomy)

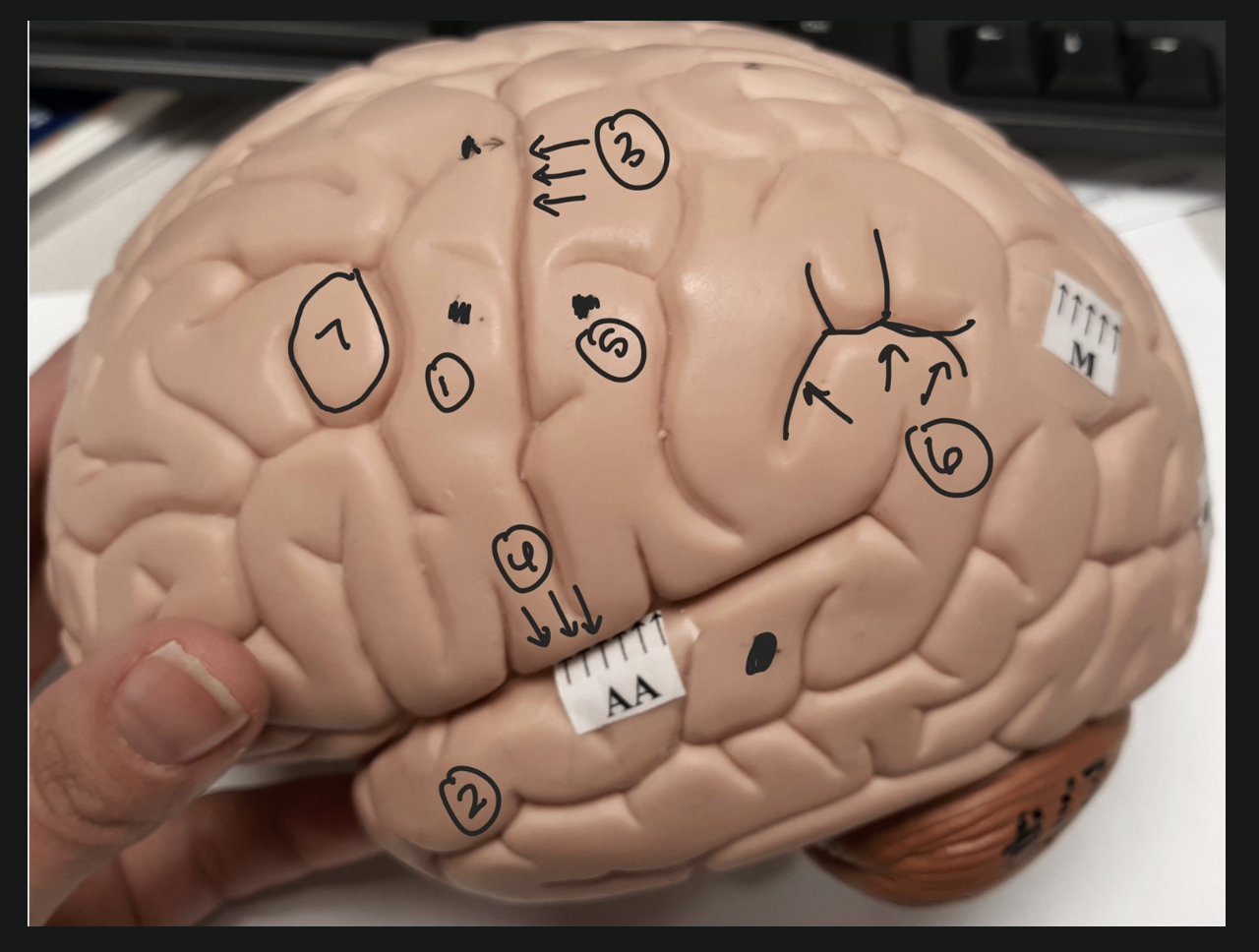

What is 1?

Precentral gyrus

What is 2?

Temporal Lobe

What is 3?

Central Sulcus

What is 4?

Lateral Sulcus

What is 5?

Postcentrel Gyrus

(TOP OF THE BRAIN) What is 6 and 7?

6: Sulcus

7: Gyrus

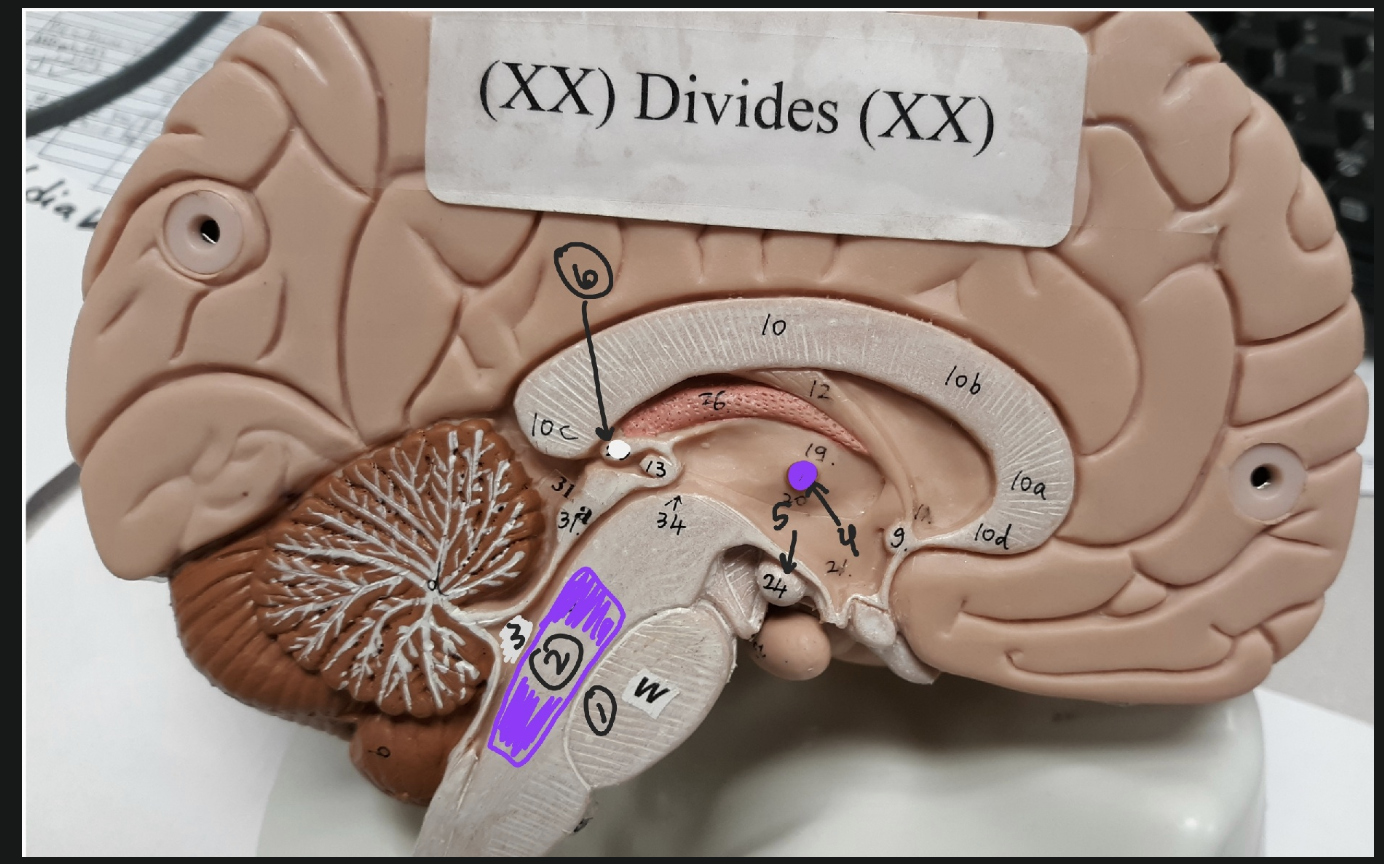

(SAGITTAL VIEW OF BRAIN) Name all of the numbered brain structures: (1-6)

1: Pons

2: Medulla

3: 4th Ventricle

4: Intermediated Mass

5: Mammillary Body

6: Posterior Commissure

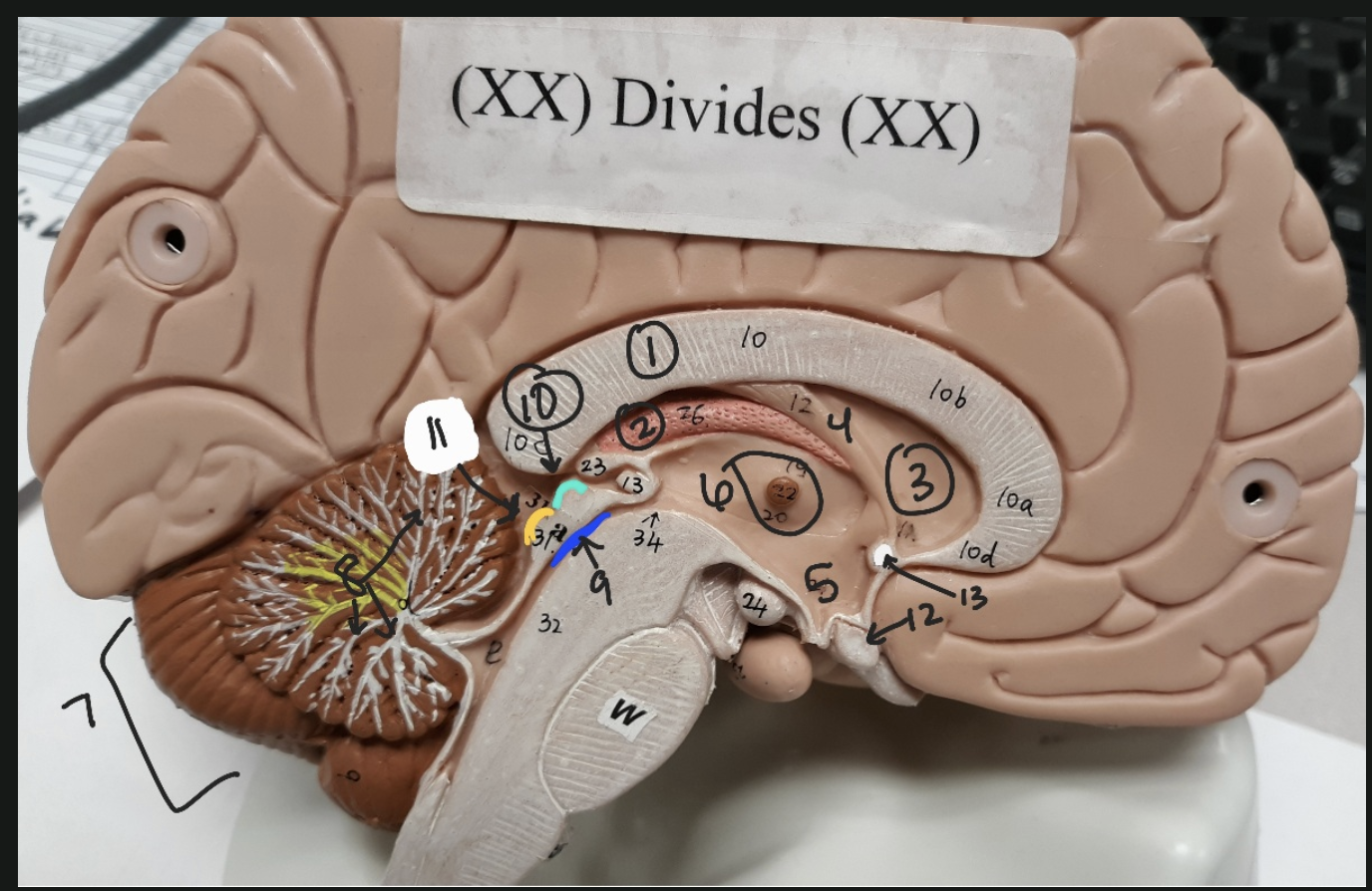

(SAGITTAL VIEW OF BRAIN) Name all numbered brain structures: (1-13)

1: Corpus Callosum

2: Choroid Plexus

3: Septum Pellucidum

4: Fornix

5: Hypothalamus

6: Thalamus

7: Cerebellum

8: Arbor Vitae

9: Cerebral Aqueduct

10: Superior Colliculus

11: Inferior Colliculi

12: Optic Chiasm

13: anterior Commissure

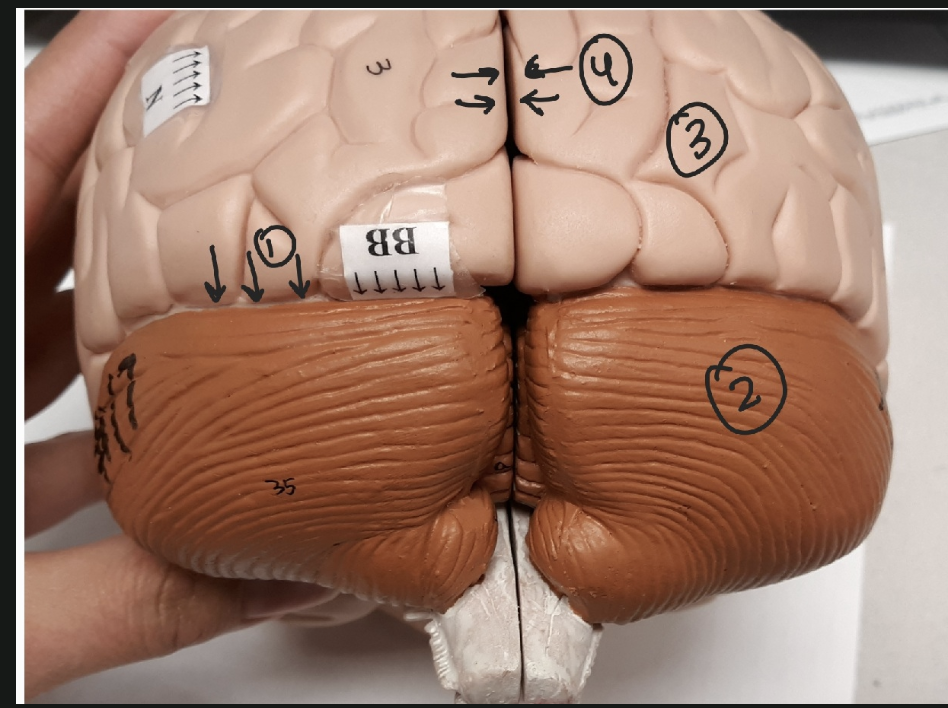

(BACKSIDE OF BRAIN) Name numbered brain structures: (1-4)

1: Parietooccipital Sulcus

2: Cerebellum

3: Occipital Lobe

4: Longitudinal Fissure

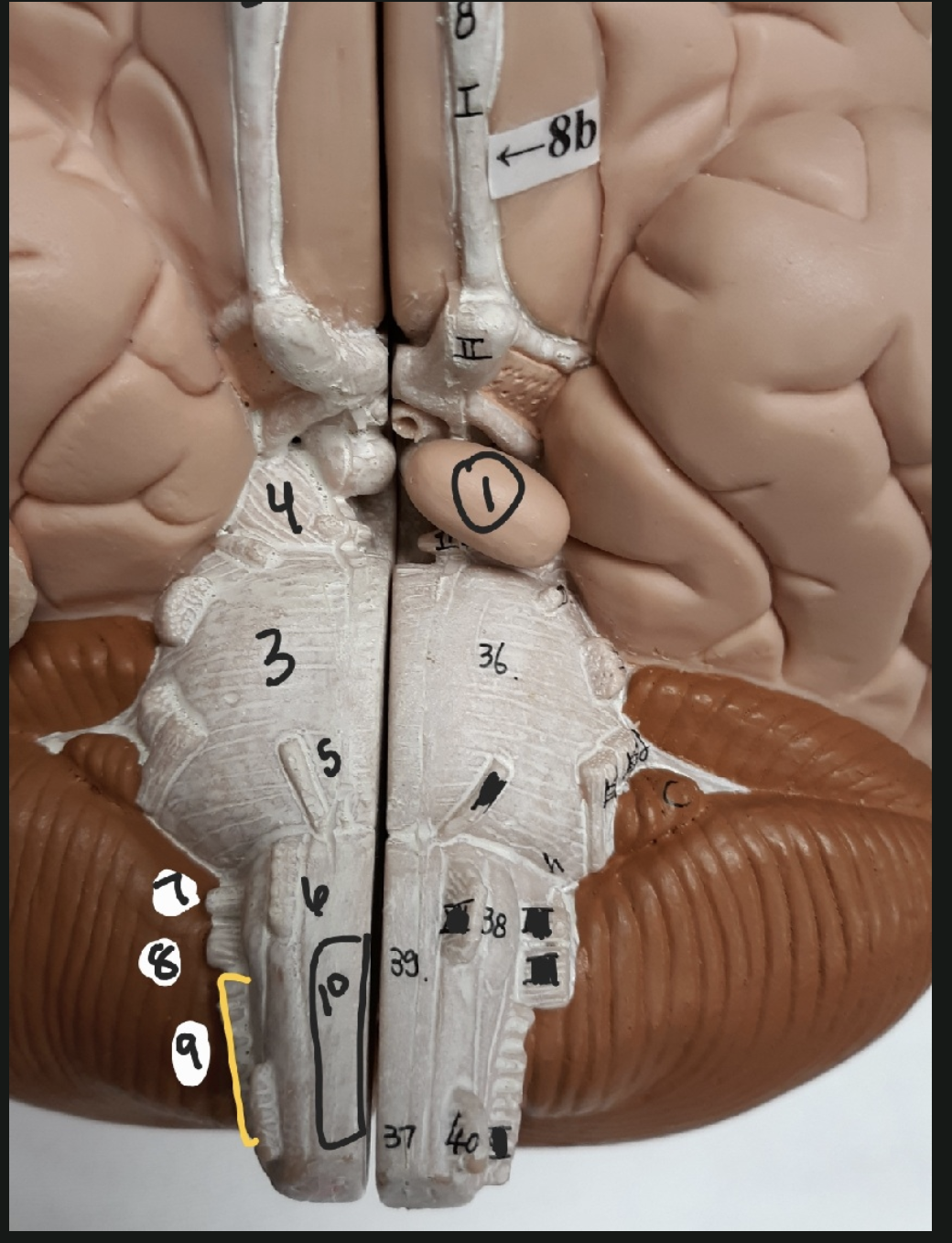

(UNDERSIDE OF BRAIN) Name numbered brain structures: (1-9)

1: Pituitary Gland

2: Pons

3: Cerebral Penduncle

4: Abducens

5: Accessory Nerve

6: Glossopharygeal Nerve

7: Vargus Nerve

8: Accessory Nerve

9: Pyramids

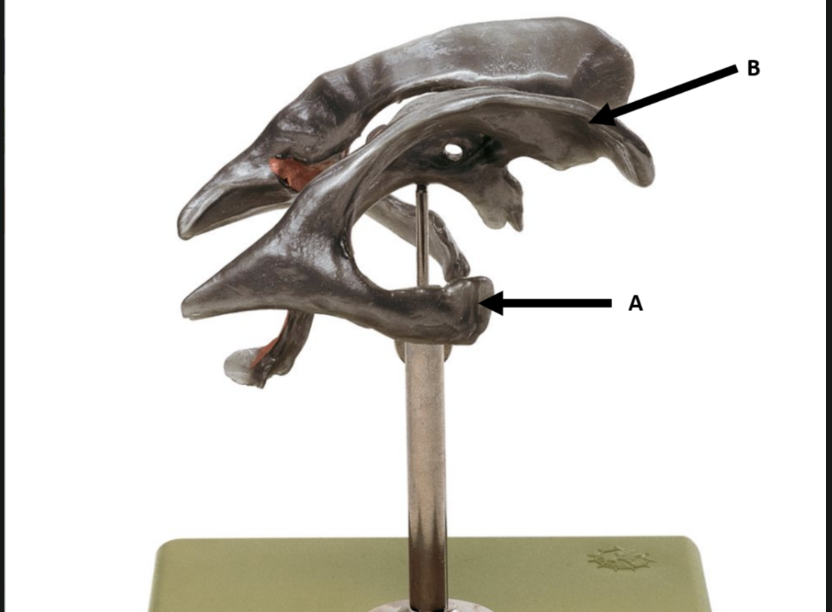

What is A & B?

Lateral Horn

What are A & B?

3rd Ventricle and Cerebral Aqueduct

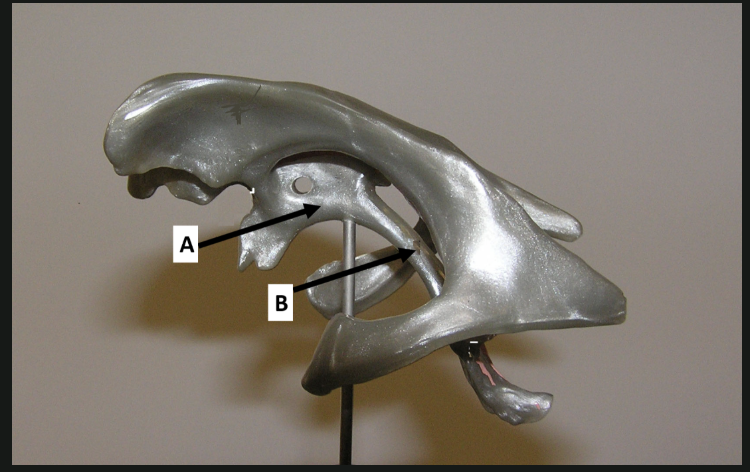

What structure does the 3rd Ventricle sit between?

Thalamus Halves

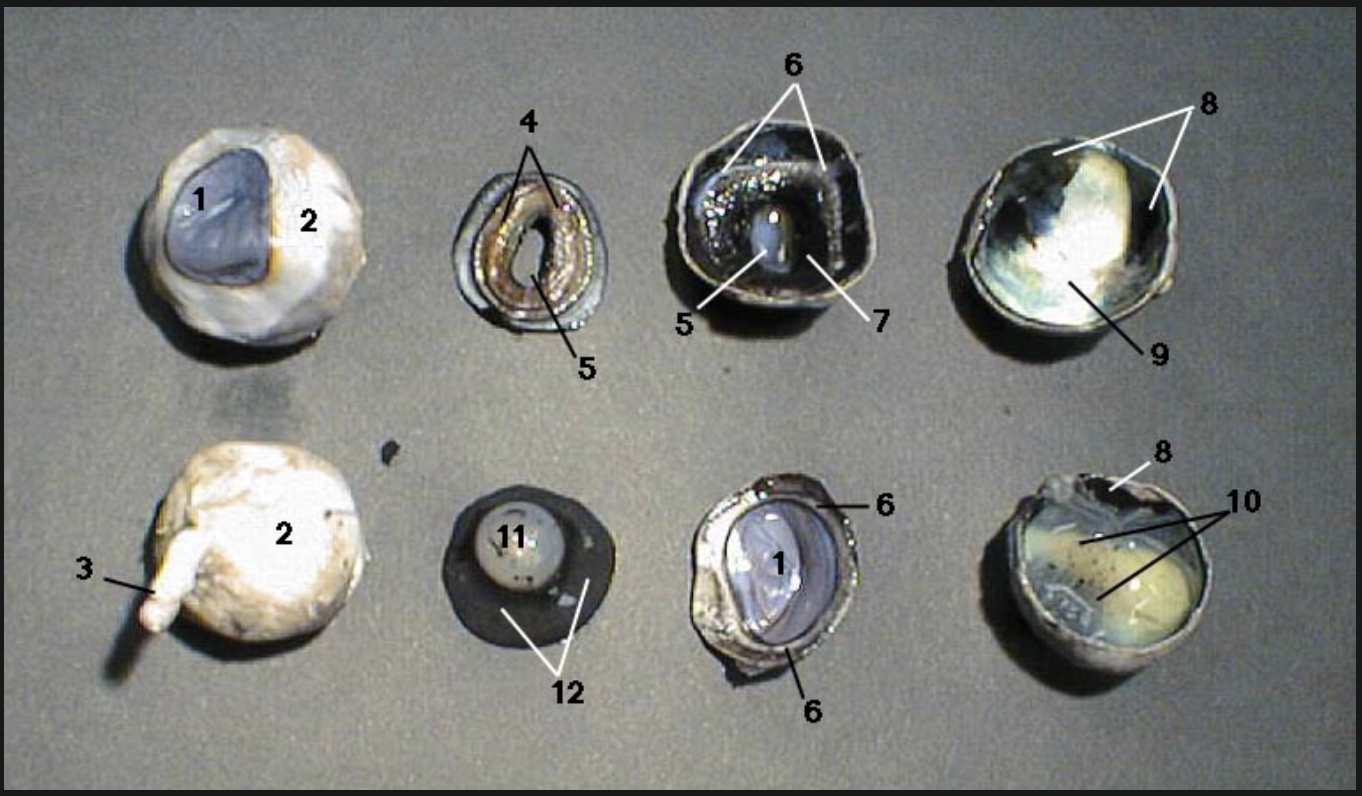

(PARTS OF THE EYE) Identify all numbered:

1: Cornea

2: Sclera

3: optic Nerve

4: Pupil

5: Iris

6: Ora Serrata

7: Choroid

8: retina

9: Tapetum Lucidium

10: (?)

11: Lens

12: Suspensory Ligaments

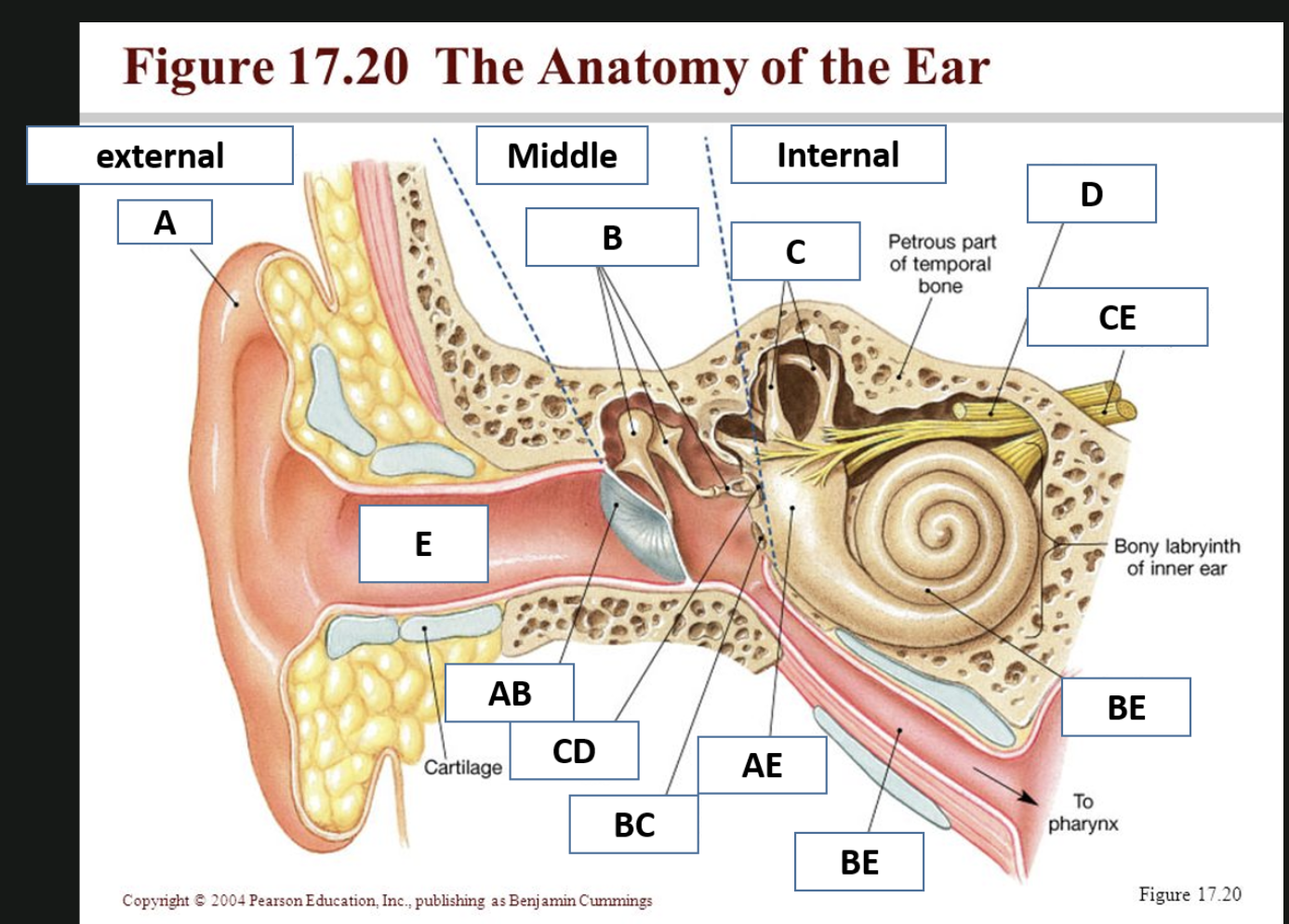

What is A?

Auricle

What is B?

Auditory Ossicles

What is C?

Semicircular Canals

What is D?

Facial Nerve

What is CE?

Vestibulocochlear Nerve

What is BE? (Snail like area)

Cochlea

What is BE?

Auditory Tube

What is AE?

Vestibule

What is BC?

Round Window

What is CD?

Oval Window

What is AB?

Tympanic Membrane

What is E?

External Auditory Canal
