Ex 32 & 33: Respiratory System Structure and Function & Pulmonary Ventilation

Air flow through the Respiratory System

1. external naris

2. nasal cavity

3. internal nairs

4. nasopharynx

5. oropharynx

6. larynogopharynx

7. larynx

8. trachea

9. Primary Bronchus

10. Secondary Bronchus

11. Tertiary Bronchus

12. Bronchiole

13. Terminal Bronchiole

14. Respiratory Bronchiole

15. Alveolar Duct

16. Alveolar Sac

17. Alveolus

respiratory bronchioles

Tubular airways that begin the respiratory zone

larynx

Connects the laryngopharynx with the trachea

trachea

Tube-like structure that conducts air from the larynx to the bronchi

epiglottis

Closes over the glottis during swallowing

tracheal cartilages

Keep the trachea from collapsing

terminal bronchioles

Last division of the conducting zone

oropharynx

Conducts air from the nasopharynx to the larynogopharnx

alveoli

Small, round sacs where gas exchange occurs

bronchiole

Small conduction airway that serves a lobule

pseudostratified ciliated columnar

Epithelium in Nasal Cavity, Paranasal Sinuses, and Nasopharynx

stratified squamous

Epithelium in Oropharynx, Larynogopharynx, and Larynx (Vocal folds and above)

pseudostratified ciliated columnar

Epithelium in Larynx (below vocal folds), Trachea, Primary Bronchi, Secondary Bronchi, and Tertiary Bronchi

ciliated simple columnar

Epithelium in Larger Bronchioles

non-ciliated simple cubodial --> simple squamous

Epithelium in Respiratory Bronchioles

Pectoralis minor

Elevates 3rd, 4th, and 5th ribs

sternocleidomastoid

Elevates the sternum

internal intercostals

Depresses ribs

abdominal muscles

Compresses abdominal contents and increases abdominal pressure

Scalenes

Elevates first and second ribs

external intercostals

Elevates ribs

diaphragm

Main inspiratory muscle

muscles used in Forced Exhalation

Abdominal Muscles and Internal Intercostals

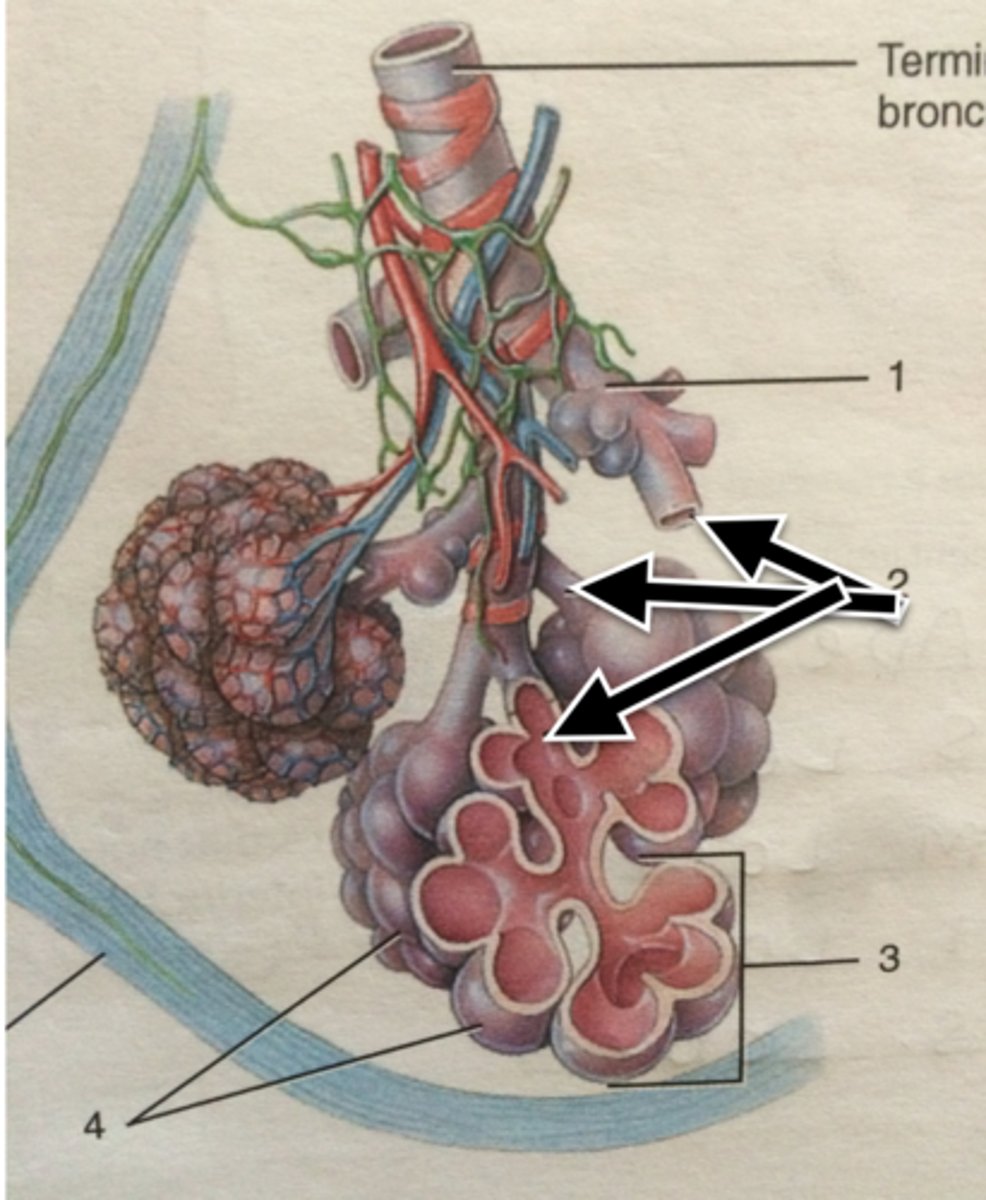

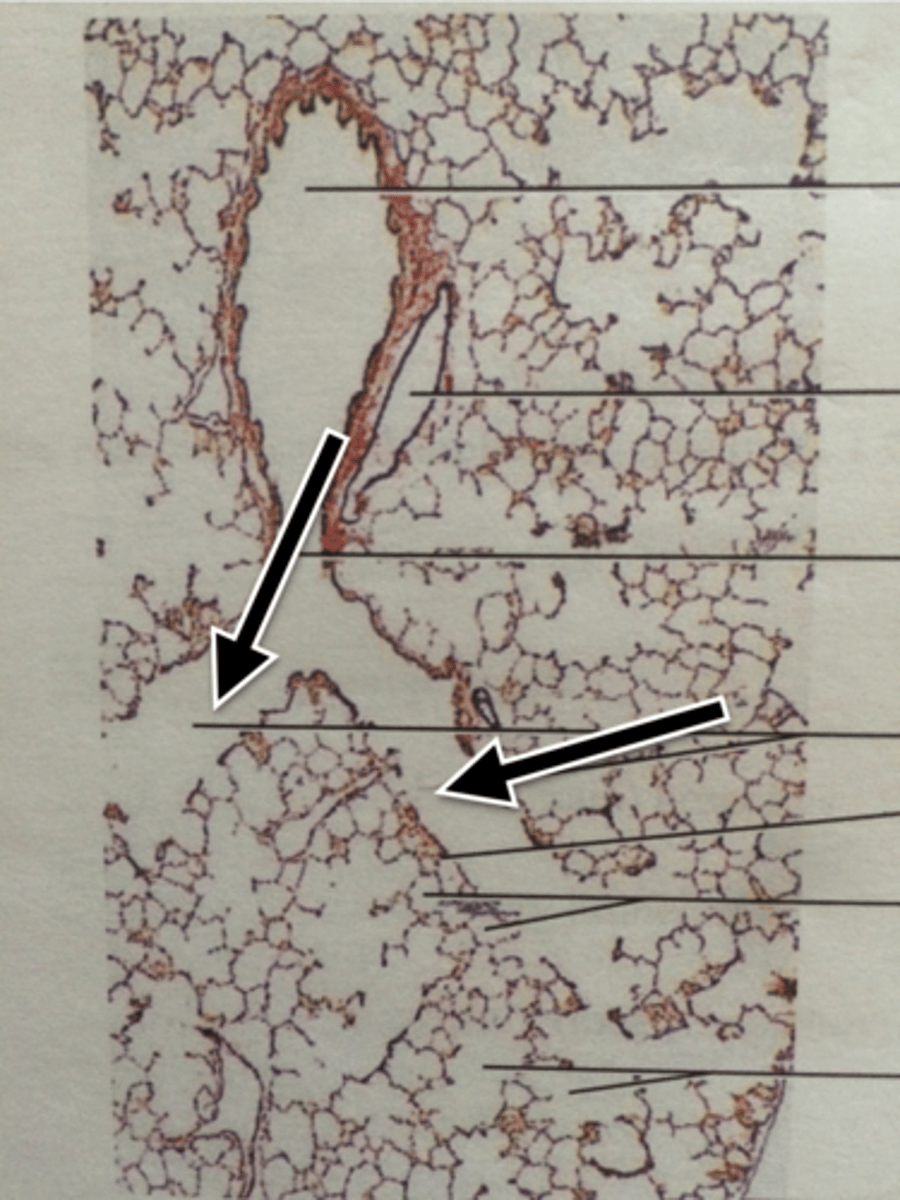

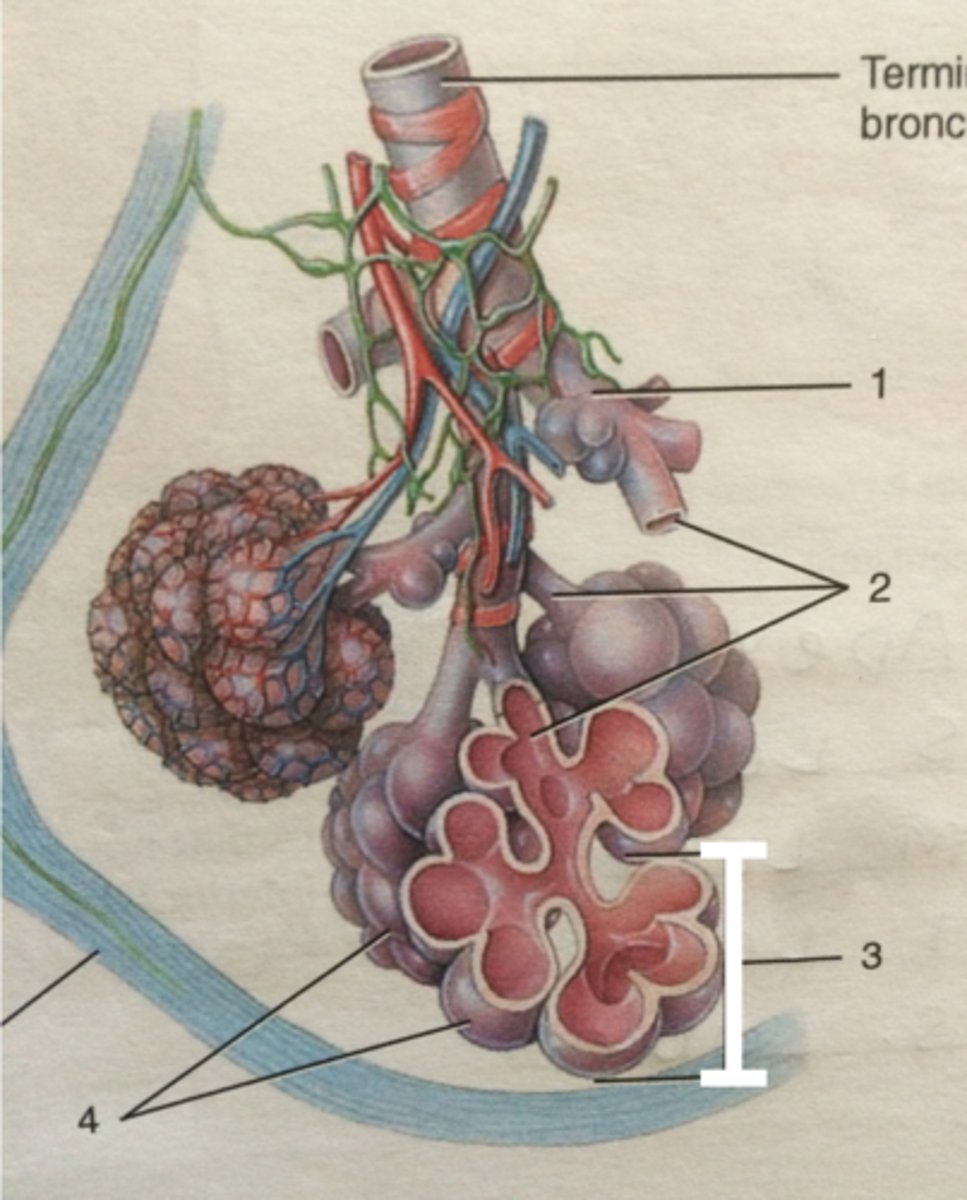

Alveolar Ducts

Alveolar Ducts

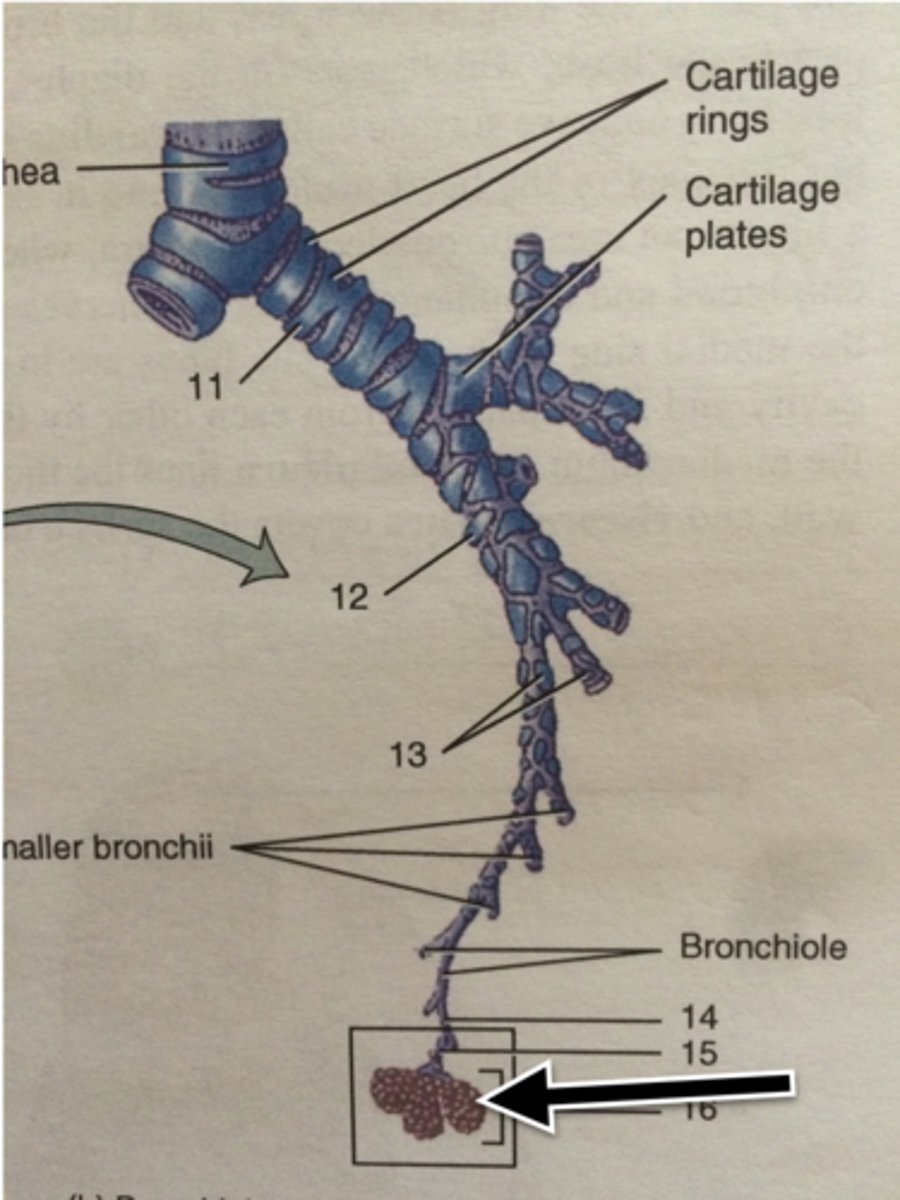

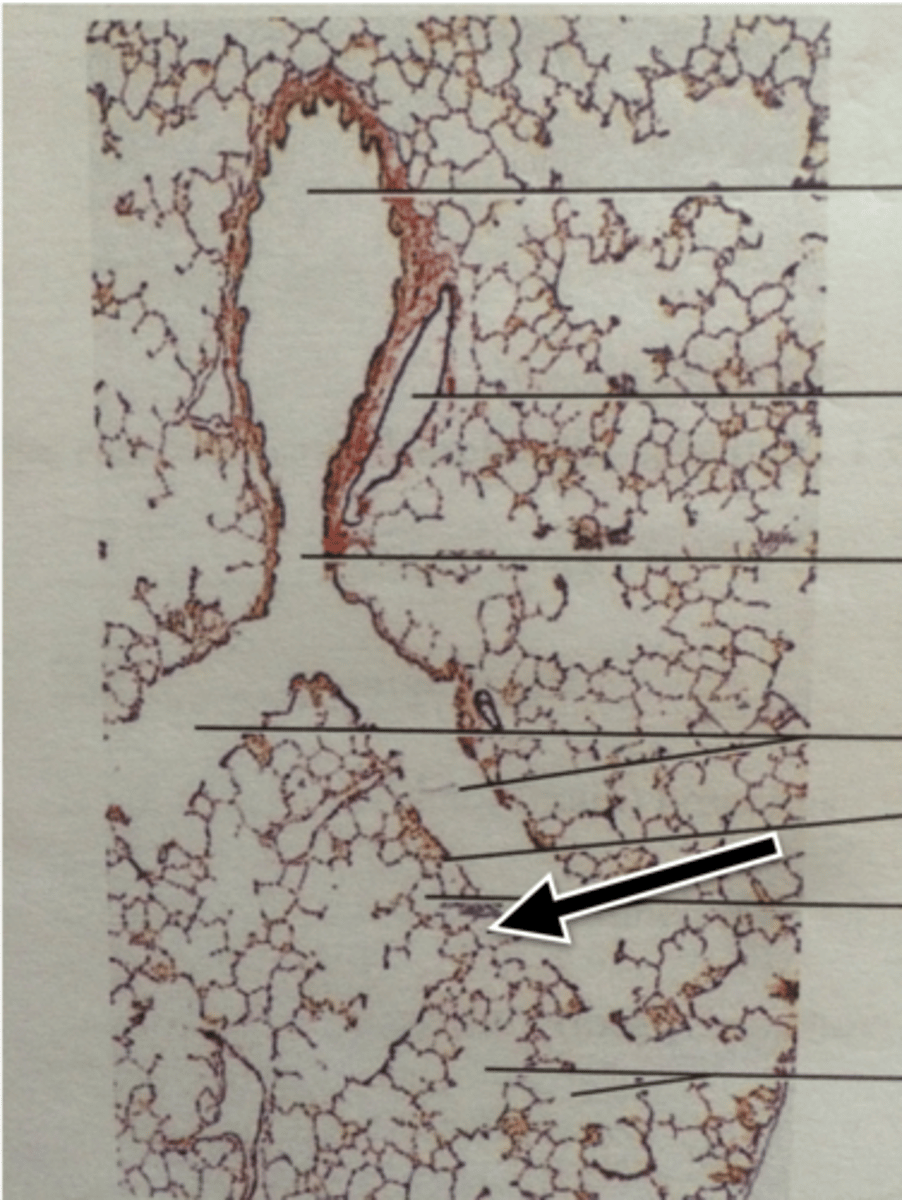

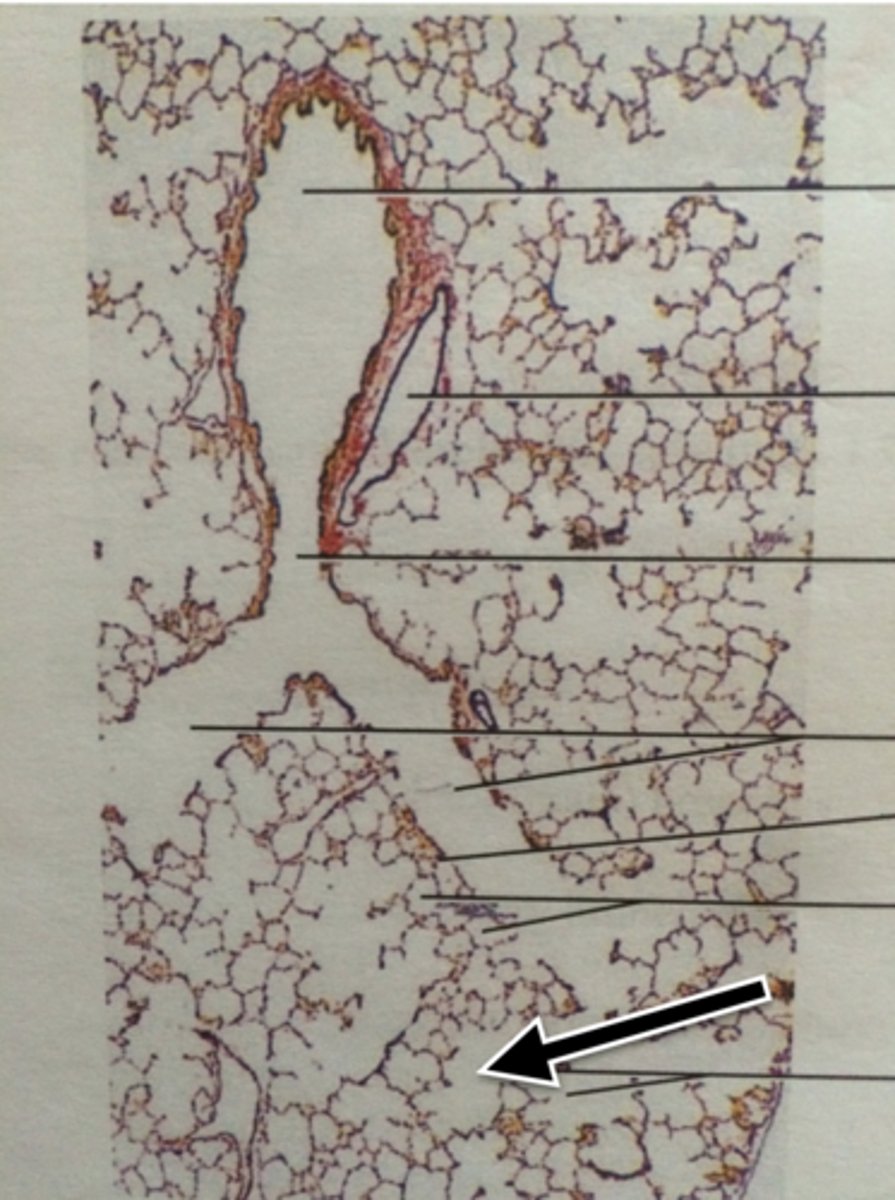

Alveolar Sac

Alveolar Sac

Alveolar Sac

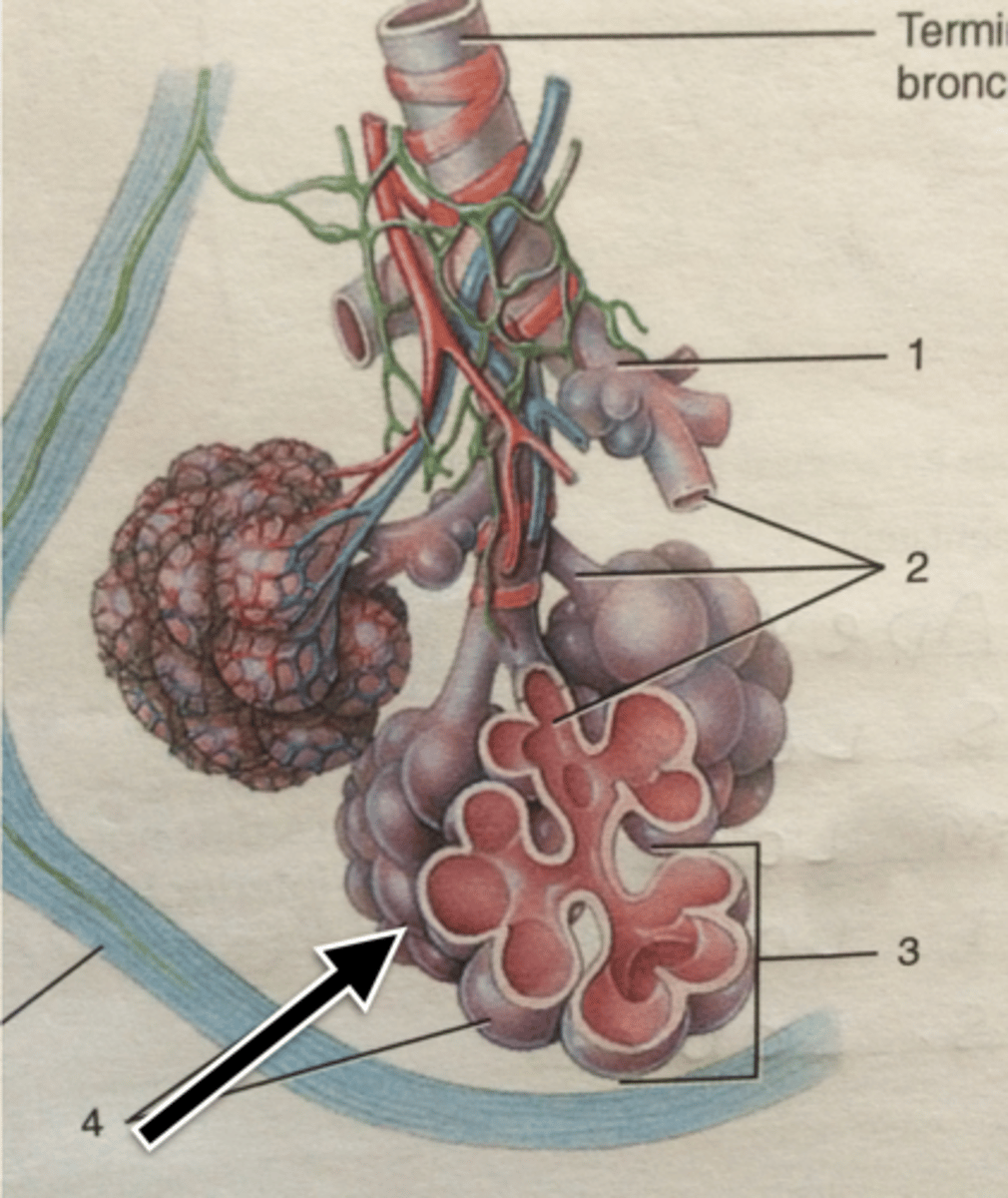

Alveoli

Alveoli

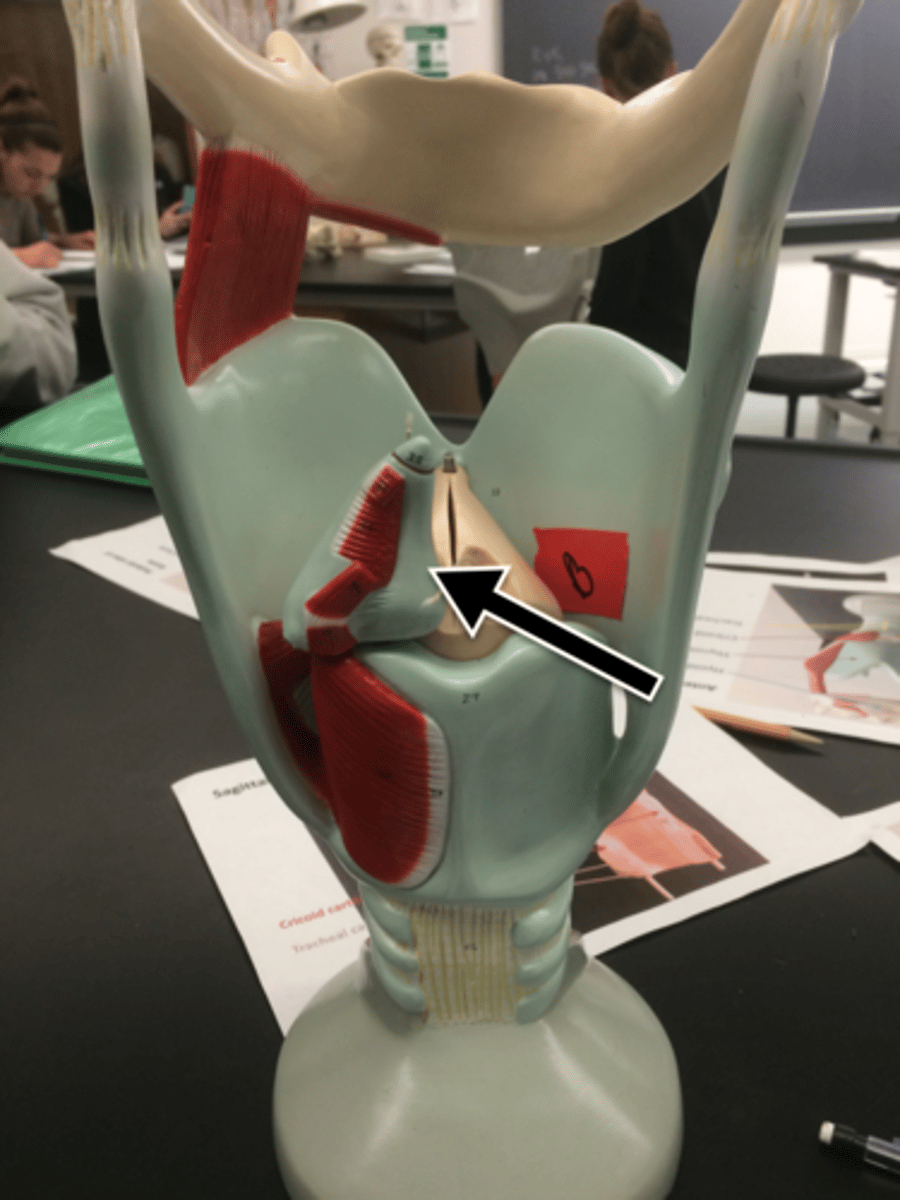

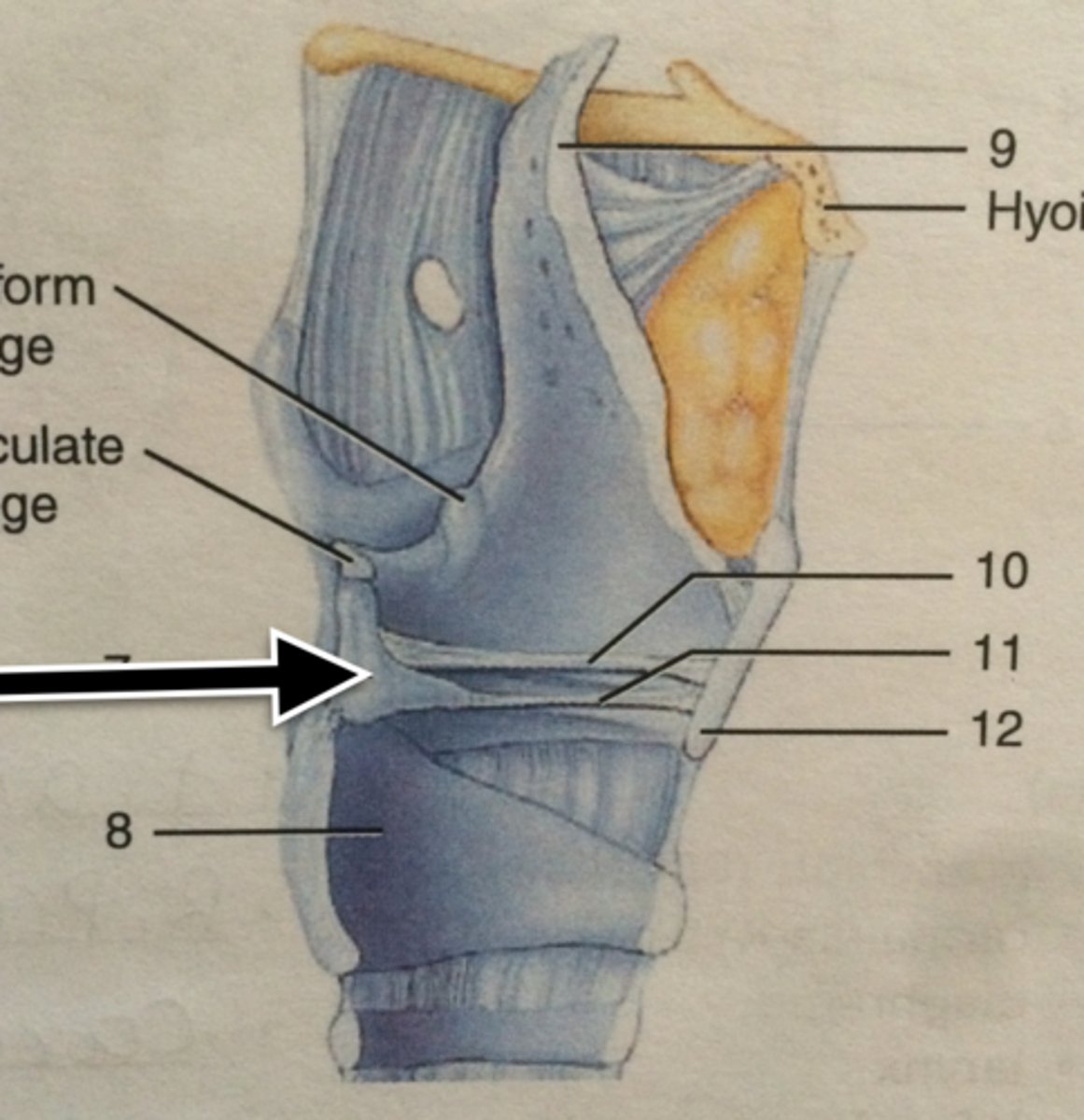

Arytenoid Cartilage

Arytenoid Cartilage

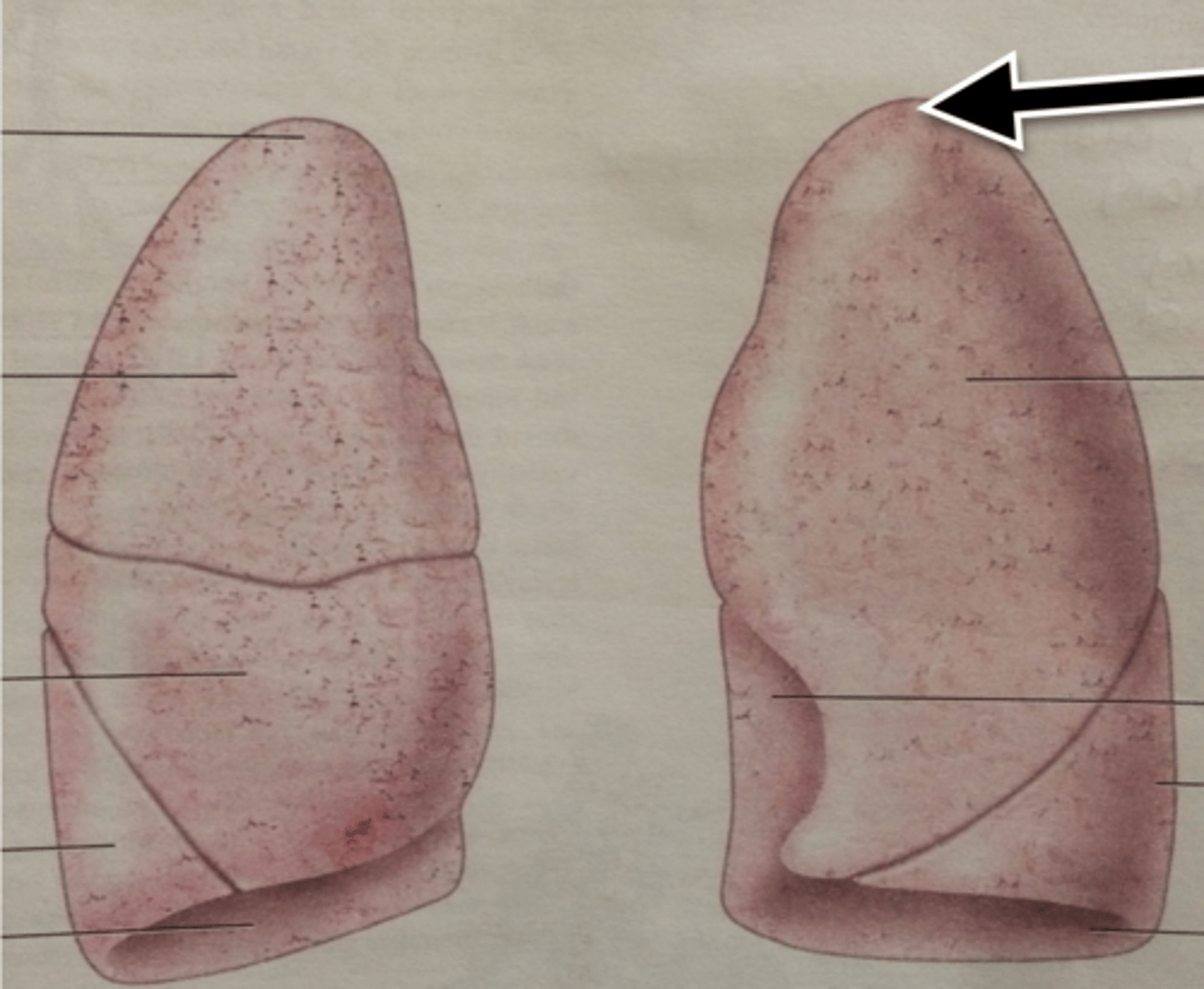

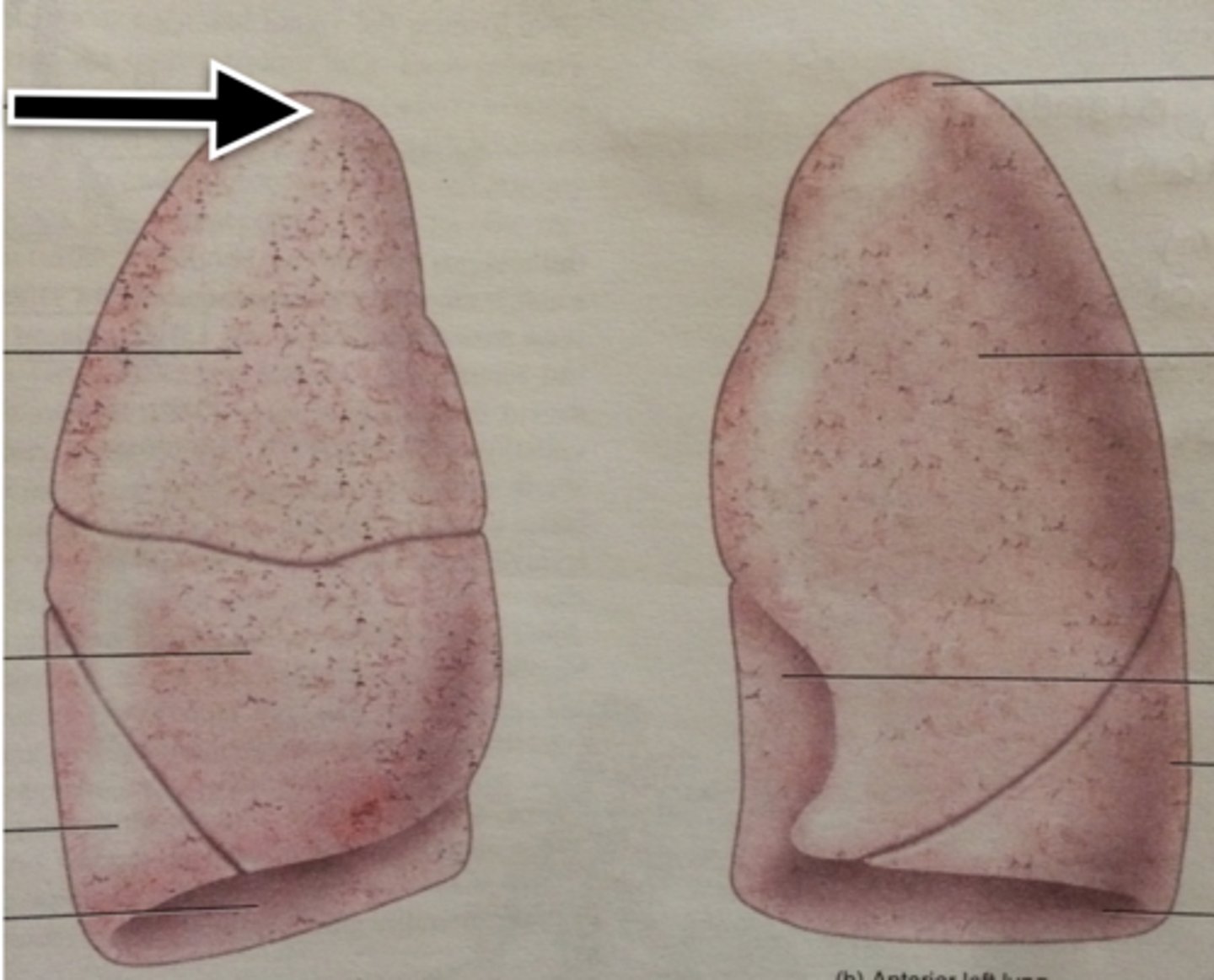

Apex

Apex

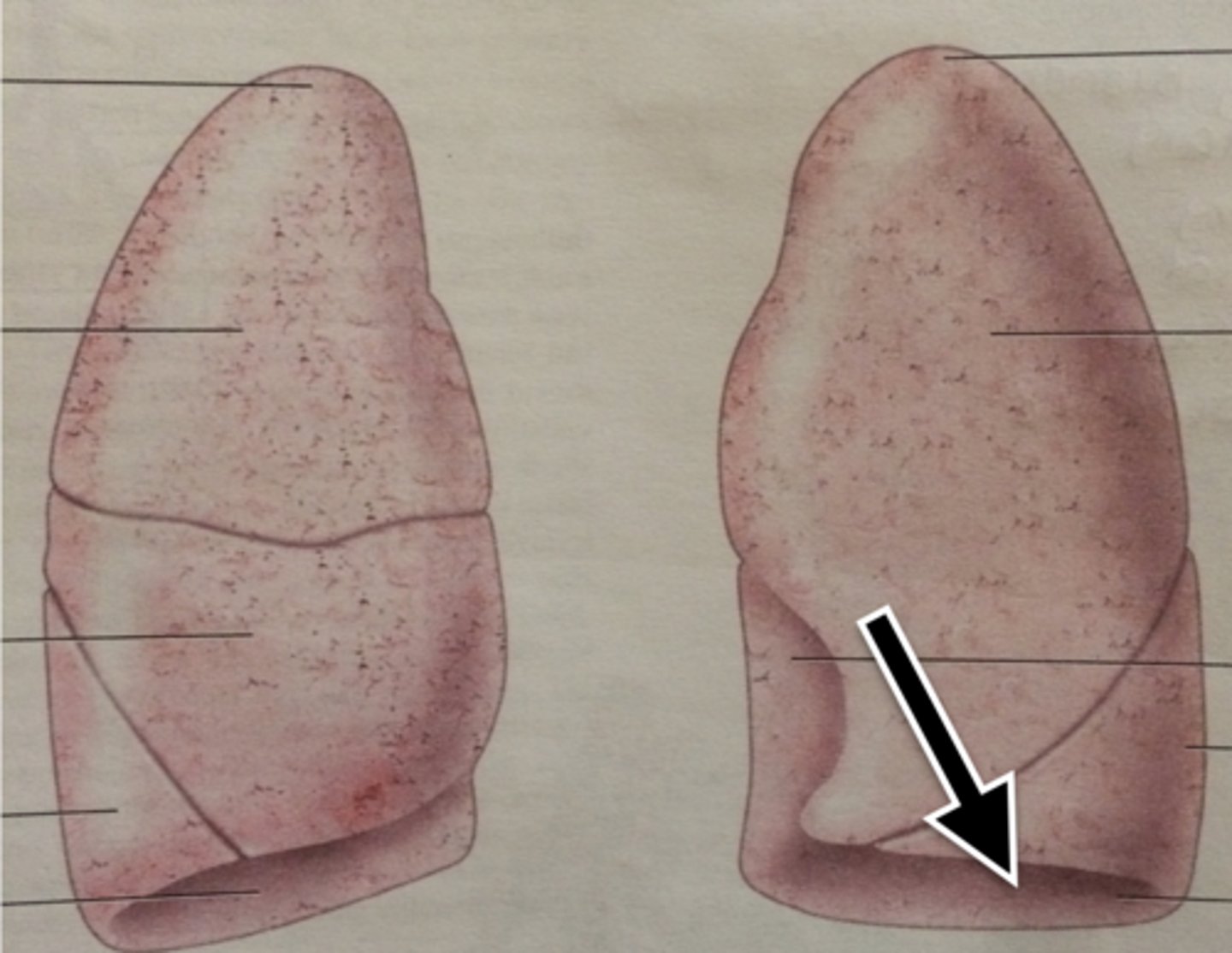

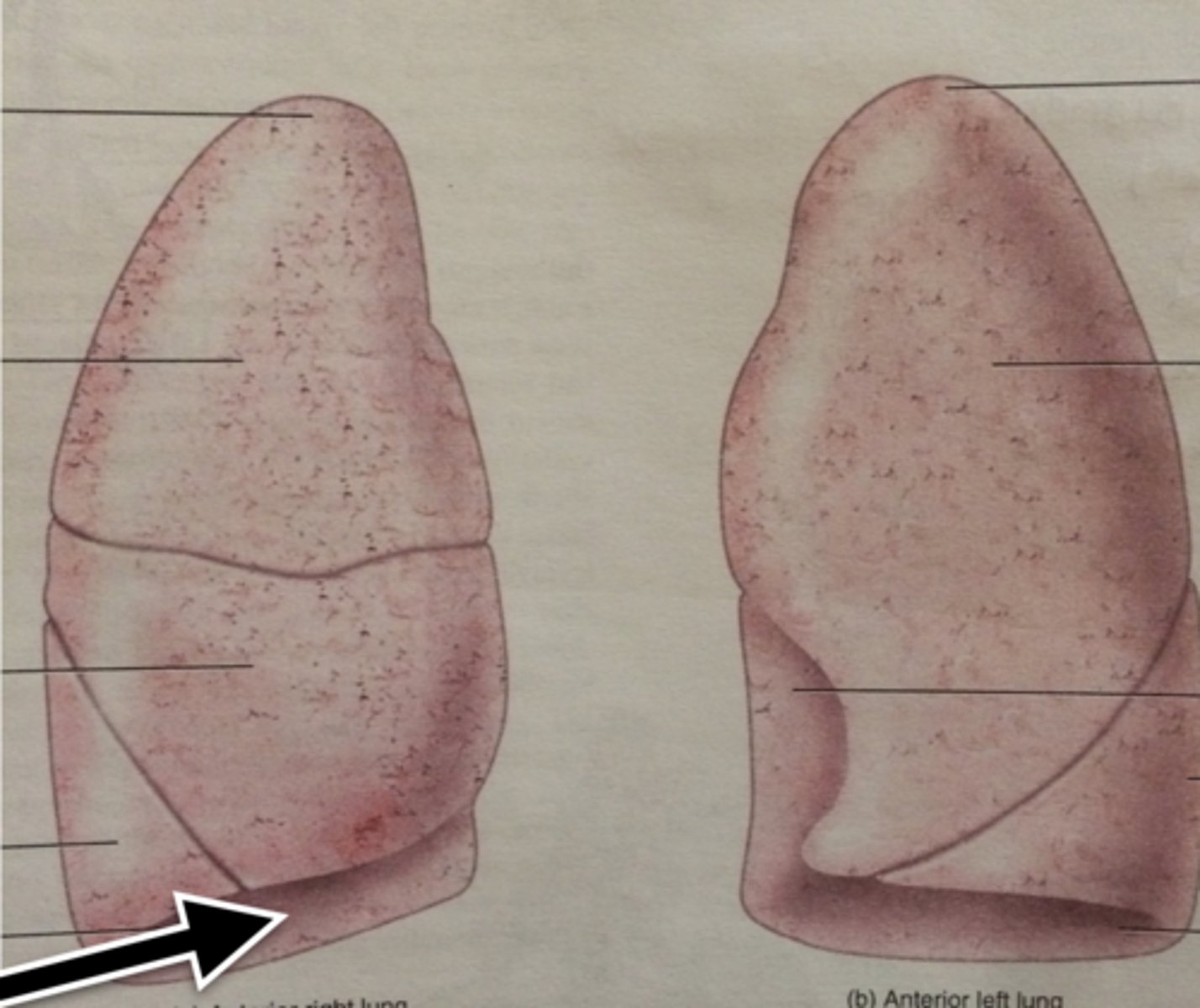

Base

Base

Bronchiole

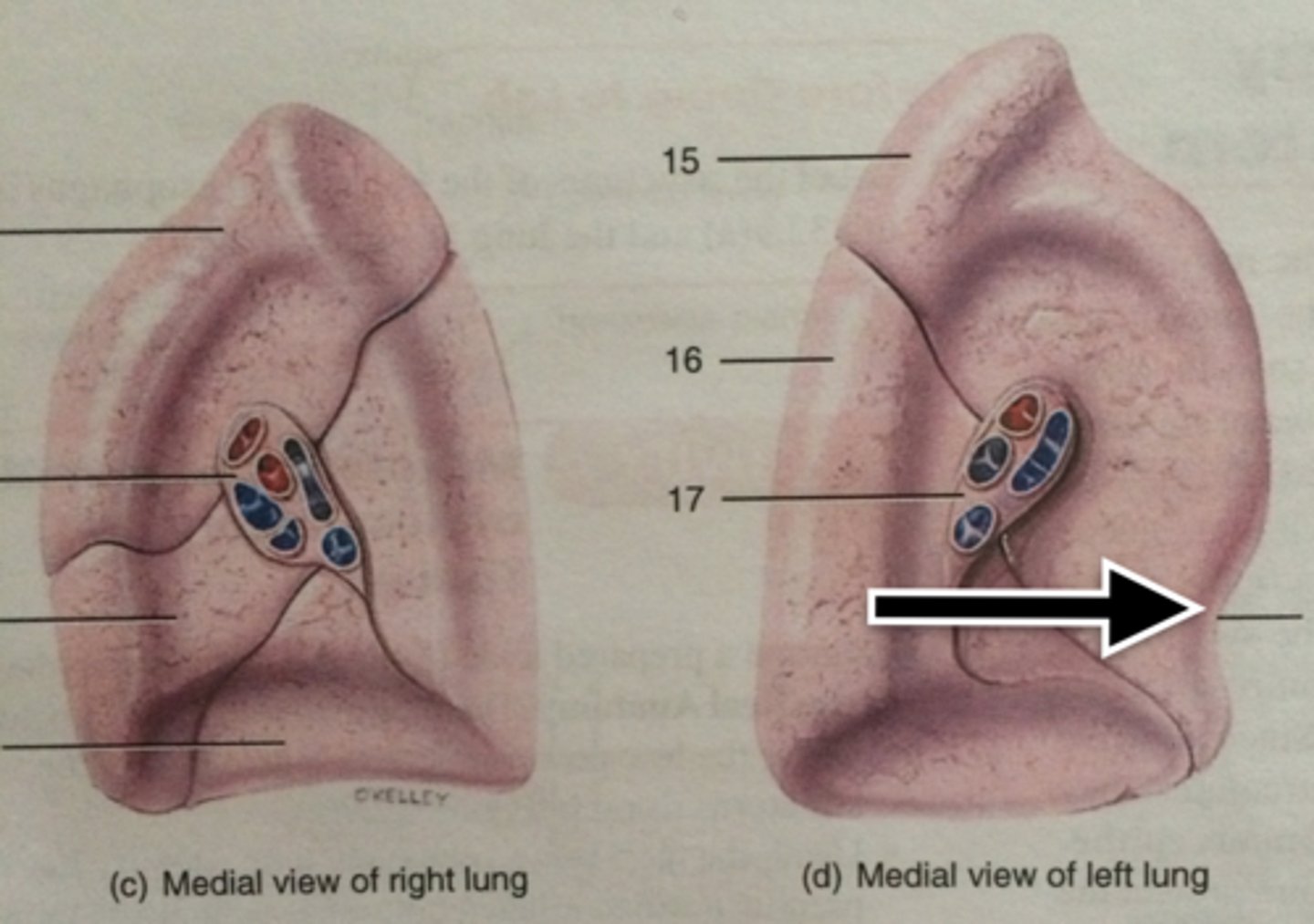

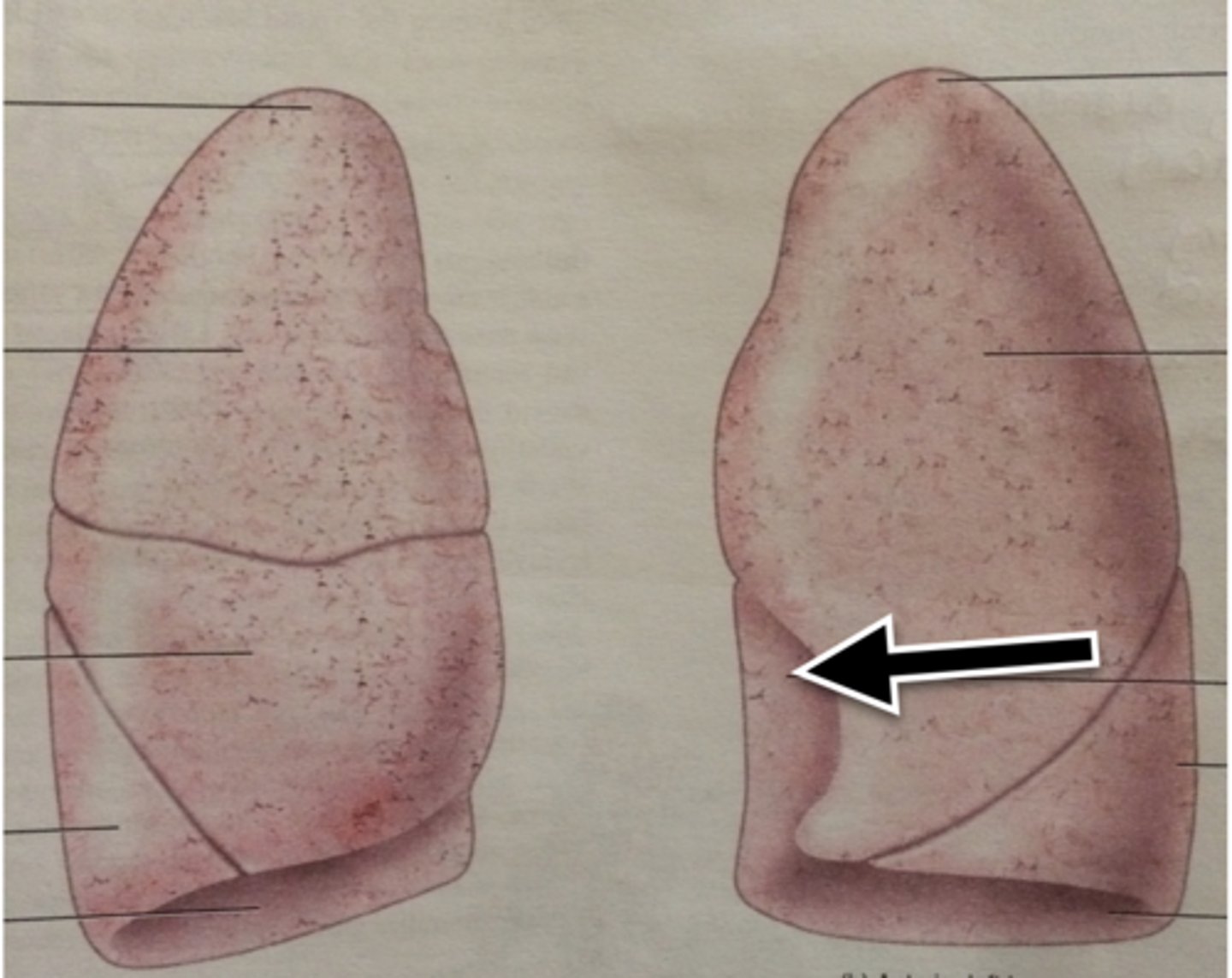

Cardiac Notch

Cardiac Notch

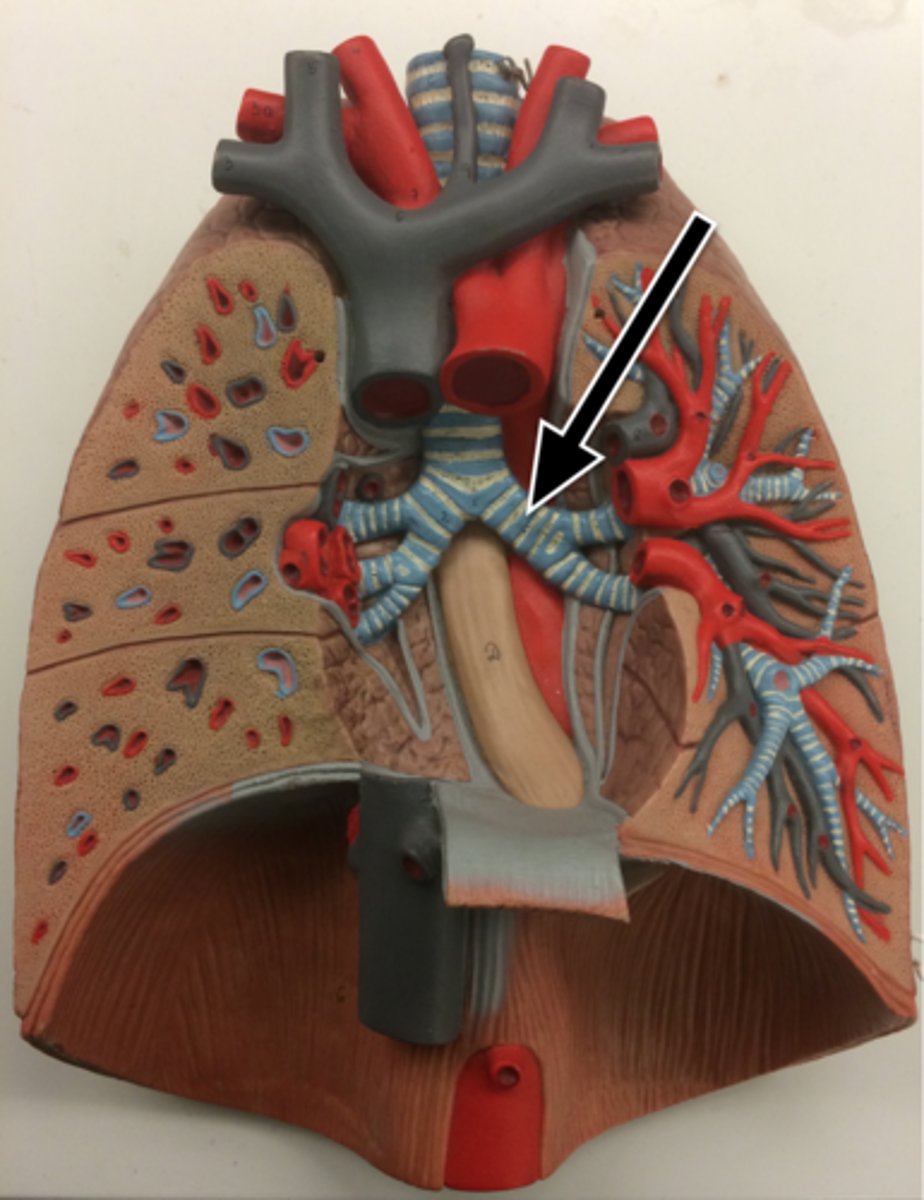

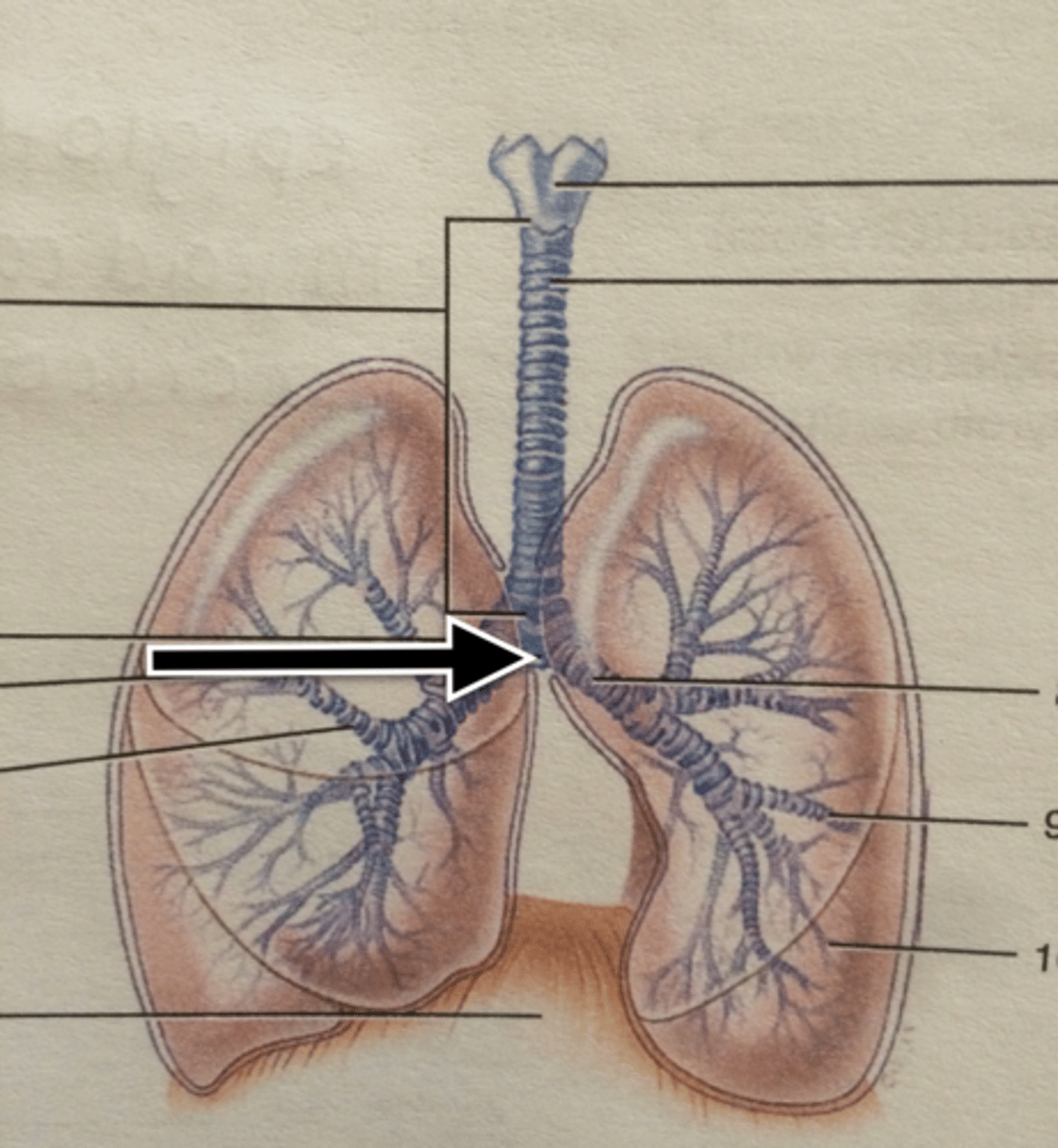

Carina

Carina

Corniculate Cartilage

Corniculate Cartilage

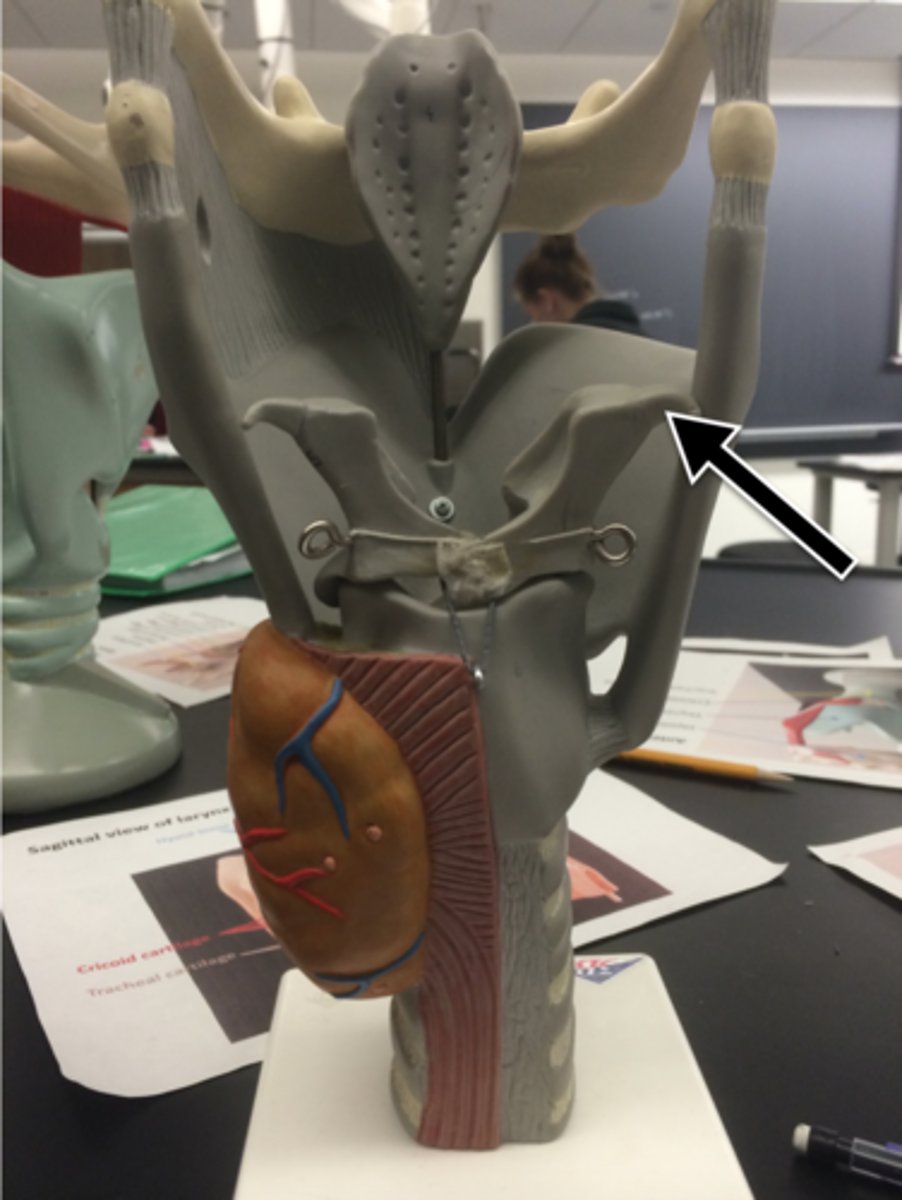

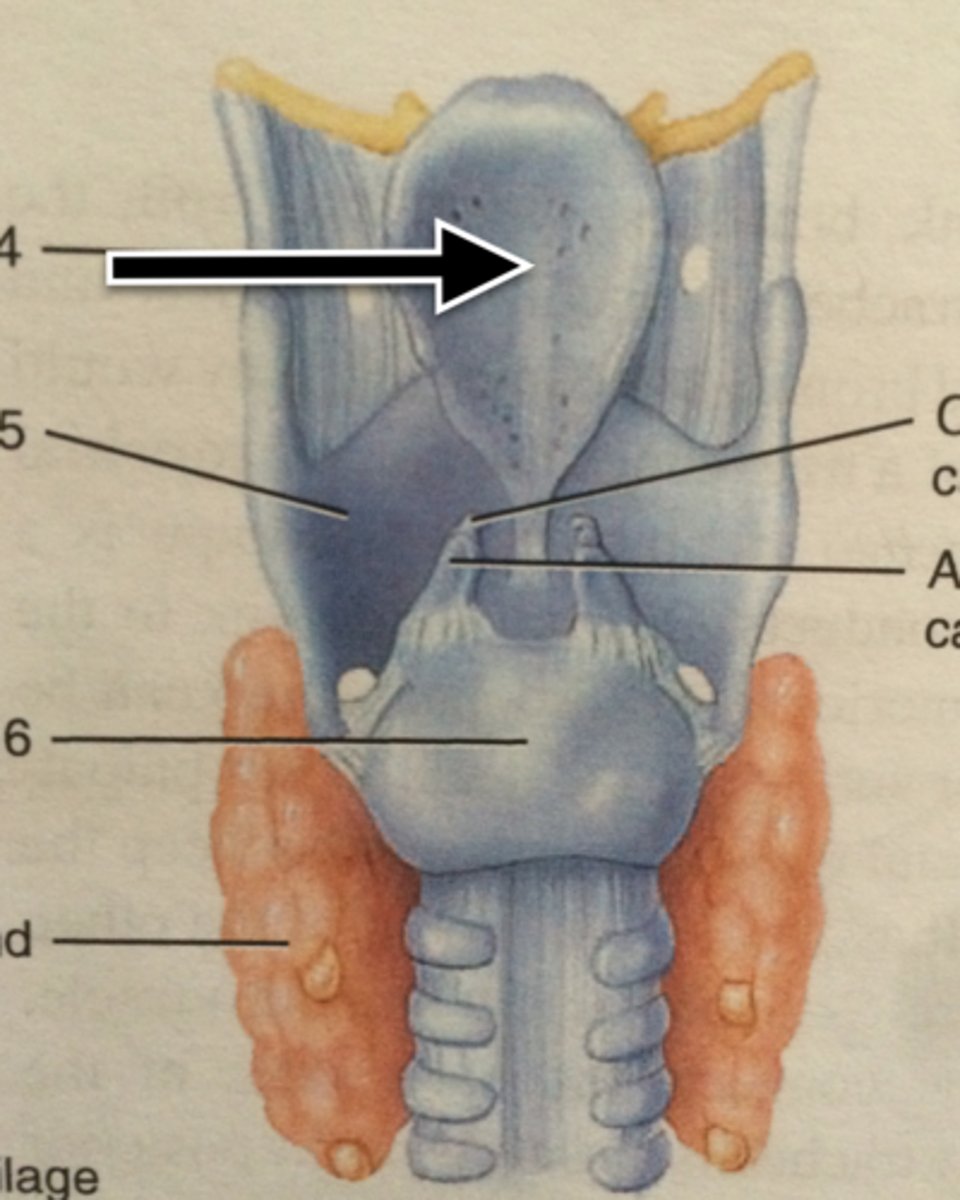

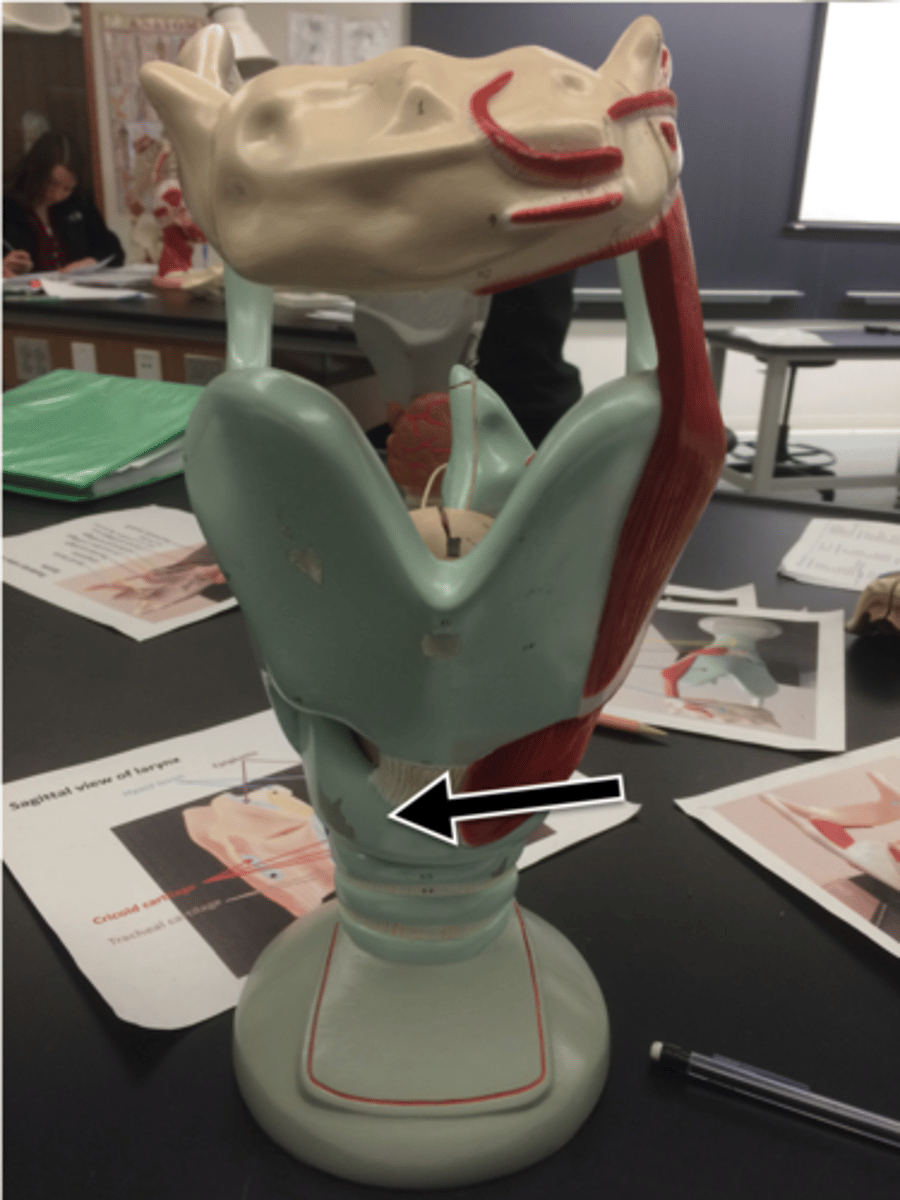

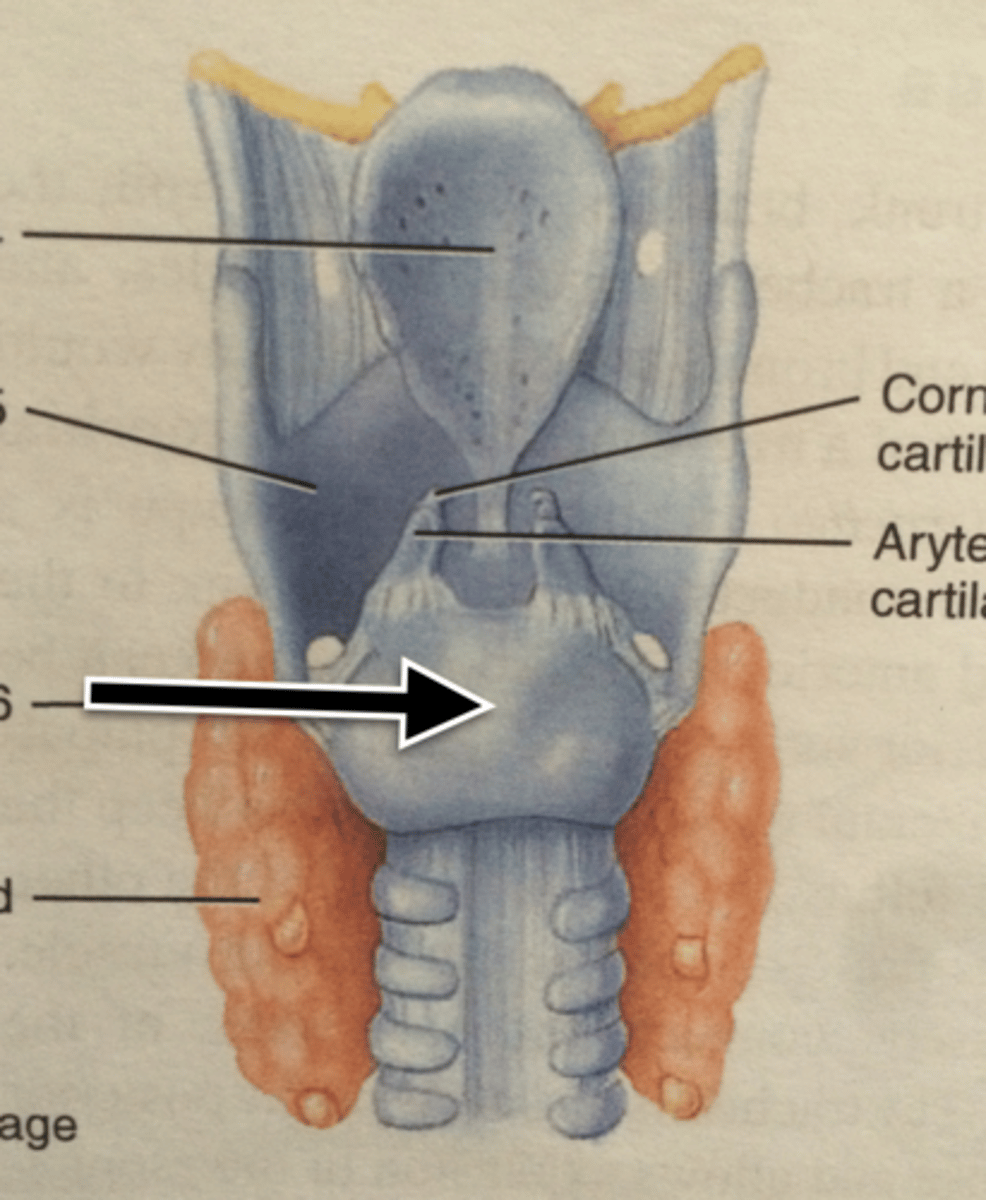

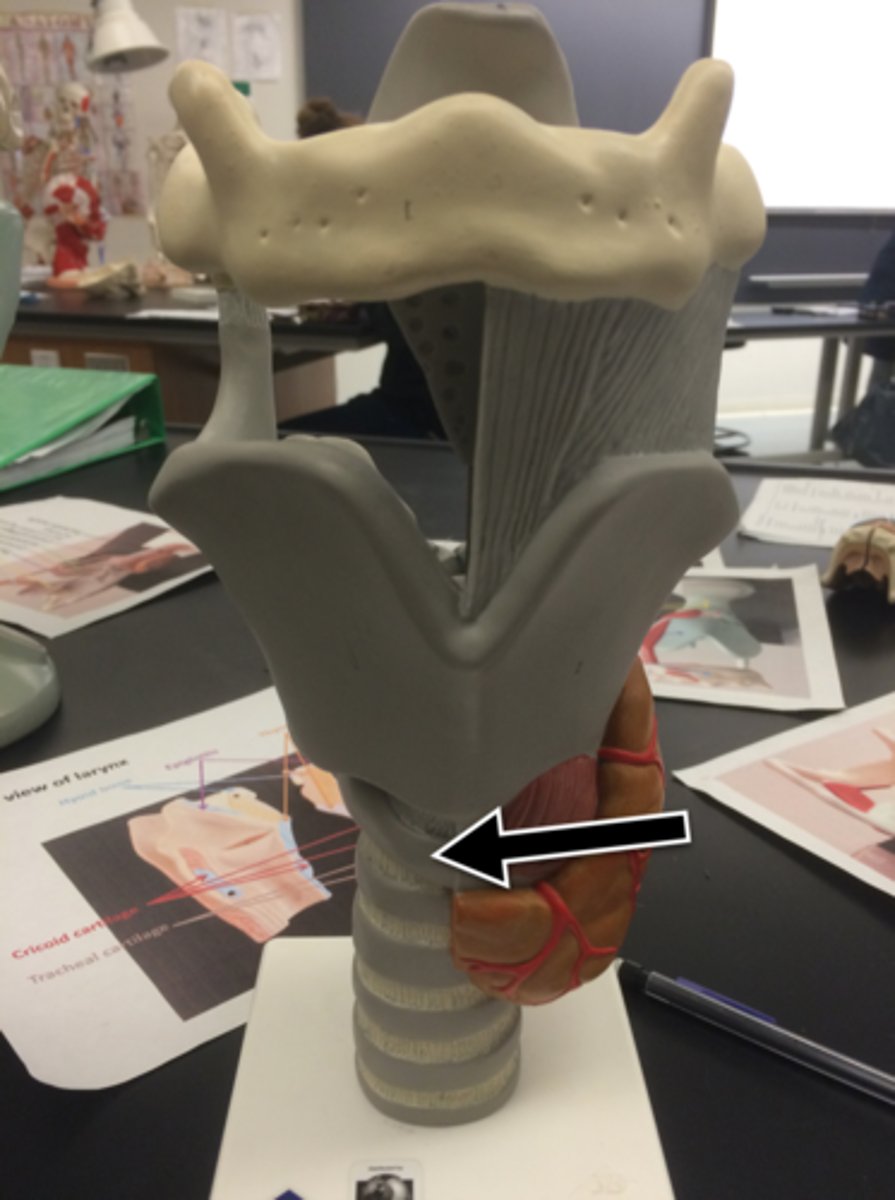

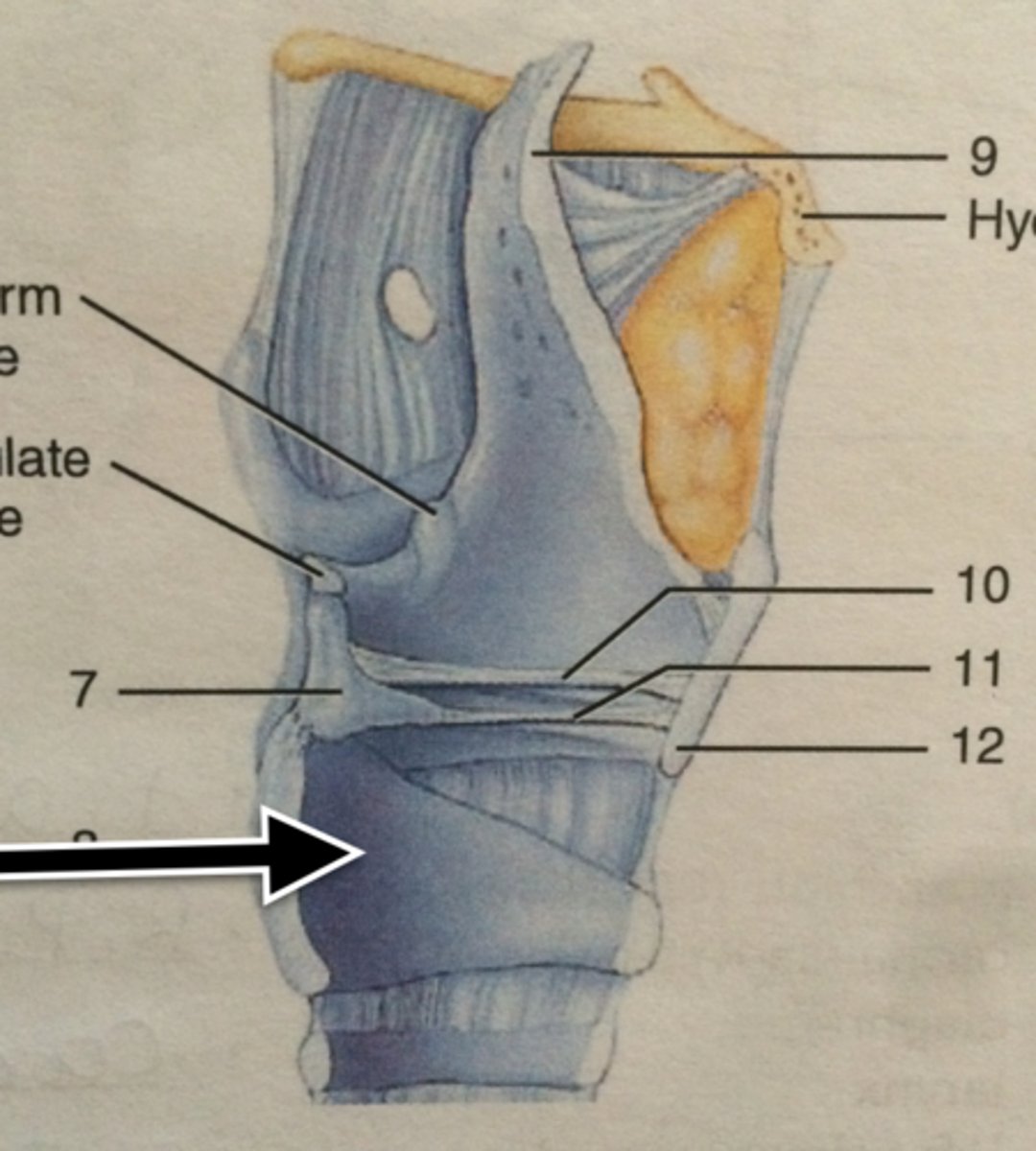

Cricoid Cartilage

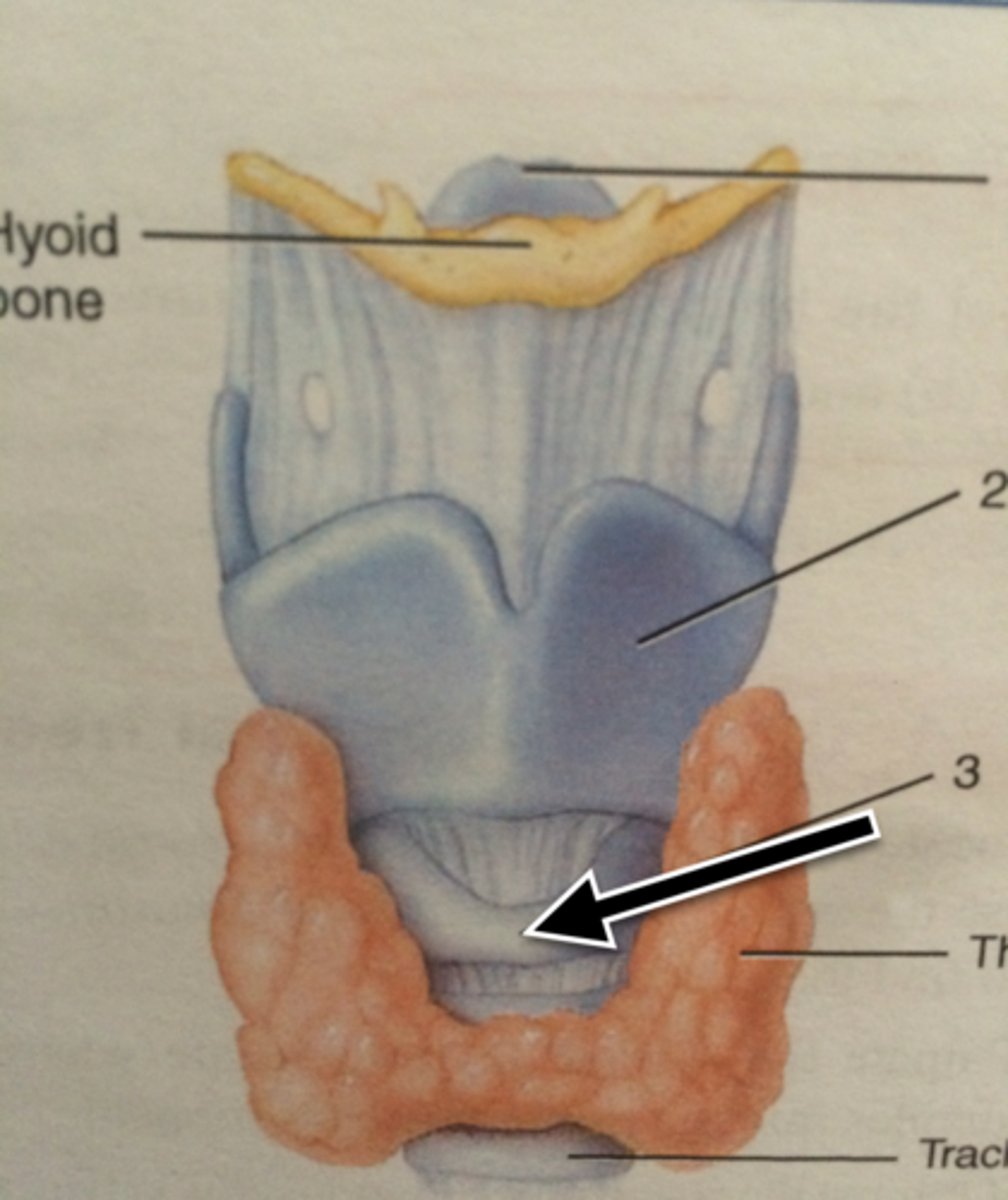

Cricoid Cartilage

Cricoid Cartilage

Cricoid Cartilage

Cricoid Cartilage

Cricoid Cartilage

Cricoid Cartilage

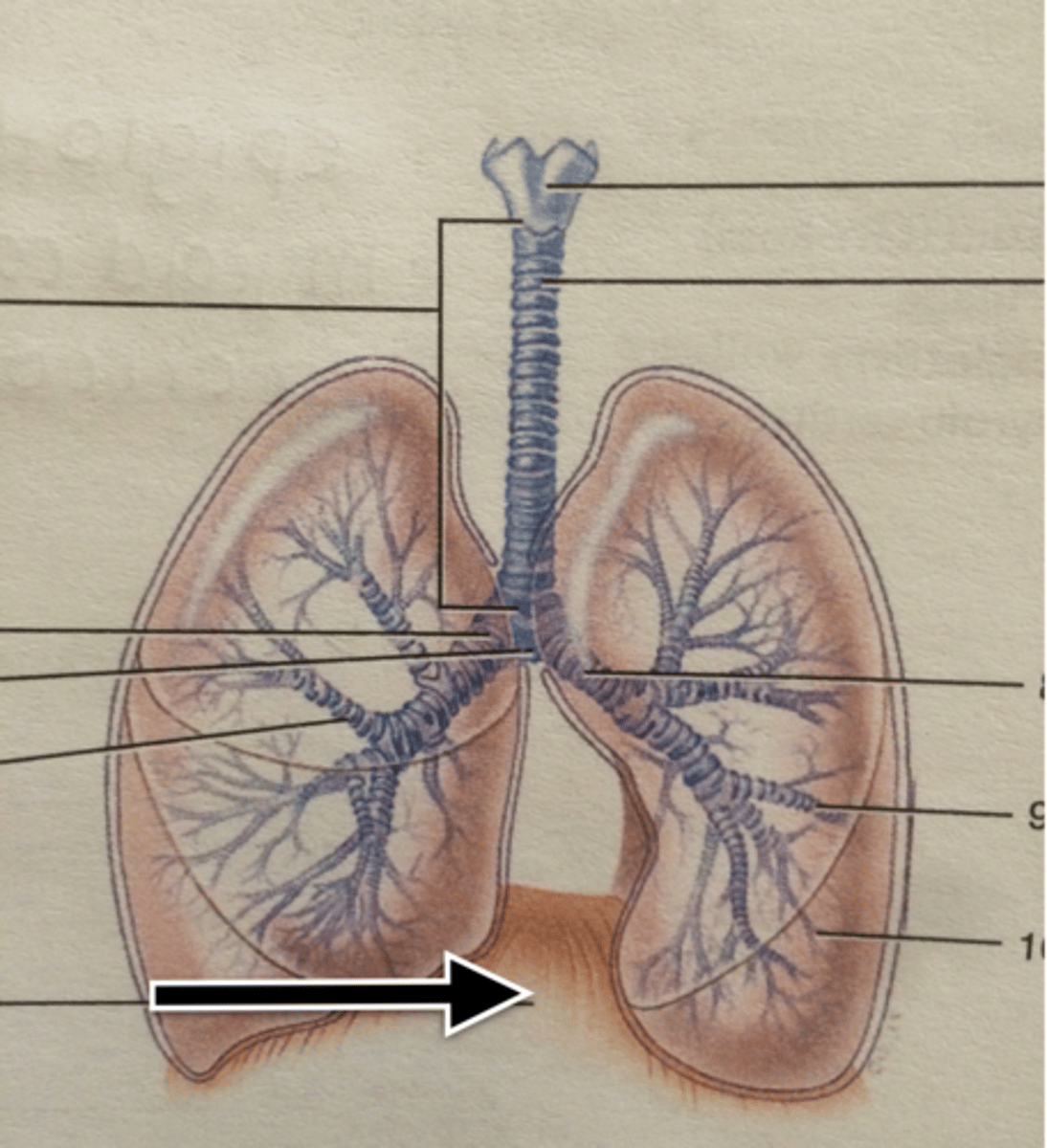

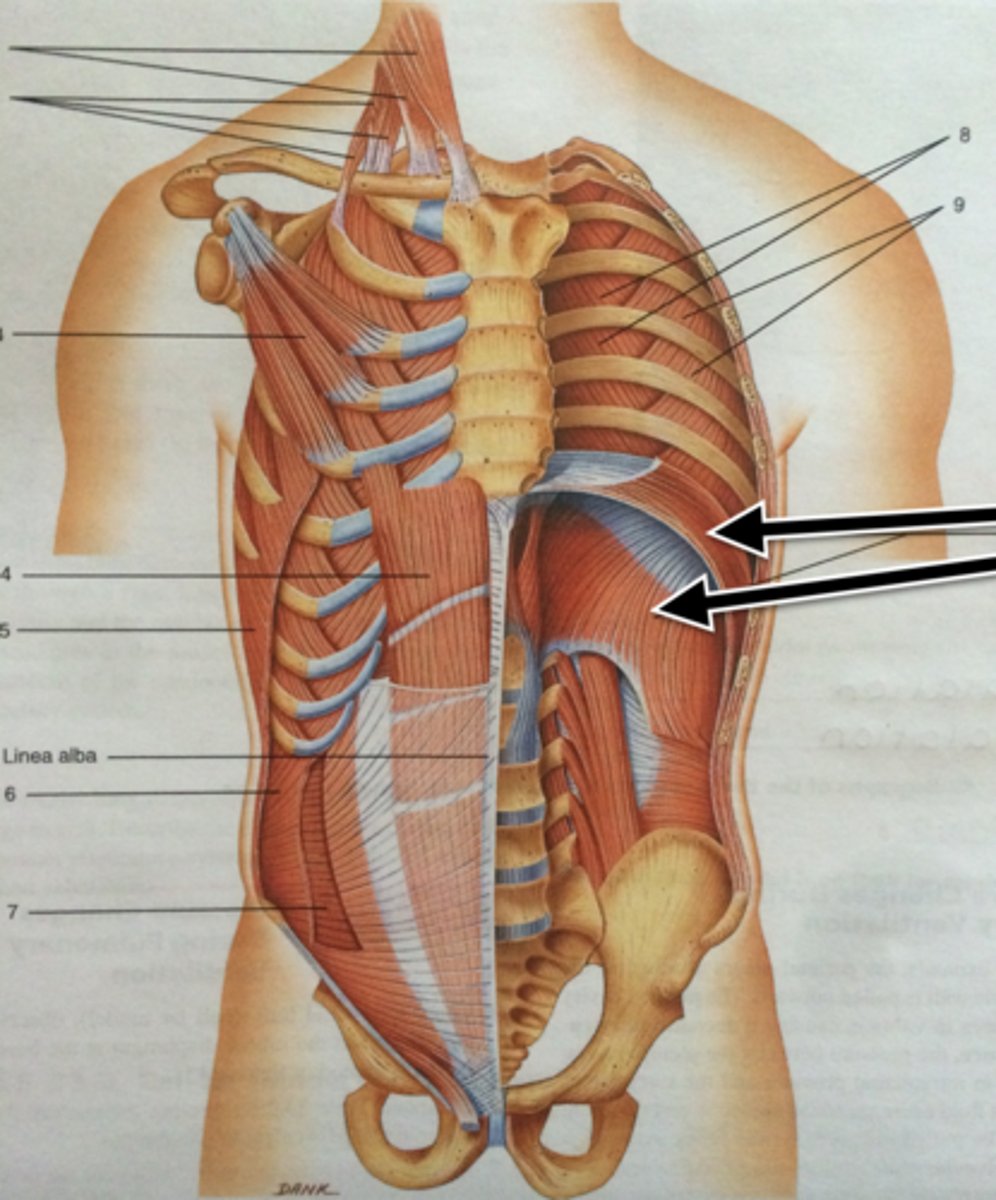

Diaphragm

Diaphragm

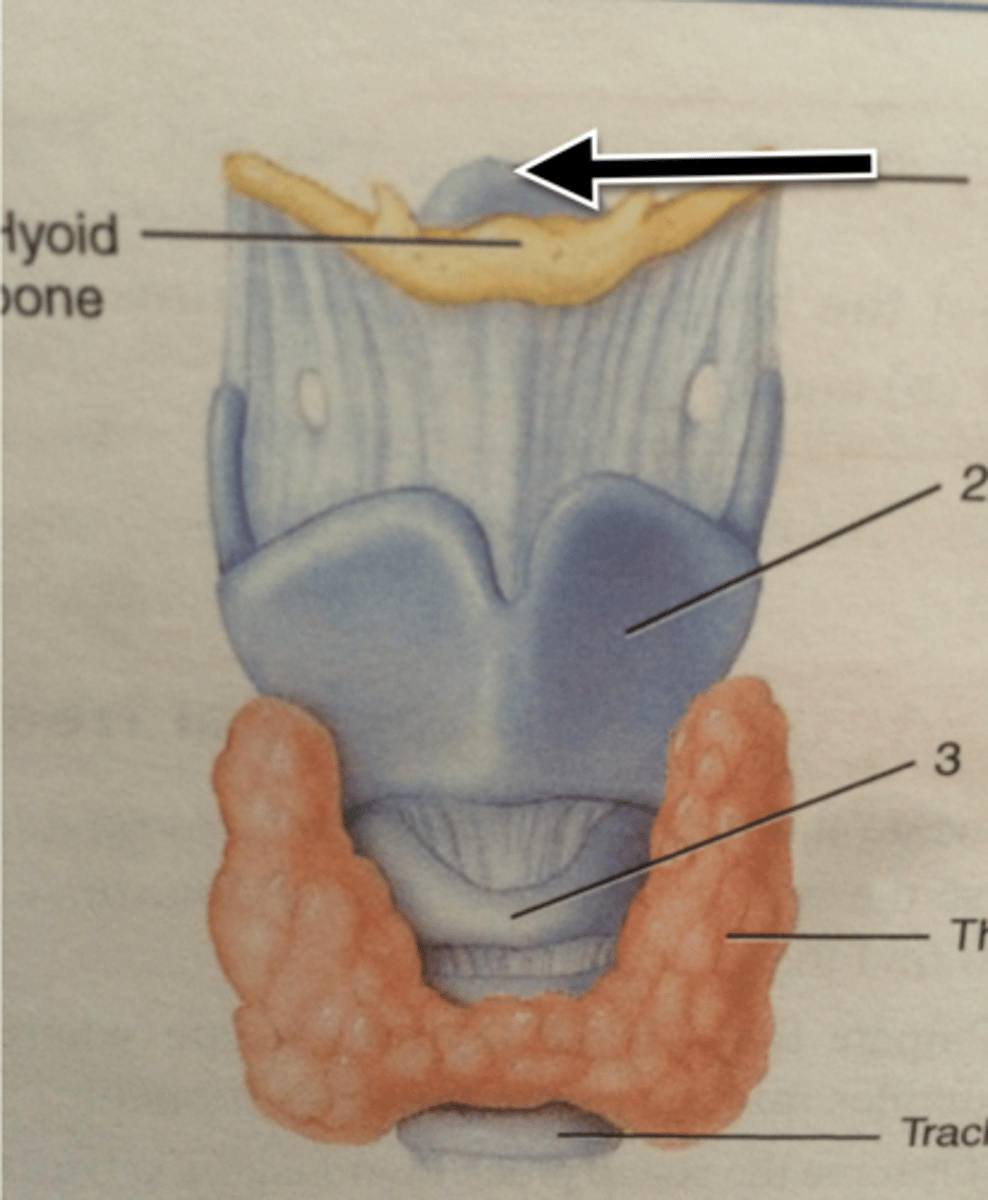

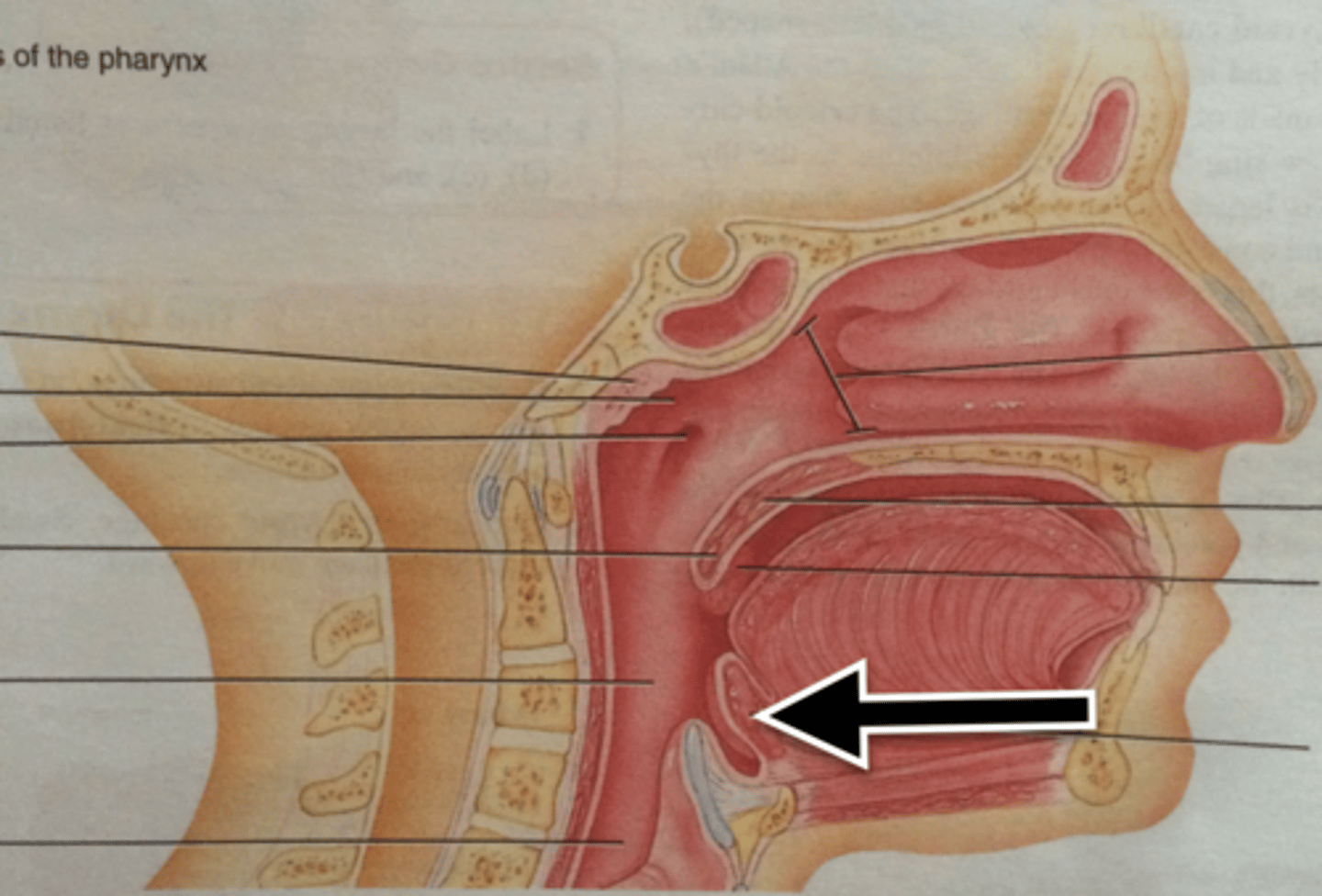

Epiglottis

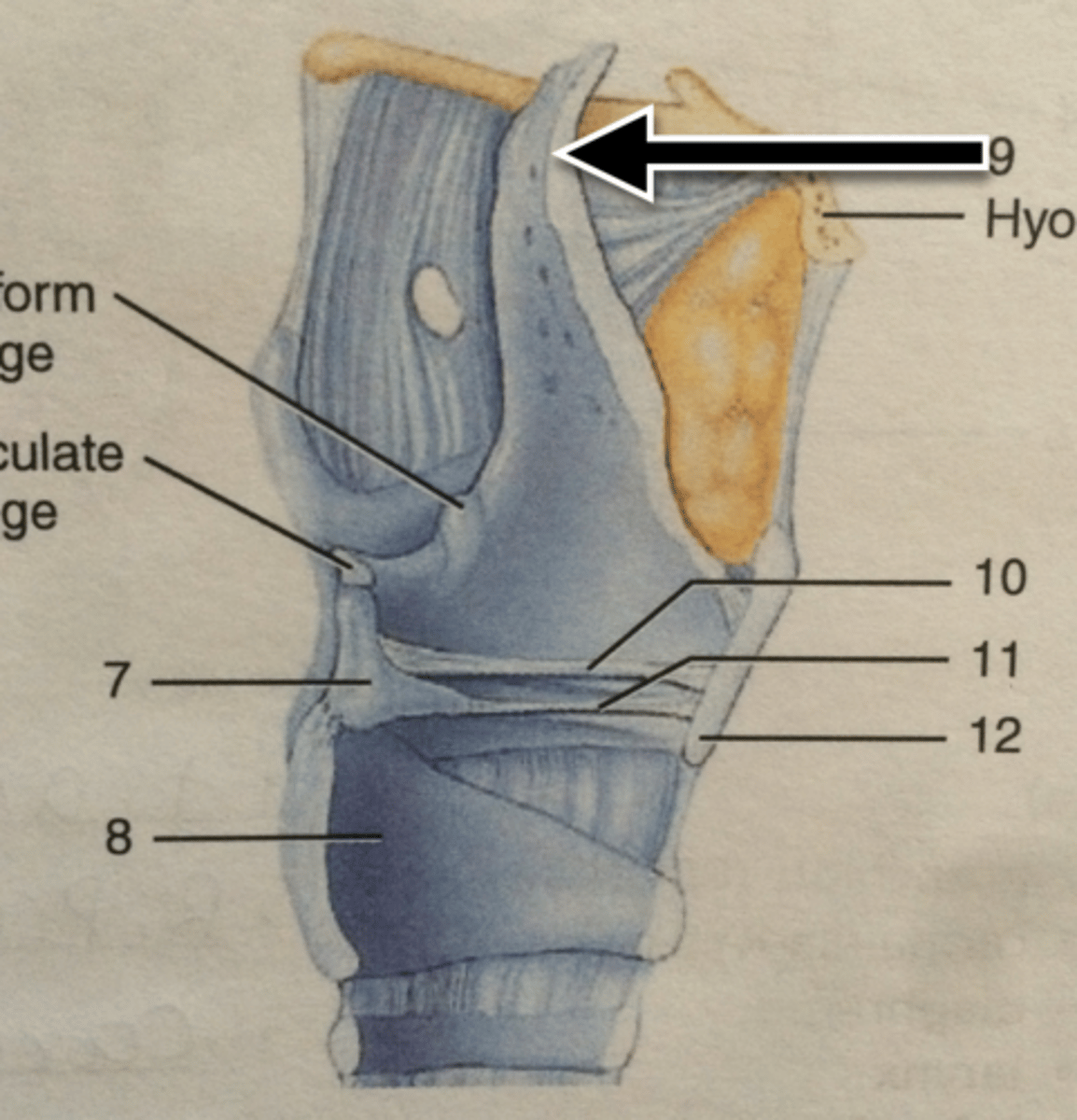

Epiglottis

Epiglottis

Epiglottis

Epithelial Lining of Trachea

Exhalation

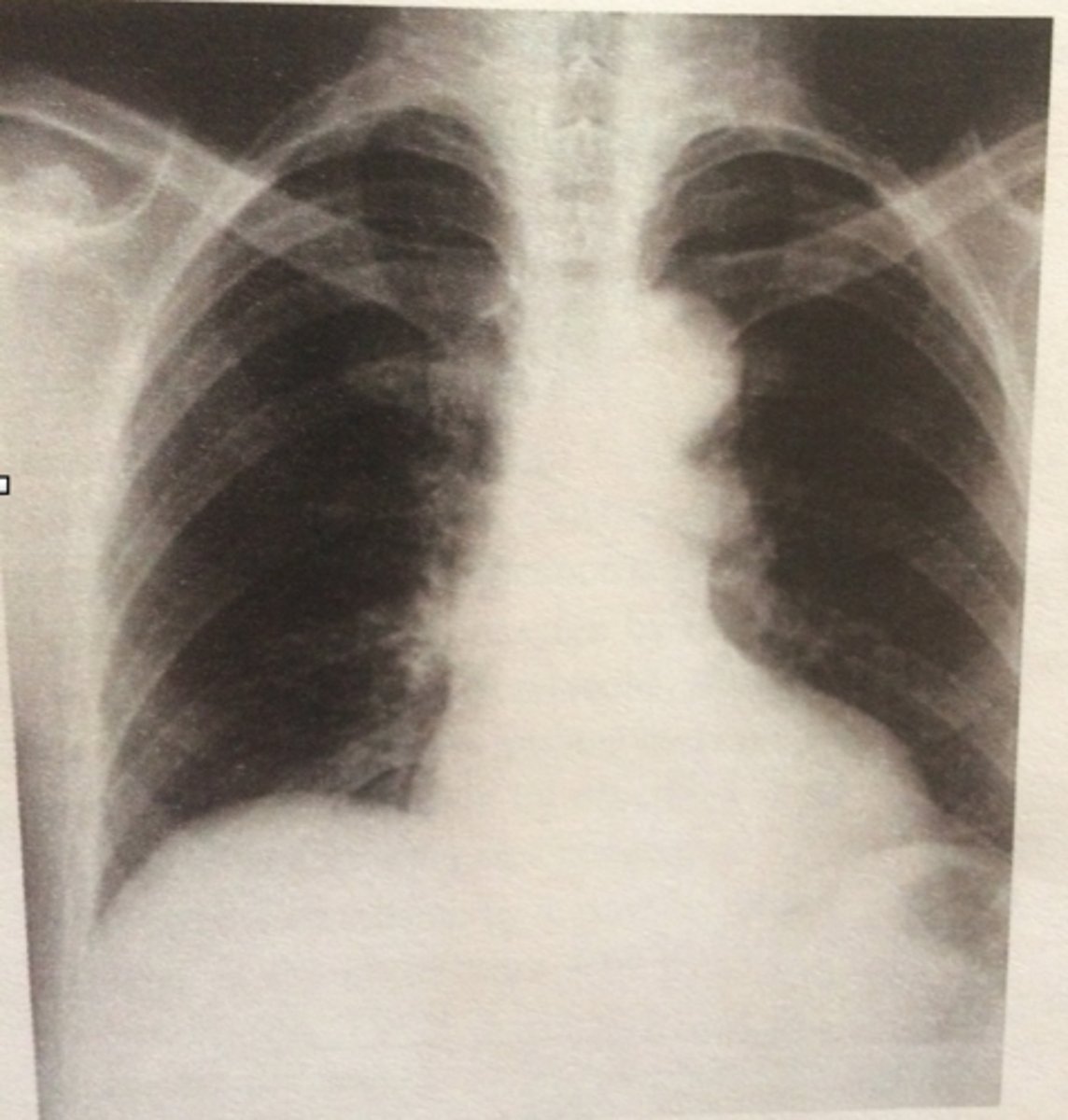

Is this inhalation or exhalation?

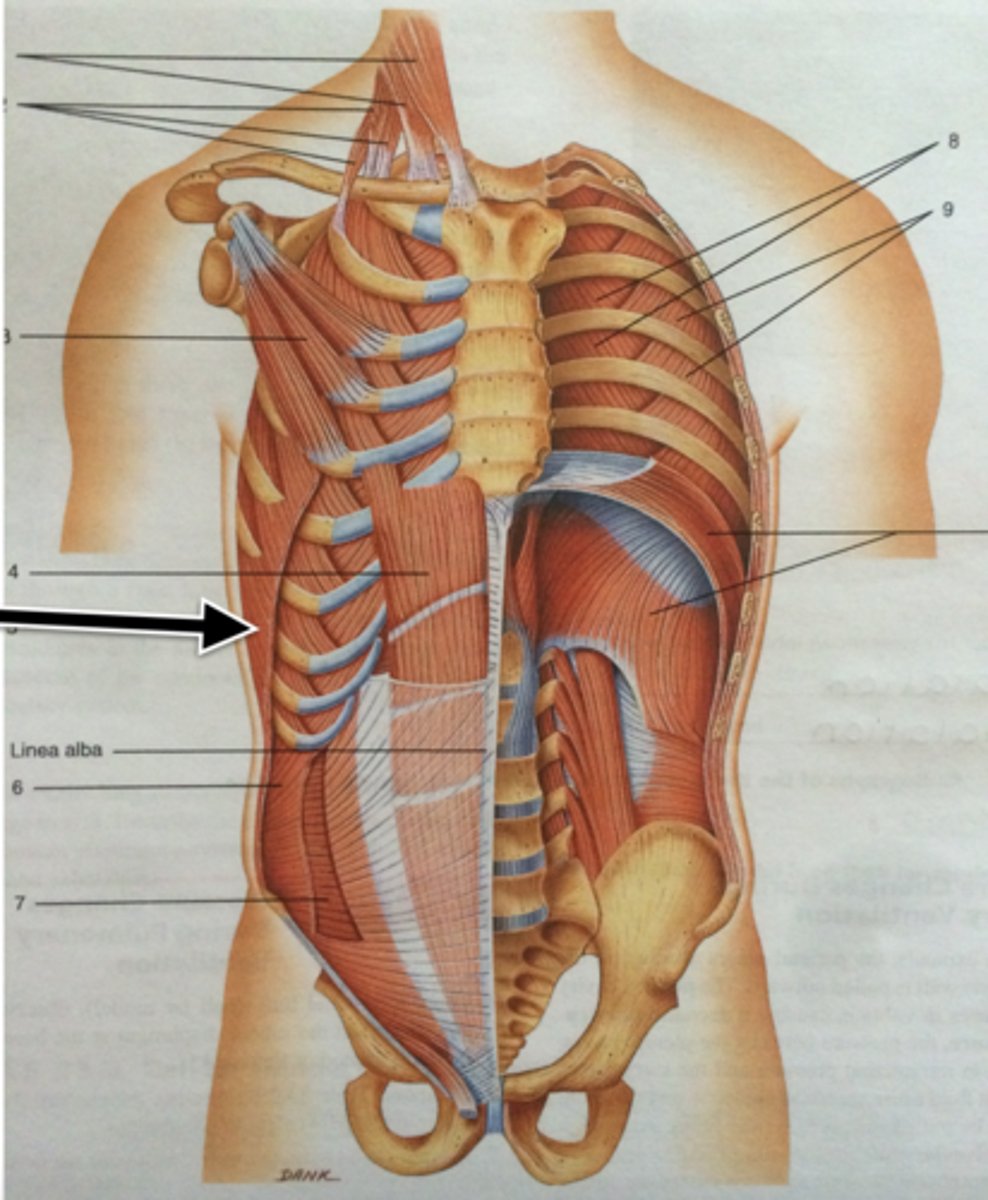

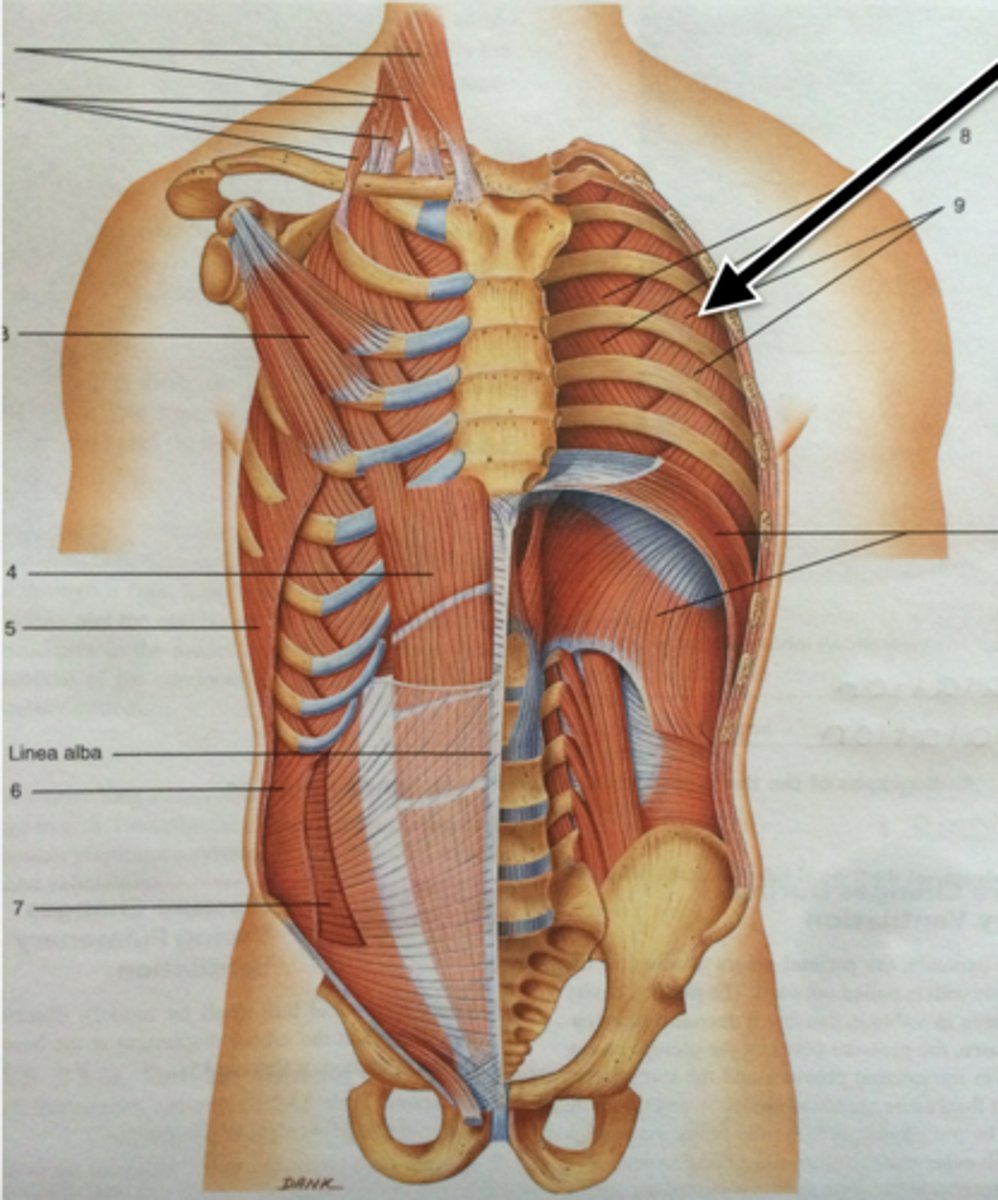

External Intercostals

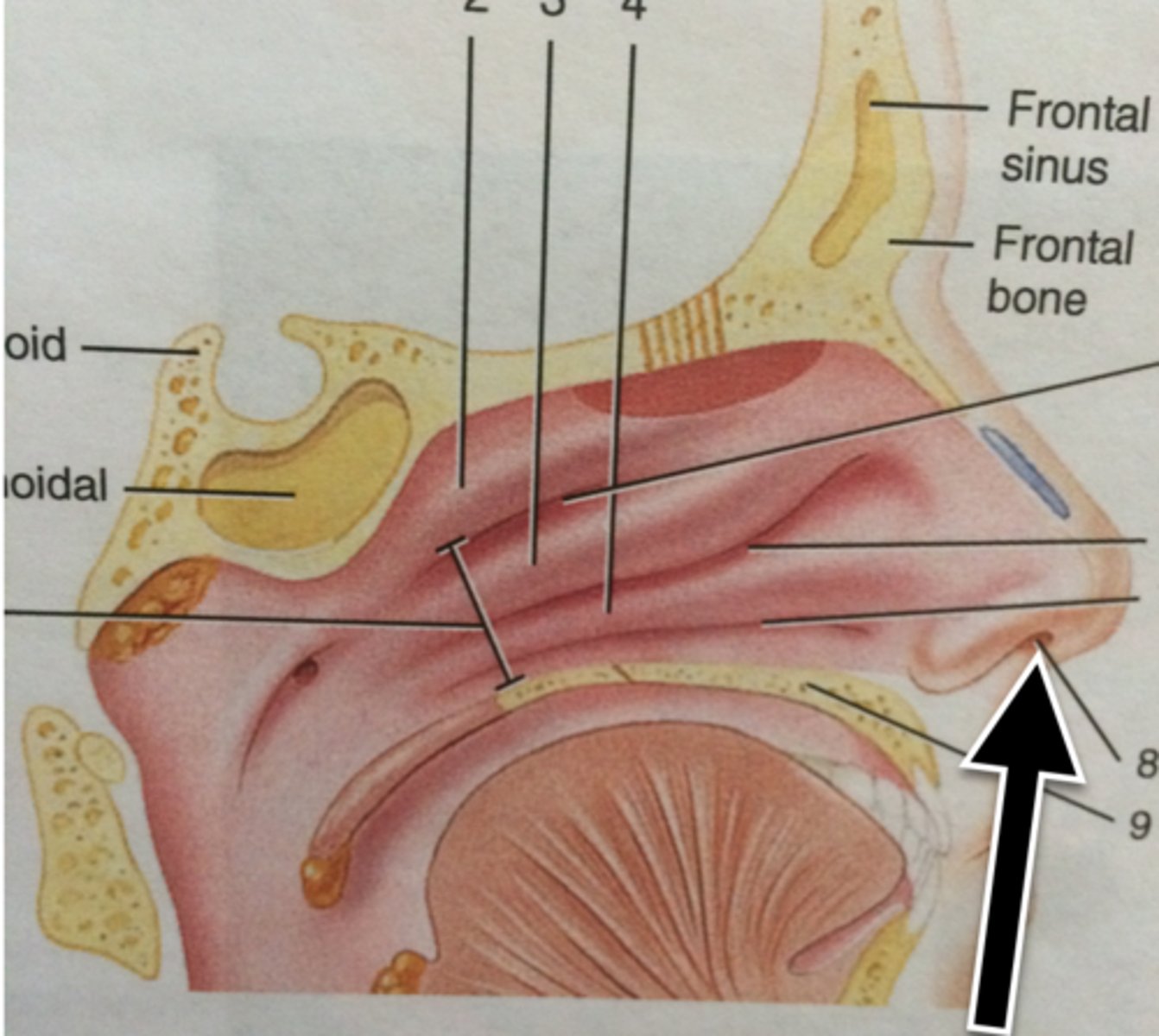

External Nairs

External Oblique

Glottis

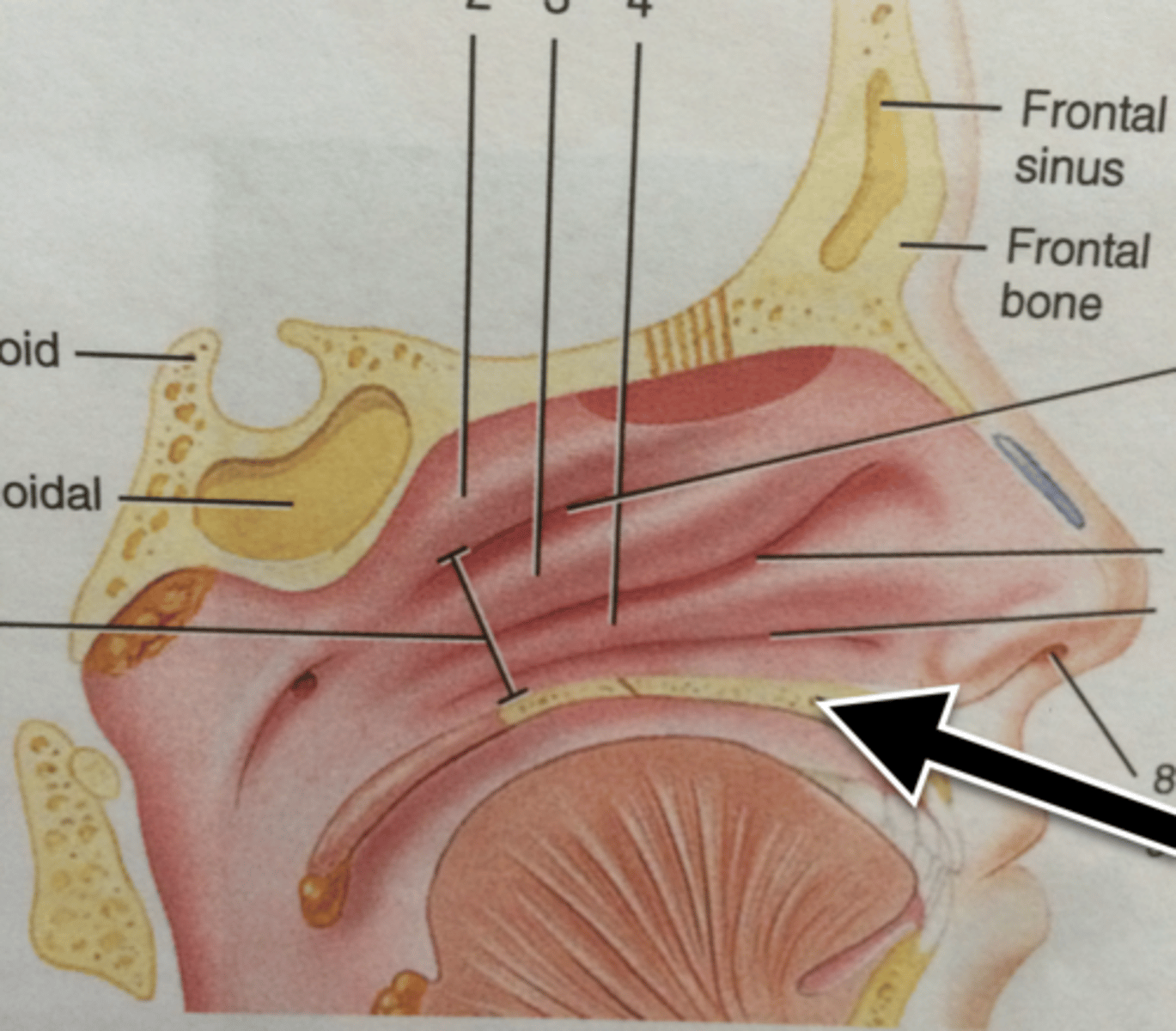

Hard Palate

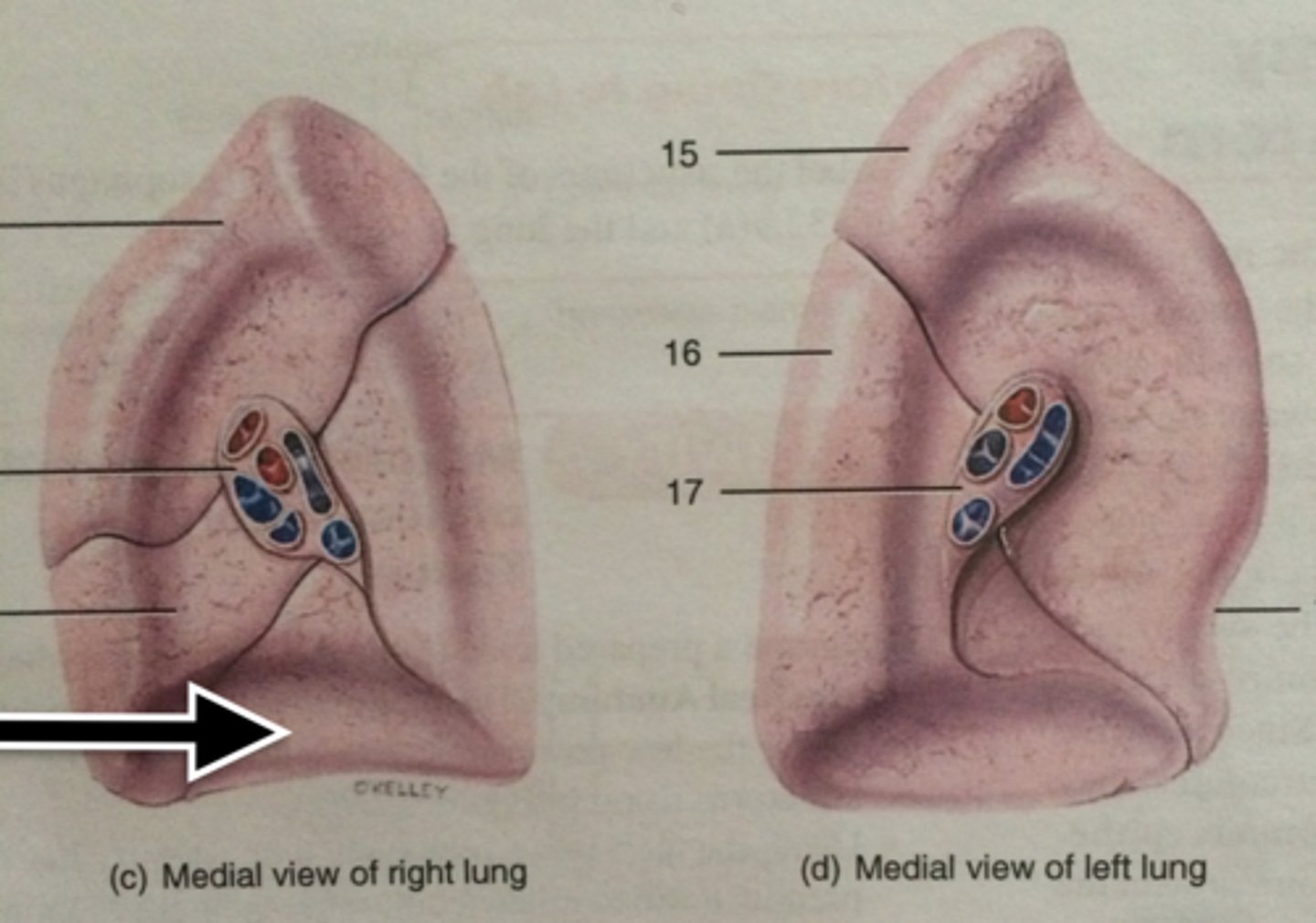

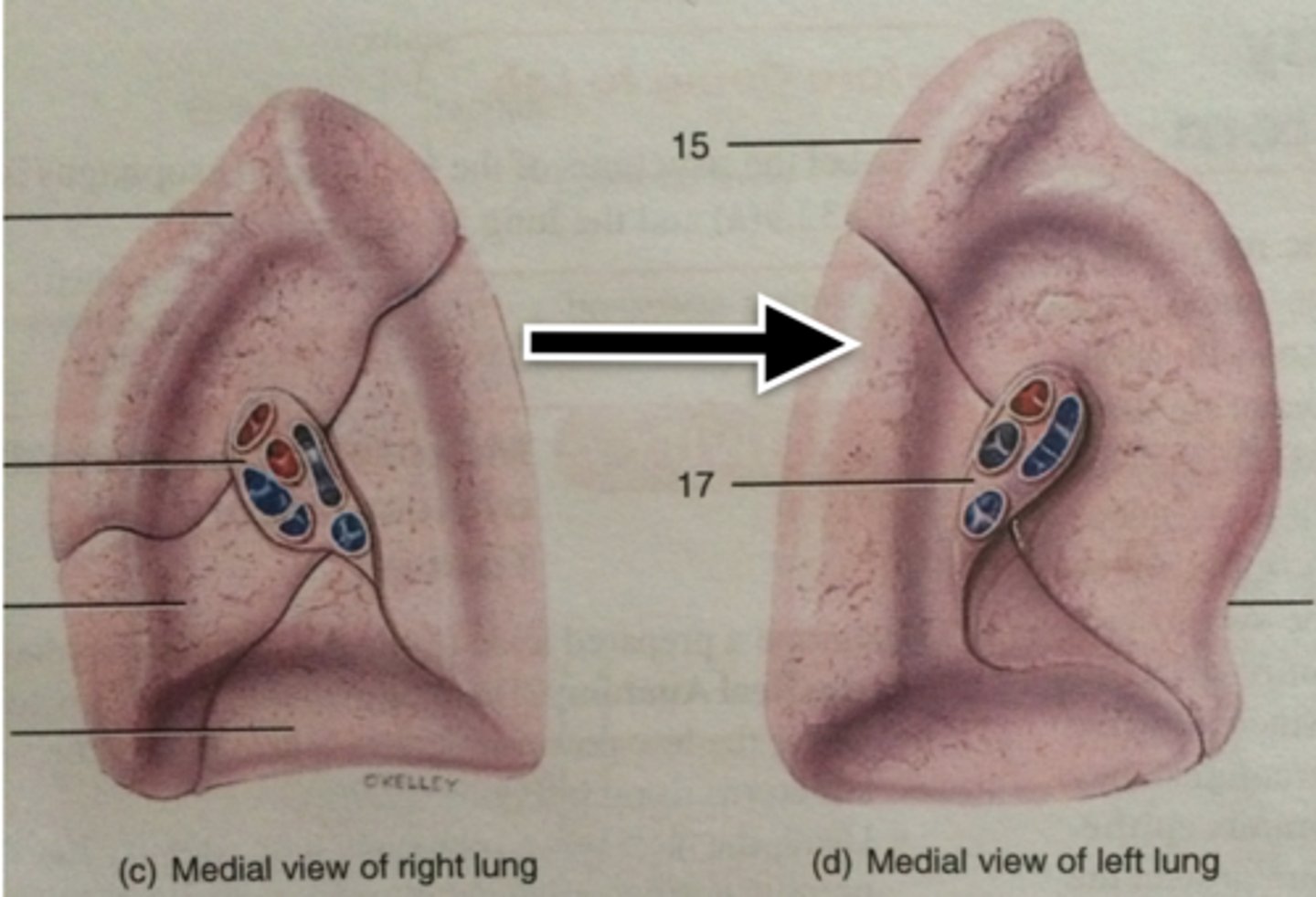

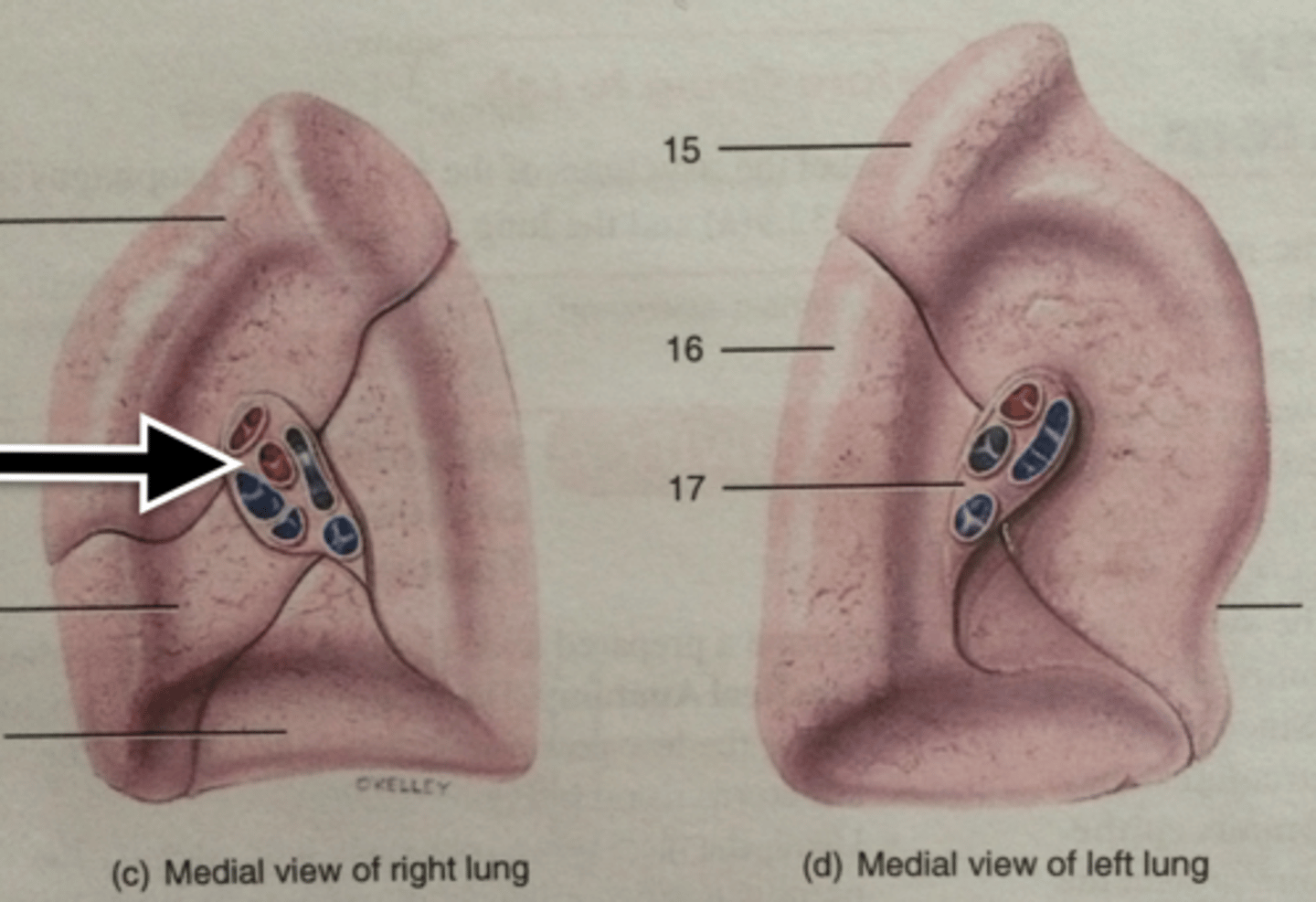

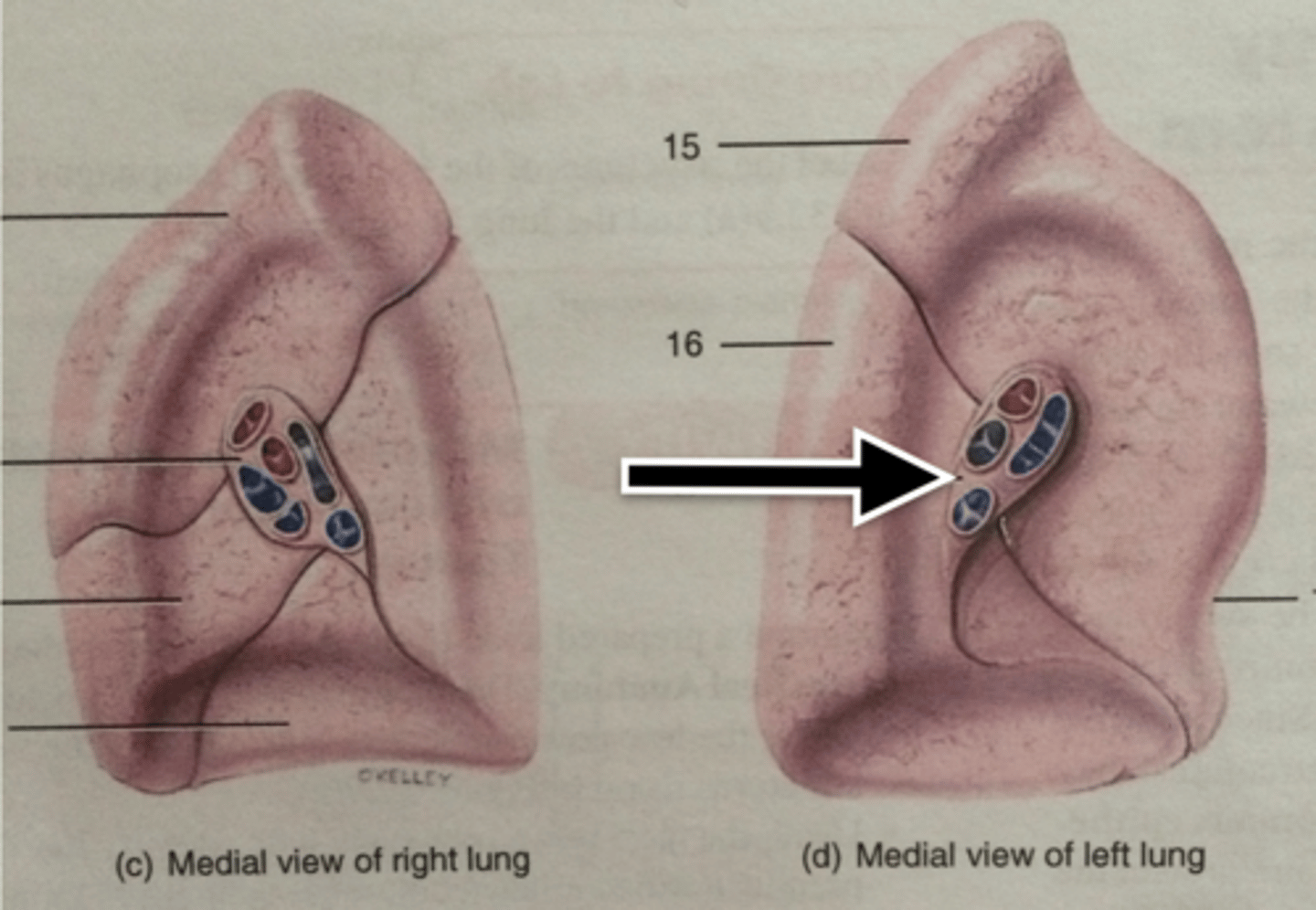

Hilum

Hilum

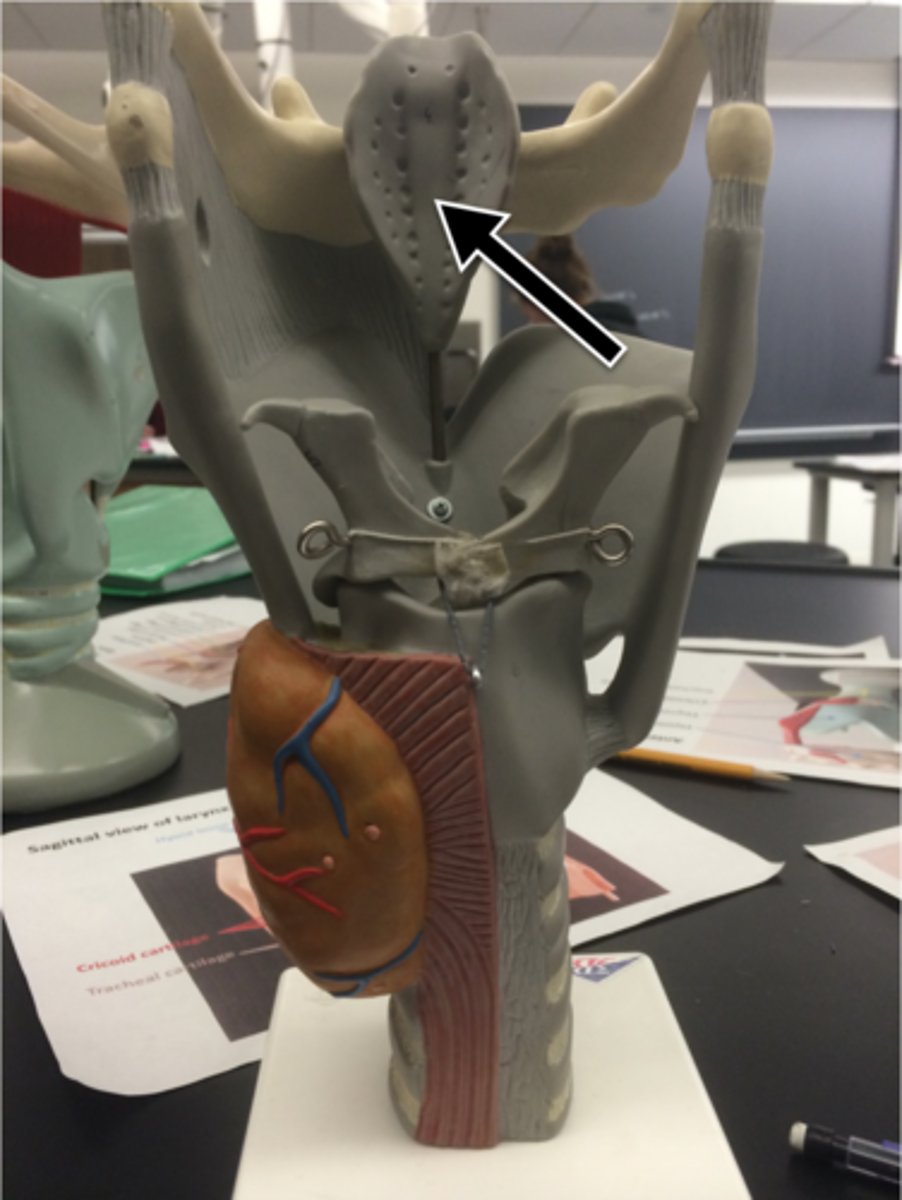

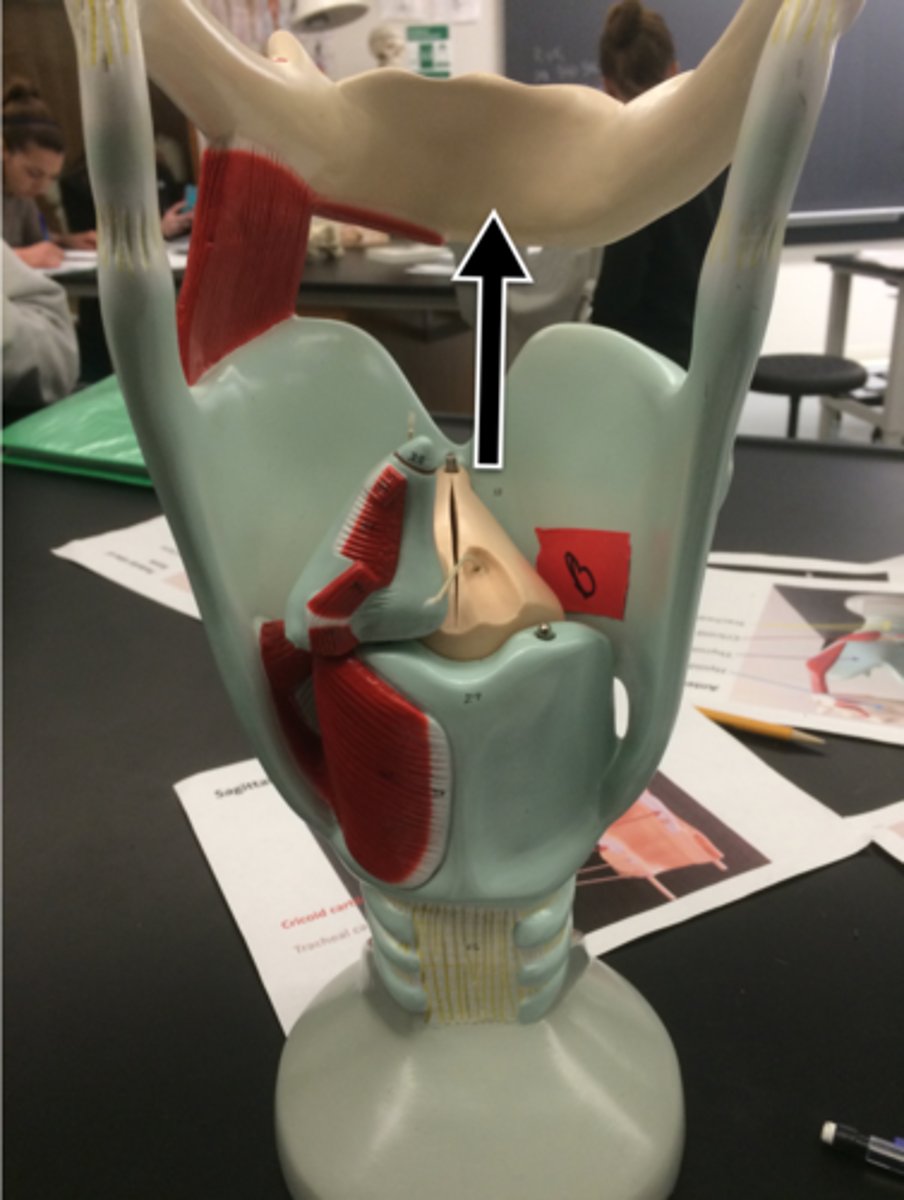

Hyoid Bone

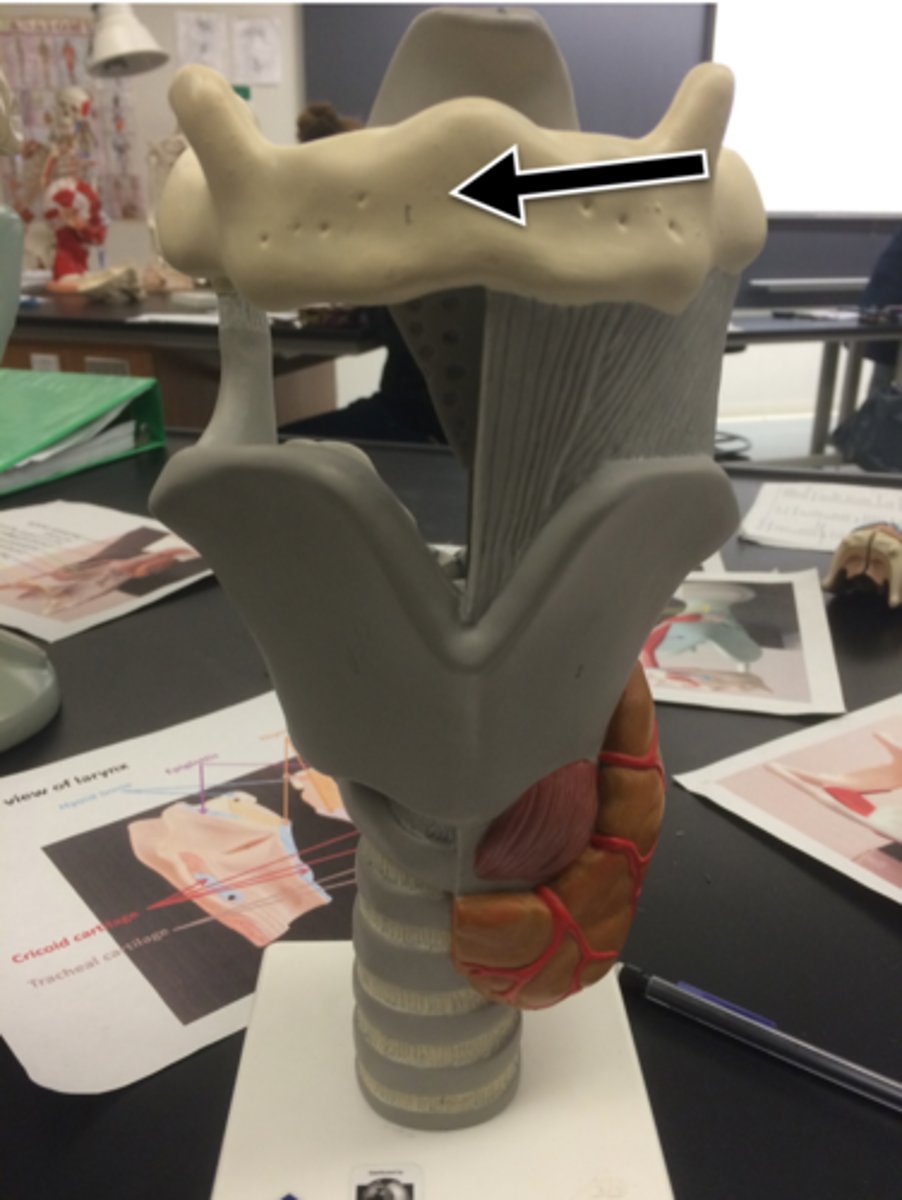

Hyoid Bone

Hyoid Bone

Hyoid Bone

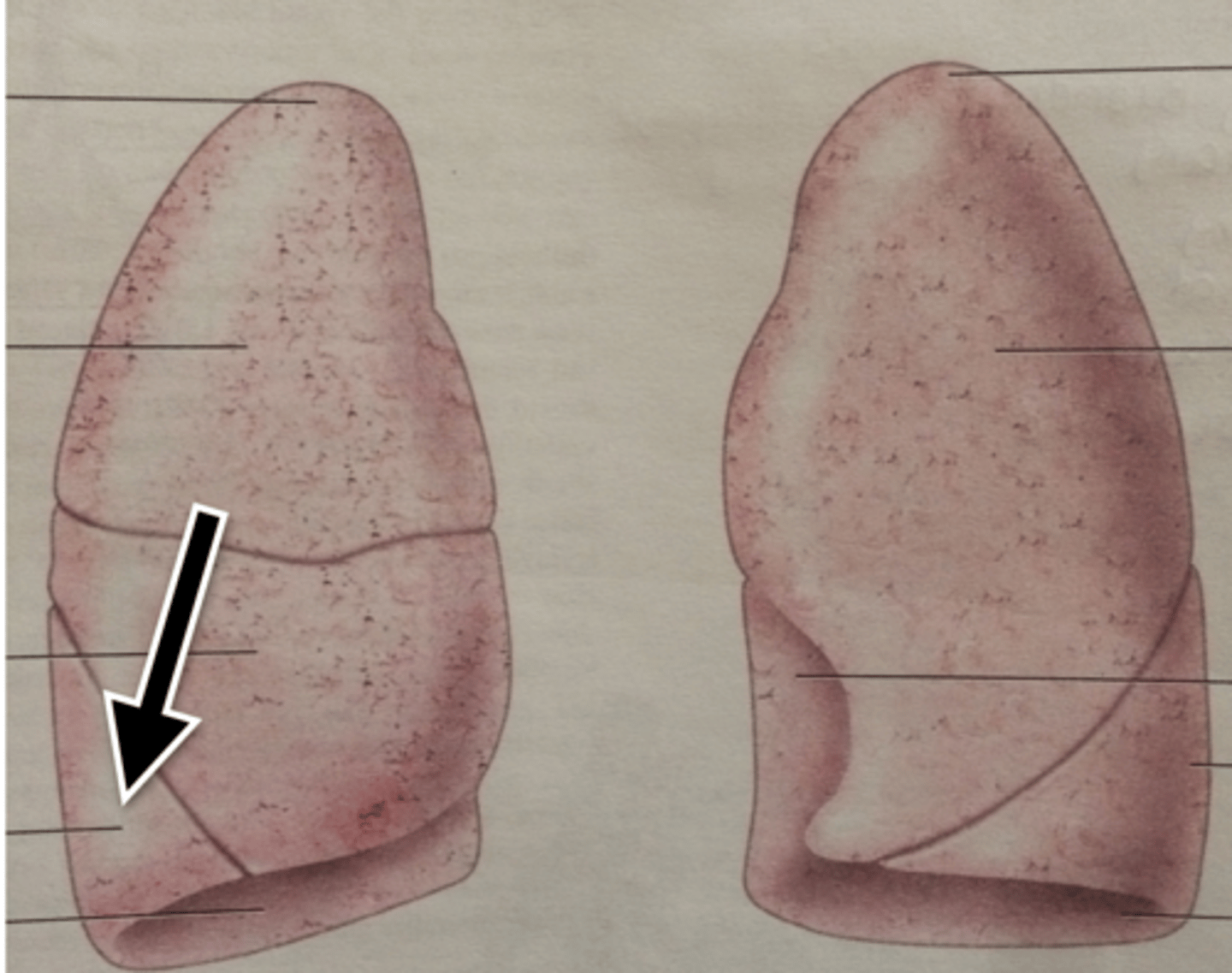

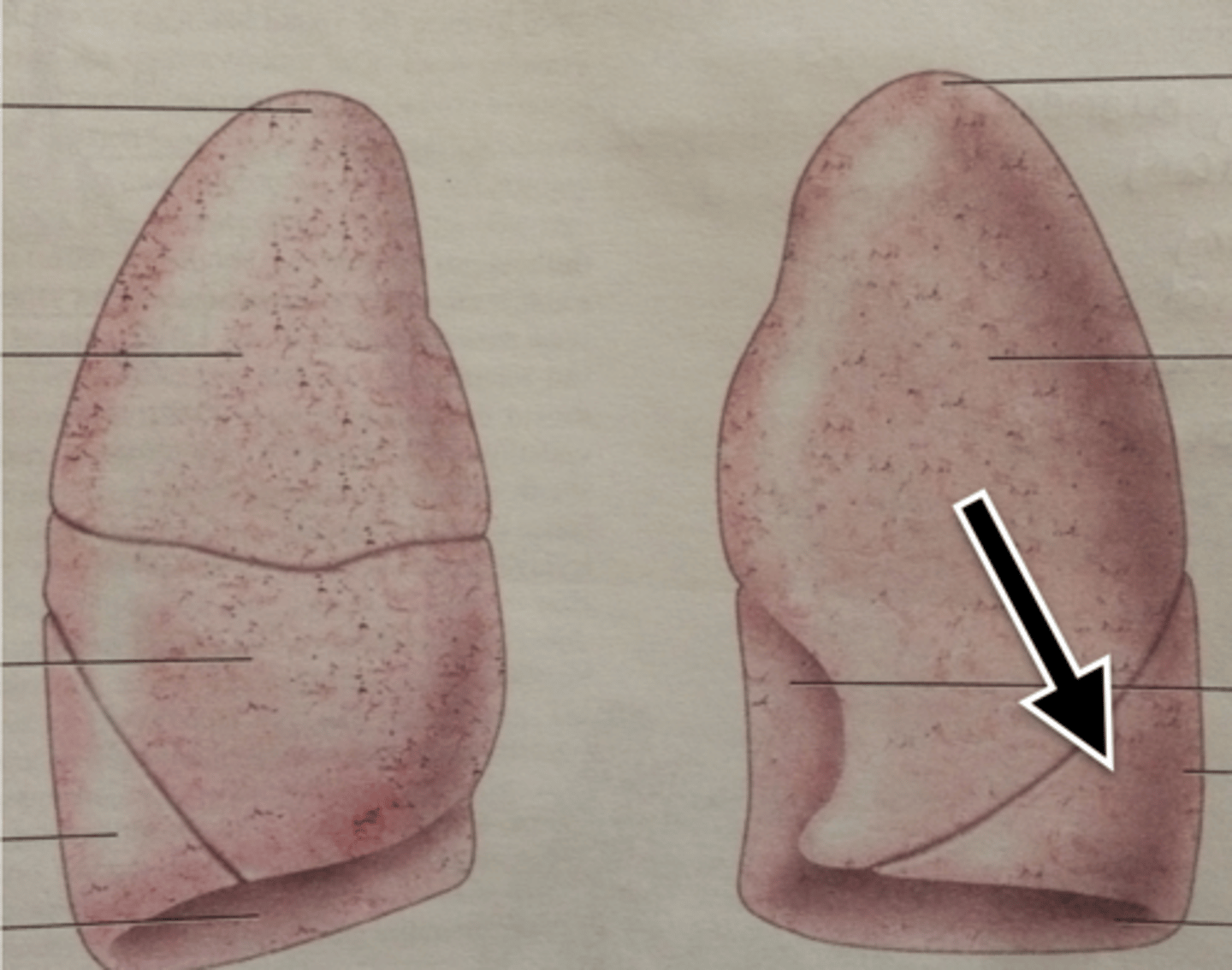

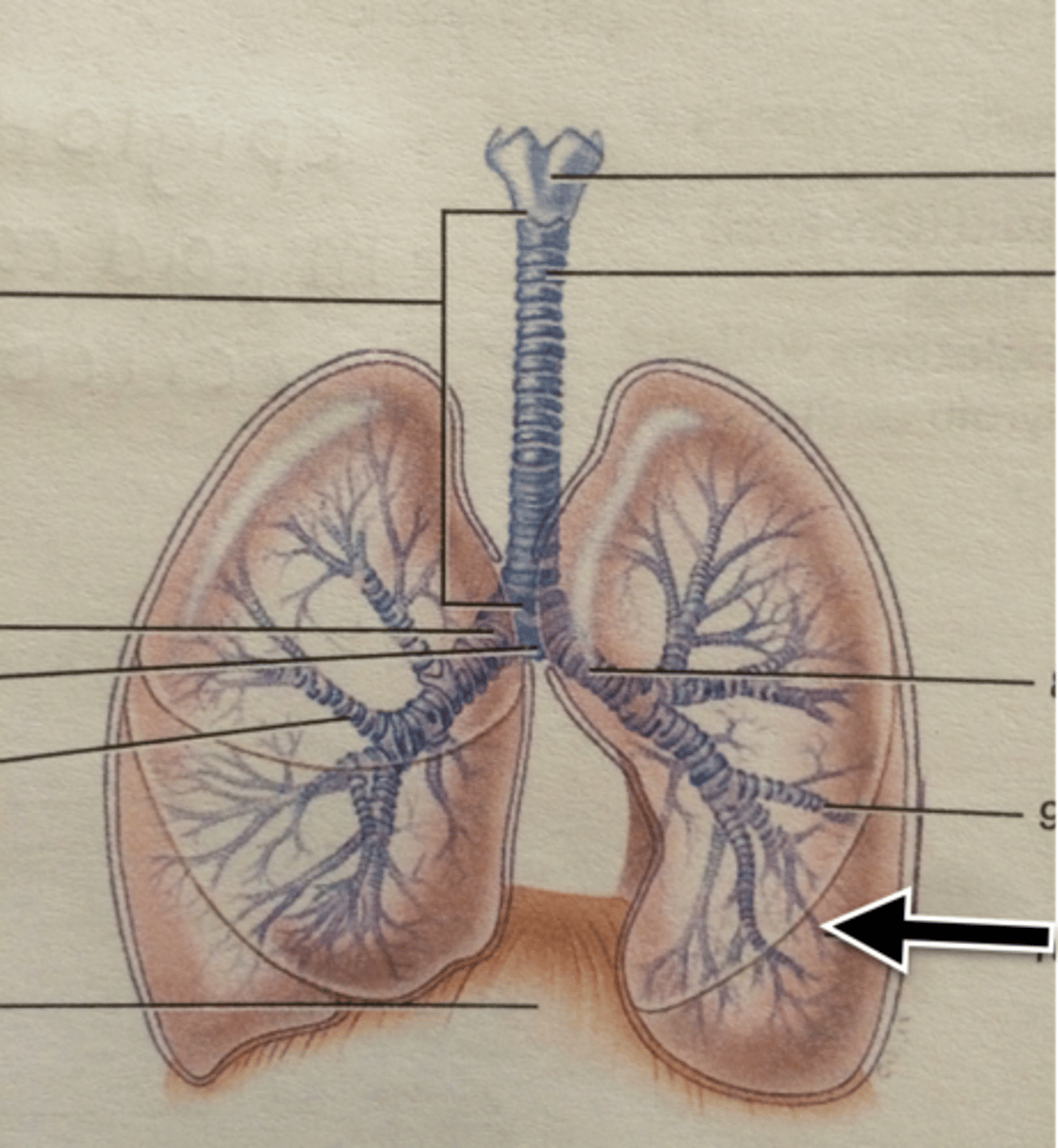

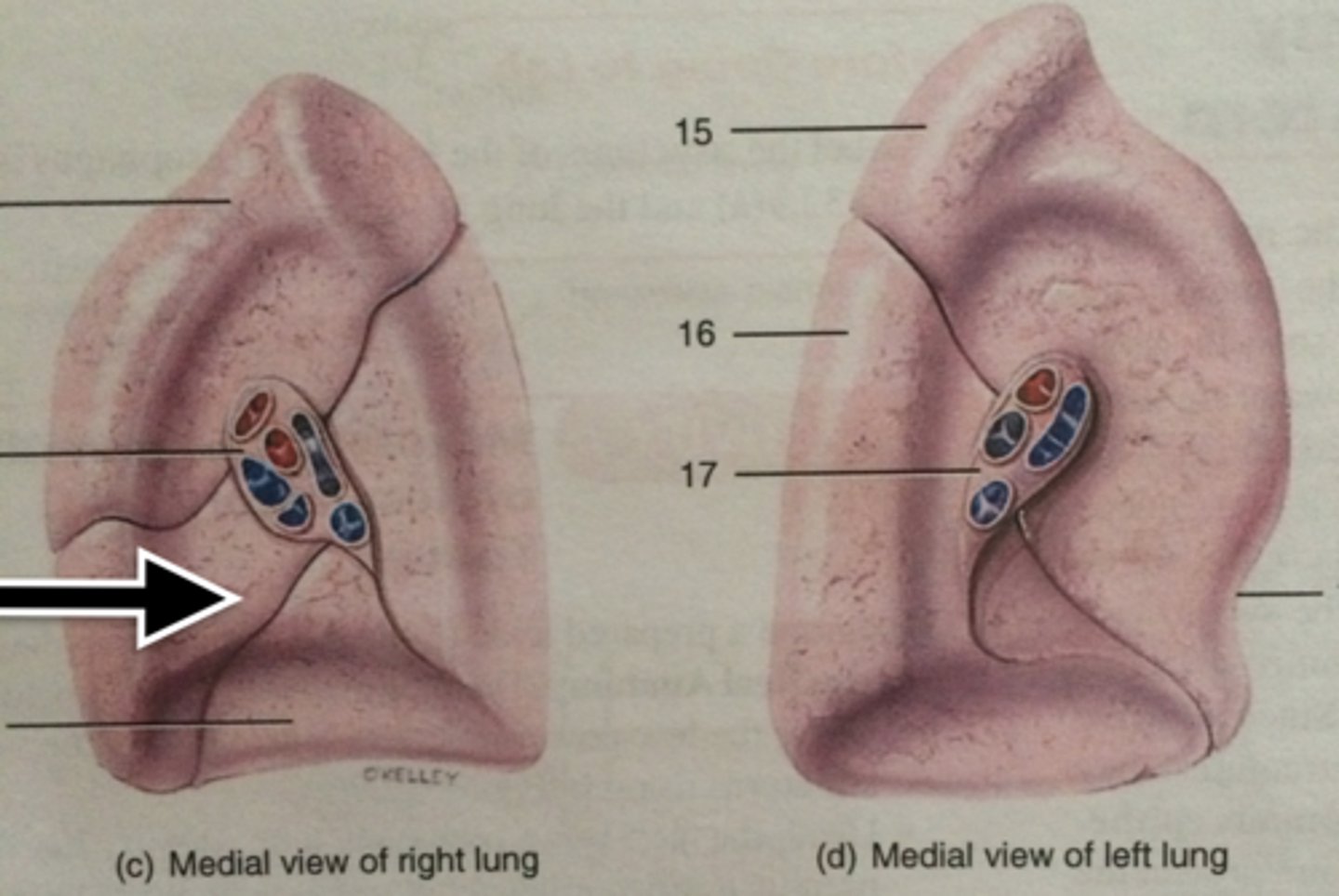

Inferior Lobe

Inferior Lobe

Inferior Lobe

Inferior Lobe

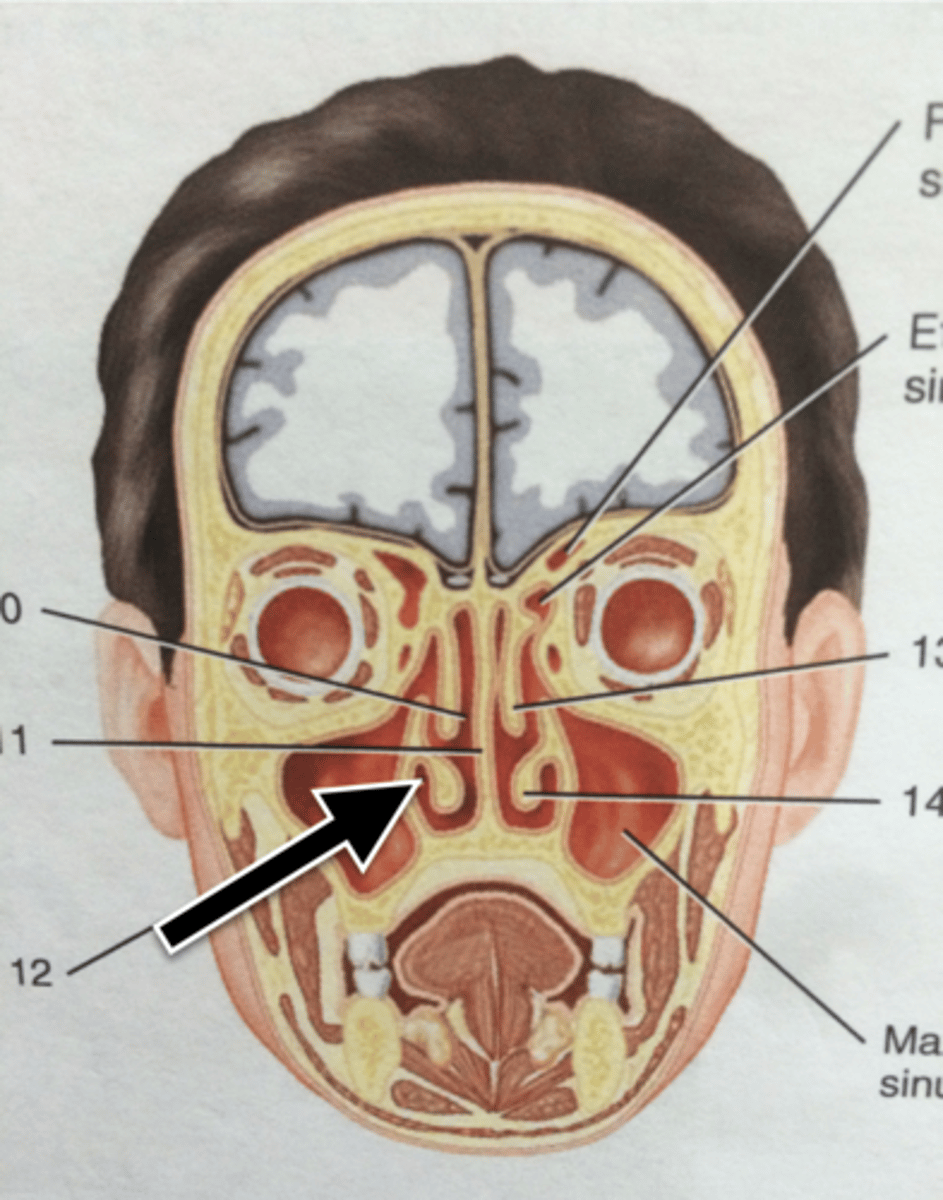

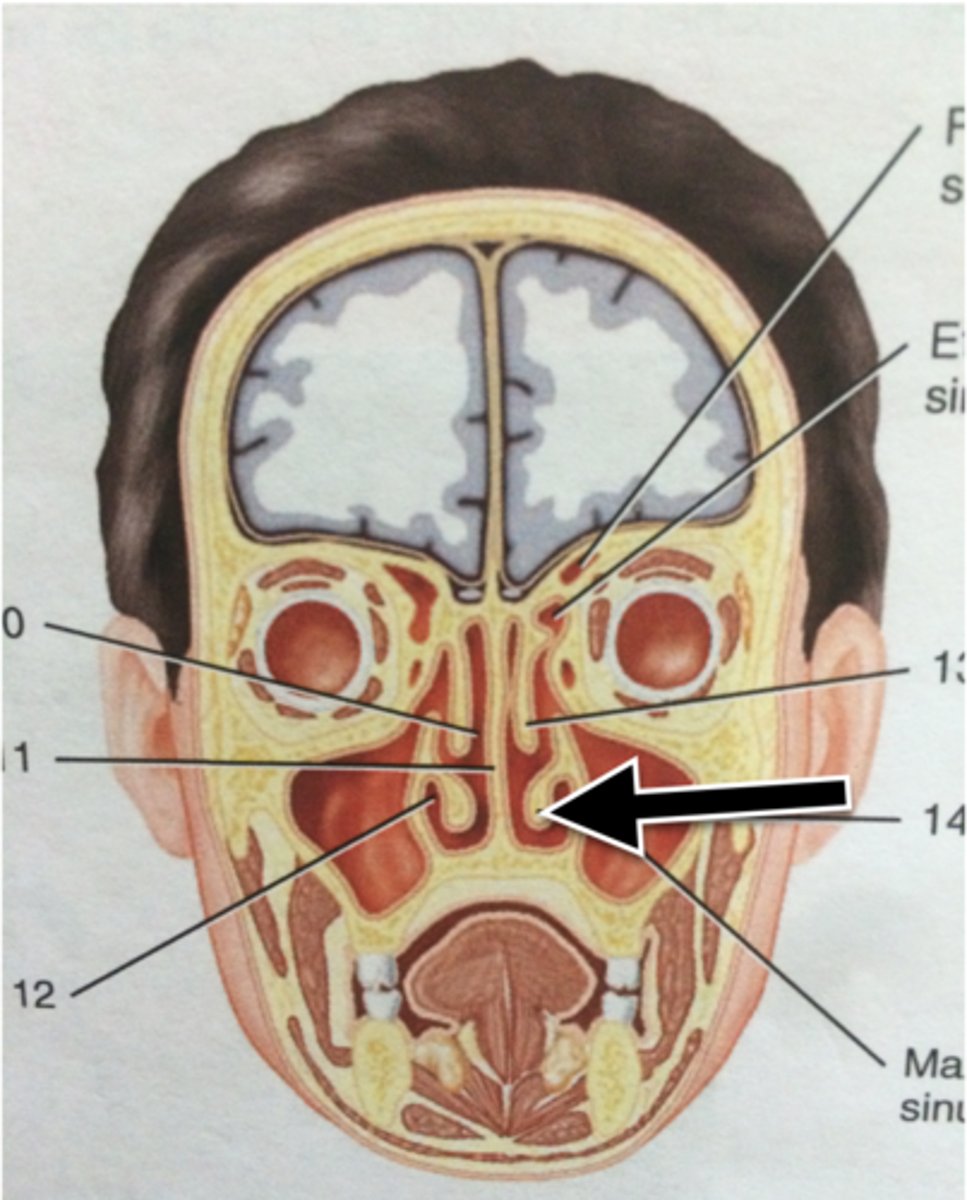

Inferior Nasal Concha

Inferior Nasal Meatus

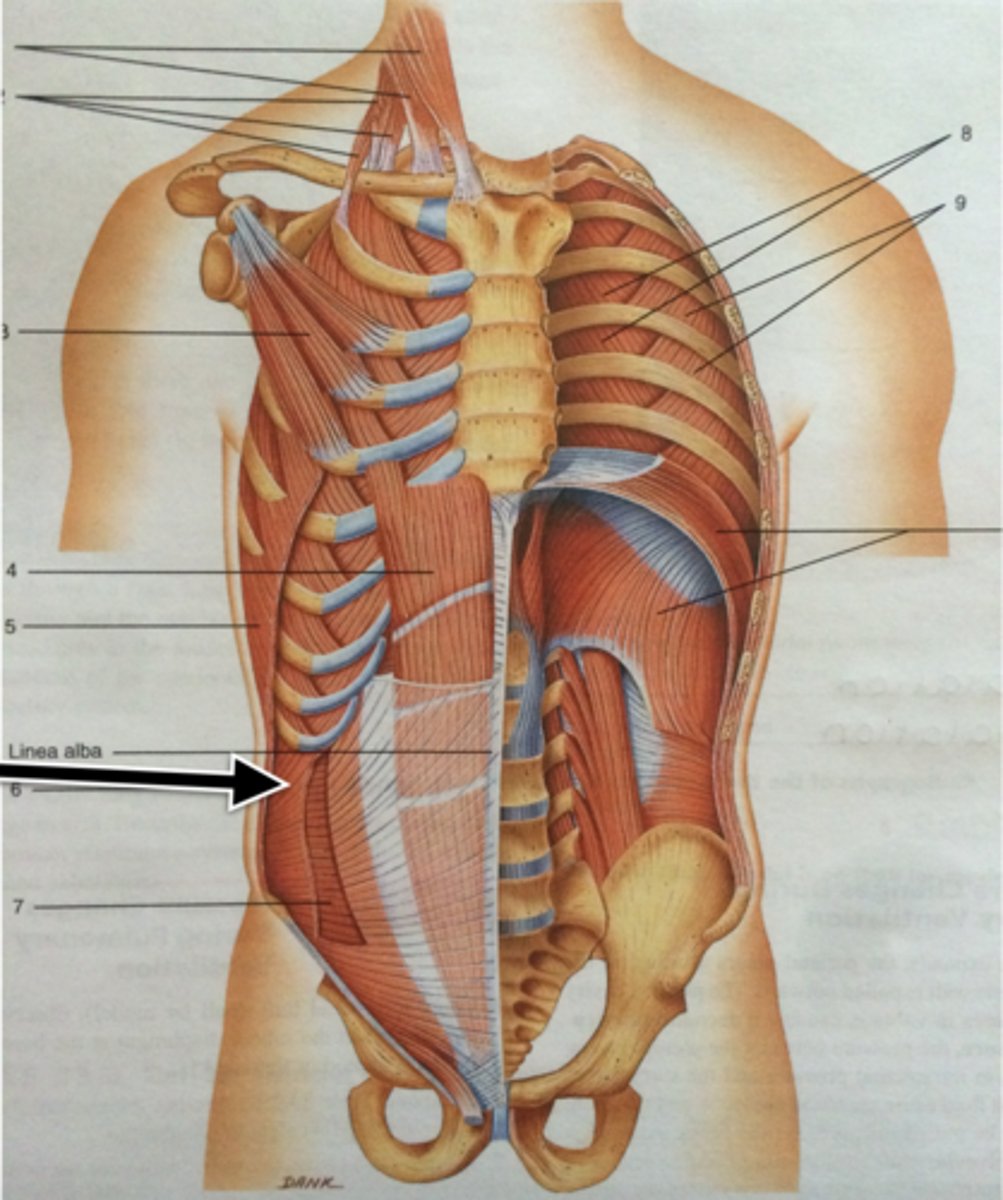

Internal Oblique

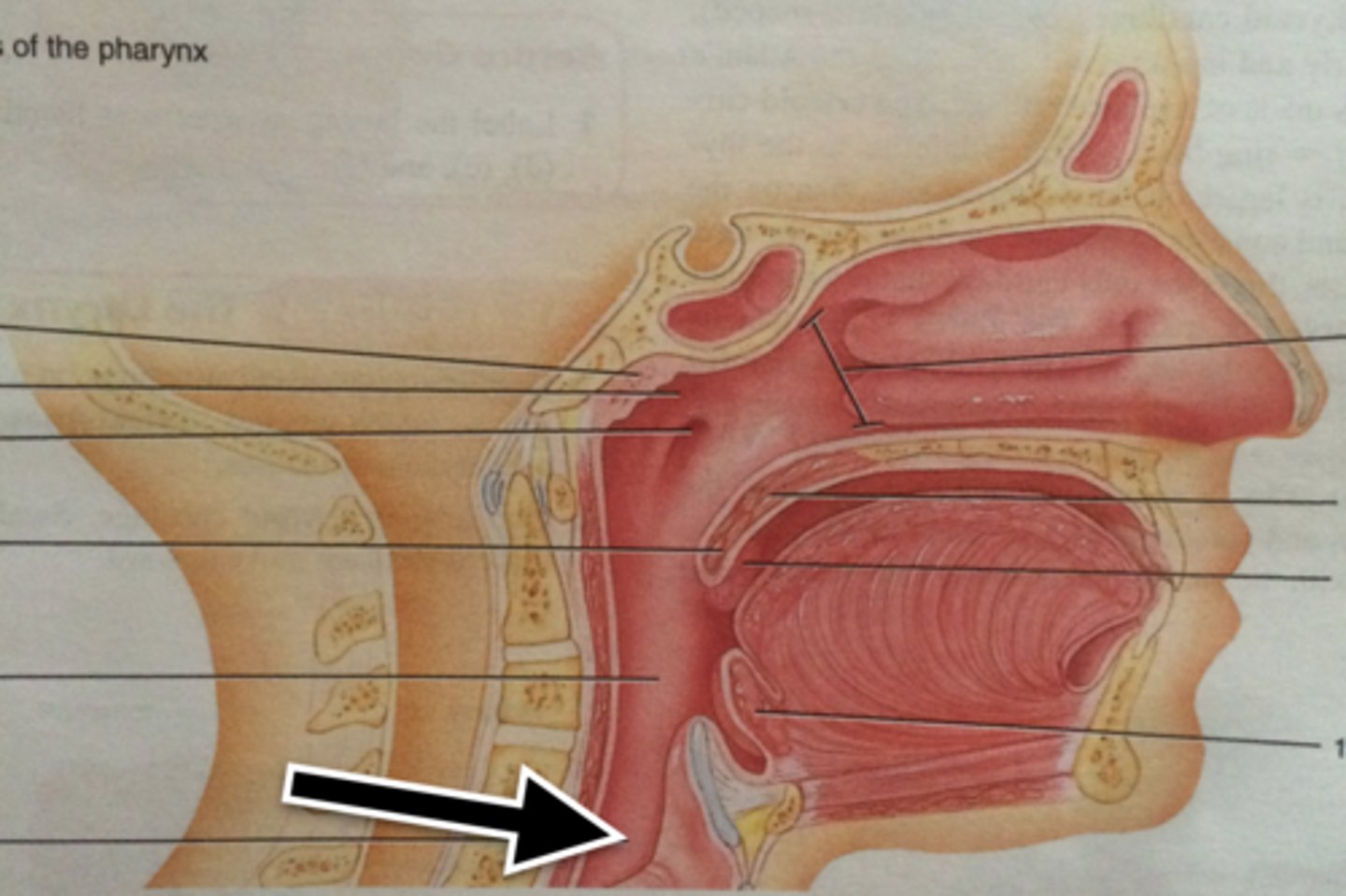

Laryngopharynx

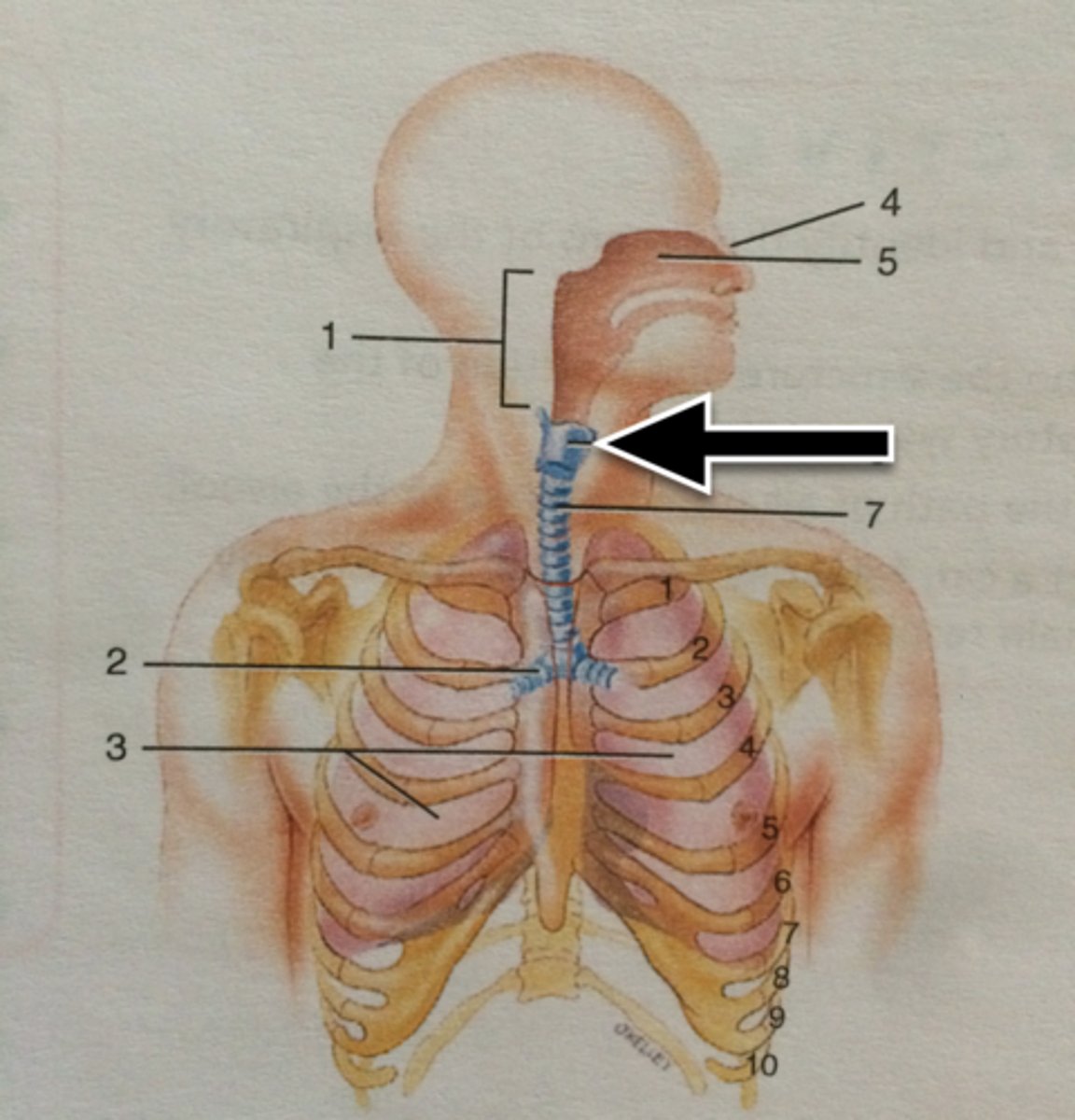

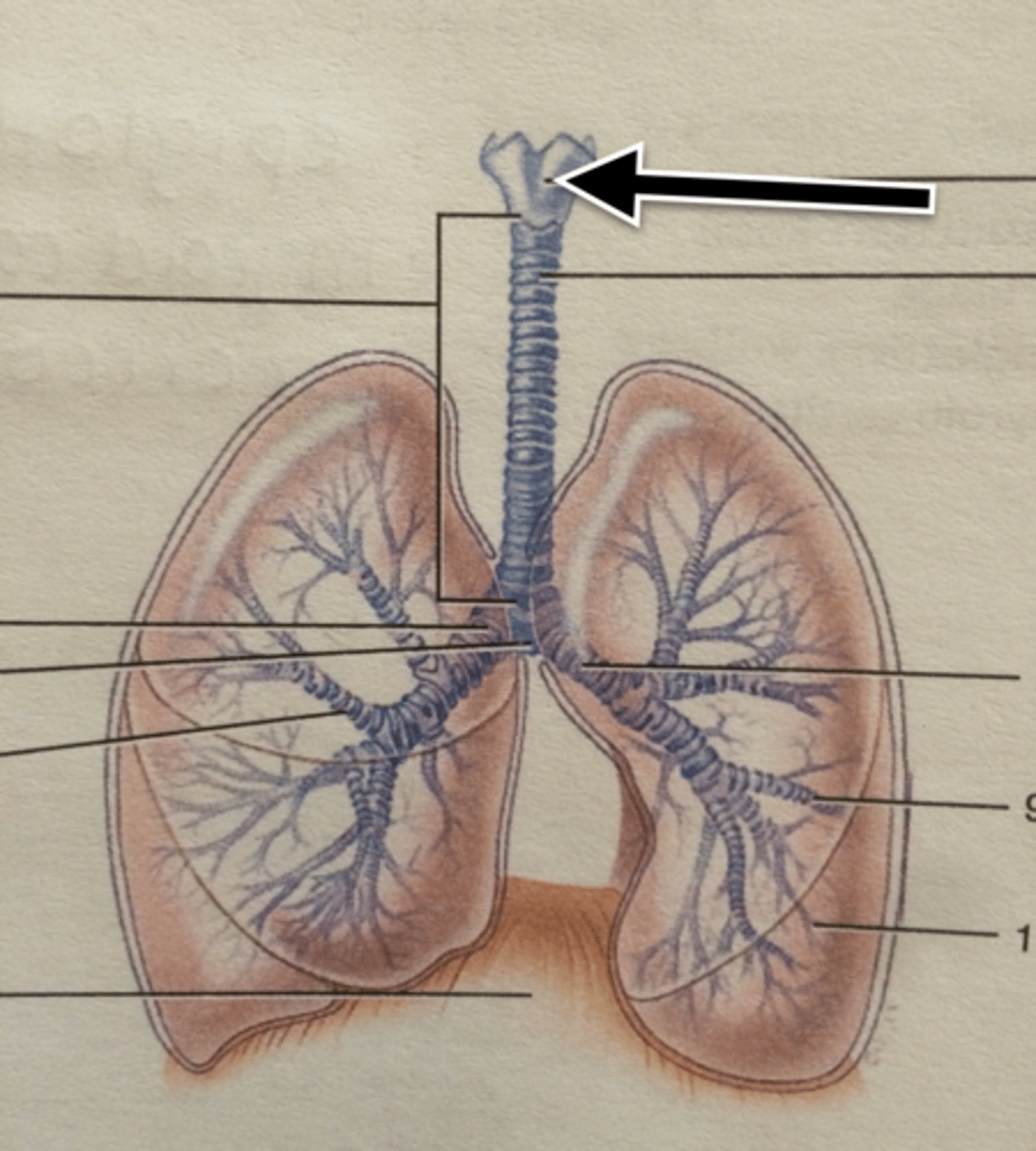

Larynx

Larynx

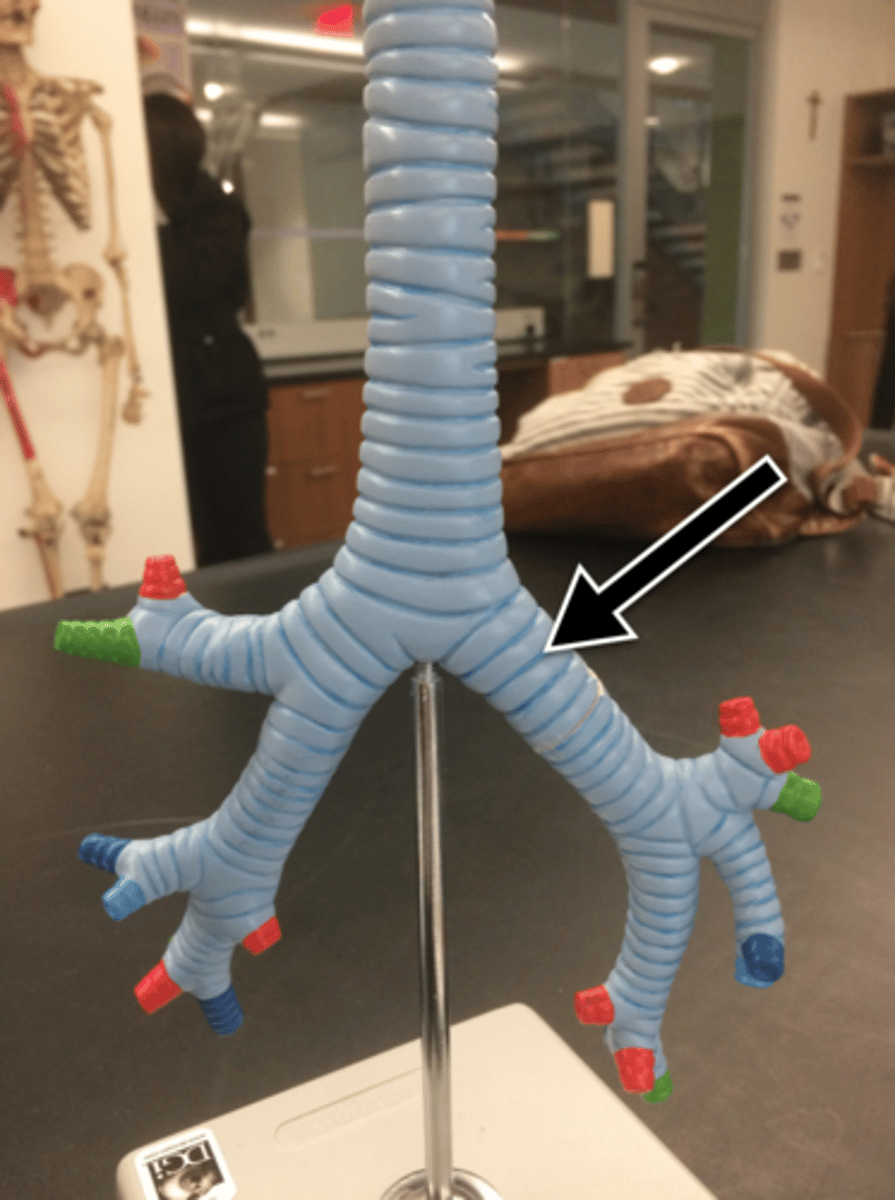

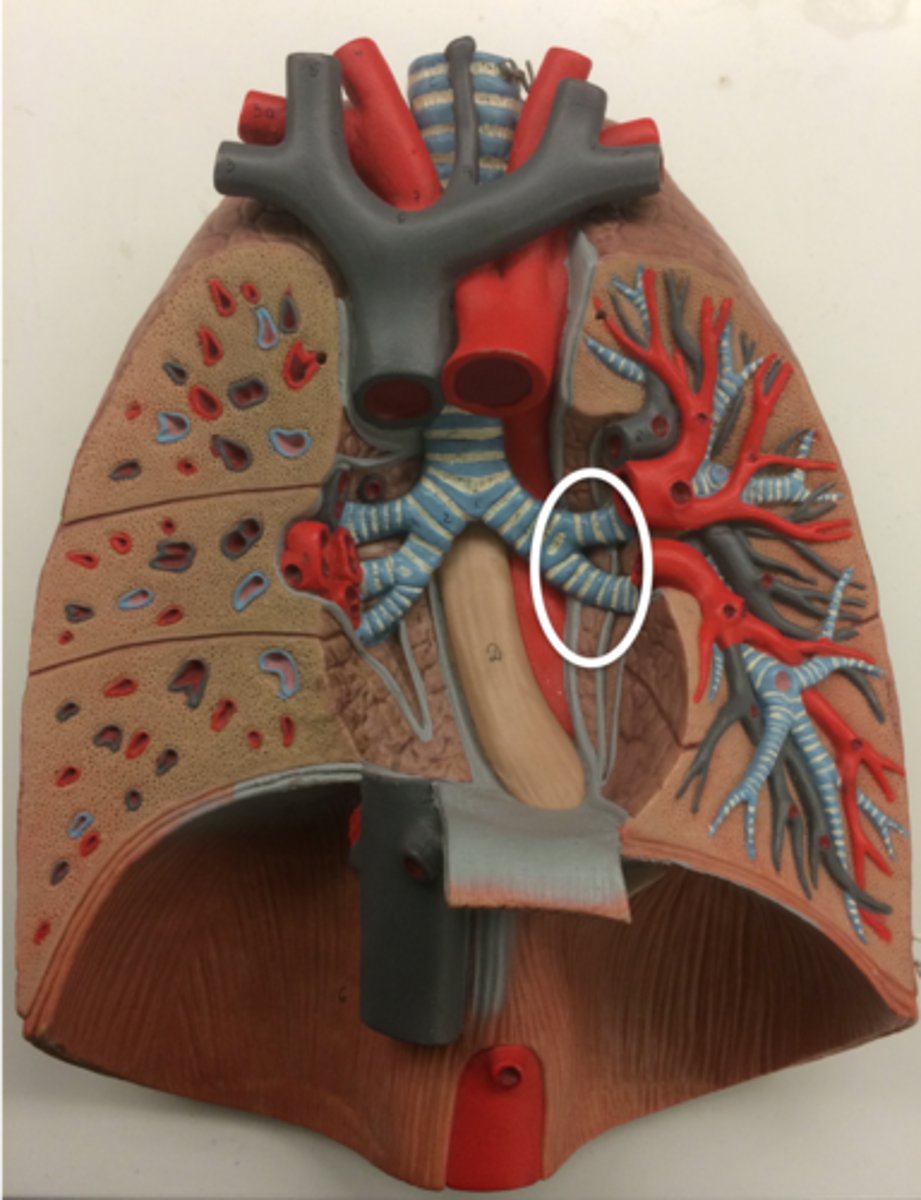

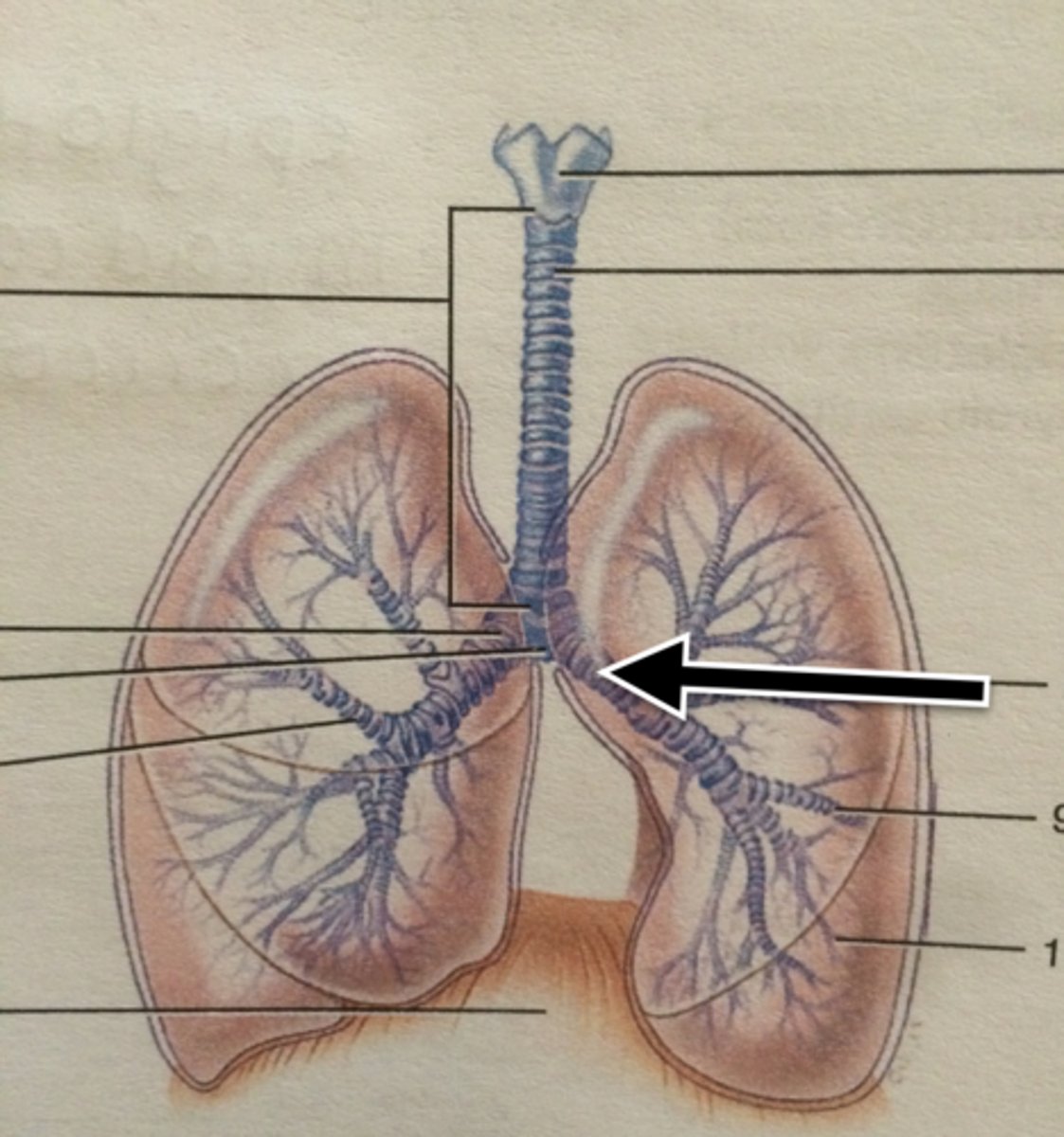

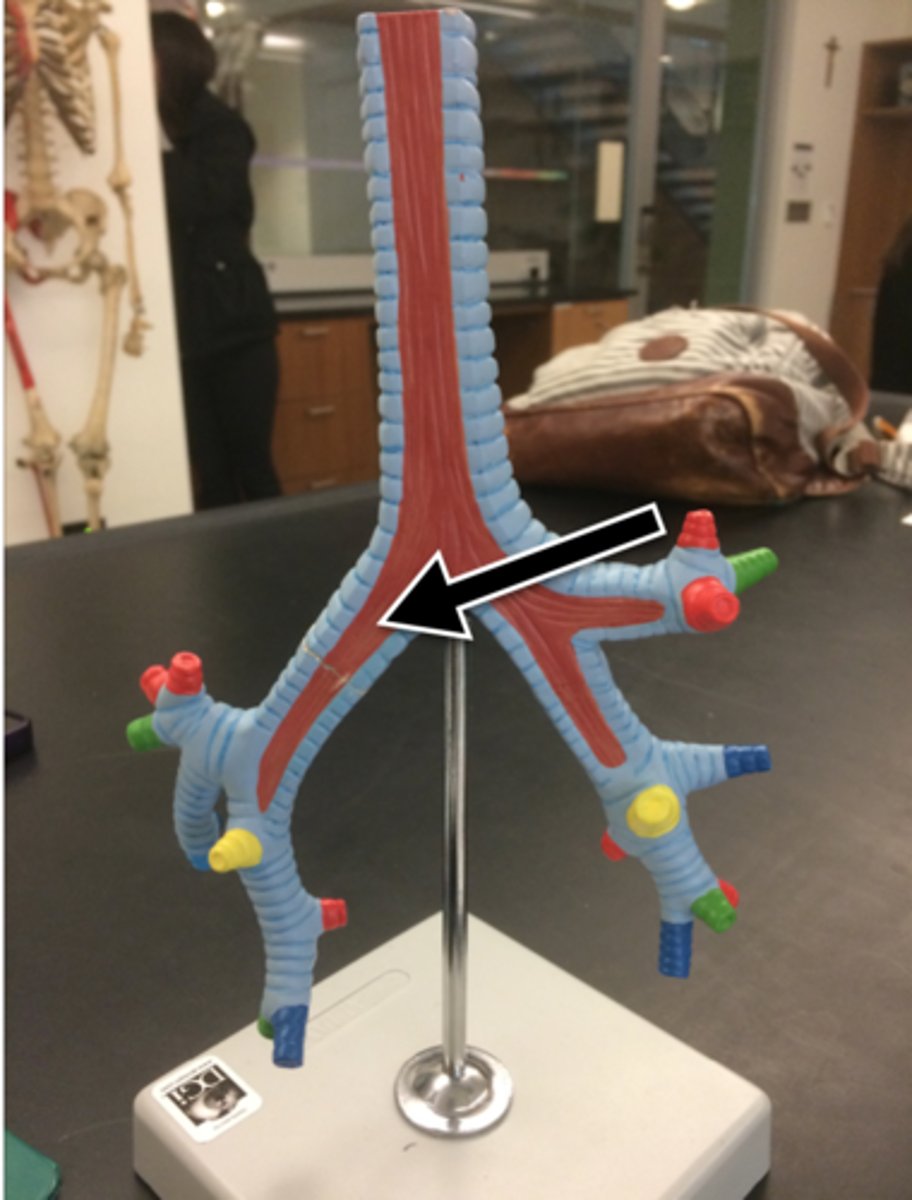

Left Primary Bronchus

Left Primary Bronchus

Left Primary Bronchus

Left Primary Bronchus

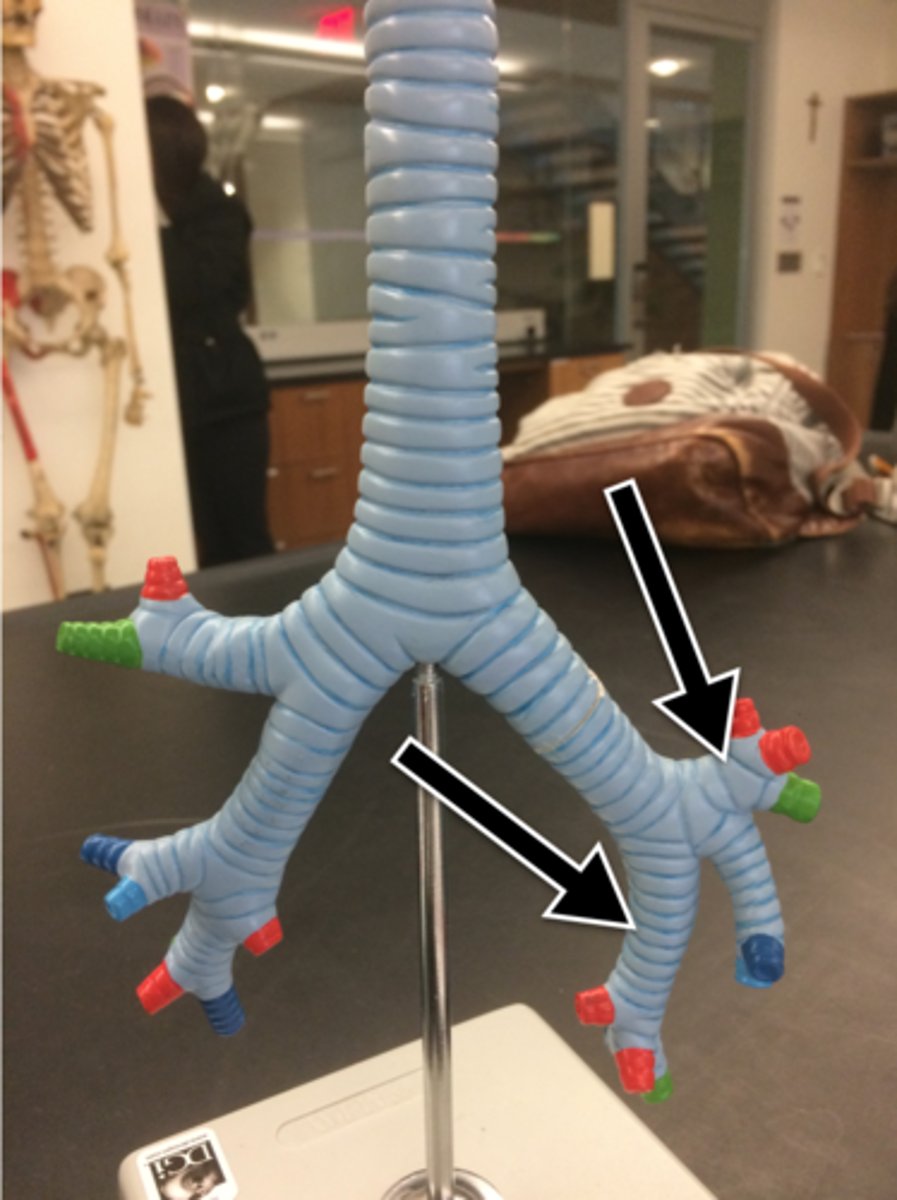

Left Secondary Bronchus

Left Secondary Bronchus

Left Secondary Bronchus

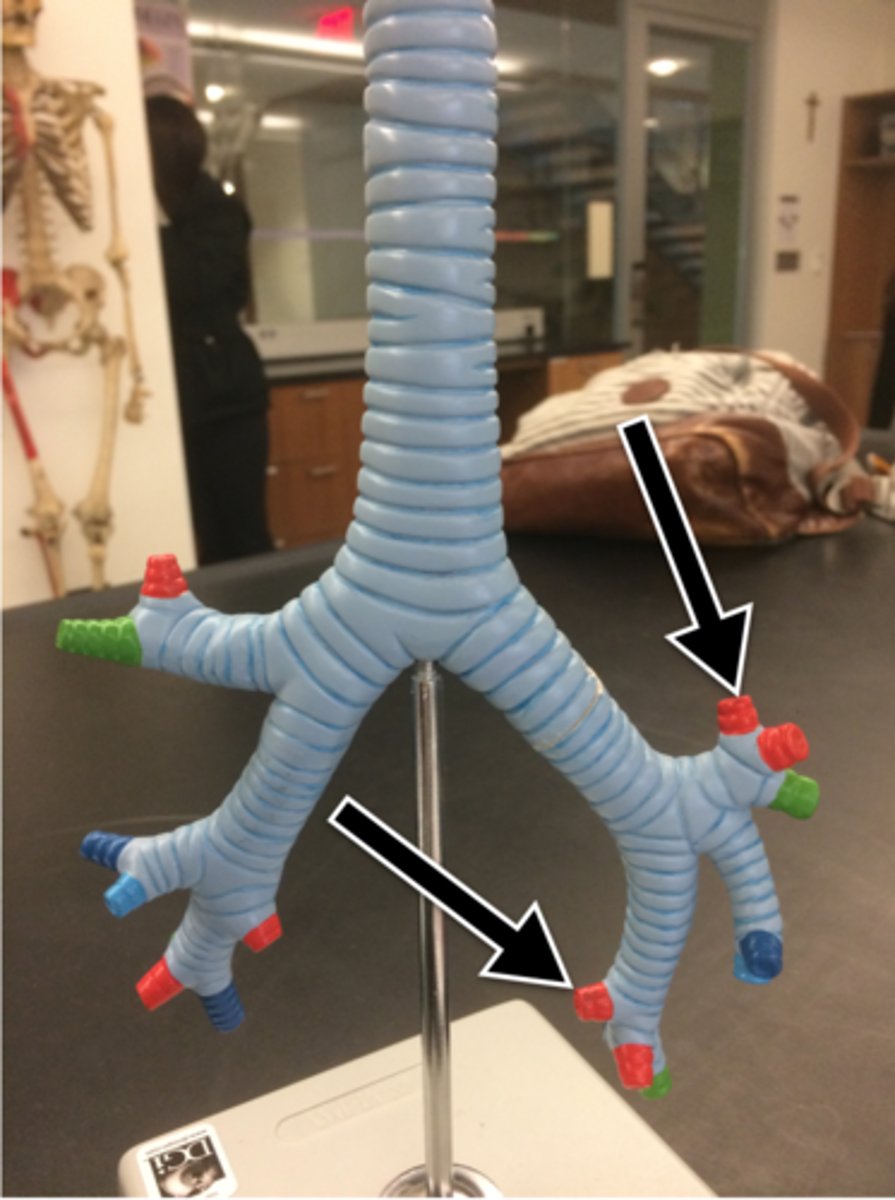

Left Tertiary Bronchi

Left Tertiary Bronchi

Lingual Tonsil

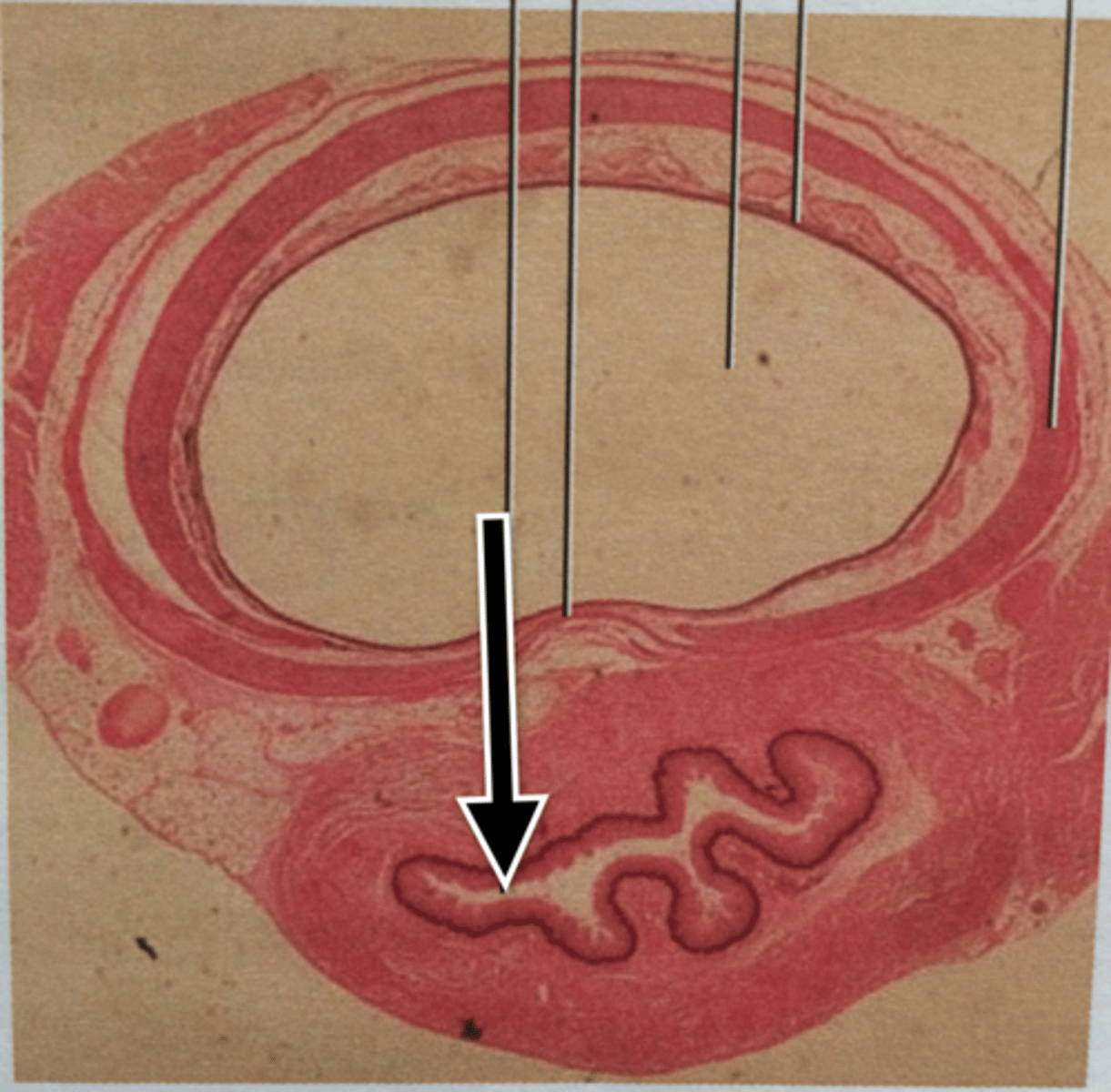

Lumen of Esophagus

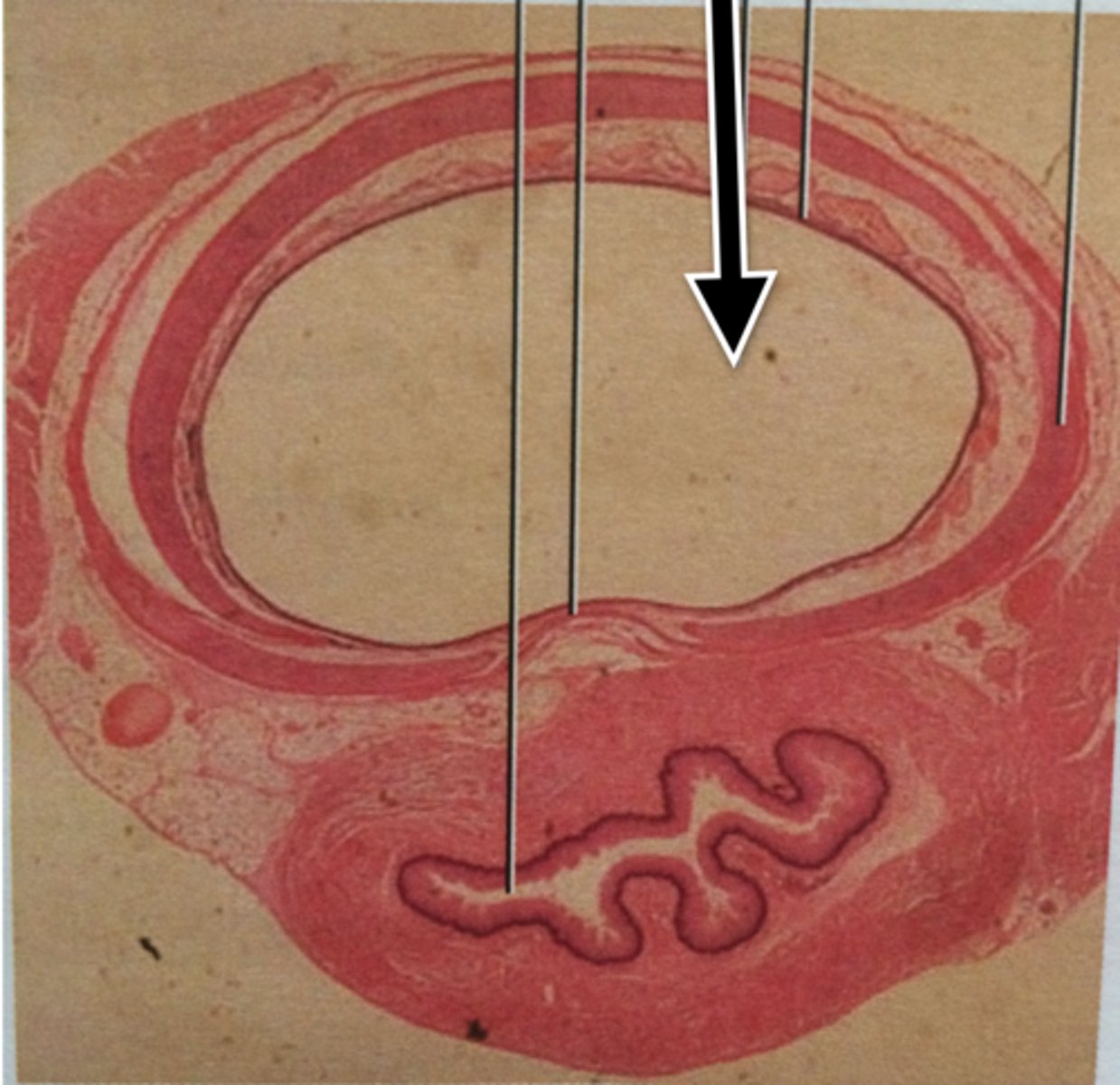

Lumen of Trachea

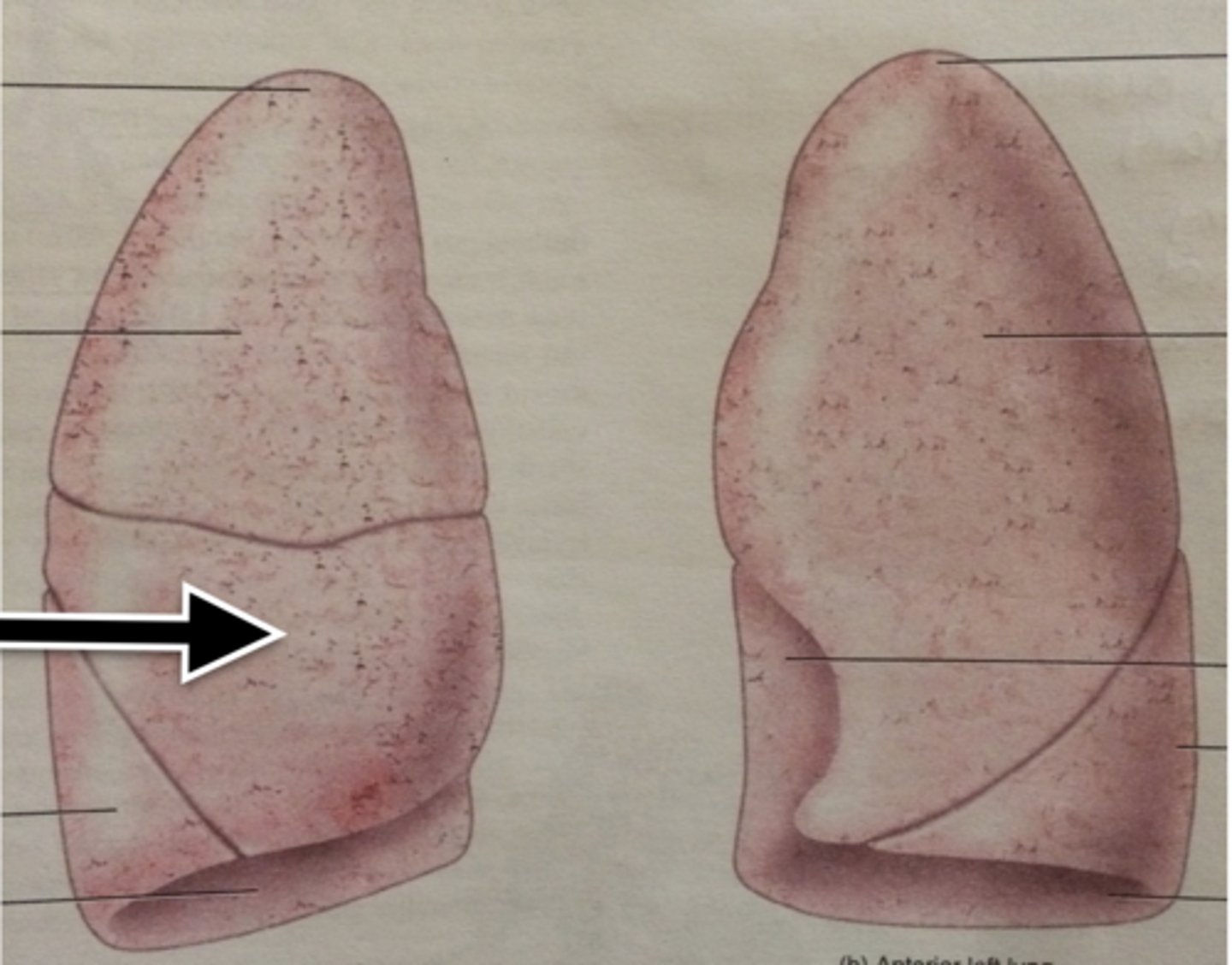

Middle Lobe

Middle Lobe

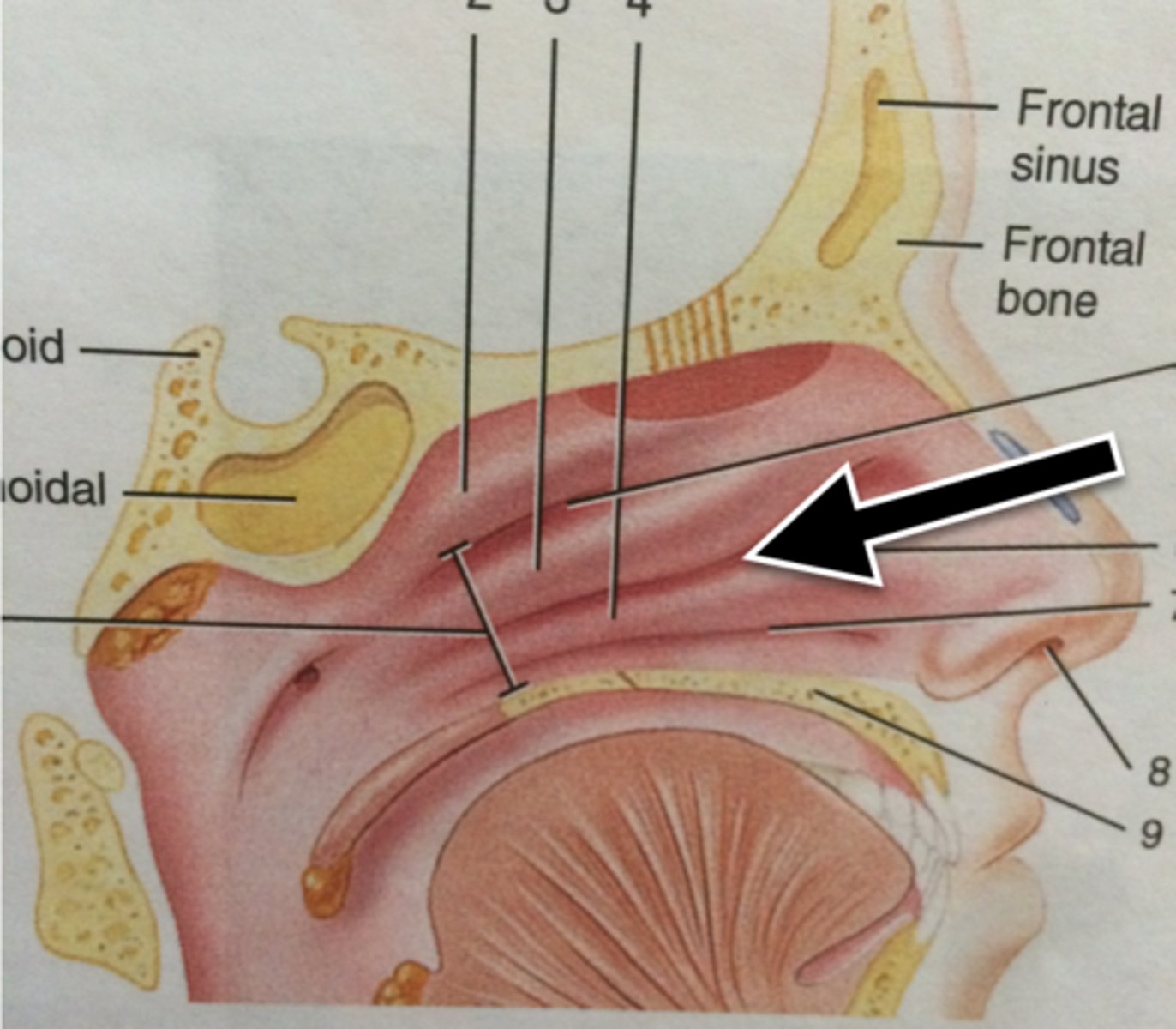

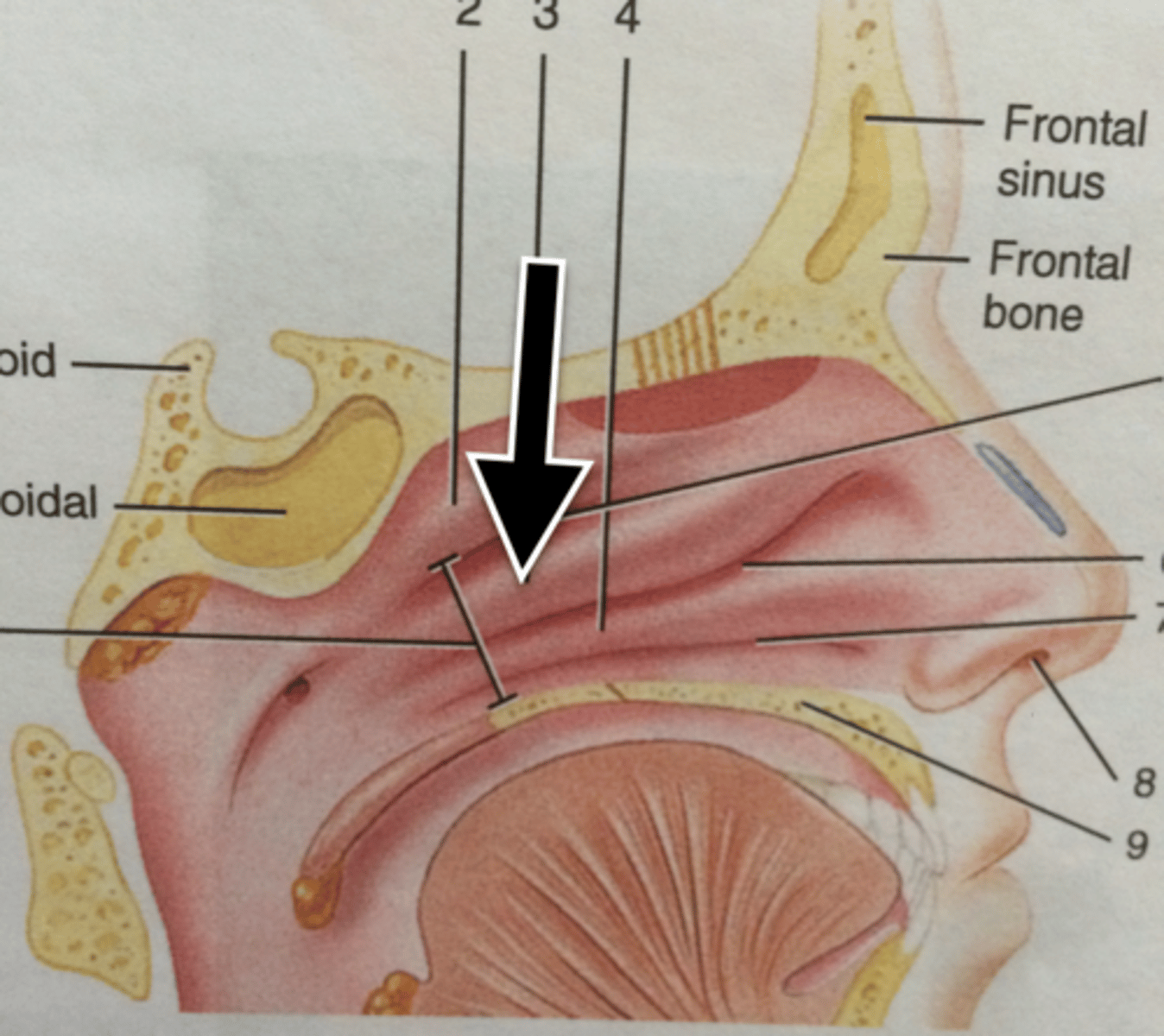

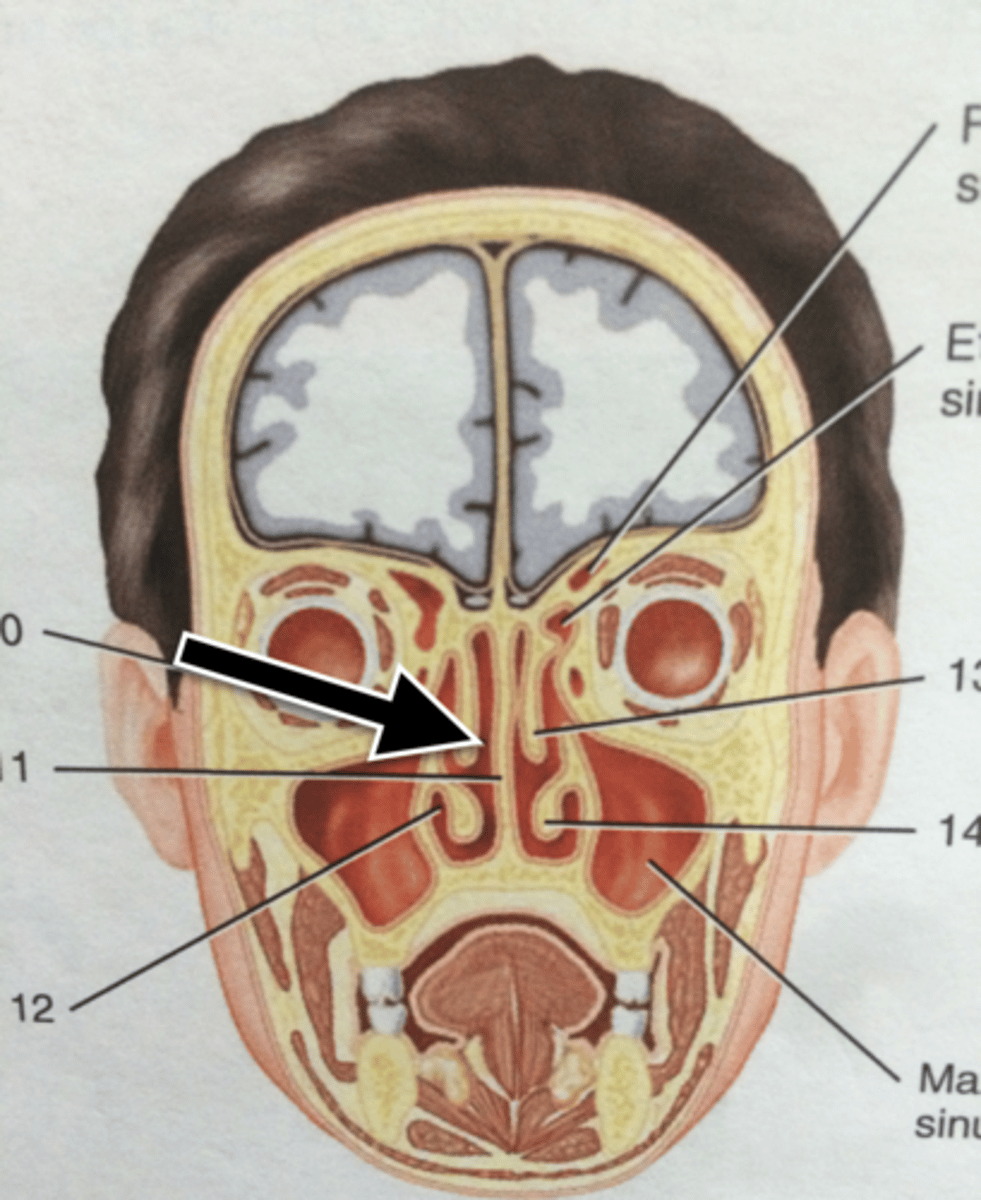

Middle Nasal Concha

Middle Nasal Concha

Middle Nasal Meatus

Middle Nasal Meatus

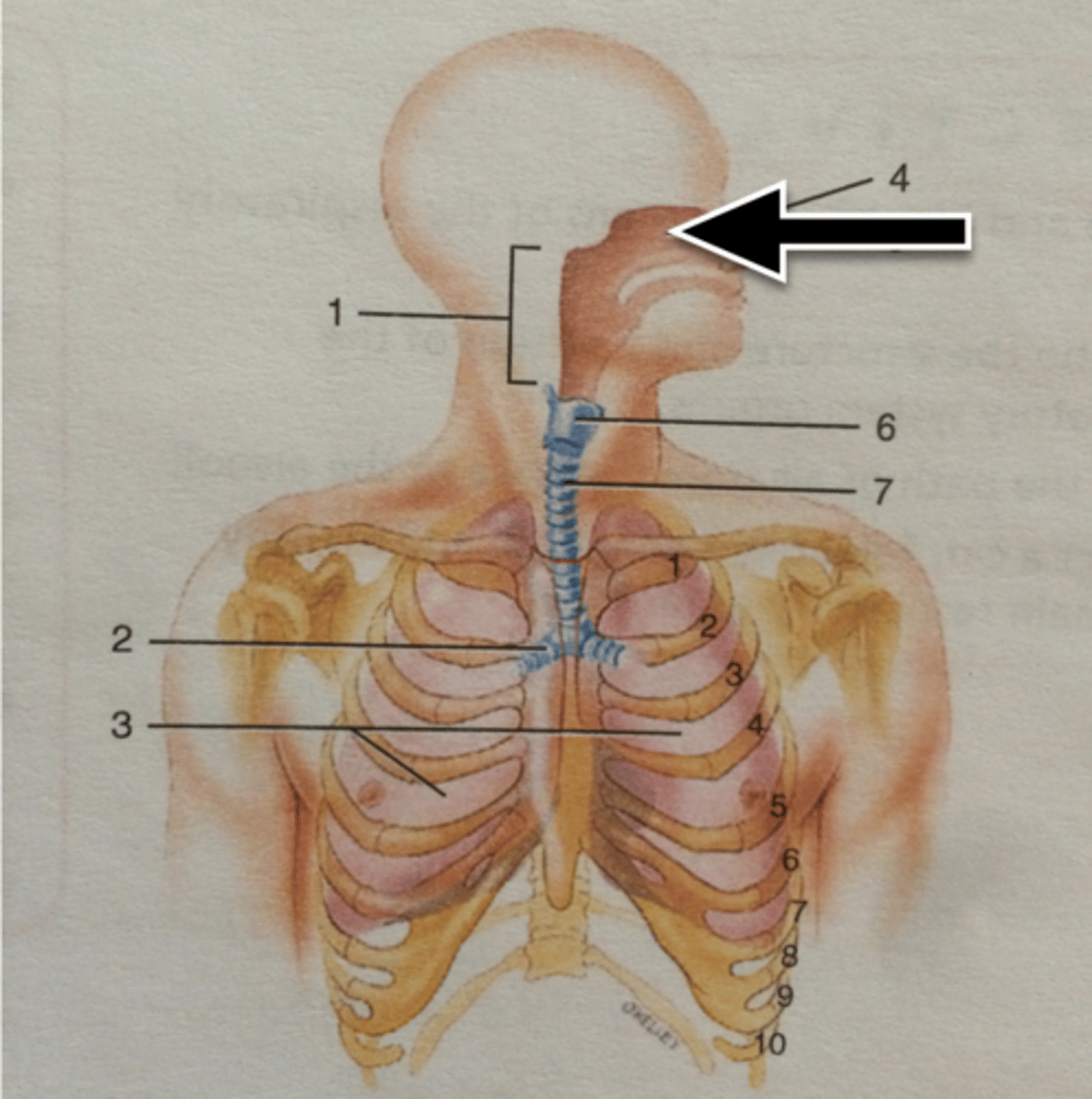

Nasal Cavity
