10 Terms

1
New cards

Define Acceleration

Acceleration is the rate of change of velocity with respect to time

Unit: m s-2

2
New cards

Formula for Average Acceleration

knowt flashcard image
3
New cards

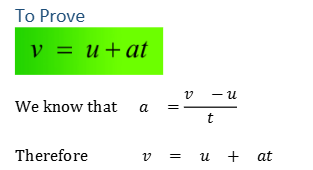

Derive the formula v=u+at

knowt flashcard image
4
New cards

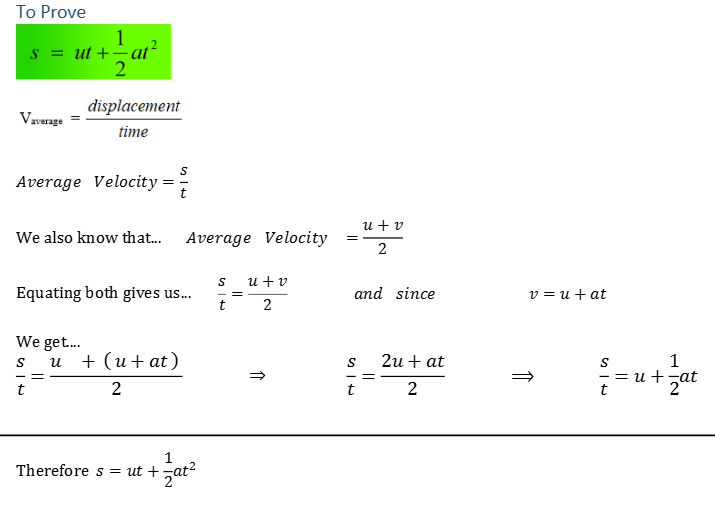

Derive the formula s=ut+1/2 at2

knowt flashcard image
5
New cards

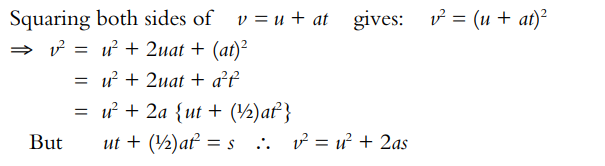

Derive the formula v2 = u2 + 2as

knowt flashcard image
6
New cards

What is the area under a velocity time graph?

The area under a velocity time graph is the distance travelled

7
New cards

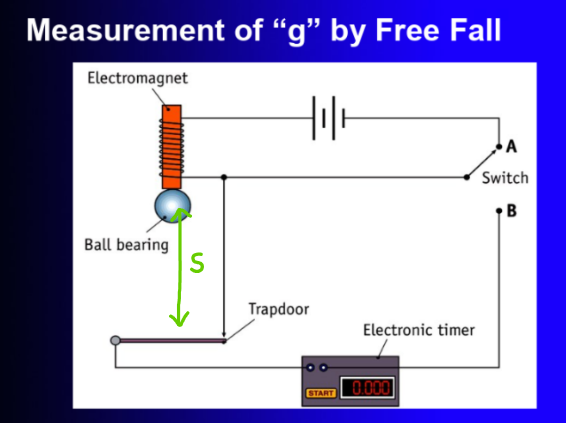

Measurement of Acceleration due to Gravity (g) using freefall method

Set up as shown

Measure the distance s from the bottom of the ball bearing to the top of the trapdoor

Flick the switch and record the time

repeat for different values of s

draw a graph of s over t2

gravity g will be 2(slope)

<p>Set up as shown</p><p>Measure the distance s from the bottom of the ball bearing to the top of the trapdoor</p><p>Flick the switch and record the time</p><p>repeat for different values of s</p><p>draw a graph of s over t<sup>2</sup></p><p>gravity g will be 2(slope)</p>
8
New cards

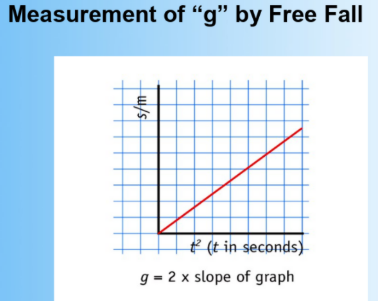

Graph for Freefall Experiment

knowt flashcard image
9
New cards

Describe how the time interval t was measured

Electronic timer starts when the switch is flipped and ball drops

Timer stops when the ball hits the trapdoor

10
New cards

Why is a smooth metal sphere used?

  • To reduce air resistance

  • High density

  • Magnetic
