IS390 Ch 3 - Identifying User Stories and Use Cases

functional requirements

solve the business problem

Non functional requirements

everything that comes after that- ex. Technical piece

user story

a one-sentence description of a work-related task done by a user to achieve some goal or result

Acceptance Criteria

features that must be present for the user to be satisfied with the resulting implementation

---

What must have to happen for the story to be true

mentation.

• identify the features that must be present at the completion of the task

  • Something we identify as the benefit to completing that task!

The template for a user story description is:

“As a <role> I want to <goal> so that <benefit>

example for a user story description template

• Ex. as a shipping clerk i want to ship an order as accurately as possible as soon as order details are available

• “As a <role> I want to <goal> so that <benefit>

  • Acceptance criteria

    • Available order details must pop up

    • Printable display and scanning device

    • Sort items by bin location

    • Indicate items in stock

    • Recommend shippers based on weight size and location

  • These criteria all make the user story true!

  • What must have to happen for the story to be true

Use case

an activity that the system performs, usually in response to a request by a user

• Use cases define functional requirements

• Analysts decompose the system into a set of use cases (functional decomposition)

two techniques for identifying use cases

• user goal technique

• event decomposition technique

how are use cases named

• Name each use case using Verb-Noun

user goal technique

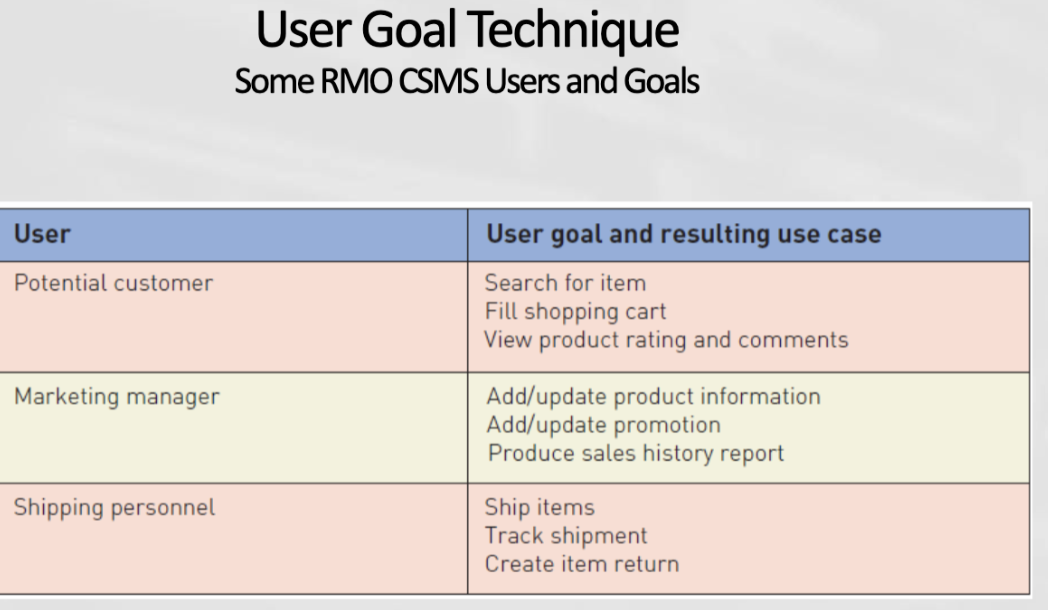

example of user goal technique chart

to make use cases

ask users to describe their goals for the system. To do so, first categorize them by type of user, and do interviews to learn from each user group

—-

• This technique is the most common in industry

• Simple and effective

• Identify all of the potential categories of users of the system

  • users can be internal or external (anyone who is involved at any point)

  • think about what those users do!

• Interview and ask them to describe the tasks the computer can help them with

• Probe further to refine the tasks into specific user goals, “I need to Ship items, Track a shipment, Create a return”

Example of user goal technique chart

user goal technique - specific steps

• 1. Identify all the potential users for the new system

• 2. Classify the potential users in terms of their functional role (e.g., shipping, marketing, sales)

  • Classify by what they do

• 3. Further classify potential users by organizational level (e.g., operational, management, executive)

  • Executives have diff use cases than sales associates!

  • What can they do that the other cant do, and vice versa!

• 4. For each type of user, interview them to find a list of specific goals they will have when using the new system (current goals and innovative functions to add value)

• 5. Create a list of preliminary use cases organized by type of user

• 6. Look for duplicates with similar use case names and resolve inconsistencies

  • Where are the duplicates?

  • Where do they vary slightly?

• 7. Identify where different types of users need the same use cases

  • Where can we combine them?

• 8. Review the completed list with each type of user and then with interested stakeholders

  • Repeat the process! Iterate over time until you reach the final list

  • Allows you to find out additional information

SUMMARIZED - user goal technique - specific steps

• Identify & classify users: Brainstorm all potential users, categorizing them by functional role and organizational level.

• Interview for goals: Gather current and innovative goals from each user group to draft preliminary use cases.

• Consolidate & refine: Eliminate duplicates, resolve inconsistencies, and combine overlapping use cases across roles.

• Review & iterate: Validate the unified list with users and stakeholders, repeating until finalized.

Event decomposition technique

Identify events the system responds to, and each event leads to a use case

• More Comprehensive and Complete Technique

  • Identify the events that occur to which the system must respond.

  • For each event, name a use case (verb-noun) that describes what the system does when the event occurs

  • What does a system do when an event happens?

takes more time!

what is an event

something that occurs at a specific time and place, can be described, and should be remembered by the system

• Driven by business rules and business decisions

ex. event: customer changes their address

• So now they want to ensure their information is updated

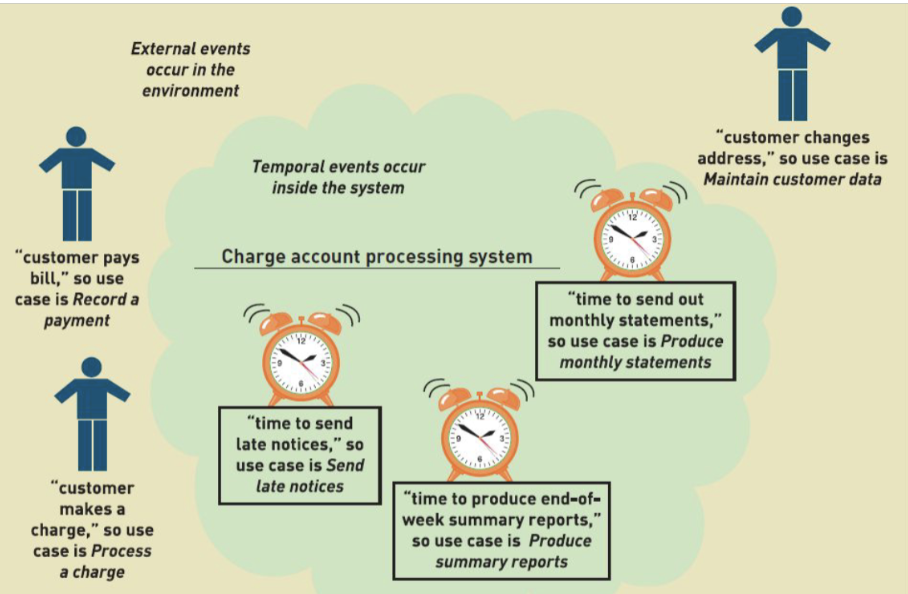

examples of events and use cases —> diagram

temporal events

• an event that occurs as a result of reaching a point in time

  • ex. defined intervals, weekly or monthly reports, payrolls, etc

• (events driven by time)

  • Ex. late notices for late payments- is there a seven day trigger for the email notification to be sent?

  • Ex. monthly statements - once a threshold is met, like the end of the month, the statements go out

external event

• an event that occurs outside the system, usually initiated by an external agent or actor

• Ex. customer changes their address

state event

• an event that occurs when something happens inside the system that triggers some process

• reorder point is reached for inventory item

• Ex. when your stock is a certain amount of low, an event happens, and a notification is sent to order more stock

external event checklist - 4 items

• based on wants and needs for info or changes

• External agent or actor wants something resulting in a transaction

  • Ex. Customer buys a product

• External agent or actor wants some information

  • Ex. Customer wants to know product details

• External data changed and needs to be updated

  • Ex. Customer has new address and phone

• Management wants some information

  • Ex. Sales manager wants update on production plan

temporal event checklist

internal vs external temporal event examples

• Internal outputs needed at points in time

  • Management reports (summary or exception)

  • Operational reports (detailed transactions)

  • Internal statements and documents (including payroll)

  • Ex. when do we need to be payed, or notified of collections?

• External outputs needed at points of time

  • Statements, status reports, bills, reminder

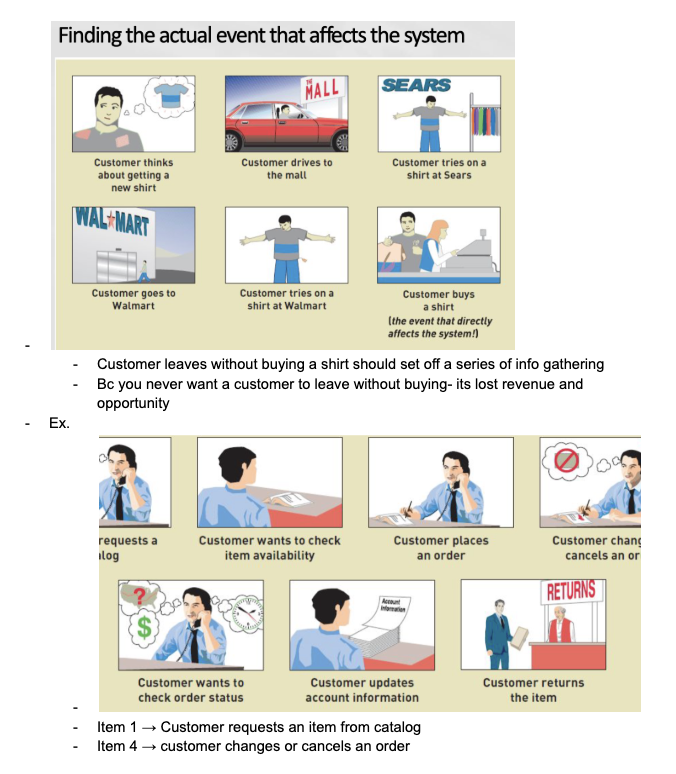

finding the actual event that affects the system

(better to look at notes for this)

in this case, the system is not affected untill the customer is in the store, has a shirt they want to buy, and says “i want to buy this shirt”

added content from second half of class goes from here

system controls

checks or safety procedures put in place to protect the integrity of the system

ex. logging onto the system, backing up data every day

perfect technology assumption

assume the system is fully operational under ideal conditions, to allow them to focus on the core business needs,

rather than technological or people-related limitations. This occurs during the analysis phase.

This prevents technical constraints from inhibiting true functional requirements, and separates the analysis from the design component.

during design phase, we drop the assumption, and focus on the implementation and technicalities

---

By pretending that technology is perfect, analysts can eliminate events like “Time to back up the database” because they can assume that the disk will never crash.

events should be included during analysis only if the system would be required to respond under perfect conditions

• Don't worry about functions build into the system bc of limits in technology and people- wait until you are considering design

---

when you are identifying business requirements and use cases, you assume that the underlying technology is 100% perfect, reliable, and secure

• once you are in the design and implementation phase (you leave the analysis and requirements phase), you can drop the assumption and explicitly design system controls (logins, encryptions, backups, crash recovery, audit trails)

event decomposition technique: specific steps

• 1. Consider the external events in the system environment that require a response from the system by using the checklist shown in Figure 3-3

• 2. For each external event, identify and name the use case that the system requires

• 3. Consider the temporal events that require a response from the system by using the checklist shown in Figure 3-4

• 4. For each temporal event, identify and name the use case that the system requires and then establish the point of time that will trigger the use case

• 5. Consider the state events that the system might respond to, particularly if it is a real-time system in which devices or internal state changes trigger use cases.

• 6. For each state event, identify and name the use case that the system requires and then define the state change.

• 7. When events and use cases are defined, check to see if they are required by using the perfect technology assumption. Do not include events that involve such system controls as login, logout, change password, and backup or restore the database, as these are put in later.

SUMMARIZED - event decomposition technique: specific steps

• External events: Identify outside triggers (e.g., customer places an order) and name their use cases.

• Temporal events: Identify time-based triggers (e.g., end-of-month billing) and set their trigger points.

• State events: Identify internal state or device changes (e.g., low inventory threshold) and define their triggers.

• Filter with perfect technology assumption: Remove technical controls (logins, backups, passwords) to keep only core business use cases.

Event decomposition technique: benefits

• Events are broader than user goal: Capture temporal and state events

• Help decompose at the right level of analysis: an elementary business process (EBP)

• Uses perfect technology assumption to make sure functions that support the users work are identified and not additional functions for security and system controls

what is EBP

elementary business process (EBP)

• EBP is a fundamental business process performed by one person, in one place, in response to a business event

Use cases and brief use case descriptions

all examples on doc of notes from slides

brief use case description examples

what is a use case diagram

a UML model used to graphically show uses cases and their relationships to actors

• Recall UML is Unified Modeling Language, the standard for diagrams and terminology for developing information systems

• Actor is the UML name for an end user

what is an actor

Actor is the UML name for a end user

the person who has the use cases

what is an automation boundary

the boundary between the computerized portion of the application and the users who operate the application

use case diagram symbols

use case UML diagram example

use case chart style diagram example

How to include things included in use cases in UML diagrams

• Have a dotted line with “includes” to the next included use case/item

use case diagram steps

• 1. Identify all the stakeholders and users who would benefit by seeing a use case diagram

• 2. Determine what each stakeholder or user needs to review in a use case diagram: each subsystem, for each type of user, for use cases that are of interest

• 3. For each potential communication need, select the use cases and actors to show and draw the use case diagram.

  • There are many software packages that can be used to draw use case diagrams

• 4. Carefully name each use case diagram and then note how and when the diagram should be used to review use cases with stakeholders and users

SUMMARIZED - use case diagram steps

1. identify all stakeholders and users who would benefit from one

2. determine what each stakeholder would be interested or need to review in the diagram

3. for each potential communication, choose which use cases and actors to show in ur user case diagram (can use software to make)

4. carefully name each diagram, and note how and when they should be used to review with stakeholders and users
