STRUCTURAL THEORY SUPERPOSITION FORMULAS

0.0(0)
Studied by 17 people
call kaiCall Kai
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/33

encourage image

There's no tags or description

Looks like no tags are added yet.

Last updated 6:03 AM on 3/23/26
Name
Mastery
Learn
Test
Matching
Spaced
Call with Kai
Chat

No analytics yet

Send a link to your students to track their progress

34 Terms

1
New cards

WL/2

Reaction at A

<p>Reaction at A</p>
2
New cards

WL²/8

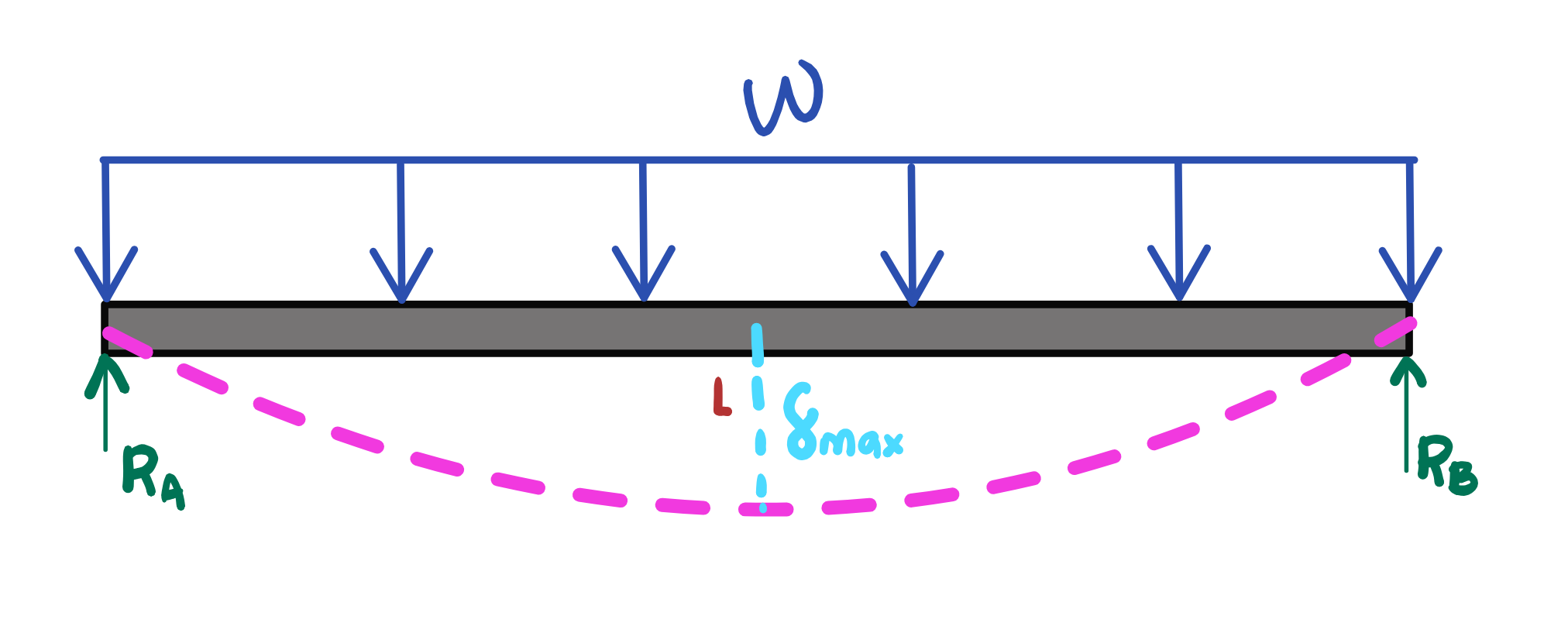

Maximum Moment

<p>Maximum Moment</p>
3
New cards

(5WL⁴)/384EI

Maximum Deflection

<p>Maximum Deflection </p>
4
New cards

⅝(wL)

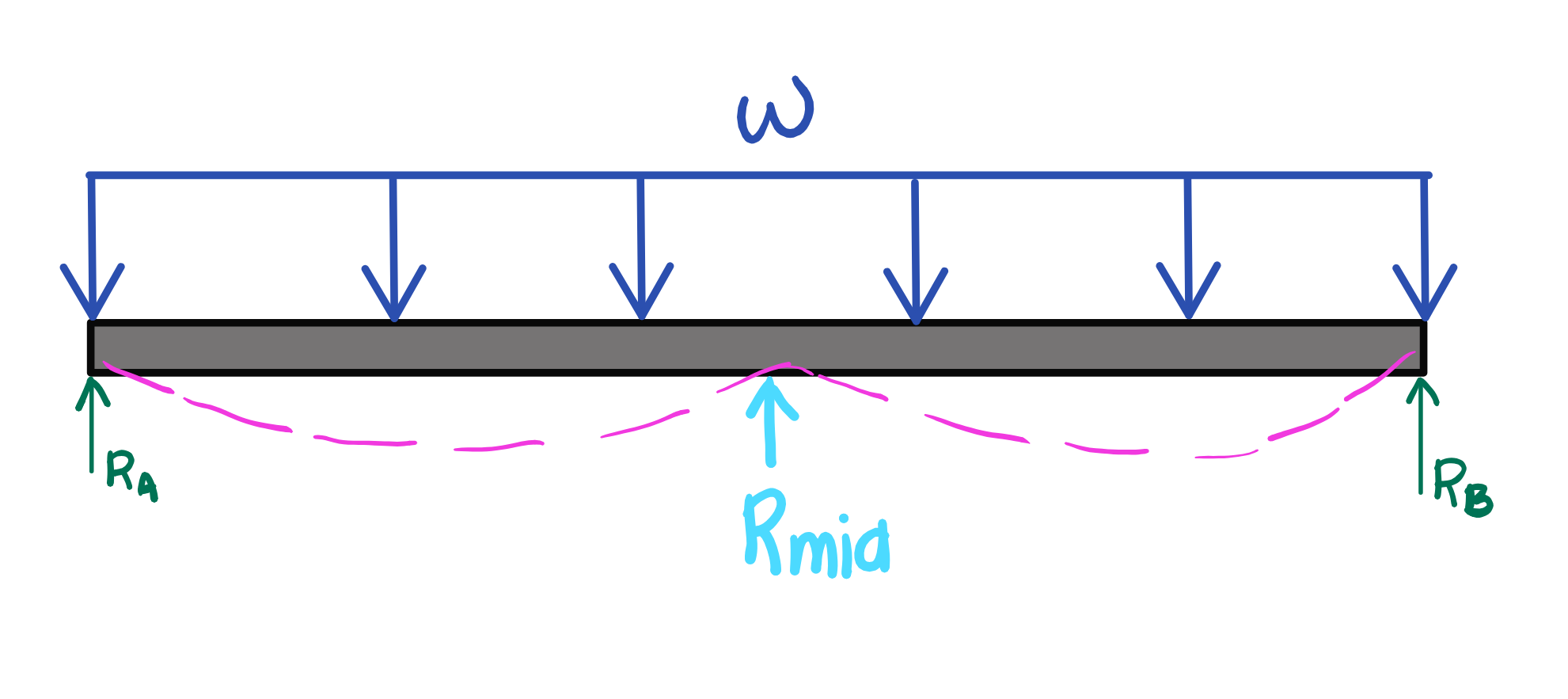

Reaction at Mid Support

<p>Reaction at Mid Support</p>
5
New cards

(3/16)(wL)

Reaction at End Supports

<p>Reaction at End Supports</p>
6
New cards

(9/512)wL²

Positive Maximum Moment at the Span

<p>Positive Maximum Moment at the Span</p>
7
New cards

(1/32)(wL²)

Moment @ Mid-Support

<p>Moment @ Mid-Support</p>
8
New cards

wL⁴/8EI

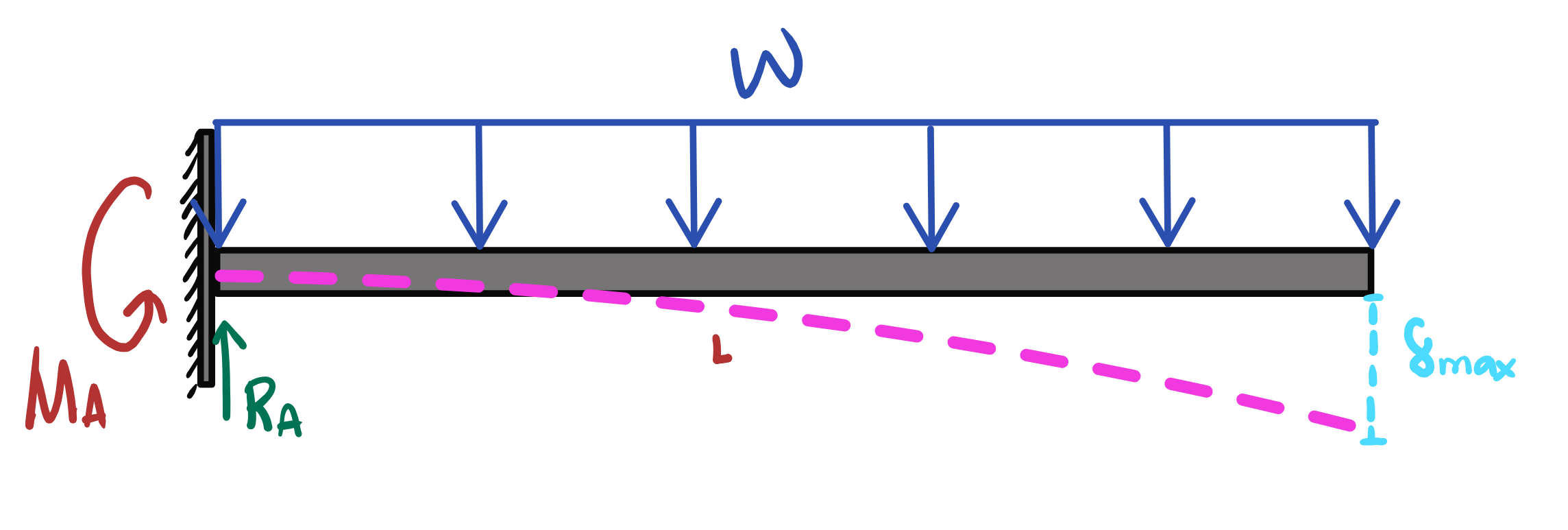

Maximum Deflection

<p>Maximum Deflection </p>
9
New cards

(⅜)wL

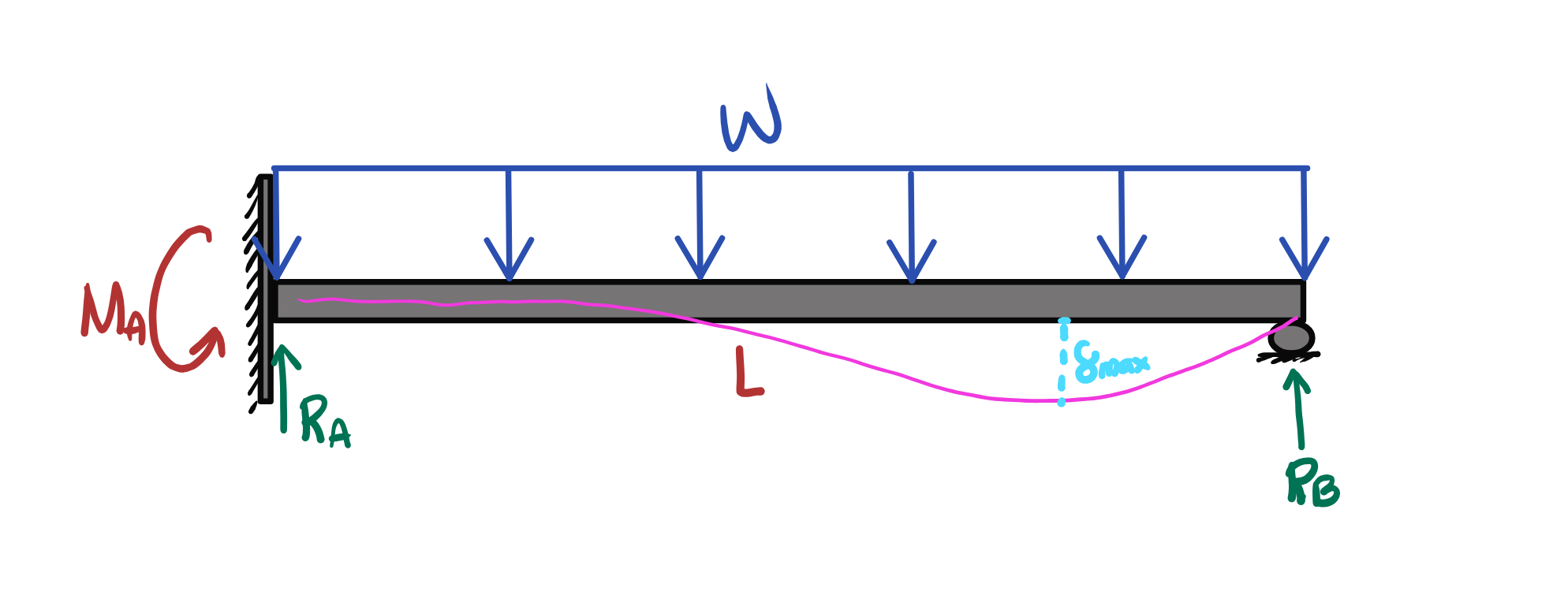

Reaction at Support B

<p>Reaction at Support B</p>
10
New cards

(⅝)wL

Reaction at Support A

<p>Reaction at Support A</p>
11
New cards

wL²/8

Moment at Support A

<p>Moment at Support A</p>
12
New cards

wL⁴/185EI

Deflection at the Span

<p>Deflection at the Span</p>
13
New cards

wL/2

Reaction at Fixed Supports

<p>Reaction at Fixed Supports</p>
14
New cards

wL²/12

Moment at Fixed Ends

<p>Moment at Fixed Ends</p>
15
New cards

wL²/24

Moment at Midspan

<p>Moment at Midspan</p>
16
New cards

wL⁴/384EI

Deflection at Midspan

<p>Deflection at Midspan</p>
17
New cards

wL/2

Reaction at Mid Support

<p>Reaction at Mid Support</p>
18
New cards

wL/4

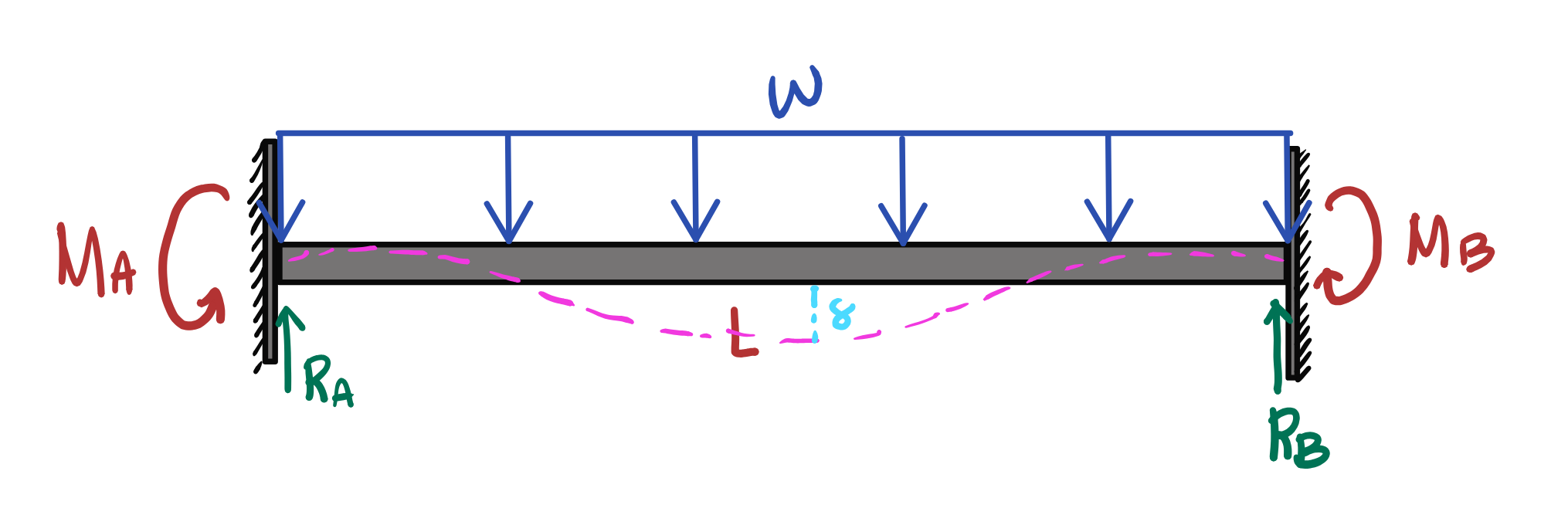

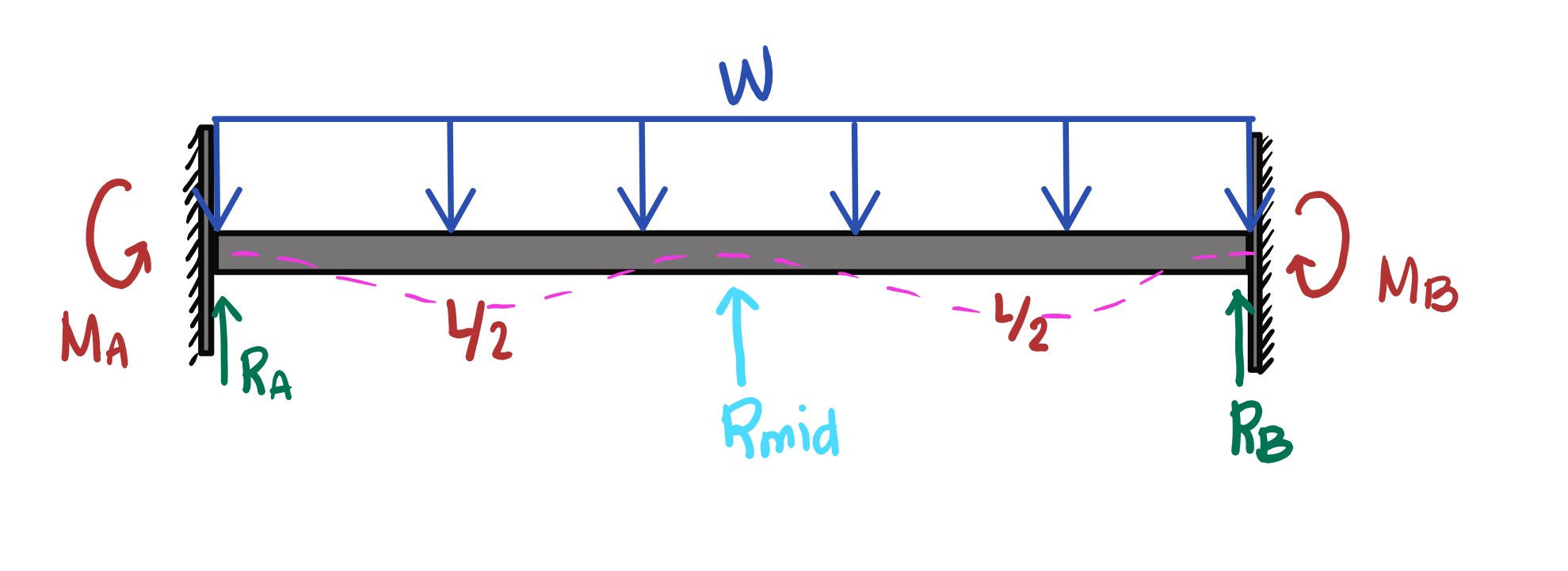

Reaction at Fixed Supports

<p>Reaction at Fixed Supports</p>
19
New cards

PL/3

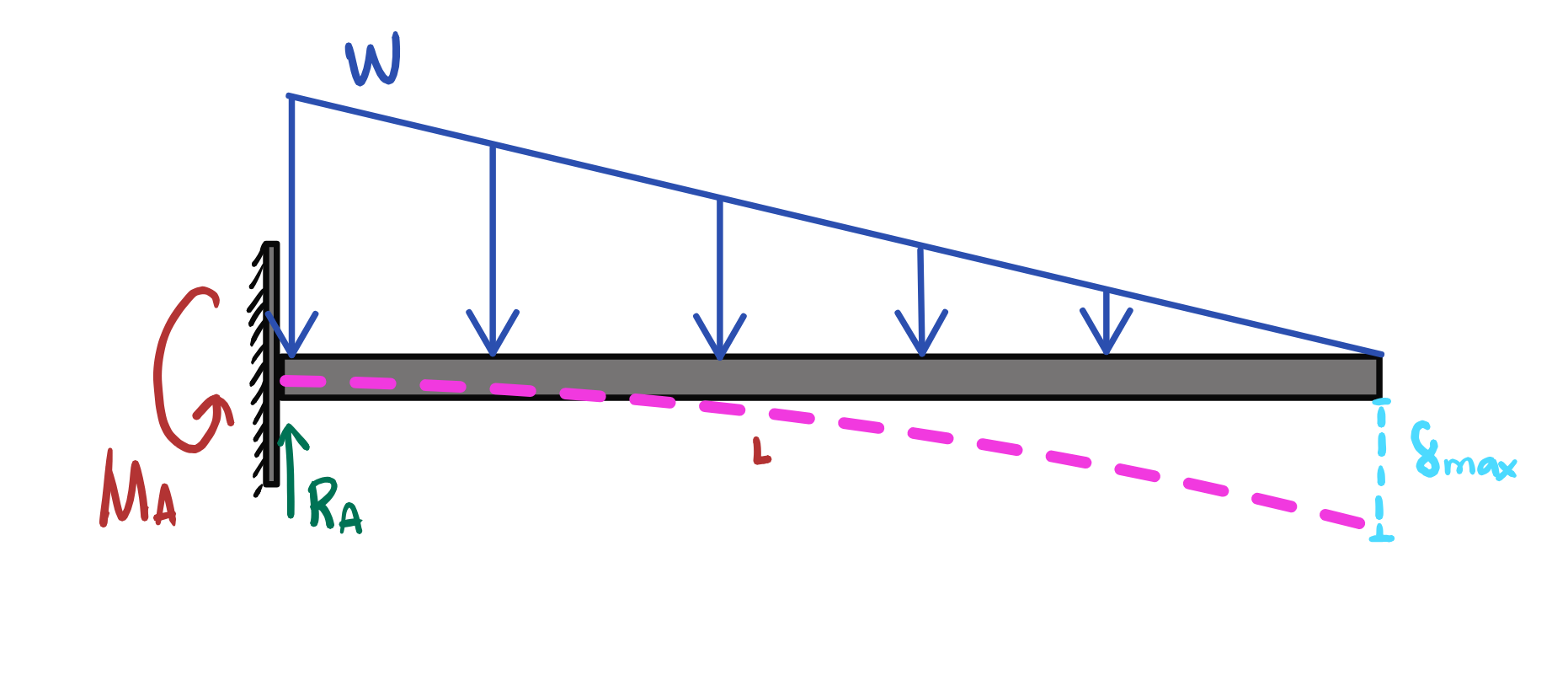

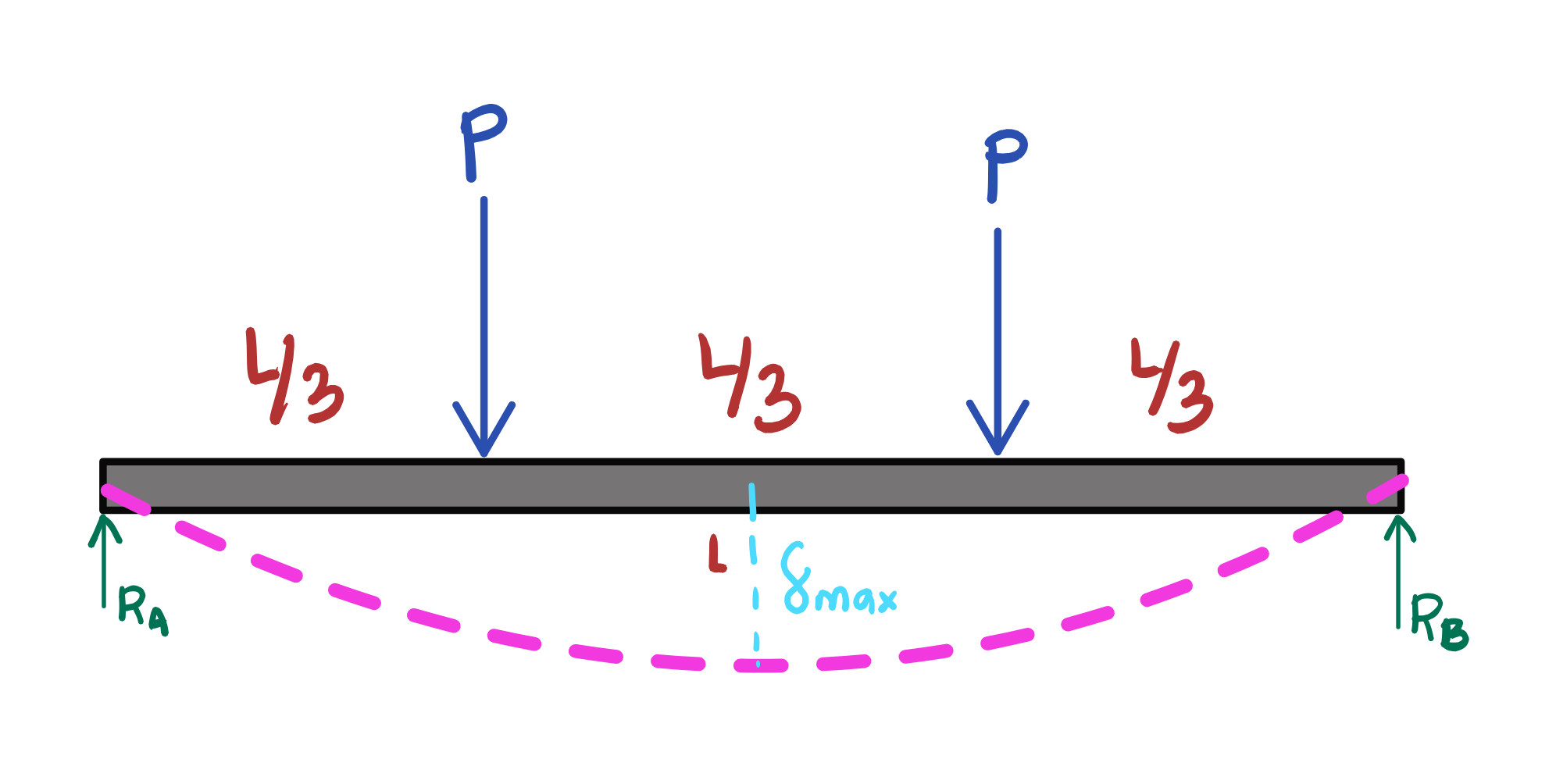

Maximum Moment

<p>Maximum Moment </p>
20
New cards

23PL³/64EI

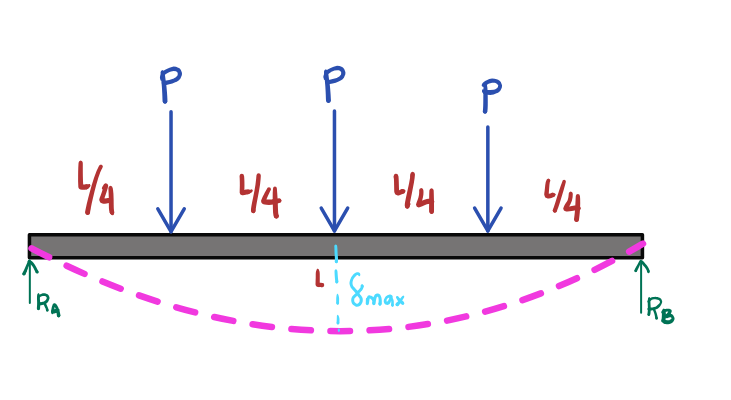

Maximum Deflection
