Practicum III name the thing

What tissue is this?

Epithelial, Simple Squamous

What tissue is this?

Epithelial, Simple Cuboidal

What tissue is this?

Epithelial, Simple Columnar

What tissue is this?

Epithelial, Stratified Columnar

What tissue is this?

Epithelial, Pseudostratified Columnar

What tissue is this?

Connective, Loose Connective

What tissue is this?

Connective, Fibrous connective

What tissue is this?

Connective, Cartilage

What tissue is this?

Connective, Bone

What tissue is this?

Connective, Adipose

What tissue is this?

Muscle, skeletal

What tissue is this?

Muscle, Smooth

What tissue is this?

Muscle, Cardiac

What tissue is this?

Nervous, Neuron

What type of body type is this? What is the type of flagellated cell?

Asconoid; Spongocoel

What type of body type is this? What is the type of flagellated cell?

Syconoid; canals

What type of body type is this? What is the type of flagellated cell?

Leuconoid; chambers

What skeletal structure is this? What is it made of?

Spongin; protein

What skeletal structure is this? What is it made of?

Spicules; calcium carbonate/ silica

Name the things

Red - Spongocoel

Orange - Apopyle

Yellow - Incurrent Canal

Green - Prosopyle

Blue - Ostia

Indigo - Radial Canal

K, P, C

Animal, Porifera, Calcarea

K, P, C

Animal, Porifera, Hexactinellidae

K, P, C

Animal, Porifera, Demospongiae

K, P, C

Animal, Cnidaria, Hydrozoa

K, P, C

Animal, Cnidaria, Hydrozoa (example of Hydra)

What structure is this? What type of reproduction is it?

Budding Hydra, Asexual

What structure is this? What type of reproduction is it?

Hydra early ovary; sexual

What structure is this? What type of reproduction is it?

Hydra testes, sexual

K, P, C

Animal, Cnidaria, Hydrozoa

K, P, C? What body form does it have?

Animal ,Cnidaria, Hydrozoa; Polyp (obelia)

What are the structures? What are their uses?

Red - hydranth; feeding

Orange - gonangium; reproduction

K, P, C? What body form does it have?

Animal, Cnidaria, Hydrozoa; Medusa

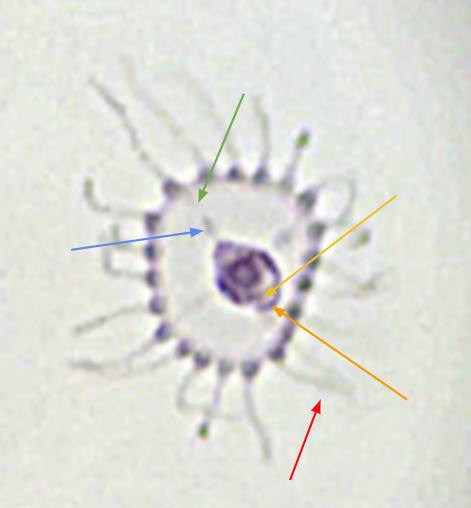

What are the structures? What are their uses?

Red - tentacles

Orange - Manubrium

Yellow - mouth

Green - Radial canal

Blue - Gonad

K, P, C

Animal, Cnidaria, Hydrozoa (Portuguese Man of War)

K, P, C

Animal, Cnidaria, Hydrozoa

K, P, C

Animal, Cnidaria, Scyphozoa

K, P, C

Animal, Cnidaria, Scyphozoa

K, P, C

Animal, Cnidaria, Anthozoa

K, P, C

Animal, Cnidaria, Anthozoa

K, P, C

Animal, Cnidaria, Anthozoa

K, P, C

Animal, Cnidaria, Anthozoa

K, P

Animal, Ctenophora

K, Clade, P, Class

Animal, lophotrochozoa, platyhelminthes, turbellaria

What external body parts are the arrows pointing at?

Red - two Ocelli (eyespots)

Orange - two auricles

Yellow - anterior end

Green - posterior end

Blue - tubular sucking pharynx

What internal body parts are the arrows pointing at?

Red - Anterior intestine

Orange - Posterior intestines

Yellow - Gastrovascular cavity

Green - Mouth

What cross section is this? What are the arrows pointing at?

Anterior

Red - Anterior branch of intestine

Orange - Gastrodermis

Yellow - Epidermis

What cross section is this? What are the arrows pointing at?

Pharyngeal

Red - Pharynx

Orange - Gastrodermis

Yellow - Epidermis

What cross section is this? What are the arrows pointing at?

Posterior

Red - Posterior branches of the intestine

Orange - Gastrodermis

Yellow - Epidermis

K, Clade, P, Class

Animal, Lophotrochozoa, platyhelminthes, trematoda

What structures are the arrows pointed at?

A: Oral Sucker

B: Ventral Sucker

C: Esophagus

D: Testes

E: Ovaries

F: Uterus

G: Shell Gland

H: Yolk Gland

What is this organism? K, Clade, P, Class

Human Liver Fluke (Chloronchis sp.); Animal, Lophotrochozoa, Platyhelminthes, Trematoda

What is this organism? K, Clade, P, Class

Chinese Liver Fluke (Schistosoma mansoni), Animal, Lophotrochozoa, Platyhelminthes, Trematoda

K, Clade, P, Class

Animal, Lophotrochozoa, Platyhelminthes, Cestoida

Identify the structures

Red - Scolex

Orange - Hooks

Yellow - Rostellum

Green - Suckers

Identify the structures

Red - Proglottids

Orange - uterus

Yellow - ovary

Green - yolk gland

Blue - testes

Indigo - ductus deferens

Purple - genital pore

Pink - vagina

K, Clade, P

Animal, Lophotrochozoa, Rotifera

K, Clade, P

Animal, Lophotrochozoa, Ectoprocta

K, Clade, P

Animal, Lophotrochozoa, Brachiopoda

K, Clade, P

Animal, Lophotrochozoa, Nemertea

K, Clade, P, Class

Animal, Lophotrochozoa, Annelida, clitellata

K, Clade, P, Class, Clade

Kingdom, Lophotrochozoa, Annelida, clitellata, oliogochaeta

K, Clade, P, Class, Clade

Animal, Lophotrochozoa, Annelida, Clitellata, Hirudinea

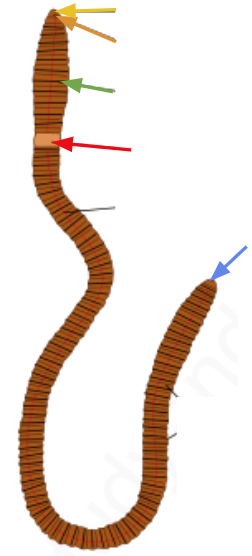

What view of an Earthworm is this? Name the structures

Dorsal

Red - Clitellum

Orange - Prostomium

Yellow - Mouth

Green - Setae (small hairs)

Blue - Anus

Identify the structures

Red (big) - mouth

Orange - Pharynx

Yellow - Esophagus

Green - Crop

Neon Blue - Gizzard

Blue - Intestines

Indigo - Aortic arches (black shapes)

Purple - Dorsal vessel

Pink - Seminal Vesicles

White - Seminal Receptacles

Black - Cerebral ganglion

Red (small) - ventral nerve chord

K, Clade, P, Class

Animal, Lophotrochozoa, Annelida, Polychaeta

Identify the structures

A. Parapodia with setae

B. Mouth

C. Prostomium

D. Tentacles

E. Palps

K, Clade, P

Animal, Lophotrochozoa, Mollusca

K, Clade, P

Animal, Lophotrochozoa, Mollusca

K, Clade, P, Class

Animal, Lophotrochozoa, Mollusca, Monoplacophora

K, Clade, P, Class

Animal, Lophotrochozoa, Mollusca, polyplacophora

K, Clade, P, Class

Animal, Lophotrochozoa, Mollusca, Gastropoda

K, Clade, P, Class

Animal, Lophotrochozoa, Mollusca, Scaphopoda

K, Clade, P, Class

Animal, Lophotrochozoa, Mollusca, Bivalvia

Name the structures

Top Image:

Red - Anterior end

Orange - Posterior end

Yellow - Dorsal side

Green - Ventral side

Blue - Umbo

Bottom Image:

Red - Right shell/ valve

Orange - Left shell/ valve

Yellow - Hinge

Name the structures and their function

Boxes:

Red - pallial line (formed by mantle)

Orange - high ligament (open valves)

Arrows:

Red - Posterior foot retractor (pulls in foot)

Orange - Anterior foot retractor (pulls in foot)

Yellow - Anterior adductor muscle (keeps valves closed)

Green - Posterior adductor muscle (keeps valves closed)

Name the layers and what they are made of

Top - Periostracum, protein
Middle - Prismatic, calcium carbonate mixed w protein
Bottom - Nacreous, calcium carbonate

Name the structures

Boxes:

Red - Incurrent siphon

Orange - Excurrent siphon

Yellow - Mantle

Green - Pericardium (the sac) Pericardial cavity (the inside of the sac)

Arrows:

Red - Foot

Orange - Gills

Yellow - Mouth

Green - Labial Palps

Neon Blue - Heart (atria)

Blue - Heart (ventricle)

Indigo - kidney

White - Rectum

Black - Anus

Purple - Intestine

Pink - Digestive gland (green)

Gray - gonads (cream)

K, Clade, P, Class

Animal, Lophotrochozoa, Mollusca, Cephalopoda

K, Clade, P

Animal, Ecdysozoa, Onychophora

K, Clade, P

Animal, Ecdysozoa, Tardigrada

K, Clade, P? Structures?

Animal, Ecdysozoa, Nematoda

Red - Cuticle

Orange - Epidermis

Yellow - Pseudocoel

Green - Longitudal Muscles

Neon Blue - Nerve Chords

Blue - Intestines

K, Clade, P, Genus? Male? Female?

Animal, Ecdysozoa, Nematoda, Ascaris; Male red, Female orange

K, Clade, P, Genus?

Animal, Ecdysozoa, Nematoda, Necator

K, Clade, P, Genus?

Animal, Ecdysozoa, Nematoda, Trichinella

K, Clade, P, Genus?

Animal, Ecdysozoa, Nematoda, Enterobius

K, Clade, P, Genus?

Animal, Ecdysozoa, Nematoda, Macracanthorhynchus

K, Clade, P, Genus?

Animal, Ecdysozoa, Nematoda, Tubatrix

K, Clade, P, Genus?

Animal, Ecdysozoa, Nematoda, Wuchereria

K, Clade, P, Subphylum?

Animal, Ecdysozoa, Arthropoda, Trilobata

K, Clade, P, Subphylum, C?

Animal, Ecdysozoa, Arthropoda, Chelicerata, Eurypterids

K, Clade, P, Subphylum, C?

Animal, Ecdysozoa, Arthropoda, Chelicerate, Merostomata

K, Clade, P, Subphylum, C?

Animal, Ecdysozoa, Arthropoda, Chelicerate, Pycnogonida

K, Clade, P, Subphylum, C?

Animal, Ecdysozoa, Arthropoda, Chelicerata, Arachnida

K, Clade, P, Subphylum, Group?

Animal, Ecdysozoa, Arthropoda, Crustacea, Isopods

K, Clade, P, Subphylum, Group?

Animal, Ecdysozoa, Arthropods, Crustacea, Decapoda

K, Clade, P, Subphylum, Group?

Animal, Ecdysozoa, Arthropoda, Crustacea, Copepoda

K, Clade, P, Subphylum, Group?

Animal, Ecdysozoa, Arthopoda, Crustacea, Cirrepedia

K, Clade, P, Subphylum, C?

Animal, Ecdysozoa, Arthropoda, Myriapoda, Chilopoda

K, Clade, P, Subphylum, C?

Animal, Ecdysozoa, Arthropoda, Myriapoda, Diplopoda

K, Clade, P, Subphylum, C, O?

Animal, Ecdysozoa, Arthropoda, Hexapoda, Insecta, Blattodea
