Understanding Basic Irrigation Components

A common method to access groundwater is __________.

Well

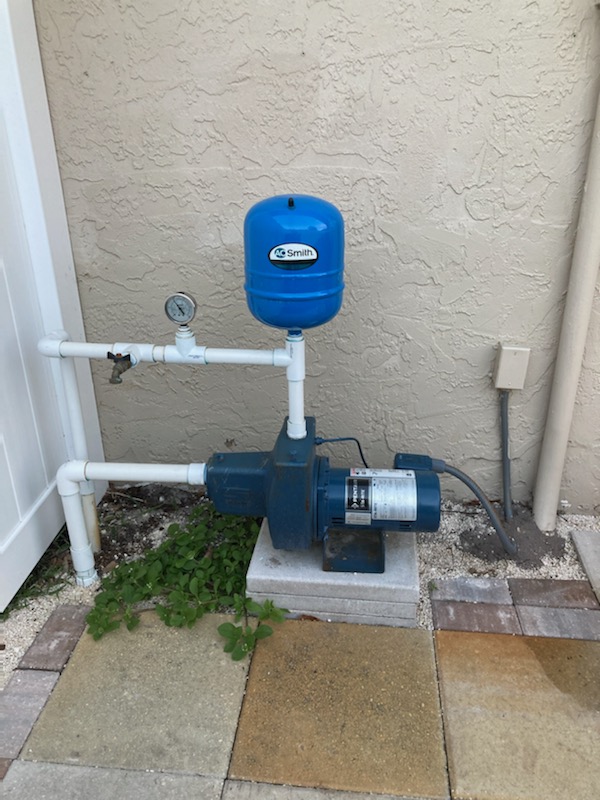

The __________ is essential for drawing water from the well to the surface.

Pump System

Water supplied by local government systems is known as a __________.

Municipal Source

A device that prevents water from flowing backward into the main supply is called a __________.

Backflow Preventer

The __________ automates the watering schedule based on specific parameters.

Irrigation Controller

An automatic control valve controls the _______ of water to the sprinkler heads, allowing for precise irrigation.

flow

The mainline always remains __________ to ensure adequate water delivery.

Pressurized

__________ are smaller pipes that deliver water to individual sprinkler heads or drip emitters.

Lateral Lines

To manage water limitations, a watering __________ is implemented for staggered watering times.

Schedule

These devices distribute water over a designated area through fixed nozzles: __________.

Sprinklers

Spray sprinklers are ideal for areas __________ and smaller.

15ft

The __________ distributes water over larger areas grater than 15ft.

Rotor

In-line tubing is used to deliver water directly to the __________ of plants.

Root zone

The main transport system in an irrigation setup is __________.

Piping

Generally, __________ is used for irrigation pipes due to its durability and ability to handle high pressure.

PVC

__________ sprinklers operate with a rotating head, making them effective for covering medium to large areas greater than 15ft.

Rotary

The type of sprinkler that can be hidden underground and pops up when activated is known as __________.

Pop-up Sprinkler

__________ sprinklers are designed to water small, specific areas precisely and efficiently.

Drip Irrigation Systems

Can a homeowner install their own irrigation system at their home as long as they install it according to code?

Yes. Homeowners can install their own irrigation systems if they adhere to local codes and regulations, ensuring safety and compliance.

What are the most common classes of PVC Pipe?

Class 220, Schedule 40 & Schedule 80

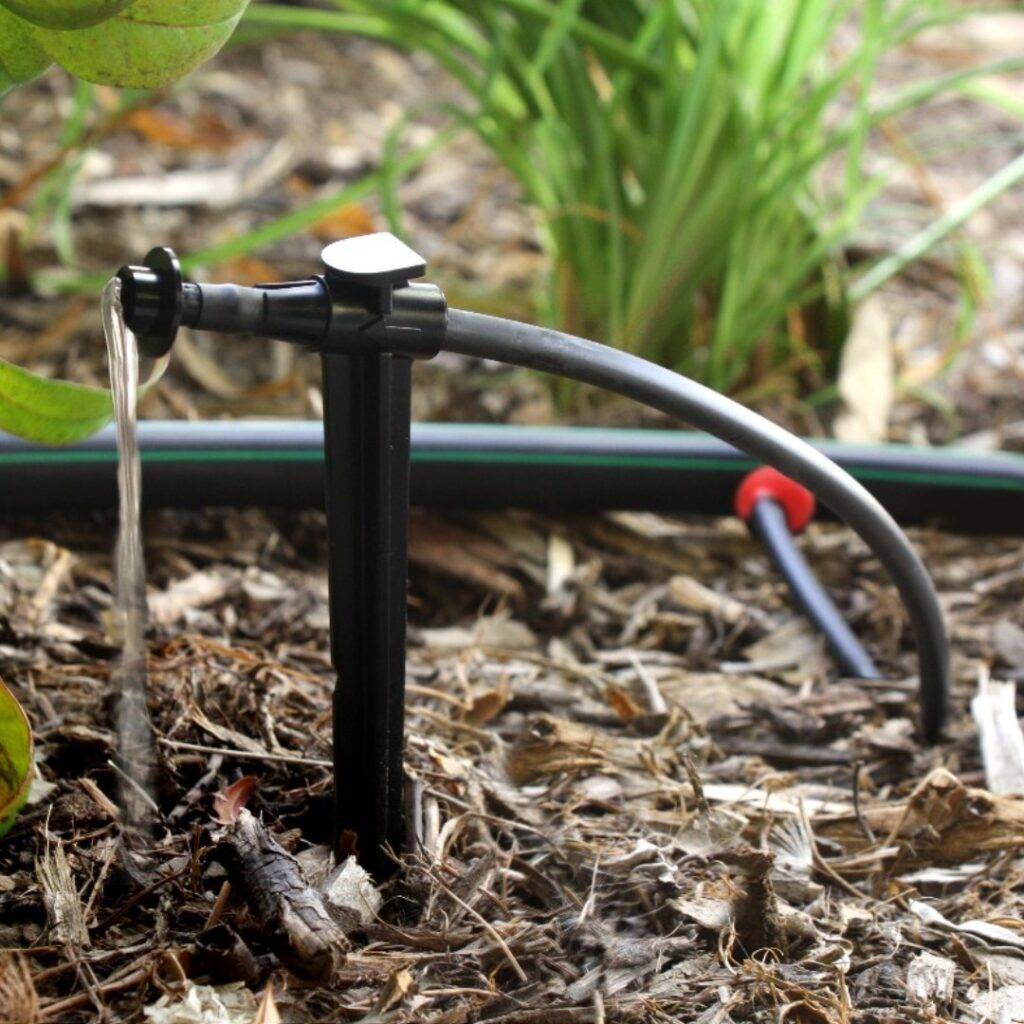

Name this irrigation component

Drip Tubing- a flexible tubing used in drip irrigation systems to deliver water directly to the root zone of plants.

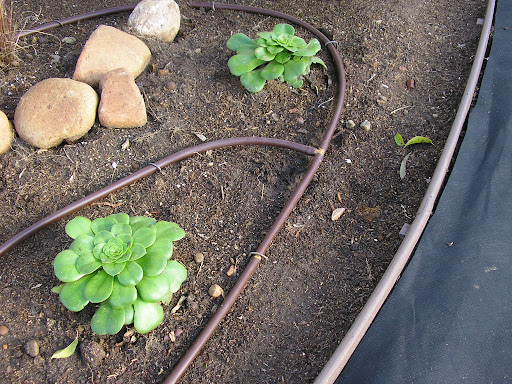

Name this irrigation component

Drip Tubing- a flexible tube used for delivering water directly to the root zone of plants, minimizing evaporation and runoff.

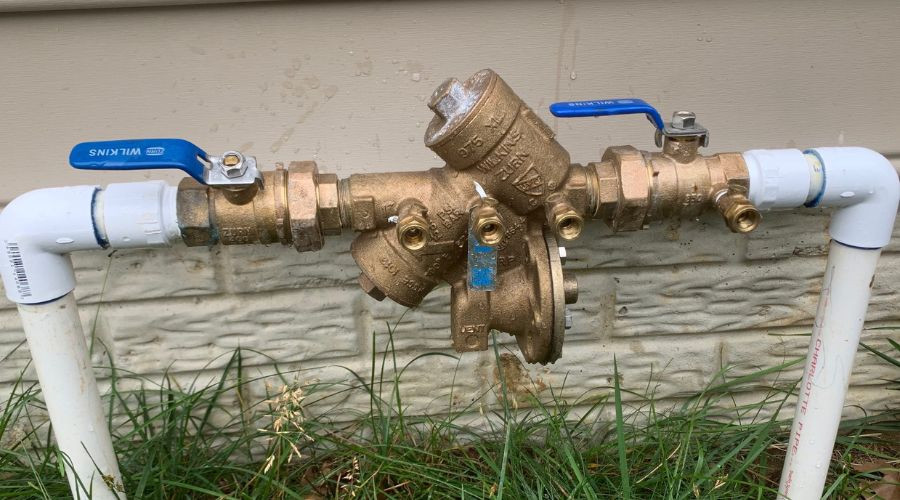

Name this irrigation component

Backflow Preventer A device that prevents contaminated water from flowing back into the clean water supply, ensuring safe irrigation practices.

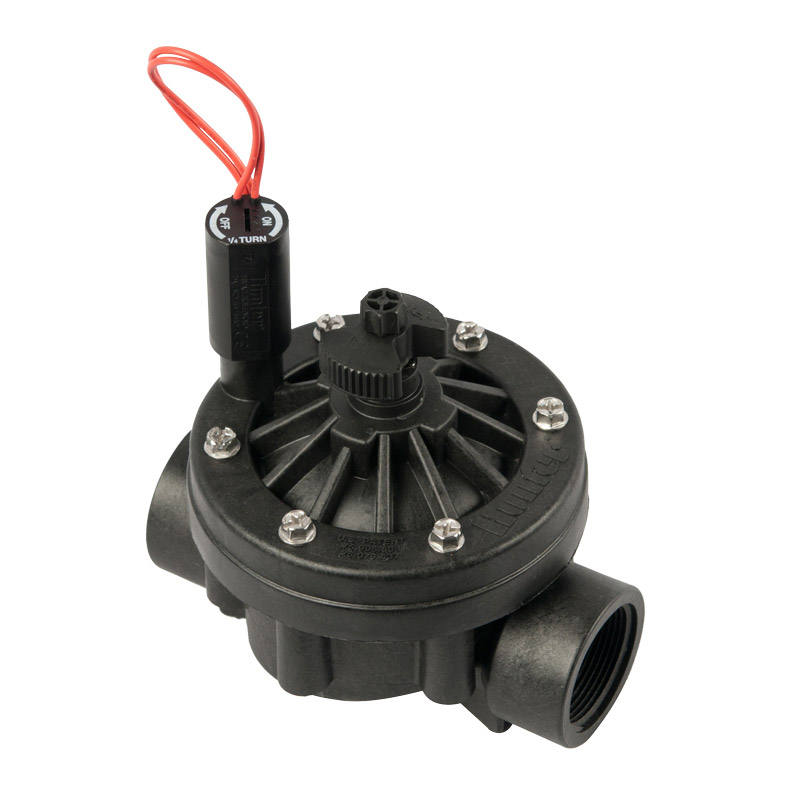

Name this irrigation component

Electric Valve -A device that controls the flow of water in an irrigation system using electrical signals.

Name this irrigation component

Irrigation Rotor- a rotating sprinkler that distributes water over a specific area larger than 15ft.

Name this irrigation component

Irrigation Spray- a device that distributes water in a given pattern, providing coverage for smaller areas 15 ft and less.

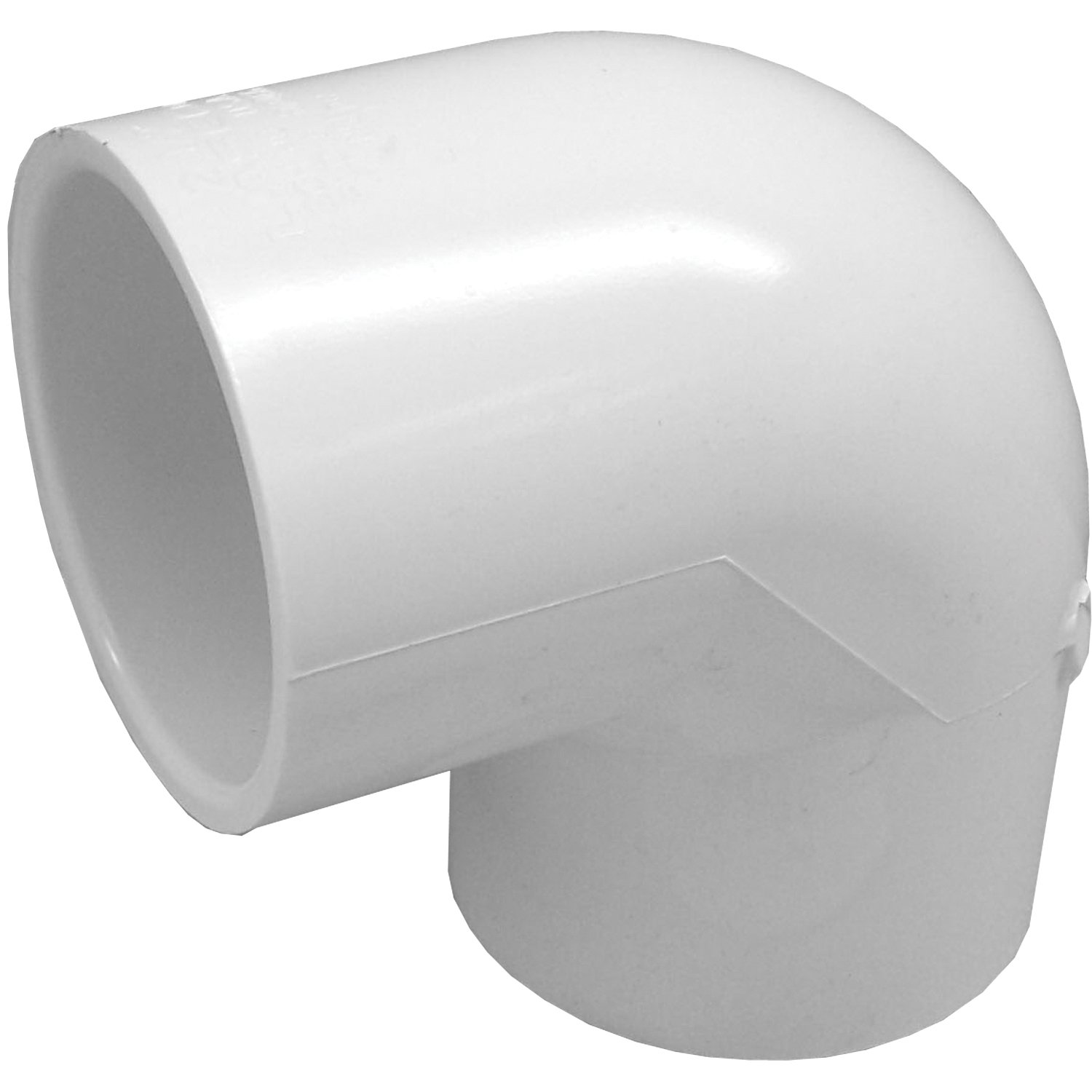

Name this irrigation component

PVC 90

• A plumbing fitting used to change the direction of water flow in an irrigation system, typically at a right angle.

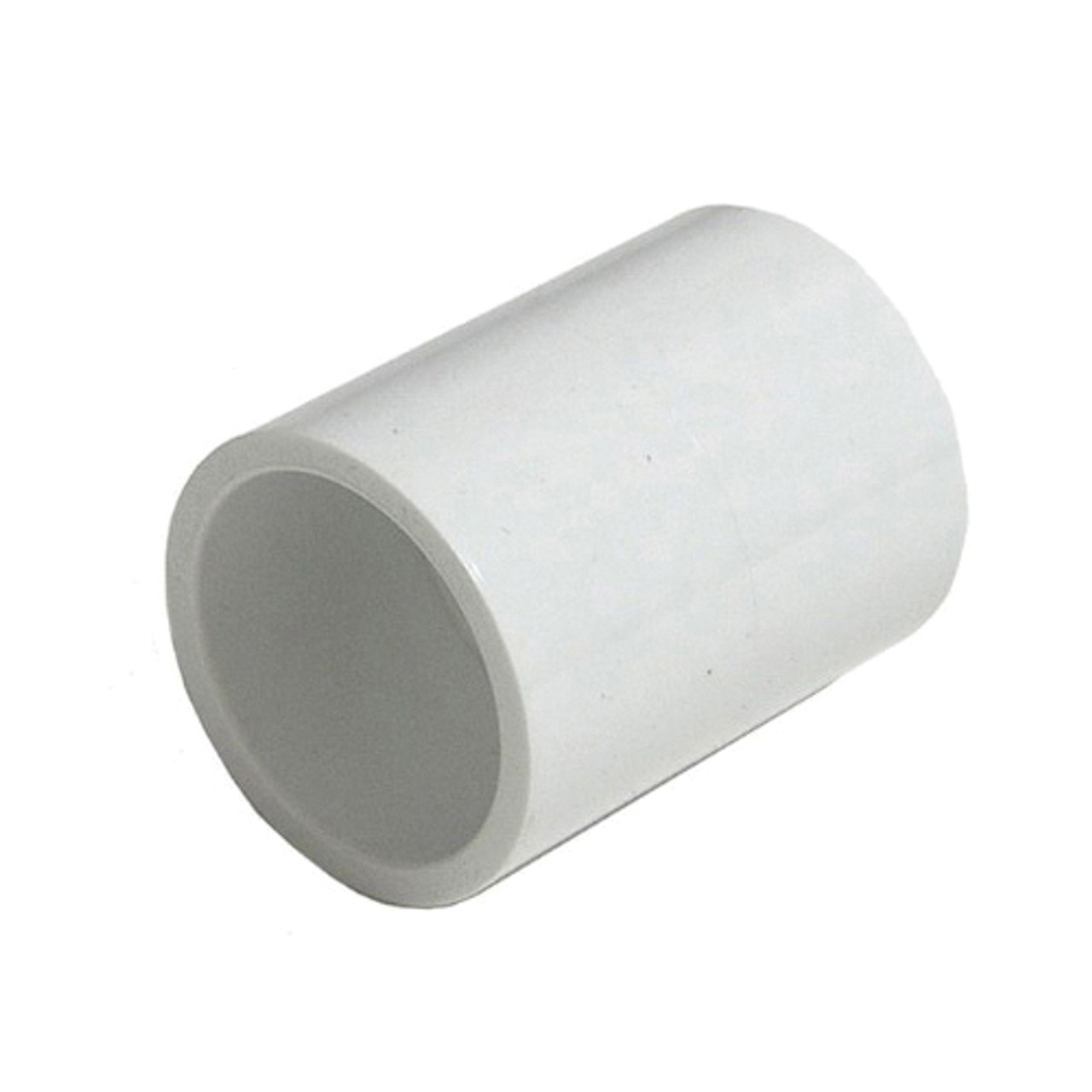

Name this irrigation component

PVC Coupling

• a fitting used to connect two pieces of PVC pipe, allowing for an extension of the pipe.

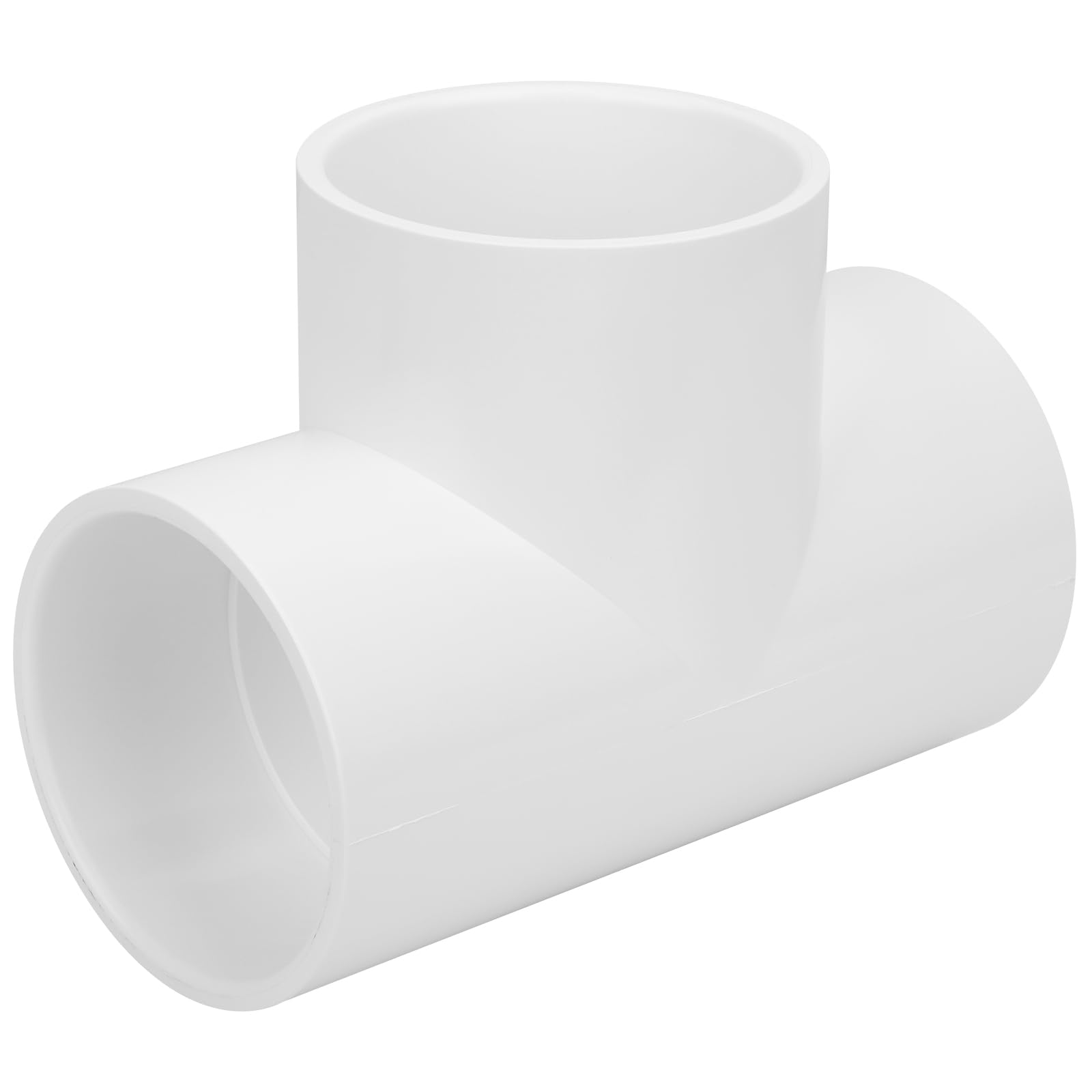

Name this irrigation component

PVC Tee

A fitting that allows three pipes to connect at a junction, enabling water flow in multiple directions.

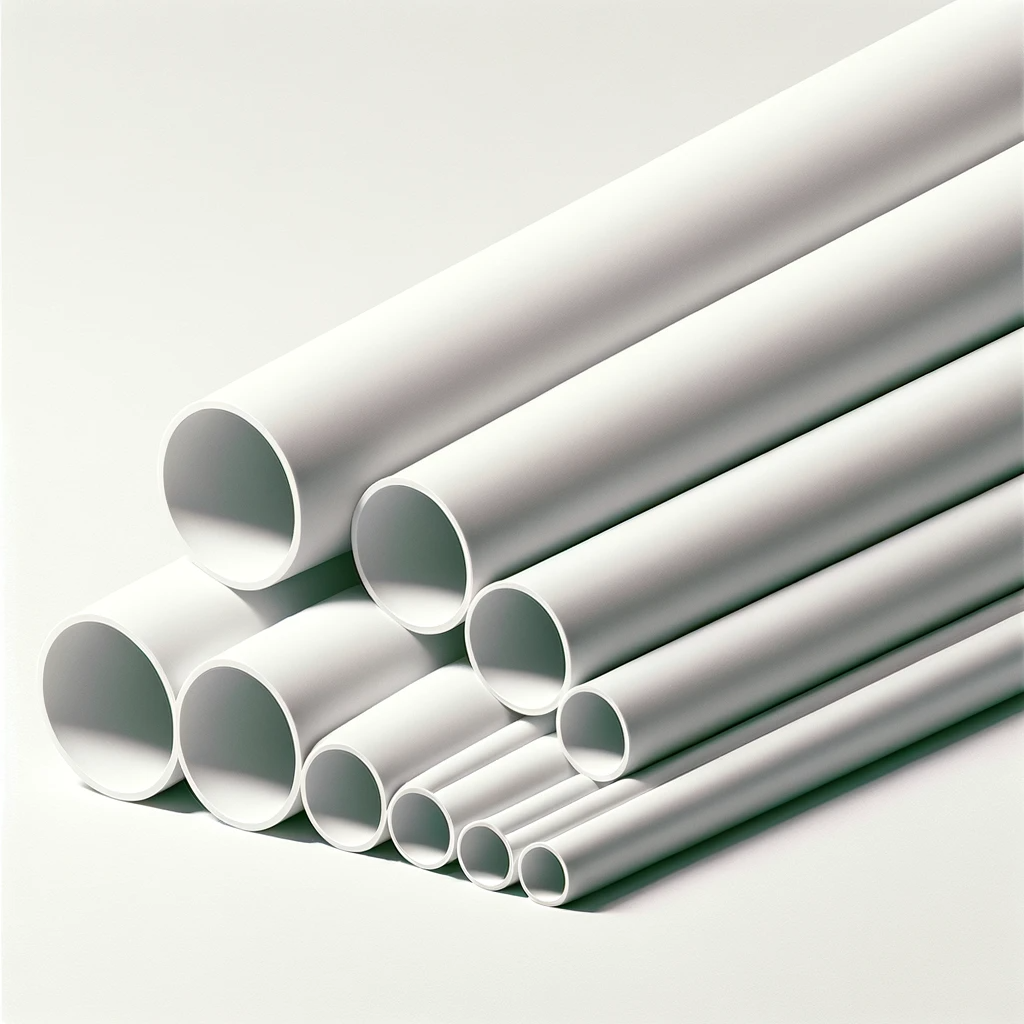

Name this irrigation component

PVC Pipe Typically Class 200 for lateral lines and Schedule 40 & 80 for main lines and sleeving.

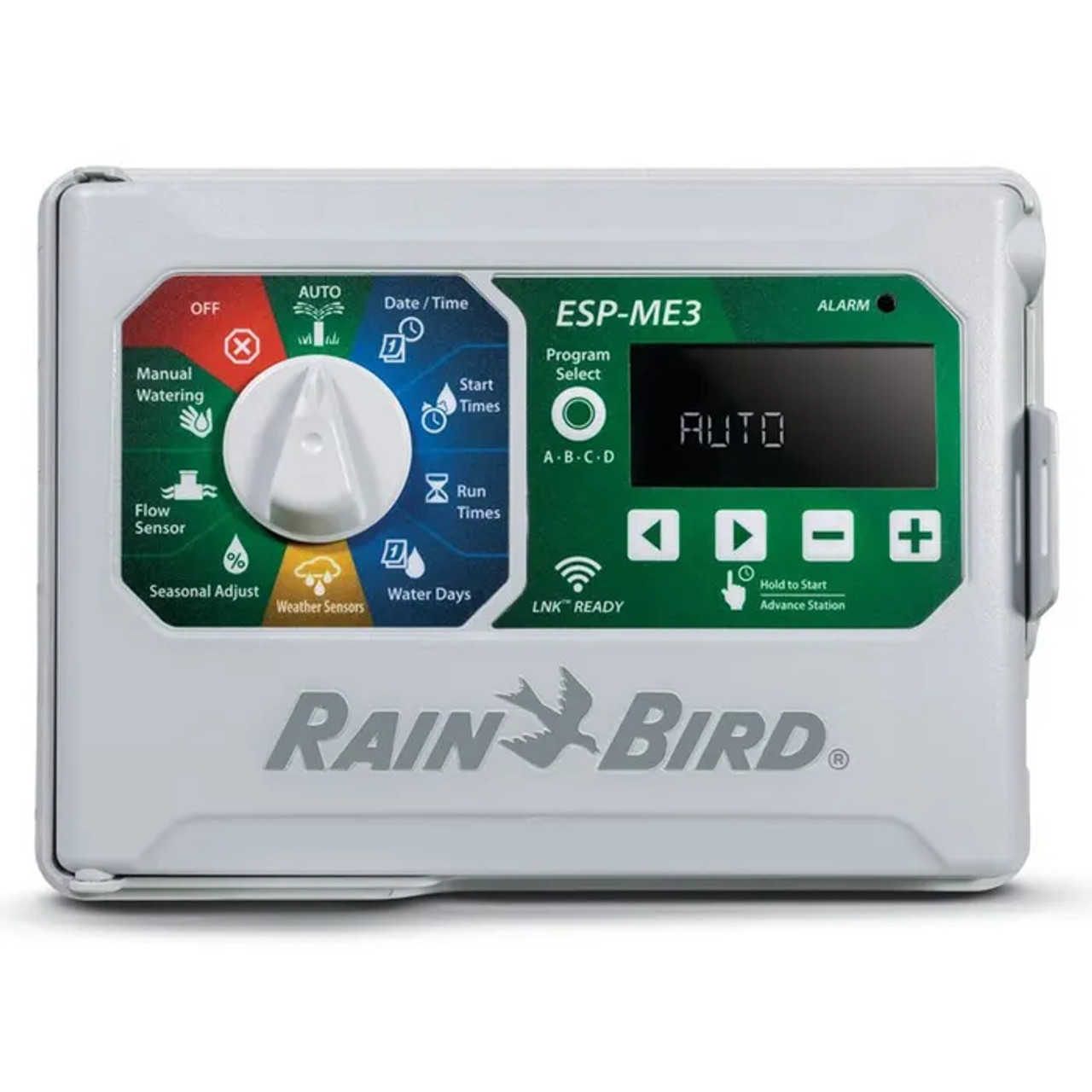

Name this irrigation component

Irrigation Controller- a device that automates the scheduling and operation of irrigation systems, controlling when and how much water is applied.

Name this irrigation component

Irrigation Well- a water source drilled into the ground to supply water for irrigation systems, often equipped with a pump.
