<p>What is electrically happening in the red box of the EKG graph?</p>

What is electrically happening in the red box of the EKG graph?

Atrial depolarization

2
New cards
<p>What is electrically happening in the orange box of the EKG graph?</p>

What is electrically happening in the orange box of the EKG graph?

Ventricular depolarization and artial repolarization

3
New cards

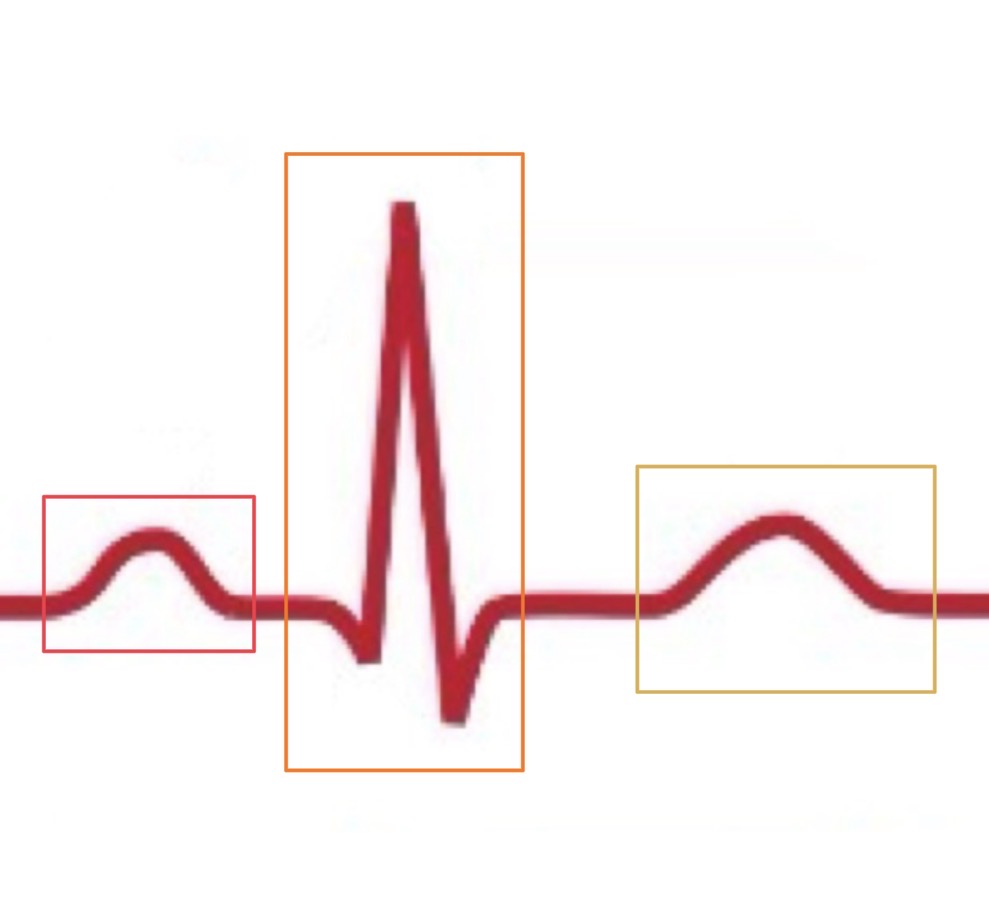

<p>What is electrically happening in the yellow box of the EKG graph?</p>

What is electrically happening in the yellow box of the EKG graph?

Ventricular repolarization

4
New cards

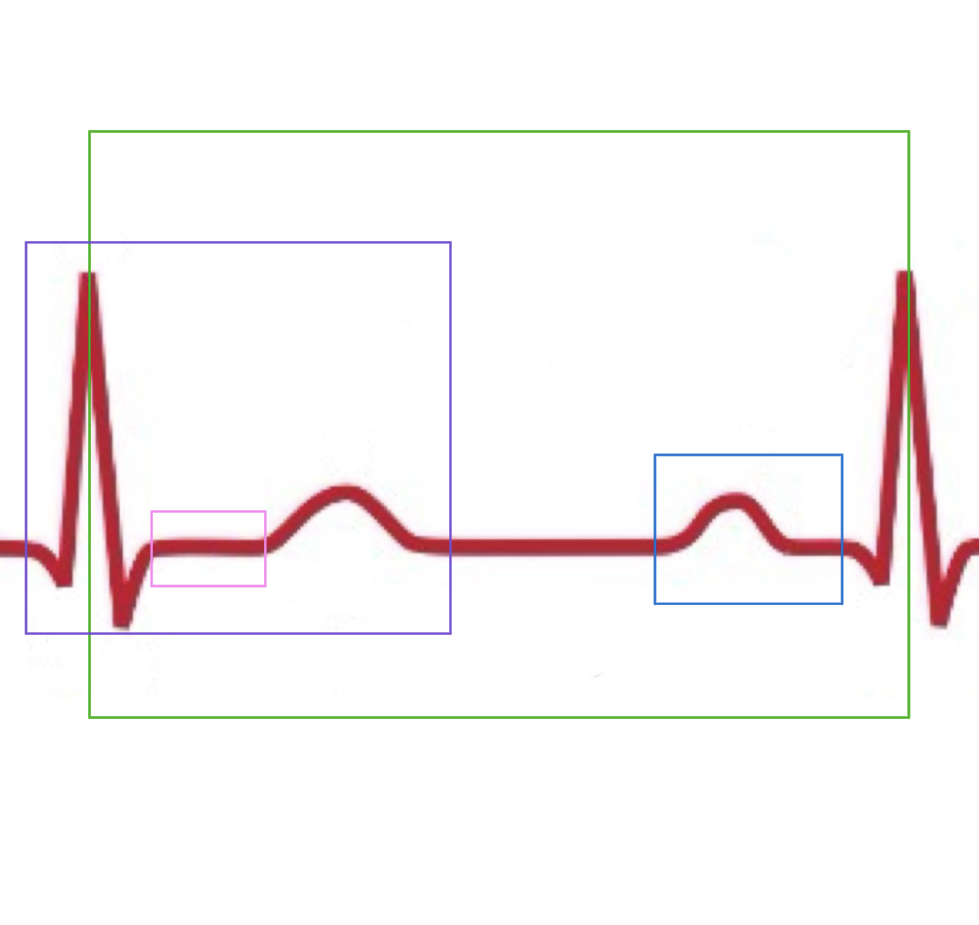

<p>What is electrically happening in the green box of the EKG graph?</p>

What is electrically happening in the green box of the EKG graph?

Entire duration of a cardiac action potential

5
New cards
<p>What is electrically happening in the blue box of the EKG graph?</p>

What is electrically happening in the blue box of the EKG graph?

Duration of atrial depolarization and AV node delay

6
New cards
<p>What is electrically happening in the purple box of the EKG graph?</p>

What is electrically happening in the purple box of the EKG graph?

Entire duration of a ventricular action potential

7
New cards
<p>What is electrically happening in the pink box of the EKG graph?</p>

What is electrically happening in the pink box of the EKG graph?

Ventricular plateau phase

8
New cards
<p>What cardiac cycle phase is happening in the red box of the EKG graph?</p>

What cardiac cycle phase is happening in the red box of the EKG graph?

Ventricular filling phase

9
New cards
<p>What cardiac cycle phase is happening in the orange box of the EKG graph?</p>

What cardiac cycle phase is happening in the orange box of the EKG graph?

Isovolumetric contraction phase

10
New cards
<p>What cardiac cycle phase is happening in the yellow box of the EKG graph?</p>

What cardiac cycle phase is happening in the yellow box of the EKG graph?

Ventricular ejection phase

11
New cards

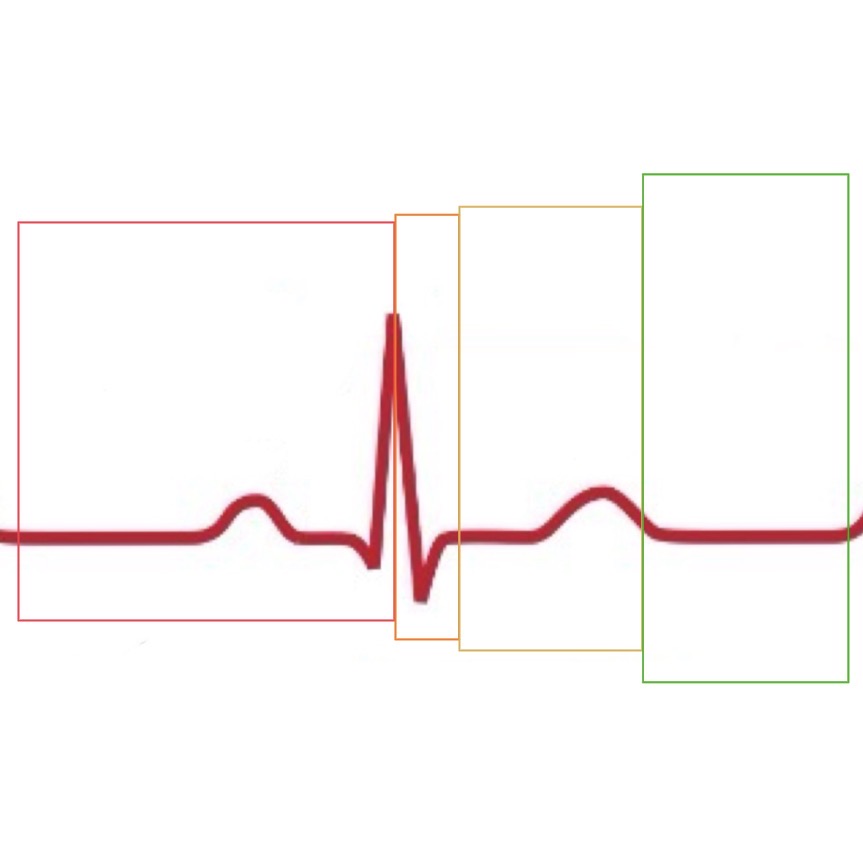

<p>What cardiac cycle phase is happening in the green box of the EKG graph?</p>

What cardiac cycle phase is happening in the green box of the EKG graph?

Isovolumetric relaxation phase
