12 Terms

1
New cards

Draw and name the shape for: BeCl2. Include bond angles.

Shape: Linear.

Angle: 180°

<p>Shape: Linear.</p><p>Angle: 180°</p>
2
New cards

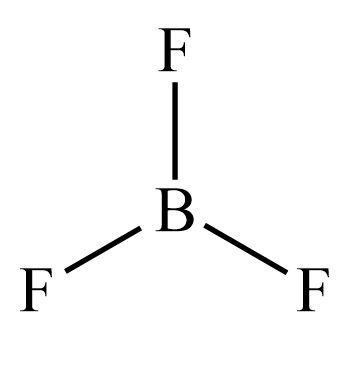

Draw and name the shape for: BF3. Include bond angles.

Shape: Trigonal planar.

Angle: 120°

<p>Shape: Trigonal planar.</p><p>Angle: 120°</p>
3
New cards

Draw and name the shape for: SO2. Include bond angles.

Shape: Bent.

Angle: 118°

4
New cards

Draw and name the shape for: CH4. Include bond angles.

Shape: Tetrahedral.

Angle: 109.5°

5
New cards

Draw and name the shape for: NH3. Include bond angles.

Shape: Trigonal pyramid.

Angle: 107°

6
New cards

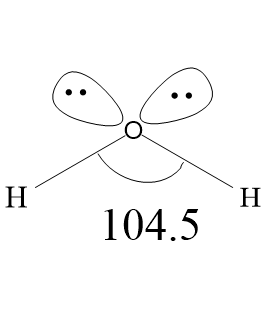

Draw and name the shape for: H2O. Include bond angles.

Shape: Bent.

Angle: 104.5°

7
New cards

Draw and name the shape for: PF5. Include bond angles.

Shape: Trigonal bipyramid.

Angle: 120° & 90°

8
New cards

Draw and name the shape for: SF4. Include bond angles.

Shape: Seesaw.

Angle: 119° & 89°

9
New cards

Draw and name the shape for: ClF3. Include bond angles.

Shape: T-shape.

Angle: 120° & 89°

10
New cards

Draw and name the shape for: SF6. Include bond angles.

Shape: Octahedral.

Angle: 90°

11
New cards

Draw and name the shape for: BrF5. Include bond angles.

Shape: Square pyramid.

Angle: 89°

12
New cards

Draw and name the shape for: XeF4. Include bond angles.

Shape: Square planar.

Angle: 89°
