3.3.3 Metal Fabrication (Mechanical, Threading, Riveting)

Socket head

Grub screw

(no head)

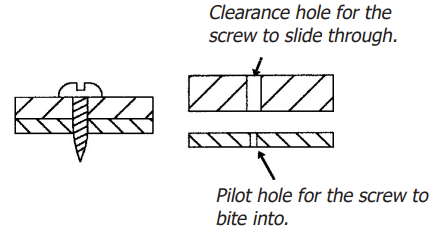

Self-tapping screw

Used on thin sheet metal, cuts its own head into pilot hole, speeding up manufacturing process cheaply

What is this?

Bolt

What is this?

Washer

What is this?

Nut

What is a washer used for?

Spread the load over a slightly larger area; to prevent damage to material as nut is tightened

What is this?

Spring washer; prevents vibration from loosening the nut

What is this?

Serrated washer; prevents vibration from loosening the nut

What is this?

rivet

What kind of rivet is this?

Round head rivet

What kind of rivet is this?

Counter-sunk head rivet

What kind of rivet is this?

Flat-head rivet

When is a pop rivet used?

When it is impossible to use both sides of the joint

What is this called? (between tips of each thread tooth)

The pitch

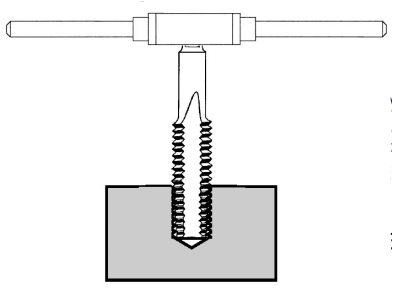

What is ‘tapping’ a hole?

Taps (tap wrench in pic) are used to cut an internal thread in a hole. In school, threads from 2mm diameter to 12mm diameter in 1mm jumps can be cut.

What is ‘threading’?

A die is used to cut an external thread on the outside of a rod.

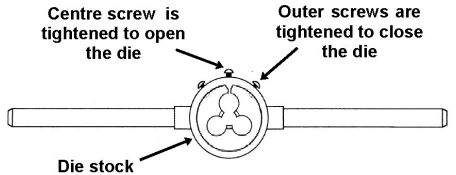

Best way to cut external thread?

With the die split open as far as possible, test fitting of threads. If too tight, recut and test again. Keep going until thread runs smoothly

Is this a true thread or drunken thread?

True thread

Is this a true thread or drunken thread?

Drunken thread

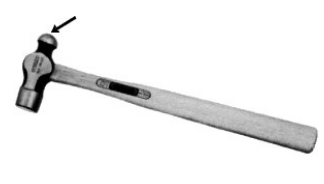

What hammer is this?

Ball Peen Hammer

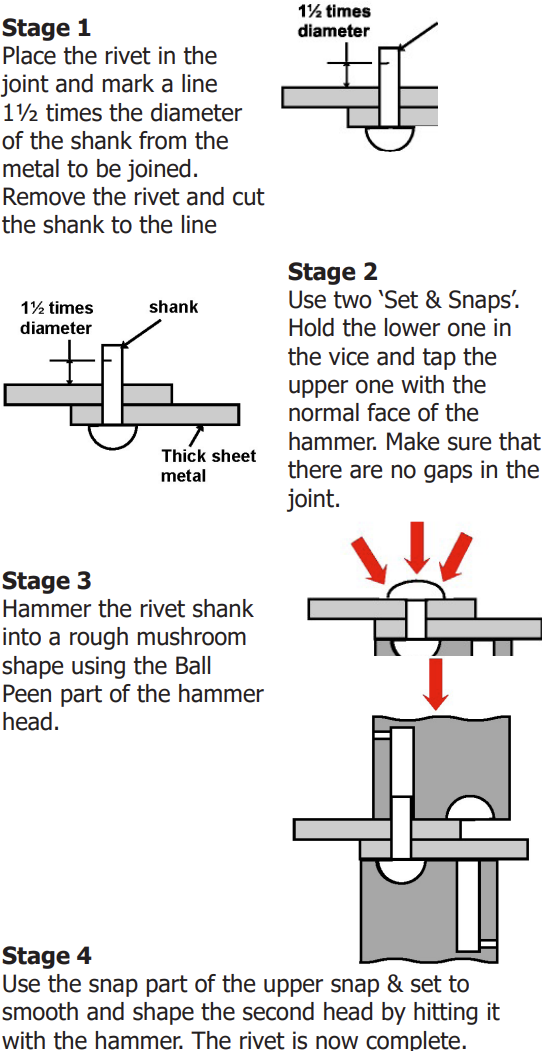

How to use Rivet Set & Snaps

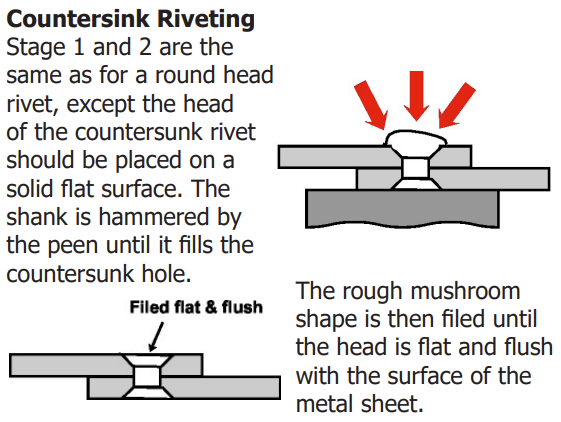

How to do countersunk riveting

How to line up rivet holes?

Mark out and drill one pair of hole only. Rivet them, line up the metal sheets, then do the remaining holes

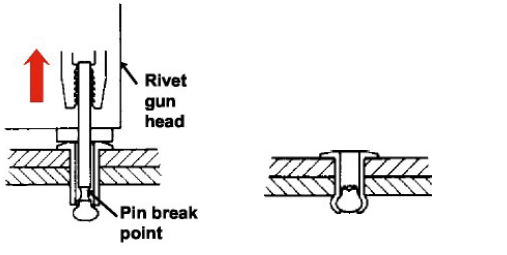

What is pop riveting?

Pin is pulled by jaws in a rivet gun. Pin head is squeezed into tube of rivet. Pin breaks, leaving head behind

What is this part of a pop rivet?

Steel pin

What is this part of a pop rivet?

Rivet body

What head is this?

cheese

What head is this?

countersunk

What head is this?

pan
