Anatomy Lab Prac #2 Diagrams

Which of the following is the only bone that normally moves in relation to the others?

D

Which of the following pairings of the letter to bone is INCORRECT?

A; parietal

Name the foramen at letter C?

Foramen Magnum

Name the highlighted bone(s)

Mandible, or mandibular bone

Which bone is the orange bone?

Mandible

Which bone is the purple bone?

Maxilla

Which bone is the dark purple bone?

Nasal Bone

Which bone is the yellow bone?

Frontal Bone

Which bone is the red bone?

Parietal Bone

Which bone is the pink bone?

Sphenoid Bone

Which bone is the light orange bone?

Temporal Bone

Which bone is the dark orange bone?

Ethmoid Bone

What is the line in the frontal called?

Glabella

What is the hole called around the sphenoid inside the eyes?

Optic Canal

What is the green inside the nasal called?

Inferior nasal concha

What is the bright blue bone called?

Vomer

What is the hole in the mandible called?

Mental Foramen

What is the hole in the maxilla called?

Infraorbital foramen

Which bone is the blue bone?

Zygomatic Bone

Which bone is the green bone?

Lacrimal Bone

Which bone is the brown bone?

Occipital Bone

What is the suture between the frontal and parietal?

Coronal Suture

What does the long orange bone do?

Zygomatic process

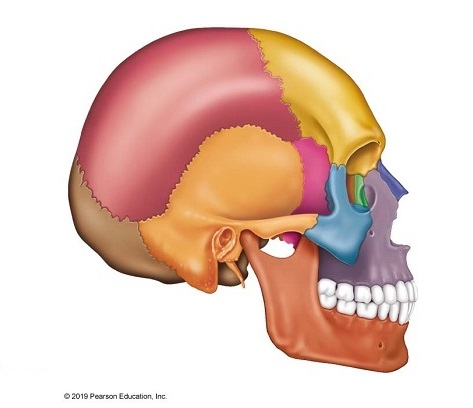

What is near the ear (orange)?

External acoustic meatus

What is next to the green in the hole section?

Lacrimal Fossa

What is the teeth?

Alveolar Processes

What process is behind the ear?

Condylar Process

What process in under the cheek?

Coronoid Process

What is in between Condylar and Coronoid?

Mandibular notch

What process is the hook like one?

Styloid Process

What process is in front of occipital bone?

Mastoid Process

What is the corner of the mandible?

Mandibular Ramus

What is the middle pink piece?

Hypophyseal fossa of sella turcica

What is above the holes in pink?

Sphenoid lesser wing

What is next to the holes in pink?

Sphenoid greater wing

What is the object in the frontal?

Ethmoid cribriform plate

What is the line in the ethmoid cribriform plate?

Ethmoid crista galli

What is the substance surrounding the ethmoid crista galli?

Cribriform foramina

What letter represents the cervical curvature?

A

What part of this vertebra is indicated by the letter B?

Transverse process

Name the bone feature identified by the letter D?

Vertebral foramen

What is the top process?

Spinous Process

What are the middle circular arrows?

Vertebral arch

What is the middle bottom section?

Body (centrum)

What is the top circle?

Lamina

What is the bottom circle?

Pedicle

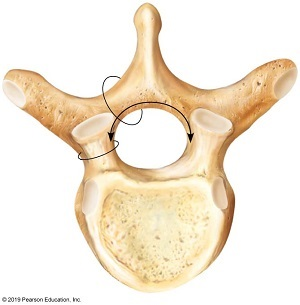

What is the left and right middle circles?

Superior articular process

What does letter B represent?

Thoracic

What does letter C represent?

Lumbar

What does letter D represent?

Sacrum/Coccyx

What is the top part of each bone called?

posterior tubercle

What is next to the posterior tubercle in both bones?

posterior arch

What is the curved white section of the bone?

superior articular facet

What is the flat white circular white section of the bone?

inferior articular facet

What is the bottom part of each bone called?

anterior tubercle

What is next to the anterior tubercle in both bones?

anterior arch

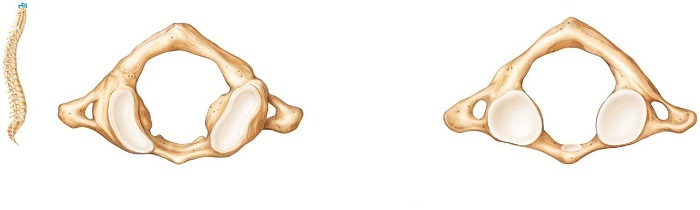

What are the small holes in the bones?

transverse foramen

What section of the spine is this?

cervical (atlas)

What is the top part of the bone called

spinous process

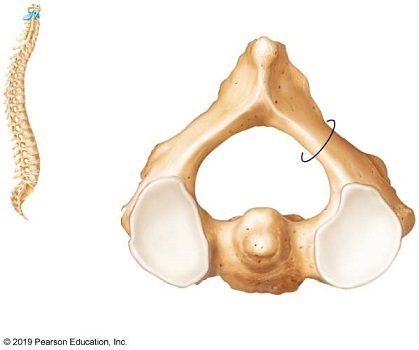

What is the middle circle called?

lamina

What is located above the superior articular facet?

pedicle

What is the big white section of the bone?

superior articular facet

What is located at the bottom of the bone?

dens

What is located under the dens?

body

What is located next to the superior articular facet?

transverse process

What is the bump located above the transverse foramen?

inferior articular facet

What section of the spine is this?

cervical (axis)

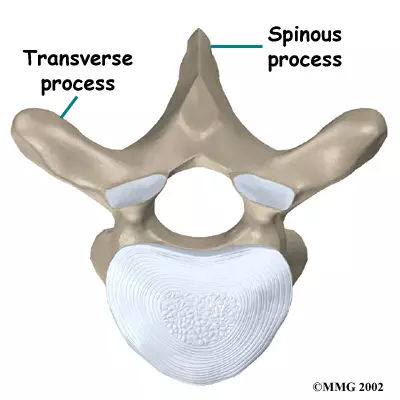

what is at the tip of the long parts?

transverse process

What is the white circular section?

superior articular process

What is next to the transverse process?

transverse costal facet

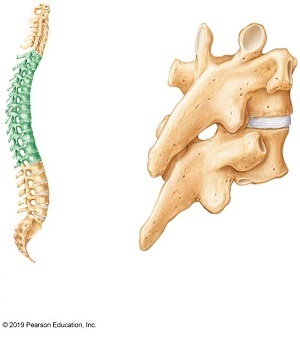

What is white space separating the bone?

intervertebral disc

What is under the intervertebral disc?

body

What is the bottom part of the bone that sticks out?

spinous process

What section of the spine is this?

thoracic

What section of the spine is this?

lumbar

What is above the two holes?

body

What is under the two holes?

sacral canal

What are the two darker flats on the outside of the bone?

auricular surface

What is above the coccyx?

sacral hiatus

What is under the bone, almost hanging off?

coccyx

What section of the spine is this?

sacrum
