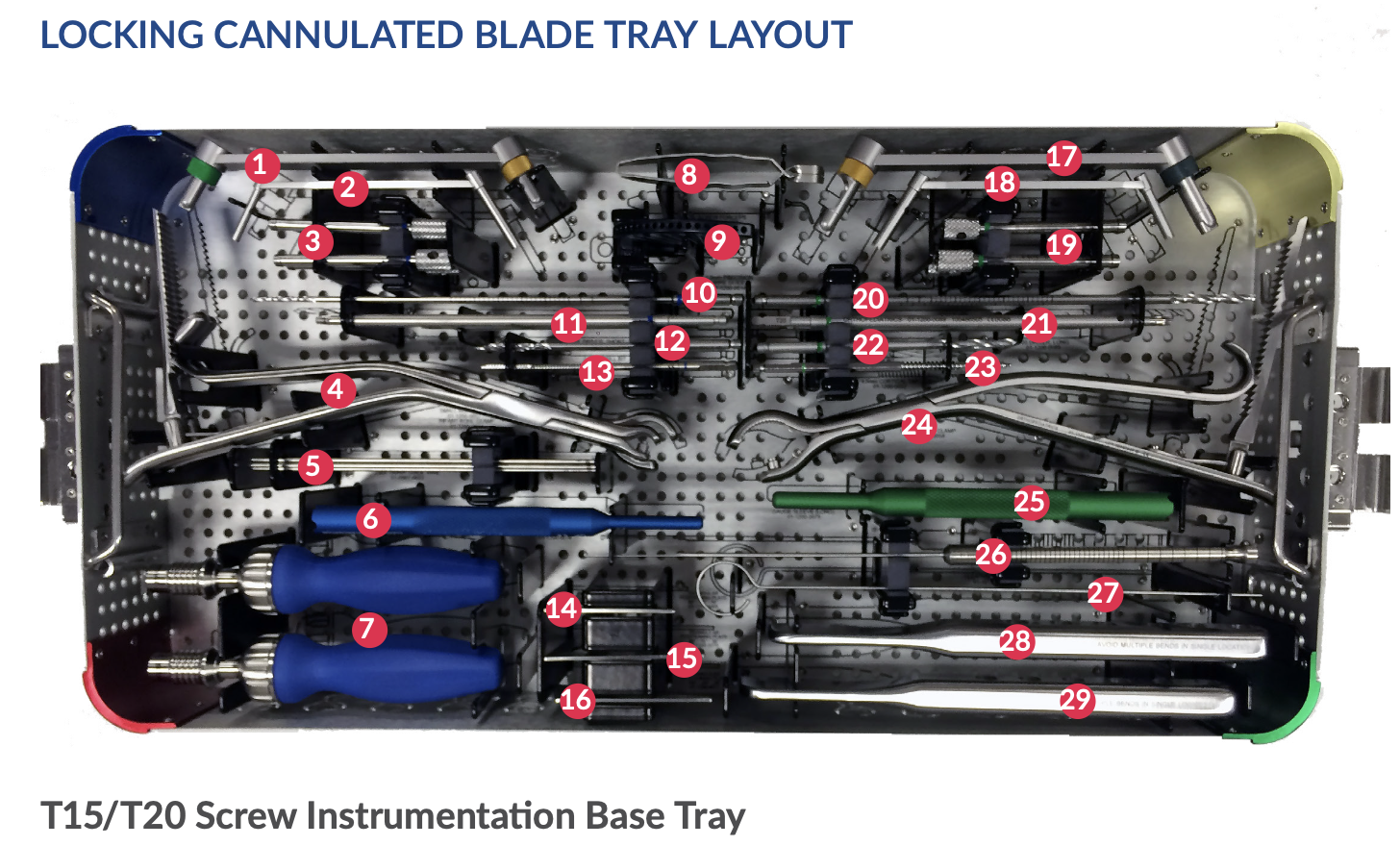

LCB/LPF

1.


2.5mm dia. Neutral & Load End (Green, Neutral) / (Gold Compression) Drill Guide

2.


3.5mm/2.5mm Double Drill Guide

3.


2.5mm Threaded Drill Guide

4.


Small/Infant Bone Clamp

5.


2.0 X 150mm Guide Wire

6.


3.5mm Depth Gauge Sleeve (long)

7.


Mini In-Line Ratchet

8.


Screw Forceps

9.


Precision Wire Guide- 2.0mm

10.


2.5 Calibrated Drill Bit

11.


T15 Hexalobe Retaining Driver, Long/Short

12.


Drill Bit 2.5mm

13.


—

14.


Triangular Positioning Plate 90-40-50

15.


Triangular Positioning Plate 80-70-30

16.


Triangular Positioning Plate 100-60-20

17.


4.5mm dia. Neutral & Load End (Green, Neutral) / (Gold Compression) Drill Guide

18.


Double Drill Sleeve 4.5mm/3.2mm

19.


3.2mm Threaded Drill Guide

20.


3.2mm Drill Bit, Drill Bit Calibrated

21.


T20 Hexalobe Retaining Driver Short/Long

22.


Cortical Tap 3.5mm

23.


4.5mm Tap

24.


Large Bone Clamp

25.


4.5mm Depth Guage Sleeve (long)

26.


Long Insert (0-100mm)

27.


Cleaning Stylet

28.


Bending Iron (Right)

29.


Bending Iron (Left)

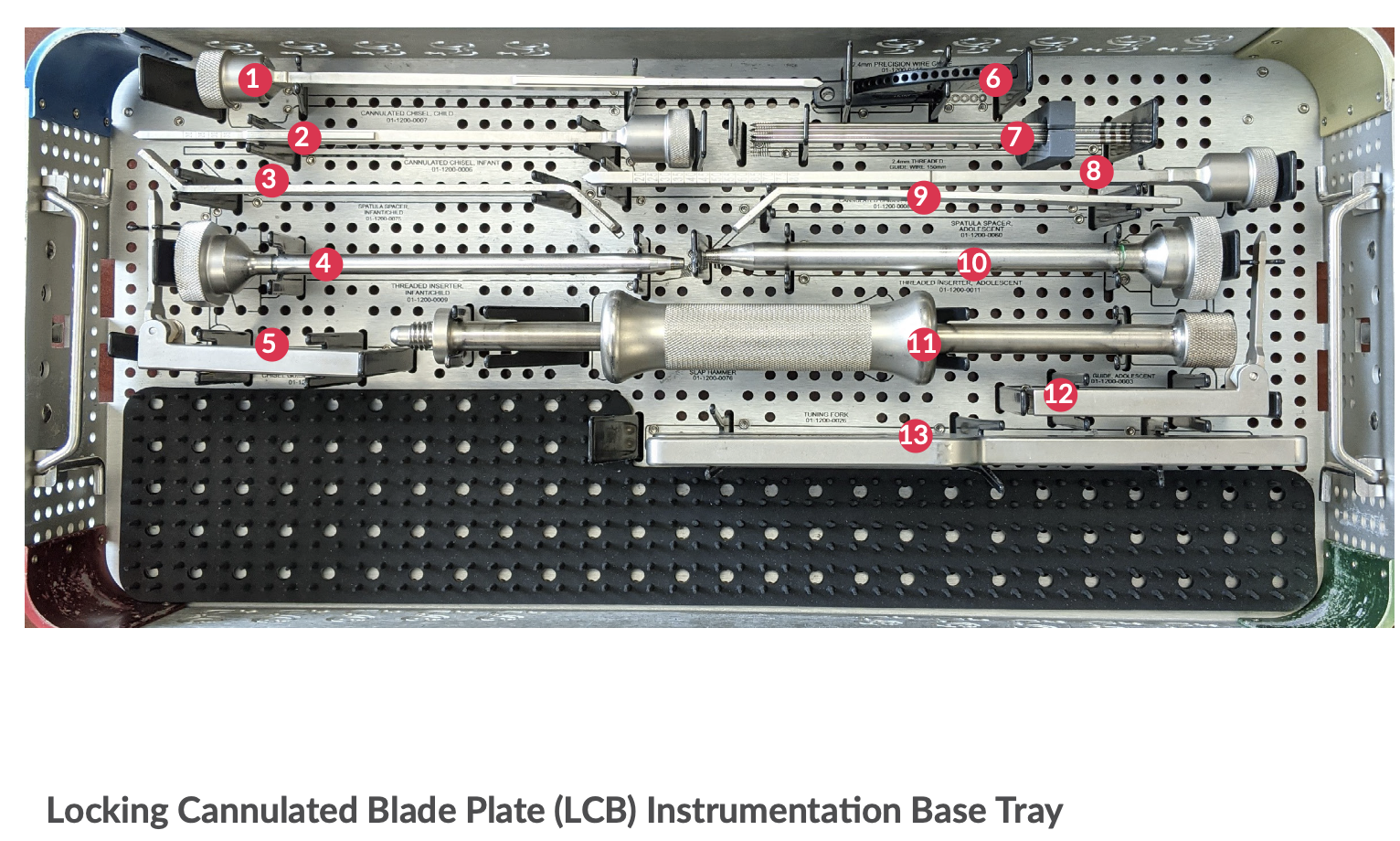

1.


3.5mm Cannulated Chisel (Calibrated)

2.


2.7mm Cannulated Chisel (Calibrated)

3.


Spatula Spacer, Child/Infant

4.


2.7mm Threaded Inserter

5.


Chisel Guide, Child

6.


Precision Wire Guide- 2.4mm

7.


2.4mm Threaded Guide Wire 150mm

8.


4.5 Cannulated Chisel (Calibrated)

9.


Spatula Spacer, Adolescent

10.


4.5mm Threaded Inserter

11.


Slap Hammer, Small

12.


Chisel Guide, Adolescent

13.


Tuning Fork

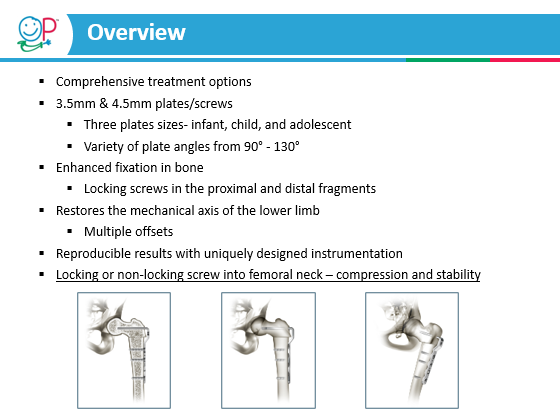

The following are key clinical advantages to the OP Locking Cannulated Blade Plate:

• Plate and instrumentation is fully cannulated

• Multiple plate offsets to help restore the mechanical axis

• Threaded hole in proximal portion of plate to accept a locking screw

• Available in 3.5mm and 4.5mm

• All of the above

ALL OF THE ABOVE

The following drill bits are required to insert non-locking cortex screws: 3.5mm cortex screw = 2.5mm drill bit4.5mm cortex screw = 3.2mm drill bit

TRUE

The locking cannulated infant blade plates are 8mm wide, the child plates are 10mm wide, and the adolescent plates are 14mm wide.

FALSE

The 4.5mm PediLoc® Locking Cannulated Blade Plates are available in the following offsets:

• 6mm & 10mm

• 6mm and 14mm

• 8mm

• None of the above

6mm and 14mm

The blue banded instruments are 3.5mm and the green banded instruments are 4.5mm.

TRUE

If the femoral neck shaft angle is 155 degrees it is

IN VALGUS

If the femoral neck shaft angle is 95 degrees it is

IN VARUS

What is the green/gold drill guide for?

Compression drill guide

If the current neck shaft angle is 160 degrees, the desired neck shaft angle is 135 degrees, and the implant selection is a 90 degree blade plate, what is the angle at which the surgeon will place their initial guide wire?

115 DEGREES

What angles do the LCB child or adolescent plates come in?

• 90 , 110, 150

• 95, 100, 130

• 90, 100, 150

• 90, 100, 130

90, 100, 130
