Root diagrams

Explain this diagram

Metabolites from plant organs are extracted under conditions in which the transporter of interest is expressed. Extracts are incubated in the presence of ATP, metabolites are determined by LC/GC-MS.

Explain this diagram

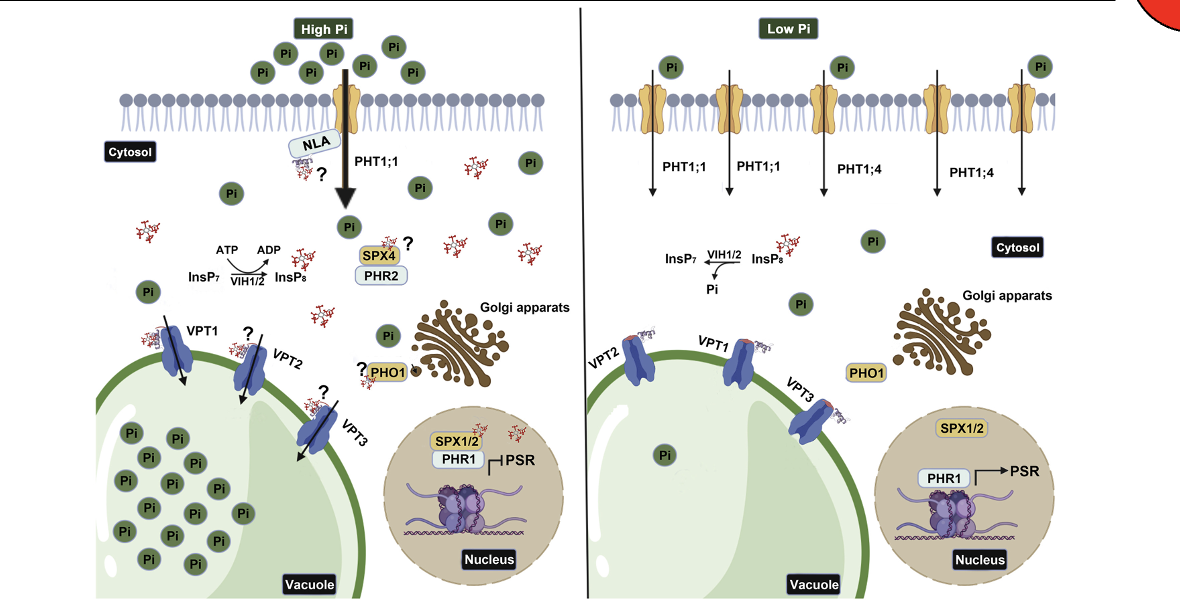

Under Pi-sufficient conditions, SPX domains are bound which inhibits the expression of Pi starvation inducible genes. In low Pi conditions, InsP8 is broken down, Pi starvation inducible genes are induced. PSR is Phosphorus starvation response. PHR are transcription factors

Explain this diagram

Potassium acquisition in arabidopsis versus rice. Some similar things: ATHAK5 and ATK1 are homologs with OsHAK and OsAKT. Low affinity versus high affinity.

Explain this diagram

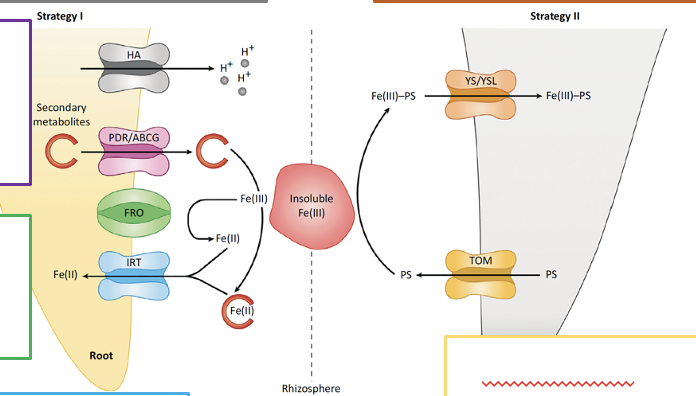

Iron uptake in dicots versus grasses. In dicots, ferric iron is acidified through proton pumps which allows reductase to reduce ferric to ferrous. Secondary metabolizes mobilize iron and take it through the transporter. In grasses, iron is chelated by phytosiderophores which is then transported through yellow strip like transporters

Explain this diagram

Heterologous expression in yeast. HvNramp5 is able to transport Mn only. HvIRT1 is able to transport both Mn and FE

Explain this diagram

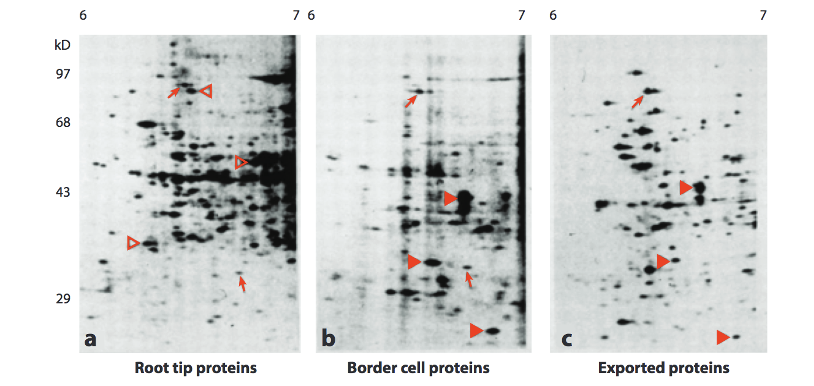

Examining plant root exudates using protein labelling and 2D gel electrophoresis. Many border cell-specific proteins are excreted. Root tip proteins are specific

Explain this diagram

zero tillage promotes more stable communities because it preserves soil physical structure and nutrient status

Explain this diagram

Microbial communities diverge most by soil origin. Environmental heterogeneity drives soil microbiome assembly and plant host genotypes acts as a selective pressure

Explain this diagram

Root associated microbial communities are separable by rhizocompartment and soil type

Explain this diagram

Myc LCOs are decorated molecules (sulfated/non-sulfated) that stimulate root branching and root colonization by AM fungi

Explain this diagram

Fungi provide more phosphorus to roots that receive more carbon, plants provide more carbon to the fungus to receive more phosphorus, fair trade in simplified model.

Label the indeterminite nodule zones

I: meristem II:infection zone II-III: interzone III: nitrogen fixation zone IV: senescent zone V: saprophytic zone

Explain the common signaling symbiosis pathway

Explain this diagram

NCR peptides (nodule cysteine rich) are required for a mature bacteroid and are host specific
