Frontal Bone
forehead

Parietal Bone
behind frontal bone, sides + top of head

Temporal Bone
lower sides of head by ears

Zygomatic process
marking on temporal bone, connects to zygomatic bone (forms bridge)

External acoustic meatus
marking on temporal bone, canal leading to eardrum

styloid process
marking on temporal bone, needle-like projection going downward off the external acoustic meatus

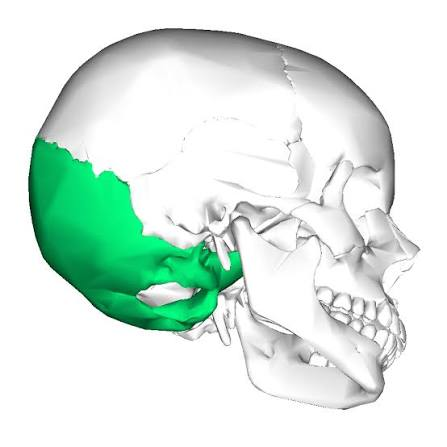

Occipital Bone
bone in the back of the skull

Foramen Magnum
marking of occipital bone, large opening in base of occipital that allows the spinal cord to connect to the brain

occipital condyles
marking of the occipital bone, round projections that articulate with the first cervical vertebrae (atlas)

Sphenoid Bone
can be seen behind eyes, side of face below the frontal bone

greater wing
marking of the sphenoid bone, forms part of the eyes orbit

sella turcica
marking of the sphenoid bone, saddle shape bridge in the middle of region of the bone

lesser wings
marking of the sphenoid bone, bat shaped portion

foramen ovale
marking of the sphenoid bone, holes/ openings in bone

optic canal
marking of the sphenoid bone, allows optic nerve to pass

superior orbital fissure
marking of the sphenoid bone, transmits the rest of the cranial nerves to eye

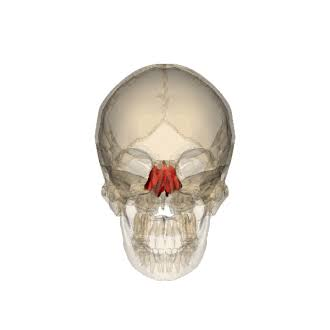

Ethmoid Bone
forms roof of nasal cavity and part of the medial orbit walls

crista galli
marking of the ethmoid bone, vertical projection

cribriform plates
marking of the ethmoid bone, bony plates lateral to the crista galli

superior and middle nasal conchae
markings of the ethmoid bone, thin scroll like bones that hold the walls and shape of nasal cavity

mandible
lower jaw bone (only bone in head that is a joint)

body
marking of the mandible, horizontal portion (forms chin)

ramus
marking of the mandible, vertical extension of the body on both sides

alveolar process
marking of the mandible and maxillae, sockets for upper and lower teeth

maxillae
forms upper jaw bone and part of the orbits, all face bones up the mandible join here

palatine bone
forms the hard palate of the mouth, bone behind palatine process

palatine process
marking of the maxillae, forms hard palate, roof of mouth

zygomatic bone
cheekbones

lacrimal bone
bone on innermost of eye

nasal bone
bridge of nose

vomer bone
nasal septum

inferior nasal conchae
thin curved bones in nasal cavity

sagittal suture
where the left and right parietal bones meet superiorly

coronal suture
where the parietal bones articulate with the frontal bone

squamous suture
occurs where each parietal bone meets each temporal bone

lambdoid suture
where the parietal bones meet the occipital

mandibular condyle
most distal of the mandibular projections

mandibular notch
u shaped notch between the mandibular condyle and the coronoid notch

coronoid process
proximal process of the mandible

glabella
middle of the forehead

perpendicular plate
thin vertical bone in between the nostrils, upper portion of the septum

supraorbital foramen
small holes in skull below the eyebrow area

infraorbital foramen
small opening in the maxillary bone below the eye socket
