15 Terms

1
New cards

Where does the graph

Y=k/x have asymptotes

At y=0 and x=0

2
New cards

Describe how f(x)+a affects a graph

Translation by

0

b

so a translation b units up or down in the y axis direction

3
New cards

What should be written when drawing a transformed graph ?

A’ and B’

4
New cards

What does it mean if an equation has real roots ?

b²-4ac≥0

5
New cards

Name the three points to consider when drawing a gradient function ?

  • Stationary points on the curve have x=0 therefore they will be roots of gradient function

  • when original curve it increasing the gradient graph is in the positive axis

  • When the original curve it decreasing the gradient graph is in negative axis


6
New cards
7
New cards

What happens to horizontal and vertical asymptotes of a function when drawing the gradient function

Asymptotes in y= become on the x axis

Asymptotes in x= stay in the same position

8
New cards

Describe how f(x+a) affects the graph ?

Translation a units left

-a

0

So translation in the x direction opposite to the sign of a

9
New cards

How does a(f(x)) affect the graph ?

Enlargement by scale factor a in the vertical direction

So the y coordinate increase by a factor of a

10
New cards

How does f(ax) affect the graph ?

Diminishment scale factor 1/a (a⁻¹)

So the x axis values are divided by a

11
New cards

What does f(-x) do to a graph ?

Flips the graph in the y axis

Reflection in y axis

12
New cards

What does -f(x) do to the graph

Flips the graph in the x axis

13
New cards

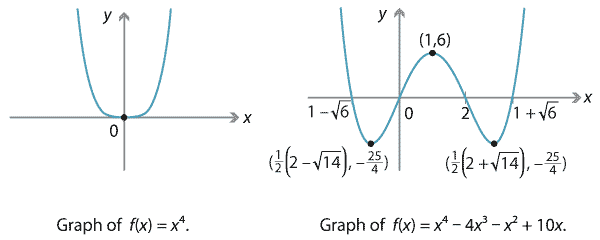

What is the standard shape for a graph of x^4

knowt flashcard image
14
New cards

What is the standard shape of an x³ graph

knowt flashcard image
15
New cards

If a person has a model to find their maximum profit 𝑦

=𝑎(x+p)² +q how would they find the price their product needs to sell for if they want to make a profit of N pounds


Set N==𝑎(x+p)²
