Decision Trees

Classification

• Classes(categories) are pre-defined

• Supervised model

• Data must be labeled

• Labeled data → training set

Examples of Classification

• Identify individuals with credit risks

• Classify responders to a marketing campaign

• Classify financial transactions

• Classify patients based on symptoms

• Pattern recognition

• Speech recognition

Letter recognition

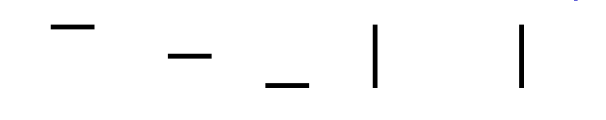

View letters as constructed from 5 components

Supervised Learning Model

1) Train the model using “labeled” data

Training data → Model → Classes (Groups)

2) Employ the model to classify (label) new data

New instances of data → model → classes(groups)

Classification Techniques

• Decision tree

• Distance-based (K nearest neighbor)

• Rule-based

• Statistical, Logistic regression, Naive Bayesian

• Neural Networks

Decision Tree

• Classes are predefined

  • A,B,C,D,F

• Decision trees CAN give rules but neural networks DO NOT

• Decision trees are explainable models

Decision or Classification Tree

• Each internal node is labeled with attribute, Ai

• Each arc is labeled with predicate which can be applied to attribute at parent

• Each leaf node is labeled with a class, Cj

Examples of Decision Tree

Attributes

• Outlook→ Categorical

• Humidity → Continuous

• Windy → Categorical

Target Variable

• Play → What the model is based on

Structure of a Decision Tree

Root - Attribute

Child - Attribute

Leaf - Class

Arc - Values of the attribute

Leaves contain scores

• Each leaf of a decision tree contains informing for SCORING

• If classification were to happen 96.5% of training instances are NO new records would be classified as NO

• If an estimate were needed 0.965 would indicate NO

Using a tree to…

• Select variables

  • Understand which variables are most important

• To produce score and probability

  • Estimation

• To produce ranking

  • The order is more important than the score

Handling Missing Values

• Decision trees can handle missing values by using “Null”

• Keeping null is sometimes better than removing records or imputing missing values

Advantage of Decision Tree

• Easy to understand how predictions are made (transparent model)

• Easy to visualize

• Easy to build rules

  • A tree is a graphical representation of a set of rules that are easy to interpret

• Do not require the assumptions of statistical models

• Can work without extensive handling of missing data

• Variable selection is automatic

What is overfitting?

• Statistical models can produce highly complex explanations of relationships between variables

• The fit may be excellent

• When used with new data(unseen data) models are too complex and do not perform as well as expected

Graphical representation of overfitting

• We can fit a polynomial of degree (N-1) to pass through N data points exactly

• 100% fit → but not useful for unseen data

• Regression curve → so rigid it loses generality

• Regression Line → Simple to understand and apply

Pruning the Tree

• Full trees and complex and OVERFIT data

• Pruning is a way of increasing model stability by reducing model complexity
