E&E 151 S Introductory Geology: Chapter 17 (Earth's Interior) Visualization Study

0.0(0)

Studied by 0 people

Call Kai

Learn

Practice Test

Spaced Repetition

Match

Flashcards

Knowt Play

Card Sorting

1/27

There's no tags or description

Looks like no tags are added yet.

Last updated 8:19 PM on 10/11/26

Name	Mastery	Learn	Test	Matching	Spaced	Call with Kai	Chat

No analytics yet

Send a link to your students to track their progress

28 Terms

1

New cards

Seismic Reflection

What term/concept is being visualized in this image?

Definition: The process where energy waves bounce off a subsurface boundary separating rock layers of differing densities and return to the surface, allowing geologists to calculate boundary depths based on travel time.

<p>What term/concept is being visualized in this image?</p><p>Definition: The process where energy waves bounce off a subsurface boundary separating rock layers of differing densities and return to the surface, allowing geologists to calculate boundary depths based on travel time.</p>

2

New cards

Seismic Refraction

What term/concept is being visualized in this image?

Definition: The bending of energy waves as they cross a boundary between rock layers with differing wave velocities, densities, or mechanical strengths.

<p>What term/concept is being visualized in this image?</p><p>Definition: The bending of energy waves as they cross a boundary between rock layers with differing wave velocities, densities, or mechanical strengths.</p>

3

New cards

Refracted Wave Arrival Geometry

What term/concept is being visualized in this image?

Definition: An arrival pattern where recording stations near an epicenter receive direct waves first, while distant stations receive waves passing through a deeper, higher-velocity layer first.

<p>What term/concept is being visualized in this image? </p><p>Definition: An arrival pattern where recording stations near an epicenter receive direct waves first, while distant stations receive waves passing through a deeper, higher-velocity layer first.</p>

4

New cards

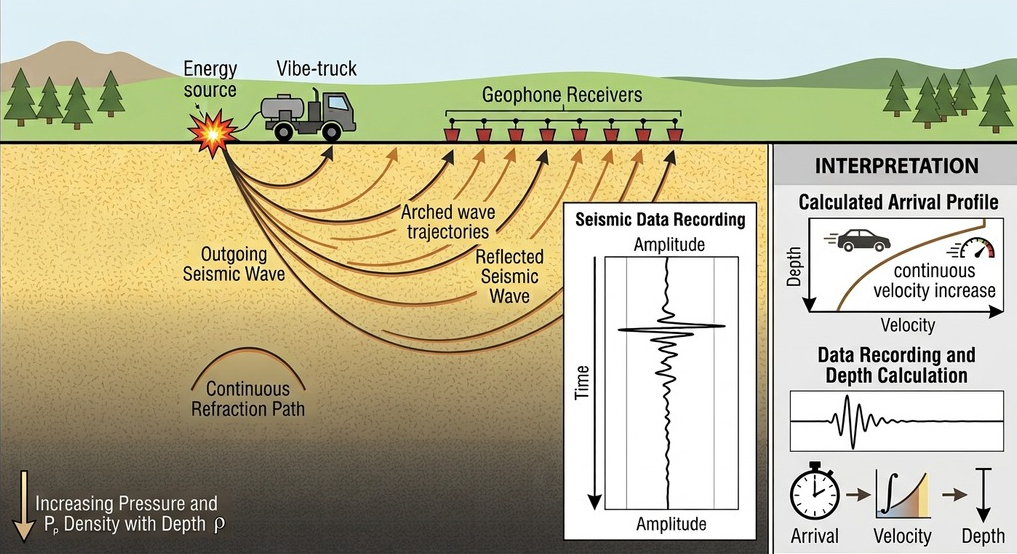

Curved Seismic Paths

What term/concept is being visualized in this image?

Definition: Arched wave trajectories resulting from continuously increasing pressure with depth, which steadily elevates wave speeds through uniform rock.

<p>What term/concept is being visualized in this image?</p><p>Definition: Arched wave trajectories resulting from continuously increasing pressure with depth, which steadily elevates wave speeds through uniform rock.</p>

5

New cards

P-Wave Shadow Zone

What term/concept is being visualized in this image?

Definition: A ring-shaped surface belt from 103° to 142° from an epicenter where direct primary waves are absent because they bend sharply downward upon entering the liquid outer core.

<p>What term/concept is being visualized in this image?</p><p>Definition: A ring-shaped surface belt from 103° to 142° from an epicenter where direct primary waves are absent because they bend sharply downward upon entering the liquid outer core.</p>

6

New cards

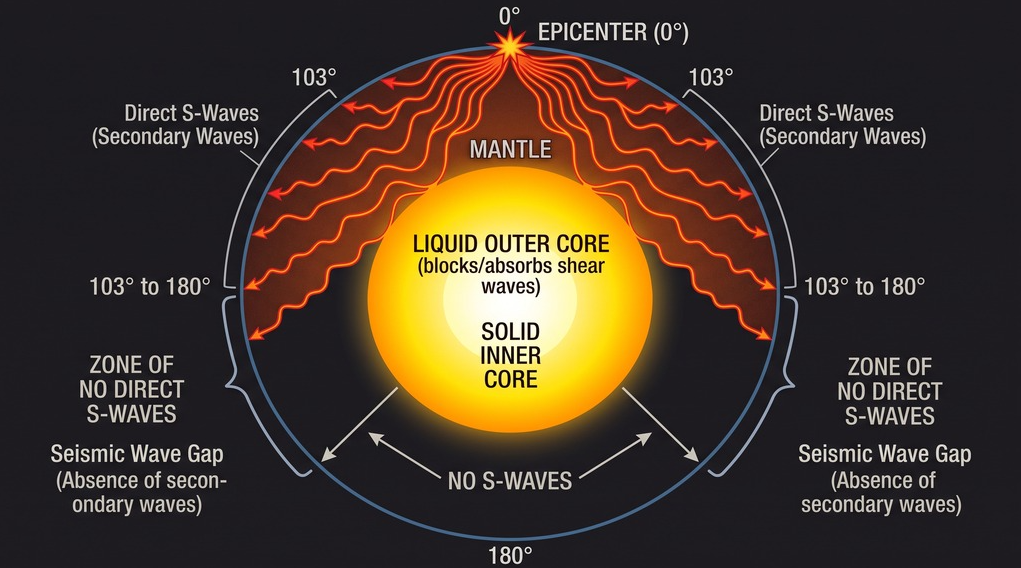

S-Wave Shadow Zone

What term/concept is being visualized in this image?

Definition: A broad region extending from 103° to 180° opposite an epicenter where secondary shear waves cannot pass, demonstrating that the outer core is liquid.

<p>What term/concept is being visualized in this image?</p><p>Definition: A broad region extending from 103° to 180° opposite an epicenter where secondary shear waves cannot pass, demonstrating that the outer core is liquid.</p>

7

New cards

S-Wave Velocity at the Core-Mantle Boundary

What term/concept is being visualized in this image?

Definition: A complete drop in secondary wave speed to zero kilometers per second at ~2,900 km depth due to the inability of shear energy to travel through liquid metal.

<p>What term/concept is being visualized in this image?</p><p>Definition: A complete drop in secondary wave speed to zero kilometers per second at ~2,900 km depth due to the inability of shear energy to travel through liquid metal.</p>

8

New cards

P-Wave Velocity at the Core-Mantle Boundary

What term/concept is being visualized in this image?

Definition: A sharp reduction in primary wave speed from ~13 km/s down to ~8 km/s at ~2,900 km depth, followed by an increase at ~5,150 km depth upon encountering the solid inner core.

<p>What term/concept is being visualized in this image? </p><p>Definition: A sharp reduction in primary wave speed from ~13 km/s down to ~8 km/s at ~2,900 km depth, followed by an increase at ~5,150 km depth upon encountering the solid inner core.</p>

9

New cards

Density Jump at the Core-Mantle Boundary

What term/concept is being visualized in this image?

Definition: An abrupt rise in mass per unit volume from ~5.5 g/cm³ at the base of the lower mantle to 10-12 g/cm³ at the top of the outer core.

<p>What term/concept is being visualized in this image? </p><p>Definition: An abrupt rise in mass per unit volume from ~5.5 g/cm³ at the base of the lower mantle to 10-12 g/cm³ at the top of the outer core.</p>

10

New cards

Blue Regions in Seismic Tomography

What term/concept is being visualized in this image?

Definition: Features on 3D subsurface maps representing faster-than-average wave speeds, corresponding to cooler, denser, or more rigid subducted material.

<p>What term/concept is being visualized in this image? </p><p>Definition: Features on 3D subsurface maps representing faster-than-average wave speeds, corresponding to cooler, denser, or more rigid subducted material.</p>

11

New cards

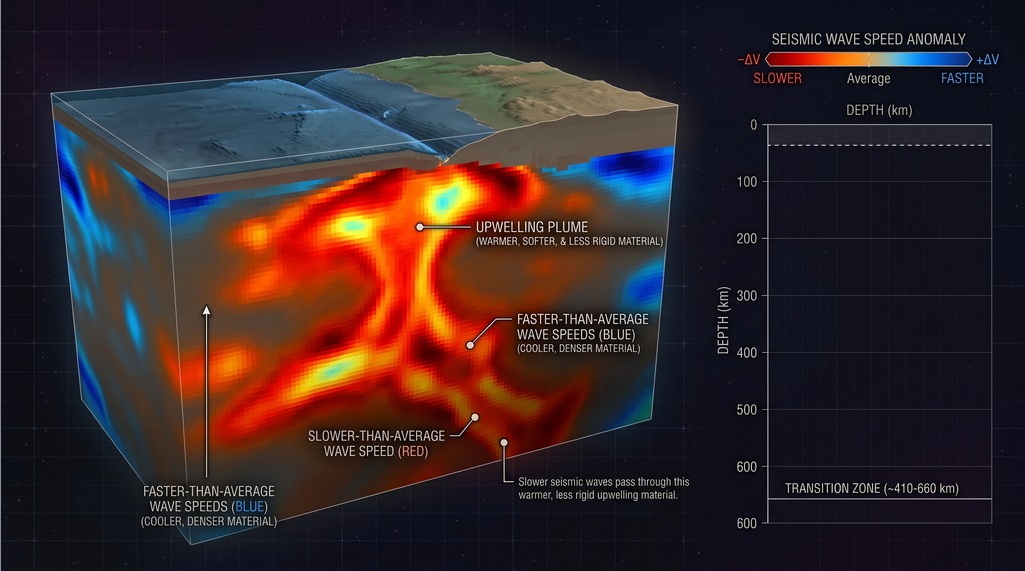

Red Regions in Seismic Tomography

What term/concept is being visualized in this image?

Definition: Features on 3D subsurface maps representing slower-than-average wave speeds, corresponding to warmer, softer, or less rigid upwelling material.

<p>What term/concept is being visualized in this image? </p><p>Definition: Features on 3D subsurface maps representing slower-than-average wave speeds, corresponding to warmer, softer, or less rigid upwelling material.</p>

12

New cards

Isostatic Equilibrium

What term/concept is being visualized in this image?

Definition: The mechanical balance of lithospheric blocks floating on the ductile asthenosphere, where taller features require deep roots extending into the mantle.

<p>What term/concept is being visualized in this image? </p><p>Definition: The mechanical balance of lithospheric blocks floating on the ductile asthenosphere, where taller features require deep roots extending into the mantle.</p>

13

New cards

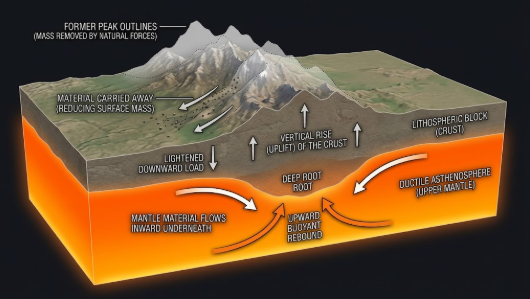

Erosion

What term/concept is being visualized in this image?

Definition: The removal of mass from mountain peaks, which lightens the downward load on the crust, causing the lithosphere to rise vertically as mantle material flows inward underneath.

<p>What term/concept is being visualized in this image? </p><p>Definition: The removal of mass from mountain peaks, which lightens the downward load on the crust, causing the lithosphere to rise vertically as mantle material flows inward underneath.</p>

14

New cards

Deposition

What term/concept is being visualized in this image?

Definition: The accumulation of sediment in low-lying basins, which adds weight to the crust, forcing the lithosphere to sink downward and displacing mantle material outward.

<p>What term/concept is being visualized in this image? </p><p>Definition: The accumulation of sediment in low-lying basins, which adds weight to the crust, forcing the lithosphere to sink downward and displacing mantle material outward.</p>

15

New cards

Glacial Rebound

What term/concept is being visualized in this image?

Definition: The gradual upward vertical movement of the lithosphere following the melting of massive ice sheets, returning the crust toward its original buoyant balance as ductile mantle material flows back underneath.

<p>What term/concept is being visualized in this image? </p><p>Definition: The gradual upward vertical movement of the lithosphere following the melting of massive ice sheets, returning the crust toward its original buoyant balance as ductile mantle material flows back underneath.</p>

16

New cards

Geodynamo

What term/concept is being visualized in this image?

Definition: Driven by convection and electric currents in the liquid outer core.

<p>What term/concept is being visualized in this image?</p><p>Definition: Driven by convection and electric currents in the liquid outer core.</p>

17

New cards

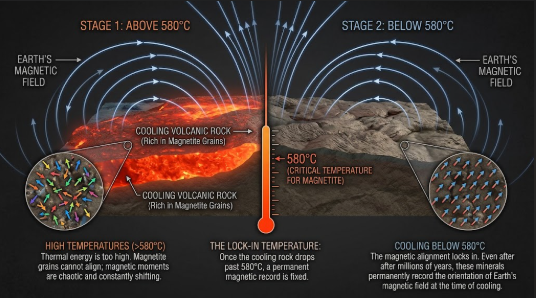

Curie Point

What term/concept is being visualized in this image?

Definition: 580°C for magnetite. Cooling below this locks in magnetic alignment (paleomagnetism/remanent magnetism).

<p>What term/concept is being visualized in this image?</p><p>Definition: 580°C for magnetite. Cooling below this locks in magnetic alignment (paleomagnetism/remanent magnetism).</p>

18

New cards

Magnetic Reversals

What term/concept is being visualized in this image?

Definition: Polarity flips average once every 500,000 years and take ~10,000 years to complete.

<p>What term/concept is being visualized in this image?</p><p>Definition: Polarity flips average once every 500,000 years and take ~10,000 years to complete.</p>

19

New cards

Positive Magnetic Anomaly

What term/concept is being visualized in this image?

Definition: Caused by magnetite ore bodies, intrusive gabbro dikes in granite, or basement arches/anticlines.

<p>What term/concept is being visualized in this image?</p><p>Definition: Caused by magnetite ore bodies, intrusive gabbro dikes in granite, or basement arches/anticlines.</p>

20

New cards

Negative Magnetic Anomaly

What term/concept is being visualized in this image?

Definition: Caused by a downdropped fault block (graben) filled with non-magnetic sediment overlying magnetic basalt.

<p>What term/concept is being visualized in this image?</p><p>Definition: Caused by a downdropped fault block (graben) filled with non-magnetic sediment overlying magnetic basalt.</p>

21

New cards

Geothermal Gradient

What term/concept is being visualized in this image?

Definition: Increases by 25°C per km near the surface (~75°F/mile), but tapers off rapidly in the mantle (~1°C/km).

<p>What term/concept is being visualized in this image?</p><p>Definition: Increases by 25°C per km near the surface (~75°F/mile), but tapers off rapidly in the mantle (~1°C/km).</p>

22

New cards

Core-Mantle Boundary Temperature

What term/concept is being visualized in this image?

Definition: ~3,700°C ± 600°C

<p>What term/concept is being visualized in this image?</p><p>Definition: ~3,700°C ± 600°C</p>

23

New cards

Center of Earth Temperature

What term/concept is being visualized in this image?

Definition: ~6,400°C ± 600°C

<p>What term/concept is being visualized in this image?</p><p>Definition: ~6,400°C ± 600°C</p>

24

New cards

Heat Flow Equivalence

What term/concept is being visualized in this image?

Definition: Average heat flow from continents equals average heat flow from ocean basins. Continental heat originates from radioactive decay (U, Th, K) in the crust; oceanic heat originates from hot mantle convection below.

<p>What term/concept is being visualized in this image?</p><p>Definition: Average heat flow from continents equals average heat flow from ocean basins. Continental heat originates from radioactive decay (U, Th, K) in the crust; oceanic heat originates from hot mantle convection below.</p>

25

New cards

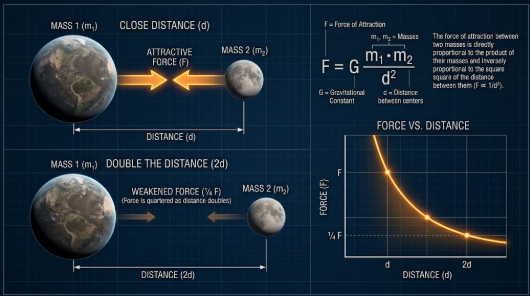

Newton’s Law

What term/concept is being visualized in this image?

Definition: Force decreases with the square of distance.

<p>What term/concept is being visualized in this image?</p><p>Definition: Force decreases with the square of distance.</p>

26

New cards

Positive Gravity Anomaly

What term/concept is being visualized in this image?

Definition: Regional gravity higher than normal; caused by dense metallic ore bodies or crust held up out of isostatic equilibrium by tectonic forces.

<p>What term/concept is being visualized in this image?</p><p>Definition: Regional gravity higher than normal; caused by dense metallic ore bodies or crust held up out of isostatic equilibrium by tectonic forces.</p>

27

New cards

Negative Gravity Anomaly

What term/concept is being visualized in this image?

Definition: Regional gravity lower than normal; caused by thick low-density sediments, deep mountain roots, or crust held down / undergoing glacial rebound.

<p>What term/concept is being visualized in this image?</p><p>Definition: Regional gravity lower than normal; caused by thick low-density sediments, deep mountain roots, or crust held down / undergoing glacial rebound.</p>

28

New cards

Geoid

What term/concept is being visualized in this image?

Definition: The hypothetical equipotential surface of Earth's gravity field at mean sea level

<p>What term/concept is being visualized in this image?</p><p>Definition: The hypothetical equipotential surface of Earth's gravity field at mean sea level</p>
