Evolution and Diversity Exam #3 Microscopy/Dissection Pictures

Fungi, porifera, cnidaria, platyhelminths (flatworms), mollusca, annelida (worms)

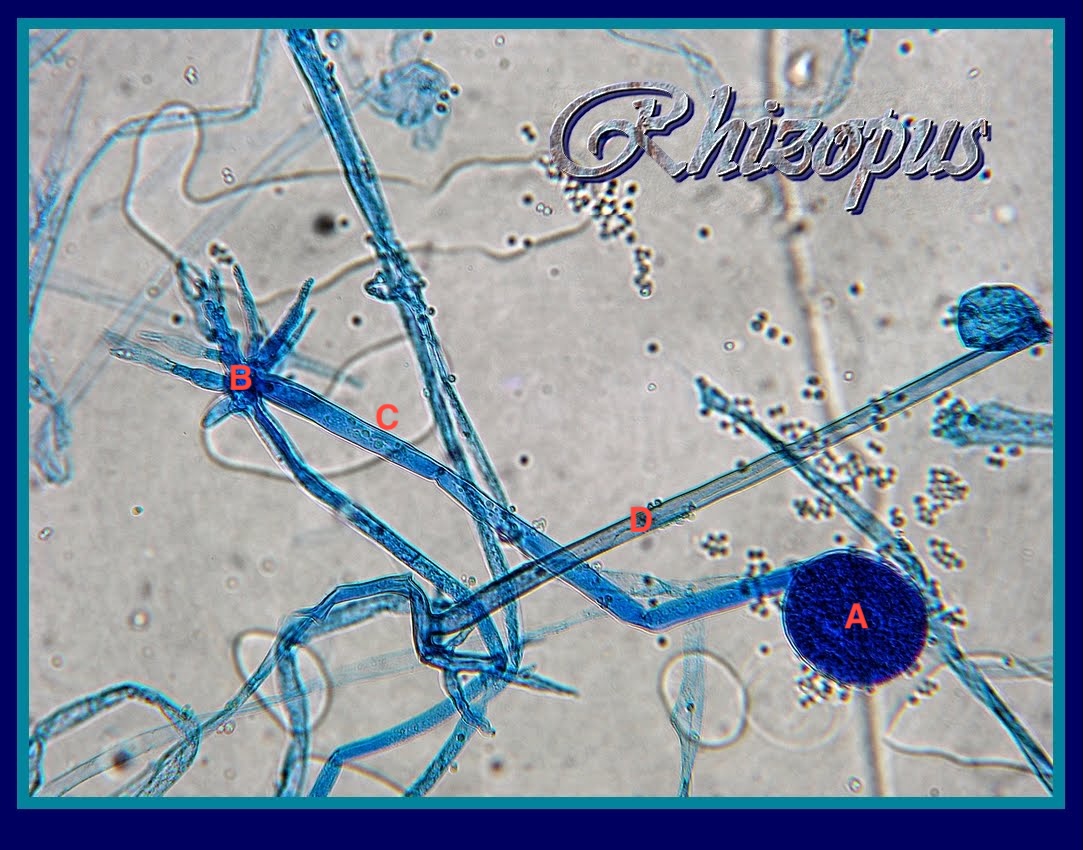

Zygosporangium

What is A?

Sporangium

What is B?

Rhizoid

What is C?

Sporangiophore

What is D?

Stolon

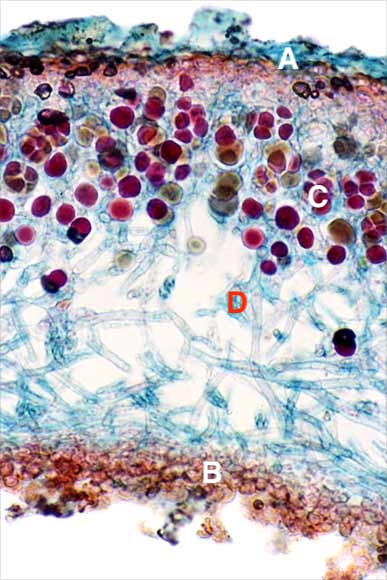

What layer is A?

Upper cortex

What layer is C?

Algal Cells

What layer is D?

Medulla

What layer is B?

Lower cortex

What cell is the arrow pointing at?

Suspensor cells

What stage is this?

Progametangia

What stage is the arrow pointing at?

Zygote

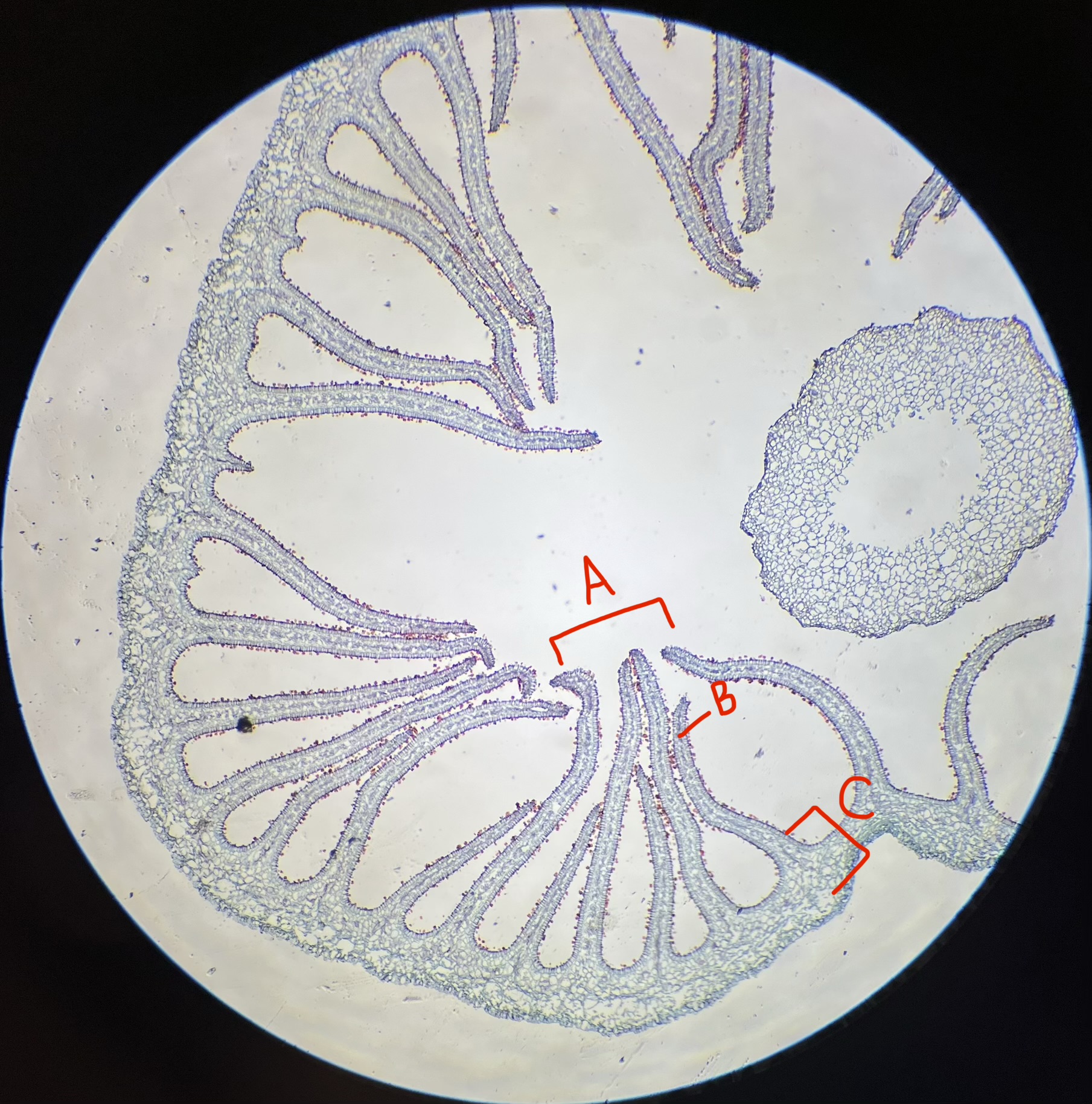

What is A?

Gills (Coprinus)

What is B?

Basidia (Coprinus)

What is C?

Hymenium Layer (Coprinus)

What is the pointer on?

Basidiospores (Coprinus)

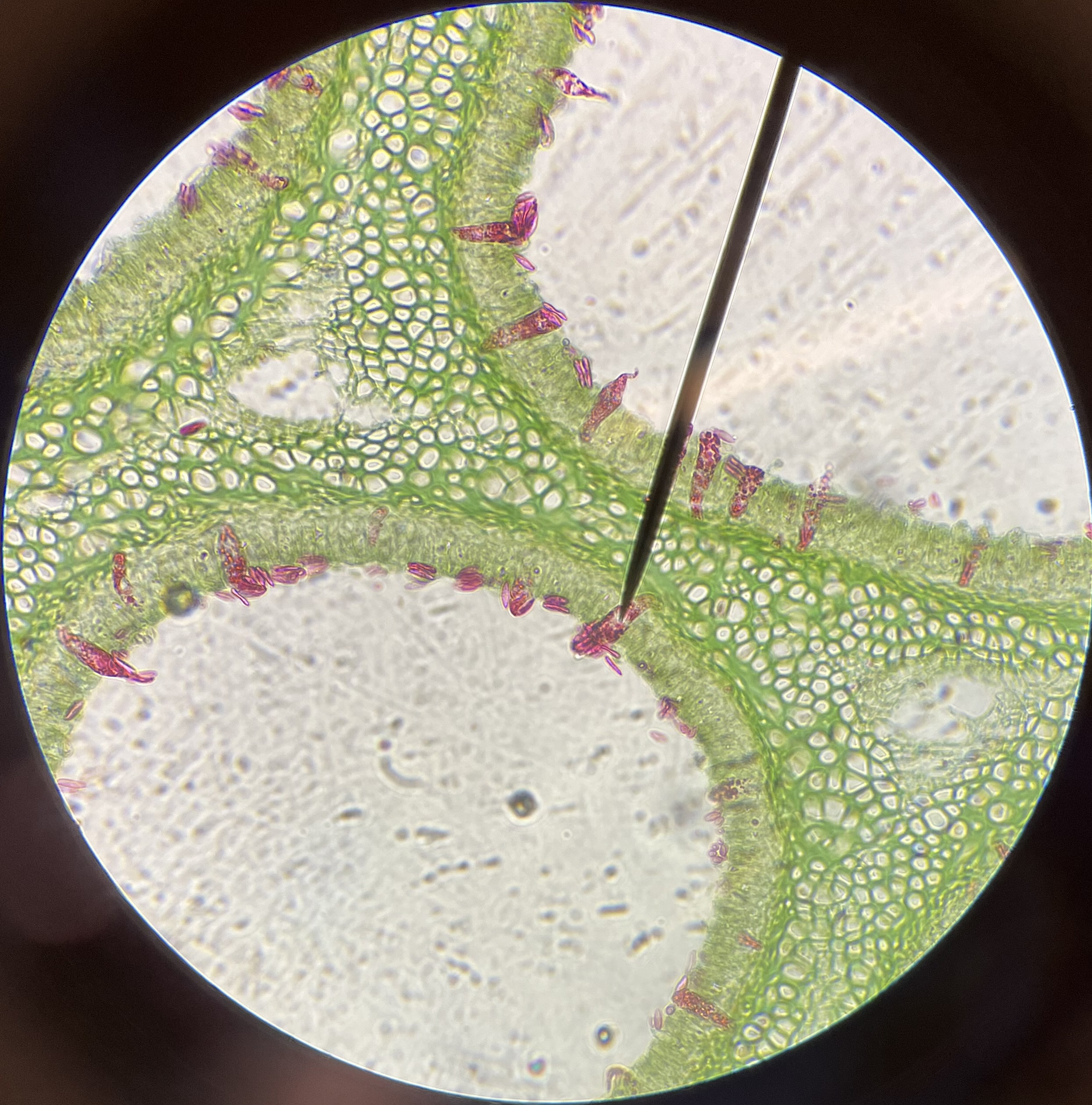

What is the pointer on?

Basidiospores (Polyporus)

What is the pointer on?

Basidia (Polyporus)

What is the pointer on?

Dikaryotic Hyphae (Polyporus)

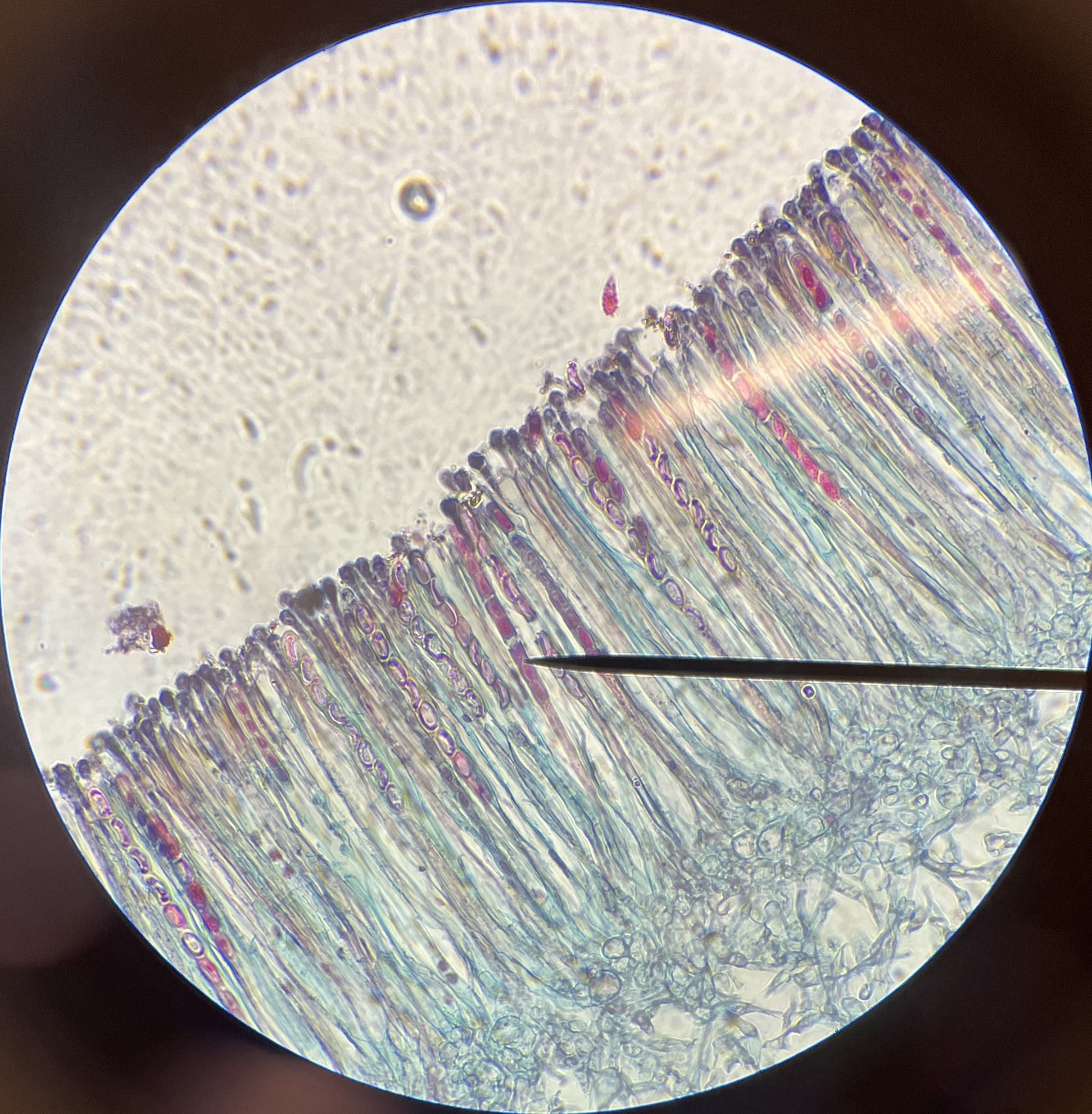

What is the pointer on?

Ascospores (Peziza)

What is the pointer on?

Ascocarp (Pezizia)

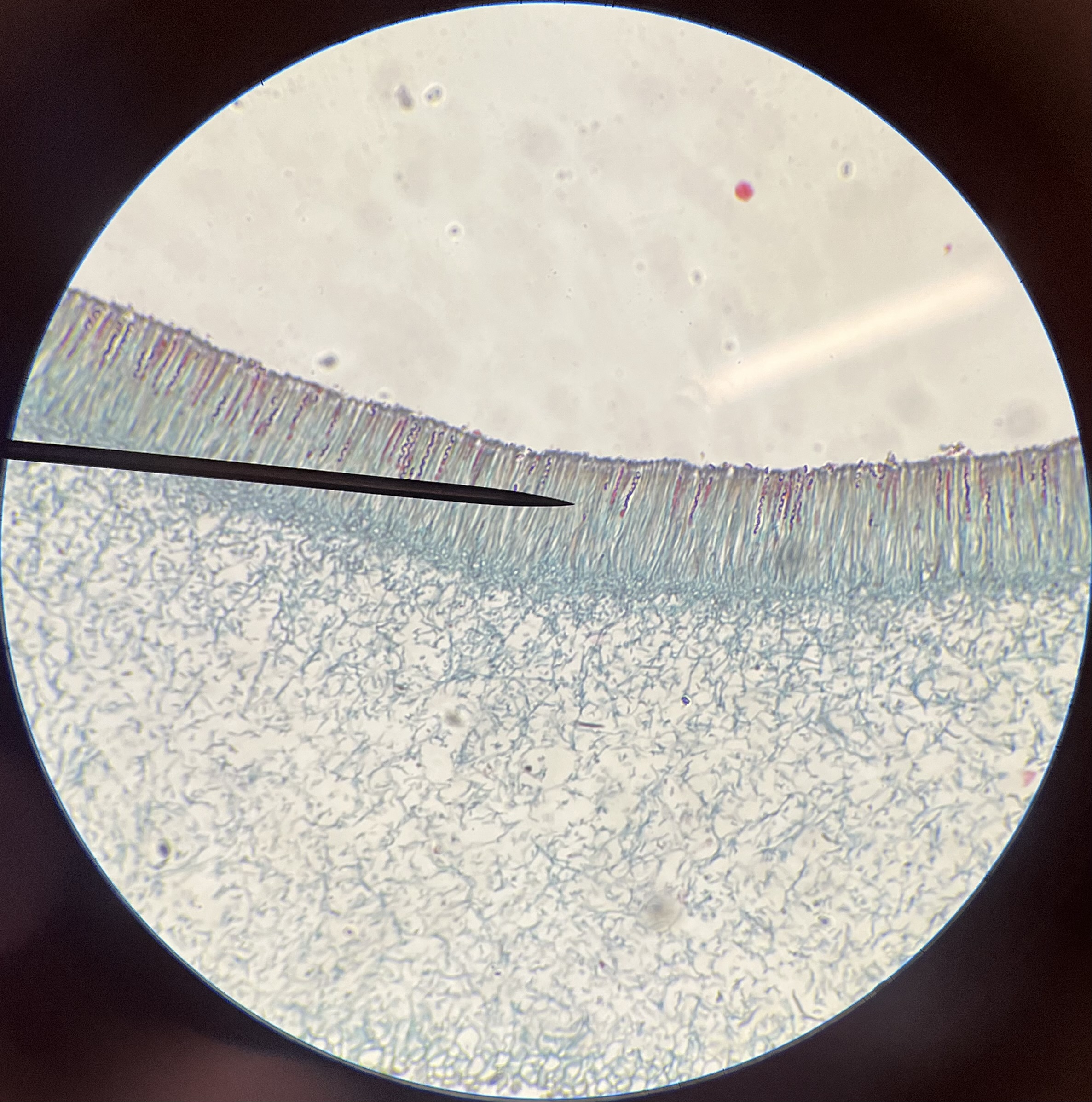

What layer is the pointer on?

Hymenium Layer (Pezizia)

What layer is the pointer on?

Ascus (Pezizia)

What is A?

Gastrovascular cavity (Hydrozoa)

What is B?

Bud (Hydrozoa)

What is C?

Tentacles (Hydrozoa)

What is D?

Mouth/Anus (Hydrozoa)

What is A?

Gastrovascular cavity (Hydra polyp)

Which layer is B?

Epidermis (Hydra polyp)

Which layer is C?

Gastrodermis (Hydra polyp)

Which layer is the pointer on?

Mesoglea (Hydra polyp)

What is A?

Gastrovascular cavity (Obelia colony)

What is B?

Gastrozooid (Obelia colony)

What is C?

Gonangium (Obelia colony)

What is D?

Medusa Buds (Obelia colony)

What is this?

Miracidia (Trematoda)

What is this?

Sporocyst (Trematoda)

What is this?

Redia (Trematoda)

What is this?

Cercaria (Trematoda)

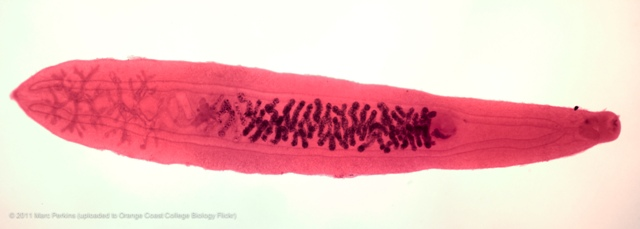

What is this animal’s class?

Cestoda

What is this animal’s class?

Turbellaria

What is this animal’s class?

Trematoda

What is this animal’s class?

Polyplacophora

What is this animal’s class?

Gastropoda

What is this animal’s class?

Bivalvia

What is this animal’s class?

Cephalopoda

What are these?

Glochidium

What part is 1?

Mantle

What part is 2?

Gills

What part is 3?

Anterior Adductor

What part is 4?

Posterior Adductor

What part is 6?

Heart

What part is 8?

Foot

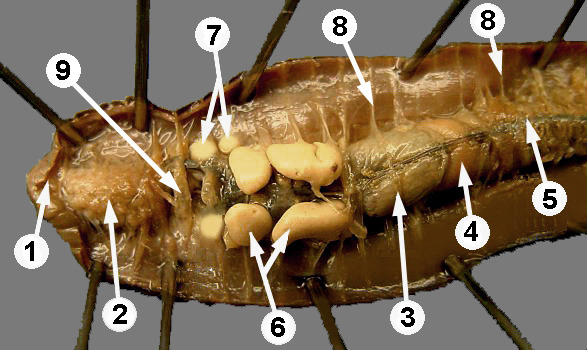

What part is 1?

Brain

What part is 2?

Pharynx

What part is 3?

Crop

What part is 4?

Gizzard

What part is 5?

Dorsal blood vessel

What part is 6?

Seminal Vesicles

What part is 7?

Seminal Receptacles

What part is 8?

Septa
