a) Potential dividers

0.0(0)
Studied by 0 people
linked notesView linked note
call kaiCall Kai
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/3

encourage image

There's no tags or description

Looks like no tags are added yet.

Last updated 9:20 PM on 4/23/26
Name
Mastery
Learn
Test
Matching
Spaced
Call with Kai

No analytics yet

Send a link to your students to track their progress

4 Terms

1
New cards

  • define potential divider

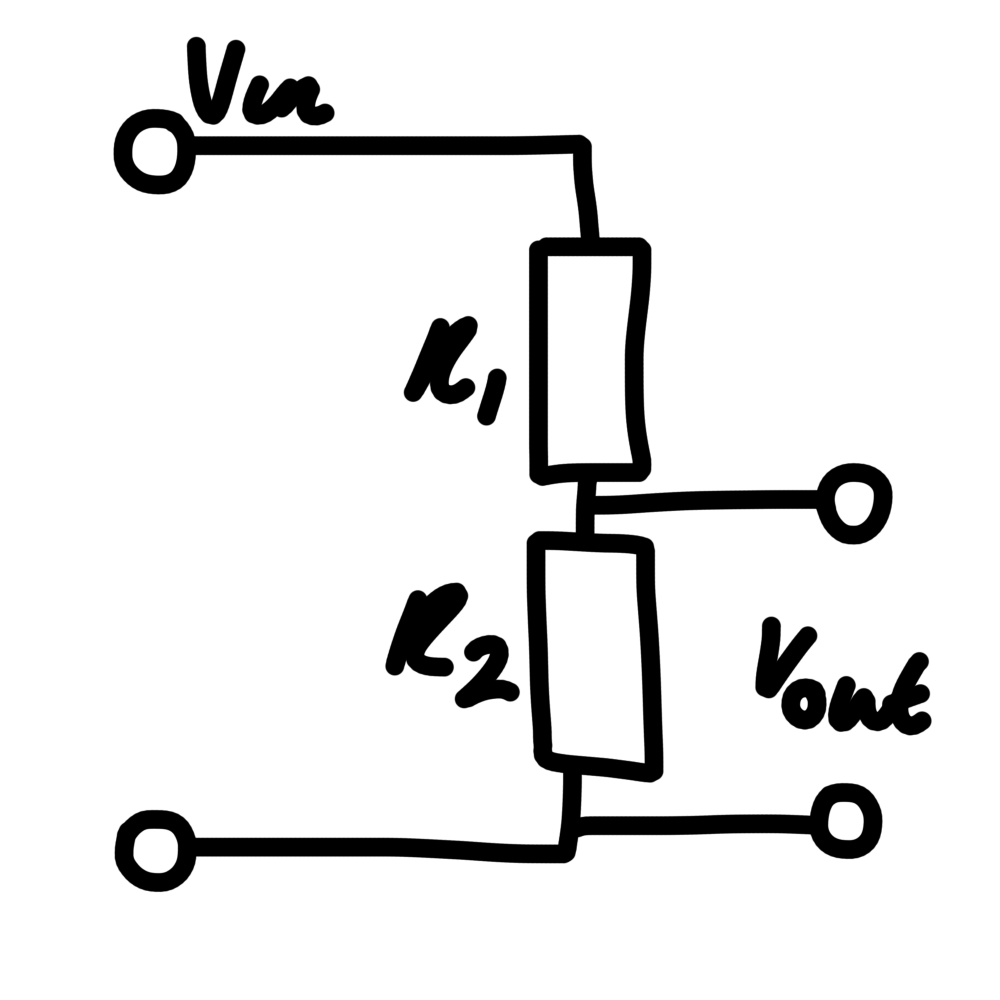

  • a series circuit with more than one resistor meant to divide the p.d. into a smaller specific p.d.

<ul><li><p>a series circuit with more than one resistor meant to divide the p.d. into a smaller specific p.d.</p></li></ul><p></p>
2
New cards

  • state the formula for Vout

  • Vout = (R2/(R1 + R2)) × Vin

    • p.d. across resistor two (V) = resistance of resistor two (Ω)/(resistance of resistor one (Ω) + resistance of resistor two (Ω)) × terminal p.d. (V)

3
New cards

  • state the relationship between the ratio of resistance and the ratio of p.d. between two resistors

  • ratio of R between two resistors = ratio of V across two resistors

4
New cards

  • state the formula for the resistance ratio and p.d. ratio

  • V1/V2 = R1/R2

    • p.d. across resistor one (V) / p.d. across resistor two (V) = resistance of resistor one (Ω) / resistance of resistor two (Ω)
