15 Terms

1
New cards

What wall segments are seen in AP4?

Apical cap, apical lateral, mid anterolateral, basal anterolateral, apical septal, mid inferoseptal, basal inferoseptal.

<p>Apical cap, apical lateral, mid anterolateral, basal anterolateral, apical septal, mid inferoseptal, basal inferoseptal.</p>
2
New cards
<p>The red and green represent which walls in an A4C?</p>

The red and green represent which walls in an A4C?

Red- Lateral

Green- Septal

3
New cards
<p>Label the wall segments correctly?</p>

Label the wall segments correctly?

Red- Apical Lateral

Green- Mid Anterolateral

Blue- Basal Anterolateral

4
New cards
<p>Label the following wall segments.</p>

Label the following wall segments.

Blue- Apical Septal

Brown- Mid Inferoseptal

Orange- Basal Inferoseptal

5
New cards

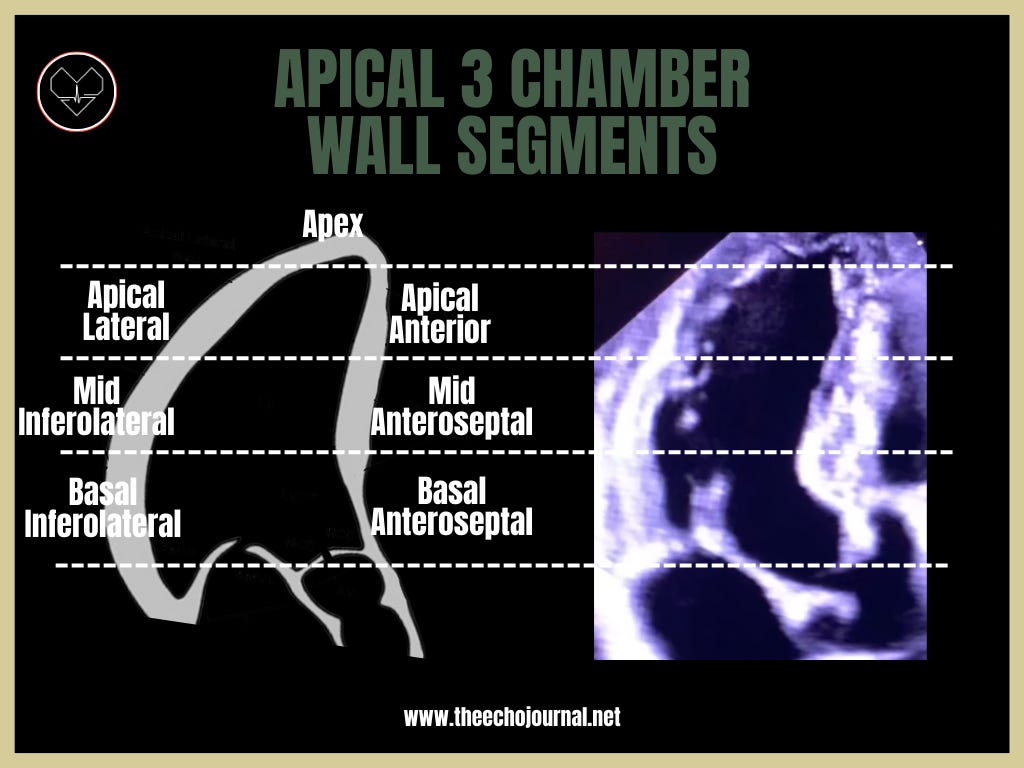

What wall segments are seen in AP3?

Apical cap, apical septal, mid anteroseptal, basal anteroseptal, apical lateral, mid inferolateral, basal inferolateral.

<p>Apical cap, apical septal, mid anteroseptal, basal anteroseptal, apical lateral, mid inferolateral, basal inferolateral.</p>
6
New cards
<p>Correctly label the following arrows.</p>

Correctly label the following arrows.

Red- Apical cap

Yellow- Apical Septal

Blue- Mid Anteroseptal

Green- Basal Anteroseptal


7
New cards
<p>Correctly label the following arrows.</p>

Correctly label the following arrows.

Blue- Apical Lateral

Orange- Mid Inferolateral

Red- Basal Inferolateral

8
New cards

What wall segments are seen in AP2?

Apical cap, apical anterior, mid anterior, basal anterior, apical inferior, mid inferior, basal inferior.

<p>Apical cap, apical anterior, mid anterior, basal anterior, apical inferior, mid inferior, basal inferior.</p>
9
New cards
<p>Correctly label the following wall segments.</p>

Correctly label the following wall segments.

Pink- Apical cap

Red- Apical anterior

Orange- Mid anterior

Blue- Basal anterior

Green- Apical inferior

Yellow- Mid inferior

Brown- Basal inferior

10
New cards

What wall segments are seen at the PSAX MV level?

Basal anterior, basal anterolateral, basal inferolateral, basal inferior, basal inferoseptal, basal anteroseptal.

<p>Basal anterior, basal anterolateral, basal inferolateral, basal inferior, basal inferoseptal, basal anteroseptal.</p>
11
New cards
<p>Correctly label the following wall segments.</p>

Correctly label the following wall segments.

Blue- Basal Anterior

Orange- Basal Anterolateral

Red- Basal Inferolateral

Grey- Basal Inferior

Green- Basal Inferoseptal

Pink- Basal Anteroseptal

12
New cards

What wall segments are seen at the PSAX papillary muscle level?

Mid anterior, mid anterolateral, mid inferolateral, mid inferior, mid inferoseptal, mid anteroseptal.

13
New cards
<p>Correctly label the following wall segments.</p>

Correctly label the following wall segments.

Blue- Mid Anterior

Orange- Mid Anterolateral

Red- Mid Inferolateral

Grey- Mid Inferior

Green- Mid Inferoseptal

Pink- Mid Anteroseptal

14
New cards

What wall segments are seen at the PSAX apical level?

Apical anterior, apical septal, apical inferior, apical lateral.

<p>Apical anterior, apical septal, apical inferior, apical lateral.</p>
15
New cards

Corrctly label the following wall segments?

Red- Anterior

Blue- Lateral

Orange- Inferior

Brown- Septal

<p>Red- Anterior</p><p>Blue- Lateral</p><p>Orange- Inferior</p><p>Brown- Septal</p>
