SFFD 135 Fittings

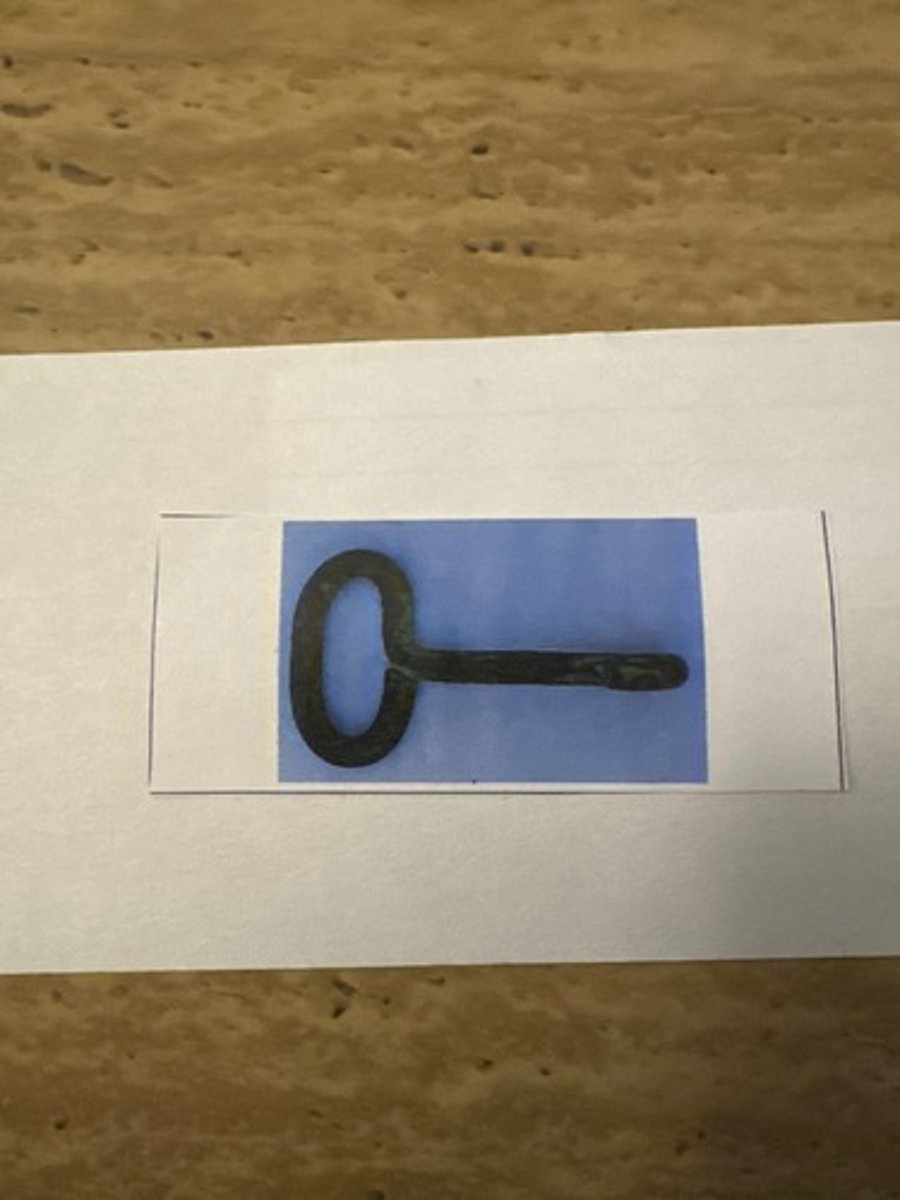

Pipe Casing Hook

Remove pipe casing covers to provide access for circulator nozzles

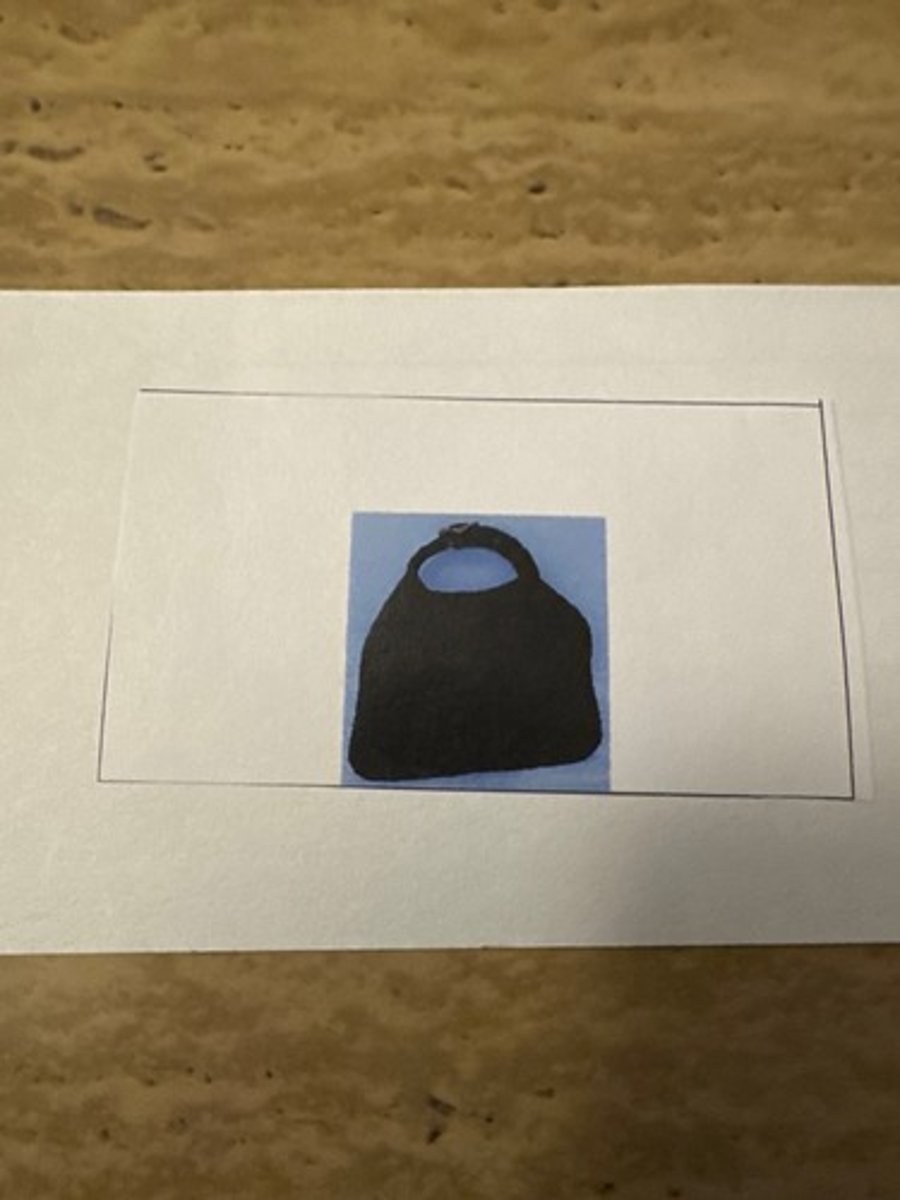

Leather Saddle

- Thread protector

- Hydrant Jumper protector

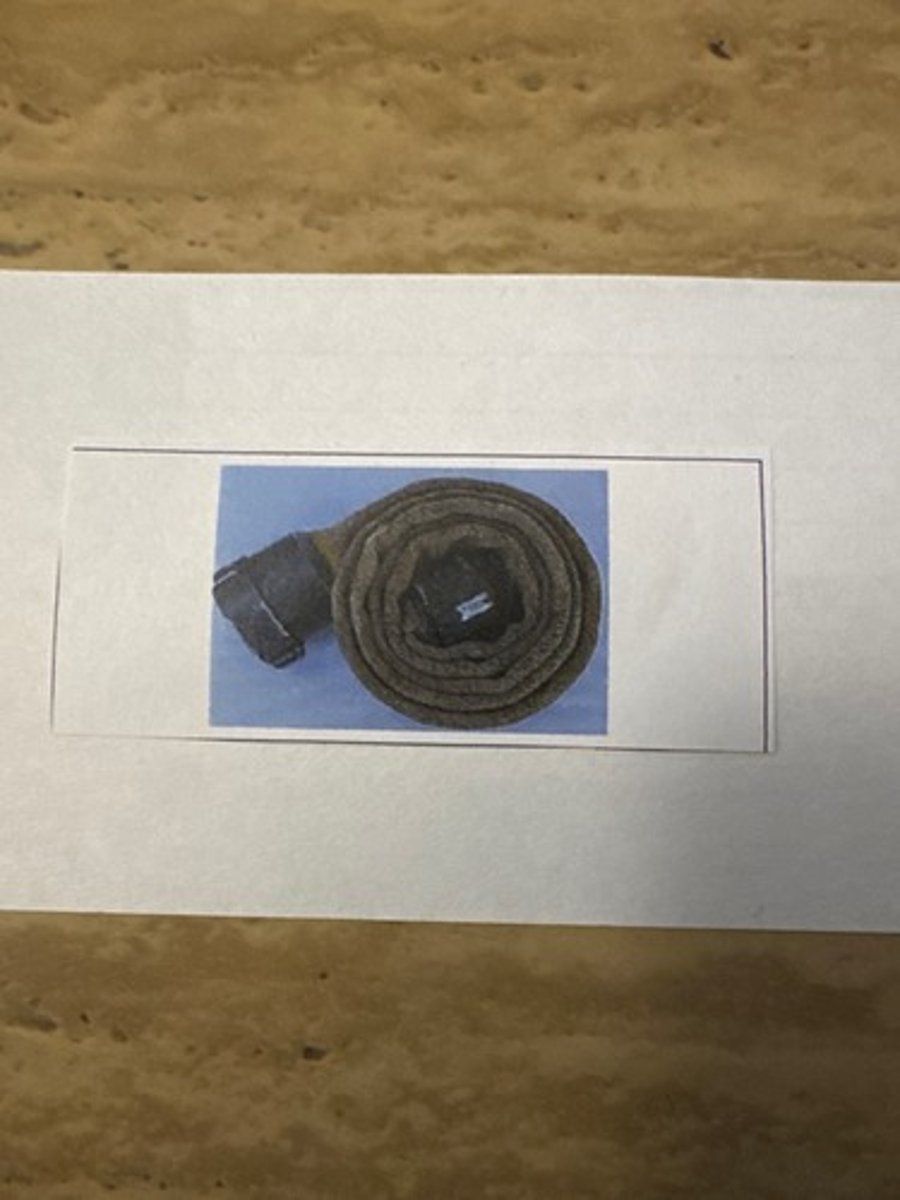

Shorty 3"-3"

- Part of circulator bag

- Suction soft connection

- Part of hydrant jumper

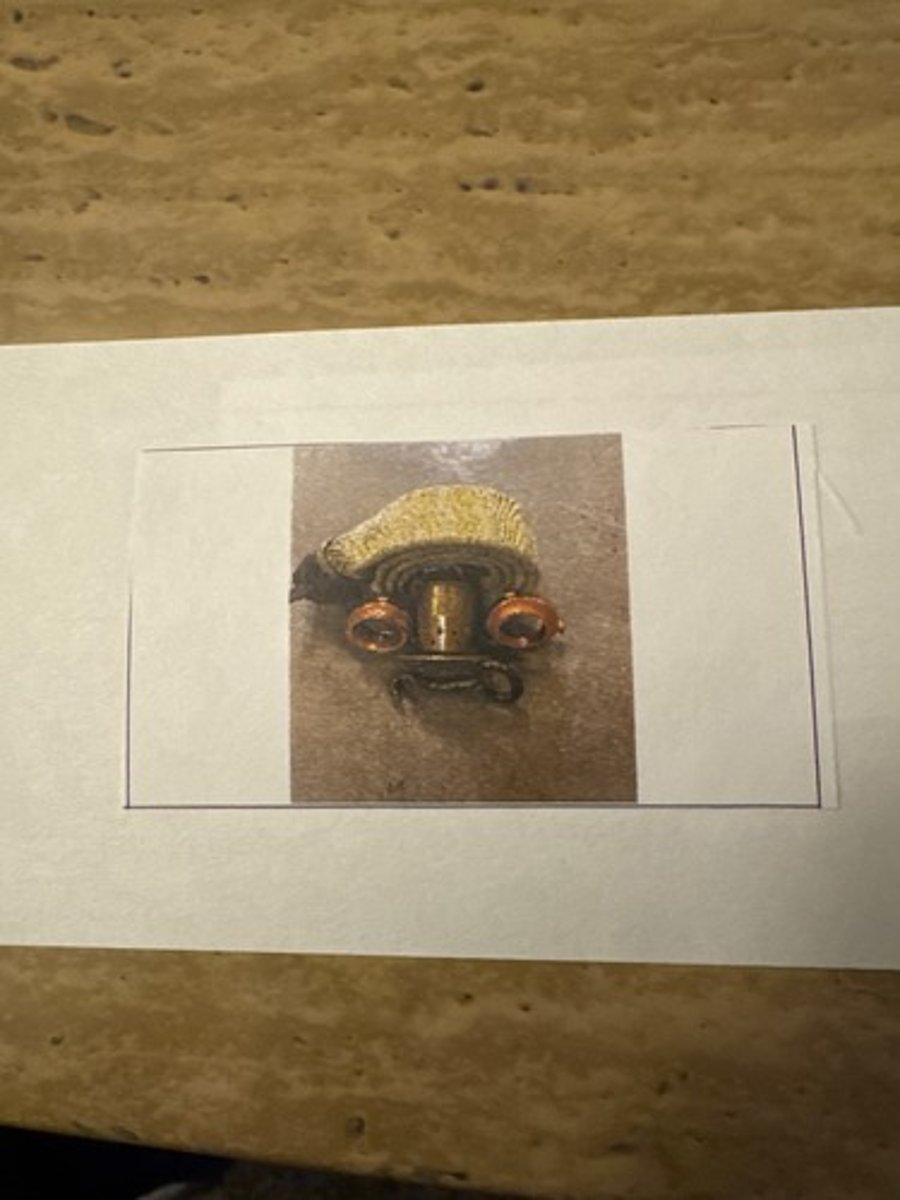

Circulator Bag Contents

- Federal Circulator

- Shorty 5' - 8' of 3" hose

- Increase 2 1/2" - 3"

- Reducer 3" - 2 1/2"

- Pipe Casing Hook

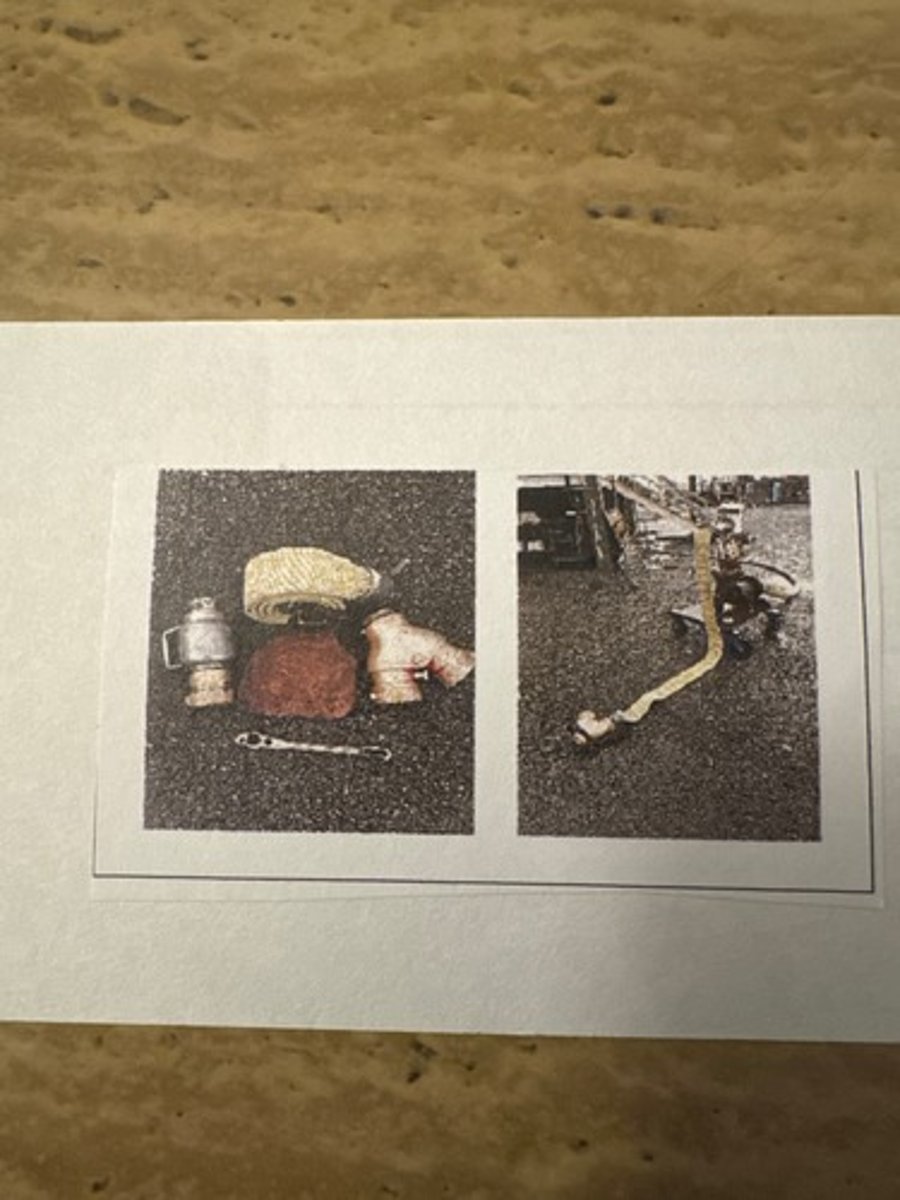

Hydrant Jumper Contents

- Ames device

- Shorty 5' - 8' of 3" hose

- Clappered Siamese

- Leather Saddle

- Large Brass Spanner

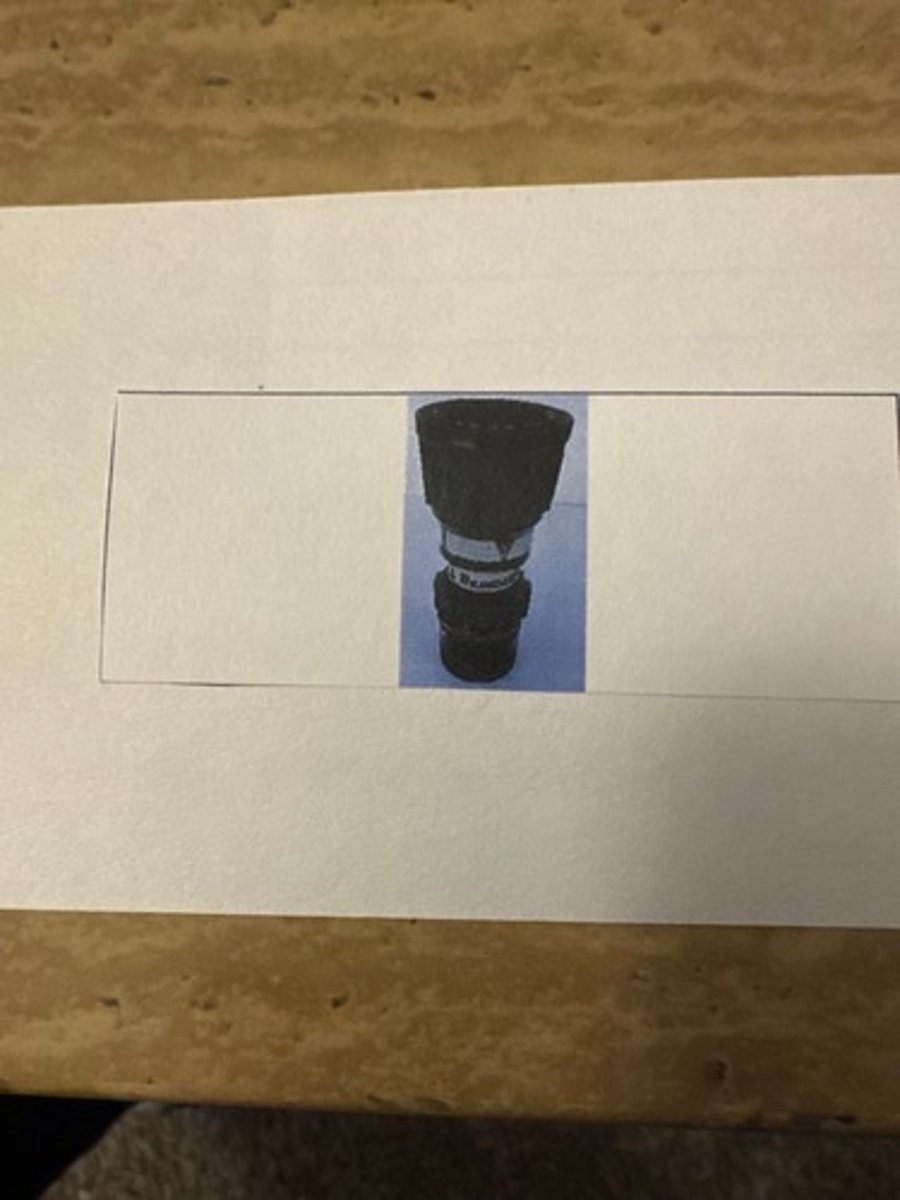

Fog Nozzle 1 1/2"

- Used on bumper line

- Used to fight dumpster and car fires ( not interior fire attack )

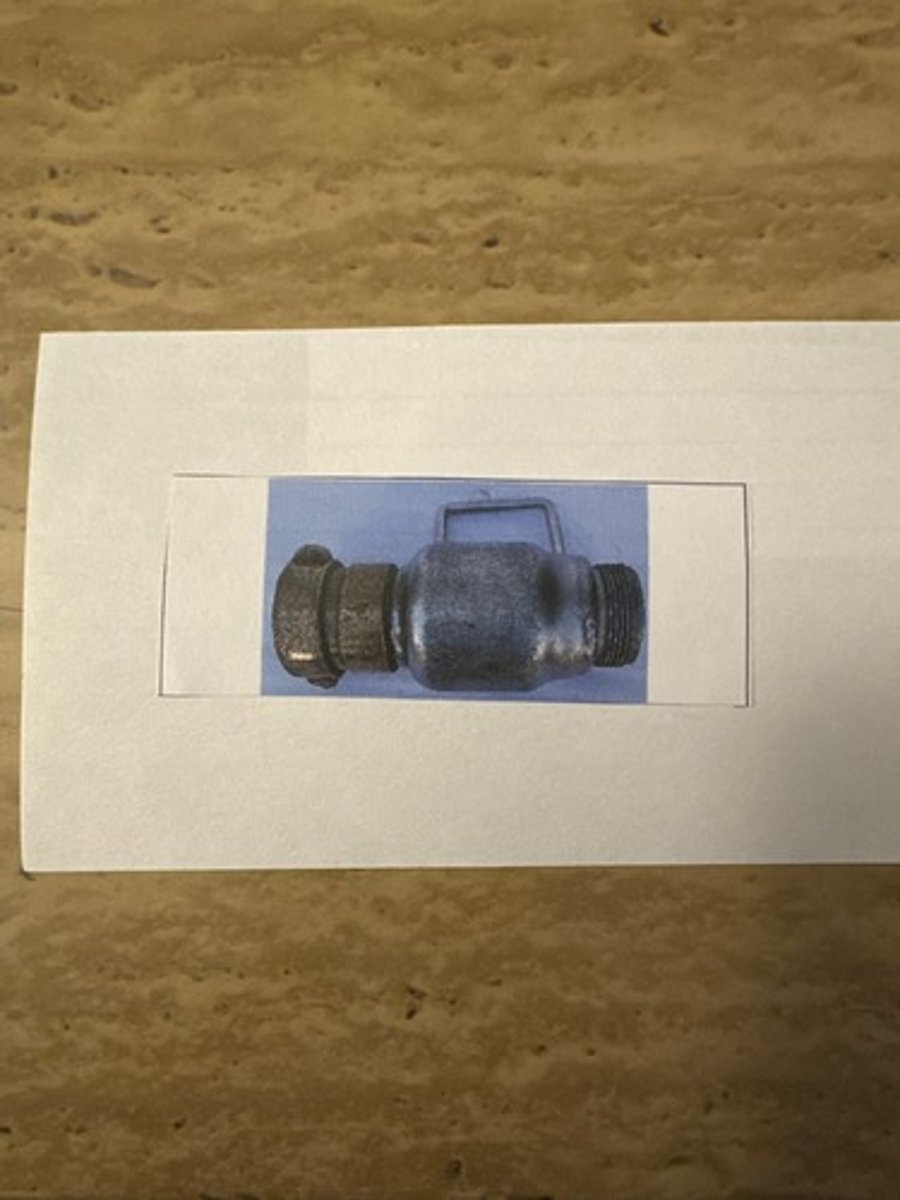

Ames Device 3"-3"

- One way valve to prevent cross contamination to domestic water supply

- Required to be used on all LPH

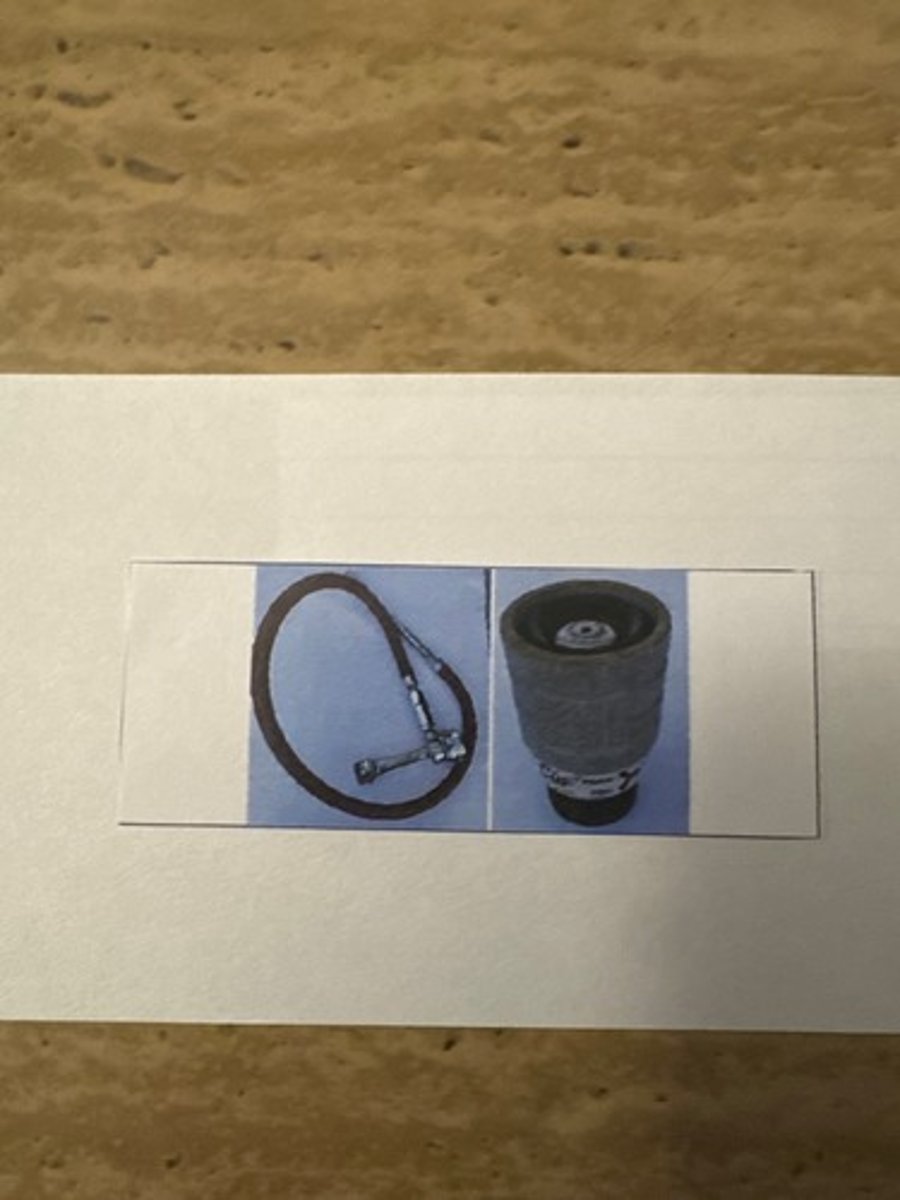

Bubble Cup with Eductor 1 1/2"

- For use for class A & B foam application

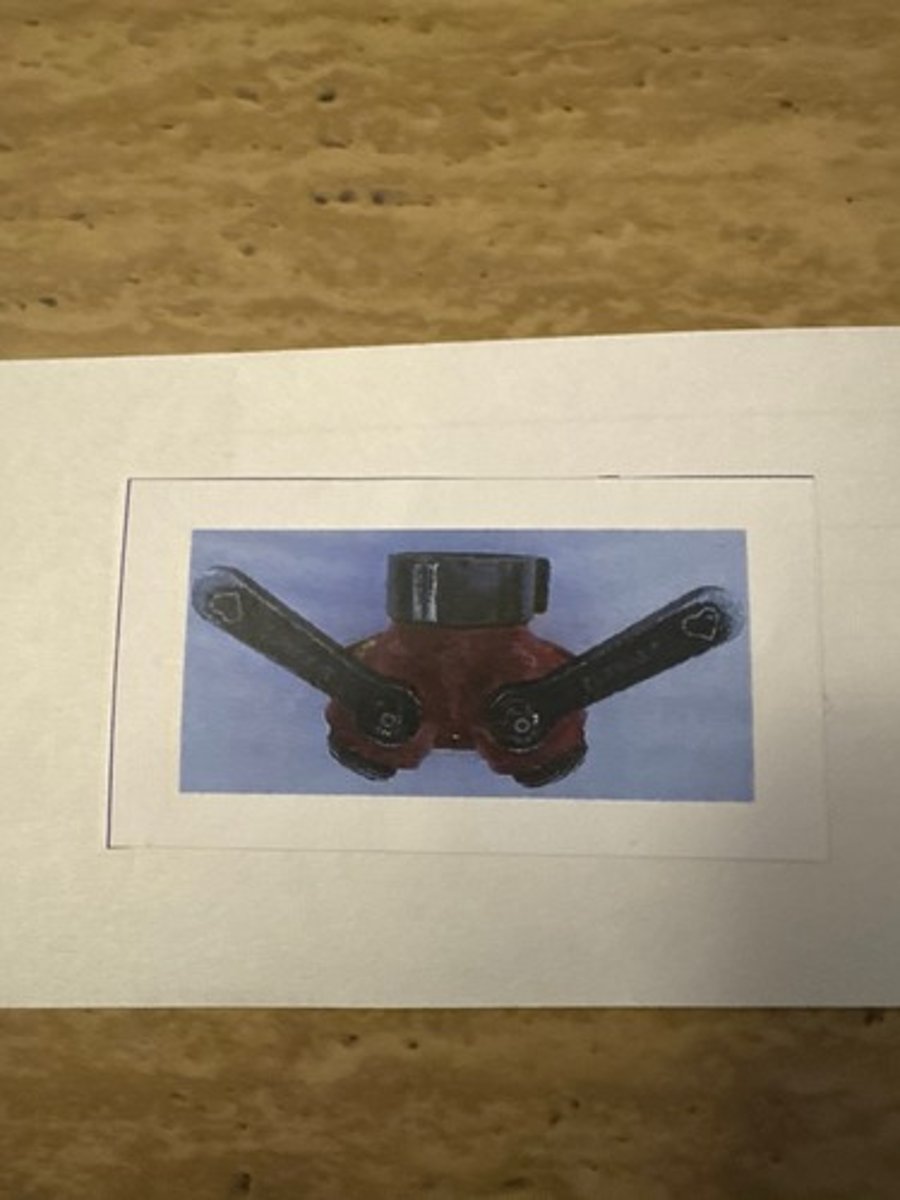

Gated Wye 2 1/2" - 1 1/2"

- Used with Gorter to attach 1 3/4" line for interior fire attack

- Used with a 3" - 2 1/2" reducer to attach a 1 3/4" line to standpipe

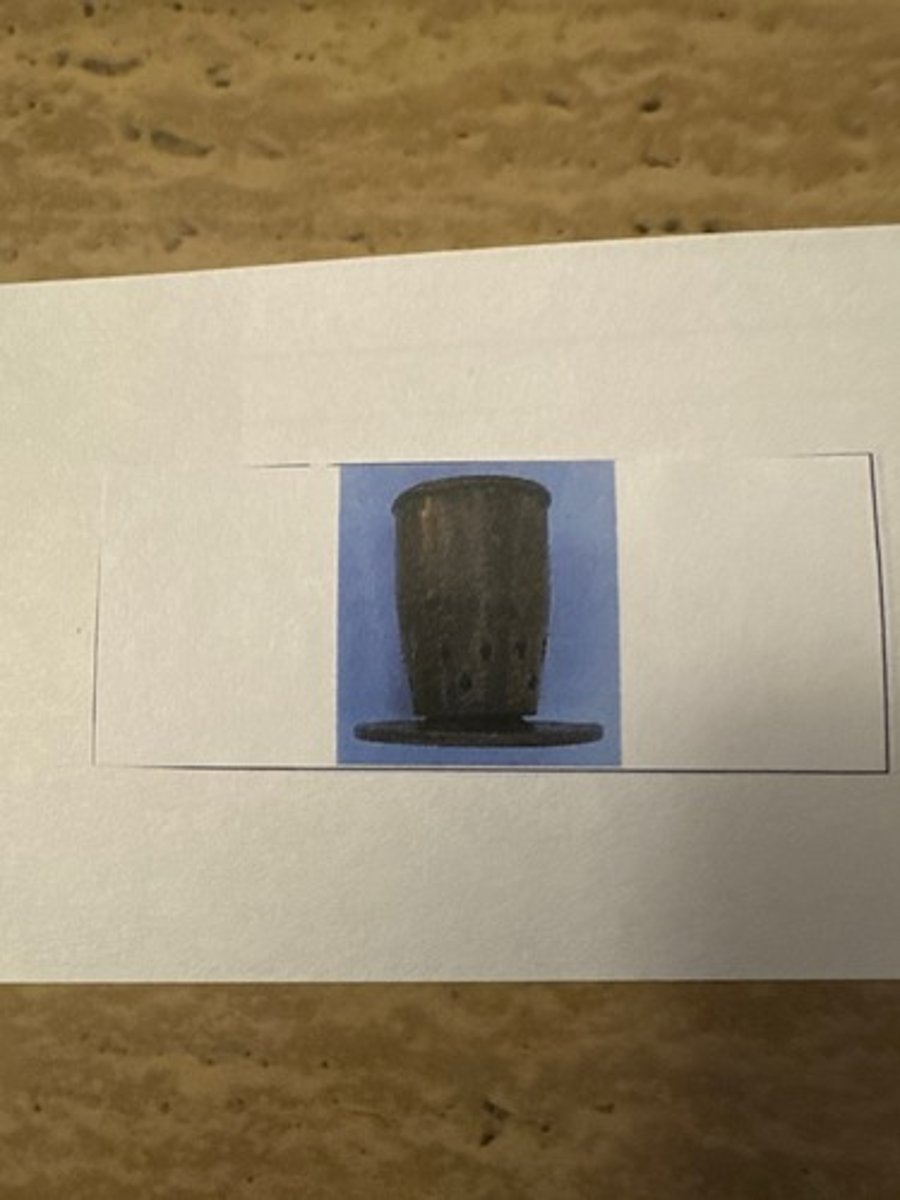

Federal circulator 2 1/2"

- Used for below grade fires

- Use for attic or confined space fires

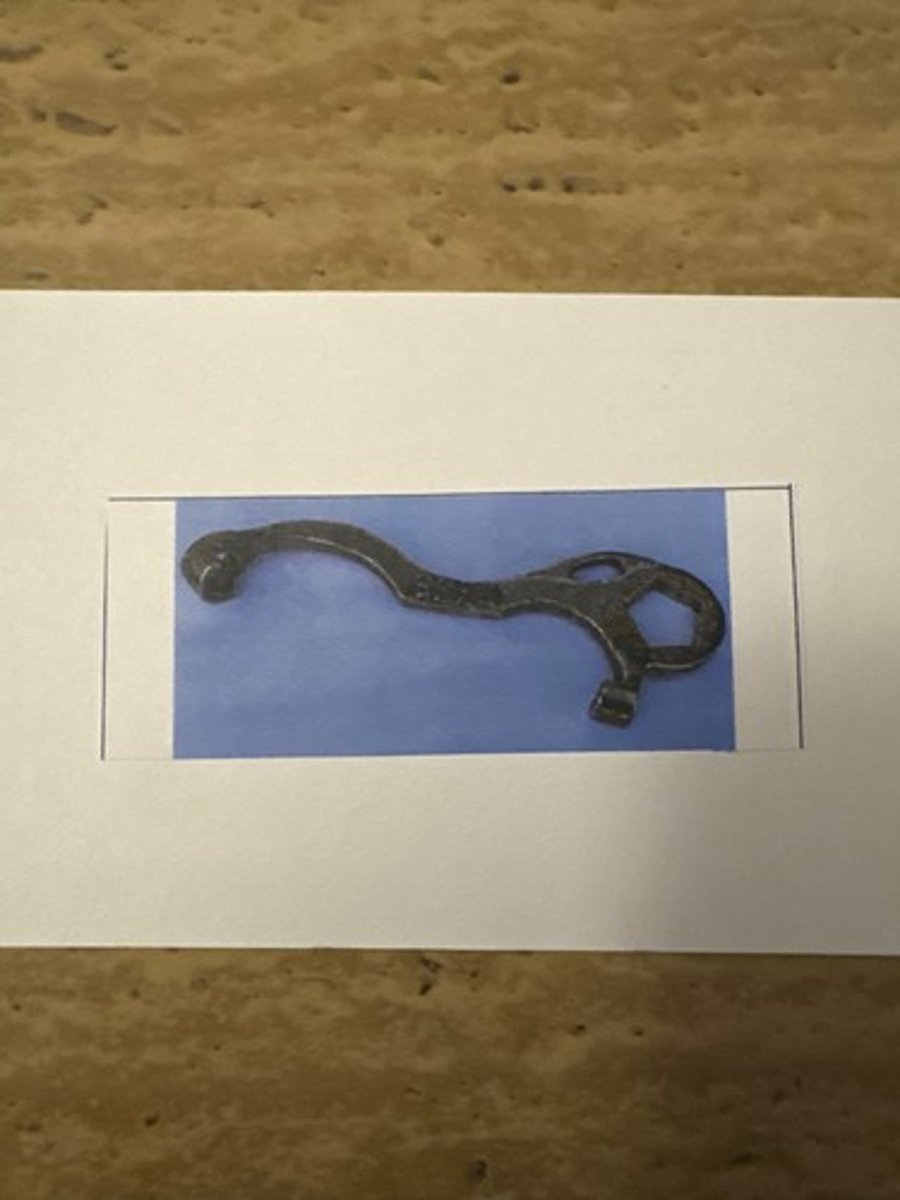

Small Brass Spanner

- Used to couple/uncouple 1 3/4" hose

- Used to couple/uncouple 3" hose

- Open and Close LPH

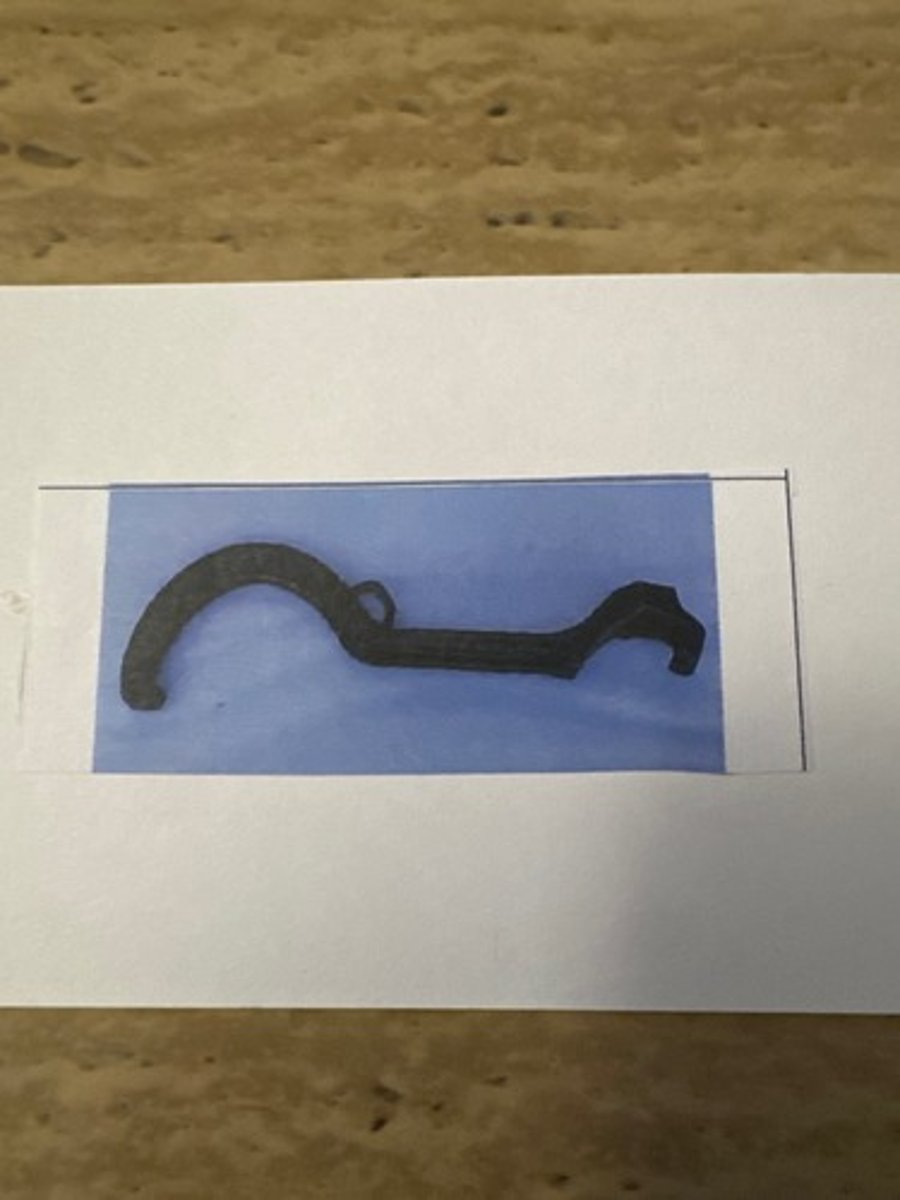

Suction Spanner

Large end used on 6" hard suction hose couplings

- Small end 3" couplings

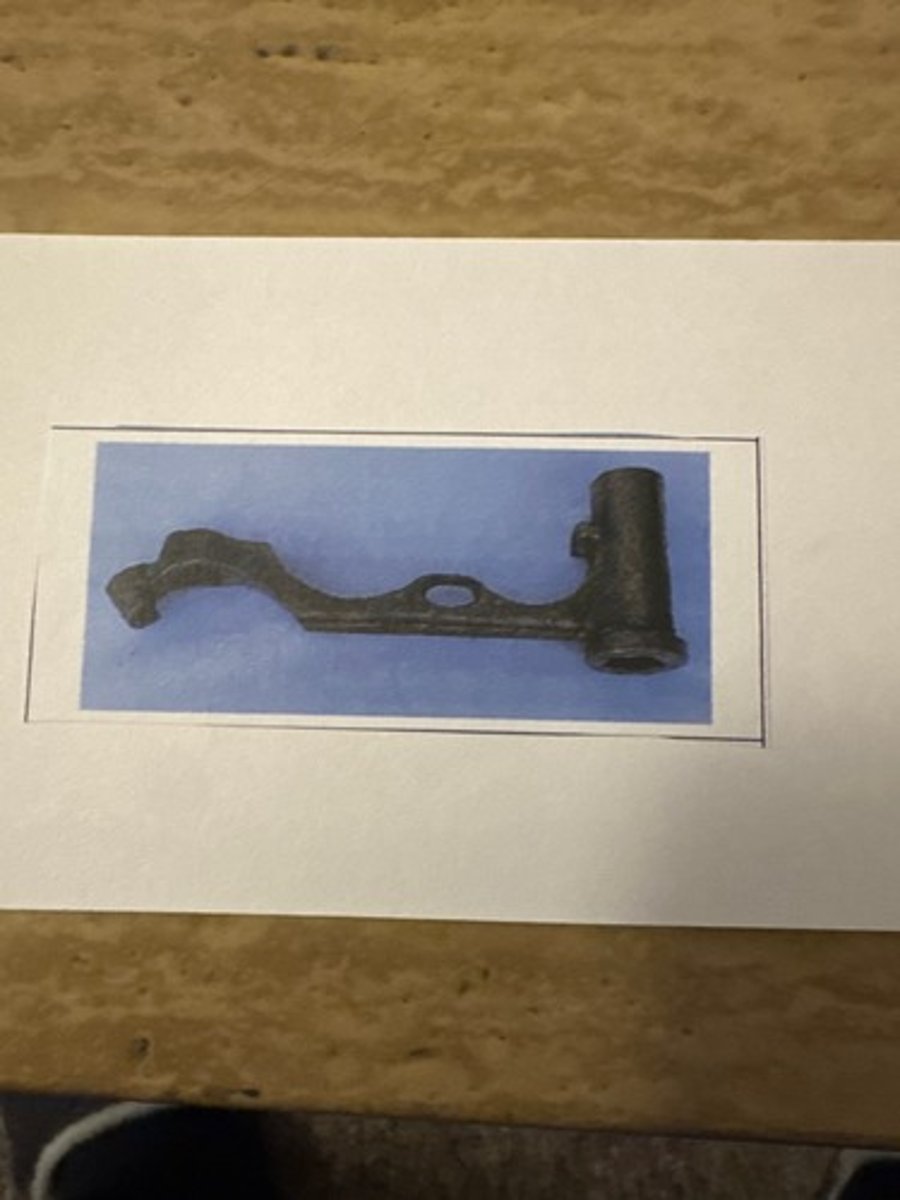

High Pressure Hydrant Spanner

- Used to open King valve on HPH

- Used to open gate valves on HPH

- Mounted to gleeson

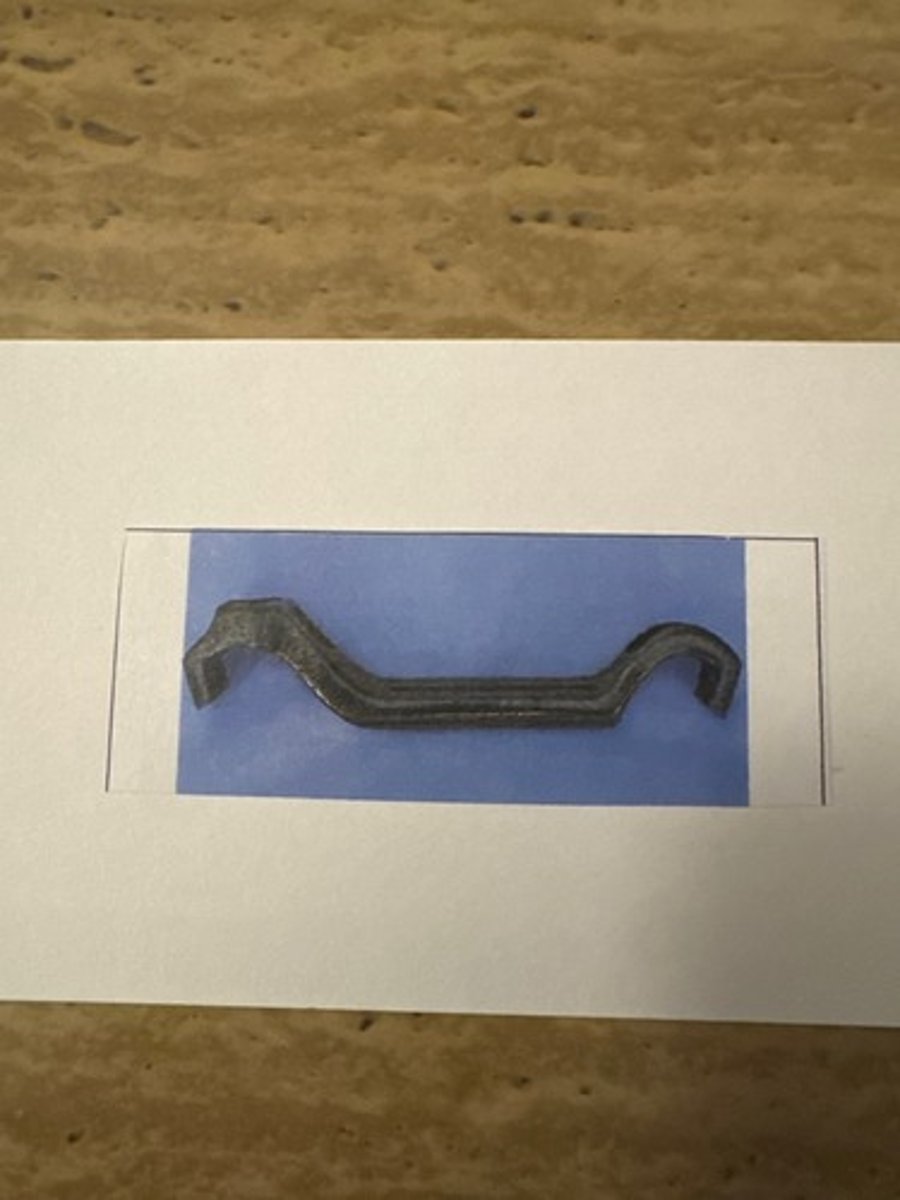

Large Brass Spanner

- Used to couple/uncouple 3" hose

- Used to open/close a LPH

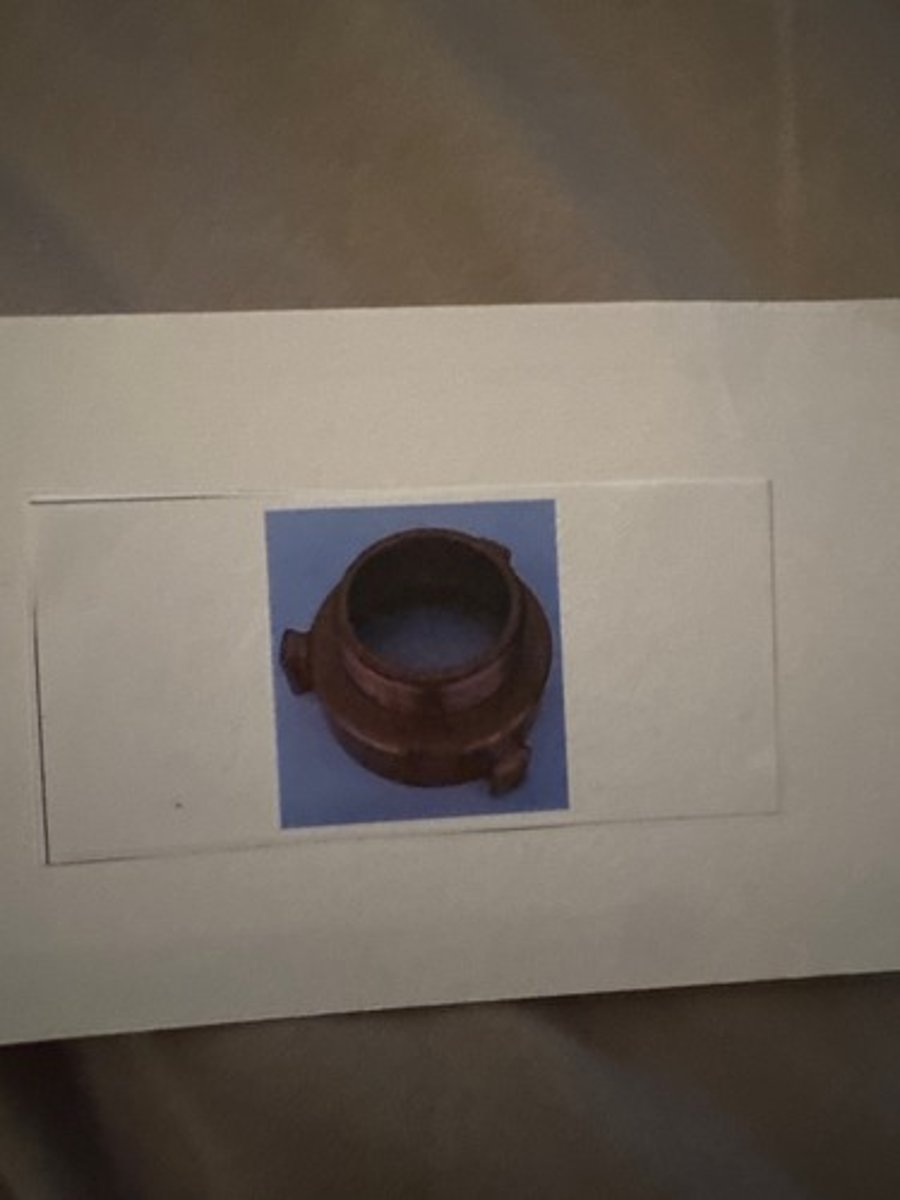

Reducer 3" - 2 1/2"

- Connects an officer's wye to standpipe outlet

- Connects Federal, Gorter circulator and wood cellar nozzle to shorty

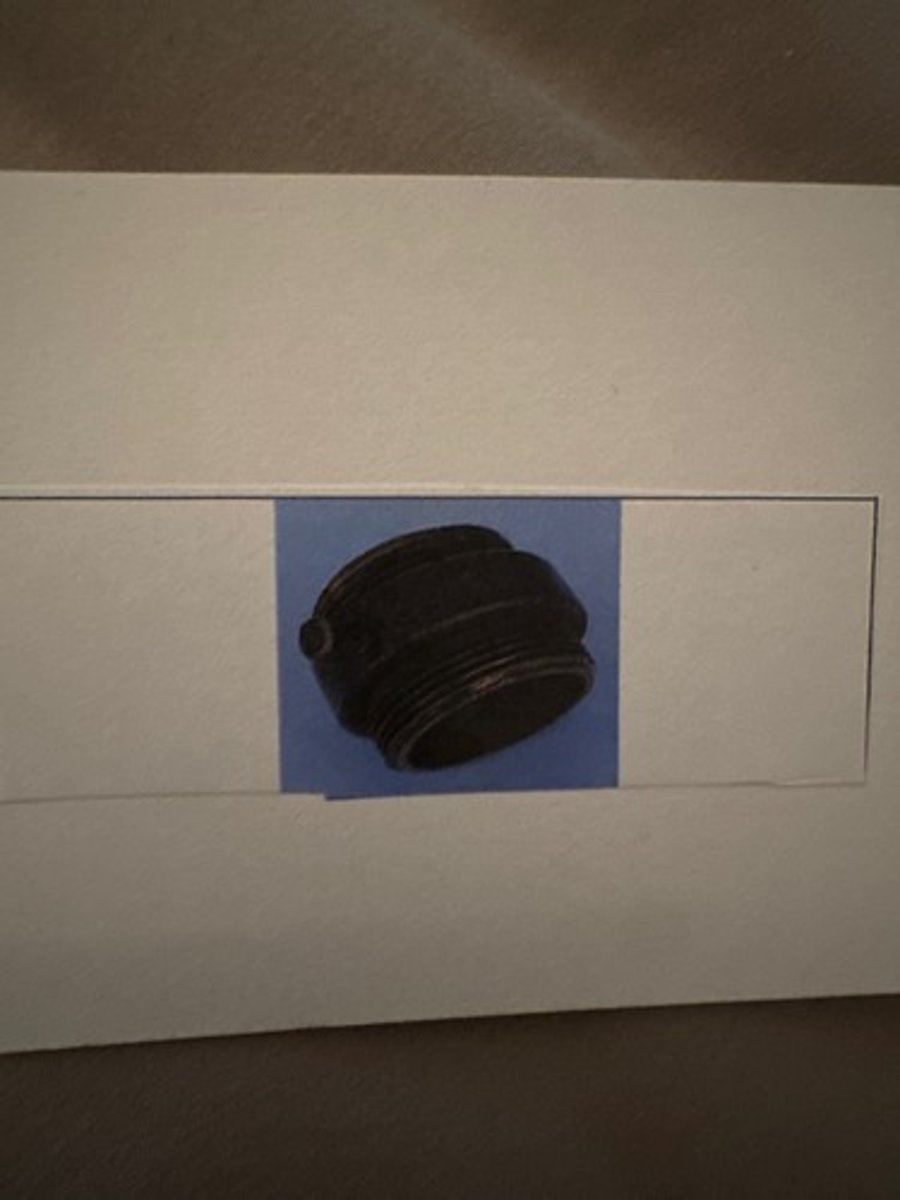

Double male 3"-3"

- Connects two 3" female couplings

- Connects 3" supply line to standpipe inlet in reverse lead to a standpipe

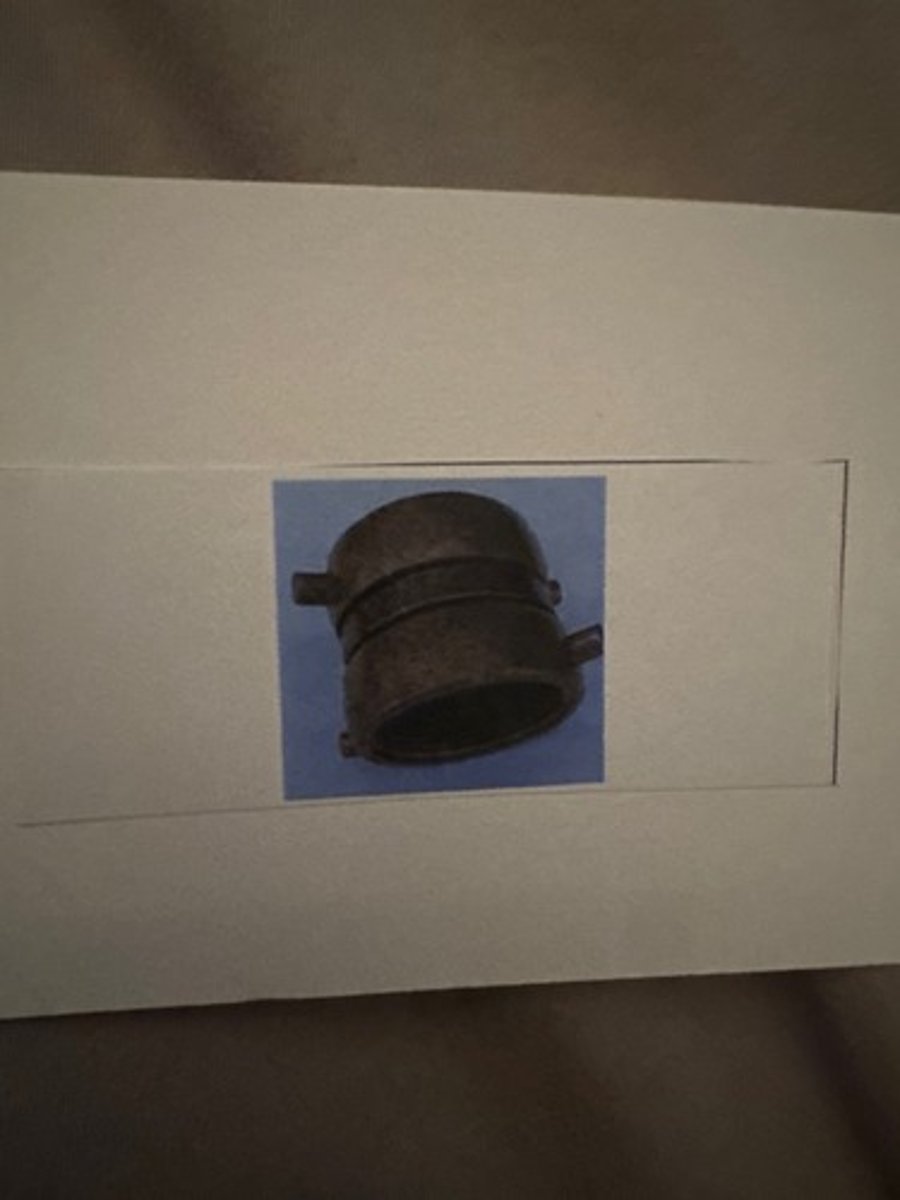

Double female 3"-3"

- Connects two 3" male couplings

- Connects to outlet for a reverse lead to a standpipe

- Connects male to Navarro intake

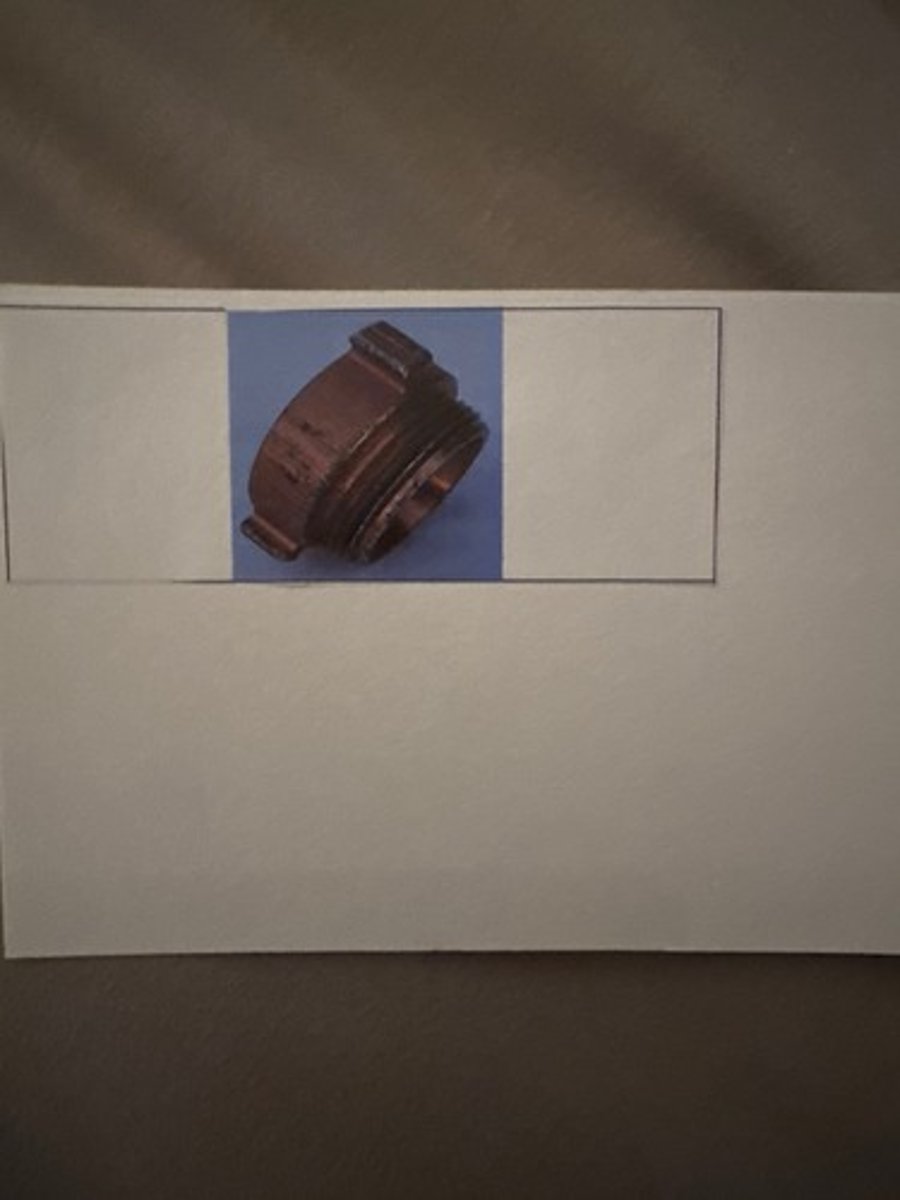

Increaser 2 1/2" - 3"

- Connects a Gorter to a 3" hose or appliance

- Connects a Gorter to standpipe inlets

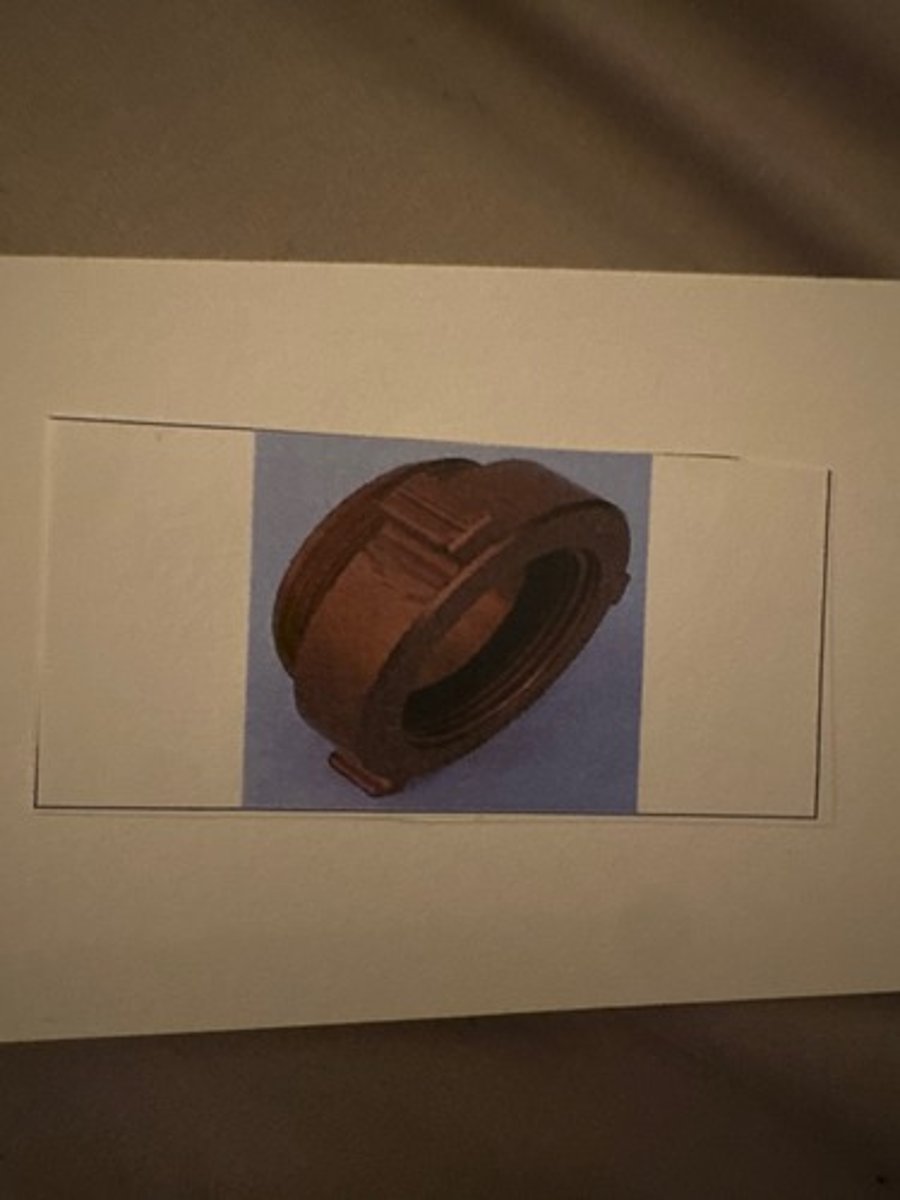

Increaser 3" - 3 1/2"

- Used to connect Gleeson to LPH for testing/drill

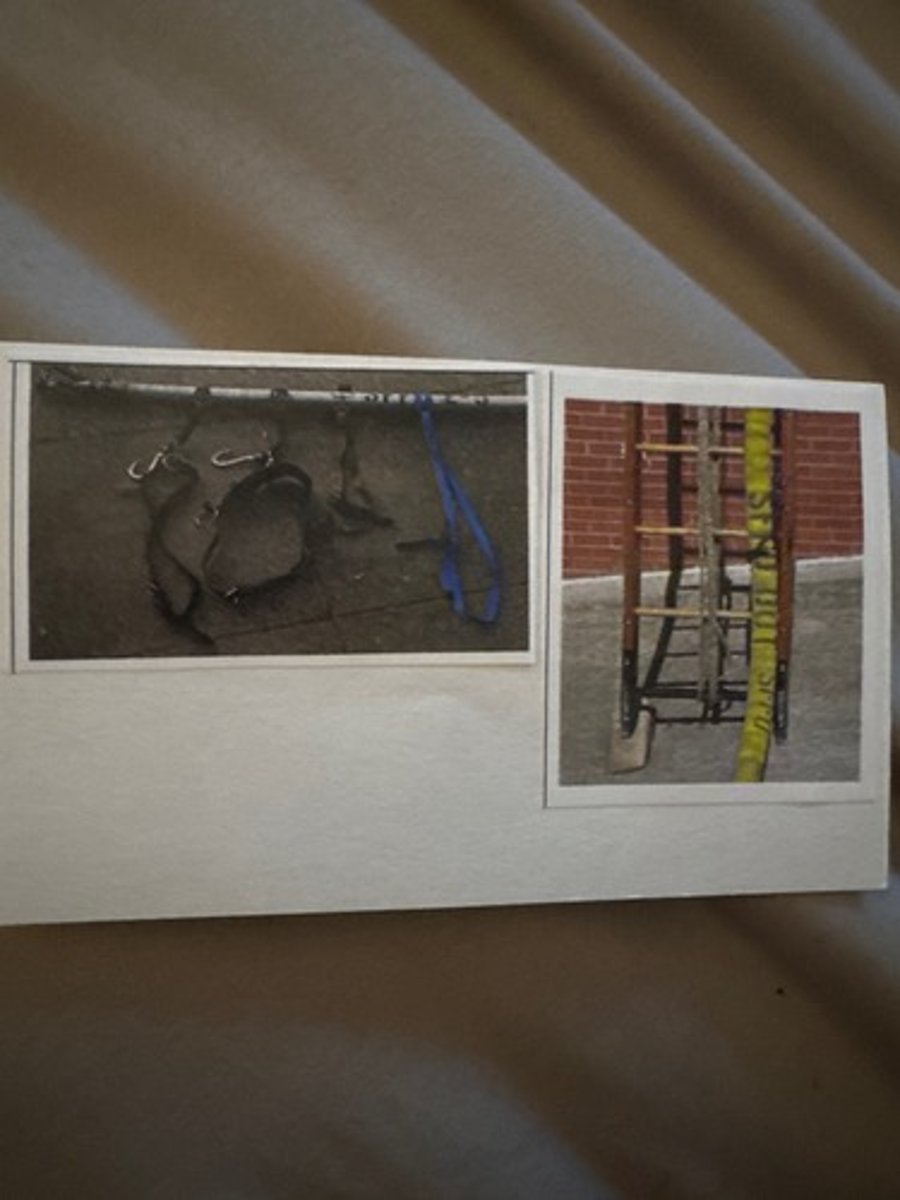

Hose Strap

- Used for advancing and securing hose

- Used to secure hose to ladders

- Carried on a truck belt

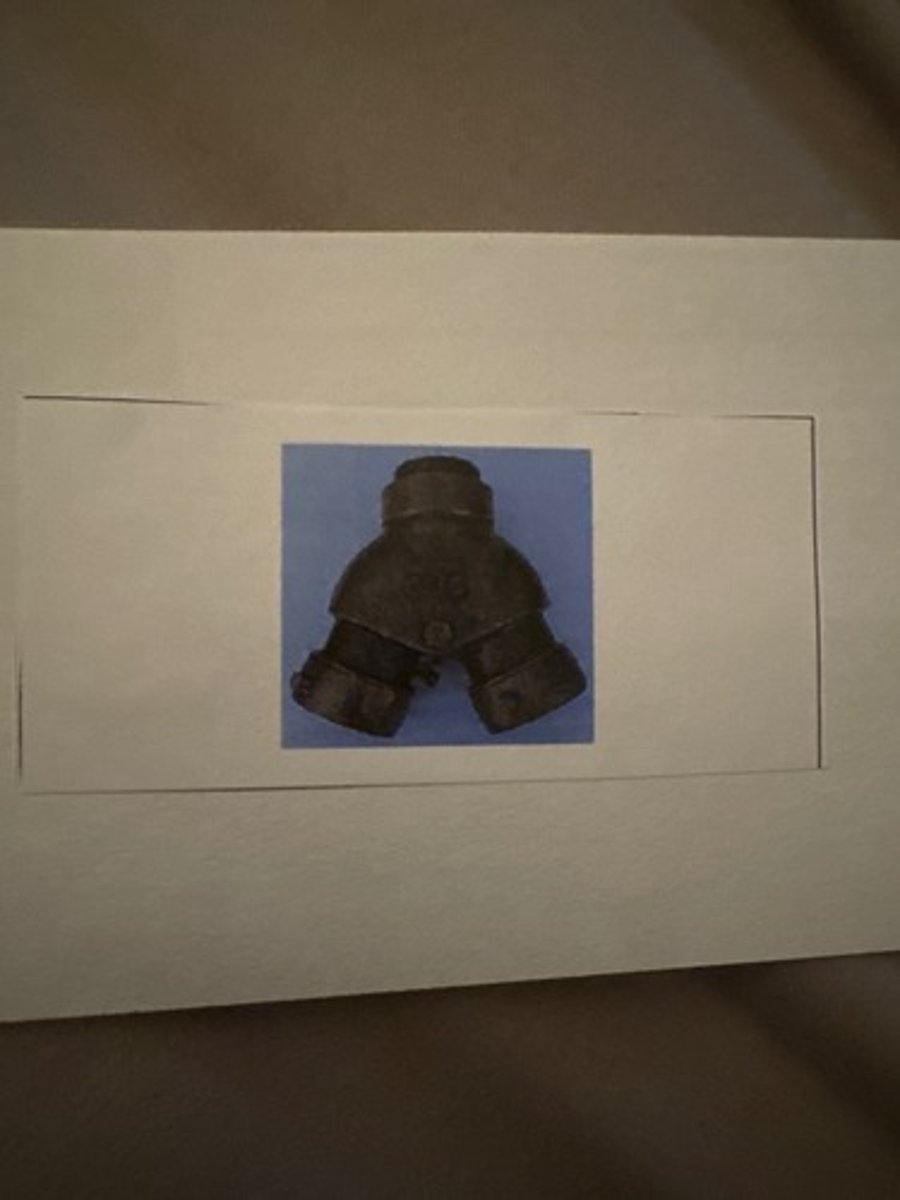

Clappered Siamese 3"-3"

- Part of the Hydrant Jumper

- Facilities 2nd due engine to take over water supply control from 1st due engine connected to LPH

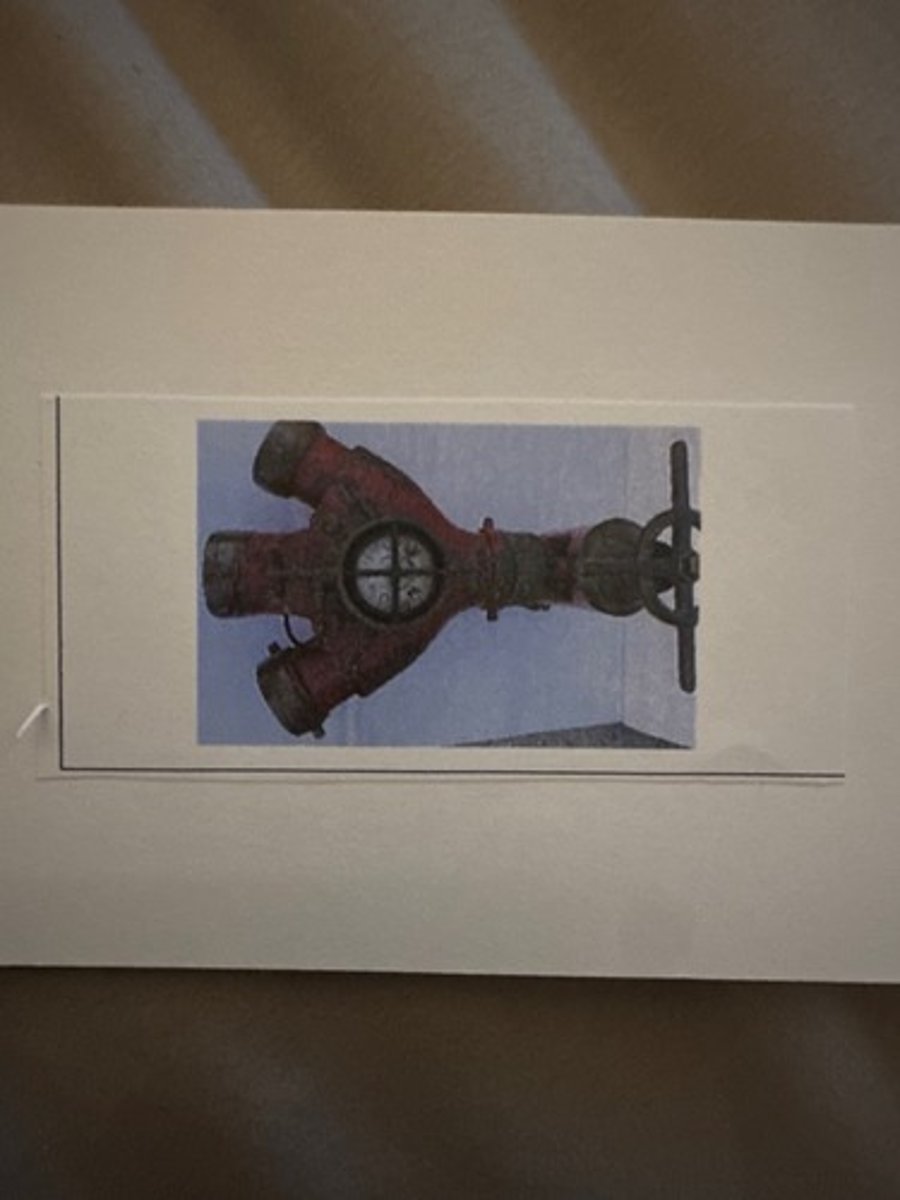

Truck Siamese 3"-3"

- Used to supper aerial ladder nozzle

- Carried on trucks

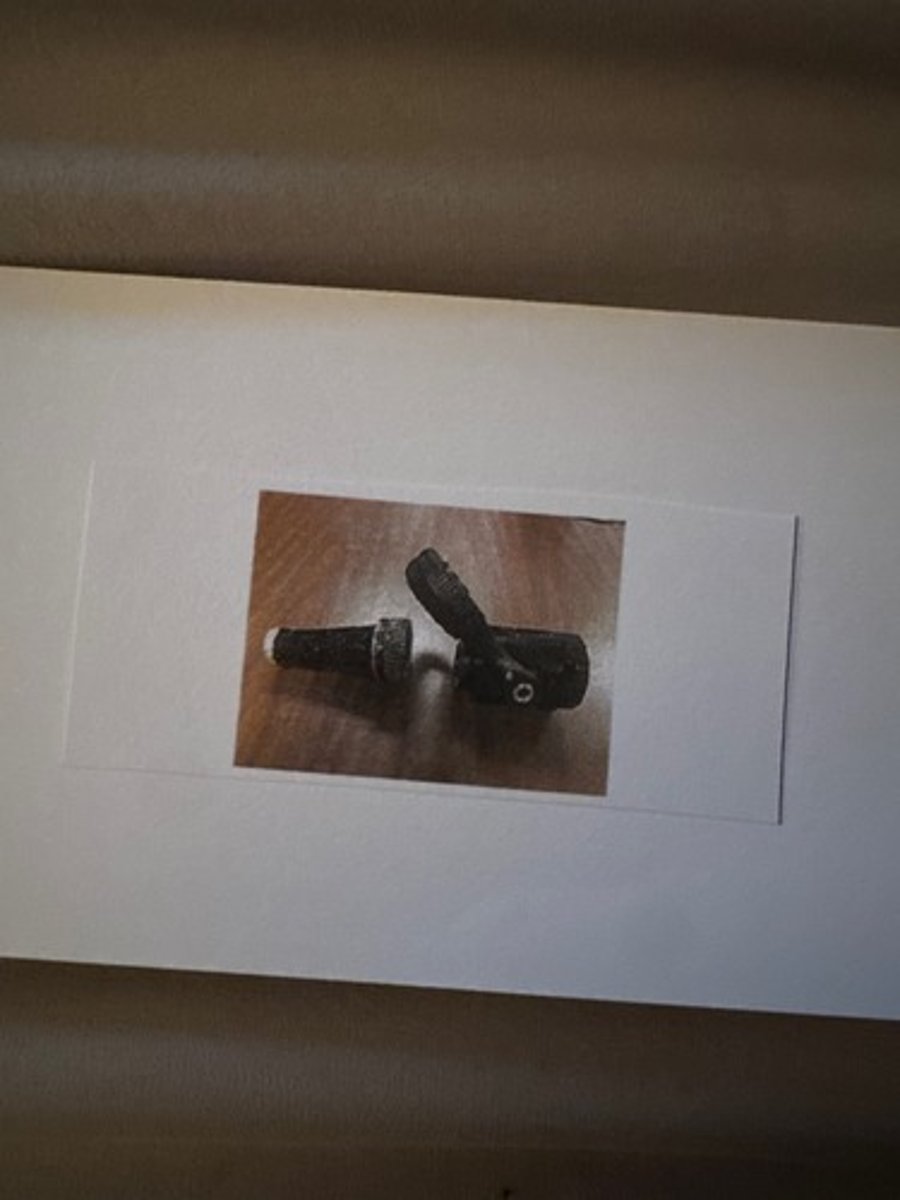

1 3/4 Nozzle

- Used for interior fire attack

- 7/8 Bore tip

- 1 1/2 Bale

- Found in Ready lines and high rise bundles

- Shut off is a ball-type shutoff that operates by pulling the bale backward to open and pushing the bale forward to close

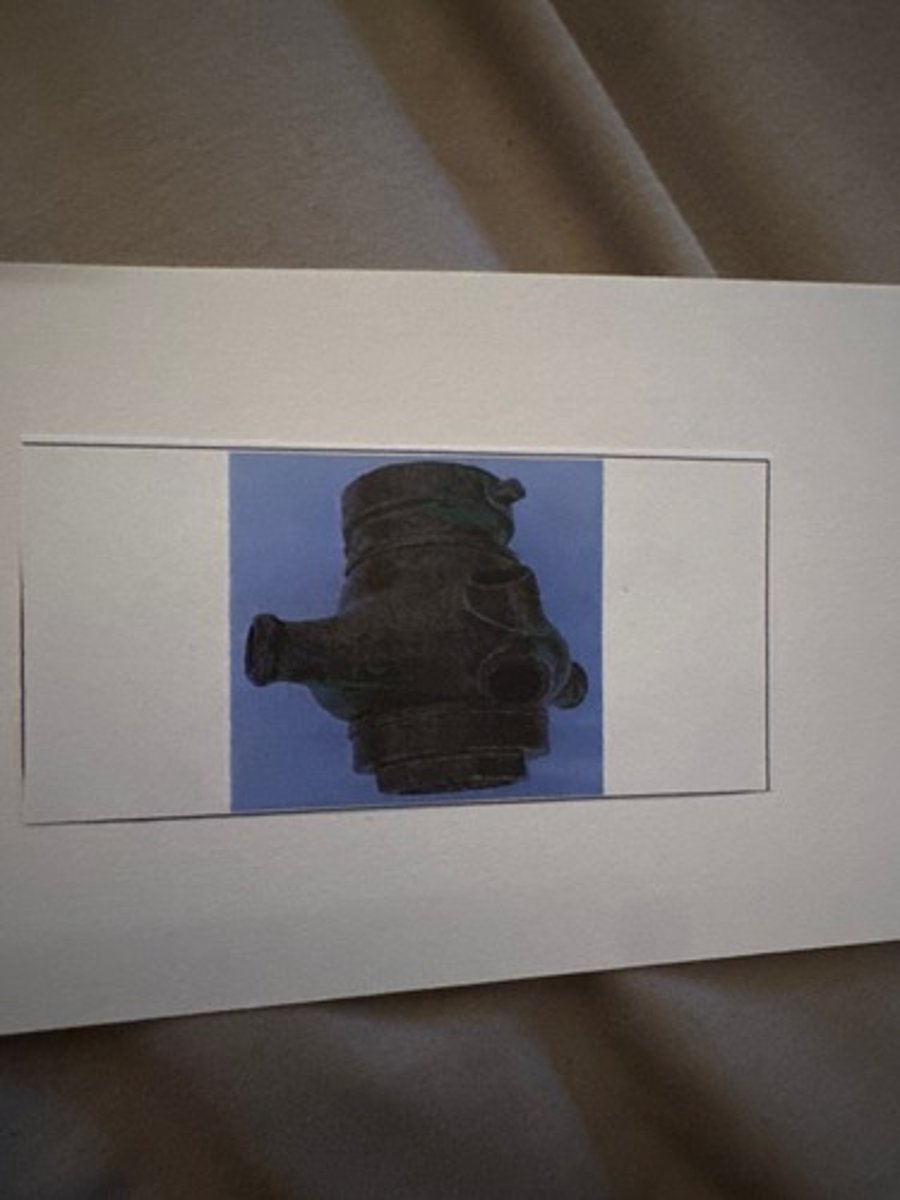

Gorter Circulator 2 1/2"

- Has two 7/8" orifices and four 3/4" orifices

- Used for below grade fires and attic fires with obstructed access

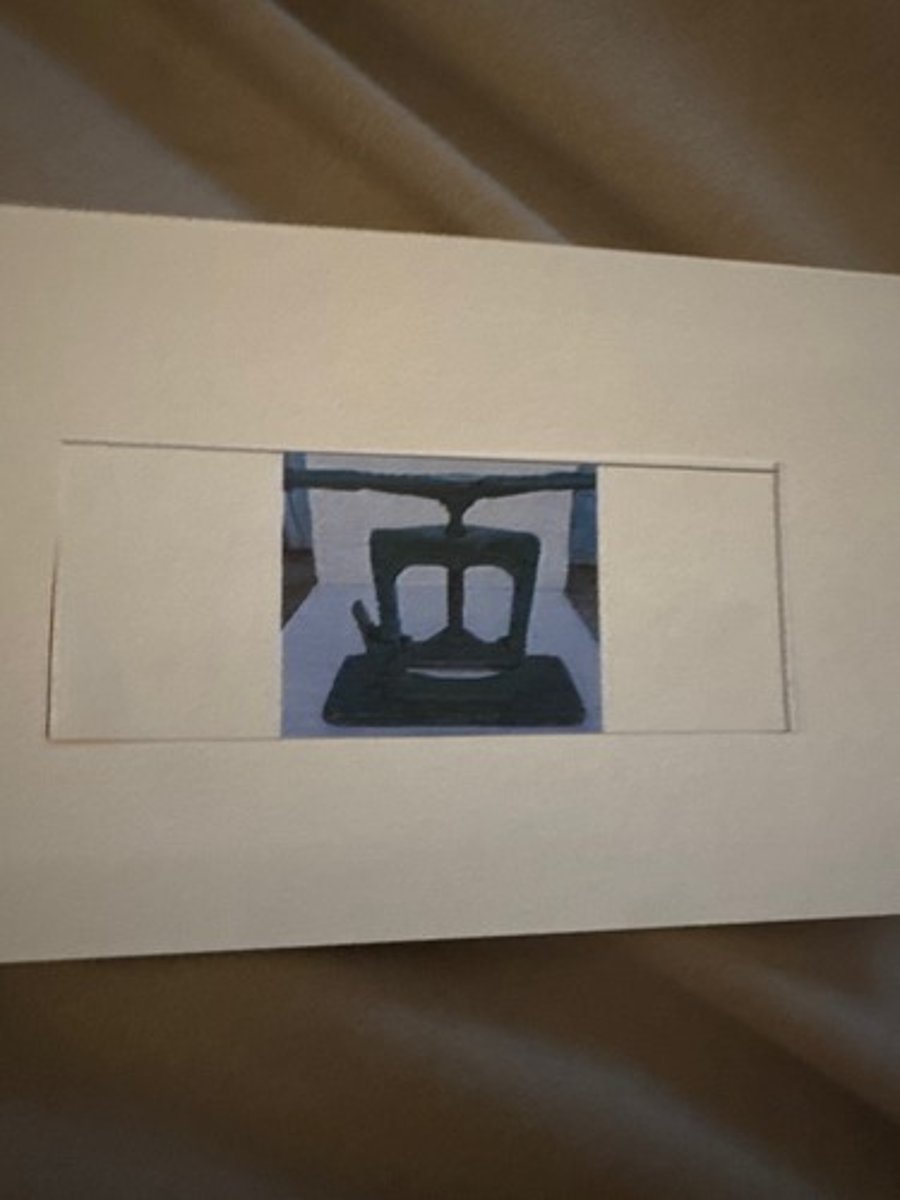

Herbert Hose Clap

- Used to stop the flow of water in hose up to 3" in diameter

- Used with the Hydrant Jumper

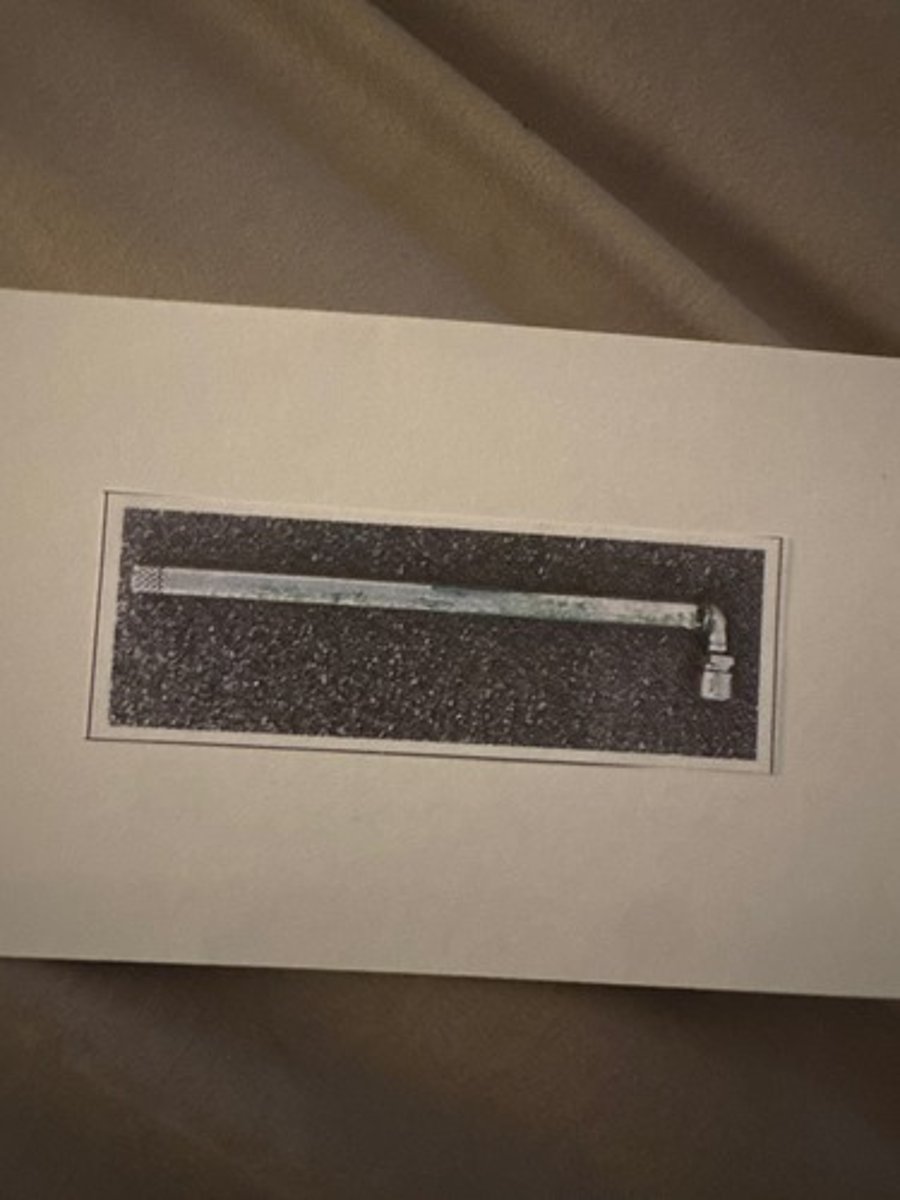

Wood Cellar Nozzle 2 1/2"

- Used for low grade fires and can be unattended

- Carried on trucks

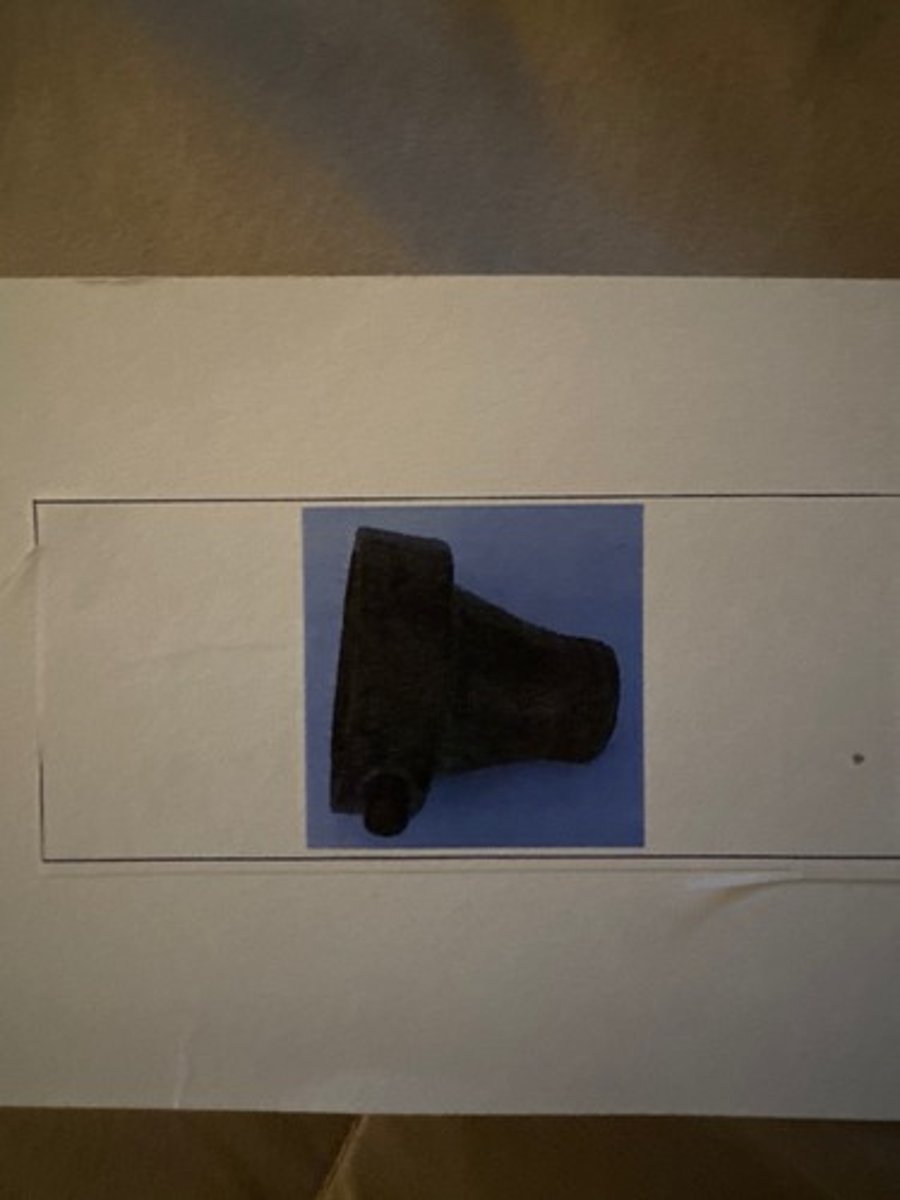

Bell Reducer 3" - 1 1/2"

- Can be attached directly to LPH to attach a small line for washdown/decontamination

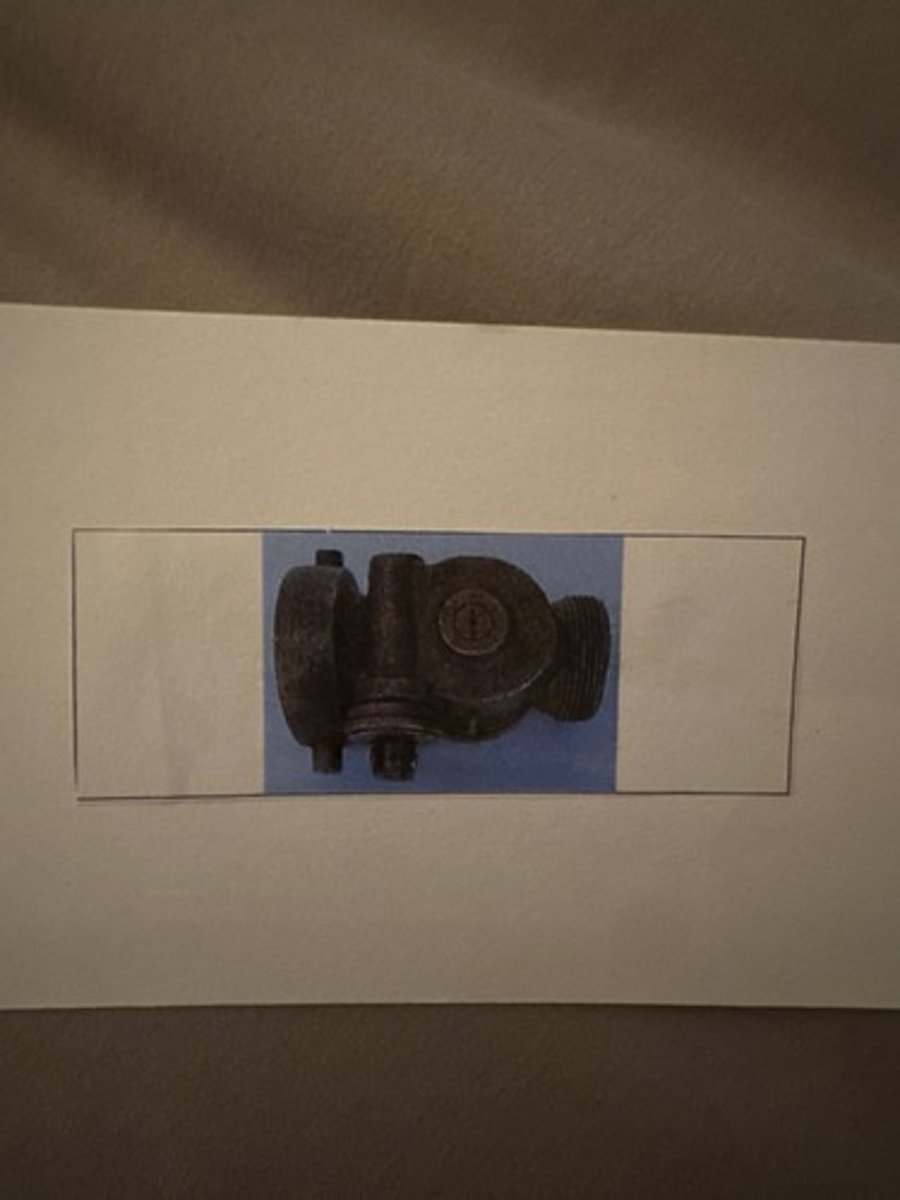

Gorter Shutoff 3" - 2 1/2"

- Used on 3" attack hose with a gated wye

- Standpipe controlled lead
