Human Anatomy Midterm AAAAAAAAAAAa

Label A

Cytoskeleton

Label E

Smooth ER

Name

Simple Cuboidal epithelium

Label

Pseudostratified columnar epithelium

Label

Stratified squamous epithelium

Label

Simple columnar epithelium with villi on it

Label

Loose connective tissue

Label

Adipose tissue

Label

Hylaine cartilage

Label

Simple squamous epithelium

Label

Dense Regular Connective Tissue

Label J

Coronal suture

Label K

Frontal bone

Label L

Sphenoid bone

Label M

Nasal Bone

Label O

Lacrimal bone

Label Q

Zygomatic bone

Label P

Maxilla

Label S

Mental foramen

Label R

Mandible

Label A

Temporal process of zygomatic bone

Label B

Zygomatic process of temporal bone

Label I

Styloid process

Label H

Mastoid proccess

Label G

External acoustic meatus

Label D

Lambdoid suture

Label E

Occipital bone

Label C

Parietal bone

Label A

Jugular foramen

Label B

Occipital condyle

Label C

Palatine bone

Label D

Foramen magnum

Label A

Crista galli

Label B

Cribriform foramina

Label C

Sella turcica

Label D

Lesser wing of sphenoid bone

Label E

Greater wing of sphenoid bone

Label A

Cervical curve

Label B

Thoracic curve

Label C

Lumbar curve

Label D

Sacral curve

Label E

Coccygeal curve

What is this?

C1 of 7 vertebrae in the cervical spine. Called the atlas. Is right above the axis

What is this?

C2 the axis. The thing being pointed to is the dens

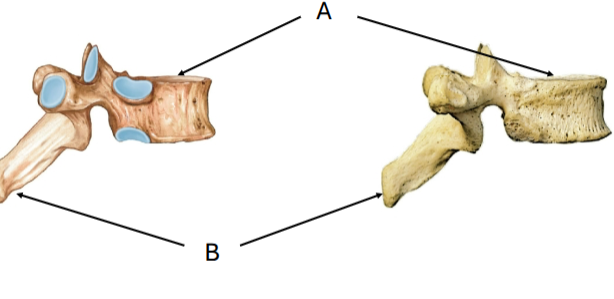

Label A

Body of thoracic vertebrae

Label B

Spinous process of thoracic vertebrae

Label A

Transverse process of lumbar vertebrae

Label B

Pedicle of lumbar vertebrae

What are A and B

A is the sacrum with 5 fused sacral vertebrae and then B is the coccyx which is 3-5 fused coccygeal vertebrae

Label A

Manubrium of sternum

Label B

Body of sternum

Label C

Xiphoid process of sternum

Label D

Costal cartilages

Label E

True ribs (1-7)

Label F

False Ribs (8-12)

Label A

Acromion process of scapula

Label B

Glenoid cavity of scapula

Label the lonely arrow

Scapular spine

Label A

Capitulum of humerus

Label B

Trochlea of humeros

Label C

Olecranon fossa

Label D

Head of humerus

Label A

Trochlear notch of ulna

Label D

Olecranon process of ulna

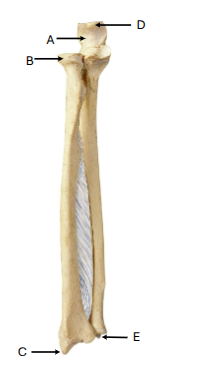

Label B

Head of radius

Label C and E

C is styloid process of the radius and E is the styloid process of the ulna

Label

A is carpal bones, B is metacarpals, C is proximal phalanges, D is middle phalanges, and E is distal phalanges

Label

A is iliac crest, B is ischium, C is ilium, D is Acetabulum, and E is pubic symphysis

Label

A is great trochanter, B is head of femur, C is neck, D is medial condyle and E is lateral condyle

Label

A is fibula, B is tibial tuberosity, and C is medial malleolus

Label

A is calcaneus, B is Talus, C is metatarsals, D is proximal phalanges, and E is distal phalanges

What is this

Skeletal muscle tissue

What is this

Cardiac muscle tissue. Has intercalated disks

What is this

Smooth muscle tissue

Label

A is frontal belly of occipitofrontalis, B is orbicularis oculi, C is orbicularis Oris, and D is sternocleidomastoid

Label

A is occipital belly of occipitofrontalis, B is masseter, C is Buccinator

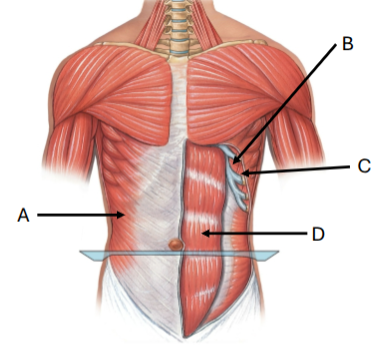

Label

A is External Oblique, B is internal intercostal, C is external intercostal, and D is rectus abdominis

What is this

Transverse cross-section of lumbar region

Label

A is trapezius muscle, B is Latissimus dorsi, C is the deltoid

Label

A is pectoralis major and B is transversus abdominis

What’s here?

Top left is deltoid, then have pectoralis major. Top right chest is subscapularis, under armpit is teres major

Label

A is supraspinatus and below that is the infraspinatus, B is triceps brachii. On the anterior is the subscapularis

Label

A is the pronator teres, B is flexor digitorum superficialis

Label

Top left is supinator, top right is pronator, bottom is pronator quadratus

Label

A is flexor Carpi ulnaris and B is extensor digitorum

Label

A is iliopsoas, B is rectus femoris, C is adductor longus, D is gracilis, E is the sartorius

Label

A is tensor fasciae latae, B is Gluteus maximus, C is Biceps femoris

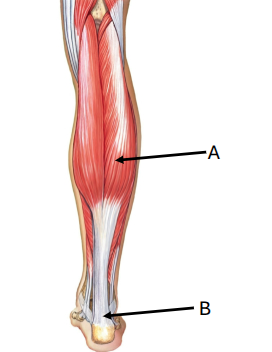

Label

A is Gastrocnemius, B is calcaneal tendon

Label

A is tibialis anterior and B is extensor digitorum longus

Label

A is frontal lobe, B is occipital lobe, C is cerebellum, D is Pons, E is medulla oblongata, F is midbrain

Label

A is Superior sagittal sinus, B is arachnoid granulation, C is arachnoid mater, and D is pia mater

Label

A is corpus callosum, B is thalamus, C is hypothalamus, D is pons, E is medulla oblongata, and F is the midbrain

What are four primary tissue types?

Epithelial covers things, connective, muscle contracts, and nervous is used with stimuli

Function and where is simple squamous epithelium?

Used for rapid diffusion and filtration, in capillary walls and lines vessels

Functions and where is simple cuboidal epithelium?

Used for secretion and absorption in kidney tubules and glands

Functions and where is simple columnar epithelium?

Absorbs and secretes mucus and digestive stuff. In stomach and intestines

Functions and where is pseudostratified columnar epithelium?

Secretes and propels mucus using the cilia. Is in nasal cavity and trachea

Functions and where is non-keratinized stratified squamous epithelium?

Protects against abrasion, water loss, and microbes. On outer layer of skin and in mouth

Functions and where is transitional epithelium?

Allows for stretching of urinary organs

What is apical surface

Top of epithelial cell that faces either the organ’s inside or the outside environment
