photostimulable phosphor (PSP) screen construction

0.0(0)
Studied by 0 people
call kaiCall Kai
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/9

encourage image

There's no tags or description

Looks like no tags are added yet.

Last updated 7:32 AM on 10/2/26
Name
Mastery
Learn
Test
Matching
Spaced
Call with Kai
Chat

No analytics yet

Send a link to your students to track their progress

10 Terms

1
New cards

what is the photostimulable phosphor (PSP) screen housed inside?

the image plate (cassette)

2
New cards

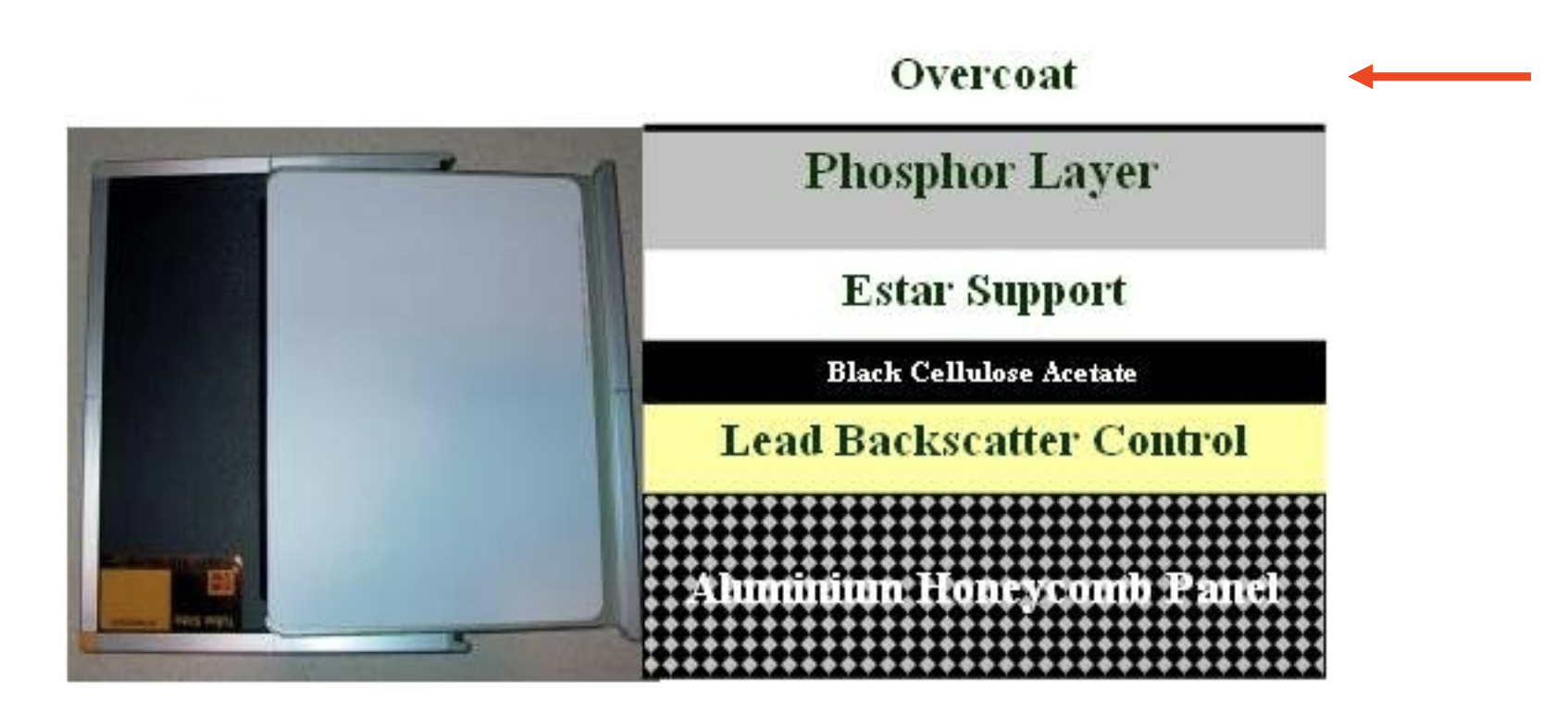

<p>protective layer</p>

protective layer

thin, tough, clear plastic that protects the phosphor layer

3
New cards
<p>phosphor/active layer</p>

phosphor/active layer

photostimulable phosphor that traps electrons

4
New cards

what is the phosphor/active layer made of?

made of phosphors from the barium fluorohalide family

5
New cards

what does the phosphor/active layer contain and why?

light absorbing dye to prevent light spread

6
New cards

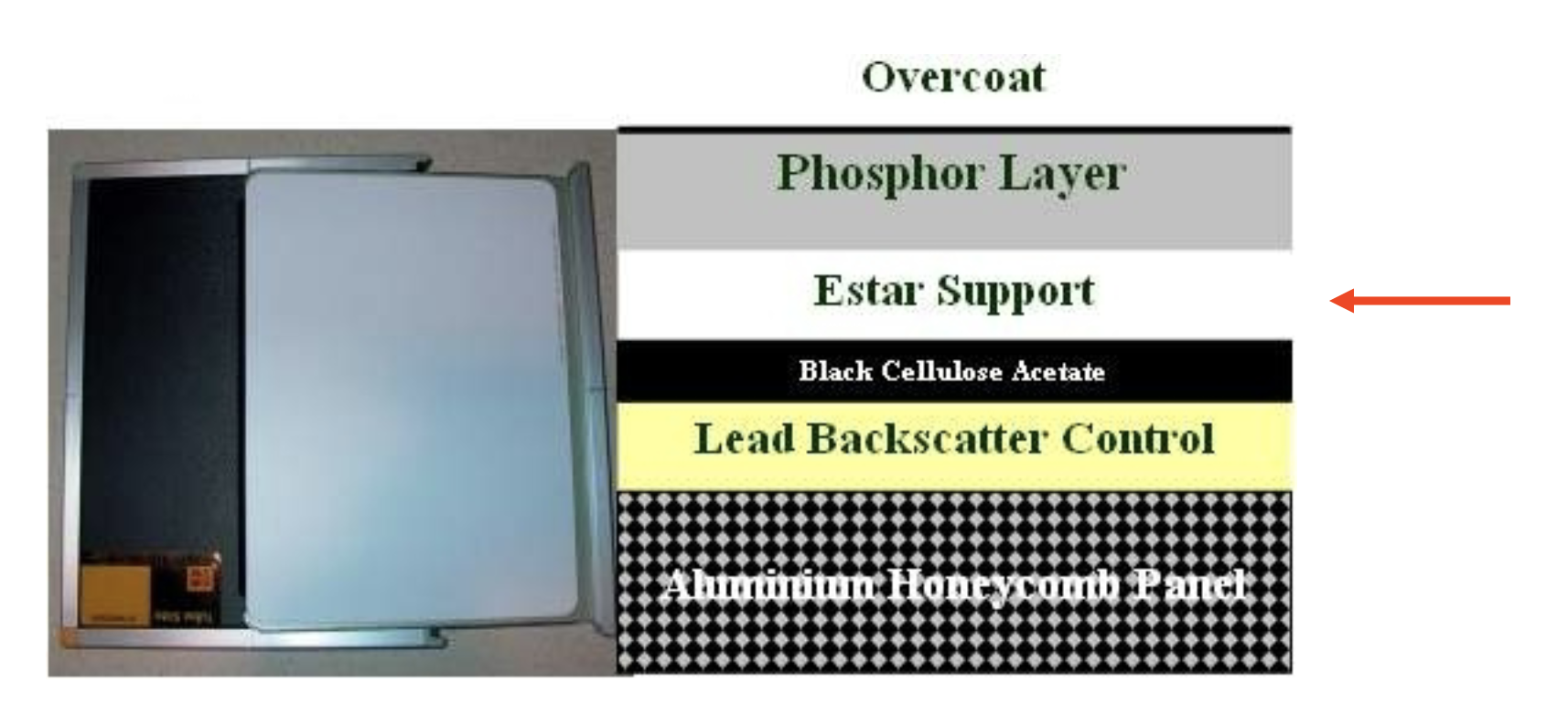

<p>support layer</p>

support layer

semi-rigid material that gives the imaging sheet strength and supports the phosphor layer

7
New cards

reflective layer

sends light in a forward direction when released in the cassette readerd

8
New cards

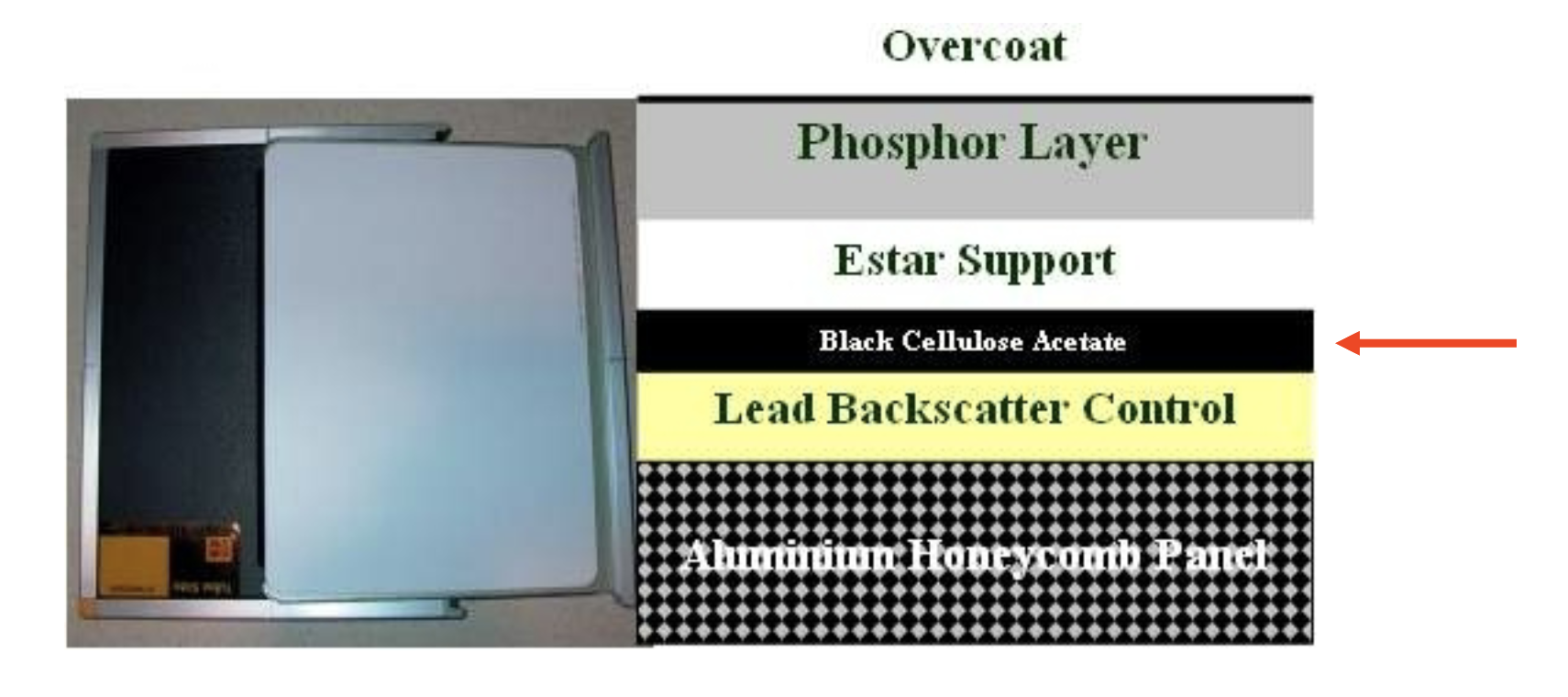

<p>disadvantage of reflective layer</p>

disadvantage of reflective layer

some detail is lost

9
New cards

purpose of lead backscatter control

absorbs backscatter

10
New cards

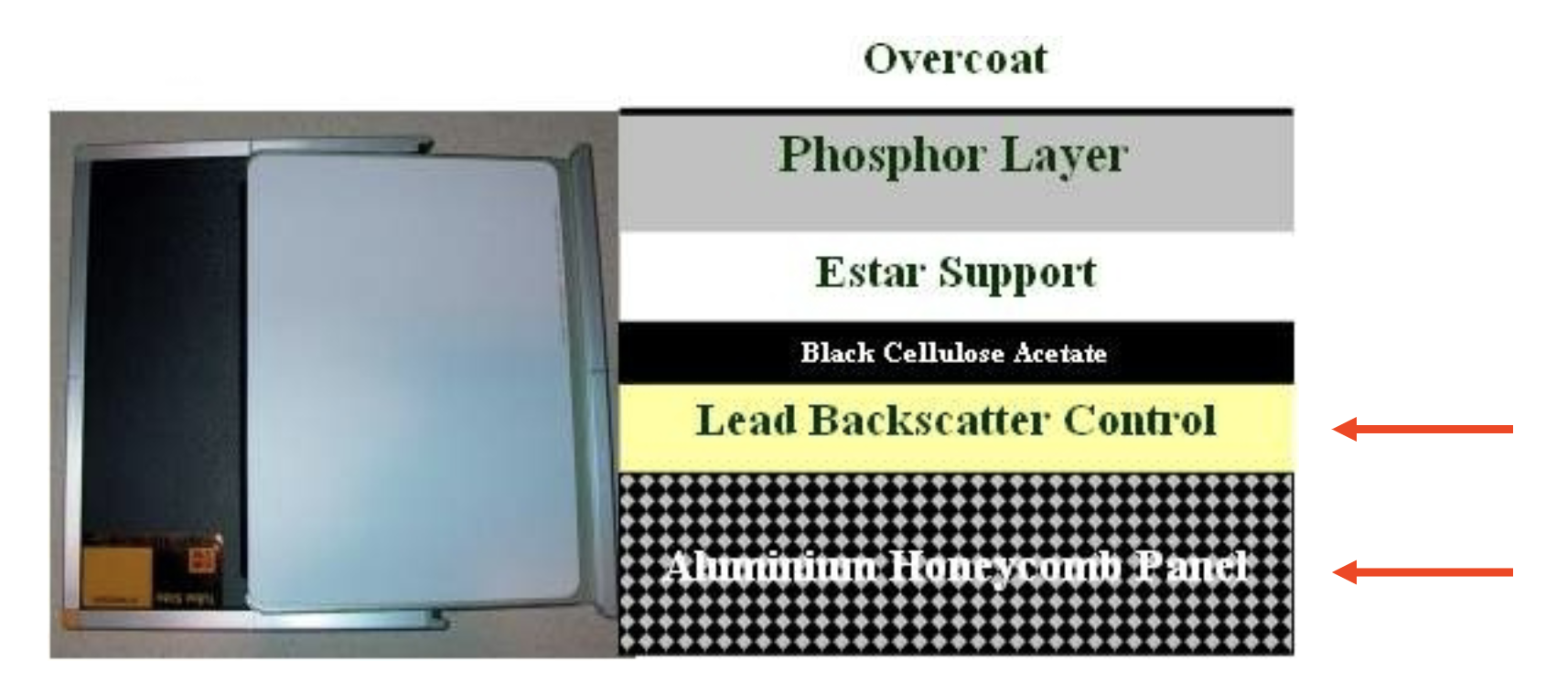

<p>backing layer</p>

backing layer

soft polymer that protects the back of the cassette and also the location of the barcode reader
