TR#14 identify loudspeakers

what does a loudspeaker do?

converts electrical/audio signals into physical energy (acoustic)

what are they made up of

1 or more drivers (optimized for frequency ranges)

what is the crossover where JBL's switch drivers

12 kHz

what is the range of a full range speaker

20 Hz-20 KHz

what is the range of subs

<120 Hz

describe a passive speaker

- needs speaker level signal

- external amp

describe an active speaker

- line level

- need power + signal

- have amp inside

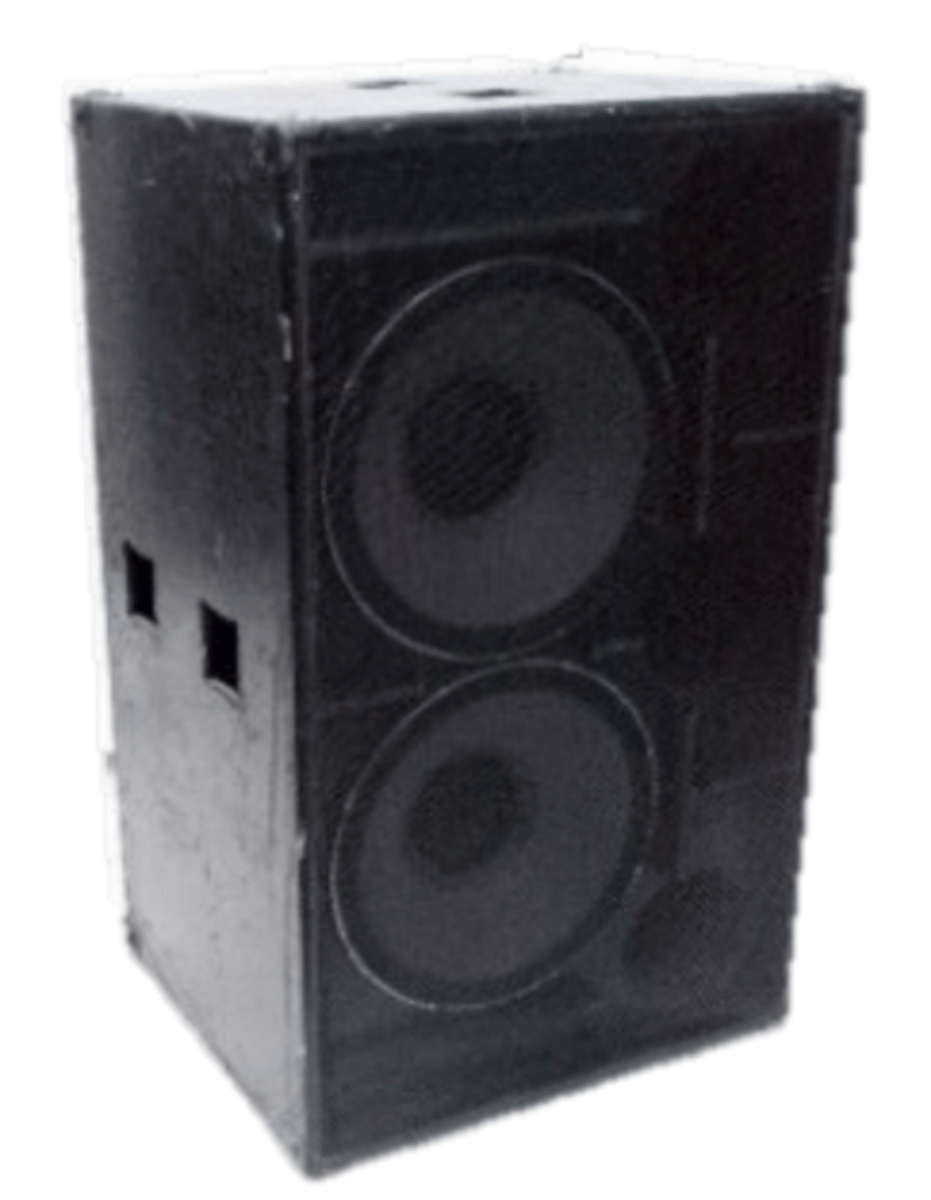

EAWSB528

4 in the dungeon (carts of 2)

- is a sub

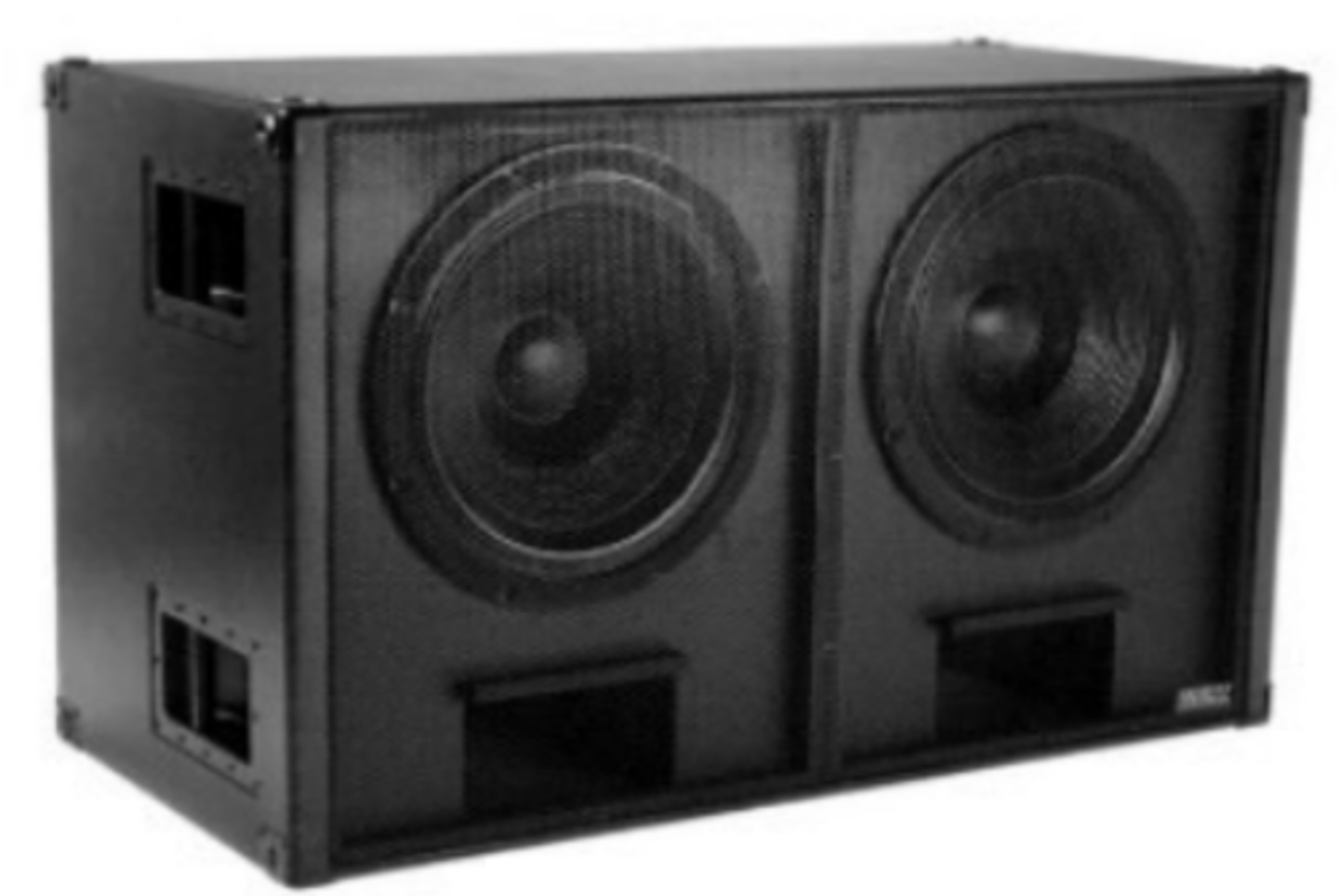

TC218

4 in the dungeon and 4 in the sound room

- sub

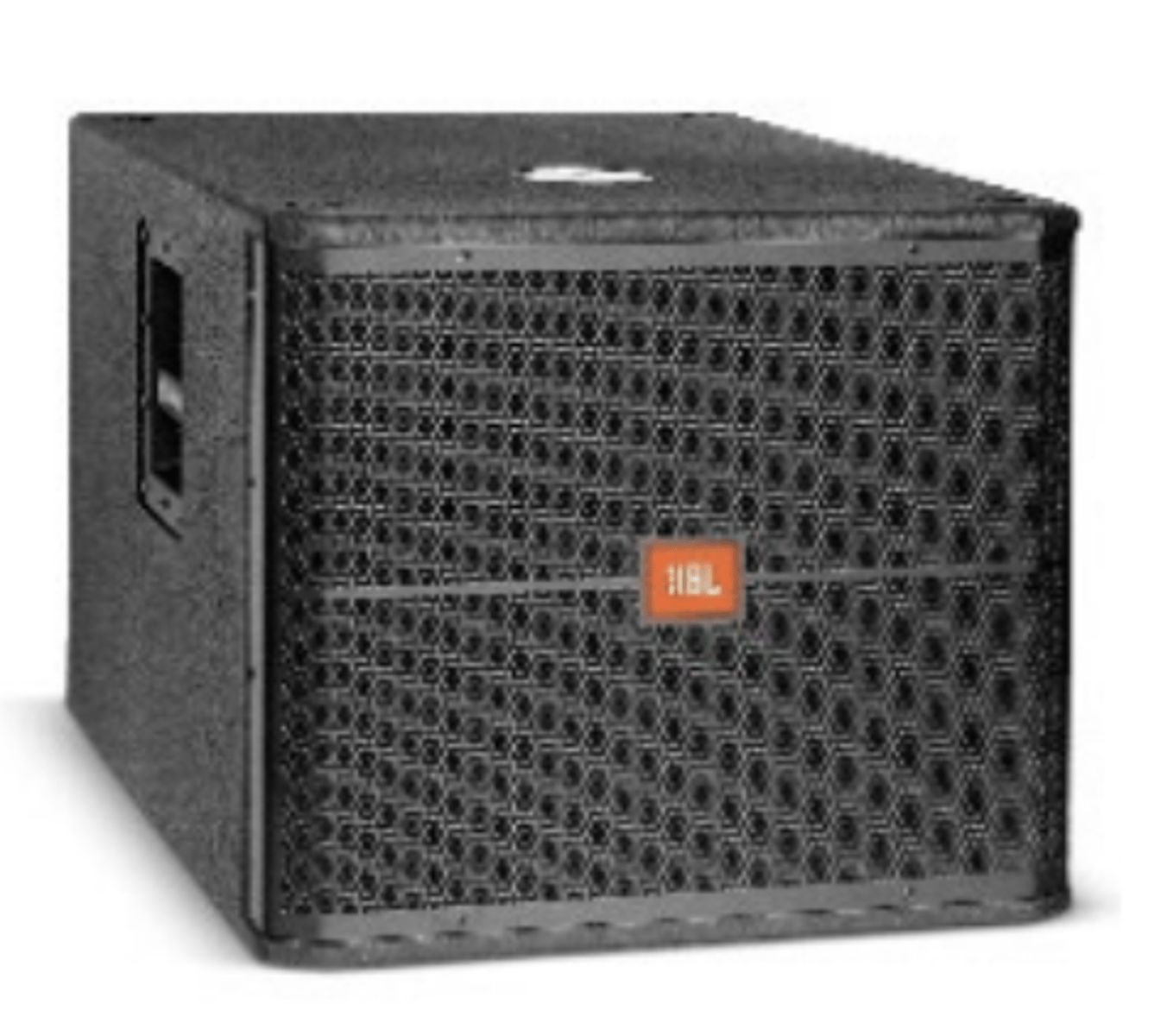

JBL SRX718

4 in dungeon

4 in the sound room

- sub

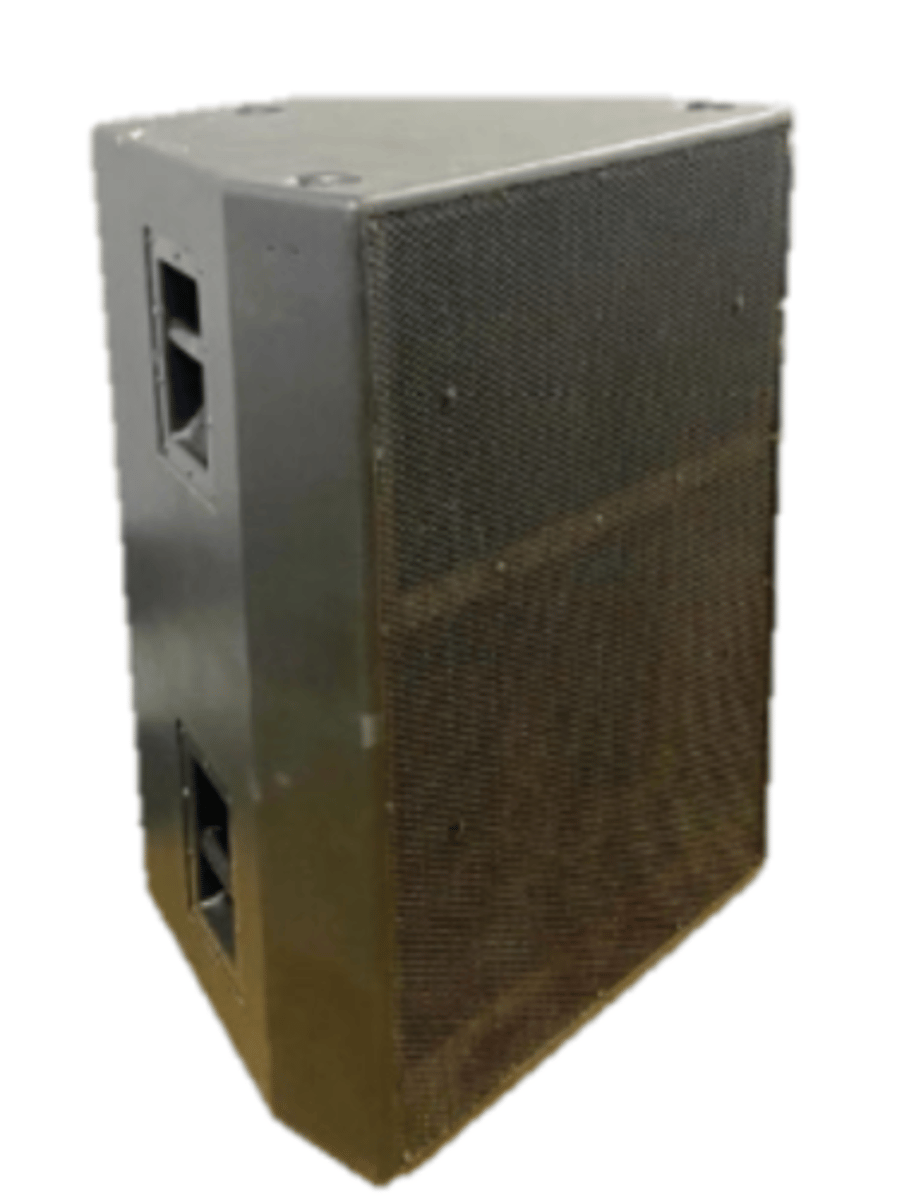

EAW KF695

4 in dungeon and 4 in sound room (both on carts of 2)

Forsythes

4 on bosses stage

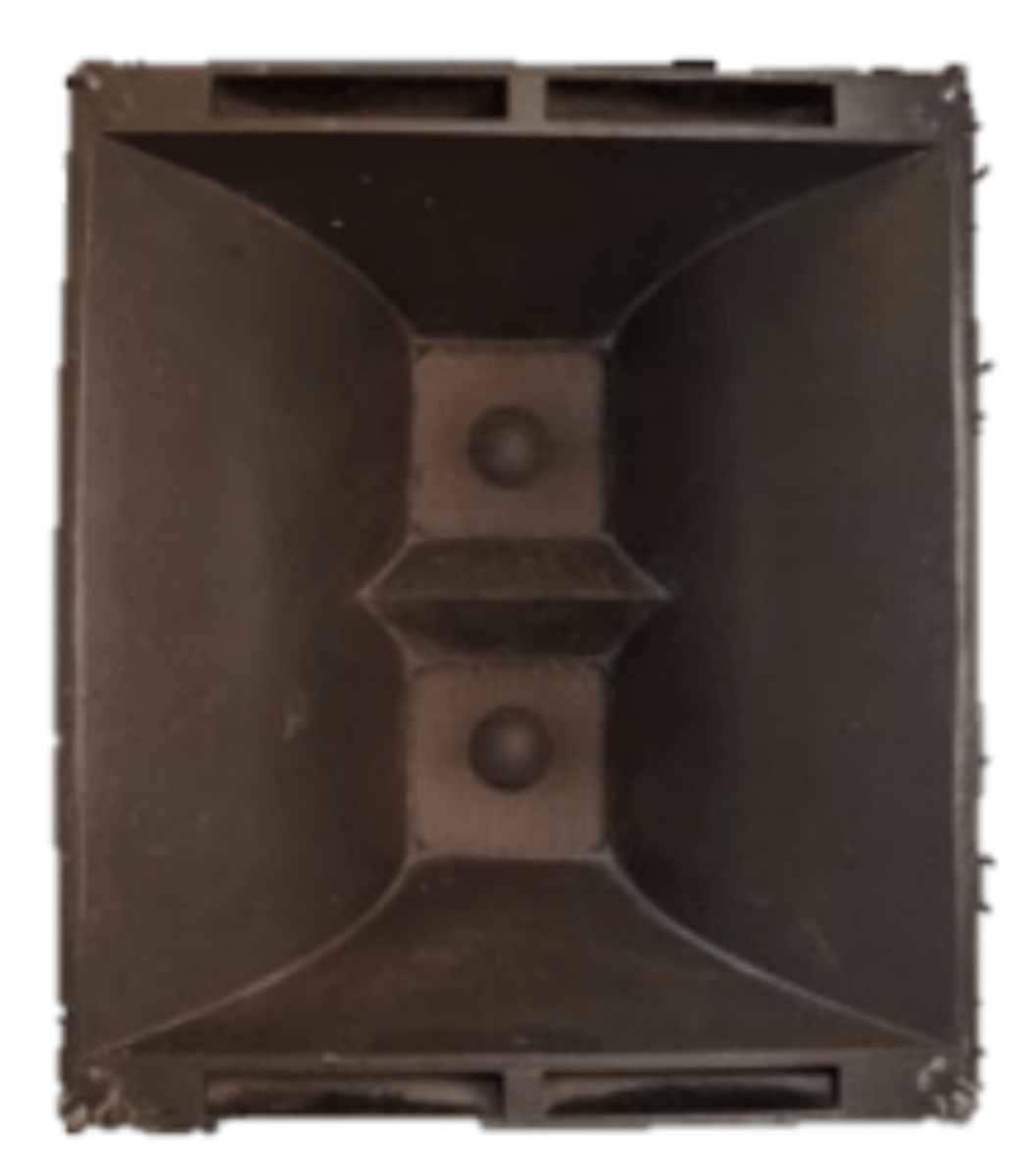

Horns

8 in sound room

- 4 medium (60 x 40)

- 4 short (90 x 40)

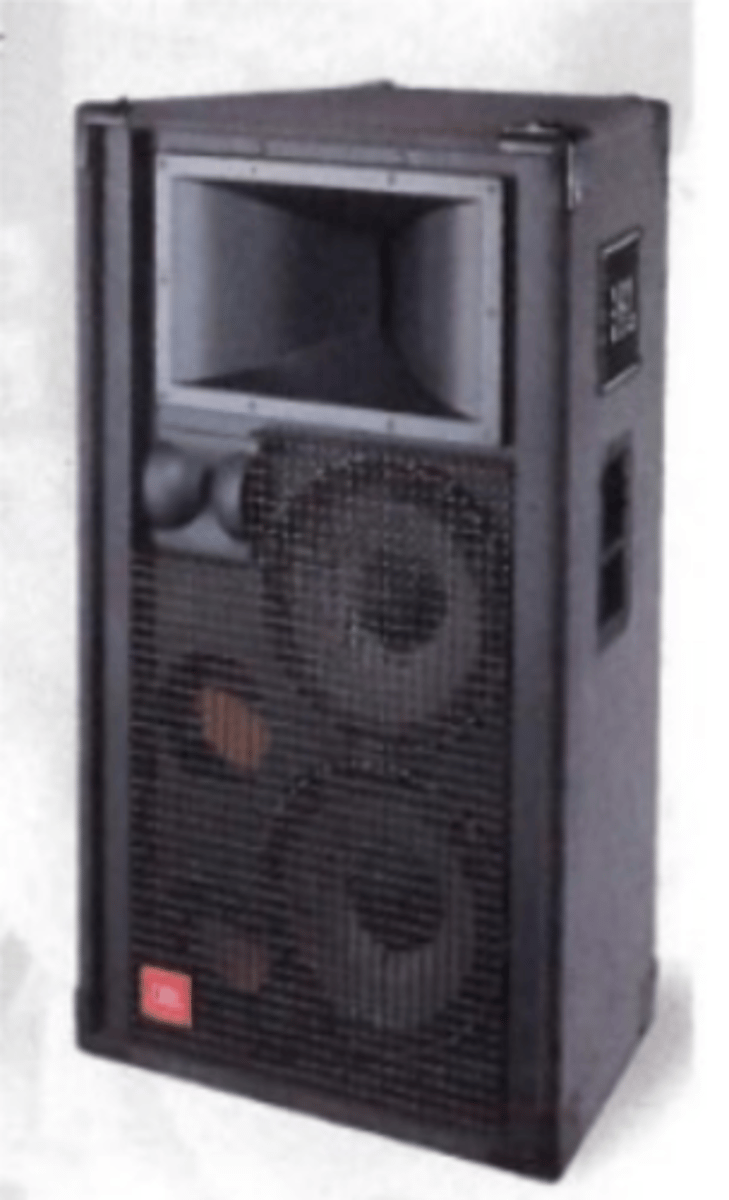

JBL SR4732

2 in the sound room

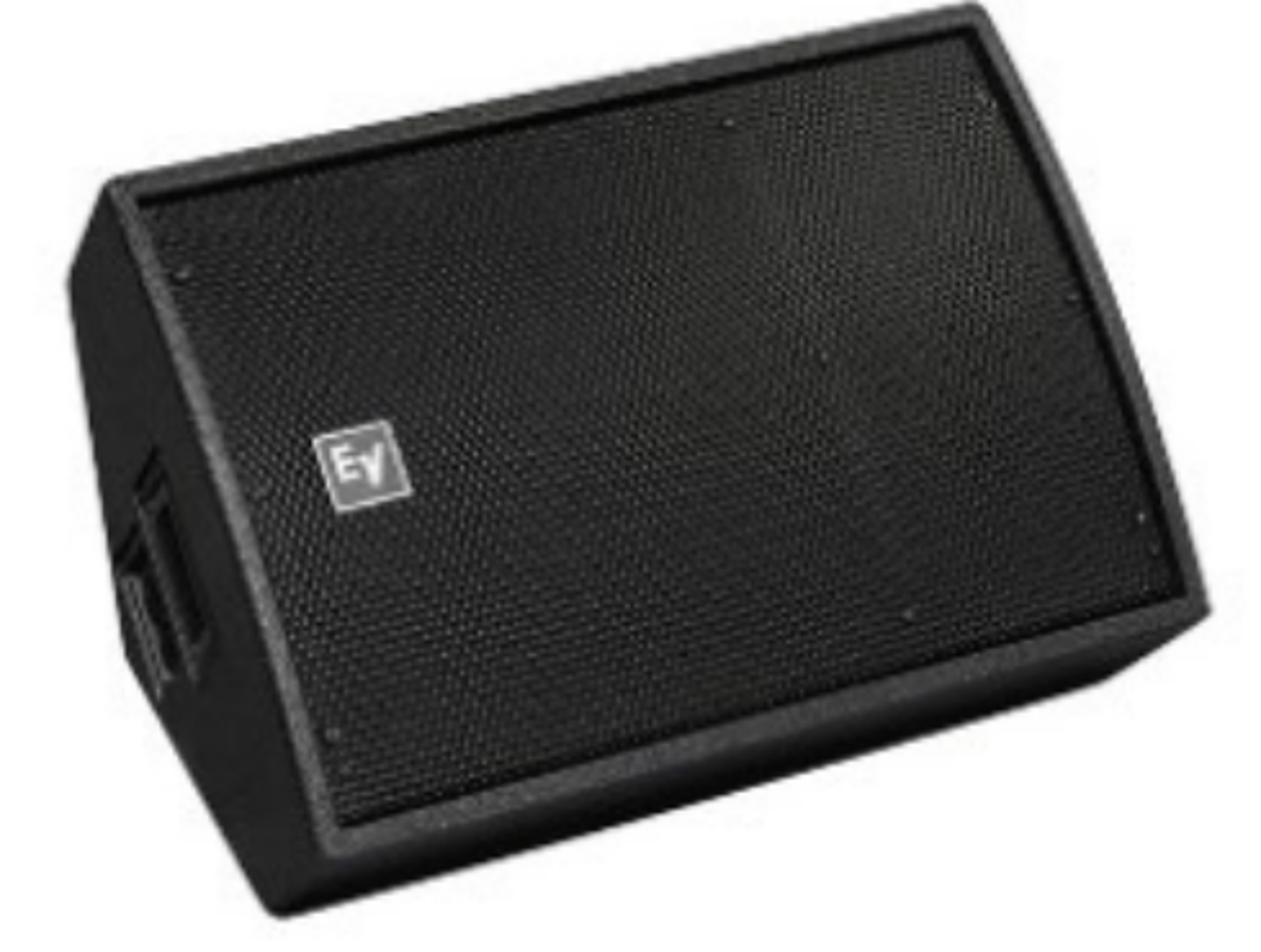

EV XW15A

8 in the dungeon

- called "EV wedges"

- Bi-amp only

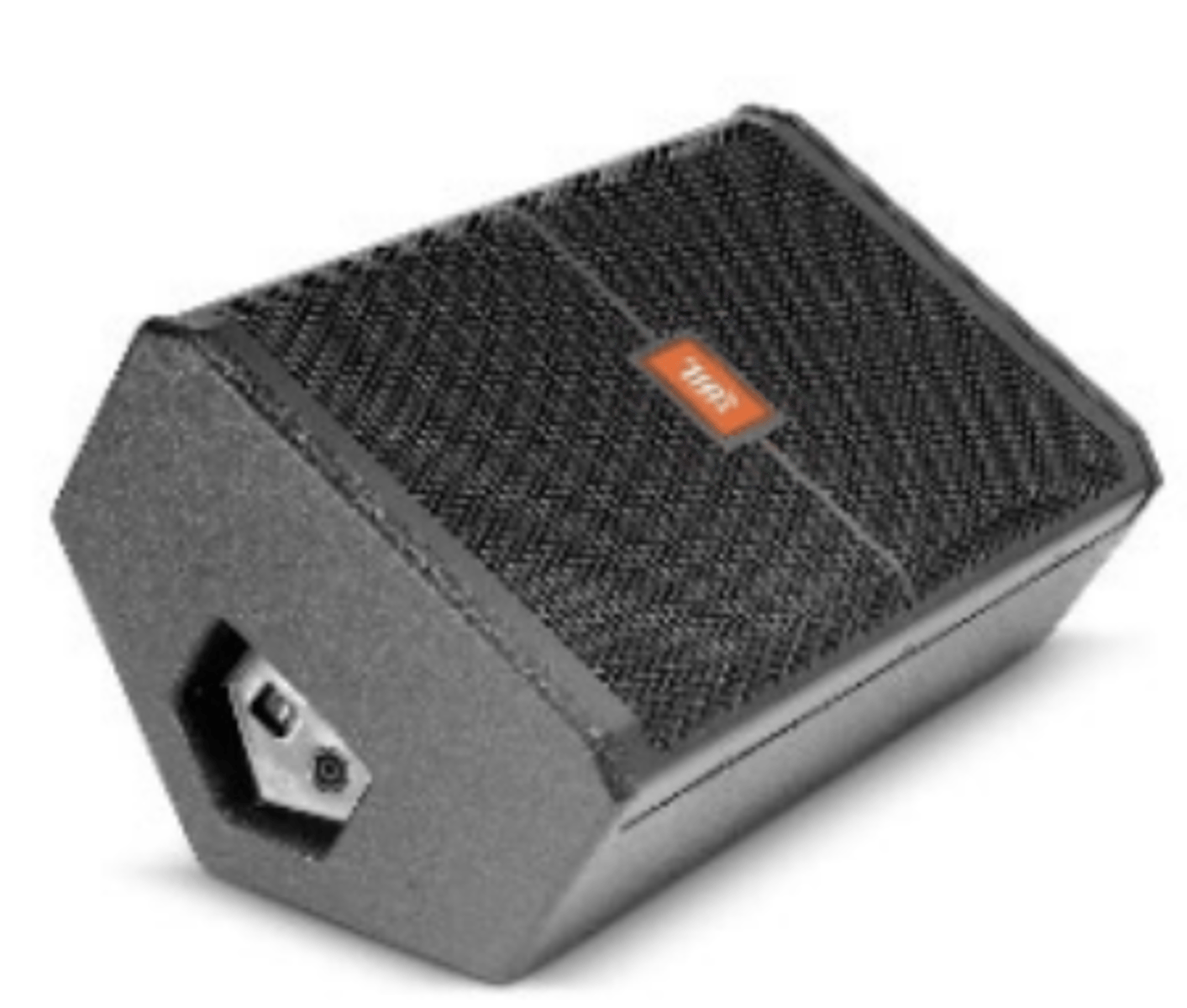

JBL SRX712M

14 in sound room

Yamaha CM15V

- 8 in dungeon

-called yam wedges

RCF TTS36A

4 in dungeon and 4 in GFH

- sub

RCF TTL33A

8 in dungeon

8 in GFH

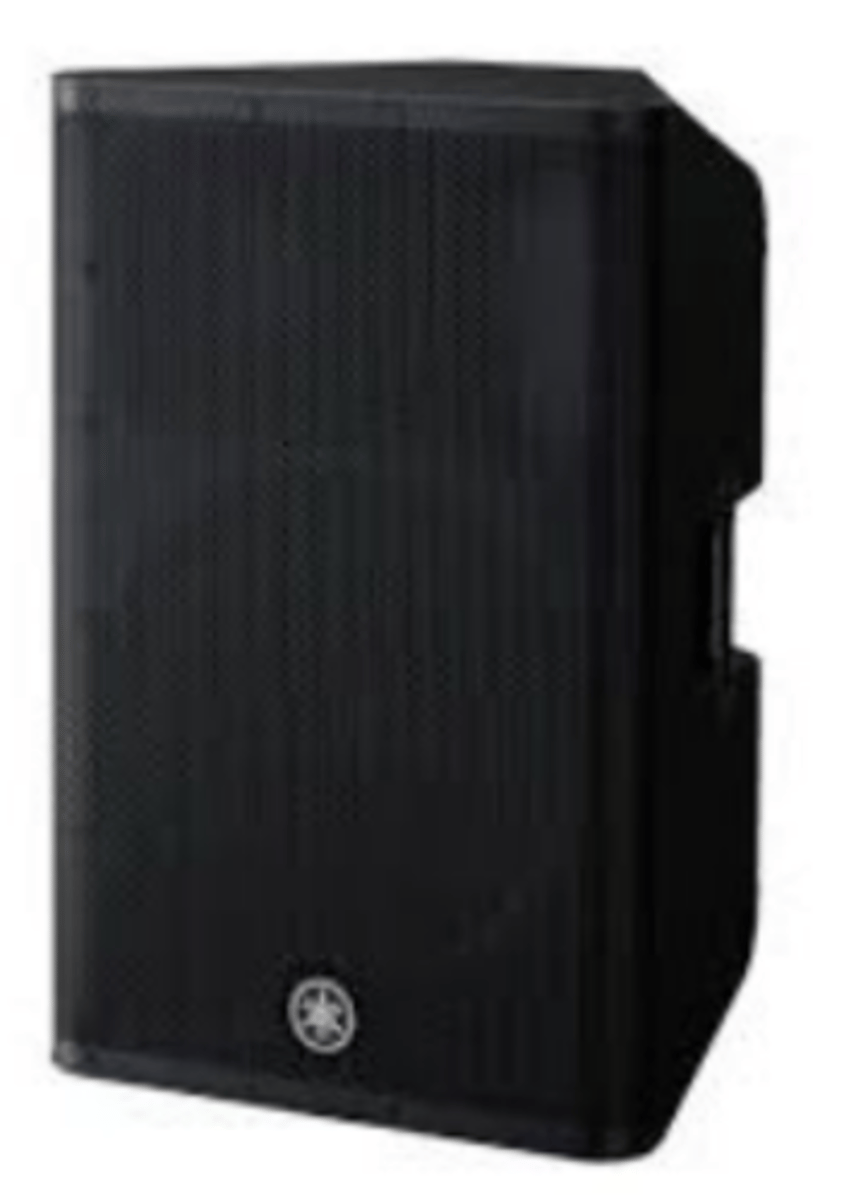

Yamaha DXR15

4 in sound room
