E&E 151 S Introductory Geology: Chapter 7 (Metamorphism) Visualiation Study

Foliation

What is the term/concepts being visualized in this image?

Definition: A planar or layered texture in metamorphic rocks produced when platy or elongate minerals align parallel to one another under differential stress.

Slaty Cleavage

What is the term/concepts being visualized in this image?

Definition: The ability of fine-grained metamorphic rock to split cleanly along flat, parallel planes created by microscopic aligned minerals.

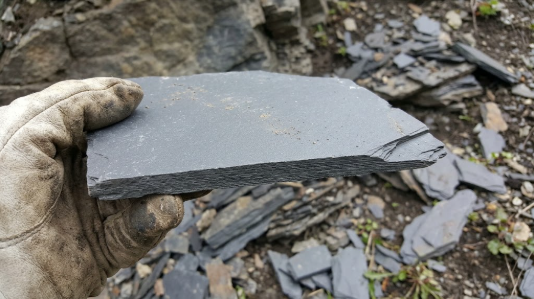

Slaty Texture

What is the term/concepts being visualized in this image?

Definition: A fine-grained metamorphic texture characterized by aligned, microscopic platy minerals that produce slaty cleavage.

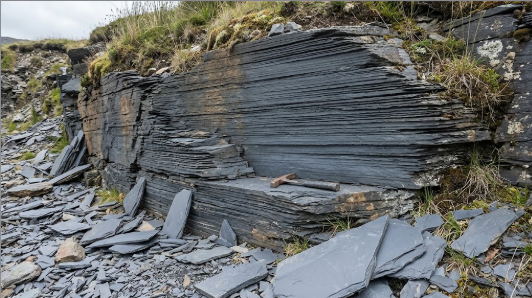

Slate

What is the term/concepts being visualized in this image?

Definition: A very fine-grained, foliated metamorphic rock formed from shale or volcanic ash that splits cleanly along flat planes.

Phyllitic Texture

What is the term/concepts being visualized in this image?

Definition: A fine-grained metamorphic texture where newly formed micas are larger than in slate, imparting a satiny sheen and often displaying a crinkled surface.

Phyllite

What is the term/concepts being visualized in this image?

Definition: A fine-grained, foliated metamorphic rock transitional between slate and schist that exhibits a silky sheen and crinkled foliation.

Schistose Texture

What is the term/concepts being visualized in this image?

Definition: A coarse-grained metamorphic texture defined by parallel-oriented platy or elongate minerals clearly visible to the naked eye.

Schist

What is the term/concepts being visualized in this image?

Definition: A coarse-grained, strongly foliated metamorphic rock dominated by visible platy minerals such as micas or needle-like amphiboles.

Gneissic Texture

What is the term/concepts being visualized in this image?

Definition: A high-grade metamorphic texture characterized by alternating distinct light-colored and dark-colored mineral layers or lenses.

Gneiss

What is the term/concepts being visualized in this image?

Definition: A coarse-grained, banded metamorphic rock formed under high temperatures where light and dark minerals separate into layers.

Stretched Pebble Conglomerate

What is the term/concepts being visualized in this image?

Definition: A metamorphic rock texture in which originally spherical pebbles have been visibly flattened and elongated into oval shapes by differential stress.

Nonfoliated Texture

What is the term/concepts being visualized in this image?

Definition: A metamorphic texture characterized by a lack of parallel alignment or layering of mineral grains.

Nonfoliated Rock

What is the term/concepts being visualized in this image?

Definition: Metamorphic rock that lacks foliation and is classified primarily on the basis of its mineral composition.

Marble

What is the term/concepts being visualized in this image?

Definition: A coarse-grained, nonfoliated metamorphic rock composed of interlocking calcite or dolomite crystals that displays a shimmering luster and effervesces in weak acid.

Quartzite

What is the term/concepts being visualized in this image?

Definition: A hard, nonfoliated metamorphic rock consisting of welded quartz grains formed from quartz sandstone that breaks through individual grains rather than along grain boundaries.

Hornfels

What is the term/concepts being visualized in this image?

Definition: A fine-grained, dark, nonfoliated metamorphic rock resulting from the contact metamorphism of shale or basalt around an intruding magma body.

Mylonite

What is the term/concepts being visualized in this image?

Definition: A dense, hard, finely streaked metamorphic rock produced in fault zones by extreme shearing that crushes and pulverizes rock.

Metamorphic Aureole

What is the term/concepts being visualized in this image?

Definition: A narrow, concentric zone of baked country rock surrounding an intruding pluton or magma body.

Zone of Contact Metamorphism

What is the term/concepts being visualized in this image?

Definition: Another term for a metamorphic aureole surrounding an igneous intrusion.

P-T-t Paths

What is the term/concepts being visualized in this image?

Definition: Curves on graphs tracking the pressure, temperature, and time evolution experienced by a rock during burial, peak metamorphism, and unroofing.

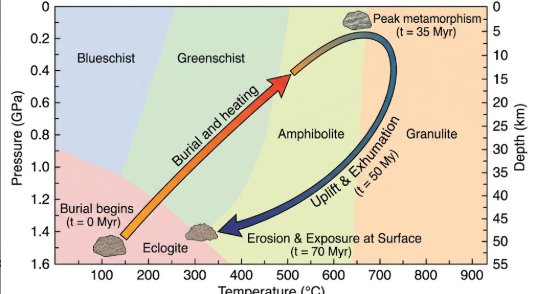

Pressure-Temperature-Time Paths

What is the term/concepts being visualized in this image?

Definition: The full term for P-T-t paths tracking a rock's metamorphic journey over geological time.

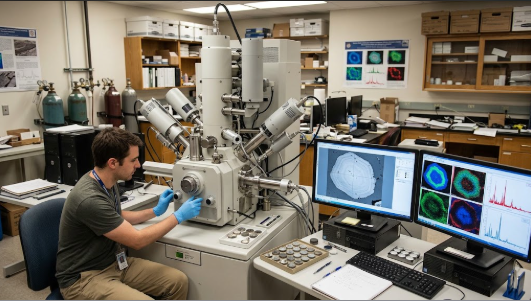

Electron Microprobe

What is the term/concepts being visualized in this image?

Definition: An instrument that fires a narrow electron beam at precise spots on a mineral grain to analyze chemical zoning for temperature and pressure determination.

Isotherms

What is the term/concepts being visualized in this image?

Definition: Lines on geological diagrams or cross-sections connecting points of equal temperature beneath Earth's surface.

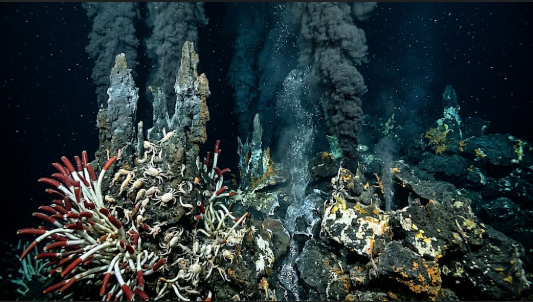

Hydrothermal Vents

What is the term/concepts being visualized in this image?

Definition: Submarine hot springs along mid-ocean ridges where heated seawater exits fractures in the oceanic crust.

Black Smokers

What is the term/concepts being visualized in this image?

Definition: Chimney-like submarine hydrothermal vents that discharge dark clouds of fine, metal-sulfide mineral precipitates into ocean water.

Contorted Layering

What is the term/concepts being visualized in this image?

Definition: Intricately folded and warped layering in metamorphic rocks resulting from plastic deformation under deep crustal conditions.
