Rodent crania
flat top, rectangular shape

Lagomorph crania
rounded head

rodent mandible

Lagomorph mandible
straighter section between the molars and the incisors
rounded jaw bone

Lagomorph atlas
flared wings, flat when looking from above

Rodent atlas
wings flat when looking front on

Rodent axis vertebra
lateral view

Rodent axis vertebra
small dense distal portion

rodent axis
lateral view

Lagomorph axis vertebra

Lagomorph axis vertebra
long dense distal portion

lagomorph axis vertebra
long dense distal portion

Lagomorph thoracic vertebra (spine missing)
denoted by the thin and long spinous process on the proximal portion


Lagomorph thoracic vertebra

lagomorph thoracic vertebra

Rodent thoracic vertebra
Denoted by a thick spinous process


rodent thoracic vertebra

rodent thoracic vertebra

Rodent pelvis
reduced ischium

lagomorph pelvis
(medial side)

lagomorph pelvis
long and large ischium

Rodent sacrum
rectangular with large sacral foramen (big holes)

Lagomorph sacrum
denoted by triangular and tapered structure

Rodent scapula
(medial side)

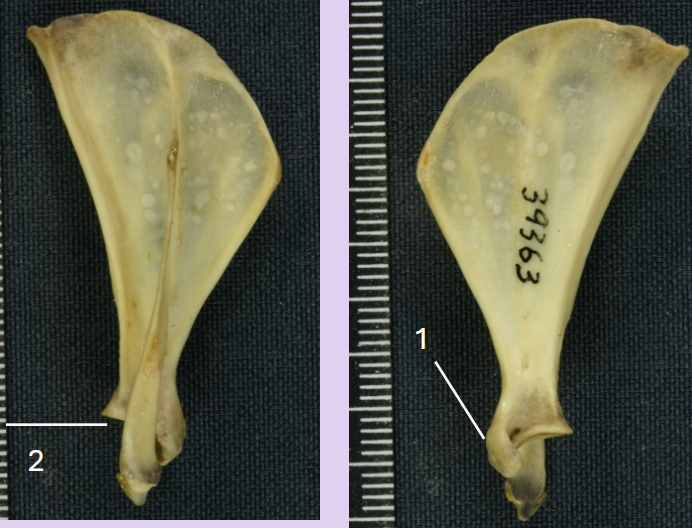

rodent scapula
middle part extends past the distal end


rodent humerus
curvy, large muscle attachments
flared distal end and sometimes foramen at distal end


Lagomorph humerus
straight and gracile
narrow distal end with distal foramen

Lagomorph radius
shorter olecranon process (proximal lump portion)


Lagomorph radius
shaft gently curved
distal end is ball shaped


lagomorph radius

Lagomorph femur (proximal fragment)
long and straight
patellar groove extends up distal shaft


Rodent femur
protruding femoral head (mushroom cap)
patellar groove ends under the condyles


rodent tib/fib
robust with sharp angel of tibia (left) and hooked proximal of tibia (right)

Lagomorph tib/fib
Fib starts mid shaft, slender and straight structure

rodent ulna + radius fused
radius thick distal end and curved proximal shaft

rodent ulna
girthy

Rodent calcaneus
looks like a mouse, the heel

Lagomorph calcaneus
lower case “t” shaped
