Module 4.2: Cryptography

Midterm topic

Cryptology

• Science of encryption; encompasses cryptography and cryptanalysis

Cryptography

• Involves making and using codes to secure messages

Cryptanalysis

• Involves cracking or breaking encrypted messages back into their unencrypted origins

Plain Text

• Readable original data accessible to both humans and computers

• Anyone intercepting this can read sensitive information

Cipher Text

• This is encrypted unreadable data, appearing as random, unreadable characters

• Accessible with the correct decryption key

Subsitution Cipher

• Exchanges one value for another

• Monoalphabetic substitution: Uses only 1 alphabet during encryption process

• Polyalphabetic substitution: Uses 2 or more alphabets

• Vigenere cipher: Uses simple polyalphabetic code; made up of 26 distinct cipher alphabets

Transposition Cipher

• Simple to understand, but if properly used, produces ciphertext that is difficult to decipher

• Rearranges values within a block to create ciphertext

• Can be done at the bit level or at the byte (char) level

• To make the encryption even stronger, the keys and block sizes can be increased to 128 bits or more

Exclusive OR (XOR)

• Function of Boolean algebra; 2 bits are compared and binary result is generated.
  - If two bits are identical, the result is binary 0
  - If two bits are not identical, the result is binary 1

• Very simple to implement and simple to break; should not be used by itself when organization is transmitting/storing sensitive data

Vernam Cipher

• Uses a set of characters once per encryption process

• Developed at AT&T Bell Labs

Book-Based Ciphers

• Uses text in book as key to decrypt a message

Book Cipher

(Book-based ciphers)

• Ciphertext consist of a list of codes representing page, line, and word numbers of plaintext word

Running Key Cipher

(Book-based ciphers)

• Uses a book for passing key to cipher similar to Vigenere cipher;

• sende provides encrypted message with sequence of numbers from predetermined book to be used as an indicator block

Template Cipher

(Book-based ciphers)

• Involves use of hidden message in book, letter, or other message; requires page with specific number of holes cut into it

Hash Functions

• Mathematical algorithms used to confirm specific message identity and that no content has changed

• Hash Algorithms: Public functions that create hash value

• Used in password verification systems to confirm the identity of the user

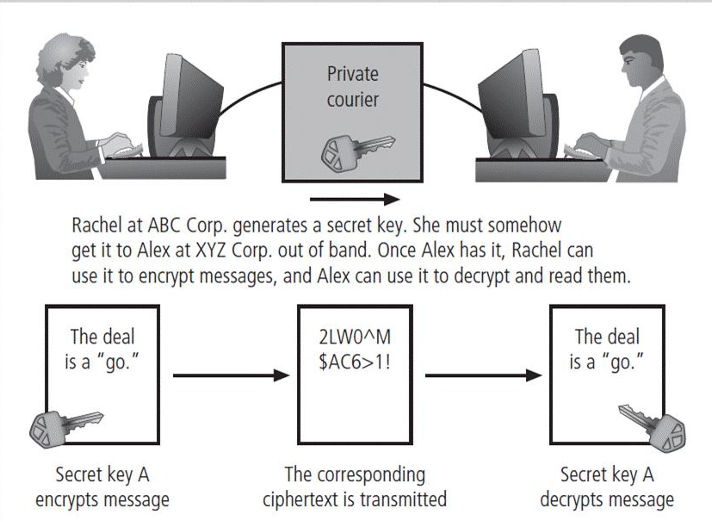

Symmetric Encryption

(Cryptographic Algorithms)

• Requires same “secret key” to encipher and decipher message; known as private-key encryption

• Both sender and receiver must possess secret key

• If either copy of key is compromised, an intermediate can decrypt and read messages without sender/receiver knowledge

• Advanced Encryption Standard (AES) > Triple DES (3DES) > Data Encryption Standard (DES)

Asymmetric Encryption

(Cryptographic Algorithms)

• Also known as public-key encryption

• Uses 2 different but related keys

• Either key can encrypt or decrypt a message

• If key A encrypts a message, only key B can decrypt

Public-Key Infrastructure (PKI)

• Integrated system of software, encryption methodologies, protocols, legal agreements, and 3rd party services enabling users to communicate securely

• Is based on public-key cryptosystems

• Protects information and assets in several ways: Authentication, Integrity, Privacy, Authorization, Nonrepudiation

Digital Signatures

• Created in response to rising the need to verify information transferred via electronic systems

• Asymmetric encryption processes used to create digital signatures

Digital Certificates

• Electronic document/container file containing key value and identifying information about entity that controls key

• Digital signature attached to certificate’s container file certifies file’s origin and integrity

• Different client-server applications use different types of digital certificates to accomplish their assigned functions

• Distinguished name (DN): uniquely identifies a certificate entity

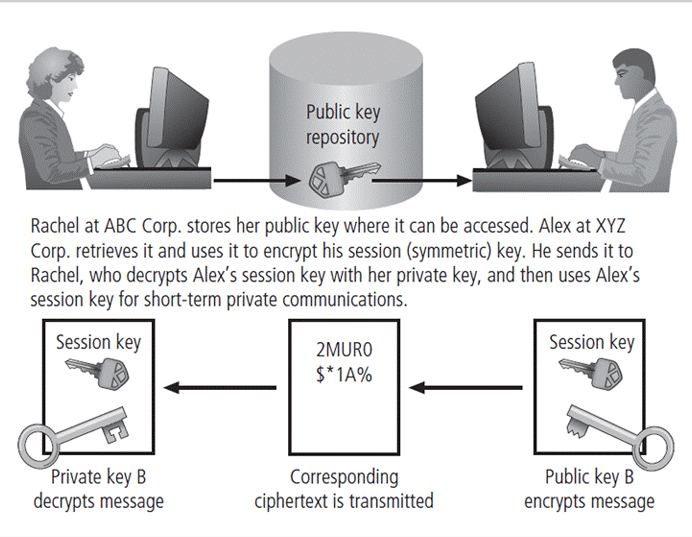

Hybrid Cryptography Systems

• Except w/ digital certificates, pure asymmetric key encryption is not widely used

• Asymmetric encryption is more often used with symmetric key encryption, as part of a hybrid system

• Diffie-Hellman Key Exchange method

Steganography

• “Art of secret writing”; has been used for centuries

• Most popular modern version hides information within files that contain digital pictures or other images

• Some apps hide messages in .bmp, .wav, .mp3, and .au files, as well as in unused space on CDs and DVDs

Secure Sockets Layer (SSL)

(Protocols for Secure Communications - Internet)

• Uses public key encryption to secure channel over public internet

Hypertext Transfer Protocol Secure (HTTPS)

(Protocols for Secure Communications - Internet)

• Provides encryption of individual messages between client and server across internet

• Extension of HTTP

Secure Multipurpose Internet Mail Extensions (S/MIME)

(Protocols for Secure Communications - Email)

• Builds on MIME encoding format and uses digital signatures based on public-key cryptosystems

Privacy Enhanced Mail (PEM)

(Protocols for Secure Communications - Email)

• Proposed as standard to use 3DES symmetric key encryption and RSA for key exchanges and digital signatures

Pretty Good Privacy (PGP)

(Protocols for Secure Communications - Email)

• Uses IDEA Cipher for message encoding

Secure Electronic Transactions (SET)

(Protocols for Secure Communications - Web Transactions)

• Developed by MasterCard and VISA in 1997 to protect against electronic payment fraud

• Uses DES to encrypt credit card info transfers

• Provides security for both internet-based credit card transactions and credit card swipe systems in retail stores

WiFi Protected Access (WPA and WPA2)

(Protocols for Secure Communications - Wireless Networks)

• Better and improved version of Wired Equivalent Privacy (WEP) and resolve its issues

Internet Protocol Security

• An open-source protocol framework for security development within the TCP/IP family of protocol standards

TRUE

• Strength of encryption tool is dependent on the key size but even more dependent on following good management practices.

TRUE

• Cryptography is used to secure most aspects of Internet and Web uses that require it, drawing on extensive set of protocols and tools designed for that purpose.
