Fill in the blank: Design drawings are also called blank drawings

field sketchs

identify the following drawing and form pictured below. Is it a HVAC design drawing; HVAC shop drawing; HVAC shop ticket; HVAC cut list; Architectural field sketch; Architectural shop drawing or a Architectural shop ticket?

architectural field drawing

identify the following drawing and form pictured below. Is it a HVAC design drawing; HVAC shop drawing; HVAC shop ticket; HVAC cut list; Architectural field sketch; Architectural shop drawing or a Architectural shop ticket?

architectural shop drawing

identify the following drawing and form pictured below. Is it a HVAC design drawing; HVAC shop drawing; HVAC shop ticket; HVAC cut list; Architectural field sketch; Architectural shop drawing or a Architectural shop ticket?

shop drawing

identify the following drawing and form pictured below. Is it a HVAC design drawing; HVAC shop drawing; HVAC shop ticket; HVAC cut list; Architectural field sketch; Architectural shop drawing or a Architectural shop ticket?

shop ticket

identify the following drawing and form pictured below. Is it a HVAC design drawing; HVAC shop drawing; HVAC shop ticket; HVAC cut list; Architectural field sketch; Architectural shop drawing or a Architectural shop ticket?

cut list

identify the following drawing and form pictured below. Is it a HVAC design drawing; HVAC shop drawing; HVAC shop ticket; HVAC cut list; Architectural field sketch; Architectural shop drawing or a Architectural shop ticket?

architectural shop ticket

identify the following drawing and form pictured below. Is it a HVAC design drawing; HVAC shop drawing; HVAC shop ticket; HVAC cut list; Architectural field sketch; Architectural shop drawing or a Architectural shop ticket?

field drawing

list in order, eleven typical steps that a duct job must go through in most sheet metal shops

1. design drawing

2. create shop drawing

3. prepare shop ticket

4. prepare a cut list

5. blanking out

6. layout and marking

7. cutting and notching

8. forming

9. assembling

10. staging

11. delivering

what is step #1 of a duct job

design drawing

what is step #2 of a duct job

create shop drawing

what is step #3 of a duct job

prepare shop ticket

what is step #4 of a duct job

prepare a cut list

what is step #5 of a duct job

blanking out

what is step #6 of a duct job

layout and marking

what is step #7 of a duct job

cutting and notching

what is step #8 of a duct job

forming

what is step #9 of a duct job

assembling

what is step #10 of a duct job

staging

what is step #11 of a duct job

delivering

list some details that should be included in a shop drawing

1. hanger considerations

2. shipping needs

3. the size , syle and location of dampers

list some information that should be included on a shop ticket

1. job number

2. sketch number

3. gauge

4. cut size

list the size, gauge and quantity of the blank outs needed for duct #1. From the below shop drawing, answer the above question. Some additional information: all longitudinal seams to be Pittsburgh: Female Pittsburgh locks to be on the small side of the duct with a 1-1/4 in. allowance. All duct and fittings in this exercise to be made in 4 pieces using standard S and Drive transverse connections. It will also be constructed of unlined 19 ga. Galv.

2 at 34 ½ x 13 and 2 at 20 ½ x 13 19 ga

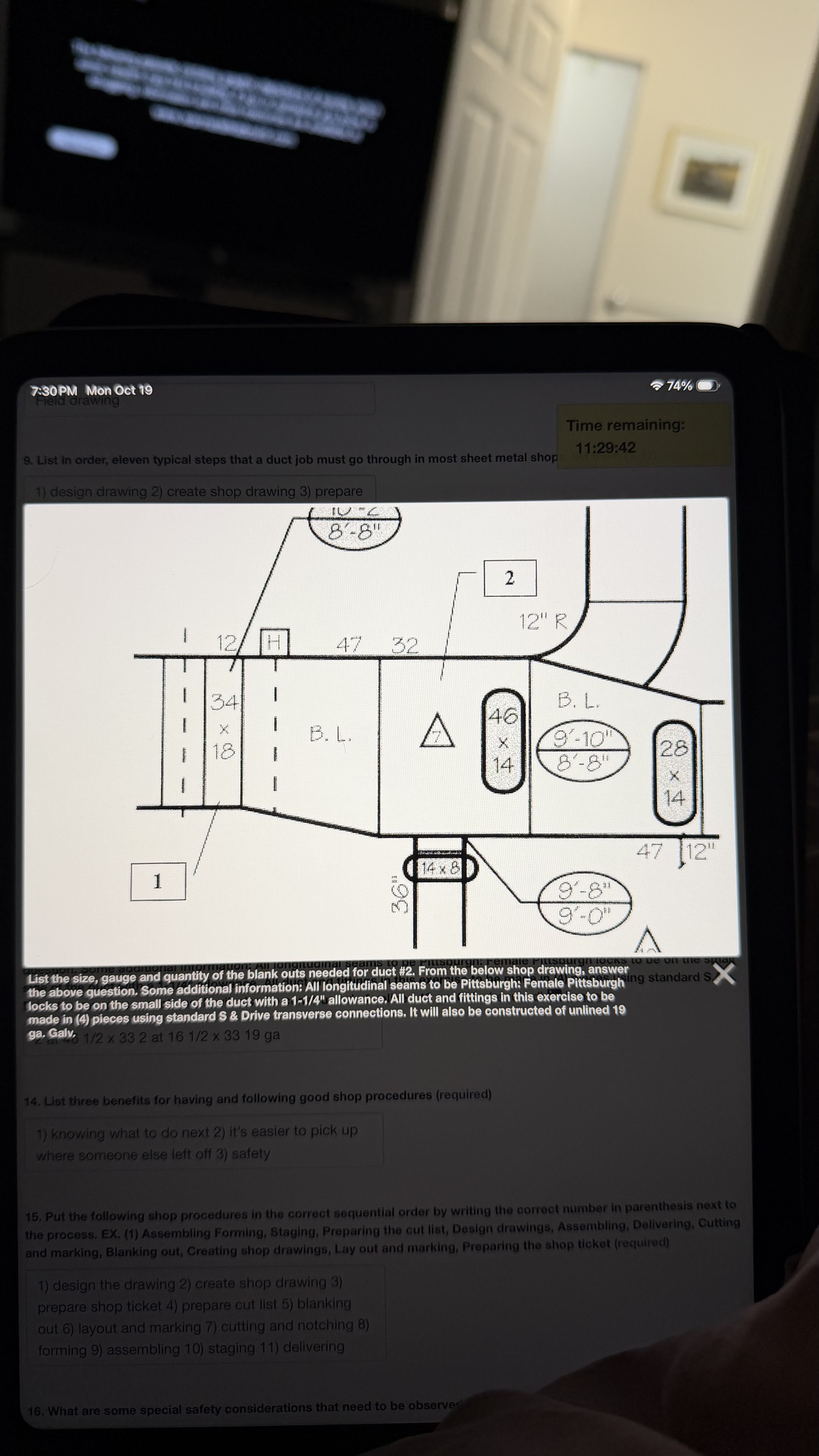

list the size, gauge and quantity of the blank outs needed for duct #2. From the below shop drawing, answer the above question. Some additional information: all longitudinal seams to be Pittsburgh: Female Pittsburgh locks to be on the small side of the duct with a 1-1/4 in. allowance. All duct and fittings in this exercise to be made in 4 pieces using standard S and Drive transverse connections. It will also be constructed of unlined 19 ga. Galv.

2 at 46 ½ x 33 2 at 16 ½ x 33 19 ga

list 3 benefits for having and following good shop procedures

1. knowing what to do next

2. it’s easier to pick up where someone else left

3. safety

what are some special safety considerations that need to be observed when un-banding a coil of metal?

control the outer layer of the coil, use safe rigging, make sure it’s clear in case the coil springs open

what does the term KD mean as related to shipping duct work to a job site?

knocked down

what is meant by the term staging?

storing the pieces until they are ready to be delivered
