AP2 Practical 1 Part 2 - Blood Cells, Blood Flow

Name the leukocyte

Neutrophil

Which leukocyte is kidney shaped?

Monocyte

Leukocyte that responds to allergies

Basophil

Which leukocyte is associated with immunity?

Lymphocyte

Name structure A

Right common iliac artery

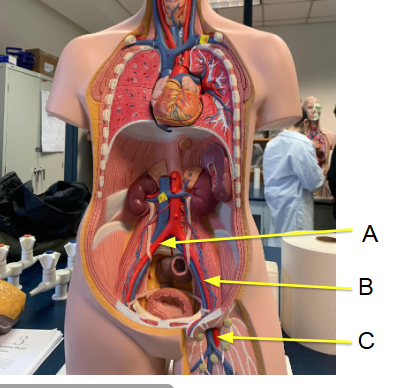

Name structure B

Left external iliac artery

Name structure C

Left femoral artery

This blood vessel supplies blood to the kidney

renal

Name the major vessels of the neck

R Common Carotid A and R Jugular Vein
L Common Carotid A and L Jugular Vein

Name the blood vessels pictured here below the neck

On the sides are the subclavian arteries and veins.

5: R Brachiocephalic Vein

19: R Brachiocephalic Artery
6: Superior Vena Cava

Name the vessels below the subclavians.

6: Superior Vena Cava

7: Aorta
8: Thoracic Aorta

20: L Pulmonary Artery

21: L Pulmonary Vein

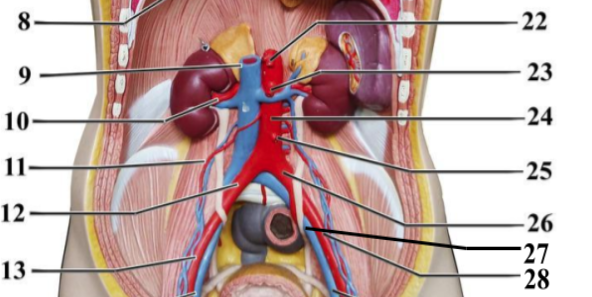

what structures are 9, 10, 22, and 23 pointing to?

9: Inferior Vena Cava

10: R Renal Artery

22: Celiac Trunk

23: Superior Messenteric Artery

What structures are 11, 24, and 25 pointing to?

11: R Gonadal

24: Abdominal Aorta

25: Inferior Messenteric Artery

What structures are below the inferior mesenteric and gonadal?

12: R Common Iliac Artery

13: R External Iliac Artery

14: R External Iliac Vein

30 & 31: Femoral Artery and Vein

This blood vessel supplies blood to the shoulder

Subclavian

This blood vessel drains the spleen

Splenic vein

Which two blood vessels empty into the brachial vein?

radial and ulnar veins

Which blood vessel supplies blood to the head and neck?

Common Carotid Artery

Which blood vessel drains/ “cleans” blood from the digestive organs?

Hepatic Portal System

Which blood vessel empties into the left external iliac artery?

Left common iliac artery

Which two blood vessels empty into the right brachiocephalic vein?

Right subclavian vein and Right jugular vein

Which blood vessel drains the large intestines?

Inferior Mesenteric Vein

Name the vessel that drains blood from the head

Jugular vein

Name the vessel that supplies the large intestines with blood

Inferior Mesenteric Artery

Name the vessel that drains blood from the lower body

inferior mesenteric vein

Which vessel drains blood from the thigh?

Femoral vein

what type of cell is listed here?

platelets (cell fragments)

supplies the stomach, liver, and spleen

celiac trunk

drains the ovaries and testes

gonadal vein

drains the stomach

gastric vein

drains digestive organ

hepatic portal vein

name the vessel that supplies blood to the lungs

pulmonary artery
