1
New cards

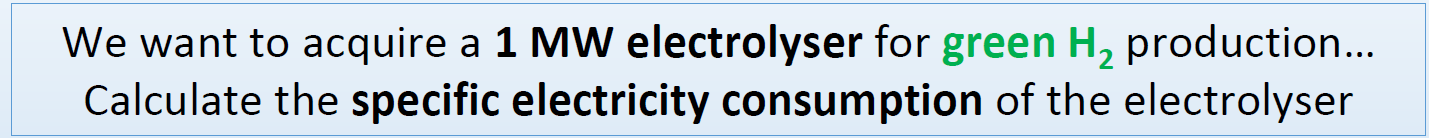

We want to acquire a 1 MW electrolyser for green H2 production.
How much H2 could be produced per day?

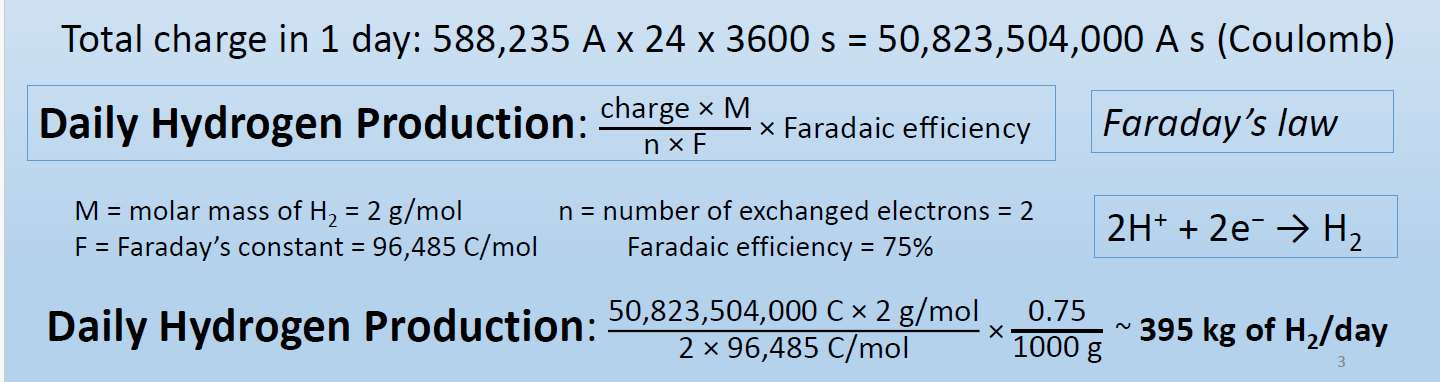

Power=V x I x N
V is will be given, IxN = P/V
Total daily charge = I x 24 × 3600
Dont forget for kg conversion
2
New cards
Estimate number of cells for PEM
V is given, J is given, A is given
calculate I = J x A
Then Power(kW) = V x I
then N = 1000/Power
3
New cards
Stack voltage and Stack current
Vstack= N x Vcell
Istack=Icell
4
New cards
5
New cards
