VCE 3 - 4 Engineering : Electrical Components

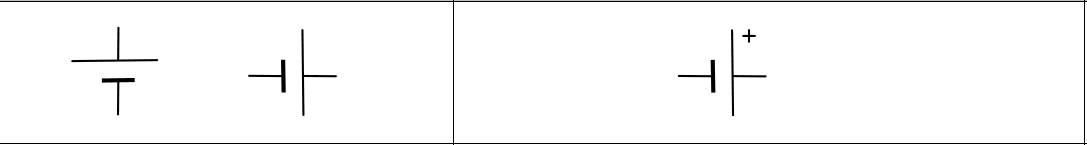

Cell

Battery - DC

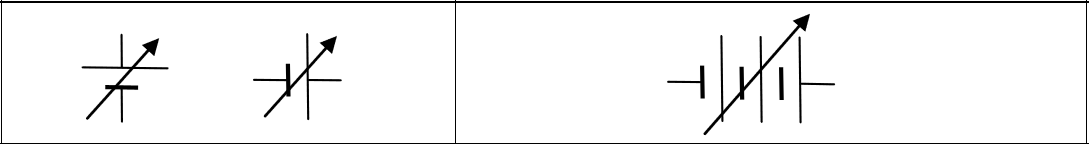

Variable DC Power Supply

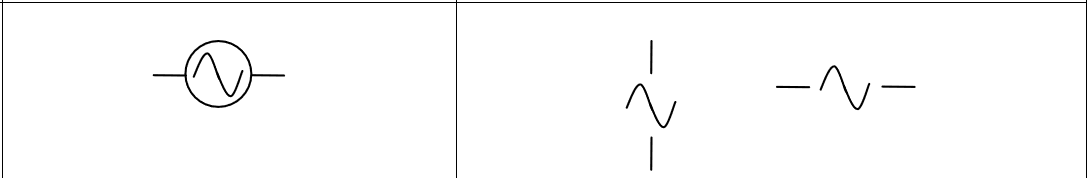

AC Power Supply

aerial

ammeter

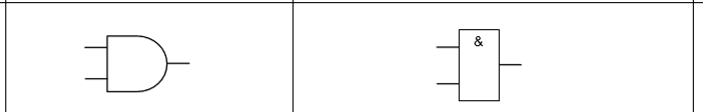

AND Gate

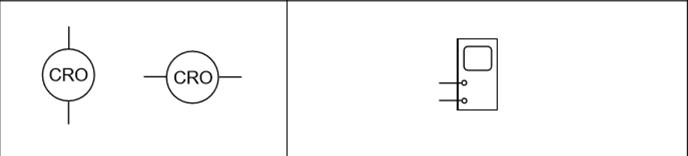

Cathode Ray Oscilloscope

Connected Leads

Diode Bridge

dot for junction connections

Double Pole Double Throw Switch

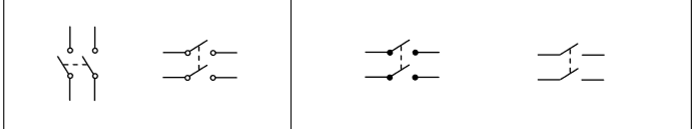

Double Pole Single Throw Switch

Earth

Filament Globe

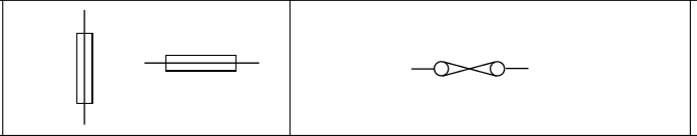

Fuse

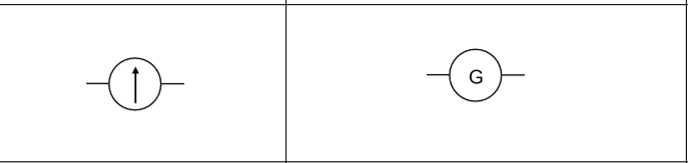

Galvanometer

Integrated Circuit

Iron Cored Transformer - Two Secondary Windings

Iron Cored Transformer - One Secondary Winding

Iron Cored Transformer - One Secondary Winding - Centre Tapped

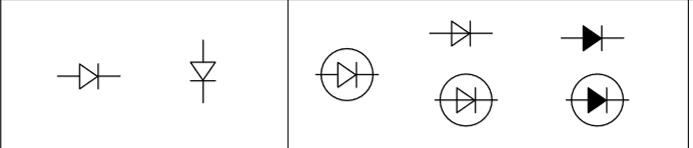

Junction Diode

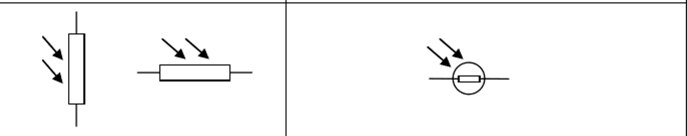

LDR

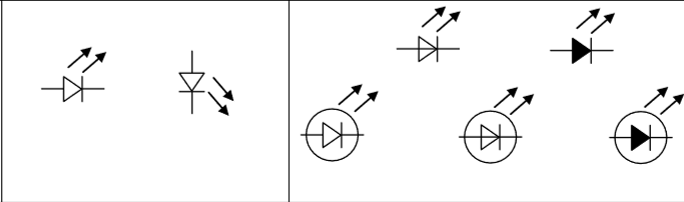

LED

Loudspeaker

Microphone

Motor

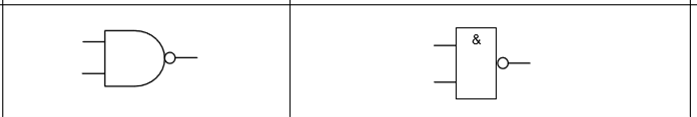

NAND Gate

Non-Connected Leads

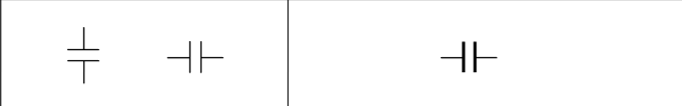

Non-Polarized Capacitor

NOR Gate

Normally Closed Switch

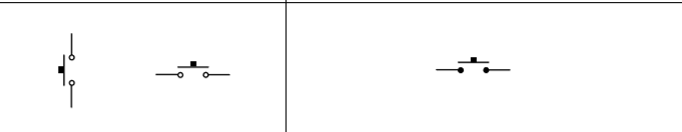

Normally Open Switch

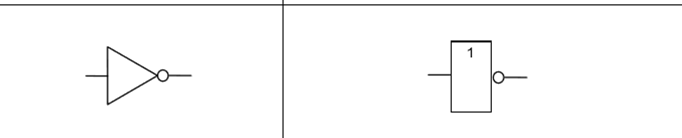

NOT Gate

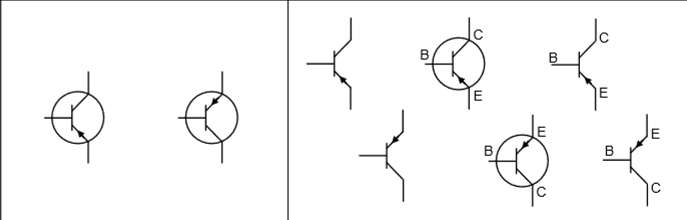

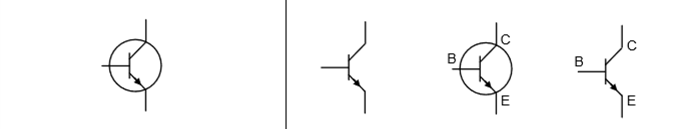

NPN Transistor

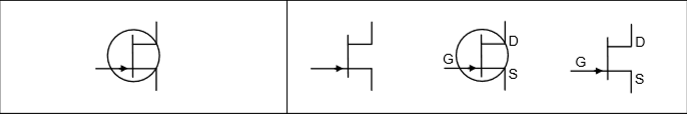

N-Type Junction Field Effect Transistor

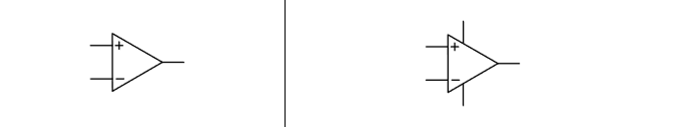

Operational Amplifier

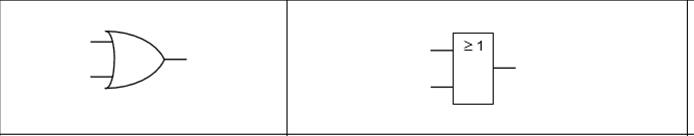

OR Gate

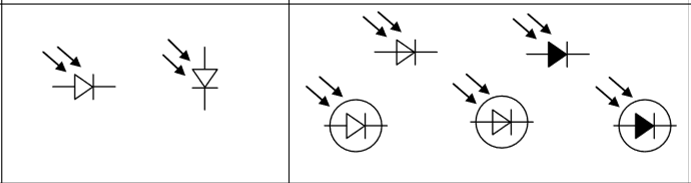

Photo Diode

PNP Transistor

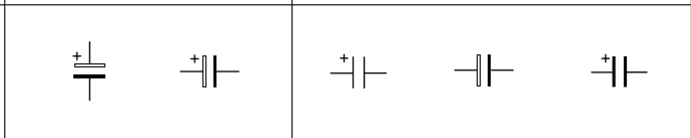

Polarized Capacitor / Electrolytic Capacitor

P-Type Junction Field Effect Transistor

Relay

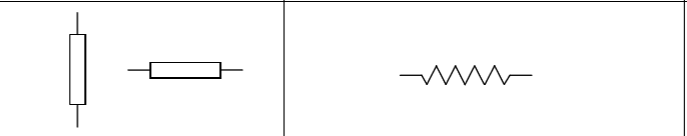

Resistor

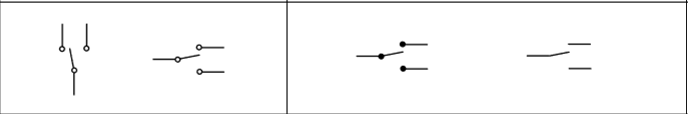

Single Pole Double Throw Switch

T Flip Flop

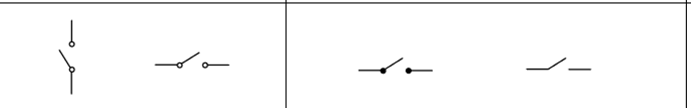

Single Pole Single Throw Switch

Thermosistor

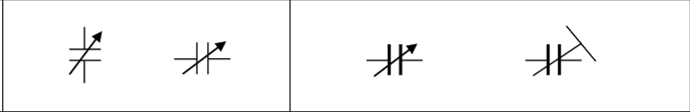

Variable Capacitor

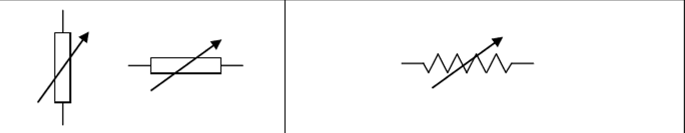

Variable Resistor

Variable Resistor / Potentiometer / Voltage Divider

Voltage Amplifier

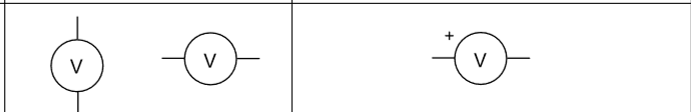

Voltmeter

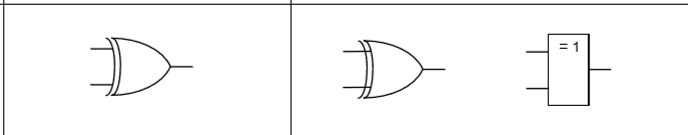

XOR Gate

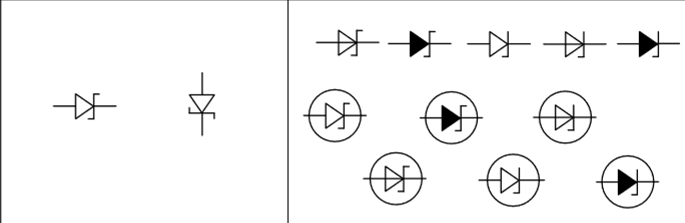

Zener Diode
