Review LOWER EXTREMITY AND HIP/SHOULDER GIRDLE

PA patella

Patient is prone and internal rotation the knee about 5 degrees. CR in perpendicular to IR.

Mediolateral projection

Lateral patella

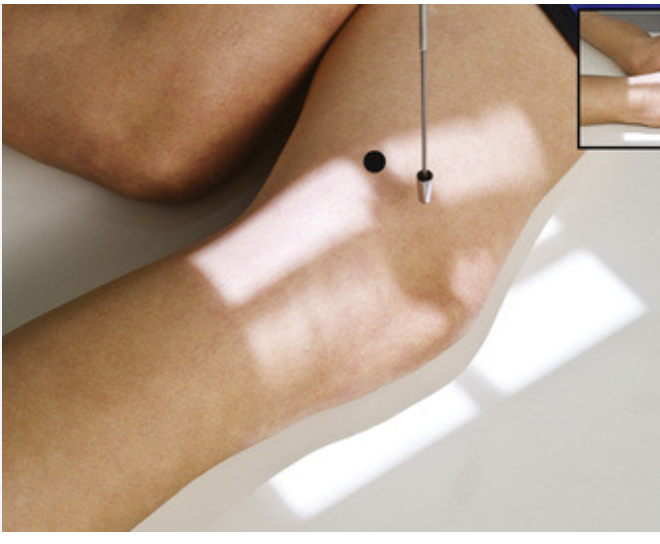

Patient will be in a lateral recumbent position with the affected side down, flex knee 5-10 degrees and make sure the body and knee are in a true lateral position.

CR is perpendicular to IR.

Tangential (merchant method)

Patient is supine with knees flexed 40 degrees over end of the table, place IR on edge of legs, below the knees. CR should be angled caudal 30 degrees from horizontal plane

Tangential (Hughston)

Patella

Patient in prone position with IR under knee, flex knee between 50-60 from full extension of lower leg. CR should be angled 45 degree cephalad.

Tangential (Settegast)

Patella

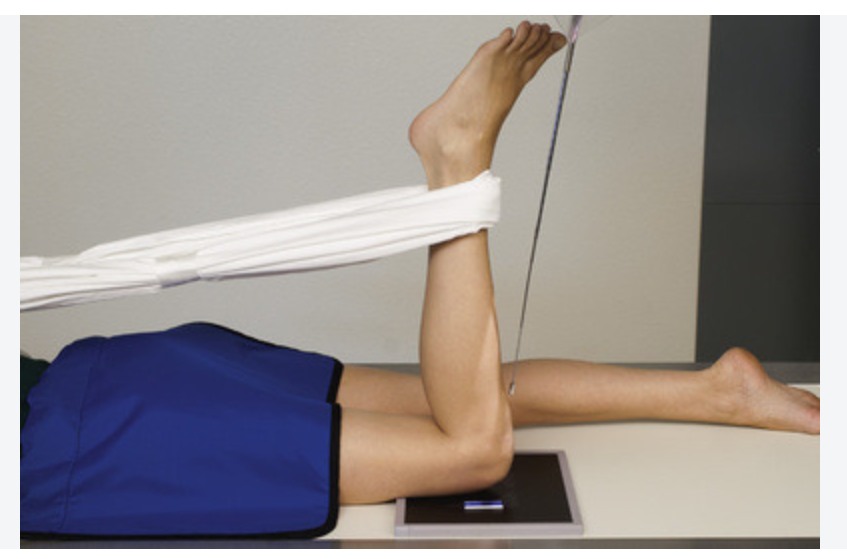

Patient should be prone with IR underneath knee, flex knee to a minimum of 90 degrees. CR should be tangential to the patellofemoral joint space which is about 15 to 20 degrees. SID 40 inches.

Superinferior sitting method (Hobbs)

This is with the patient sitting in a chair with the IR placed underneath their knees, knees should be flexed with feet placed slightly underneath chair. The CR should be perpendicular to IR with a minimum SID of 48-50 inches to reduce magnification

Camp Coventry

Intercondylar fossa

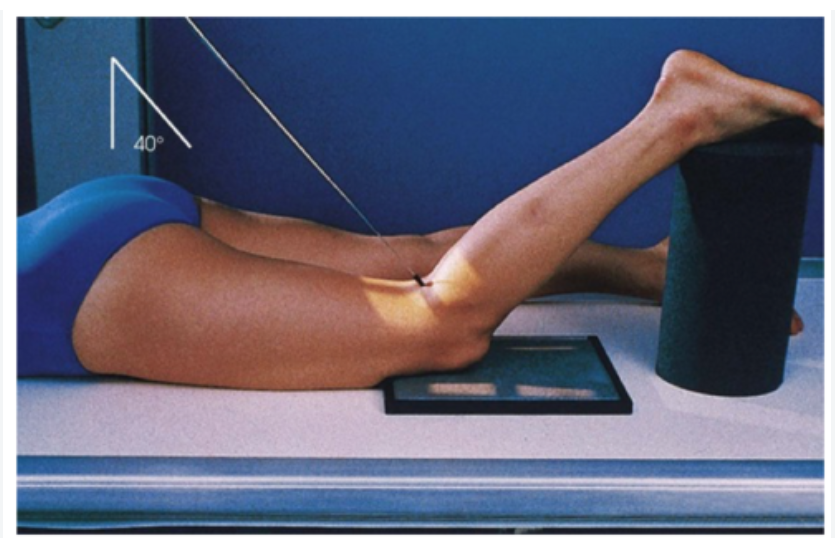

Prone position with 40-50 degree flexion and center IR at knee joint

Holmblad

Intercondylar fossa

Have the patient knee on the Xray table and ask them to lean forward 20 to 30 degrees, direct CR to midpopliteal crease

Beclere

Intercondylar fossa

Patient is supine on the table with knee flexed 40-45 degrees. Place support under the leg with the IR firmly against posterior thigh and lower leg. Direct CR perpendicular to lower leg which is 40-45 degree cephalad angle.

When do we utilize a tube angle for a knee series and why?

We use a tube angle for the lateral knee which is about a 5 to 7 degree angle. We need to angle for the lateral because the condyles are not perfectly level

-the medial condyle is lower than the lateral, therefor put a slight angle will get the femoral condyles superimposed and open the joint space.

Compare what is best visualized on a mortise oblique versus a 45 degree oblique.

How is a 15 degree mortise oblique of the ankle positioned.

A 15 degree oblique ankle will show the entire mortise joint open while the 45 degree

oblique ankle will show the tibiofibular joint open.

Internal rotation shoulder

Whats in profile & epicondylar plane?

Epicondylar plane is perpendicular, lesser tubercle in profile

External rotation shoulder

Whats in profile & epicondylar plane?

Epicondylar plane is parallel, greater tubercle in profile

AP Neutural shoulder

Whats in profile & epicondylar plane?

Epicondylar plane is 45degrees to IR, both greater and lesser tubercles are superimposed by humeral head, can see the relationship between humeral head to glenoid cavity.

Grashey

Will show glenoid cavity

35-45 degree rotation

Non-Trauma Lawrence

Coracoid process and lesser tubercle

-shows anterior dislocation: humeral head under coracoid process

-posterior dislocation: humeral head under acromion

Trauma Lawrence

Lateral view of proximal half of humerus and scapulohumeral joint visualized through the thorax without superimposition

Scapular y lateral for trauma shoulder

Lateral scapula, and scapulohumeral joint
