L46 - Principles of Radiology

What is the difference between X-rays and a Radiograph?

• X-rays = Electromagnetic energy produced by an X-ray generator

• Radiograph = Image produced after X-rays pass through the patient and reach the detector

What are the basic Steps in Producing a Radiograph?

1. X-ray generator produces X-rays

2. X-rays pass through the patient

3. Tissues block different amounts of X-rays

4. Remaining X-rays reach the detector

5. Radiographic image is created

What determines whether a structure appears BLACK or WHITE on a radiograph?

The number of X-rays that reach the detector

What happens when MORE X-rays are blocked by a structure?

Fewer X-rays reach the detector → Structure appears WHITE (radiopaque)

What happens when MORE X-rays pass through a structure?

More X-rays reach the detector → Structure appears BLACK (radiolucent)

Why do different tissues produce different shades of gray?

Different tissues block different amounts of X-rays due to differences in their composition and density

Why is radiography described as the "science of shadows"?

A radiograph is a 2D silhouette of a 3D structure created when tissues block X-rays, similar to how an object blocks light to create a shadow

What is the major limitation of a single radiograph?

A 3D patient is compressed into a 2D image, resulting in loss of depth information

What spatial relationships may be difficult to determine from one radiograph?

• Above vs. Below

• Left vs. Right

• Inside vs. Outside another structure

What are Orthogonal Radiographic Projections?

Two radiographic projections taken 90° apart

Why should at least TWO orthogonal views be obtained?

To determine the LOCATION and SHAPE of structures by providing information about the missing third dimension

How do orthogonal views help determine the location of a structure?

• First projection provides information in two dimensions

• Second projection provides the missing dimension

• Together, they allow mental reconstruction of the structure's 3D location

Why can the shape of a structure appear different between orthogonal views?

A 3D structure can have different silhouettes when viewed from different directions

Clinical application: A pin appears over a dog's nasal region on one radiograph. Why is a second orthogonal projection necessary?

• The pin could be in the mouth, nasal cavity, surrounding tissues, or outside the patient

• A second projection helps determine its actual location

How does CT use the same principle as orthogonal radiographs?

CT obtains many X-ray projections from different angles and uses computer reconstruction to create detailed images that can be viewed in different planes

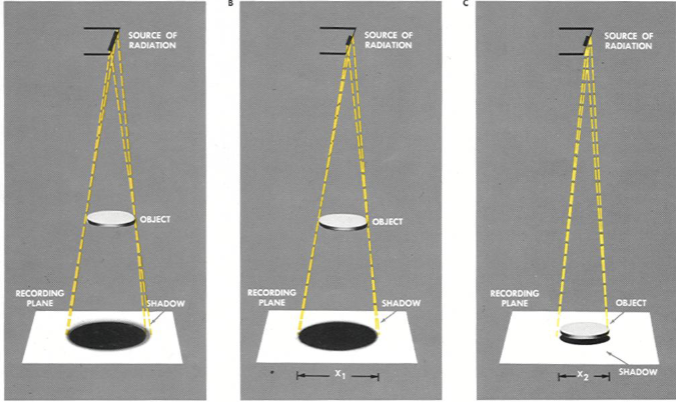

What causes Magnification on a radiograph?

X-rays diverge outward from their source → so an object's distance from the detector affects its apparent size

What happens when an object is positioned CLOSER to the detector?

Less magnification

• Image size is closer to the object's true size

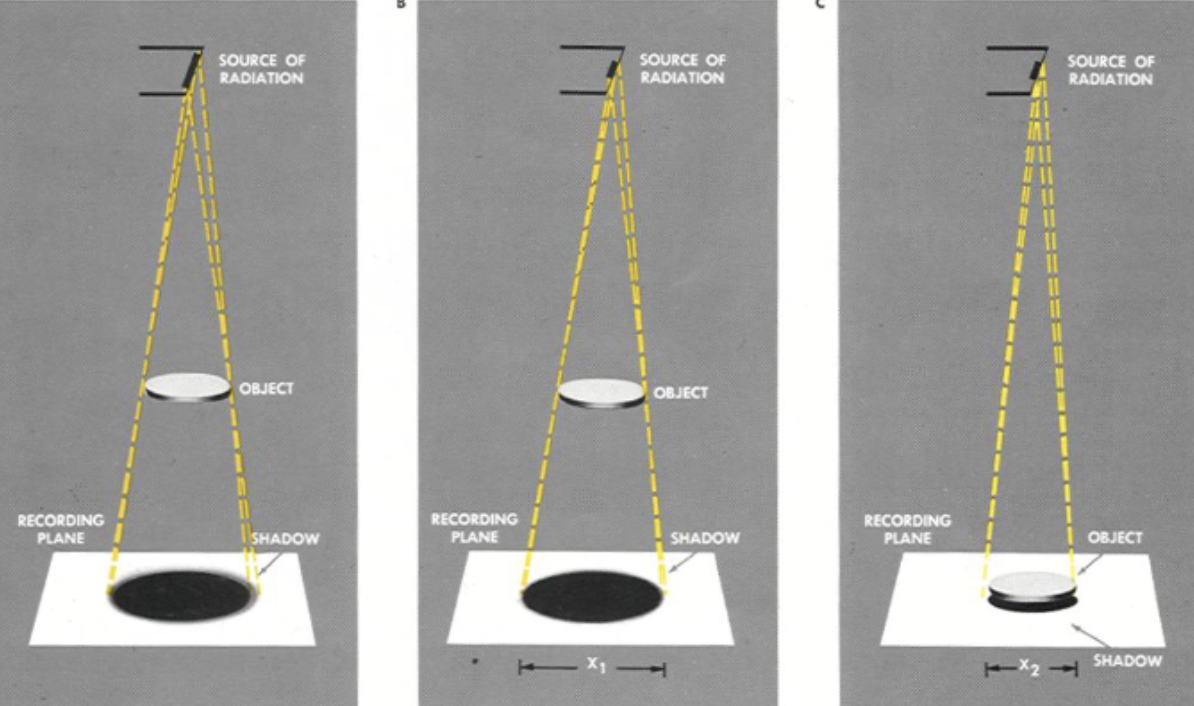

What happens when an object is positioned FARTHER from the detector?

More magnification

• Object appears larger with less distinct edges

How can Magnification be minimized when accurate measurements are needed?

Position the structure of interest as close to the detector as possible

Why is minimizing magnification particularly important in orthopedic radiography?

Accurate measurements of bone size and anatomy are important for orthopedic assessment

Clinical application: Two femurs appear different in size on a pelvic radiograph. Which is farther from the detector?

• Larger-appearing femur = Farther from detector

• Smaller-appearing femur = Closer to detector

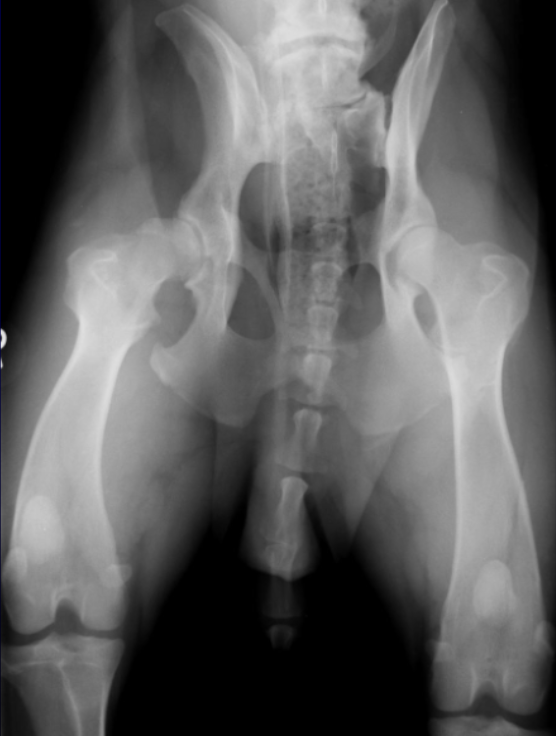

What is Radiographic Distortion?

Alteration of a structure's original geometry due to variable magnification along the object

How can Distortion change the apparent shape of a structure?

The structure may falsely appear shorter, wider, uneven, or abnormally shaped

How can Radiographic Distortion be prevented?

Proper patient positioning:

• Keep limbs straight

• Keep spine straight

• Keep structure of interest as parallel to the detector as possible

What is the difference between Magnification and Distortion?

• Magnification = Object appears larger than its true size

• Distortion = Object's shape or proportions are altered by unequal magnification

What are the THREE Major Steps in Radiographic Interpretation?

1. Determine whether an abnormality exists.

2. Describe the lesion using the 6 Roentgen signs

3. Generate a list of differential diagnoses

Why must normal radiographic anatomy be understood before identifying abnormalities?

Abnormalities can only be recognized by comparing them with normal anatomy

Why is recognizing normal anatomy especially challenging in veterinary radiology?

Normal anatomy varies among species, breeds, body sizes, and individual patients

What is the importance of pattern recognition in radiographic interpretation?

Consistent positioning, image orientation, and systematic evaluation make abnormalities easier to identify

What is the Hanging Protocol?

A standardized method of displaying radiographs in the same orientation:

• Head → Left

• Tail → Right

• Dorsal aspect → Top

Why should a lesion be described before assigning a diagnosis?

Objective description using Roentgen signs helps identify possible causes without prematurely assuming a diagnosis

What are three common pitfalls of radiographic interpretation?

1. Normal species and breed variations

2. Prior bias or tunnel vision

3. Failure to evaluate the entire radiograph

What are the SIX Roentgen signs?

1. Location

2. Number

3. Shape

4. Size

5. Opacity

6. Margination

What does LOCATION describe?

Where the lesion is located relative to surrounding anatomical structures

What does NUMBER describe?

Whether lesions are single, multiple, or multifocal

What does SHAPE describe?

The lesion's geometric appearance, such as round, linear, or amorphous

What does SIZE describe?

The lesion's dimensions, determined by direct measurement or comparison with another anatomical structure.

What does OPACITY describe?

The brightness or darkness of a structure on a radiograph

What does MARGINATION describe?

The visibility and appearance of a structure's borders

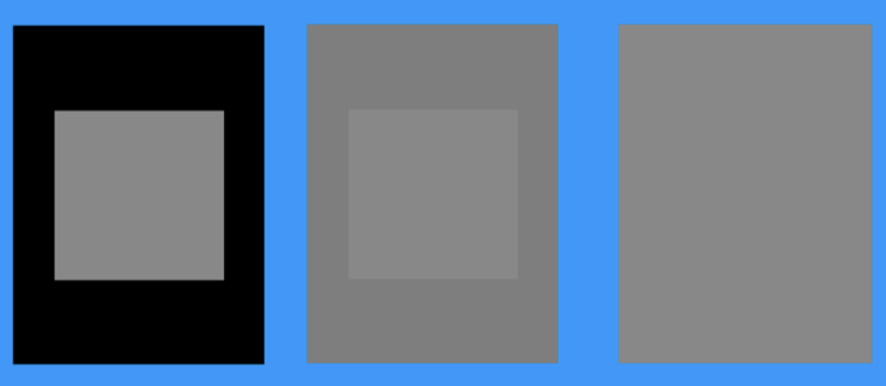

What determines how clearly the margins of a structure can be seen?

The relative density and opacity of the surrounding material

How should the Roentgen signs be used when evaluating an abnormality?

Systematically describe its location, number, shape, size, opacity, and margination before generating differential diagnoses

What is Radiopacity?

• The degree to which a structure BLOCKS X-rays

• Radiopaque structures appear WHITE

• Example: Bone

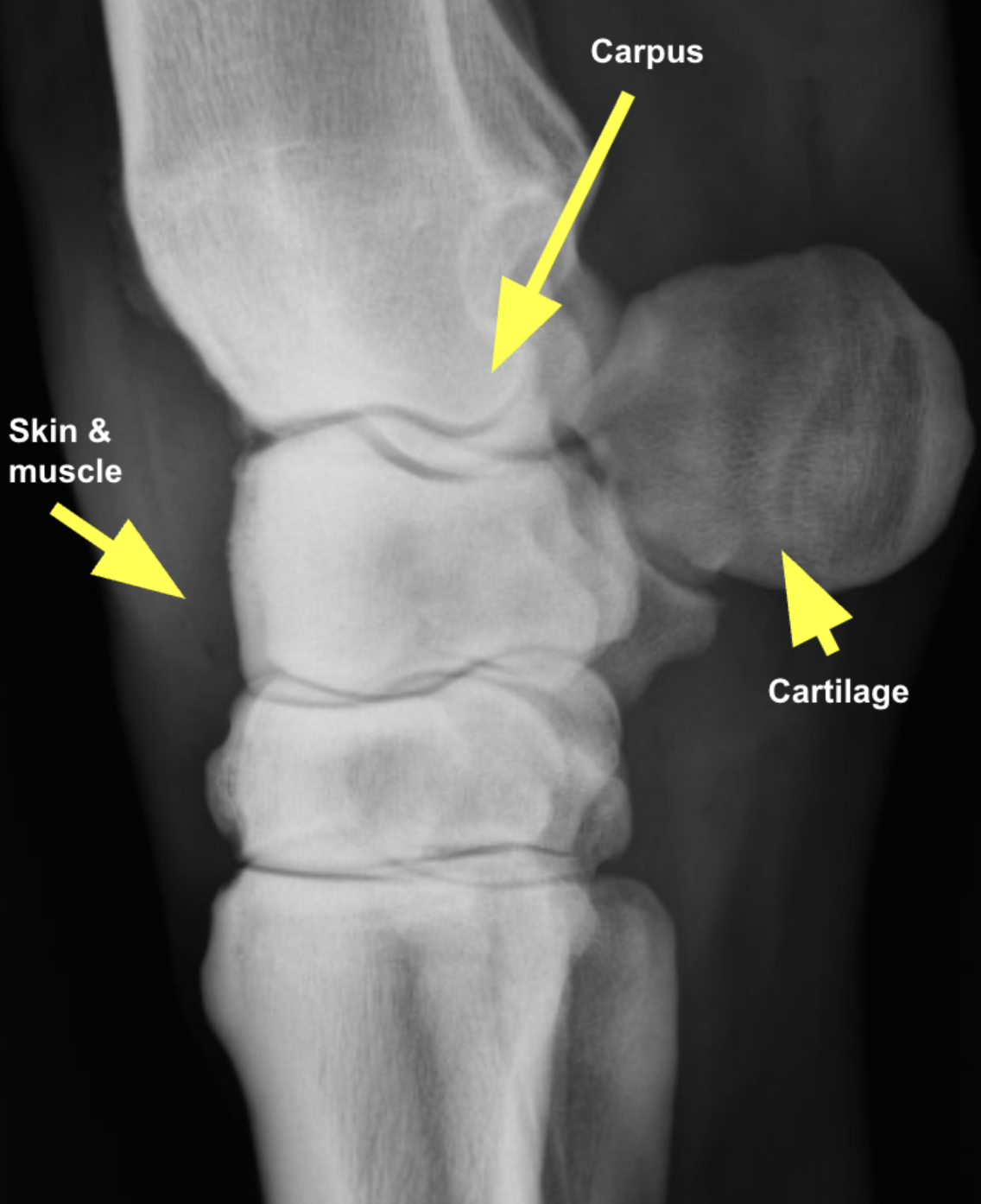

What is Radiolucency?

• The ability of a structure to ALLOW X-rays to pass through

• Radiolucent structures appear BLACK

• Example: Gas

List the FIVE basic radiographic opacities from BLACKEST to WHITEST.

Gas → Fat → Soft tissue/Fluid → Mineral → Metal

Which radiographic opacity is the BLACKEST (least opaque)?

Gas/air

Examples:

• Lung

• Tracheal gas

Which radiographic opacity appears DARK GRAY?

Fat

Example

• Falciform fat

Which radiographic opacity appears GRAY?

Soft tissue/fluid

Examples:

• Liver

• Spleen

• Muscle

• Blood

• Water

Which radiographic opacity appears LIGHT GRAY to WHITE?

Mineral

Examples:

• Bone

• Mineralized material

Which radiographic opacity is the WHITEST (most opaque)?

Metal

Examples:

• Metallic pins

• Microchips

• Metallic foreign bodies

Can soft tissue and fluid generally be differentiated based on radiographic opacity alone?

No

• Soft tissue and fluid have approximately the same opacity

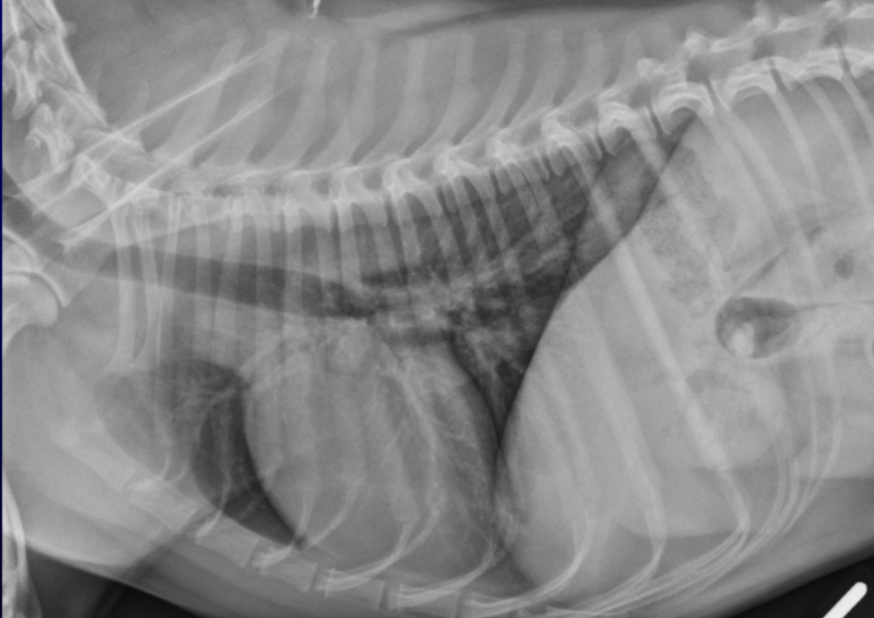

Why are structures with different opacities easier to distinguish when adjacent?

Differences in opacity create contrast, making the borders easier to identify

What is the Silhouette sign (Silhouetting)?

When two structures of equal radiographic opacity are in contact → their SHARED borders become indistinct

• EX: Ascites (fluid-filled abdomen)

• EX: Mass DIRECTLY contacts the heart

What is Border effacement?

Loss of the visible border between two structures of similar opacity that are in direct contact

What is Summation?

When two structures are superimposed along the X-ray beam →their densities have an ADDITIVE effect, increasing the overall opacity

• EX: Mass OVERLAPS the heart on the X-ray beam

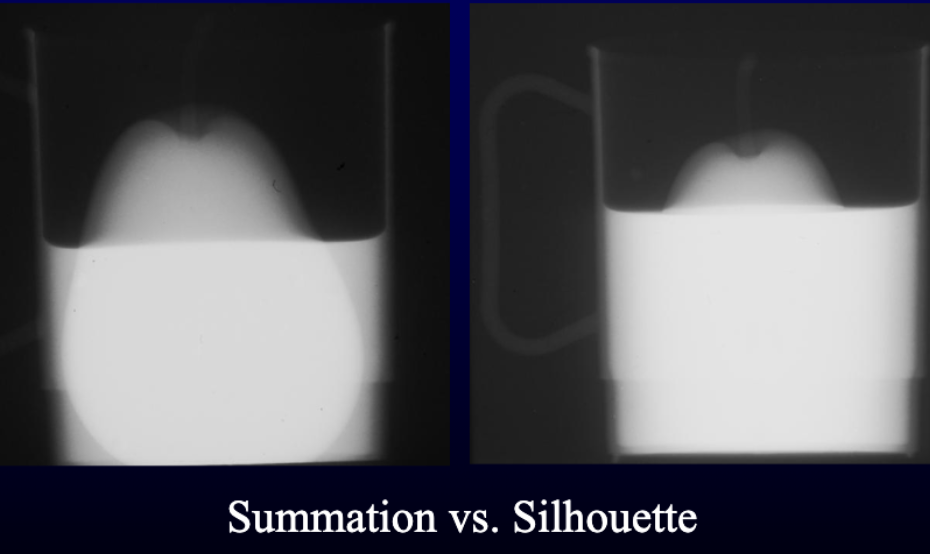

What is the Key difference between Silhouette and Summation?

• Silhouette = Similar opacity + direct contact → Loss of visible border

  • EX: Pear inside the water

• Summation = Superimposed structures → Increased overall opacity

  • EX: Pear outside the cup, overlapping it in your view

Radiopaque vs. Radiolucent SUMMARY

Feature	Radiopaque	Radiolucent
X-rays blocked	More	Fewer
X-rays reaching detector	Fewer	More
Appearance	White	Black
Example	Bone	Gas
Key concept	Blocks X-rays	Allows X-rays through

Remember:

• More X-rays reach detector → BLACK

• Fewer X-rays reach detector → WHITE

Orthogonal Projections SUMMARY

Feature	Single Projection	Orthogonal Projections
Number of views	1	At least 2
Angle	One direction	90° apart
Depth information	Limited	Additional dimension
Location	Difficult to determine	Easier to determine
Shape	May be misleading	More accurately assessed
Main limitation	3D → 2D	Helps recover spatial information

Remember: Orthogonal views = LOCATION + SHAPE

Magnification vs. Distortion SUMMARY

Feature	Magnification	Distortion
Definition	Apparent increase in size	Alteration of original geometry
Cause	Object farther from detector	Unequal magnification
Appearance	Larger, less distinct edges	Shorter, wider, uneven, abnormal shape
Prevention	Object close to detector	Proper positioning
Clinical importance	Accurate orthopedic measurements	Accurate assessment of shape

Remember:

• Farther from detector → More magnification

• Poor positioning → Distortion

The 6 Roentgen Signs SUMMARY

Roentgen Sign	What It Describes	Examples
Location	Where is the lesion?	Relative to anatomical structures
Number	How many lesions?	Single, multiple, multifocal
Shape	What shape?	Round, linear, amorphous
Size	How large?	Measured or compared with anatomy
Opacity	How black or white?	Radiopaque, radiolucent
Margination	How visible are the borders?	Distinct vs. indistinct

Remember: Describe the lesion BEFORE generating differential diagnoses.

Five Radiographic Opacities SUMMARY

Opacity	Appearance	Examples
Gas	Blackest	Lung, tracheal gas
Fat	Dark gray	Falciform fat
Soft tissue/fluid	Gray	Liver, spleen, muscle, blood, water
Mineral	Light gray/white	Bone, rocks/mineral
Metal	Whitest	Pins, microchips, metallic FB

Remember: Gas → Fat → Soft tissue/Fluid → Mineral → Metal.

Silhouette vs. Summation SUMMARY

Feature	Silhouette	Summation
Definition	Two structures of equal opacity contact	Two structures overlap
Relationship	Direct contact	Superimposed
Main effect	Border disappears	Opacity increases
Mechanism	Similar opacities cause border effacement	Combined thickness blocks more X-rays
Key phrase	Loss of border	Additive opacity

Remember:

• Silhouette → Same opacity + touching = Border disappears

• Summation → Overlapping structures = Increased opacity

Radiographic Interpretation Pitfalls SUMMARY

Pitfall	Why It Matters
Species/breed variation	Normal anatomy may appear different
Prior bias/tunnel vision	May overlook alternative explanations
Failure to evaluate entire radiograph	May miss additional abnormalities
Inconsistent image orientation	Makes pattern recognition more difficult

How a Radiograph Is Produced SUMMARY

1. X-ray generator produces X-rays

2. X-rays travel through patient

3. Tissues block different amounts of X-rays

4. Remaining X-rays reach detector

5. Detector produces radiographic image

Radiographic Interpretation Steps SUMMARY

1. Identify abnormality

• Compare with normal anatomy

2. Describe using 6 Roentgen signs

• Location • Number • Shape • Size • Opacity • Margination

3. Generate differential diagnoses

• Determine possible causes of the appearance
