RAD1001: Shoulder Girdle PHOTOS (Danielle MXCC)

Identify projection and A-E

A: Acromion of scapula

B: Acromioclavicular joint

C: Sternoclavicular joint

D: Jugular notch

E: Manubrium of sternum

Identify projection and A-C

A: Acromial extremity (end)

B: Body (shaft)

C: ternal extremity (end)

Identify projection and A-E

A. Sternoclavicular joint

B. Sternal extremity

C. Body

D. Acromial extremity

E. Acromioclavicular joint

Identify view and Identify A-E

Anterior view
A. Glenoid cavity (fossa)

B. Acromion

C. Coracoid process

D. Scapular notch

E. Superior angle

Identify view and Identify A-E

Anterior view
A. Lateral angle (head)

B. Neck

C. Costal surface (anterior) subscapular fossa

D. Inferior angle

E. Body

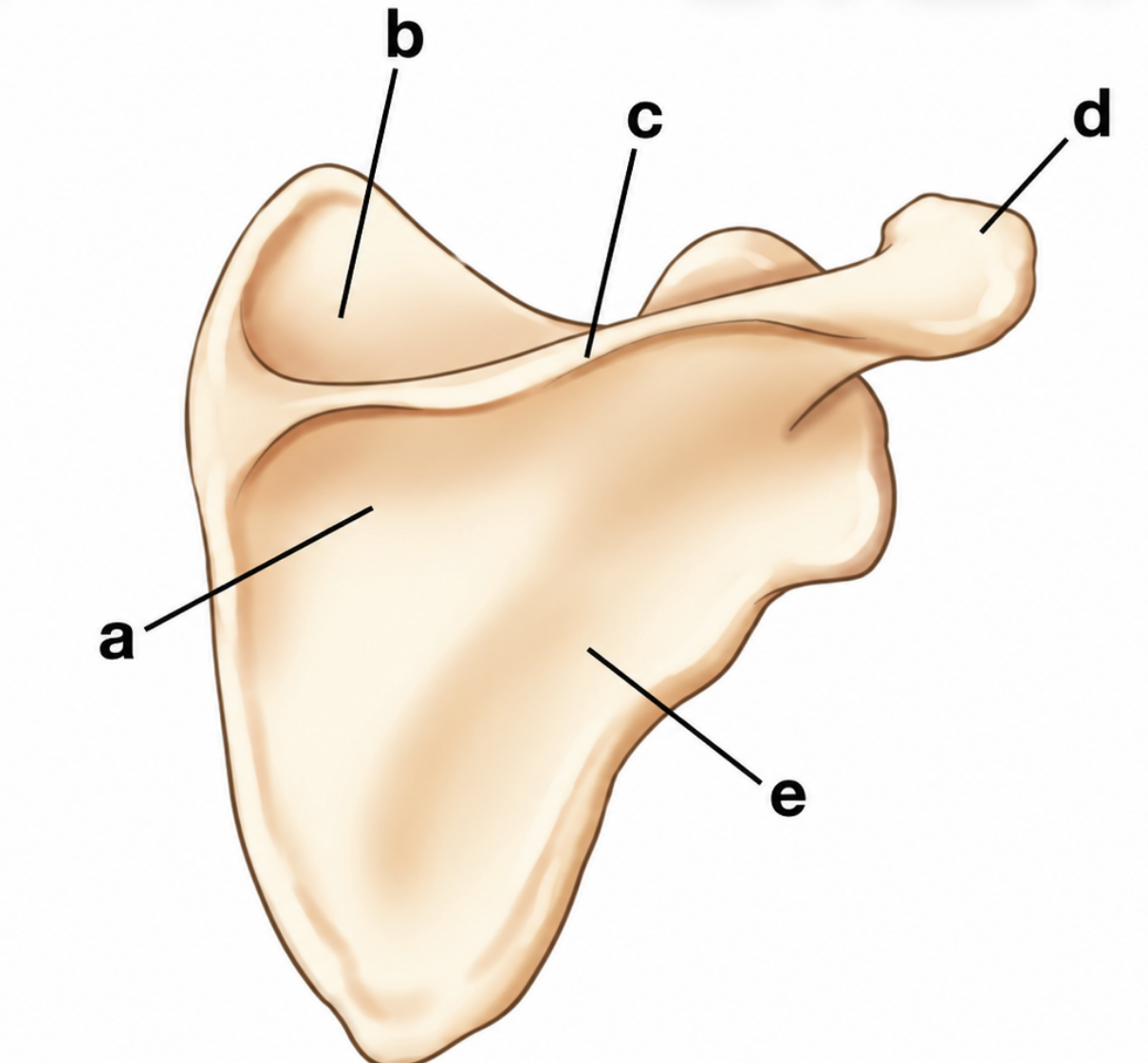

Identify view and Identify A-E

Posterior view
A. Infraspinous fossa

B. Supraspinous fossa

C. Crest of spine

D. Acromion

E. Dorsal surface (posterior)

Identify view and Identify A-D

can remove all words and keep the lines

but can u :

replace Acromion with the letter a

replace Spine of scapula with the letter b

replace Coracoid process with the letter c

replace Glenoid cavity (fossa) with the letter d

Identify view and Identify A-E

Lateral view
A. Dorsal surface

B. Lateral (axillary) border

C. Body

D. Ventral (costal) surface

E. Inferior angle

Identify projection and identify A-E

PA oblique (scapular Y position).
A. Acromion

B. Coracoid process

C. Inferior angle

D. Spine of scapula

E. Body of scapula

Identify projection and A-D

A. Acromion

B. Neck of scapula

C. Suprascapular notch

D. Superior angle

Identify projection and E-H

E. Medial (vertebral) border

F. Inferior angle

G. Lateral (axillary) border

H. Glenoid cavity (fossa) or scapulohumeral joint

Identify A-C

A. Sternoclavicular joint
B. Acromioclavicular joint j
C. Scapulohumeral joint (glenohumeral or shoulder joint) joint

Identify projection

AP Humerus

Identify projection

AP Humerus

Identify projection

Lateral Humerus

Identify projection

Lateral Humerus

Identify projection

Transthoracic lateral humerus

Identify projection

Transthoracic lateral humerus

every thing below here for clavicle

Identify projection

AP Clavicle

Identify projection

AP Clavicle

Identify projection

AP Axial Clavicle

Identify projection

AP Axial Clavicle

Identify projection

AC Joints without weights

Identify projection

AC Joints without weights

Identify projection

AC Joints with weights

Identify projection

AC Joints with weights

anything below this will be AP scap related

Identify projection

AP Scapula

Identify projection

AP Scapula

Identify projection

Lateral Scapula

Identify projection

Lateral Scapula

Identify projection

AP Shoulder with External rotation

Identify projection

AP Shoulder with External rotation

Indenitfy pointed anatomy

Inferior angle of the scapula

Identify projection

AP Shoulder with Internal rotation

Identify projection

AP Shoulder with Internal rotation

Identify projection

AP Oblique, Grashey Method (RPO)

Identify projection

AP Oblique, Grashey Method

Identify projection

PA Oblique Shoulder (Scapular Y)

Identify projection

PA Oblique Shoulder (Scapular Y)

Identify projection and identify A-E

PA Oblique Shoulder (Scapular Y)

A. Acromion

B. Coracoid process

C. Body of scapula

D. Inferior angle

E. Humerus

Identify projection

PA SOV Neer

Identify projection

PA SOV Neer

Identify projection

Shoulder Transthoracic Lateral (Lawrence method)

Identify projection

Shoulder Transthoracic Lateral (Lawrence method)

Identify projection

Shoulder Inferosuperior Axial (Lawrence method)

Identify projection

Shoulder Inferosuperior Axial (Lawrence method)

Identify projection

Shoulder Superoinferior Transaxillary

Identify projection

Shoulder Superoinferior Transaxillary

Identify projection

PA Oblique Shoulder (Scapular Y)

Identify projection

PA Oblique Shoulder (Scapular Y)

Identify projection

AP Neutral Shoulder

Identify projection

Inferosuperior axial (Lawrence) shoulder

Identify projection

Inferosuperior axial (Lawrence) shoulder

Identify projection

AP Shoulder with External rotation

Identify projection

AP Shoulder with External rotation

Identify projection

AP Shoulder with Internal rotation

Identify projection

AP Shoulder with Internal rotation
