Large Cell-Torso-skin-burns-left_knee models

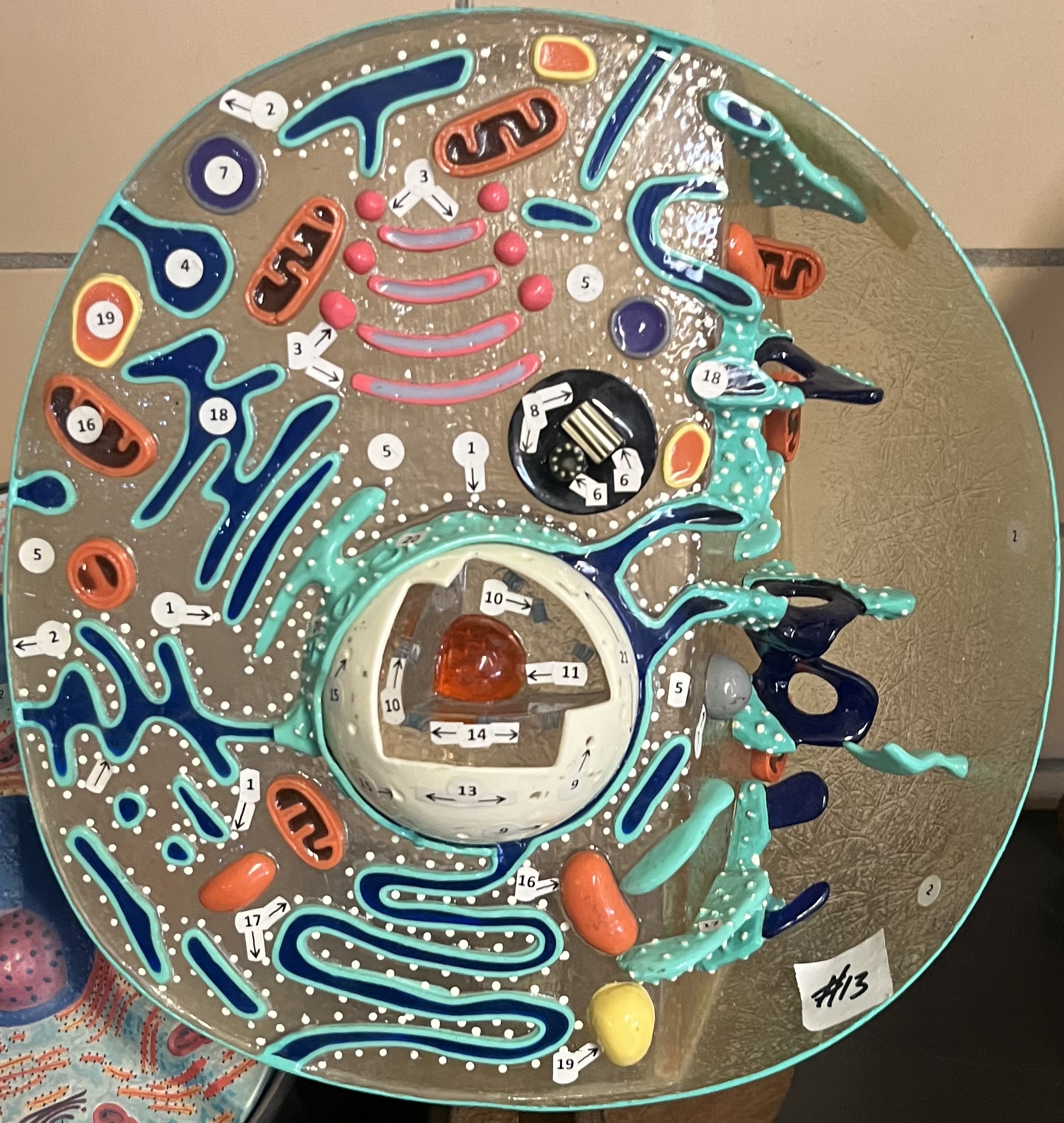

Cell

structural and functional unit of all living things

function: energy production

location: all throughout body

1

ribosome, site of protein synthesis

2

cell membrane, protective barrier for the cell

3

golgi bodies/apparatus, transports proteins from rough endoplasmic reticulum

4

pinocyctic vesicle, brings in liquids usually containing protein or fat into cell interior

5

cytoplasm, holds the organelles

6

centrioles, direct formation of mitotic spindle

7

peroxisome, detoxify harmful chemicals like alcohol and hydrogen peroxide

8

centrosome, area where centrioles are found

9

nuclear pore, permit passage of protein and RNA molecules in and out of nucleus

10

chromosome, holds cells genetic information

11

nucleolus, assembly site for ribosome particles

13

inner nuclear membrane, protective barrier of nucleus

14

chromatin, coils and condenses to form chromosomes

15

nuclear pore, permits passage of protein and RNA molecules in and out of nucleus

16

mitochondria, produce ATP

17

rough endoplasmic reticulum, synthesis/storage/transport of proteins

19

lysosome, digest worn out organelles

20

outer nuclear membrane, protective barrier of nucleus

21

nucleus, control center of cell

1

epidermis

2

nervous tissue

3

palm, sole

4

armpit

5

scalp

6

hair

7

dermis

8

muscle tissue

9

blood vessels

10

glands

1

stratum corneum

2

stratum lucidum

3

stratum granulosum

4

stratum spinosum

5

stratum basale

hypodermis

x

reticular layer

1

finger print

2

dermal papilla

3

papillary layer

hair shaft

1

connective tissue sheath

2

hair follicle

3

hair bulb

4

hair root

5

hair papilla

6

medulla

7

cortex

8

cuticle layer

9

internal root sheath

10

external root sheath

11

glassy membrane

1

eccrine sweat gland pore

2

capillary loop

3

vein

4

artery

5

eccrine sweat gland

6

apocrine sweat gland

7

sebaceous gland

8

eccrine sweat gland duct

1

meissner’s corpuscle

2

free dendritic nerve ending

3

sensory nerve fiber

4

motor nerve fiber

5

arrector pili muscle

6

pacinian corpuscle

1

damaged epithelium

2

epidermis

3

dermis

4

hypodermis

5

1st degree burn

6

2nd degree burn

7

3rd degree burn

8

damaged hypodermis

9

destroyed dermis

10

destroyed hair follicle

11

damaged dermis

12

damaged hair follicle

13

blister

14

destroyed epithelium

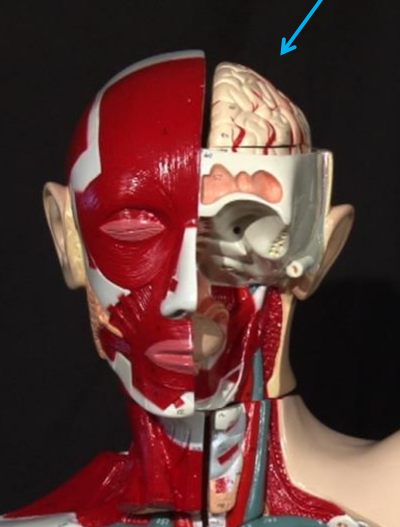

brain, nervous

spinal cord, nervous

inferior vena cava, cardiovascular

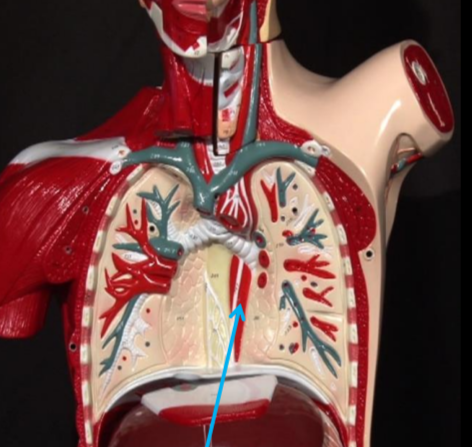

descending aorta, cardiovascular

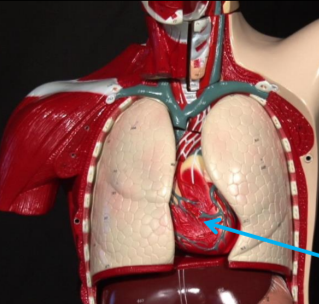

heart, cardiovascular

trachea, respiratory

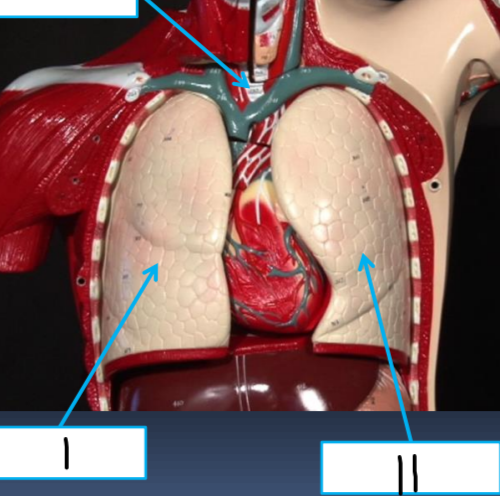

I

right lung, respiratory

II

left lung, respiratory

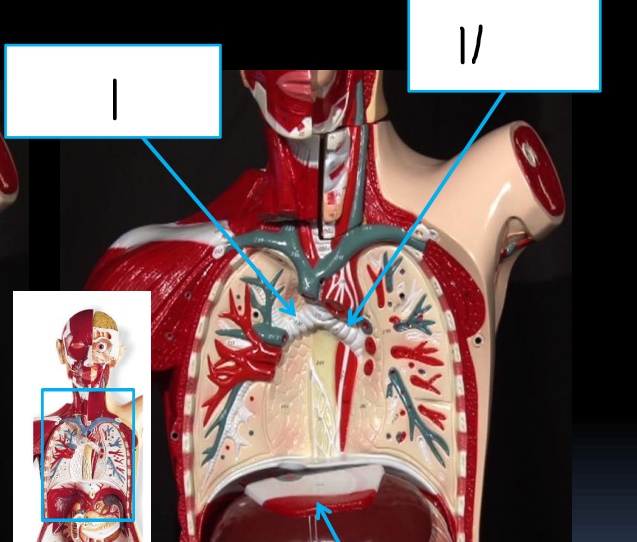

I

right primary bronchus, respiratory

II

left primary bronchus, respiratory

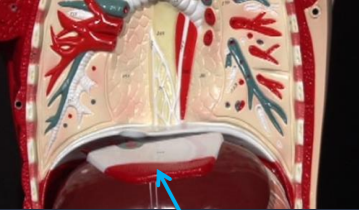

diaphragm, respiratory

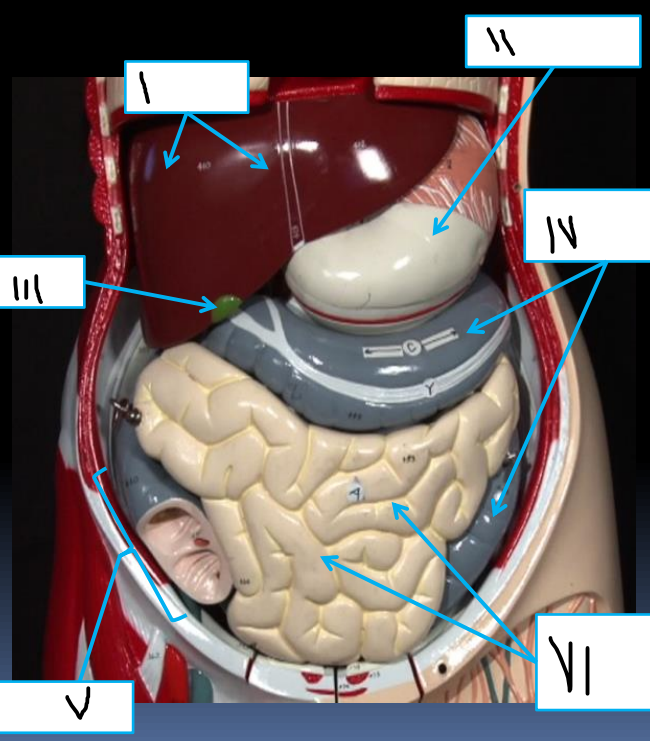

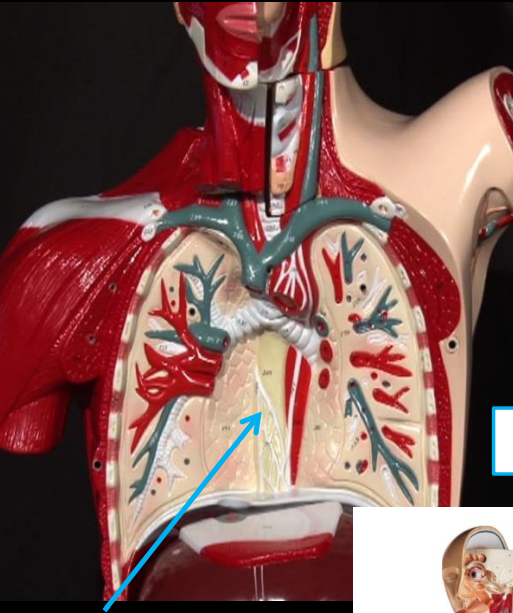

esophagus, digestive

I

liver, digestive

II

stomach, digestive

III

gallbladder, digestive

IV

large intestine, digestive

V

cecum, digestive

VI

small intestine, digestive

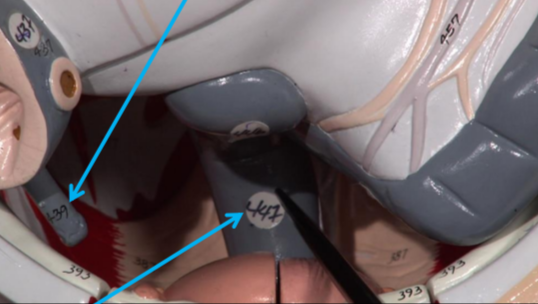

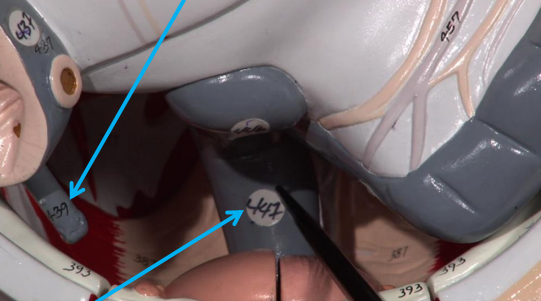

447

rectum, digestive

439

vermiform appendix, digestive
