126 Terms
What is this structure?
Cuboid
What is this structure?
Navicular
What is this structure?
Medial Cuneiform
What is this structure?
Intermediate Cuneiform
What is this structure?
Lateral Cuneiform
What is this structure?
Talus
What joint is indicated?
5th MTP Joint
What joint is indicated?
2nd DIP joint
What is this structure?
2nd Metatarsal
Name the structure indicated in blue
Navicular

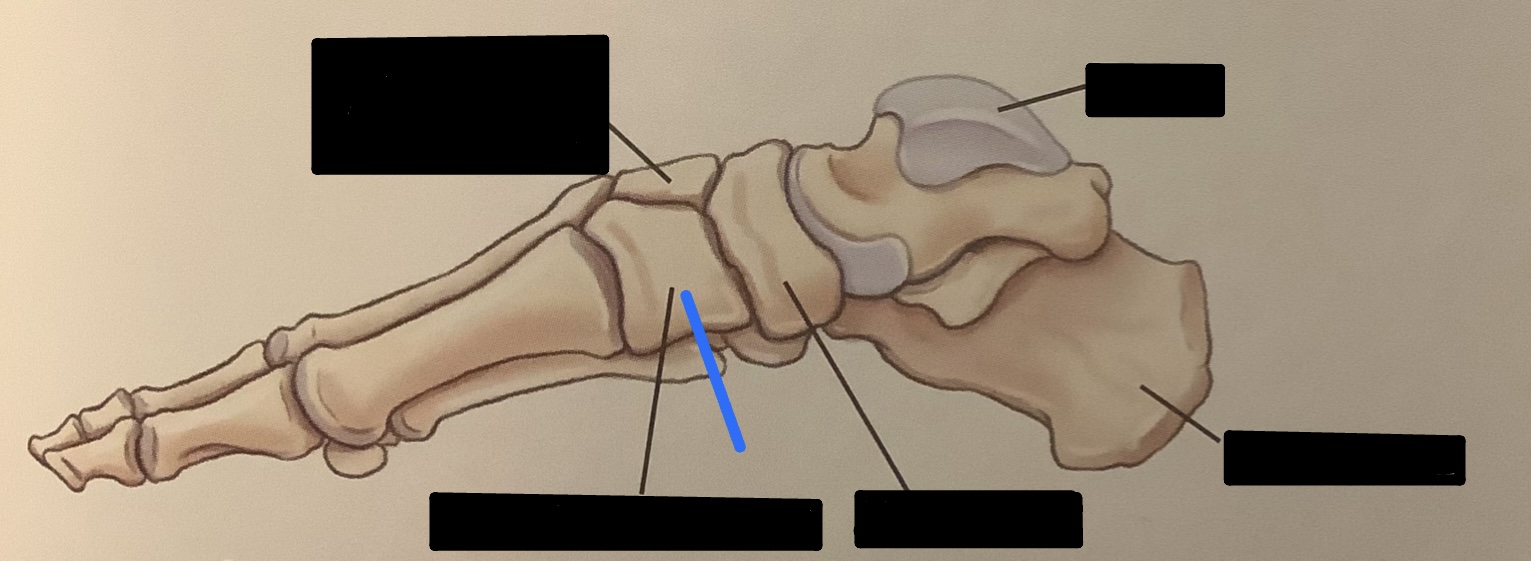

Label the structure indicated in blue
Medial Cuneiform
Label the structure indicated in blue
Intermediate cuneiform
Label the structure indicated in blue
Talus
Label the structure indicated in blue
Calcaneus
Label the structure
Medial Malleolus
Label the structure
Lateral Malleolus
Label the structure
Tibia
Label the structure
Fibula
Label the structure
Talus
Label the joint space
Tibiotalar joint
Label the structure
Base of the 5th Metatarsal
Label the structure indicated in blue
Base of the 5th metatarsal
Label the structure indicated in blue
Cuboid
Label the structure indicated in blue
Calcaneocuboid joint
Label the structure indicated in blue
Calcaneus
Label the structure indicated in blue
Tuberosity
Label the structure indicated in blue
Talocalcaneal (Subtalar) Joint
Label the structure indicated in blue
Tarsal Sinus (Sinus Tarsi)
Label the structure indicated in blue
Lateral Malleolus
Label the structure indicated in blue
Tibiotalar joint
Label the structure indicated in blue
Talus
Label the structure indicated in blue
Talonavicular Joint
Label the structure indicated in blue
Navicular
Identify letter A
Fibula
Identify letter B
Lateral Malleolus
Identify letter C
“Open” mortise joint of ankle
Identify letter D
Talus
Identify letter E
Medial Malleolus
Identify letter F
Tibial epiphyseal plate
Identify letter A
Fibula
Identify letter B
Calcaneus
Identify letter C
Cuboid
Identify letter D
Tuberosity at base of 5th metatarsal
Identify letter E
Navicul
Identify letter F
Talus
Identify letter G
Sinus Tarsi
Identify letter H
Anterior tubercle
Identify letter i
Tibia
Identify letter A
IP joint of first digit of right foot
Identify letter B
Proximal phalanx of first digit of right foot
Identify letter C
MTP joint of first digit of right foot
Identify letter D
Head of first metatarsal
Identify letter E
Body of first metatarsal
Identify letter F
Base of first metatarsal
Identify letter G
Intermediate cuneiform (superimposed over medial)
Identify letter H
Navicular
Identify letter i
Talus
Identify letter j
Tuberosity of calcaneus
Identify letter K
Lateral cuneiform
Identify letter L
Cuboid
Identify letter M
Tuberosity of the base of the fifth metatarsal
Identify letter N
Fifth MTP joint of right foot
Identify letter O
Proximal phalanx of fifth digit of right foot
Identify letter A
Tibia
Identify letter B
Calcaneus
Identify letter C
Tuberosity of calcaneus
Identify letter D
Cuboid
Identify letter E
Fifth metatarsal Tuberosity
Identify letter F
Superimposed cuneiforms
Identify letter G
Navicular
Identify letter H
Subtalar joint
Identify letter i
Talus
What projection is being done here?
AP Toe (second digit)
What is the angle of the beam?
10-15 degrees
What is the centering point?
Second MTP joint
Identify the projection
AP Toe (second digit)
State the acceptance criteria
All of digit of interest and half of the metatarsals
No overlapping soft tissue
Open joint spaces and no rotation
What is this projection?
AP medial oblique toe
What is the degree of rotation?
30-45 degrees
identify this projection
AP medial oblique toe (first digit)
State the acceptance criteria
Digit in question and distal half of metatarsal without overlapping
Correct obliquity of 30-45 degrees
Which projection is shown?
Lateral Great Toe
What projection is shown?
Lateral second toe
Which projection is shown?
Lateral fourth and fifth toes
Identify this projection
Lateral Great Toe
State the acceptance criteria
Phalanges of interest seen in a true lateral
No superimposition
Increased anterior concavity
Identify this projection
AP Foot
What is the angle of the beam?
10 degrees
What is the centering point of the beam?
Base of the third metatarsal
Identify this projection
AP Foot
State the acceptance criteria
Entire foot demonstrated
No rotation
Open joint spaces
Identify this projection
AP medial oblique foot
What is the degree of rotation?
30-45 degrees
What is the centering point?
Base of the third metatarsal
Identify this projection
AP medial oblique foot
State the acceptance criteria
Entire foot demonstrated
Base of fifth metatarsal visualized
Correct obliquity
Identify the projection
Mediolateral foot
What is the centering point?
Directed at medial cuneiform (Level of base of third metatarsal)
Identify the projection
Mediolateral foot
State the acceptance criteria
Entire foot demonstrated
Minimum of 1 inch of distal Tib/Fib
Head of metatarsals superimposed
