Bones of the Appendicular Skeleton

Appendicular Skeleton

Limbs (appendages) & the bones that attach them to the axial skeleton (girdles)

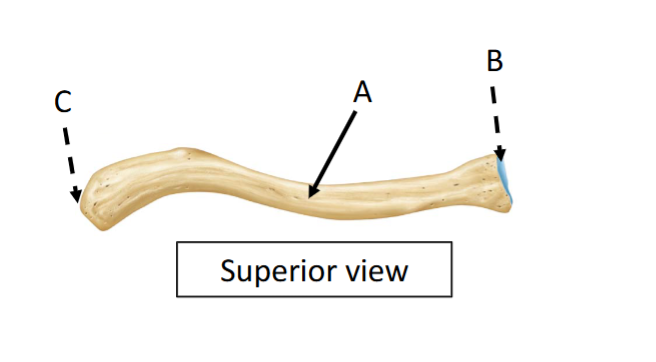

A

Clavicle

B

Sternal end

C

Acromial end

D

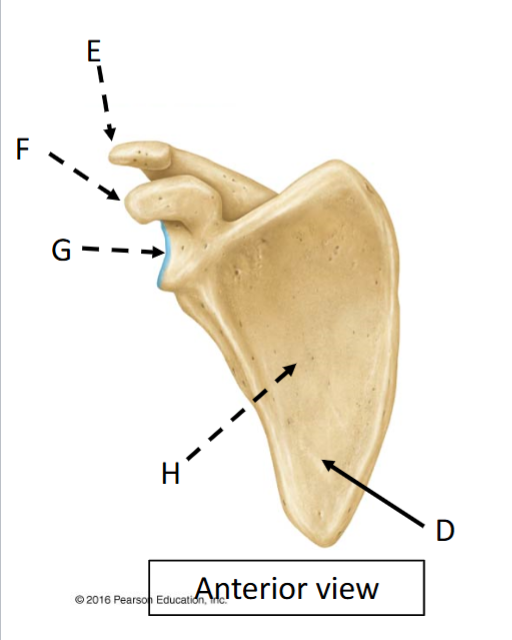

Scapula

E

Acromion process

F

Coracoid process of the Scapula

G

Glenoid fossa (cavity)

H

Subscapular fossa

I

Supraglenoid tubercle

J

Infraglenoid tubercle

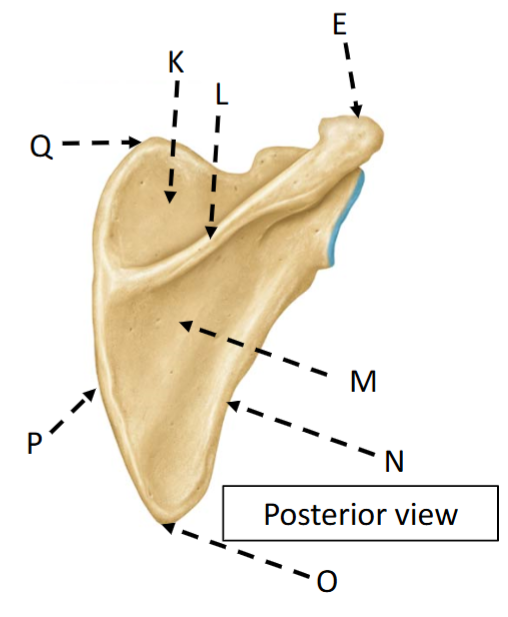

G

Glenoid cavity

E

Acromion process

K

Supraspinous fossa

L

Spine

M

Infraspinous fossa

N

Lateral border

O

Inferior angle

P

Medial border

Q

Superior angle

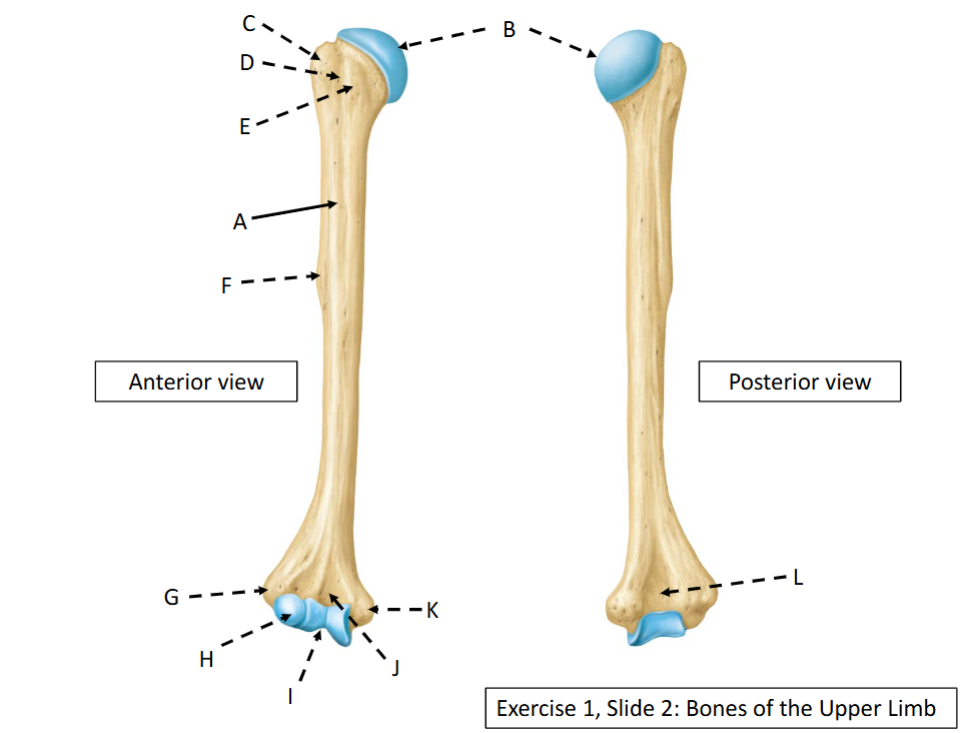

A

Humerus

B

Head

C

Greater tubercle

D

Intertubercular groove

E

Lesser tubercle

F

Deltoid tuberosity

G

Lateral epicondyle of the Humerus

H

Capitulum

I

Trochlea

J

Coronoid fossa of the humerus

K

Medial epicondyle of the humerus

L

Olecranon fossa of humerus

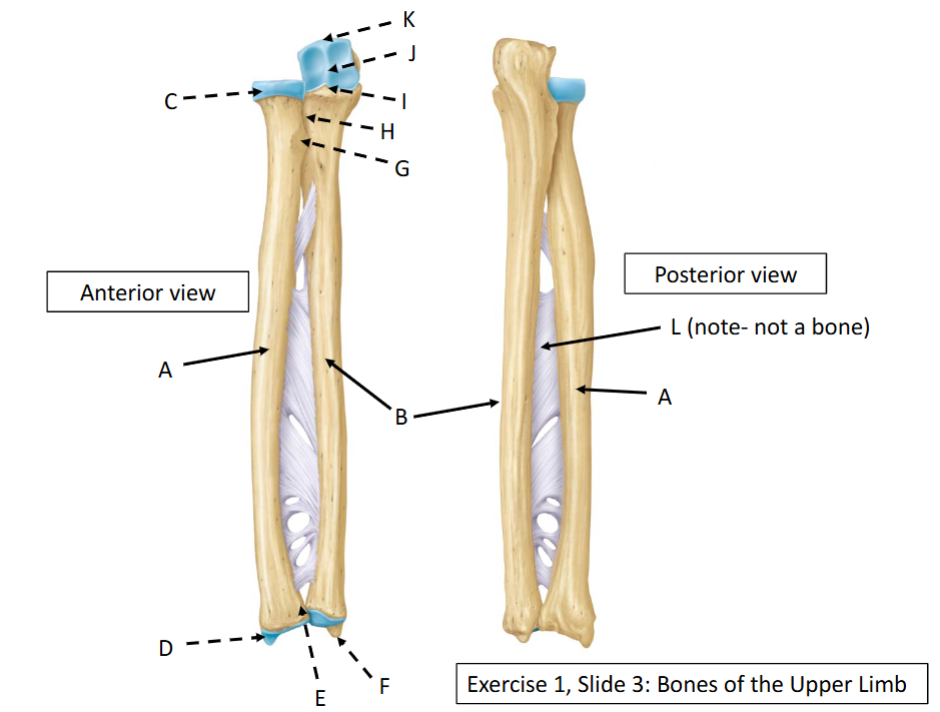

A

Radius

B

Ulna

C

Radial head

D

Radial styloid process

E

Ulnar notch of radius

F

Ulnar styloid process

G

Radial tuberosity

H

Radial notch of ulna

I

Coronoid process of ulna

J

Trochlear notch

K

Olecranon process of Ulna

L

Interosseous membrane

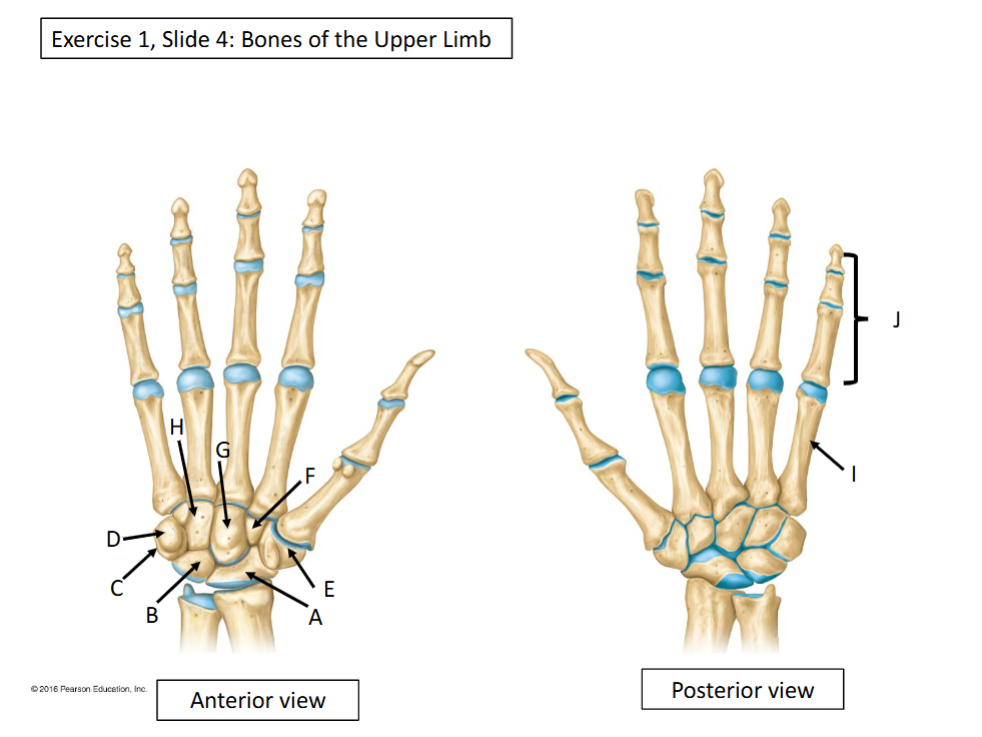

A

Scaphoid

B

Lunate

C

Triquetrum

D

Pisiform

E

Trapezium

F

Trapezoid

G

Capitate

H

Hamate

I

Metacarpals

J

Phalanges

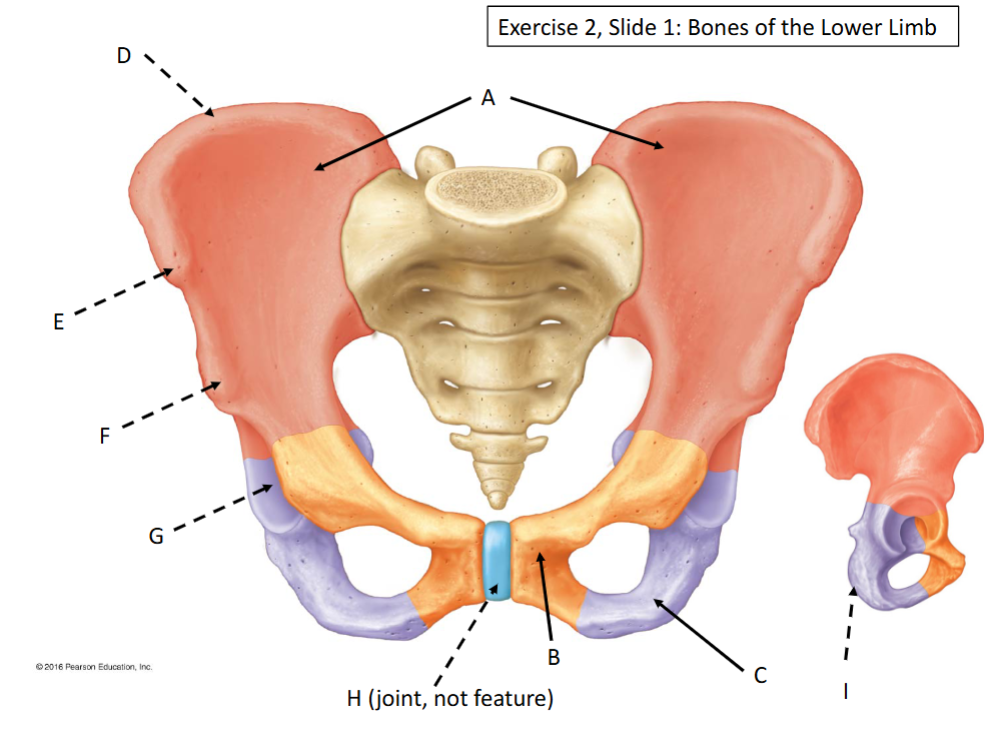

A

Ilium

B

Pubis

C

Ischium

D

Iliac crest

E

Anterior superior iliac spine (ASIS)

F

Anterior inferior iliac spine (AIIS)

G

Acetabulum

H

Pubic symphysis

I

Ischial tuberosity

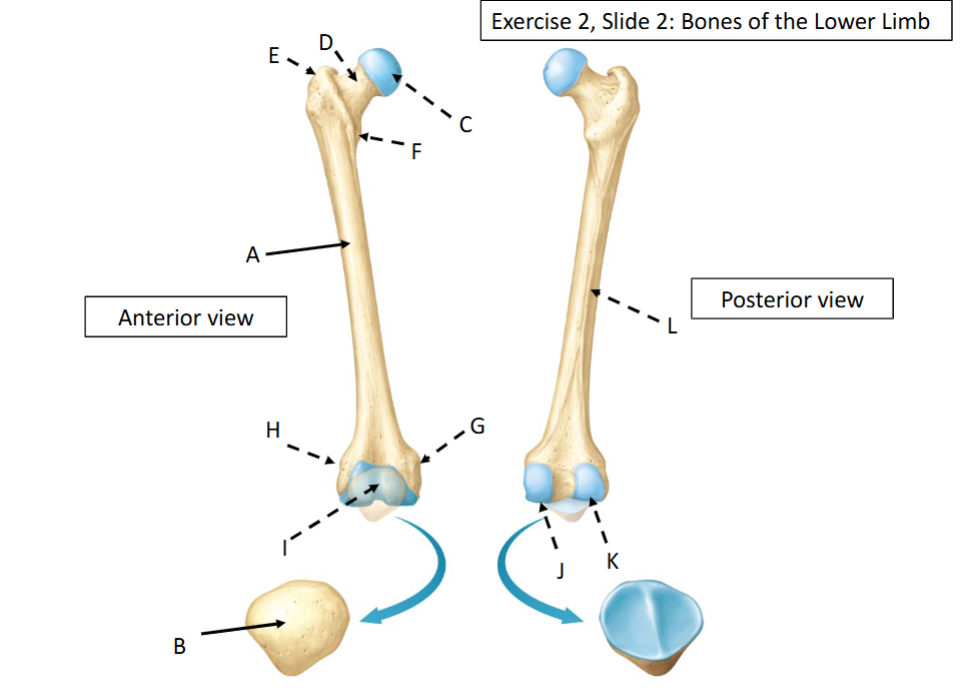

A

Femur

B

Patella

C

Femoral head

D

Femoral neck

E

Greater trochanter

F

Lesser trochanter

G

Medial epicondyle of the femur

H

Lateral epicondyle of the femur

I

Patellar surface

J

Medial condyle of the femur

K

Lateral condyle of the femur

L

Linea aspera

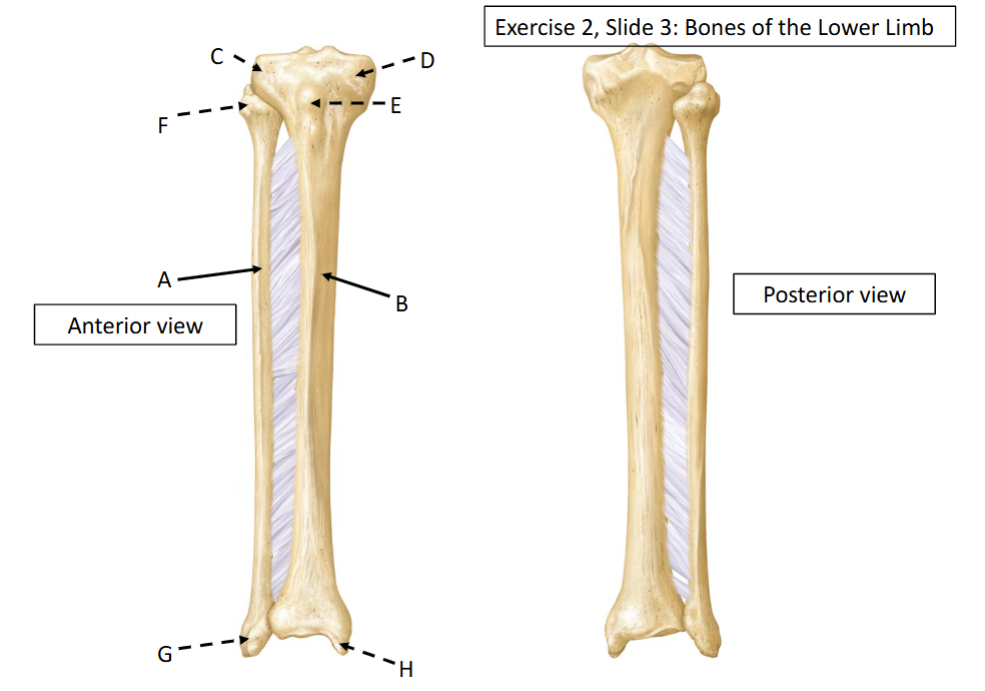

A

Fibula

B

Tibia

C

Lateral condyle of the tibia

D

Medial condyle of the tibia

E

Tibial tuberosity

F

Head of fibula

G

Lateral malleolus of fibula

H

Medial malleolus of tibia

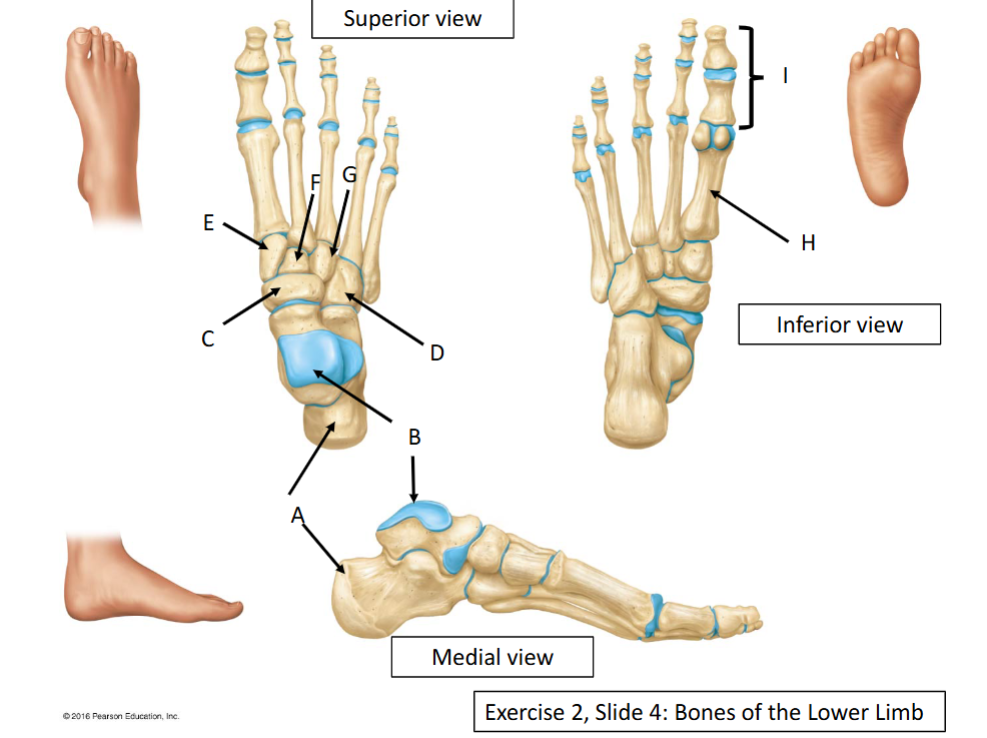

A

Calcaneus

B

Talus

C

Navicular

D

Cuboid

E

Medial (1st) cuneiform

F

Intermediate (2nd) cuneiform

G

Lateral (3rd) cuneiform

H

Metatarsals

I

Phalanges
