22 Terms

1
New cards

Meta centre

It is defined as the point about which a floating body start oscillating when the body is titled by a small axis

2
New cards

Meta centric height

Distance between the meta centre of a floating body and the centre of gravity

3
New cards

Stability of a submerged body.


  1. Stable equilibrium: When W=Fb and point B is above G.

  2. Unstable equilibrium: When W=Fb but centre if buoyancy is below G

  3. Neutral equilibrium:. When W=Fb and B and G are at the same point


4
New cards

Stability of a floating body(determined by M and G)

  1. Stable equilibrium: When M is above G.

  2. Unstable equilibrium: When M is below G.

  3. Neutral equilibrium: If point M is at the centre of gravity of the body


5
New cards

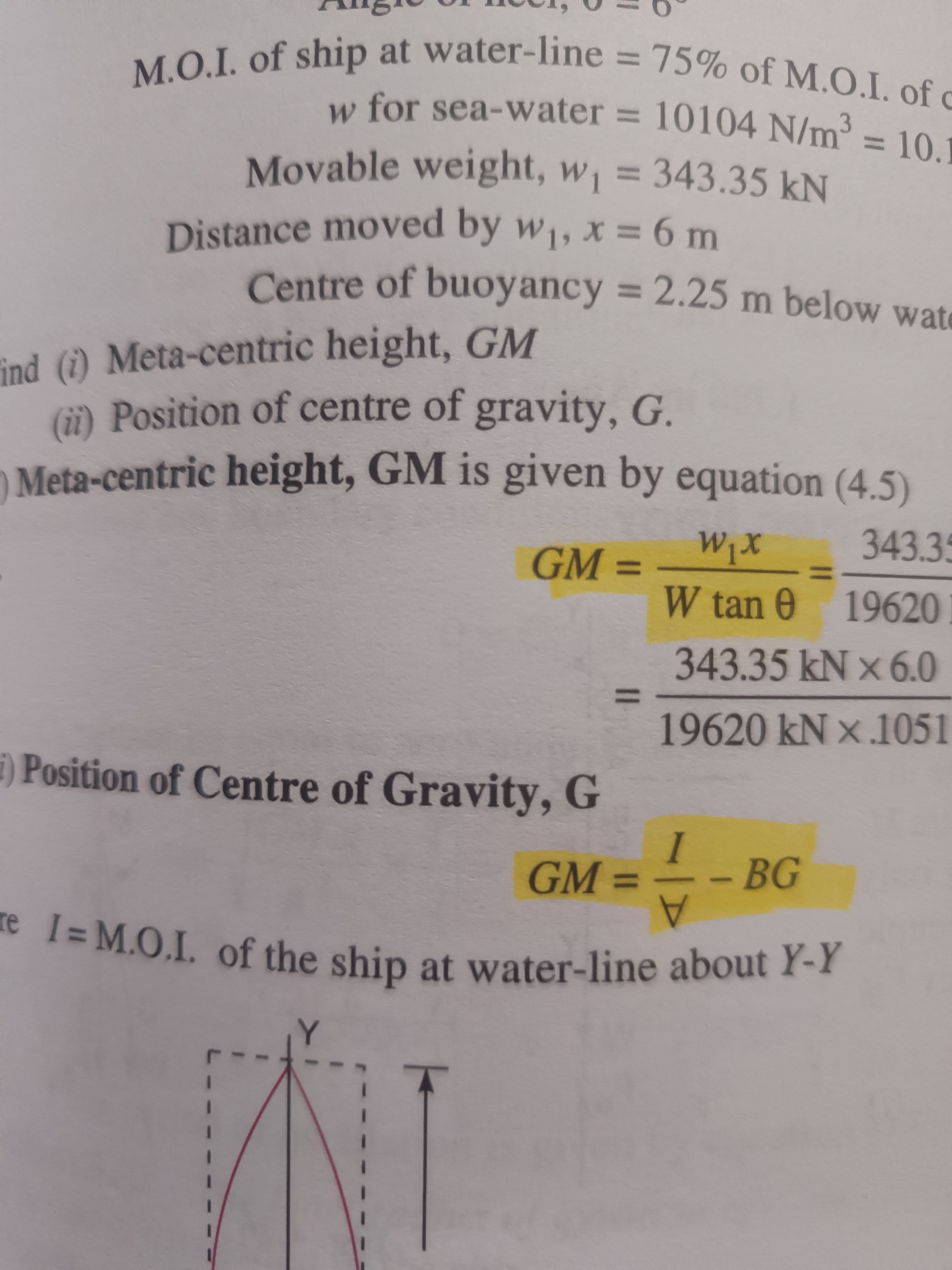

Meta centric height formula and position of centre of gravity

knowt flashcard image
6
New cards

When is B and G coincide

When a body is fully submerged, uniform and symmetrical

7
New cards

A large metacentric height improves

Stability and makes the periodic time of oscillation shorter

8
New cards

The centre of buoyancy in a submerged body remains

Unchanged

9
New cards

Hydraulic accumulator is used for

Supplying energy when main supply fails

10
New cards

One torr of pressure is equivalent to

1_mm of mercury or 1/760atm

11
New cards

Barometer is used to measure

Atmospheric pressure

12
New cards

A micro manometer with inclined tube is called

Sensitive manometer used for accurate measurement

13
New cards

Hydraulic press is a dwvice used to

Lift larger load by the application of a comparatively much smaller force

14
New cards

Mercury is used in barometer because

  1. Its vapour pressure is low that it can be ngelected

  2. The height of barometer will be less


15
New cards

Velocity is measured by

Pitot tube

16
New cards

When is perfect vacuum obtained

When both absolute pressure and molecular momentum are zero

17
New cards

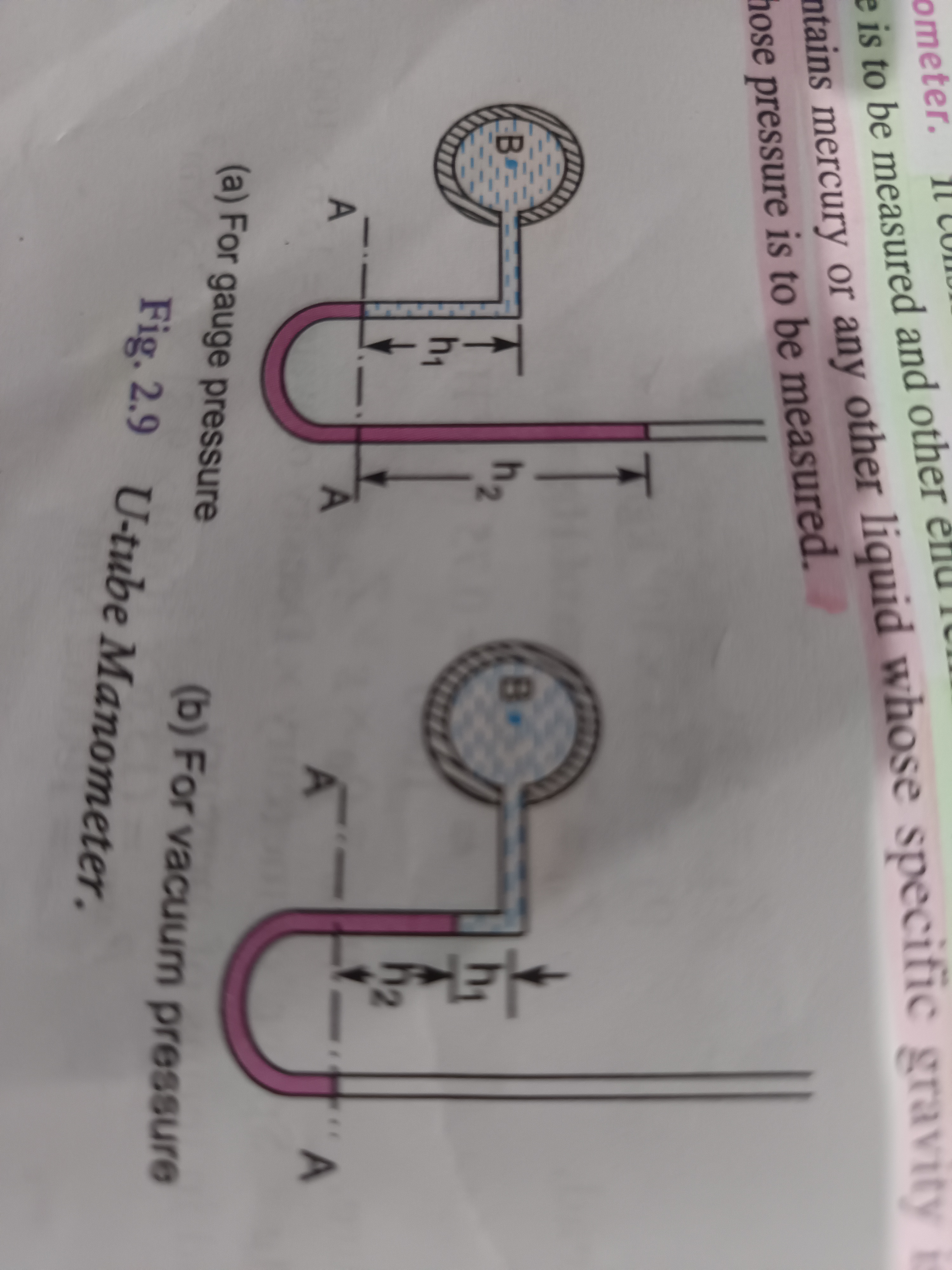

Diagram for u tube manometer guage and vacuum

knowt flashcard image
18
New cards

Piezometer measures the guage pressure of only

Incompressible fluids

19
New cards

Pressure head of a fluid represents

Energy per unit weight

20
New cards

Manometric head is

  1. Total head at the outlet of the pump-Total head at the inlet of the pump

  2. Head imparted by impeller to water-Loss of head in the pump

  3. Hs +hd+hfs+hfd+vdsquare by 2g


21
New cards

For free cavitation available npsh should be

Greater than required npsh

22
New cards
