AP Microeconomics Graphs (copy)

Practice drawing the graphs, Flashcard mode. Click pics to enlargen. Additional labels/notes in brackets.

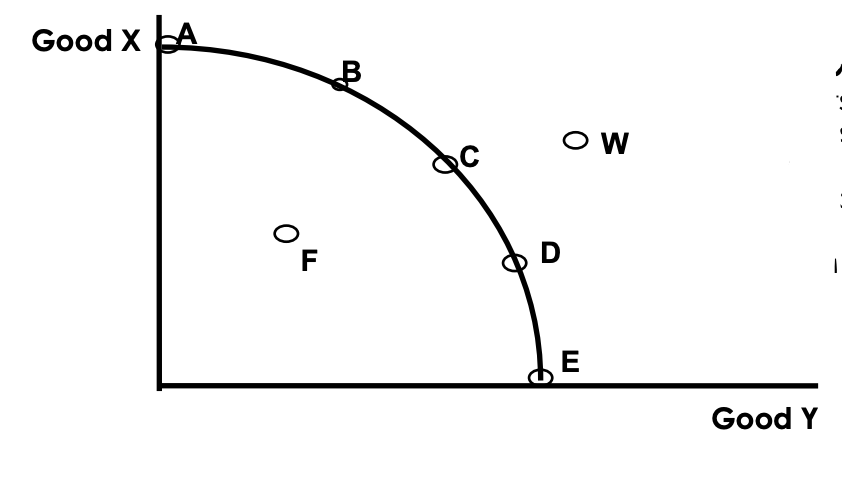

Production Possibilities Curve

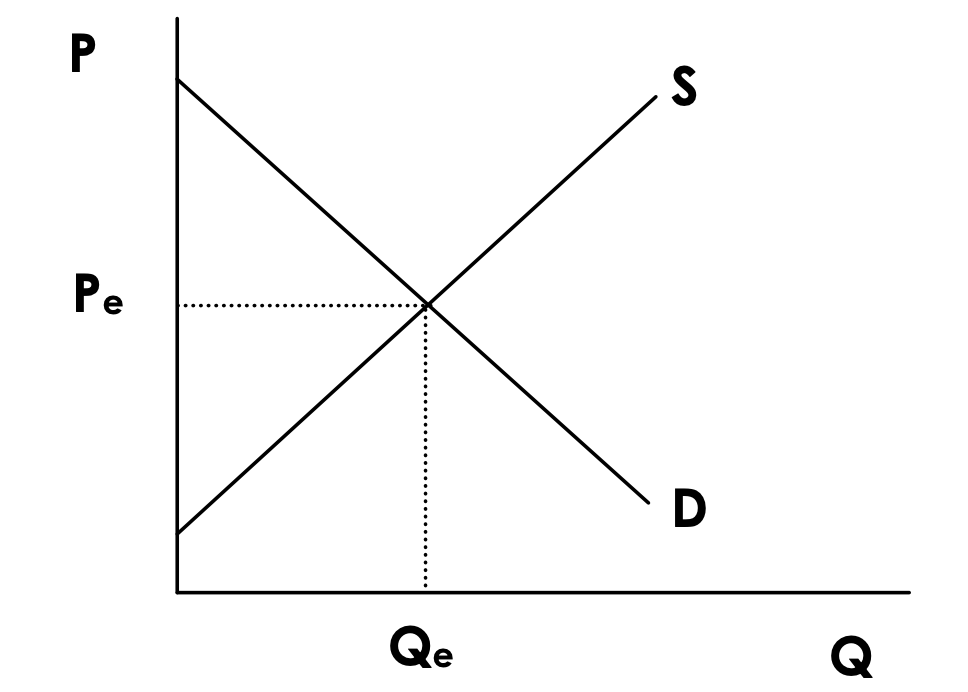

Demand and Supply (Pe and Qe)

\

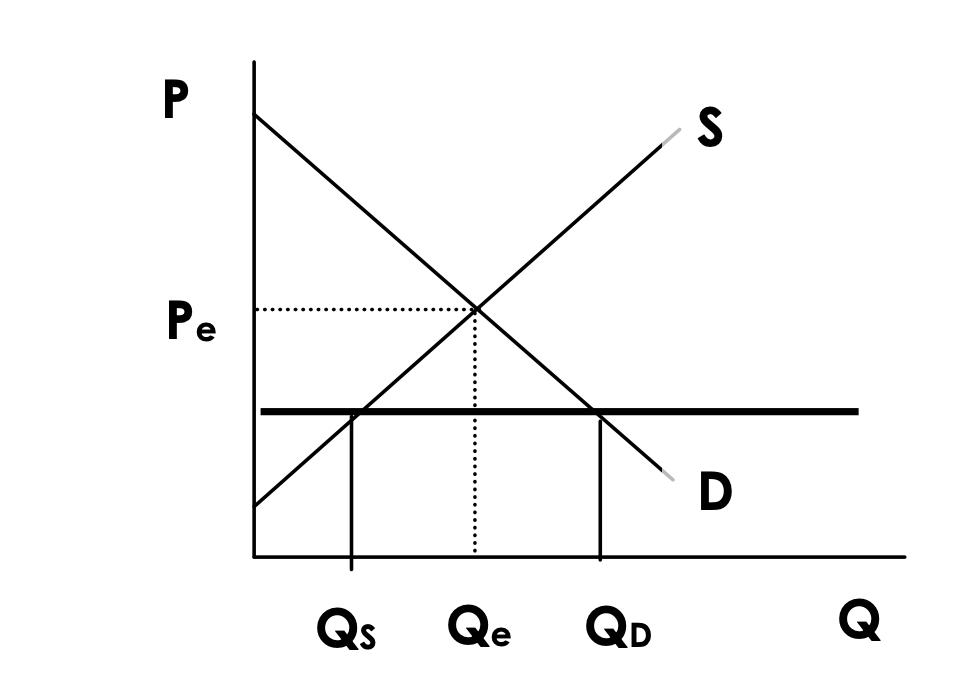

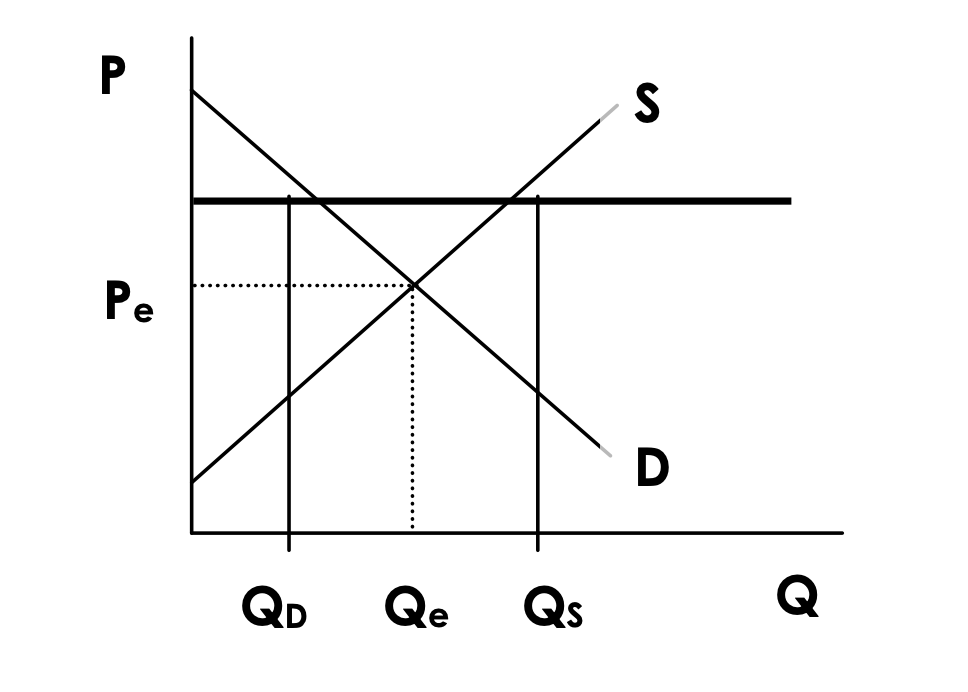

Price Floor (Qd, Qs )

Price Ceiling (Qd, Qs )

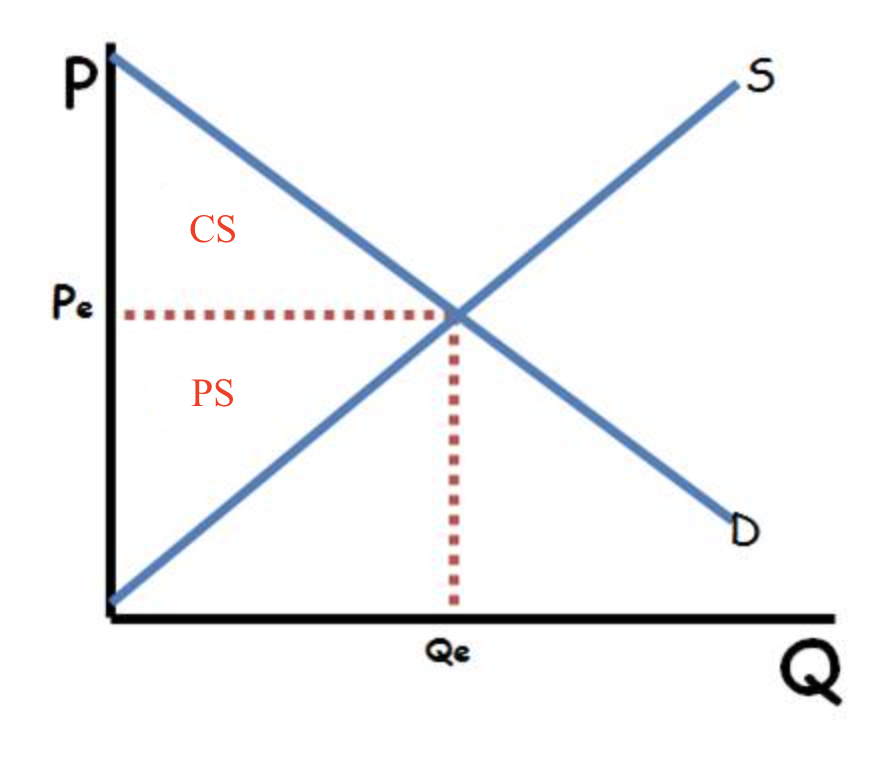

Consumer and Producer Surplus

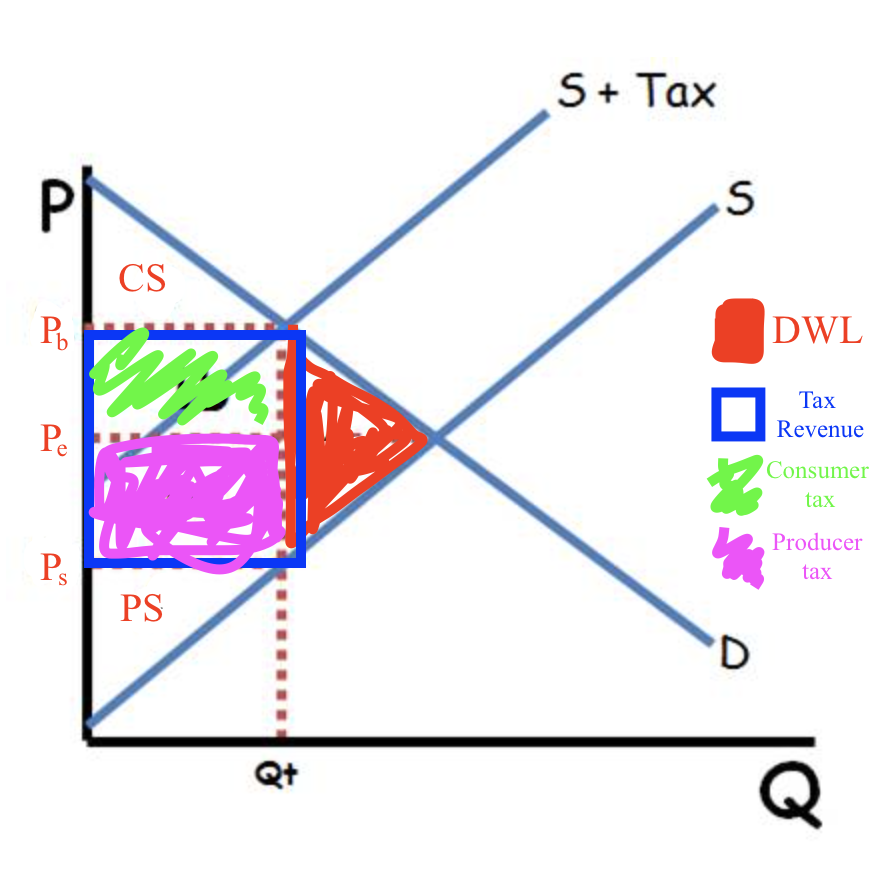

Per-Unit tax; no externalities (CS, PS, Tax Revenue, Buyers price, Sellers Price, Qt, Pe, Consumer tax burden, Producer tax burden)

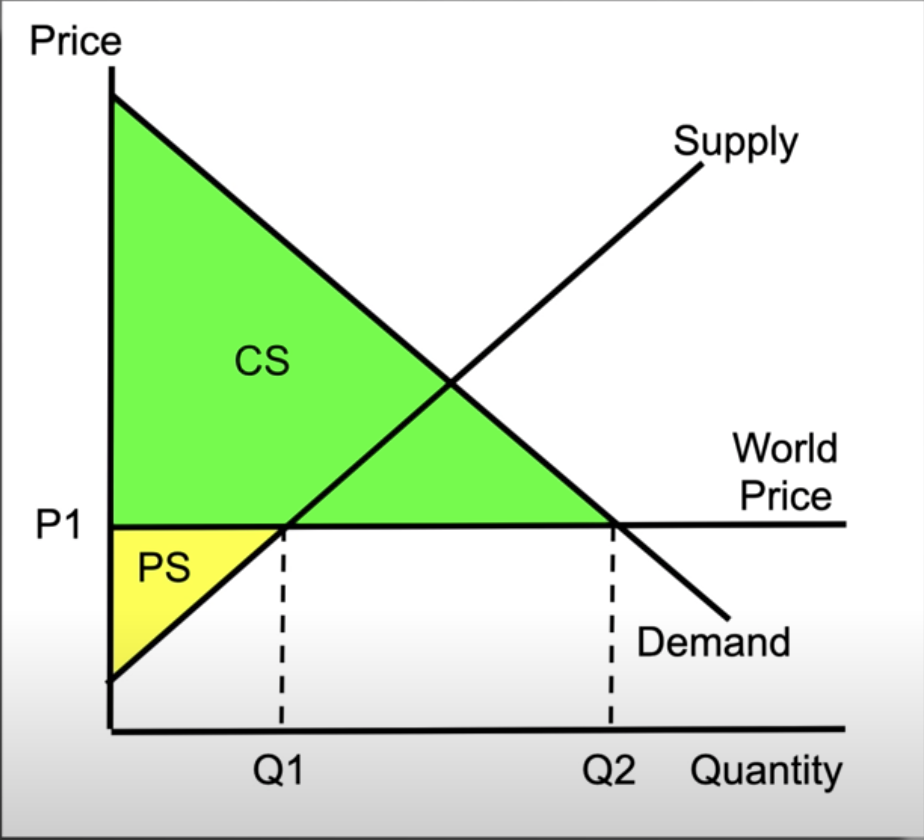

International trade (CS, PS, Q supplied, Q demanded )

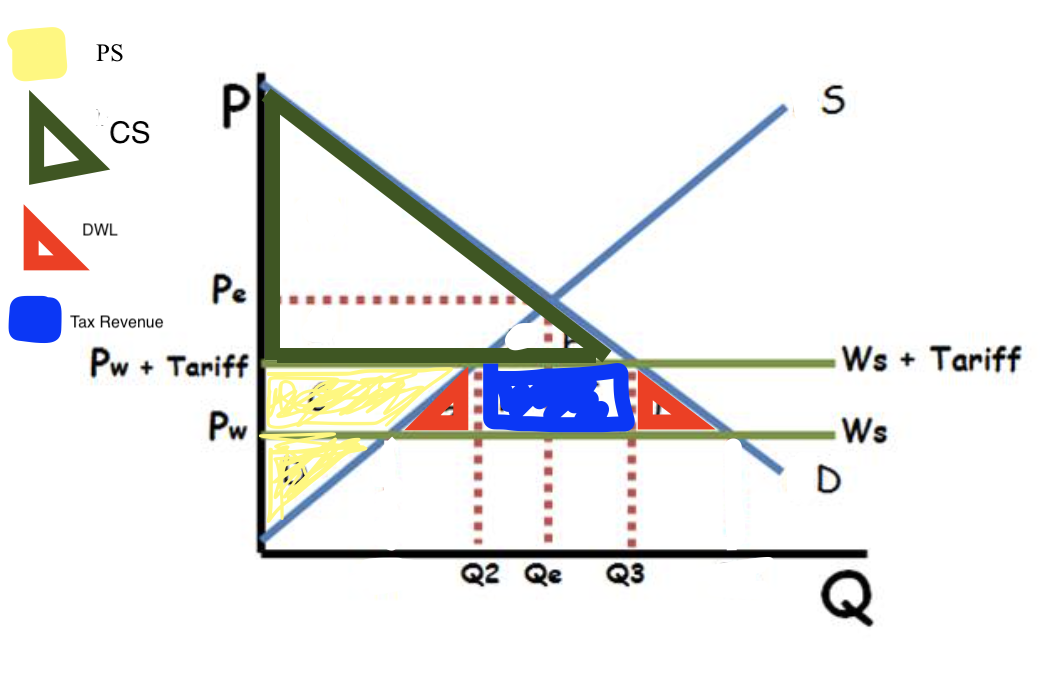

International Trade with tariff (CS, PS, DWL, Tax Rev, Pe, Pw, Pw + tariff, Qs, Qd)

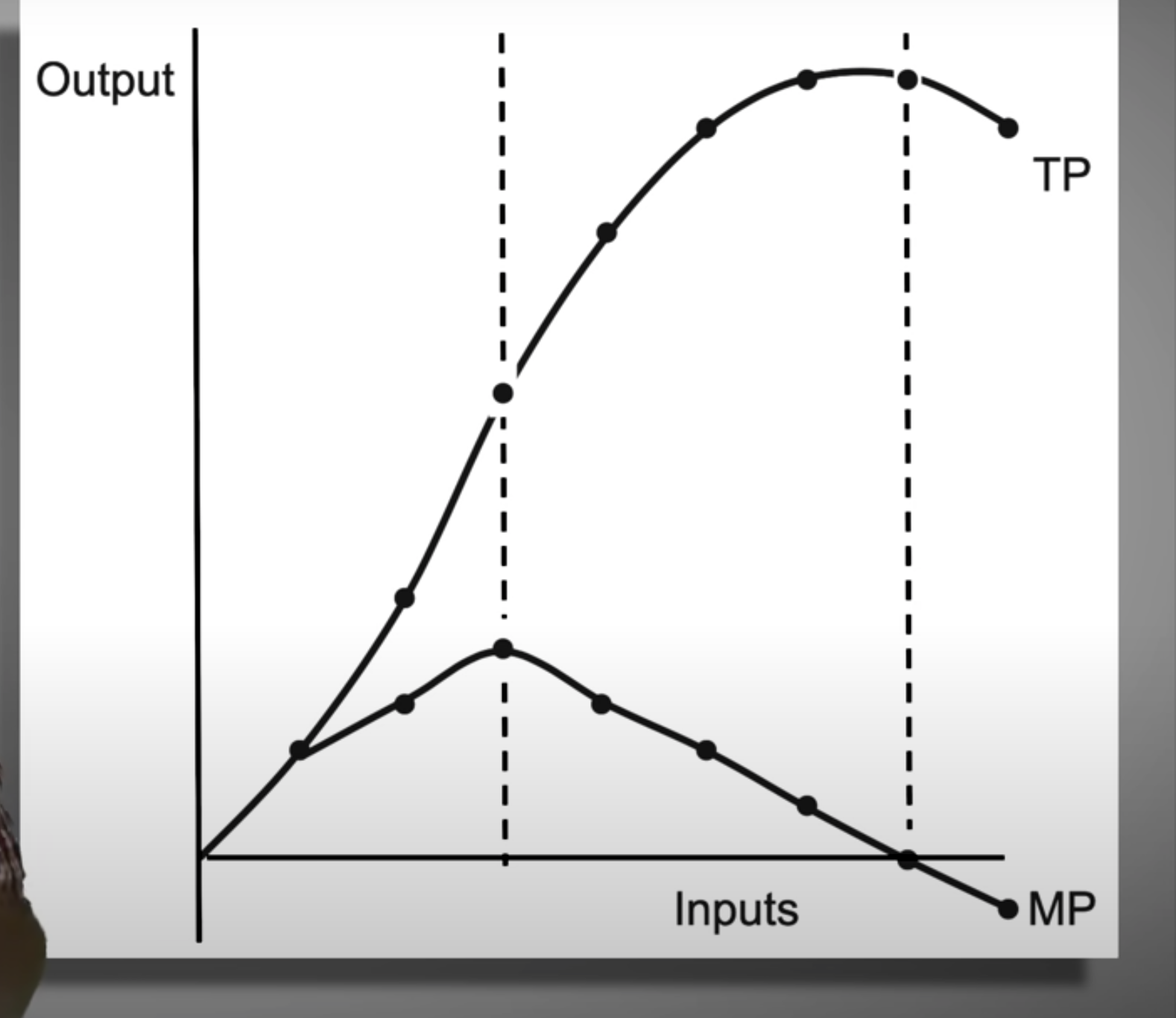

Short Run Production Function (TP, MP)

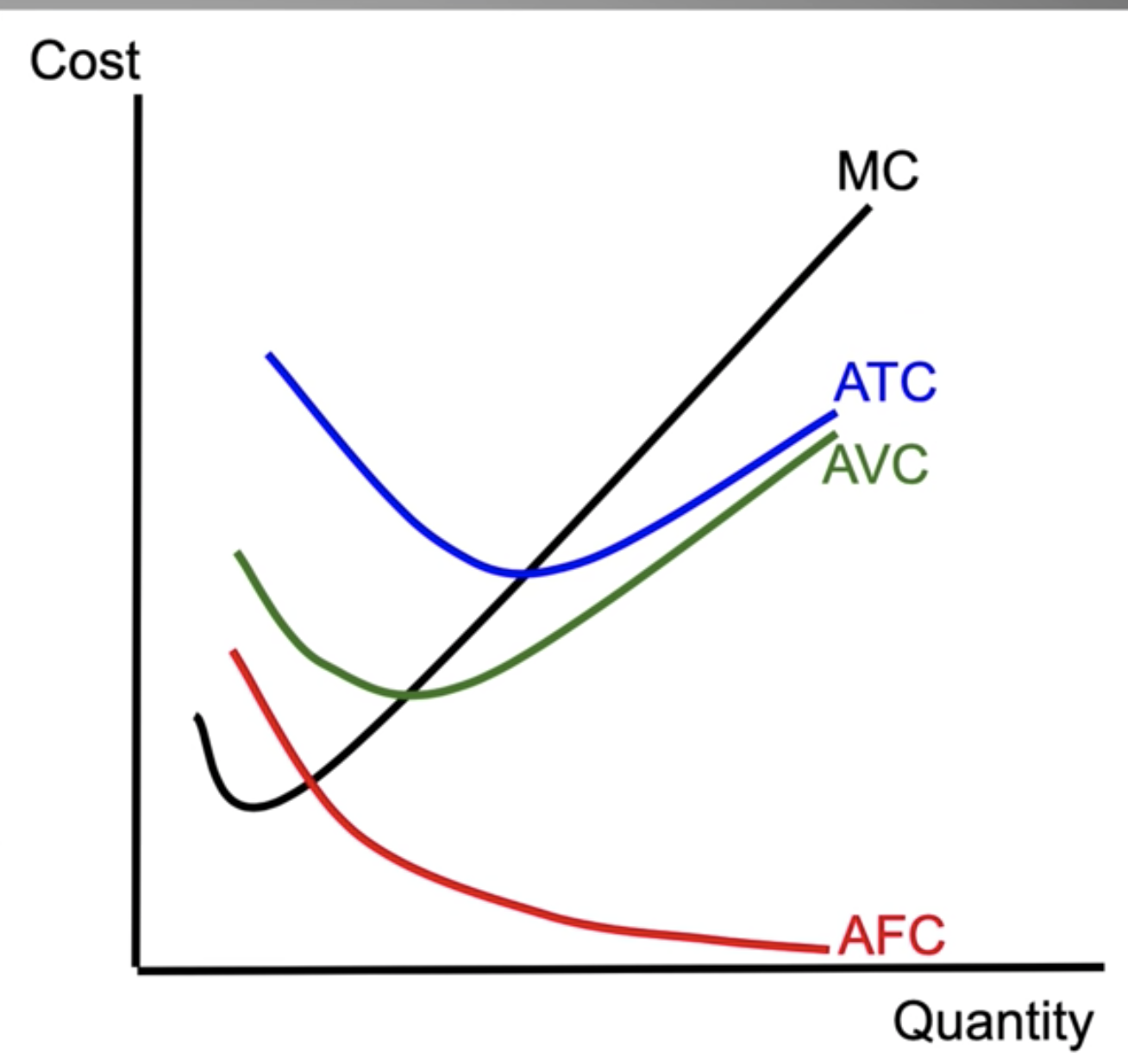

Short Run Per Unit Cost curves (MC, ATC, AVC)

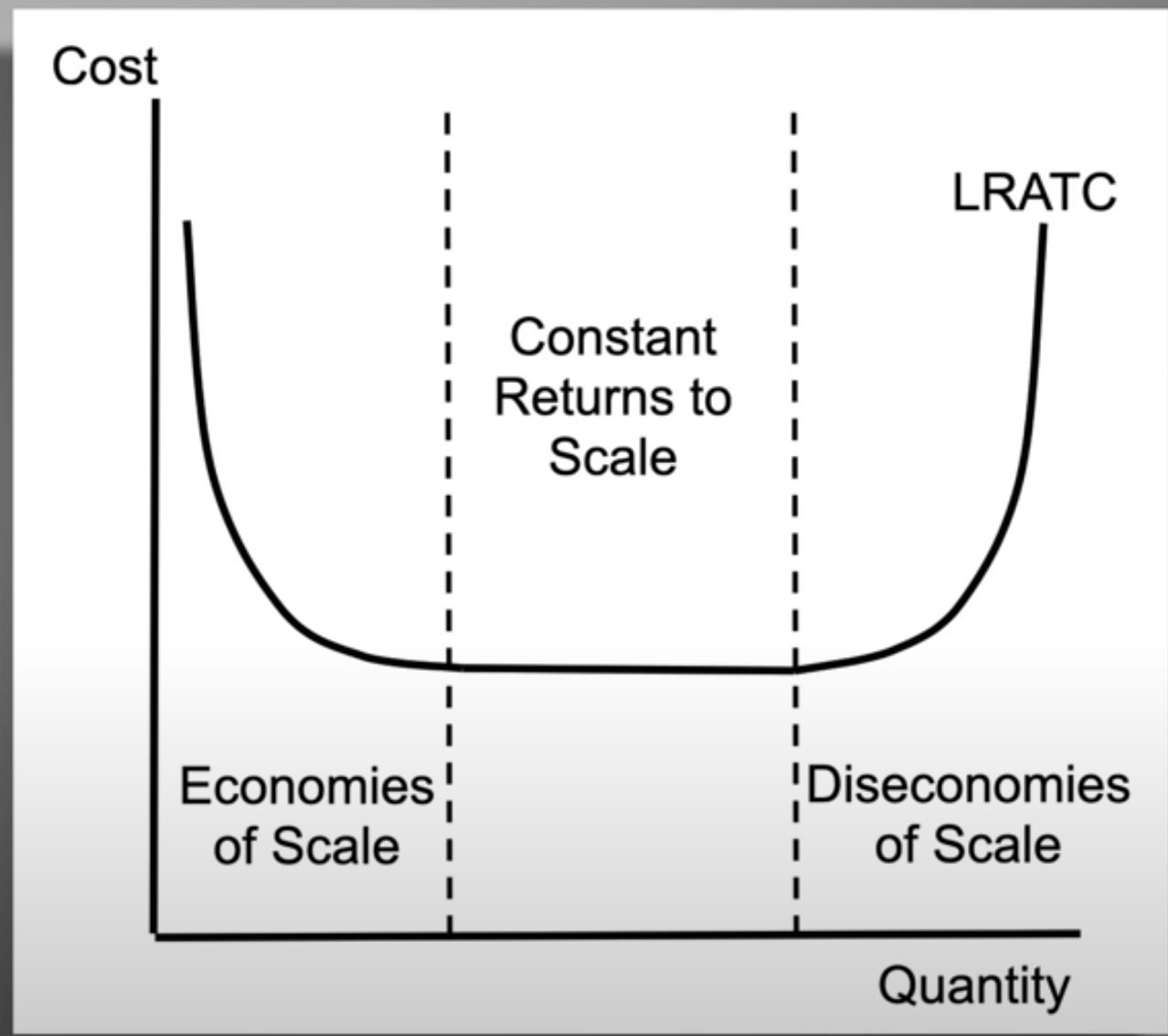

Long Run ATC

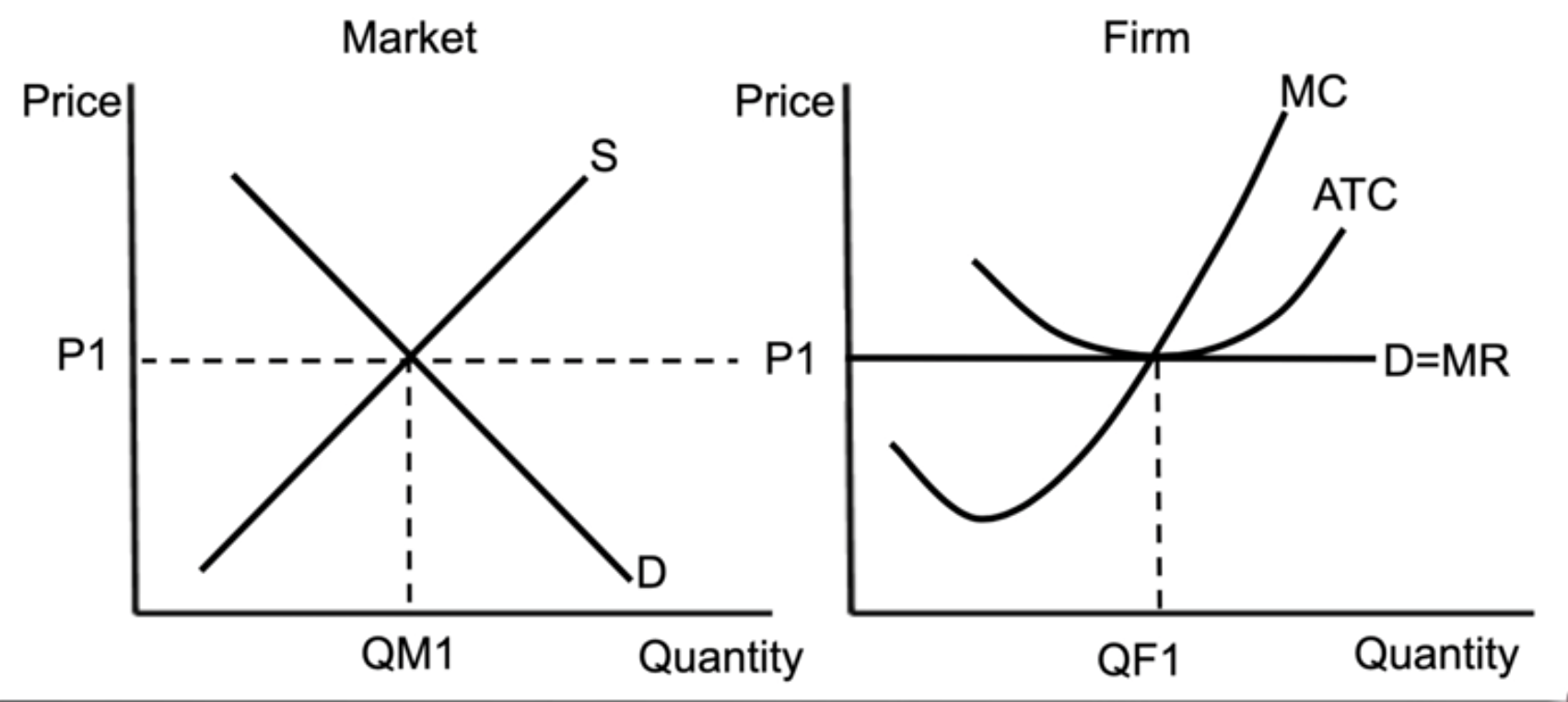

Perfect Competition (Long Run)

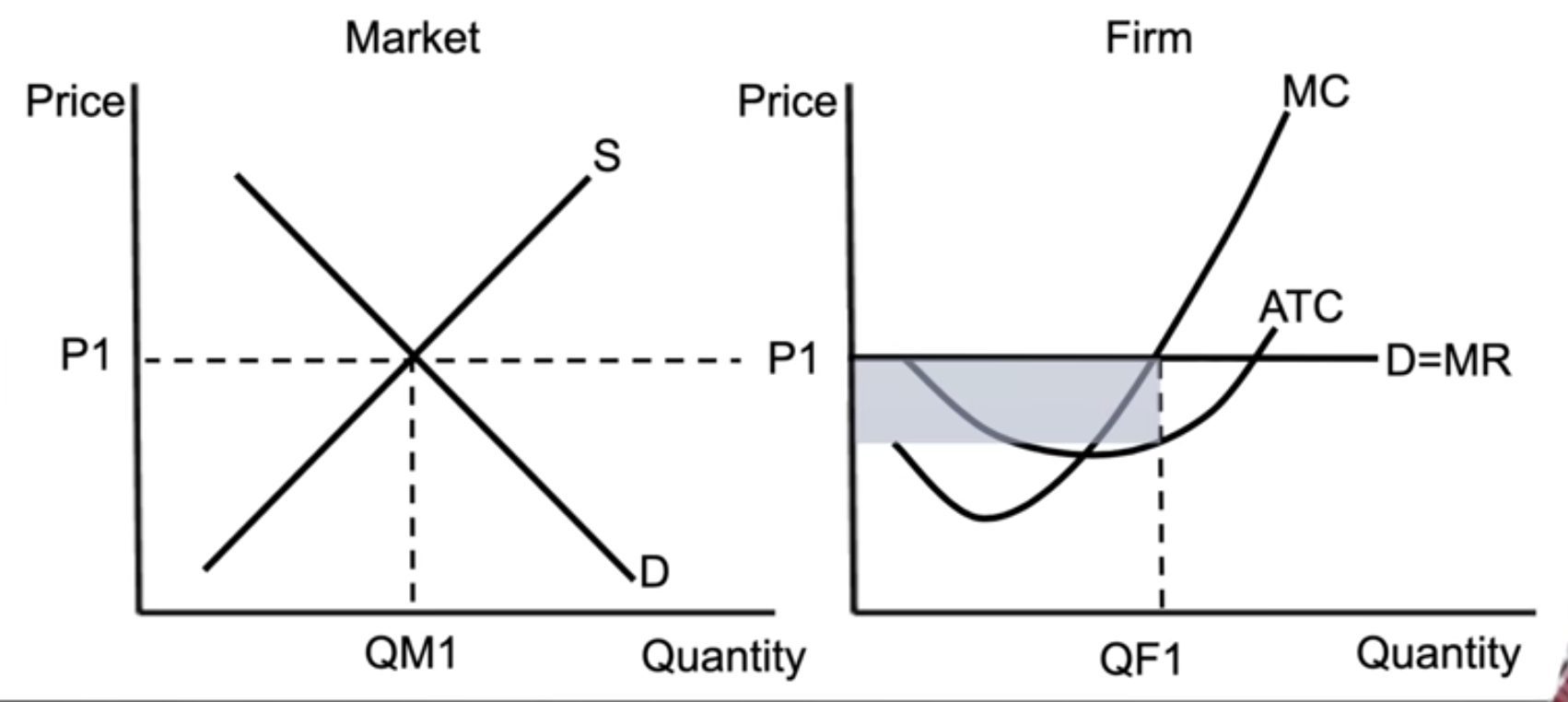

Perfect Competition (Short Run)

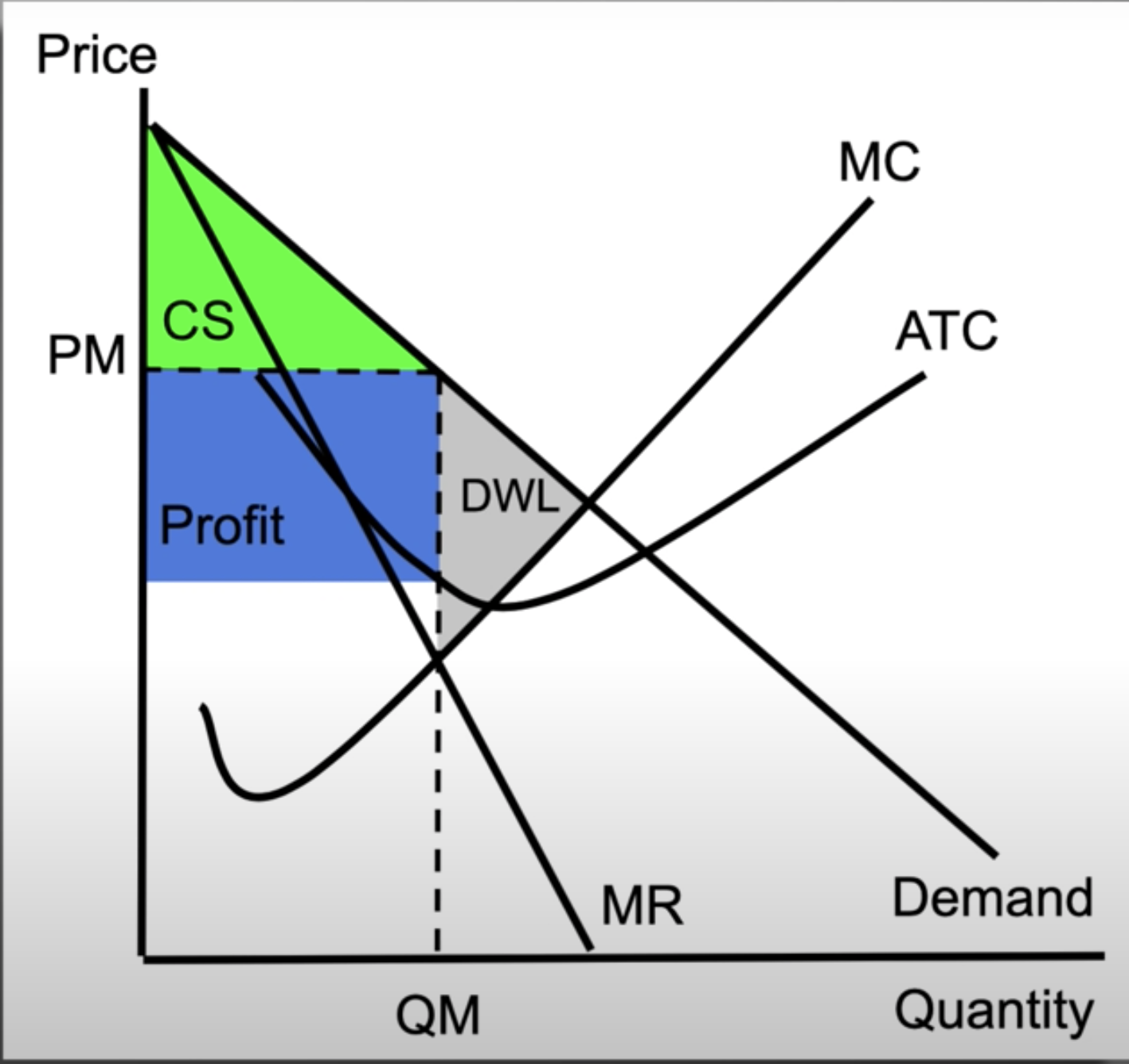

Non Price Discriminating Monopoly (CS, Profit, DWL)

P.S.: Also MonoCo in LR, Oligopoly

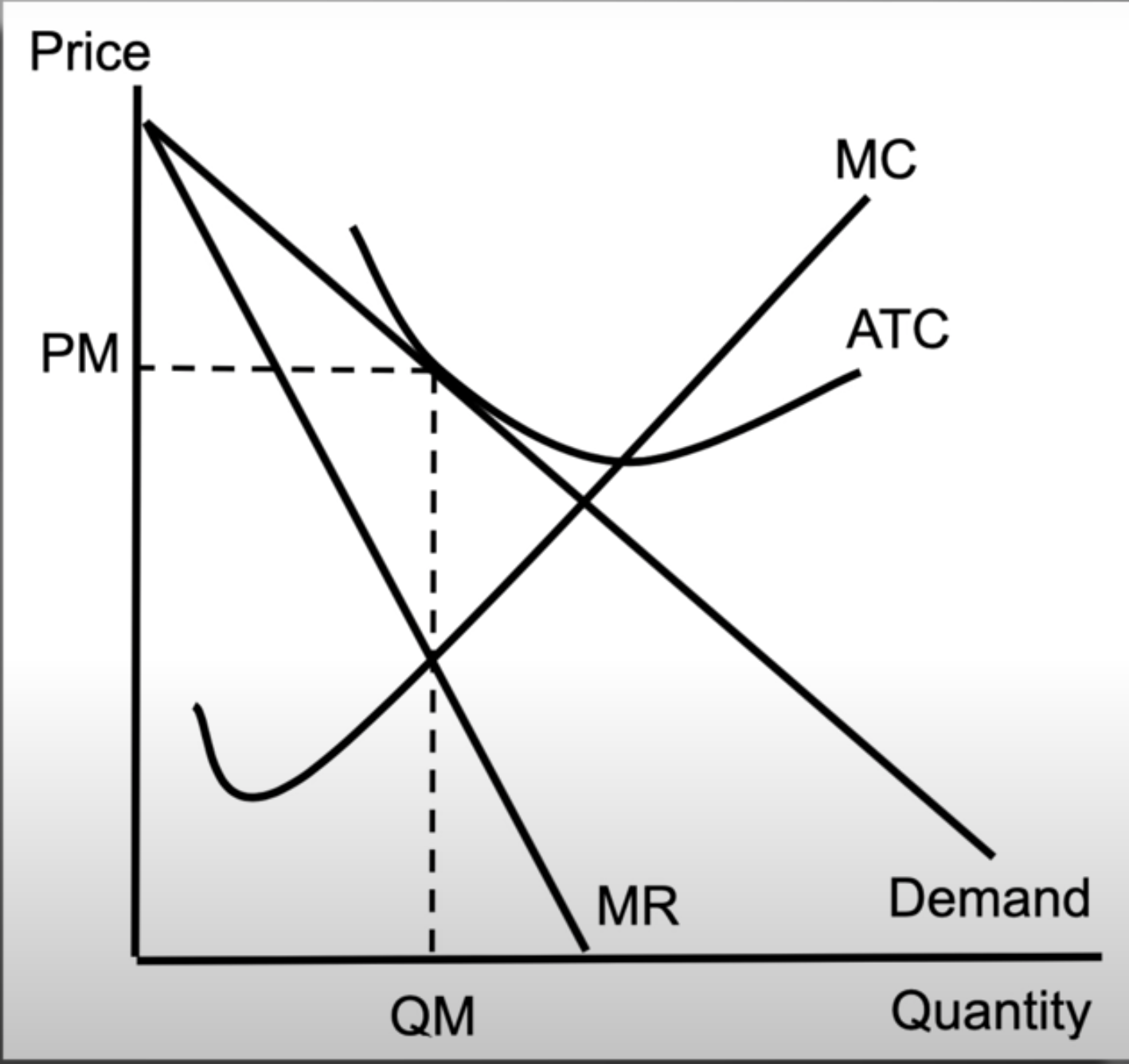

Monopolistic Competition in Long Run

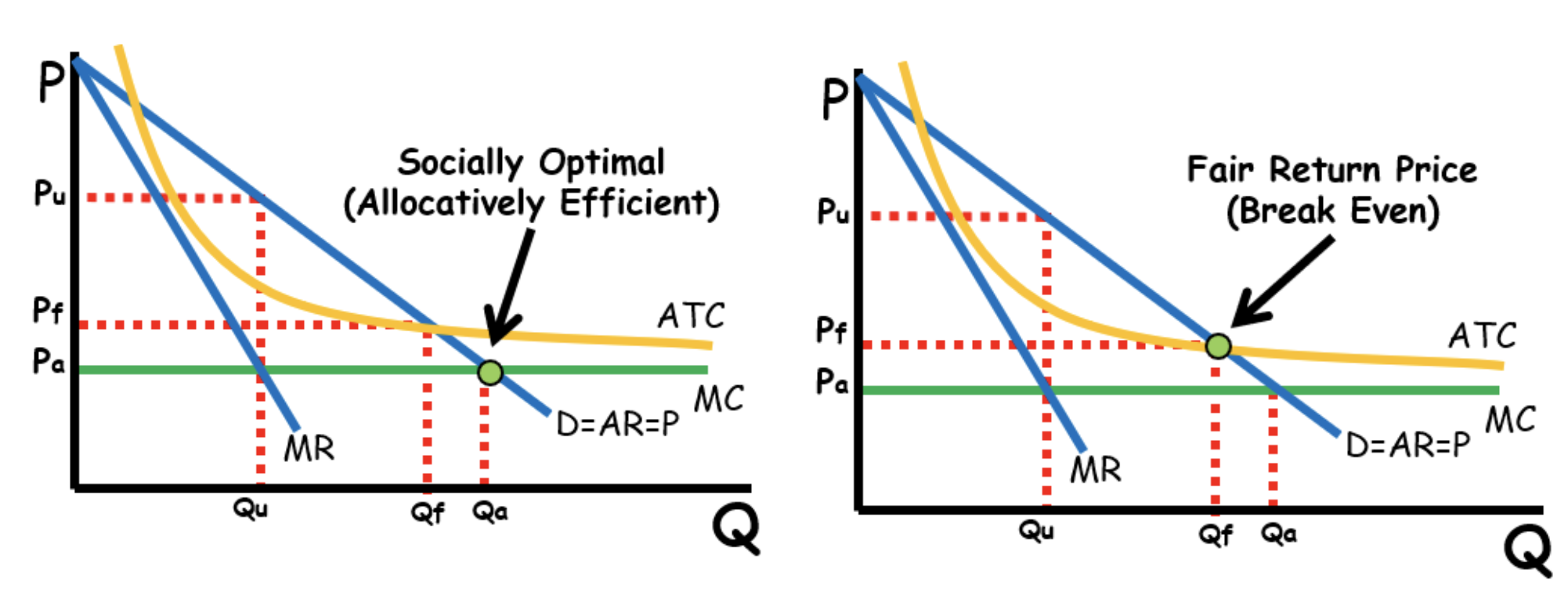

Natural Monopoly (Pu, Pf, Pa, Qu, Qf, Qa)

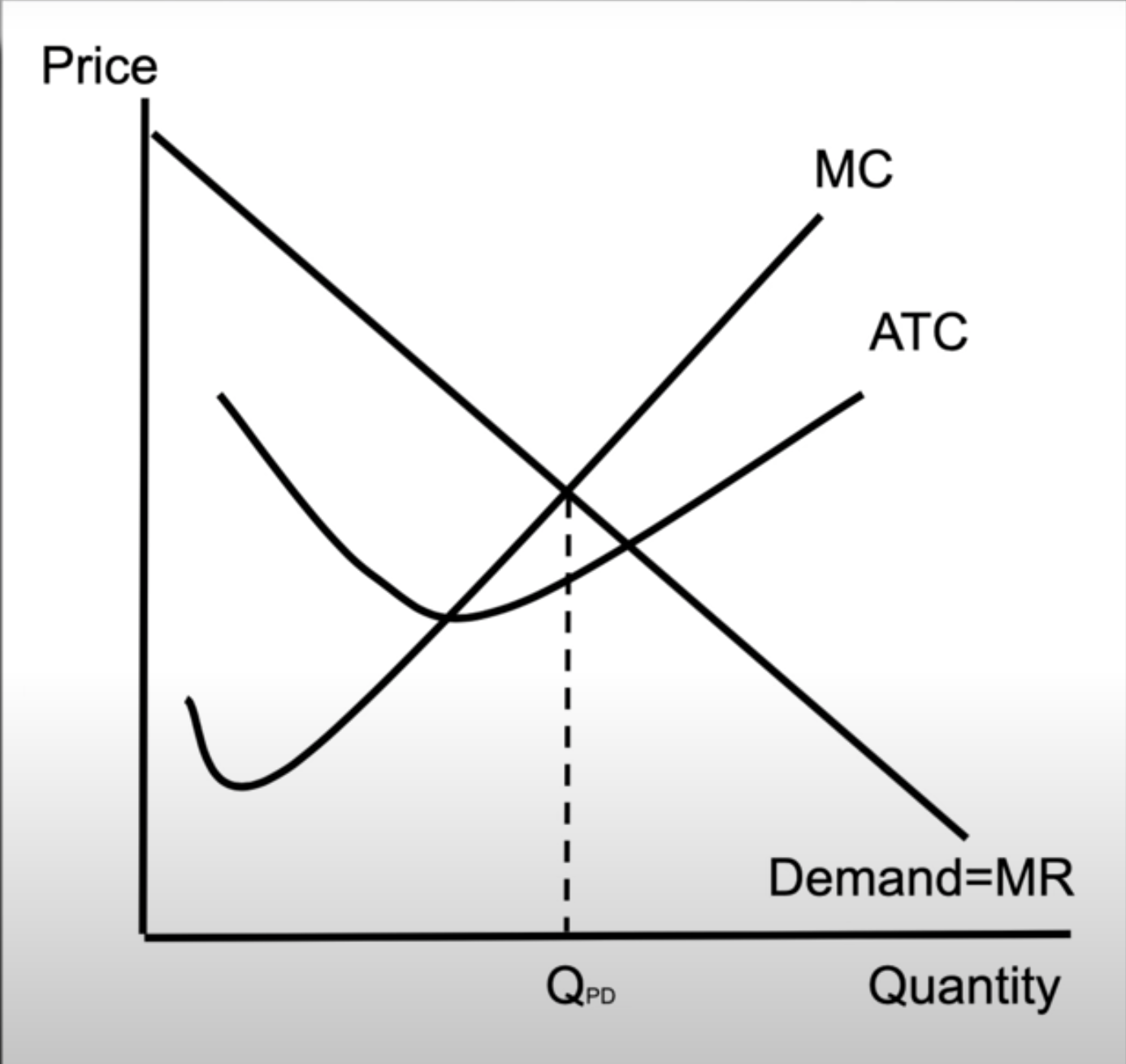

Price Discriminating Monopoly

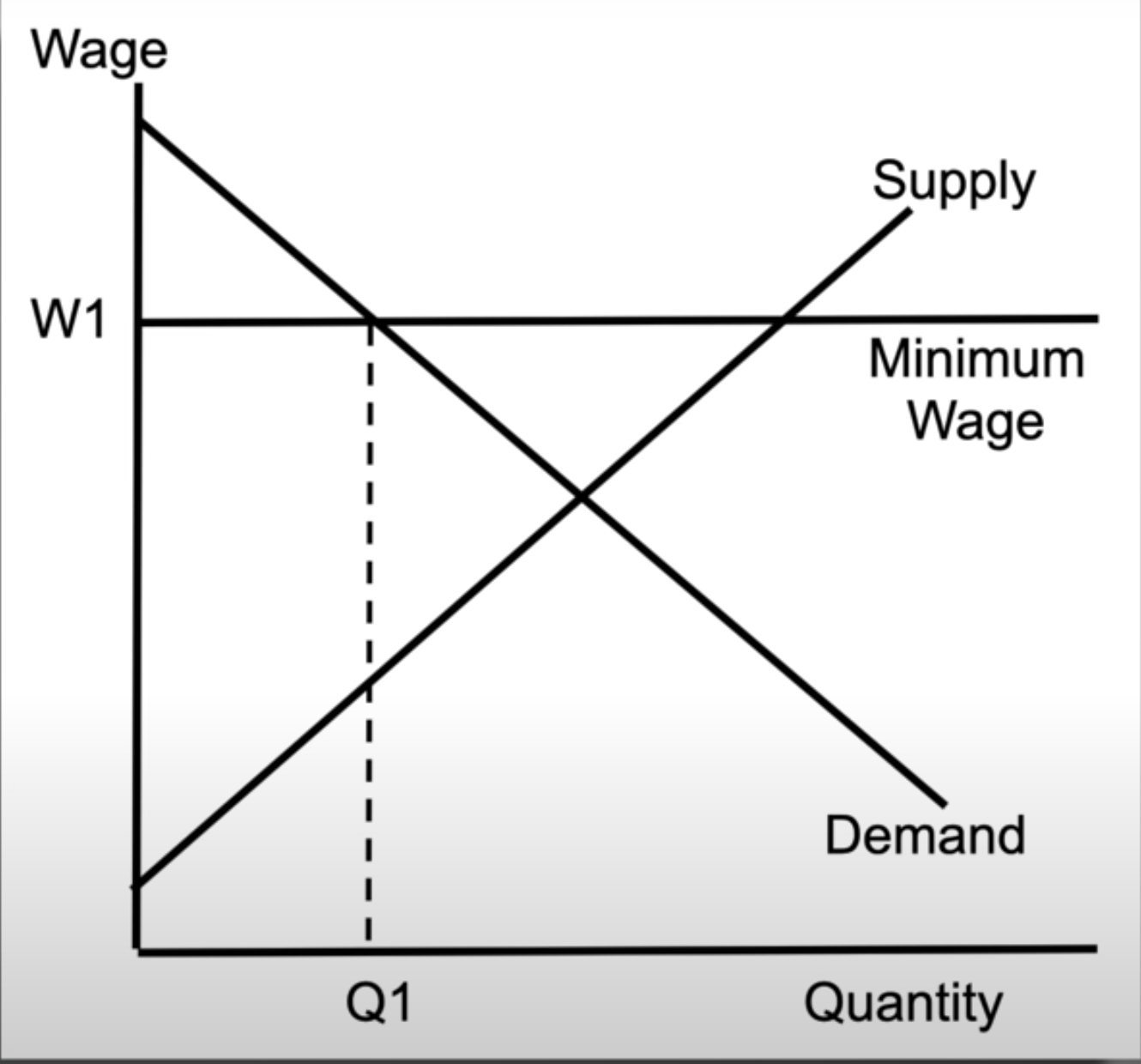

Minimum Wage in Labor Market (Qd, Qs)

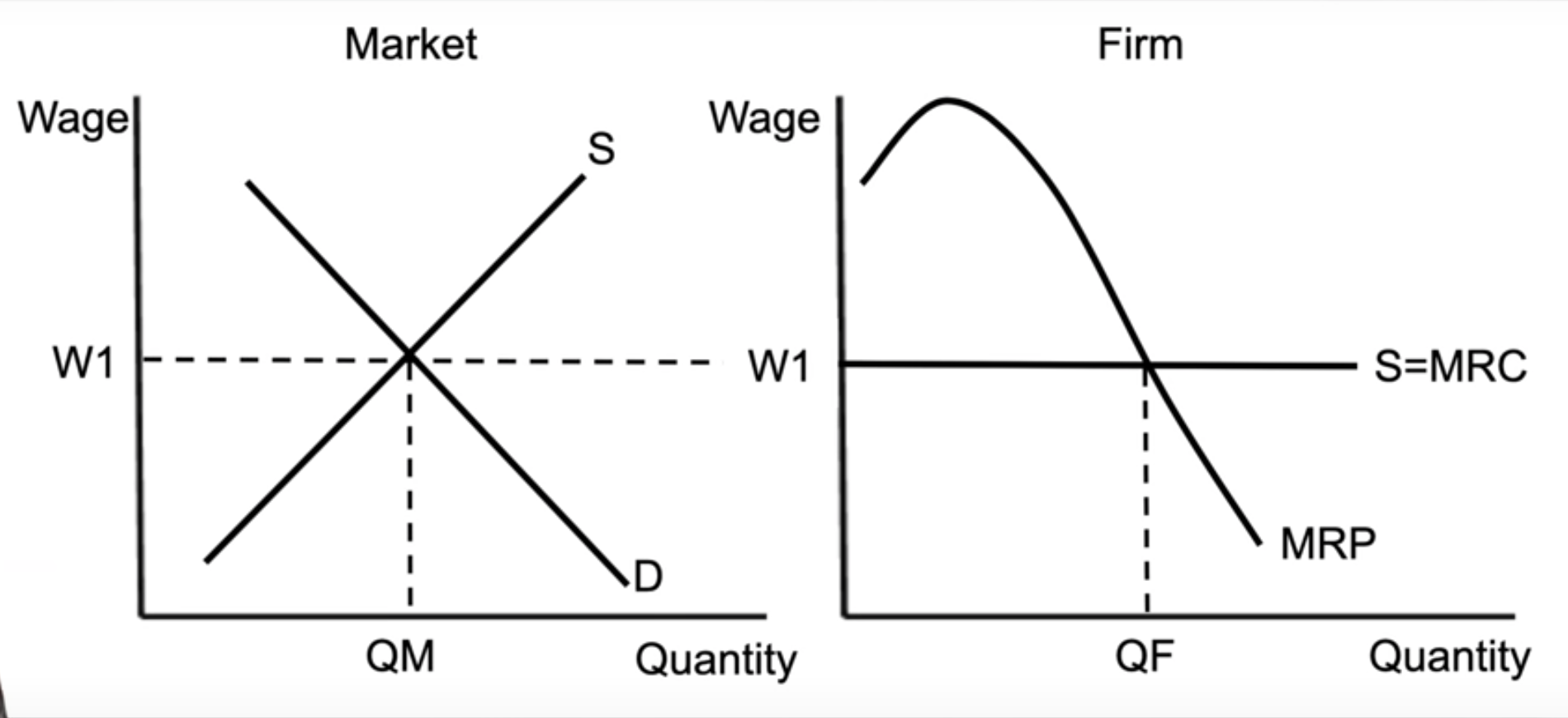

Perfectly Competitive labor market

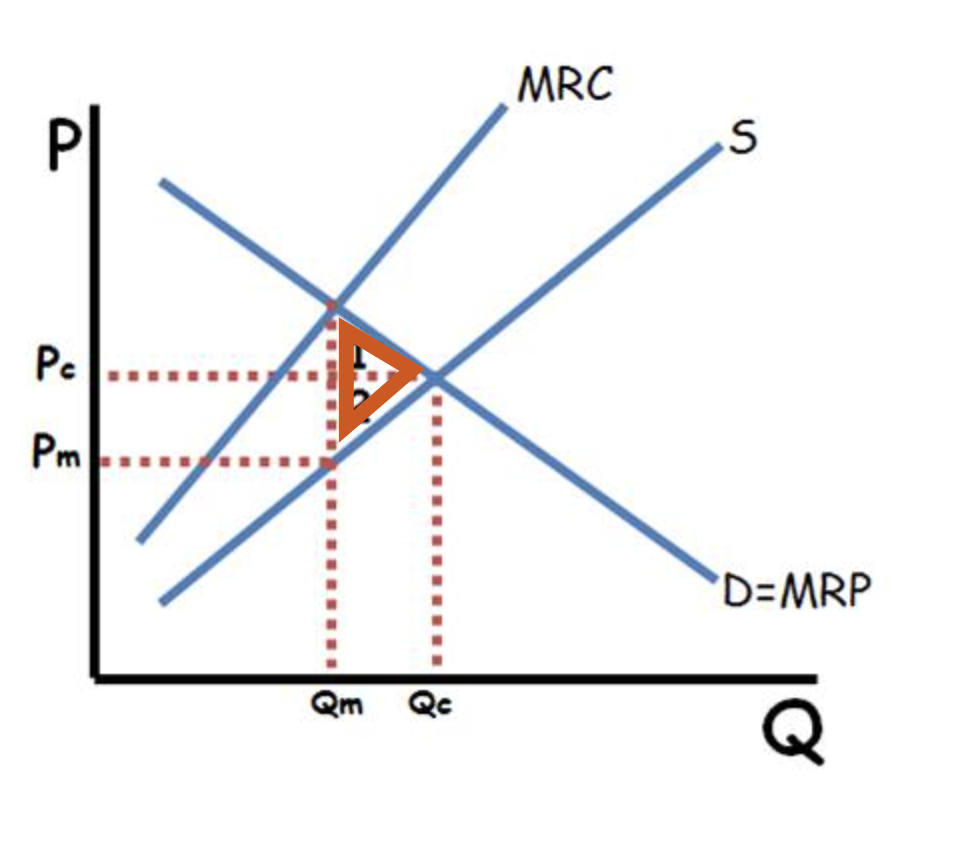

Monopsony (DWL)

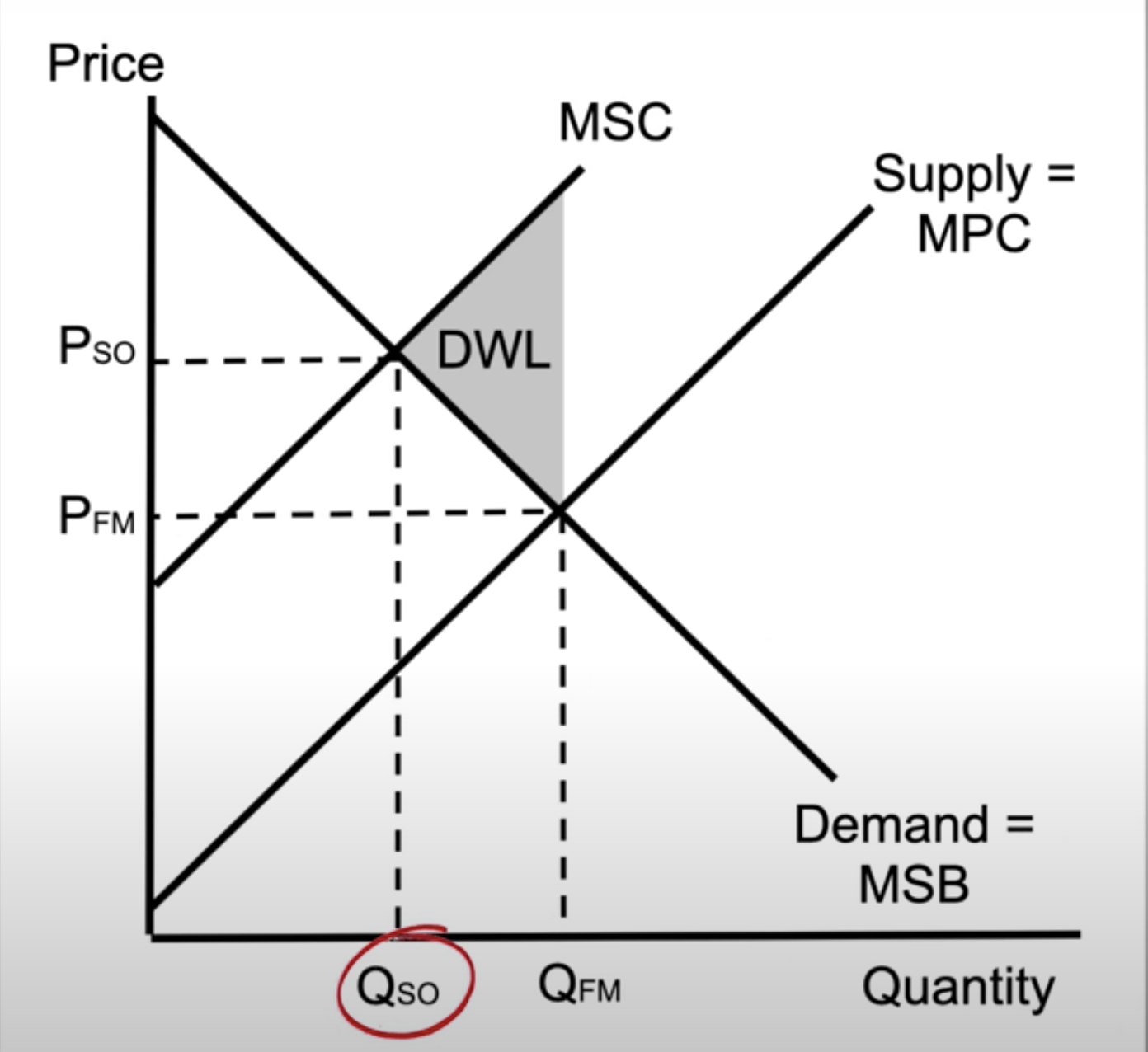

Negative Externality( P and Q so, DWL)

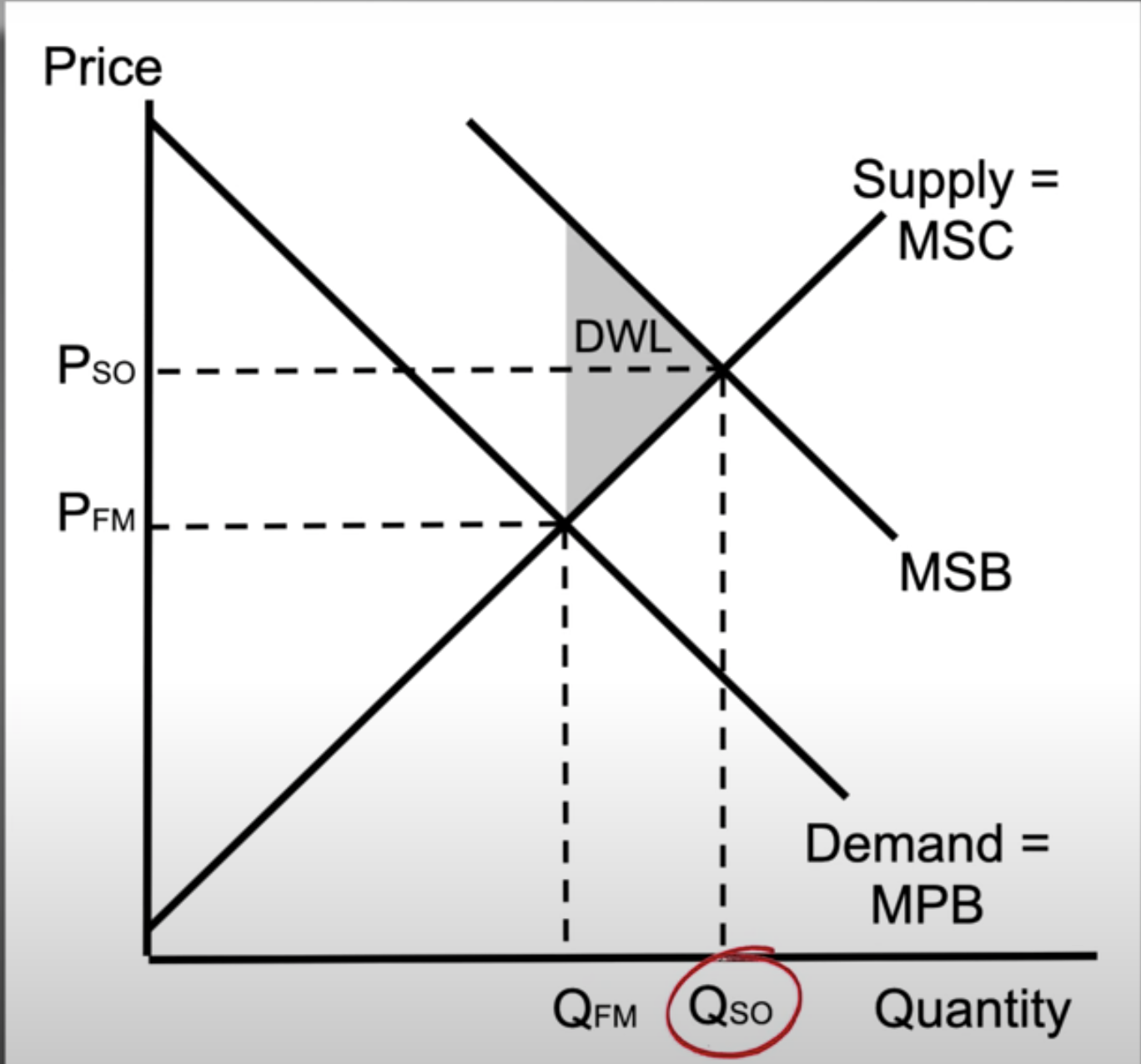

Positive Externality( P and Q so, DWL)

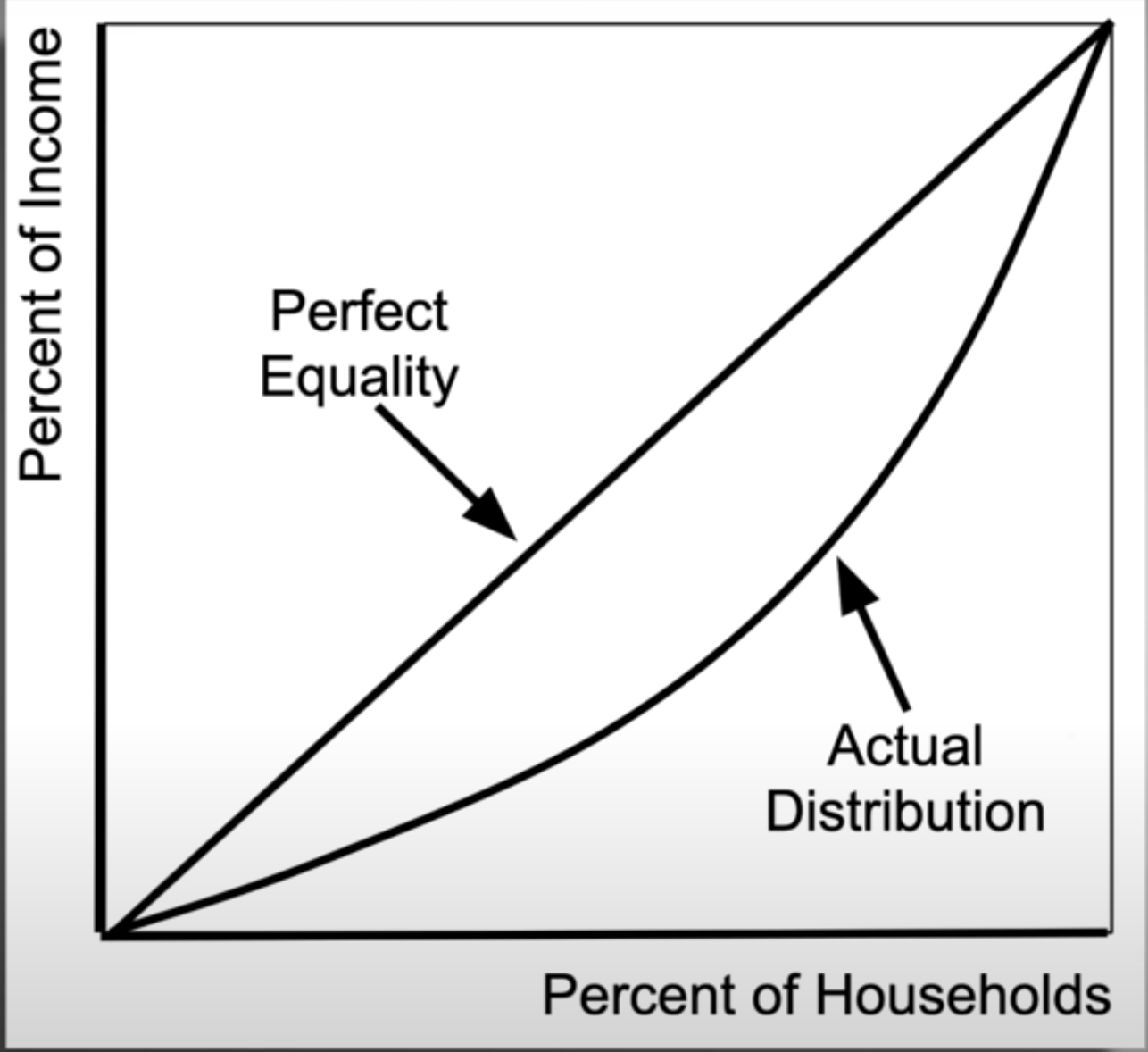

Lorenz Curve (j know how it looks )
