Ch 1 - Systems, Roles, and Development Methodologies

Information

  • Information fuels business and can be the critical factor in determining the success or failure of a business

Systems Analysis and Design

  • Used to understand what ppl need to be able to systematically analyze data input and flow, process or transform data, store data, and output information the context of a particular organization or enterprise.

  • analyze, design, and implement improvements to the computerize IS that support users and functions of business

Users

  • Emphasis on working with software users; on performing analysis of their business, objective; and communication of planned system

Role of a Systems Analyst

  • Seek to identify and solve the right problems by performing a analysis of client’s systems

  • Improvements involve:

    • support of users’ work tasks

  • Must be Ethical:

    • Shouldn’t promise features of software that you may not deliver

  • Must be Secure:

    • Must design new systems with an awareness of what you can do to design security into a system from the beginning

    • Always examine systems you are updating or improving for ways to address vulnerabilities and improve training for security issues

  • Must be Planned:

    • Greater satisfaction

  • Must have EQ:

    • Be able to work with people of all descriptions and be experience in working with computers

Roles of an Analyst: Consultant

  • Acting as a systems consultant means you understand the organiztion culture or subcultures

  • Outside consultant means using systematic methods and IS users to understand culture

Roles of an Analyst: Supporting Expert

  • Draws on professional expertise concerning computer hardware and software and their uses in the business

  • Doesn’t manage projects, serves as a resource

Roles of an Analyst: Agent of Change

  • Must interact with users and management (if they are not one and the same) from the very beginning of your project

  • Understand what they need to support their work so change can take place

Qualities of a Systems Analyst

  • Problem Solver

    • Tackle through application of tools, techniques and experience

  • Communicator

    • Relate to people

    • Coding experience and communicate what is needed

    • Personal and professional work ethics

  • Self-disciplined

    • Systems analysis is a demanding career, but ever-changing

The Systems Development Life Cycle (SDLC)

  • the salad didn’t look clean

  • distinctive phases to initiate the software production for client requirements

  • called predictive life cycle with planned phases unfolding sequentially

Step 1: Identifying problems, Opportunities, and Objectives

  • An analyst is concern with identifying problems, opportunities and objectives

  • Opportunities are situations the analyst believes can be improved by using IS

  • Involved

    • Users

    • analysts

    • systems managers

  • If problem does not require a computer system, new solution

    • Brainstorming

Step 2: Determining Human Information

  • Interviewing, sampling, investigating hard data, observing decision makers’ behavior and office environments

  • Prototyping

    • mock up of a product

  • Human Computer interaction

  • Involved

    • Analysts, users, operations managers, operations workers

  • Understanding the who,what,where, how and why

Step 3: Analyzing System Needs

  • Analyze system needs

  • Data flow diagrams (DFD) record input processes, and output of business functions

  • Structured decisions are those for which the conditions, condition alternatives, actions,, and action rules can be determined

    • structured English, decision tables, and decision trees

  • Provides system proposal, cost-benefit analyses of alternatives; and makes recommendations on what should be done

Step 4: Designing the Recommended System

  • Devise human computer interaction

    • the interface connects the user with the system and is extremely important

    • Designed with the help of users to make sure the system is audible, legible, and safe

    • Ex) keyboard, onscreen menus, and graphical user interfaces (GUIs)

  • Design databases that will store data needed by decision makers in the org

  • Example:

    • Macs

      • Better security

      • Intelligent backup using the built-in Time Machine

      • The multitude of applications already included

      • Reliability of setup and networking

      • Ability to sync Macs with other Macs and iPhones

      • Design itself

Step 5: Developing and Documenting Software

  • Analyst works with users to develop effective documentation for software, including procedure manuals, online help, and websites featuring frequently asked questions or Read Me files shipped with new software

  • Users are involved from the beginning, documentation should address the questions they have raised and solved jointly with the analyst

  • Documentation

    • Tells users how to use software and what to do if software problems occur

    • Coders design, code, and remove syntactical errors from computer program.

    • Code walkthrough, explaining complex portions of the software to the team

Step 6: Testing and Maintaining the System

  • Test plan created

  • Maintenance of the system and its documentation begin in this phase

  • Maintenance must be kept to a minimum

Step 7:Implementing and Evaluating the System

  • Train users, plan for smooth conversion, convert files to new ones, installing equipment, and bringing the new system into production

  • Evaluation included but takes place in every part

  • Analyst job is cyclical, so must solve a problem forcing them to return to the previous phase

The Impact of Maintenance

  • Time spent on maintenance is 48% to 60% of the total time spent developing systems. It is ongoing

  • 1) Corrects software errors (bugs must be corrected)

  • 2) Enhance software’s capabilities in response to changing organizational needs, generally involving one of the following three situations

    • Users request additional features after they become familiar eith the computer system

    • Business changes over time

    • Hardware and software are changing at an accelerated pace

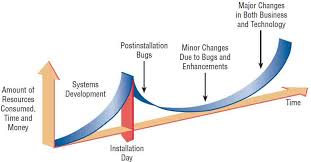

Figure 1.2 show resources (time and money) spent on system development and maintenance

  • Cost of maintenance more than cost of creating an entirely new information systems

Using CASE Tools

Computer-aided software engineering (CASE)

  • Created to improve routine work using automated support

  • Increases productivity, communicate more effectively with users, and integrate the work that they do on the system form the beginning to the end of the life cycle

  • Info recorded in CASE repository

    • Helps make analysis reports

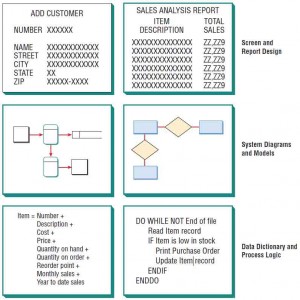

The Repository Concept

  • Examples; Visible Analyst (CASE tool w/ repository and other features), Microsoft Visio (software), OmniGraffle (software) allow users to draw and modify diagram easily

Benefits

  • CASE helps communicate during brainstorm

  • Data flow

  • Request corrections

  • Make changes

  • Model of requirements

  • Draw boundaries for a project

  • Visualize how the project meshes with other parts of the orgs

The Agile Approach

  • A software development method based on values, principles, and core practices

    • Communication

    • Simplicity

    • Feedback

    • courage

  • ^ Important values to have for SA’s

  • Interactive

  • Incremental

    Scrum

    • Sprint cycle lasts between two and four weeks

    • Development team is expected to produce a potentially releasable product

    • Applications or websites are constantly changing

    • Each iteration boasts a new set of features produced during the spring cycle

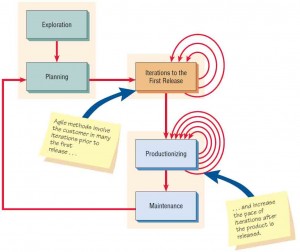

Five Stages of Agile Approach

  • Exploration

  • Planning

  • Iterations to the first release

  • Productionizing

  • Maintenance

    • The five stages of the agile modeling development process show that frequent iterations are essential for successful system development

Exploration

  • Explore environment, assert conviction, assemble team, asses member skills

  • Duration: a few weeks to a few months

  • Tasks

    • Examine tech to build new system

    • Estimate time needed for a variety of tasks

  • Goal:

    • Get customer to refine a story enough to estimate time to build solution into the system you are planning

Planning

  • Establish plan to deliver solution (two months to half a year)

  • Duration: Short

  • Planning Game (kent beck)

    • team of dev and stakeholders discuss and prioritize user stories for the next development iteration, estimating effort, and deciding which stories to focus based on their value to the project

    • Time, expense, and uncertainty

  • Goal: Limit uncertainty

    • Simple solution, feedback, and adapt design

    • Story cards: task, notes, and provide an area for task tracking

Iterations to the First Release

  • Cycles of testing, feedback and change

  • Duration: three weeks in duration

  • Goal

    • Run customer written function tests at the end of each iteration

    • Question whether the schedule needs to be altered or whether you are tackling too many stories

    • Celebrate progress

Productionizing

  • Software revision turn around in one week

  • Duration: One week

  • Goal

    • Daily briefings

    • Product released, but may be improved

    • Celebrate occasion

Maintenance

  • Kept running smoothly

  • Goal

    • Add features, consider customer suggestions, and team members rotated on or off the team

Object-Oriented Systems Analysis and Design

Object-Oriented Similarities to SDLC

  • Dev of systems that must change rapidly in response to dynamic business environ

    • Complicated IS undergoing maintenance, adaptation and redesigd

  • Unified Modeling Language

    • Used to break down a system into a use case model

  • Difference:

    • Examines objects that are part of the system

      • customers, items, oprders, and so on

Object Oriented Similarities to SDLC

  • SDLC and O-O more slower than agile

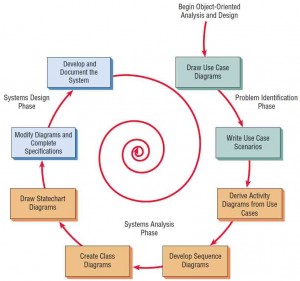

The Steps In The UML Development Process

Define the Use Case Model

  • Identifies actors and major events initiated by the actors

  • Draw diagrams called Use Case Diagram to show flow of events

  • Write up case scenario in words the steps that are normally performed

During the Systems Analysis Phase, Begin Drawing UML Diagrams

  • Draws activity diagrams of all major activities

  • Creates one or more sequence diagrams for each use case that show the sequence of activities and their timing

Continuing in the Analysis Phase, Develop Class Diagrams

  • Nouns in use cases are objects that potentially can be grouped into classe

  • Example:

    • Every automobile is an object that shares characteristics with other automobiles (class)

Still in the Analysis Phase, Draw Statechart

  • Class diagrams used to draw state-chart diagrams

  • Statechart diagrams helpful in modifying class diagrams, so iterative process of UML modeling continues

Begin Systems Design by Modifying the UML Diagrams, then Complete the Specifications

  • Modify existing system (diagrams)

  • Derive classes, their attributes, and methods

  • Class specifications for each class

  • Develop method specifications that detail the input and output requirements for each method, along with a detailed description of the internal processing of the method

Develop and Document the System

  • More complete documentation and UML diagrams, faster development

Spiral Model (Often focus on small, quick iterations of development)

  • Small part of the system, high-priority item or item that has greatest risk

  • Design and implementation

  • Repeated w/ analysis of the next part, design, and some implementation

  • Repeated until project is complete

Cloud Development Life Cycle

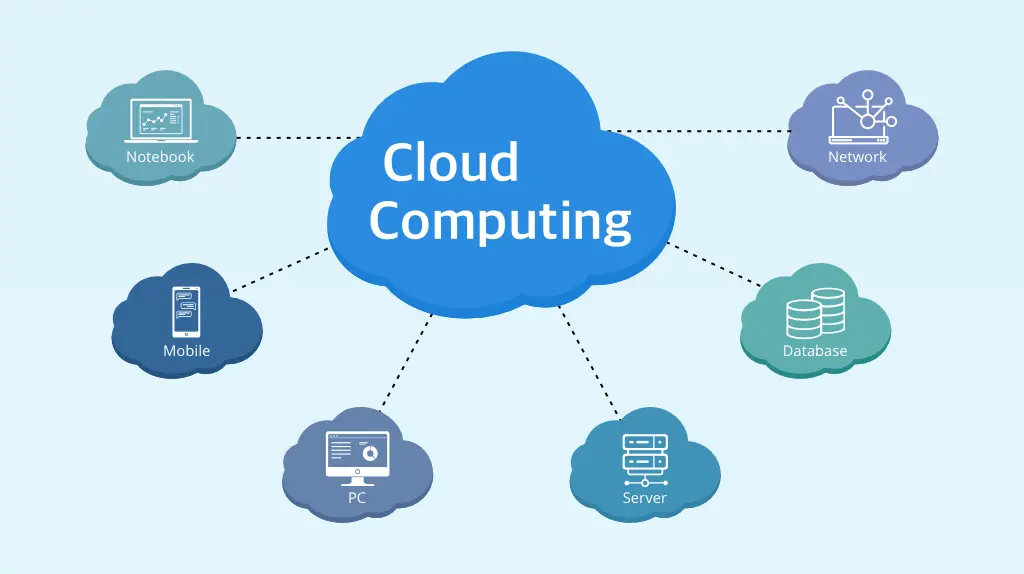

Cloud Computing

  • Organizations and individuals users can use web services, database services, and application services over th internet without hardware, software, or software tools

Cloud computing offers many services

  • Web browsers used to access applicatons

  • Scalable to suit growing (or changing) demand by users. The model of Software as a Service (SaaS) is included in the concept of cloud computing

  • Not necessary to have IT infrastructure, enables small companies with smaller and less predictable budgets to make advances in processing more quickly

  • disaster revoery, lower cost, and increased flexibility

  • Google apps, AWS, Akami, CRM software

Cloud Computing Trade-Offs

  • Security and privacy

    • (improved staff training, making security of cloud computing a strategic priority, and so on)

  • SA must evaluate and compare cloud providers can be valuable to your client

  • Public cloud

    • external cloud

    • less critical data

  • Private cloud

    • Internal one

    • data control

Factors in Choosing a Cloud Provider

  • If a client of the cloud services provider is hacked, how will it adversely affect other businesses the cloud providers is hosting?

  • How can your client be srue data are completely deleted from cloud systems when these systems are eventually decommissioned?

  • Are the data architectures being used by the cloud providers over cost or security concerns, it would be realistic to do so?

  • Are there too many nonstandard practices and property programming structures in use, making transferring data out of the question?

  • How can your client be certain that no one at the cloud provider or their staff working for other clients has access to your organizaton’’s data?

ERP Systems and the Cloud

  • Enterprise Resource Planning Systems

    • Integrated management of main business proceses often in real time and mediated by software and technology

  • No need to purchase new IT , new versions and upgrades of ERP software are maintained and installed by the ERP cloud vendor and switching to other modules may be less cumbersome

  • Workday

    • Addresses costs, soolution to IT business problems and variable level of service

  • NetSuite

    • account software, real-time invetory management, CRM software, ecommerce, and real time global business management to small and medium enterprise

Implementing CDLC

Five essential Characteristics

  1. One demand self service

  2. Broad network access

  3. Resource pooling

  4. Rapid elasticity

  5. Measured service

Three service models include:

  1. Software as a Service (Saas)

  2. Platform as a Service (Paas)

  3. Infrastructure as a Service (laas)

Four Deployment Models

  1. Private Cloud

  2. Community cloud

  3. Public Cloud

  4. Hybrid Cloud

  • CDLC

    • Predicative life cycle

    • Phases

      • 1. Data gathering

      • Devleopment

      • Launch

      • Continuing operations

      • Optimization

      • Improvement

    • Inexpensive testing (pentesting)

    • Collaboartion with the development ecosystem permits the developers access to data and a lower amount of time invested for other tasks such as a diverse range of sytem tests

    • Faster approach than traditional SDLC

    • Integration with cloud services (AWS) give businesses the potential to scale up acrosst he organization rapidly

  • SDLC

    • Does not offer penetration testing only after installation

5 Strategic Considerations in Implementing Cloud-Based Systems

  1. Save money on premises data centers, maintenance and support personal = use cloud based systems

  2. Start small and build your cloud endeavors gradually so that they can be expanded later

  3. Choose multiple cloud providers in order to avoid getting stuck with one vendor

  4. Monitor changes closely. Visibility of applications and data from multiple systems

  5. Develop an integration strategy

Choosing Which Systems Development Method to Use

  1. Understand org first

  2. Budget time and resources and develop a project proposal

  3. Interview org members and gather detailed data using questionnares and sample data from existing reports

  4. Observe how business is currently trasnsacted

Similarties

  • SDLC and OOAs both require extensive planning and diagramming

  • Agile approach and OOA both allow subsystems to be built one at t ime untilt he entire system is complete

  • Agile, SDLC, CLDC all concerned with the way data logicall moves through the system

THE SDLC APPROACH

  • systems have been developed and documented using SDLC

  • it is important to document each step of the way

  • upper-level management feels more comfortable or safe using SDLC

  • there are adequate resources and time to complete the full SDLC


AGILE METHOD

  • There is project champion of agile methods in the org

  • application need to be developed quickly in response to a dynamic environment

  • a rescue takes place (the system failed and there is no time to figure out “what went wrong)

  • the customer is satisfied with incremental improvements

  • executives and analysts agree with the principles of agile metho


OBJECT ORIENTED METHOD

  • the problems modeled lend themselves to classes

  • an org supports the UML learning

  • systems can be added gradually, one subsystem at atime

  • reuse of previously written software is a possibility

  • it is acceptable to tackle the difficult problem first


THE CDLC APPROACH

  • the justification for the systems project is to save money usually spent for on premises data centers

  • the project cans tart small and build

  • multiple cloud providers can be used

  • changes created by the cloud can be monitored for visibility of apps and data from multiple systems

  • an integration strategy can be developed to capitalize on new synergies

Developing Open Source Software

  • Users and coders can study, share, and modify the code or computer instructions

The Open Source Movement

  • Open Source Communities

    • Ad hoc

    • Standardized

    • Organized

    • Commercial

  • General structure

  • environment

  • Goals

  • methods

  • User community

  • licensing

The Third Design Space

  • Make a new design environment happen

  • Collab result in new, shared software, and innovative software development processes

Benefits of Corporate participation in Open Source Software Development

  • Rational

    • Save money

    • Perform less maintenace

    • Contribute within limits

    • Reducing long-term costs

    • Increase marketing benefits

    • Making the first move

  • Emotional

    • Accepting responsibility

    • Improving shared software

    • Gaining community influence

    • Relinquishing the gatekeeper role

    • Improving developers skills

    • Extending the life of projects

Licensing and Compliance

  • Product of community consensus, so diff communities use diff licenses

  • Be compliant with license

  • Experience with open source a skill to add to resume

The Role of the Analyst in Open Source Software

  • Shotage of open source developers and huge demand

  • Linux kernal

  • Mozilla Firefox

  • Android

  • Apache

  • Responsive design

    • While you are participating in the open source community, you are at the same time employed by an org that wants to leverage your participation in the open soruce community to incorprote OSS designs

Summary

adaptive lifecyle

agent of change

agile approach

bespoke software

cloud computing

computer-assisted software engineering (CASE)

enterprise resource planning (ERP) system

exploration phase

human–computer interaction

iterations to the first release phase

Linux kernel

maintenance phase

object-oriented systems analysis and design

open source communities

open source software (OSS)

planning game

planning phase

predictive lifecycle

private cloud

productionizing phase

prototyping

public cloud

Scrum

security

stakeholder

systems analysis and design

systems analyst

systems consultant

systems development life cycle (SDLC)

Third Design Space

unified modeling language (UML)

Review Questions
