Unit 2: Cell Structure and Function
basic units of life
example of Emergent Properties → organelles put together inside a cell membrane → life emerge
Prokaryotic cells: eubacteria and archae
evolved before the evolution of the nuclear membrane and nucleus
lack membrane bound organelles
have ribosomes
extremely small
Eukaryotic cells:
evolved after the evolution of the nucleus
membrane bound nucleus and membrane bound organelles
hypothesized that some prokaryotes begin to live together in symbiotic relationships
smaller prokaryotes living inside larger ones
higher survival chance → evolved into Eukaryotic cells
smaller organisms gained protection
larger organisms gained energy production or faster motility
swapped DNA segments (genetic annealing) → more permanent existence
smaller became membrane bound organelles
found in mitochondria and chloroplasts
have their own single circular chromosome like bacteria
similar ribosomes to those found in bacteria
able to independently reproduce within large eukaryotic cells (similar process with binary fission)
phagocytosis of original symbionts → a double (phospholipid bilayer) cell membrane
Cells grow → ratio decreases while demand for internal resources increases
cell gets larger → harder for cells to transport it and out
trasnport of nutrients/wastes
determining the rate of heat exchange between organisms and its environment
folds inside the mitochondria
flat pancake-like structures inside chloroplasts
→ greater area surface area for specific ractions
folds in the lining of stomachs/tiny cellular of small intesine (villi and microvilli)
→ increase the surface area without increasing the overall size/volume
unicellular
3 basic shapes: cocci (round), bacilli (rod), helical (spiral)
single circular chromosome: not enclosed in a nuclear membrane
ribosomes: making proteins
cytoplasm: DNA floats in the cytoplasm → nucleoid
cell wall: protection of the underlying cell membrane + prevent bursting in an aquatic environment. (eubacteria composed peptidoglycan (protein and carbohydrate)
no membrane-bound organelles
have specific internal regions with specialized structures and functions
Positive | Negative |
stain blue/purple/violet thick peptidoglycan layer outer capsule easier treating with antibiotics | stain red/pink thin peptidoglycan layer outer capsule harder to treat w/ antibiotics another plasma membrane |
capsule: adherence to surfaces + protect the bacteria from a host cell’s immune response
most bacteria benefits: decomposition/mineral cycling, fix nitrogen, photosynthesis, manufacture certain food and chemicals
larger and more complex than bacteria
nucleus, complex organelles, cytoskeleton:
plasma cell membrane: hold cell together (similar to prokaryotes)
nucleus: controls activities by holding DNA (enclosed within nuclear membrane/envelope)
cytoplasm or cytosol: fluid filled space → makes up most volume
membrane-bound organelles: enclosed tructure for specific jobs → more efficient
establish + maintain internal environments
allows/ actively transports certain materials into/out of the cell while not allow others
→ small + nonpolar substances (N2, O2 and CO2) → enter easily
→ small + polar (H2O) can pass in small amount
→ large/polar charged substances → can’t enter or by protein channel
makes up majority of cell membrane and organelle membranes
Amphipathic:
both hydrophobic and hydrophillic
→ hydrophillic (phosphate group): toward the water both inside and outside the side
→ hydrophobic (fatty acid tails): toward each other in the center of the membrane. One saturated fatty acid and one unsaturated (kink)
Proteins:
different types are embedded:
hydrophillic with charged and polar side groups
hydrophobic with nonpolar side groups
Integral proteins: run through the bilayer (outside to inside) → transport of molecules across the membrane + maintain the integrity of the membrane
Peripheral proteins: on one side of the membrane (not extend through the bi-layer) → receptors for cell signals, catalysts/enzymes, structural components of the cytoskeleton
Functions:
molecule transport
enzymes
cell to cell communication and recognition: helps cells attach to each other to work/communicate
signal receptors: receive hormones/other signaling molecules circulate in blood/interstitial fluids
attachment points: for the cytoskeleton
Cholesterol
Functions:
keep membrane from being too fluid/permeable to some small molecules
secure proteins embedded in the membrane
keep plant cells from freezing solid
Fluid Mosaic Model: phospholipids compose the fluid, proteins embedded within like a mosaic
control center for all activities
source of the cell’s genetic information (DNA)
mainly a double phospholipid bilayer
encloses DNA
has pores (tunnels) made of proteins → allow certain materials enter/exit
E.g: mRNA exit the nucleus and go to ribosomes to act as the directiosn for making proteins
DNA
chromatin phase: most of cell’s cycle, DNA loose and spread out
→ can be transcribed and used to make proteins
chromosome phase: DNA coils around histones (proteins)
→ help to organize the DNA → it can be corrected distributed during nuclear and cell division
dark spot within the nucleus
Functions: make rRNA and proteins which make up ribosomes
cell particles made of rRNA and proteins
not enclosed within a membrane
reflects the common ancestry of all living things
sites of Protein Synthesis
2 types of ribosomes: free and bound
Free Ribosomes
float freely in the cytoplasm (All types of cells)
make proteins that will stay and function inside the cell that made them
Bound Ribosomes
attached to the Rough endoplasmic reticulum (RER)
make proteins that leave the cell → act as cellular communication signals/antibodies to fight infactions
compartmentalize/partition/divide the cell into distinct locations → specific intracellular metabolic processes and enzymatic reactions
internal membranes + partitioning → minimize competing interactions + increase the surface area for reactions
group of membranes and organelles in eukaryotic cells working together → modify, package, transport lipids and proteins
bound ribosomes make proteins → proteins enter rough ER → packaged into phospholipid-based secretory vesicles → vesicles transport the proteins to Golgi apparatus → modifying porteins → packaged into lipid based vesicle → cell membrane
→ proteins excreted from the cell and vesicle’s phospholipid becomes part of cell membrane
vesicle buds from smooth/rough ER
vesicle fuses with Golgi apparatus, dumping contents inside
Golgi modifies molecules (as they move through successive chambers)
Modified molcules bud off from Golgi (as transport vesicle)
vesicle fuses with the plasma membrane → dumping contents outside for delivery
Smooth Endoplasmic Reticulum (Smooth ER)
helps with the synthesis of lipids, phospholipids, and steroids
helps with carbohydrate breakdown
aids the detoxification of the blood (liver cells are loaded with SER)
storage of Ca++ needed for muscle conteaction (muscle cells have lots of SER)
Rough Endoplasmic Reticulum (Rough ER)
helps with protein synthesis, modification, and transport
ribosomes are bound to the outside of the organelle and deposit the newly constructed proteins into the Rough ER
proteins are folded into 3-D structure needed to function inside the structure
functions to compartmentalize the cell → scpecialization and division of labor
sereies of flattened membrane sacs
modifies proteins by attaching sugars to them → Glycoproteins → determine proteins’ function and final destination
→ glycosylation
warehouse for storage of proteins → packages proteins and ships them out in vesicles
near the cell membrane
conatin hydrolyic enzymes + acids
process of intracellular digestion → breakdown materials within a cell → be recycled for other purposes
destruction of old cells that are undergoing apoptosis (programmed cell death)
“Power House”
perform aerobic cellular respiration
energy from food → bonds of ADP and P → ATP
has its own DNA, bacteria-like ribosomes, and enzymes → even reproduce independently via membrane
outer phospholipid bilayer is smooth
inner layer are folded into cristae → increase surface area and serve as sites for the electron transport chian
2 membranes provide compartments where specific metabolic reactions can take place
descended from aerobic bacteria that entered into a symbiotic relationship with a larger prokaryote cells
survive and reproduce and eventually led to the evolution of Eukaryotic cells.
sites of Photosynthesis in plants and algae
type of Plastid or pigment container
own DNA, ribosomes, and enzymes.
Reproduce indepently via binary fission
Structure:
thylakoid: stacks of sack-like structures
grana: stacks of thylakoid
→ increase the surface area needed to carry out light-dependent stages of photosynthesis
pigments and electron transport proteins required for the light dependent stage of photosynthesis are embedded within the membranes of the thylakoids.
stroma: mostly watery space between thylakoids and outer membrane; site of the Calvin Cycle (metabolic pathway producing sugar)
Evolutionary Significance
may evolve from blue-green bacteria (cyanobacteria) that entered into a symbiotic relationship
protection in return for sugar production
support and protect cell
keep inner organelles organized
make up structures such as flagella and cilia →aid in cell motility or cell organelle movement
composed of various sized protein fibers known as microtubules, microfilaments, or intermediate filaments
Microtubules | Microfilaments | Intermediate filaments |
tulbin molecules, alpha tubulin and beta tubulin | strands of actin | different proteins of keratin family |
|
|
|
provide structural boundary, permeability barrier for some substances
Plant cells: composed of cellulose → support and protection, prevent from bursting
Fungus: composed of chitin → similar to plant cell
Extracellulat Matrix (ECM):
molecules are secreted into the space out the cell's membrane → form cell walls, bone, cartilage,…
provide support, to segregate different tissues from one another and regulate intercellular communication
growth and homeostasis are maintained by the constant movement of molecules across the membranes
- doesn’t require cell to use its own metabolic energy
- powered by energy (heat) from the environment
operate upon established concentration gradient or difference in concentration
flow from high → low concentration until equilibrium
non-polar and small particles (CO2 and O2)
used mostly by cells to save energy
high → to low water concentration
low → high solute concentration
tonicity: ability of an extracellular solution making water move into or out of cell
osmolarity: total concentration of all solutes in the solution
low osmolarity: fewer solute particles
hypotonic: low solute concentration
hypertonic: high soluter concentration
isonic: equal
most H2O movement occurs through proteins aquaporins
=> control internal solution composition/ water potential; main functions of the urinary system
turgid: lots of water in a cell, rigid and stiff
flaccid: not very much water in cell, limp and wilted
Plasmolysis: shrivels away from cell wall (placed in hypertonic solution)
high to low water potential
total water potential of pure water in an open container is 0
ionization constant: number of ions formed when dissolved (ions only, no covalent)
higher solute potential → lower water potential
higher pressure potential → higher water potential
transport materials from high to low concentration
requires channel or transport proteins because those are either polar/ionic/large.
aquaporins: move water
Gated-ion channels: move Na+ and K+ ions
requires metabolic energy by the cell provided by ATP Hydrolysis
moves materials against the concentration gradient
of the nervous system: has an ATPase enxyme assosiated with it → enzyme catalyzes hydrolysis of ATP → provide energy needed for transport
=> Movement of ions can cause the membranes of certain cells (neurons) to become polarized (1 positive side and 1 negative side)
Energy from ATP by Phosphorylation (attaching a phosphate ion to a structure to activate it) activate the protein to grab and move molecules
most important active transport
involved in the electron transport chain of photosynthesis and cellular respiration
H+ move out of cell to create a gradient (outside is +, inside is -)
diffusion now occur based on charges into and out of cell → gradient sereves as source of energy for producing ATP
2 substances are simultaneously transported across a membrane by one protein, or ptrotein which not have ATPase activity
1 of the substances moves with the gradient → provides energy to transport other substances against the gradient
symport: both substances are transported same way
absorption of glucose by epithelial cells in gut
glucose is co-transported with Na+ ions
Concentration of Na+ions is higher outside the cells than inside → Na+/K+ pump maintain the sodium concentration: primary active transport
Na+ moves into cells down its concentration gradient → energy powers secondary active transport of glucose into cells (against gradient)
antiport: substances are transported in opposite directions
movement of too big molecules for protein
require expend metabolic energy

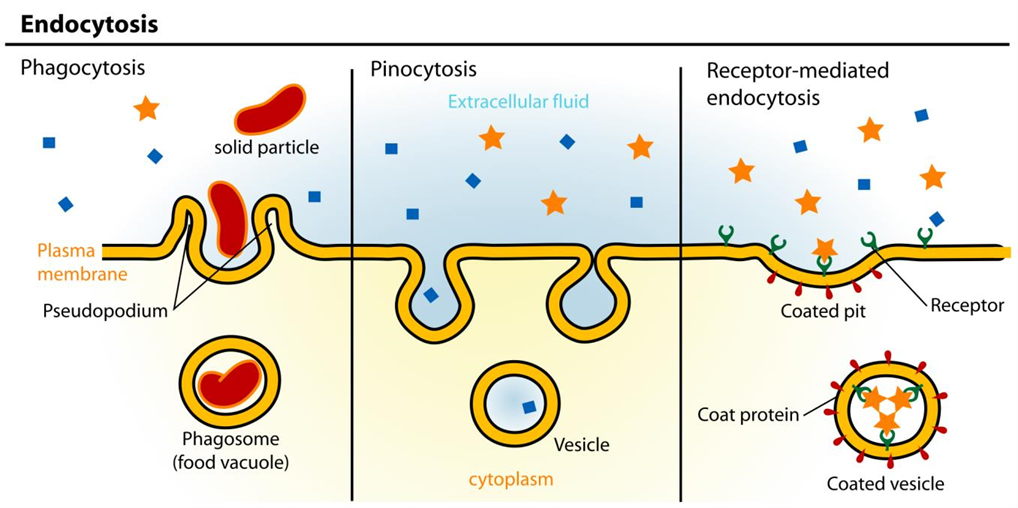

into cell
Phagocytosis
large, solid particles
surrounding of the particles with the cell membrane → engulfing of the particles → surrounding the particles with a vesicle
E.g: white blood cell taking in a bacterial cell
usually followed by the process of intracellular digestion
Pinocytosis
small particles suspended in extracellular fluid brought into cell
through an invagination of the cell membrane → suspension of the particles within a small vesicle
then fuse with lysosomes to break down the particles

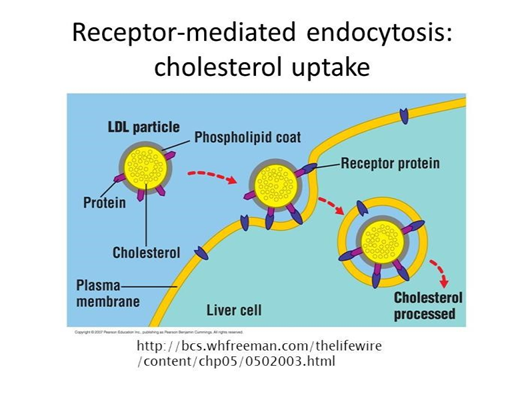

Receptor mediated endocytosis
specific molecules are transported into the cell
a receptor-ligand interaction
ligan is a substances being transported into cell
ligand binds to a receptor → triggers an endocytotic process and the ligand is ingested
basic units of life
example of Emergent Properties → organelles put together inside a cell membrane → life emerge
Prokaryotic cells: eubacteria and archae
evolved before the evolution of the nuclear membrane and nucleus
lack membrane bound organelles
have ribosomes
extremely small
Eukaryotic cells:
evolved after the evolution of the nucleus
membrane bound nucleus and membrane bound organelles
hypothesized that some prokaryotes begin to live together in symbiotic relationships
smaller prokaryotes living inside larger ones
higher survival chance → evolved into Eukaryotic cells
smaller organisms gained protection
larger organisms gained energy production or faster motility
swapped DNA segments (genetic annealing) → more permanent existence
smaller became membrane bound organelles
found in mitochondria and chloroplasts
have their own single circular chromosome like bacteria
similar ribosomes to those found in bacteria
able to independently reproduce within large eukaryotic cells (similar process with binary fission)
phagocytosis of original symbionts → a double (phospholipid bilayer) cell membrane
Cells grow → ratio decreases while demand for internal resources increases
cell gets larger → harder for cells to transport it and out
trasnport of nutrients/wastes
determining the rate of heat exchange between organisms and its environment
folds inside the mitochondria
flat pancake-like structures inside chloroplasts
→ greater area surface area for specific ractions
folds in the lining of stomachs/tiny cellular of small intesine (villi and microvilli)
→ increase the surface area without increasing the overall size/volume
unicellular
3 basic shapes: cocci (round), bacilli (rod), helical (spiral)
single circular chromosome: not enclosed in a nuclear membrane
ribosomes: making proteins
cytoplasm: DNA floats in the cytoplasm → nucleoid
cell wall: protection of the underlying cell membrane + prevent bursting in an aquatic environment. (eubacteria composed peptidoglycan (protein and carbohydrate)
no membrane-bound organelles
have specific internal regions with specialized structures and functions
Positive | Negative |
stain blue/purple/violet thick peptidoglycan layer outer capsule easier treating with antibiotics | stain red/pink thin peptidoglycan layer outer capsule harder to treat w/ antibiotics another plasma membrane |
capsule: adherence to surfaces + protect the bacteria from a host cell’s immune response
most bacteria benefits: decomposition/mineral cycling, fix nitrogen, photosynthesis, manufacture certain food and chemicals
larger and more complex than bacteria
nucleus, complex organelles, cytoskeleton:
plasma cell membrane: hold cell together (similar to prokaryotes)
nucleus: controls activities by holding DNA (enclosed within nuclear membrane/envelope)
cytoplasm or cytosol: fluid filled space → makes up most volume
membrane-bound organelles: enclosed tructure for specific jobs → more efficient
establish + maintain internal environments
allows/ actively transports certain materials into/out of the cell while not allow others
→ small + nonpolar substances (N2, O2 and CO2) → enter easily
→ small + polar (H2O) can pass in small amount
→ large/polar charged substances → can’t enter or by protein channel
makes up majority of cell membrane and organelle membranes
Amphipathic:
both hydrophobic and hydrophillic
→ hydrophillic (phosphate group): toward the water both inside and outside the side
→ hydrophobic (fatty acid tails): toward each other in the center of the membrane. One saturated fatty acid and one unsaturated (kink)
Proteins:
different types are embedded:
hydrophillic with charged and polar side groups
hydrophobic with nonpolar side groups
Integral proteins: run through the bilayer (outside to inside) → transport of molecules across the membrane + maintain the integrity of the membrane
Peripheral proteins: on one side of the membrane (not extend through the bi-layer) → receptors for cell signals, catalysts/enzymes, structural components of the cytoskeleton
Functions:
molecule transport
enzymes
cell to cell communication and recognition: helps cells attach to each other to work/communicate
signal receptors: receive hormones/other signaling molecules circulate in blood/interstitial fluids
attachment points: for the cytoskeleton
Cholesterol
Functions:
keep membrane from being too fluid/permeable to some small molecules
secure proteins embedded in the membrane
keep plant cells from freezing solid
Fluid Mosaic Model: phospholipids compose the fluid, proteins embedded within like a mosaic
control center for all activities
source of the cell’s genetic information (DNA)
mainly a double phospholipid bilayer
encloses DNA
has pores (tunnels) made of proteins → allow certain materials enter/exit
E.g: mRNA exit the nucleus and go to ribosomes to act as the directiosn for making proteins
DNA
chromatin phase: most of cell’s cycle, DNA loose and spread out
→ can be transcribed and used to make proteins
chromosome phase: DNA coils around histones (proteins)
→ help to organize the DNA → it can be corrected distributed during nuclear and cell division
dark spot within the nucleus
Functions: make rRNA and proteins which make up ribosomes
cell particles made of rRNA and proteins
not enclosed within a membrane
reflects the common ancestry of all living things
sites of Protein Synthesis
2 types of ribosomes: free and bound
Free Ribosomes
float freely in the cytoplasm (All types of cells)
make proteins that will stay and function inside the cell that made them
Bound Ribosomes
attached to the Rough endoplasmic reticulum (RER)
make proteins that leave the cell → act as cellular communication signals/antibodies to fight infactions
compartmentalize/partition/divide the cell into distinct locations → specific intracellular metabolic processes and enzymatic reactions
internal membranes + partitioning → minimize competing interactions + increase the surface area for reactions
group of membranes and organelles in eukaryotic cells working together → modify, package, transport lipids and proteins
bound ribosomes make proteins → proteins enter rough ER → packaged into phospholipid-based secretory vesicles → vesicles transport the proteins to Golgi apparatus → modifying porteins → packaged into lipid based vesicle → cell membrane
→ proteins excreted from the cell and vesicle’s phospholipid becomes part of cell membrane
vesicle buds from smooth/rough ER
vesicle fuses with Golgi apparatus, dumping contents inside
Golgi modifies molecules (as they move through successive chambers)
Modified molcules bud off from Golgi (as transport vesicle)
vesicle fuses with the plasma membrane → dumping contents outside for delivery
Smooth Endoplasmic Reticulum (Smooth ER)
helps with the synthesis of lipids, phospholipids, and steroids
helps with carbohydrate breakdown
aids the detoxification of the blood (liver cells are loaded with SER)
storage of Ca++ needed for muscle conteaction (muscle cells have lots of SER)
Rough Endoplasmic Reticulum (Rough ER)
helps with protein synthesis, modification, and transport
ribosomes are bound to the outside of the organelle and deposit the newly constructed proteins into the Rough ER
proteins are folded into 3-D structure needed to function inside the structure
functions to compartmentalize the cell → scpecialization and division of labor
sereies of flattened membrane sacs
modifies proteins by attaching sugars to them → Glycoproteins → determine proteins’ function and final destination
→ glycosylation
warehouse for storage of proteins → packages proteins and ships them out in vesicles
near the cell membrane
conatin hydrolyic enzymes + acids
process of intracellular digestion → breakdown materials within a cell → be recycled for other purposes
destruction of old cells that are undergoing apoptosis (programmed cell death)
“Power House”
perform aerobic cellular respiration
energy from food → bonds of ADP and P → ATP
has its own DNA, bacteria-like ribosomes, and enzymes → even reproduce independently via membrane
outer phospholipid bilayer is smooth
inner layer are folded into cristae → increase surface area and serve as sites for the electron transport chian
2 membranes provide compartments where specific metabolic reactions can take place
descended from aerobic bacteria that entered into a symbiotic relationship with a larger prokaryote cells
survive and reproduce and eventually led to the evolution of Eukaryotic cells.
sites of Photosynthesis in plants and algae
type of Plastid or pigment container
own DNA, ribosomes, and enzymes.
Reproduce indepently via binary fission
Structure:
thylakoid: stacks of sack-like structures
grana: stacks of thylakoid
→ increase the surface area needed to carry out light-dependent stages of photosynthesis
pigments and electron transport proteins required for the light dependent stage of photosynthesis are embedded within the membranes of the thylakoids.
stroma: mostly watery space between thylakoids and outer membrane; site of the Calvin Cycle (metabolic pathway producing sugar)
Evolutionary Significance
may evolve from blue-green bacteria (cyanobacteria) that entered into a symbiotic relationship
protection in return for sugar production
support and protect cell
keep inner organelles organized
make up structures such as flagella and cilia →aid in cell motility or cell organelle movement
composed of various sized protein fibers known as microtubules, microfilaments, or intermediate filaments
Microtubules | Microfilaments | Intermediate filaments |
tulbin molecules, alpha tubulin and beta tubulin | strands of actin | different proteins of keratin family |
|
|
|
provide structural boundary, permeability barrier for some substances
Plant cells: composed of cellulose → support and protection, prevent from bursting
Fungus: composed of chitin → similar to plant cell
Extracellulat Matrix (ECM):
molecules are secreted into the space out the cell's membrane → form cell walls, bone, cartilage,…
provide support, to segregate different tissues from one another and regulate intercellular communication
growth and homeostasis are maintained by the constant movement of molecules across the membranes
- doesn’t require cell to use its own metabolic energy
- powered by energy (heat) from the environment
operate upon established concentration gradient or difference in concentration
flow from high → low concentration until equilibrium
non-polar and small particles (CO2 and O2)
used mostly by cells to save energy
high → to low water concentration
low → high solute concentration
tonicity: ability of an extracellular solution making water move into or out of cell
osmolarity: total concentration of all solutes in the solution
low osmolarity: fewer solute particles
hypotonic: low solute concentration
hypertonic: high soluter concentration
isonic: equal
most H2O movement occurs through proteins aquaporins
=> control internal solution composition/ water potential; main functions of the urinary system
turgid: lots of water in a cell, rigid and stiff
flaccid: not very much water in cell, limp and wilted
Plasmolysis: shrivels away from cell wall (placed in hypertonic solution)
high to low water potential
total water potential of pure water in an open container is 0
ionization constant: number of ions formed when dissolved (ions only, no covalent)
higher solute potential → lower water potential
higher pressure potential → higher water potential
transport materials from high to low concentration
requires channel or transport proteins because those are either polar/ionic/large.
aquaporins: move water
Gated-ion channels: move Na+ and K+ ions
requires metabolic energy by the cell provided by ATP Hydrolysis
moves materials against the concentration gradient
of the nervous system: has an ATPase enxyme assosiated with it → enzyme catalyzes hydrolysis of ATP → provide energy needed for transport
=> Movement of ions can cause the membranes of certain cells (neurons) to become polarized (1 positive side and 1 negative side)
Energy from ATP by Phosphorylation (attaching a phosphate ion to a structure to activate it) activate the protein to grab and move molecules
most important active transport
involved in the electron transport chain of photosynthesis and cellular respiration
H+ move out of cell to create a gradient (outside is +, inside is -)
diffusion now occur based on charges into and out of cell → gradient sereves as source of energy for producing ATP
2 substances are simultaneously transported across a membrane by one protein, or ptrotein which not have ATPase activity
1 of the substances moves with the gradient → provides energy to transport other substances against the gradient
symport: both substances are transported same way
absorption of glucose by epithelial cells in gut
glucose is co-transported with Na+ ions
Concentration of Na+ions is higher outside the cells than inside → Na+/K+ pump maintain the sodium concentration: primary active transport
Na+ moves into cells down its concentration gradient → energy powers secondary active transport of glucose into cells (against gradient)
antiport: substances are transported in opposite directions
movement of too big molecules for protein
require expend metabolic energy
into cell
Phagocytosis
large, solid particles
surrounding of the particles with the cell membrane → engulfing of the particles → surrounding the particles with a vesicle
E.g: white blood cell taking in a bacterial cell
usually followed by the process of intracellular digestion
Pinocytosis
small particles suspended in extracellular fluid brought into cell
through an invagination of the cell membrane → suspension of the particles within a small vesicle
then fuse with lysosomes to break down the particles
Receptor mediated endocytosis
specific molecules are transported into the cell
a receptor-ligand interaction
ligan is a substances being transported into cell
ligand binds to a receptor → triggers an endocytotic process and the ligand is ingested
