Data Storage Design

Summary of Digital Data Notes

1. Digital Data

  • Defining Data: Data refers to known facts, whether digital or non-digital. Digital data is represented in binary (0s and 1s) and must be created, recorded, and consumed predictably for business or other benefits.

  • Data Life Cycle:

    • Phases: Collect, Prepare, Analyse, Share, Re-use.

    • Data gains value as it progresses through these phases, transforming from raw to refined.

    • Example activities:

      • Collect: Surveys, sensors.

      • Prepare: Cleaning, transforming.

      • Analyse: Statistical modeling, visualization.

      • Share: Reports, dashboards.

      • Re-use: Archiving, repurposing.

  • Alternative Life Cycles: Examples from DDI Alliance and DataONE show variations in data life cycle models.

2. Files

  • Physical Storage: Digital data is stored on mediums like magnetic tapes, optical discs, or hard disks, using binary encoding.

  • Encoding: Rules (e.g., ASCII, UTF-8) define how binary sequences represent meaningful data (text, images, etc.).

  • Text vs. Binary Files:

    • Text Files: Human-readable (e.g., .txt, .csv).

    • Binary Files: Machine-readable (e.g., .jpg, .mp4).

  • File Formats: Extensions (e.g., .pdf, .json) indicate the encoding scheme. Tools like file or TrID can detect formats regardless of extensions.

  • File Integrity: SHA-1 hashes verify if files are bit-for-bit identical.

3. Data Types (Domains)

  • Common data types include:

    • Numeric: Integers, decimals.

    • Text: Strings.

    • Binary: Files, BLOBs.

    • Specialized: Dates, geographic coordinates, JSON.

  • Using inappropriate data types can reduce data usefulness.

4. Structured Data

  • Structured Data: Fits a tabular model (e.g., spreadsheets, databases).

  • Unstructured Data: No predefined model (e.g., images, social media posts).

  • Semi-Structured Data: Uses tags/markings (e.g., JSON, XML).

  • Plain Text Files: Simple but lack enforced structure.

  • Formats for Semi-Structured Data:

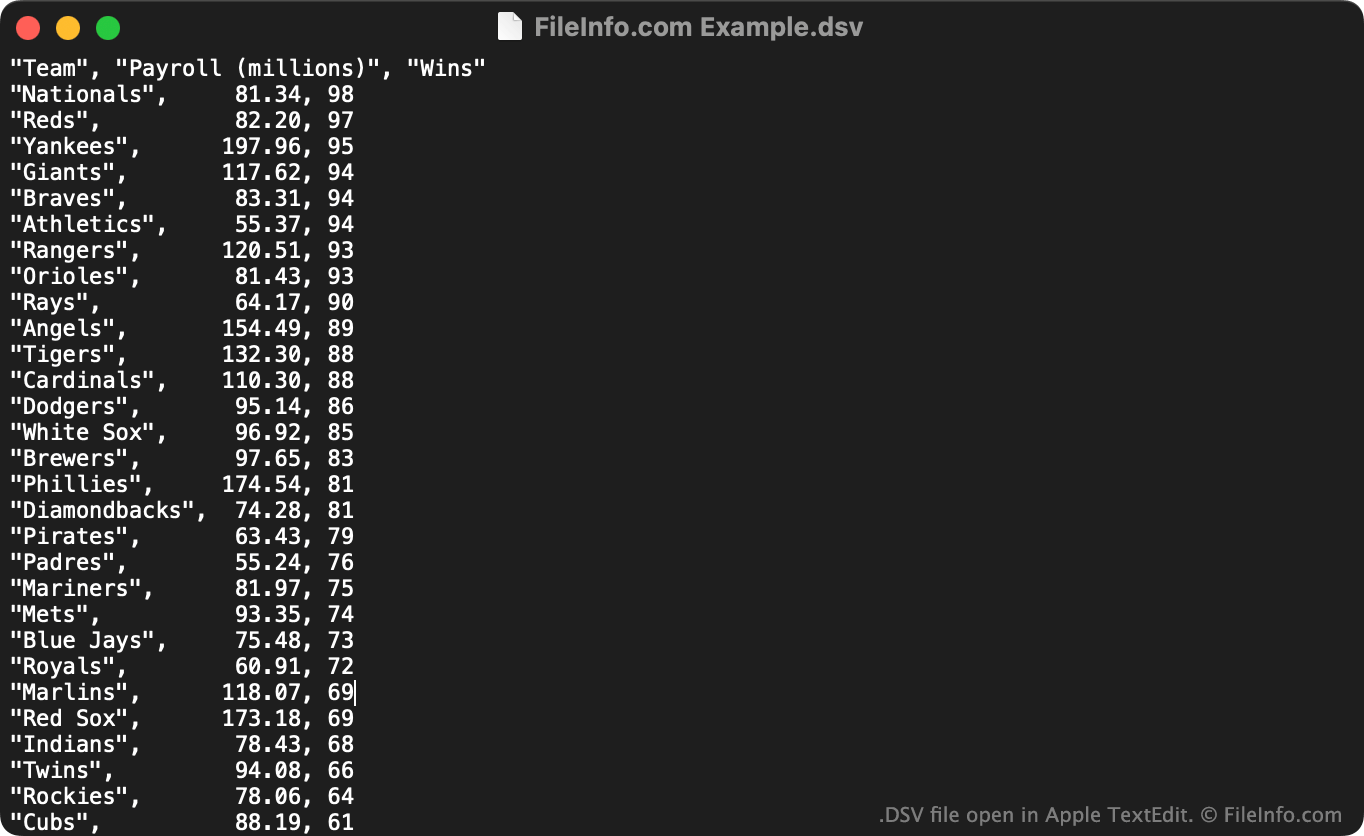

    • DSV (CSV/TSV): Delimiter-separated values for tabular data.

    • JSON: Hierarchical "object" data.

    • XML: Tree-like document data with tags/attributes.

5. Databases

  • Definition: Systems to store and retrieve structured data efficiently.

  • DBMS: Software managing databases (e.g., SQL Server, MongoDB).

  • Relational Model: Organizes data into tables (relations) with rows (tuples) and columns (attributes).

  • Spreadsheets vs. Databases:

    • Spreadsheets lack relationships and scalability.

    • Databases enforce structure, integrity, and support complex queries.

6. Relational Data and RDBMS

  • AdventureWorks Lite (AWLT): A sample relational database for learning.

  • Key Concepts:

    • Tables: Store data about one entity (e.g., Customers, Orders).

    • Primary Keys: Uniquely identify rows.

    • Relationships: Links between tables (e.g., Orders → Customers).

  • Queries: Extract meaningful insights from relational data (e.g., "Which customer placed the most expensive order?").

7. SQL Server

  • Purpose: Industry-standard RDBMS for multi-user environments.

  • Client-Server Architecture: Separates data storage (server) from user interactions (client).

  • Versions: Range from Express (lightweight) to Enterprise (large-scale).

8. Data Ethics

  • Key Considerations:

    • Ownership: Who controls data?

    • Privacy: How is data collected/stored?

    • Bias: Do algorithms discriminate?

    • Consent: Are data subjects informed?

  • Examples:

    • Target’s pregnancy prediction.

    • Discriminatory Google search results.

    • Robodebt scheme controversies.

Key Takeaways:

  • Digital data is foundational for modern analysis, requiring structured storage and ethical handling.

  • Files and databases enable efficient data management, with relational models being central to complex systems.

  • Tools like SQL Server and formats like JSON/XML facilitate data processing, while ethics guide responsible use.
